Installing overhead aux switches after sales?

Southern Girl

Outer Banks
Well-Known Member
Joined
Feb 9, 2020
Messages
2,439
Reaction score
5,896
Location
Florida
Vehicle(s)
1974 Bronco/2013 F-150 4x4/2021 Outer Banks Bronco
Bronco
Outer Banks
Vehicle Showcase
1
Clubs

On your base Bronco did you see the wires in the engine area. On my outer banks I am seeing all the wiring through the truck I just need to verify where you did? Was the top piece easy to pop down I need to verify mine since I see wiring.
Please update if you check out the outer banks wiring! Also, how do you keep your Bronco so clean and spiffy? I wash mine and the next day it is filthy, but I do live offroad.
Advertisement



flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,118
Reaction score
4,528
Location
IN
Vehicle(s)
Fords
Bronco
Badlands
Clubs

After pulling the overhead trim I’m my base bronco, there are no wires or connectors ready for aux switches for direct plug and play. Save yourself $400+ to install after the fact.
Shoot me your VIN, wanna check parts cat to see if your harness is different from mine that has switches.


flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,118
Reaction score
4,528
Location
IN
Vehicle(s)
Fords
Bronco
Badlands
Clubs

M2DZ-14335-C OVERHEAD CONSOLE W/DOME LAMPS/SWTCH, SUN VIS-DRV MIRROR INSERT/ILLUM, SUNVIS-PASS MIRROR INSERT/ILLUM, WITH ELECTROCHROMIC R/VIEW MIRROR, LESS EMERGENCY ASSISTANCE, EMERGENCY ASSISTANCE

This is BL with AUX.


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,300
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

On your base Bronco did you see the wires in the engine area. On my outer banks I am seeing all the wiring through the truck I just need to verify where you did? Was the top piece easy to pop down I need to verify mine since I see wiring.
I also have the wiring in the engine bay, driver side. That is what made me want to pull the upper trip to find a plug and play connection to the up fitter switches before spending over $400, just to return them later.

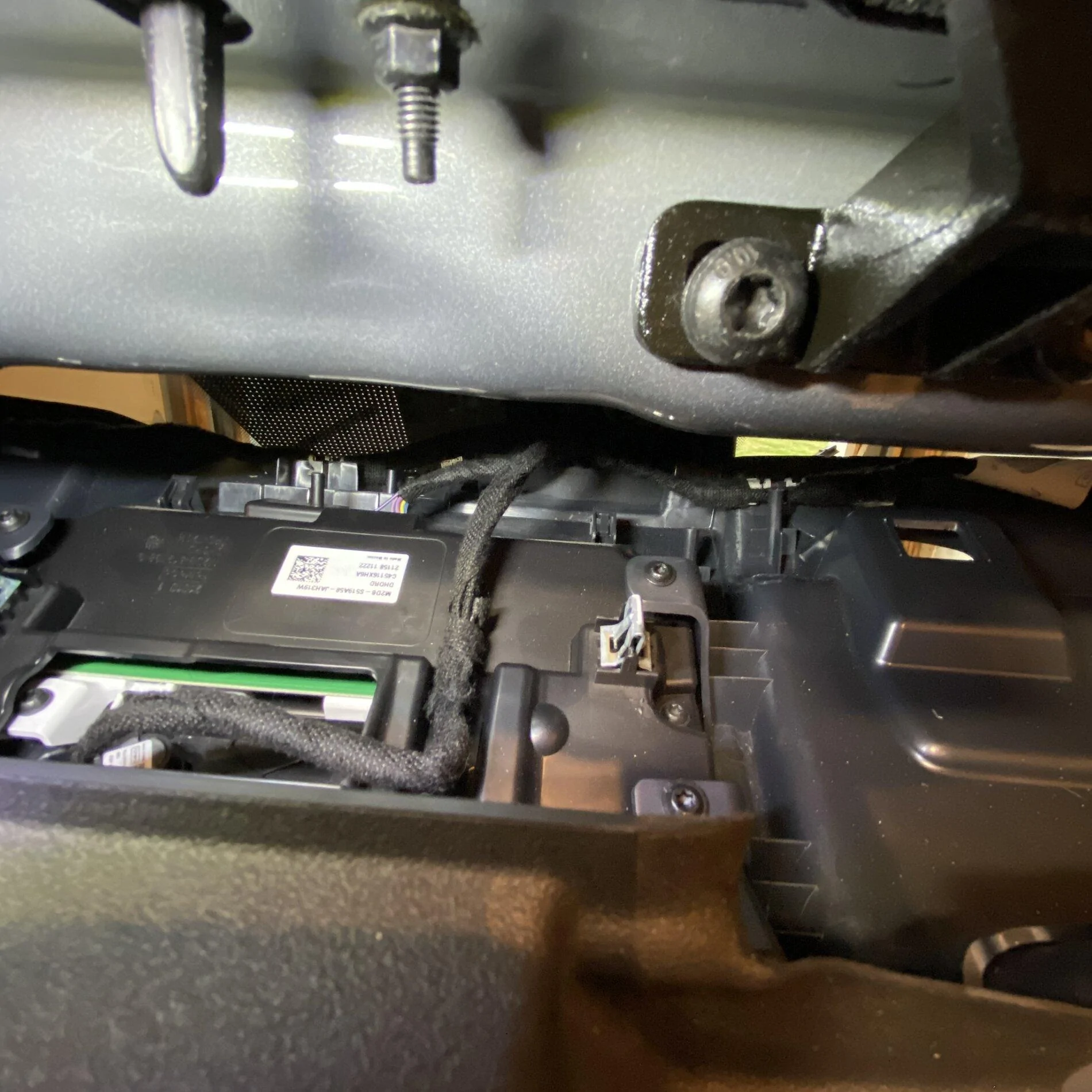

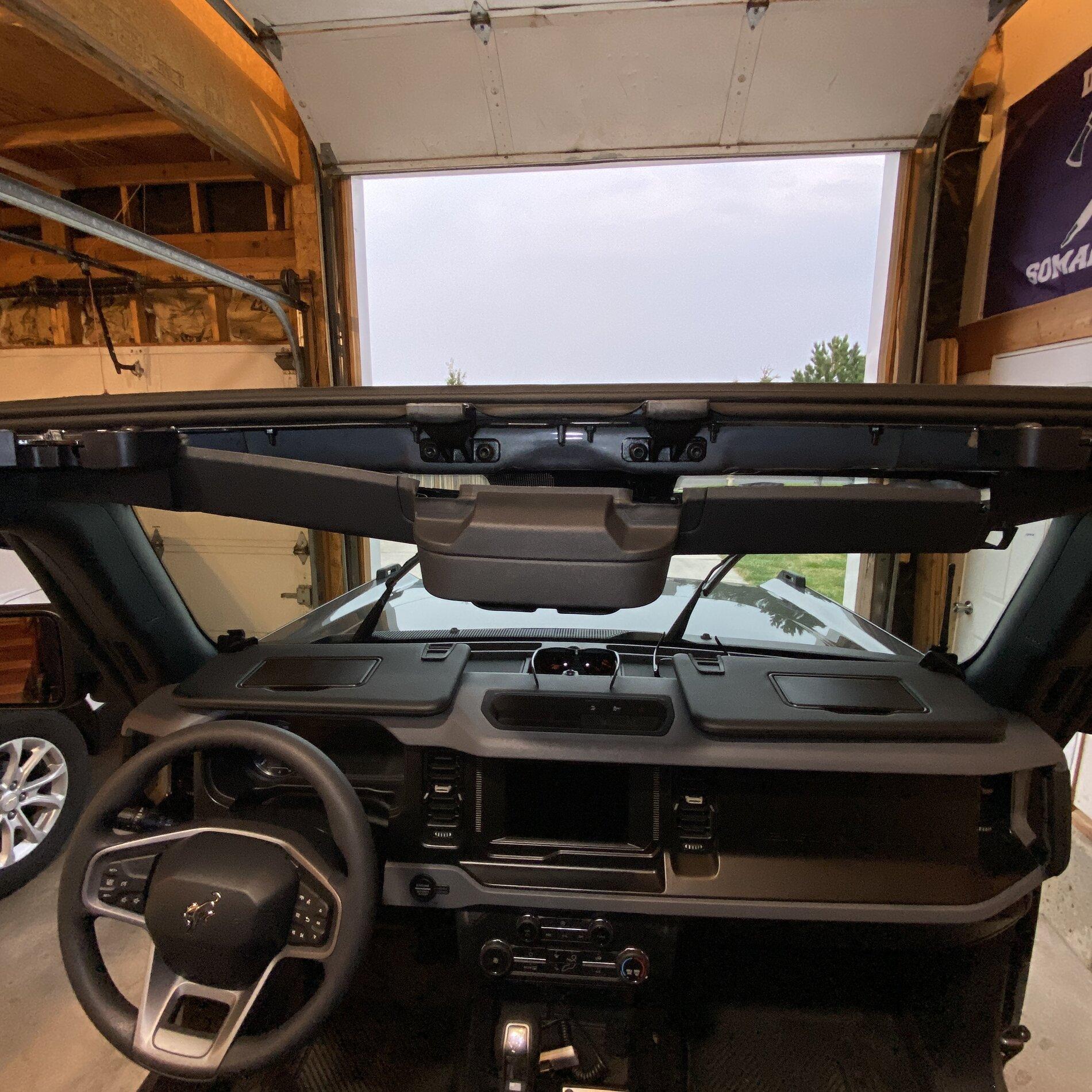

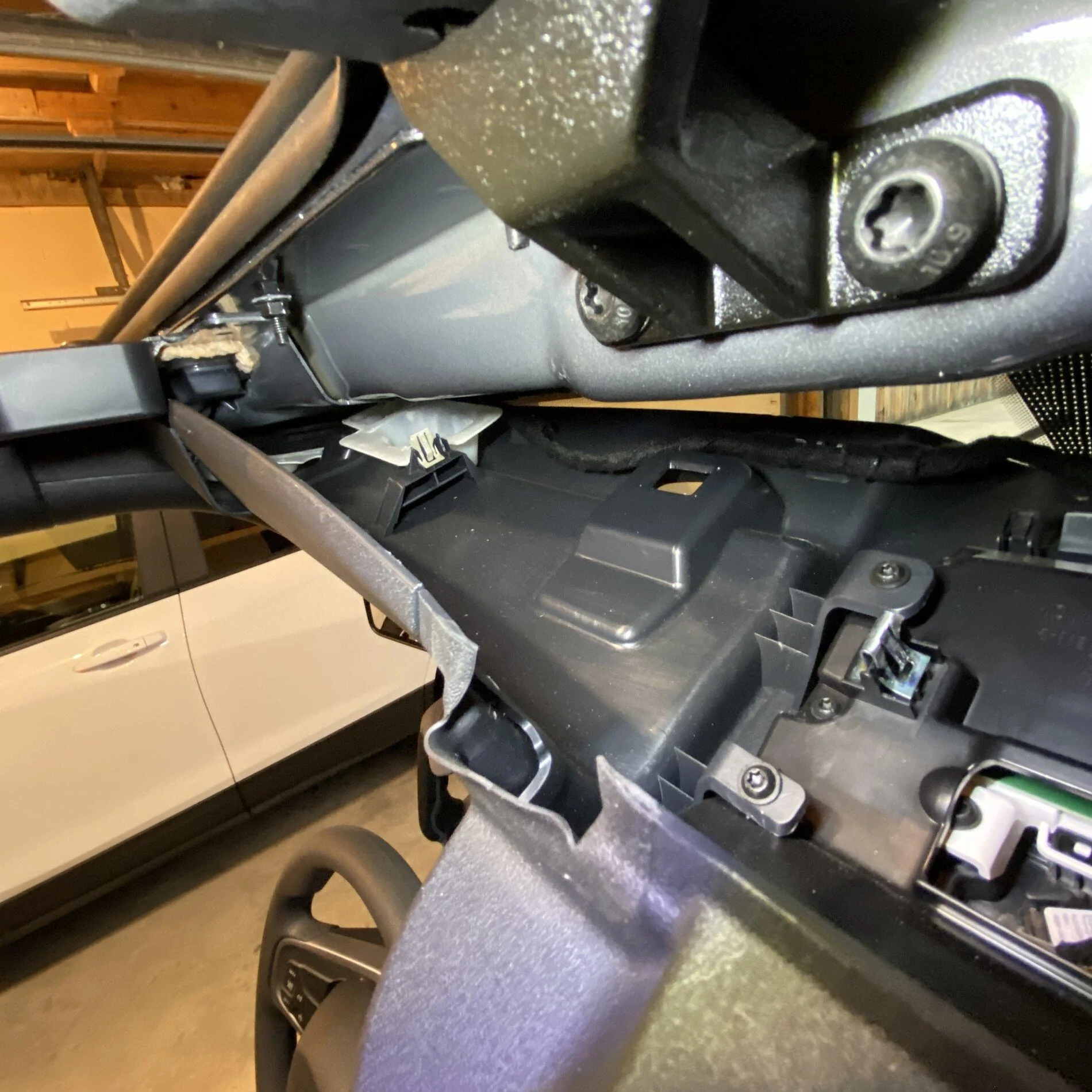

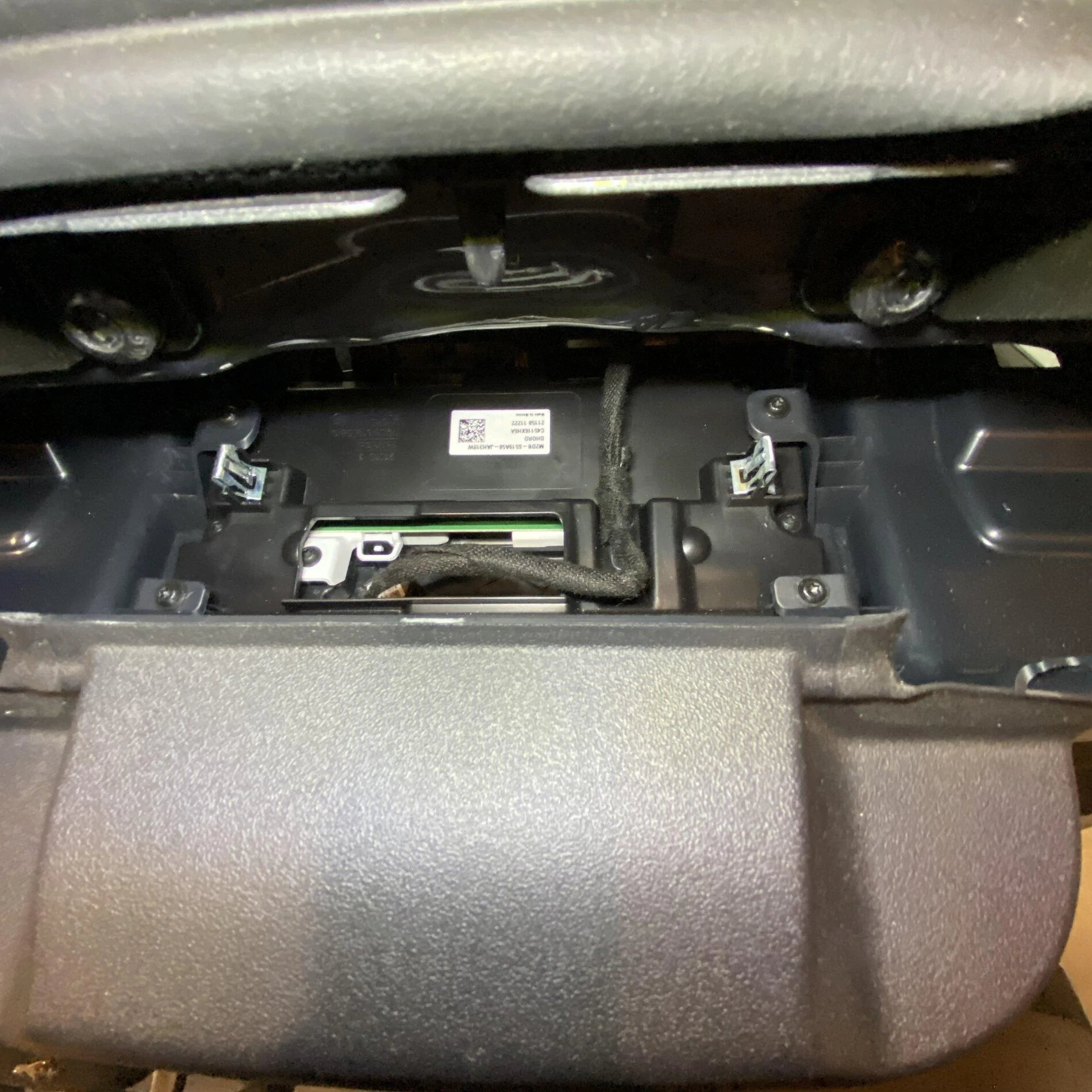

To pull the top trim, you have to pull the sun visors (2 screws each visor) then carefully pull down on the center of the upper trim. the outside separate trim parts are connected to the A pillar air bag cover, so don't yank on those. reverse process to re-install.
