Installing overhead aux switches after sales?

NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

Did you end up giving this a shot? Been quietly watching this thread as I have a Big Bend and am in the same situation...
I am also curious to see if the base gets the shaft and the next trim level has it.
Advertisement



NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

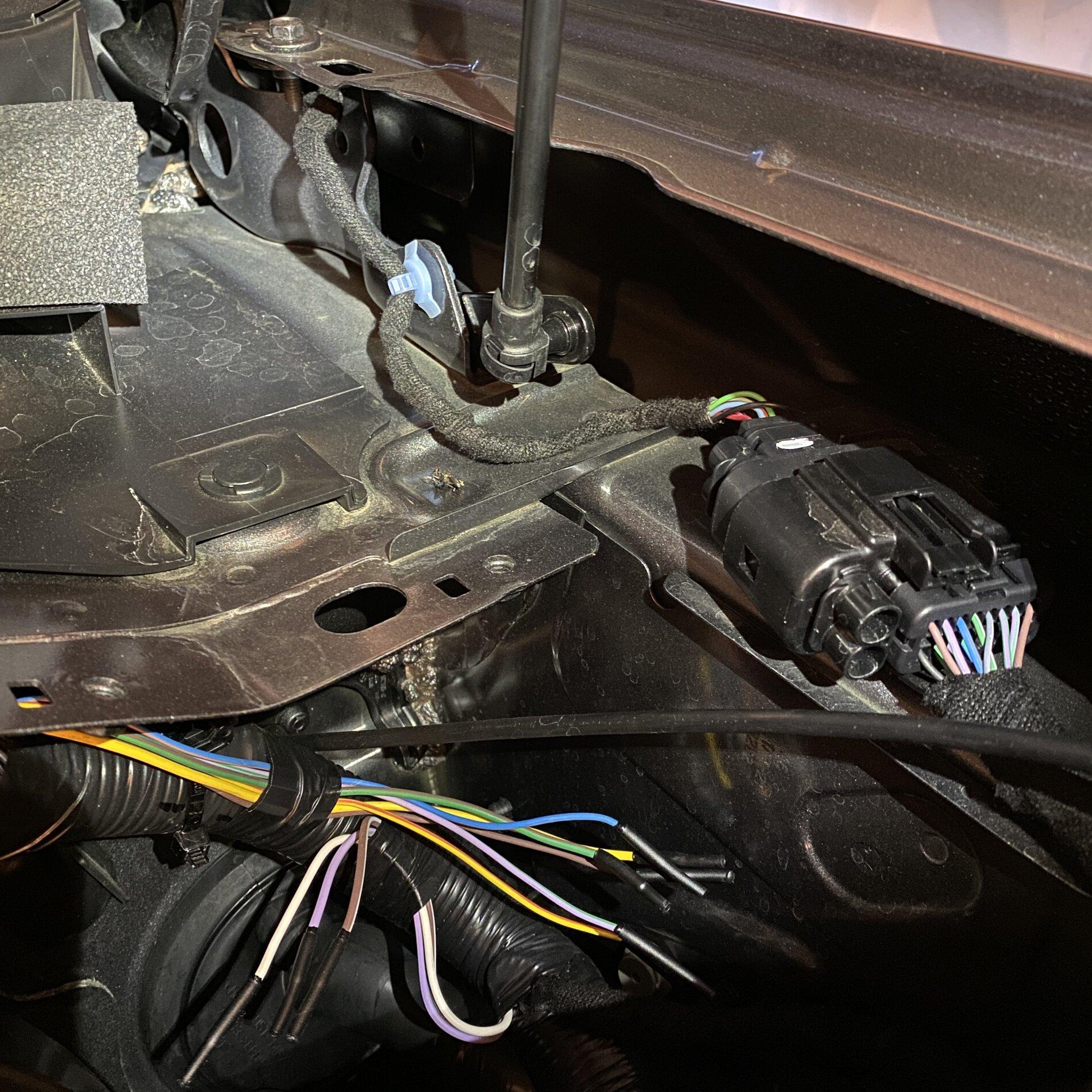

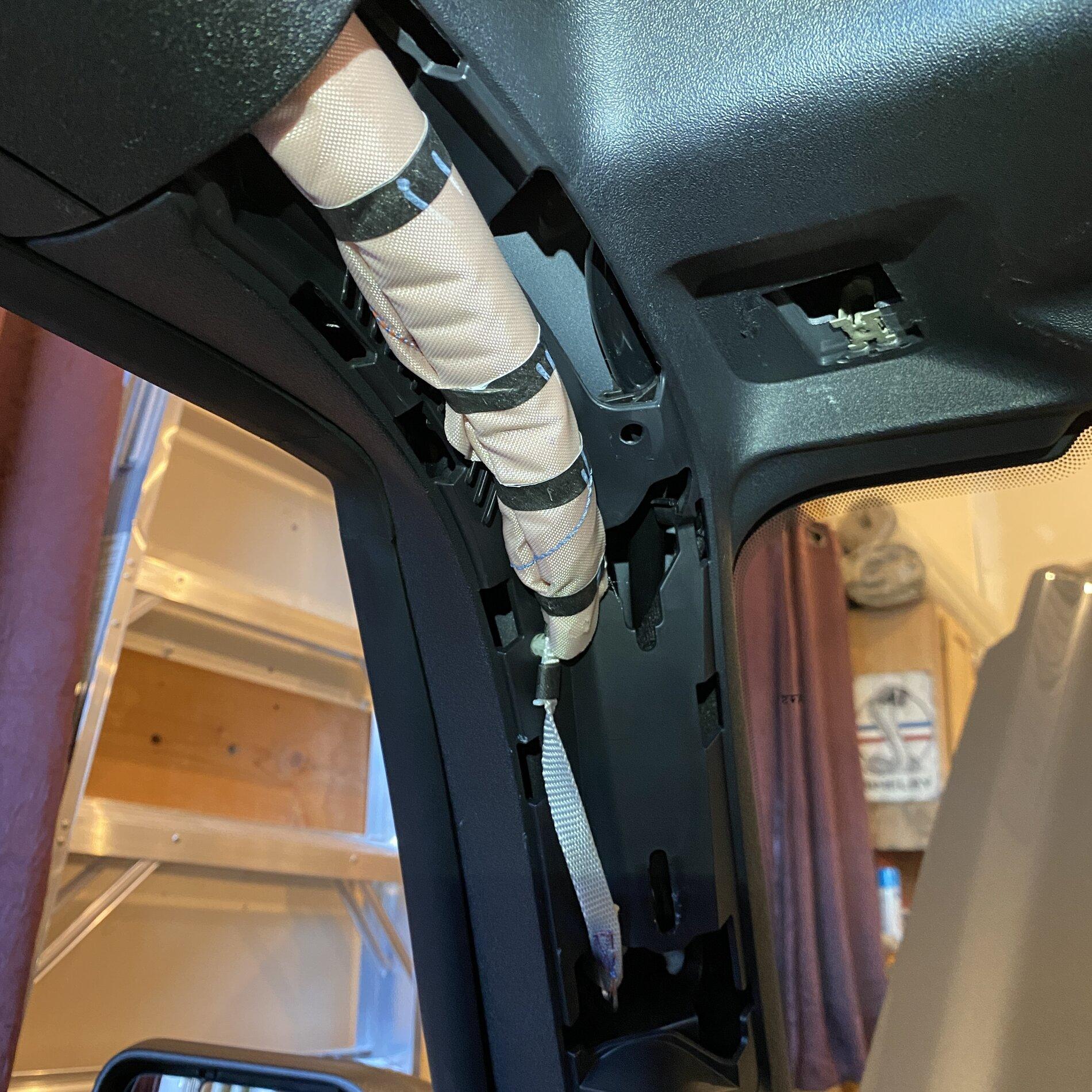

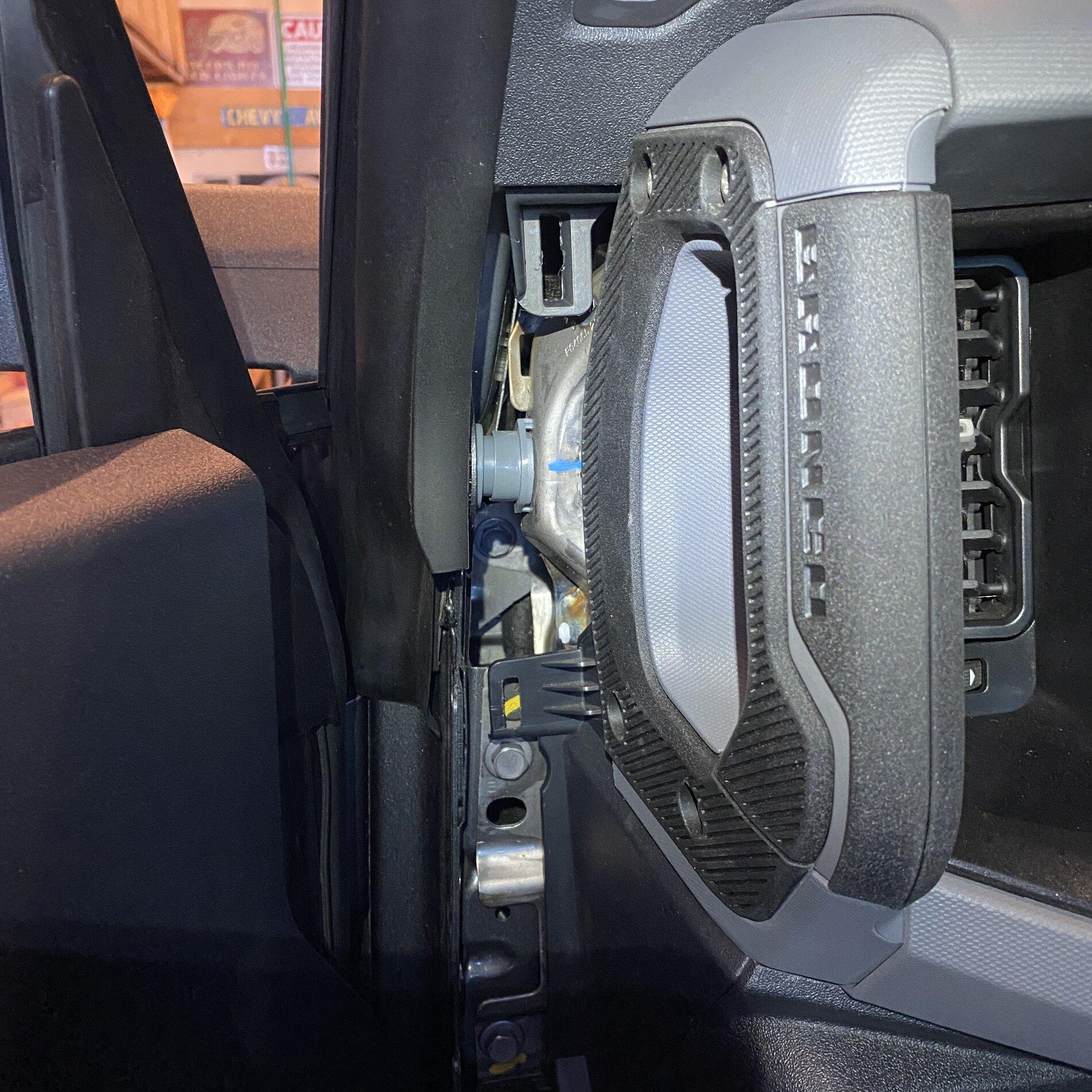

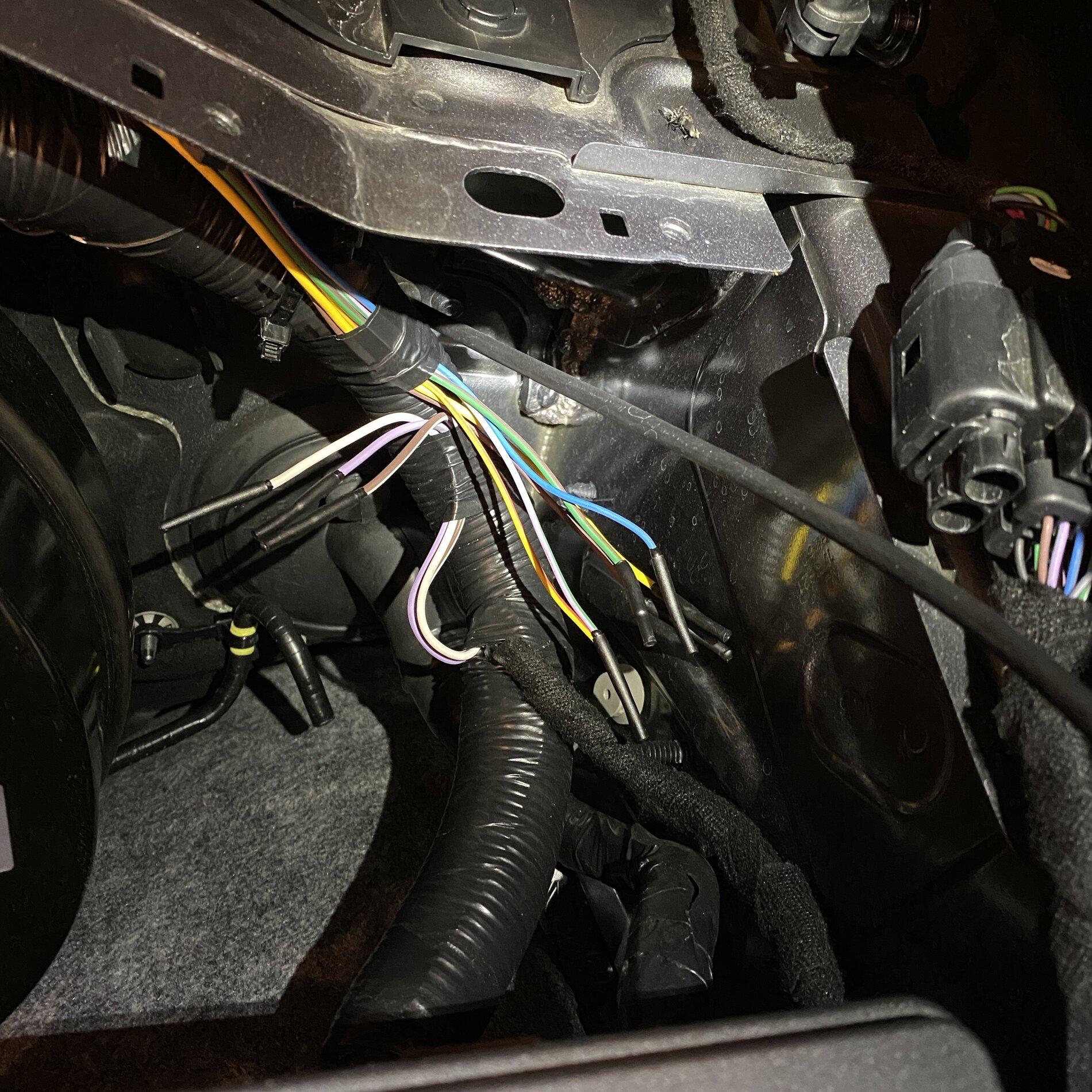

Went fishing in my A pillar for to see if I could find a plug or unterminated wires for upfitter switches. I did not have any luck. But I do have the unterminated wires at the specified locations on the vehicle for upfitter connections. I hope to see if others may have the plug and play option. As for me I will be hiding switches on the bottom of my steering column with 3m tape.




swooshdave

Badlands
Well-Known Member
Joined
Dec 15, 2020
Messages
1,259
Reaction score
2,768
Location
Portland, Oregon
Vehicle(s)
Mustang
Bronco
Badlands
Vehicle Showcase
1
So were the wires behind the glove box there? Or at any of the endpoints? It could be that the engine bay harness is universal but the not the harness going to the back.


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

So were the wires behind the glove box there? Or at any of the endpoints? It could be that the engine bay harness is universal but the not the harness going to the back.
did not have great vantage point for pictures of the other wires, but yes glove box wire and rear wires are there as well as the grill wire.


PonyHunter

Base
Member
First Name
Chris
Joined
Mar 14, 2021
Messages
23
Reaction score
129
Location
Detroit
Vehicle(s)
Honda
Bronco
Base
So it sounds like it could be possible to order the Aux switches separate and run wiring to connect everything but it would be a lot of work? Sorry trying to understand what’s been posted.

Unfortunately my dealer forgot to add the switches to my order so I am trying to determine a solution.


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

So it sounds like it could be possible to order the Aux switches separate and run wiring to connect everything but it would be a lot of work? Sorry trying to understand what’s been posted.

Unfortunately my dealer forgot to add the switches to my order so I am trying to determine a solution.
Yes it will be a lot of work. Finding the correct wires, somewhere within the loom and then terminating them with the AUX pigtail, correctly, then buying the switches and the correct trim piece is well over $400. Time to complete it correctly could take well more than that in labor. Its up to you if that's worth it.

This Switch Block may be my best bet, could be yours too.

Last edited:

Tech Tim

Base
Well-Known Member
First Name
Tim
Joined
Feb 19, 2021
Messages
155
Reaction score
239
Location
Wet Side of WA
Vehicle(s)
Jeep JKU
Bronco
Base

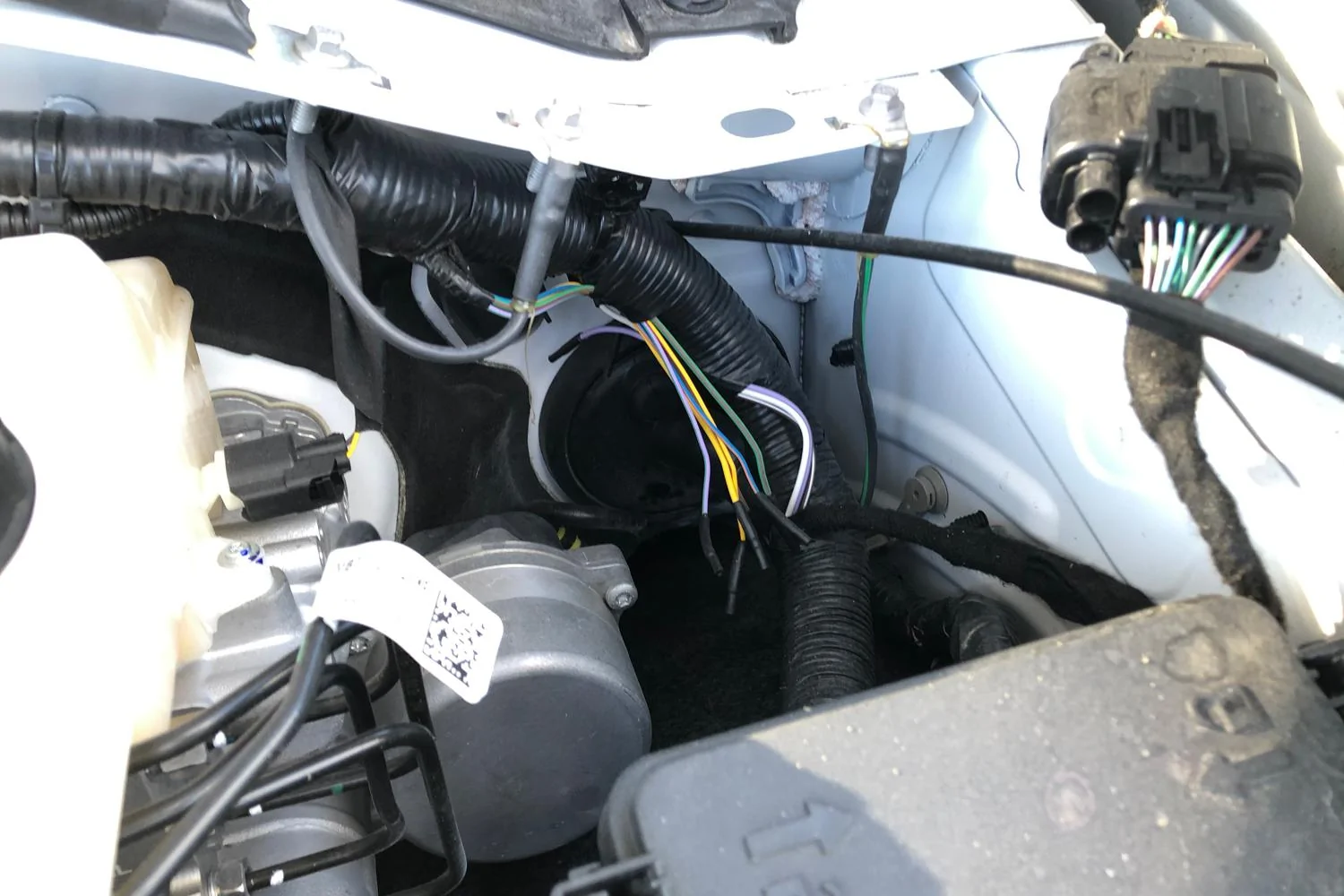

Here's a shot our Base non-Squatch that doesn't have the Aux. Switches but it does have wires in the engine bay.



NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

Here's a shot our Base non-Squatch that doesn't have the Aux. Switches but it does have wires in the engine bay.

I think they all have the engine bay and key location unterminated wires. It’s the plug and play capability in the cab that it lacking on non equipped aux packages


LowerSlowerDelaware

Base
Well-Known Member
First Name
Lee
Joined
Oct 22, 2020
Messages
256
Reaction score
918
Location
19958
Vehicle(s)
Subaru Outback, Chevy S10 Ram 3500
Bronco
Base
Clubs

Has anybody done a stare and compare of a Base with the Overhead Aux Switches? Trace the wires to/from the fuse panel?


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

Got that 6 Gang switch kit from amazon. Real easy to mount in the cab, I utilized the Ford Bronco plate screws to mount the supplied mounting bracket under the plate. Seems like much of this truck is accessory ready! Lights will go on soon, they are on back order.



NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,301
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

@NewBroncoOwner where did you mount the fuse block?
Right behind the Bronco Fuse box on the driver side of engine bay. There is some structure pieces to place some self tapping screws through the mounting tabs on the Auxbeam fuse box.


flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,126
Reaction score
4,561
Location
IN
Vehicle(s)
Fords
Bronco
Badlands
Clubs

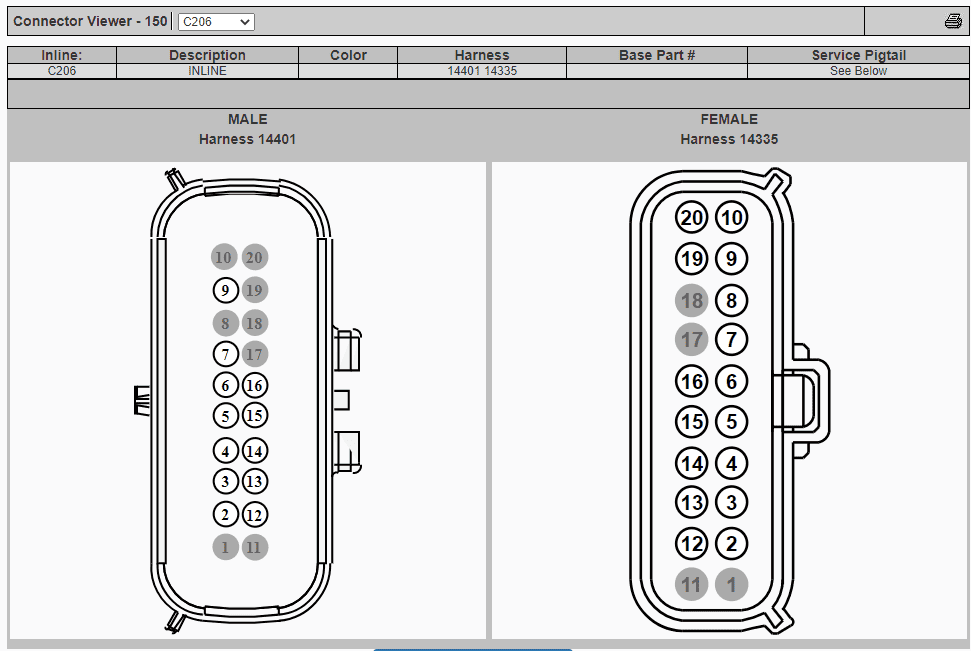

I think the connector going up is on the passenger side. C206




Connector Viewer - 150
C100AC100BC101C105C106C107C108C109C110C111C112C113C114C119C121C122C123C124C127C134C135C136C137C138C140C149C150C152C155C160C162C163C167C168AC168BC168CC171C175BC175EC177C181C182C183C184C192C197AC197BC200C201C203C205C206C207C209C210C212C216AC216BC217C218AC218BC218DC218EC218GC220AC220BC221C222C226AC226BC228AC228BC229C229AC229BC229CC233C236C240AC240BC240CC240DC248C256C258AC258BC259AC259BC266C278C285C286C289C296C297C300C301C302C305C310AC310BC318AC318CC319C322C322AC322BC322CC326C328BC328CC331C332C334C335C337C339C350C356C360C362C363C364C365C367C381C383C390C391C392C393C394C402AC402BC404C405C406C410C411C413C414C415C416C420C421C424C425C426C429C431C432C435C436C440C445C446C447C450C475C476C505C525C540C567C573C605C606C608C634C644C726C750C828C850C906C907C908C911C930AC930BC930CC930DC963C1016C1019C1021C1026C1033C1035AC1035BC1035CC1041C1047C1052C1062C1068C1073C1074C1077C1087C1100AC1100BC1100CC1100GC1100JC1101C1102C1104AC1104BC1104CC1107C1111C1112C1120C1137C1139C1140C1147C1148C1149C1151C1153C1160C1222C1271C1292C1293C1294AC1294BC1295AC1295BC1322C1323C1331C1365C1366C1367C1369C1370C1400C1401C1415C1416C1427C1428C1429C1430C1431C1445C1446C1450C1463AC1463BC1465C1466C1469C1513C1551BC1551EC1551TC1561C1562C1563C1564C1565C1566C1570C1582C1584C1615C1616C1617AC1617BC1617CC1617DC1617EC1617FC1617GC1621C1625C1627C1631C1632C1642C1643C1647C1648C1649C1655C1663C1674C1682C1689C1690C1702C1741C1748C1751C1766C1767C1792C1795C1836C1837C1840C1841C1842C1843C1844C1845C1846C1847C1848C1854C1895C1896C1901C1902C1903C1904C1905C1906C1915C1991C1992C1993C1994C1995C1996C2010C2010AC2010BC2010CC2039C2040C2091C2092C2122C2195C2235C2253C2254AC2254BC2280AC2280BC2280CC2280DC2280EC2280FC2280GC2280HC2354C2355C2356C2357C2363C2364C2370C2371C2383AC2383BC2383CC2383DC2383EC2383FC2383GC2385AC2385BC2385CC2405C2406AC2406BC2407AC2407BC2420C2421C2431AC2431CCC2431CDC2431CEC2436C2437C2438C2439C2490C2491C2494AC2494BC2494CC2515AC2515BC2515CC2515DC2564C2565C2608C2809C3006C3007C3051C3059C3075C3106C3159C3187C3189C3200C3201C3209C3210C3211C3212C3215C3216C3220C3240C3243C3245C3247C3318C3319C3323C3336C3336AC3336BC3336CC3338AC3338BC3388C3501C3502AC3502BC3522C3558C3559C3697C3698C3734C3825C4029C4046C4049C4099C4213C4223C4226AC4226BC4287C4320C4321C4330C4331C4336C4357C4359C4360C4369C4370C4397AC4397BC4397CC4452AC4452BC4452CC4478C4479C4544C4545C4546C4547C9018C9019C9026C9035C9064C9066C9224C9440AC9440BC9531​
Inline:DescriptionColorHarnessBase Part #Service Pigtail
C206INLINE14401 14335See Below
MALE
Harness
14401
FEMALE
Harness
14335


Check for Terminal Part Numbers

PinCircuitGaugeQualifier
1**
2CBP02 (GN)20
3CAC12 (GY-OG)14
4CMT18 (VT-OG)22
5RMT10 (VT-GN)22
6VMF05 (GY-BU)22
7VMF04 (BN-BU)22
8**
9CLN09 (YE-GN)22
10**
11**
12CMT10 (BU-BN)22
13VLN04 (VT-GY)22
14GD216 (BK-VT)20
15VDB25 (GN-OG)22
16VDB26 (GY-BU)22
17**
18**
19**
20**
PinCircuitGaugeQualifier
1**
2CBP02 (GN)20
3CAC12 (GY-OG)14
4CMT18 (VT-OG)22
5RMT10 (VT-GN)22
6VMF05 (GY-BU)22
7VMF04 (BN-BU)22
8CBBD9 (BN-WH)22
9CLN09 (YE-GN)22
10DMM13 (BK)22
11**
12CMT10 (BU-BN)22
13VLN04 (VT-GY)22
14GD216 (BK-VT)20
14GD216 (BK-VT)22
15VDB25 (GN-OG)22
16VDB26 (GY-BU)22
17**
18**
19RMM13 (BU)22
20VMM13 (YE-GN)22

You can buy the upper harness for one with aux.
