Installing overhead aux switches after sales?

NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,300
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

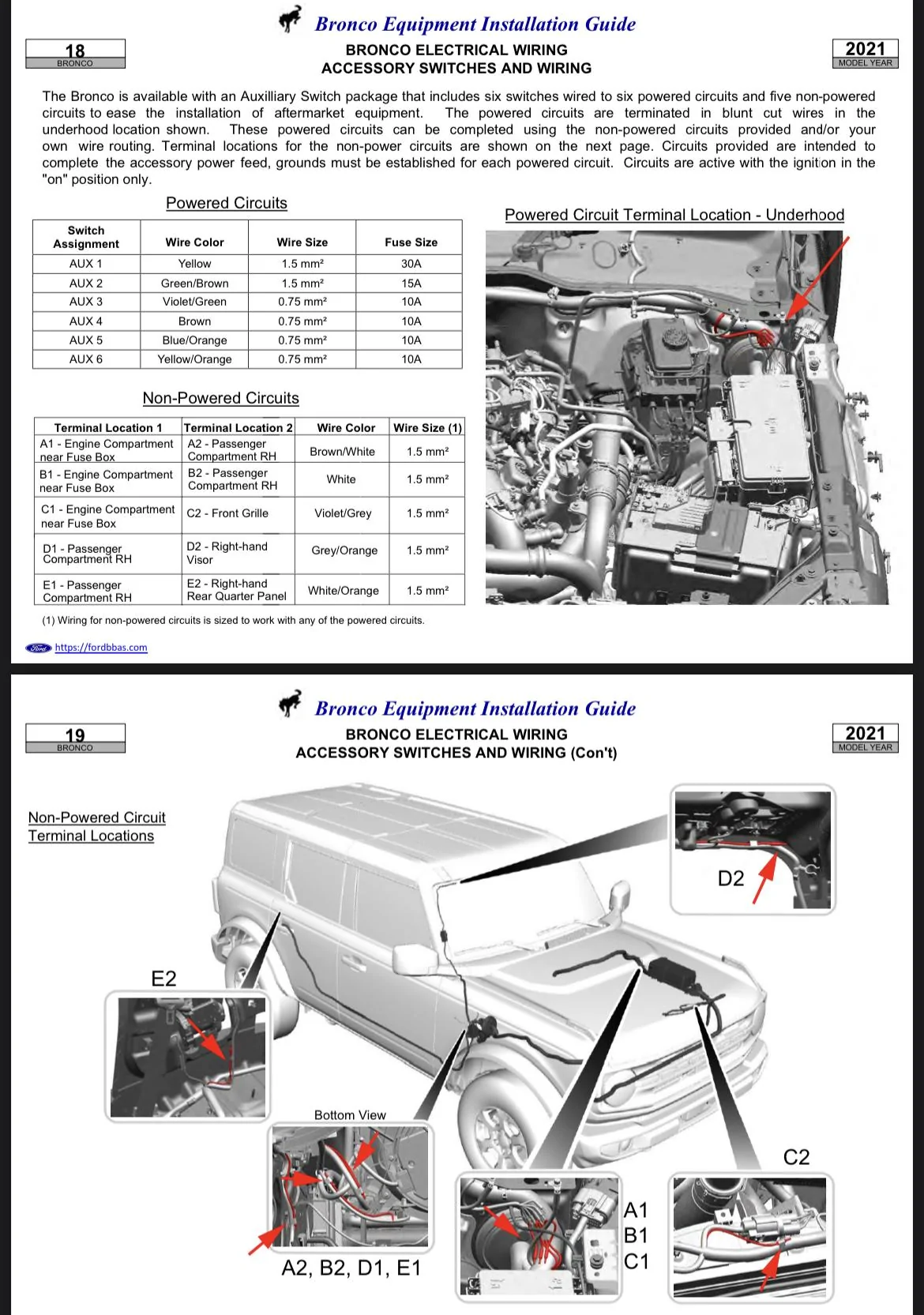

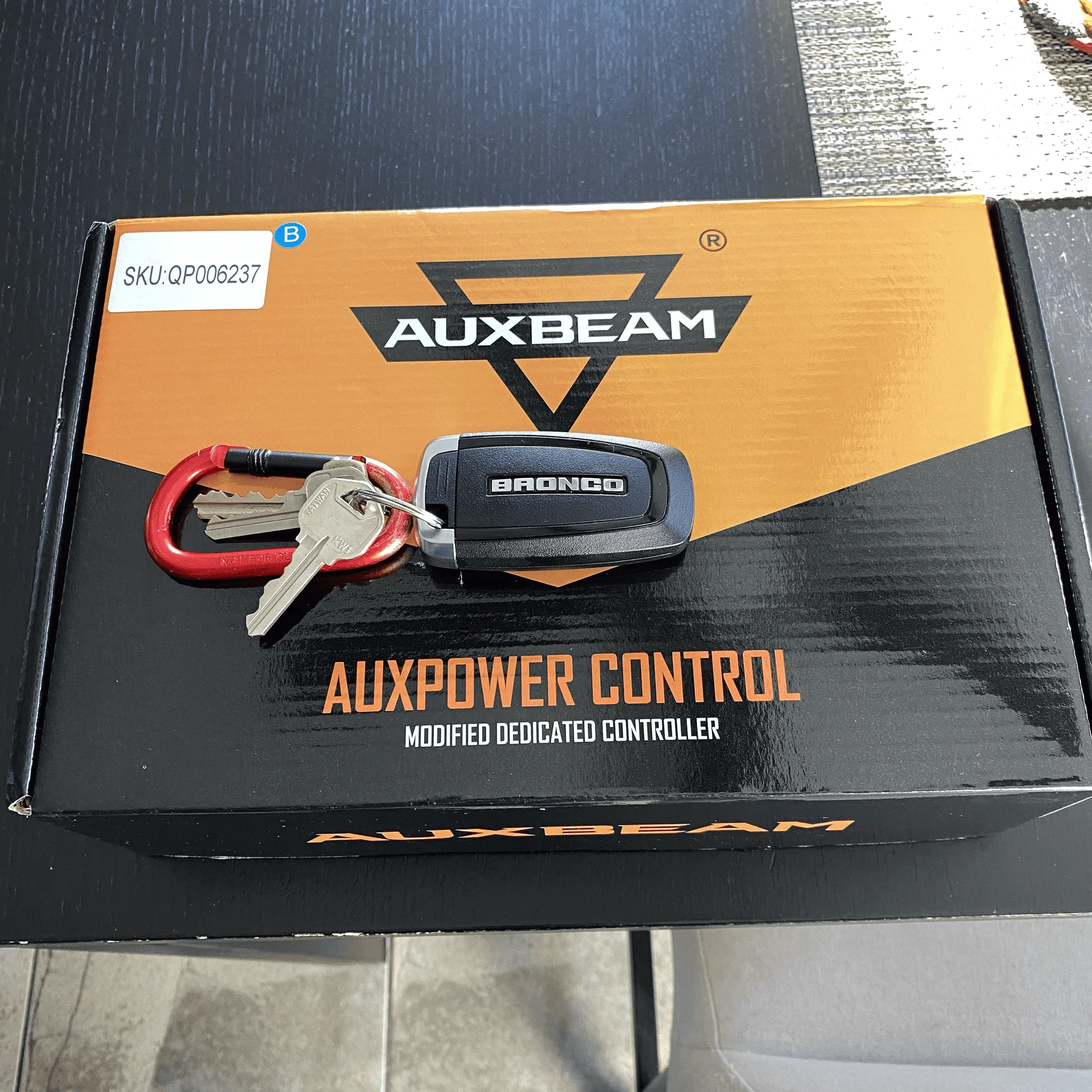

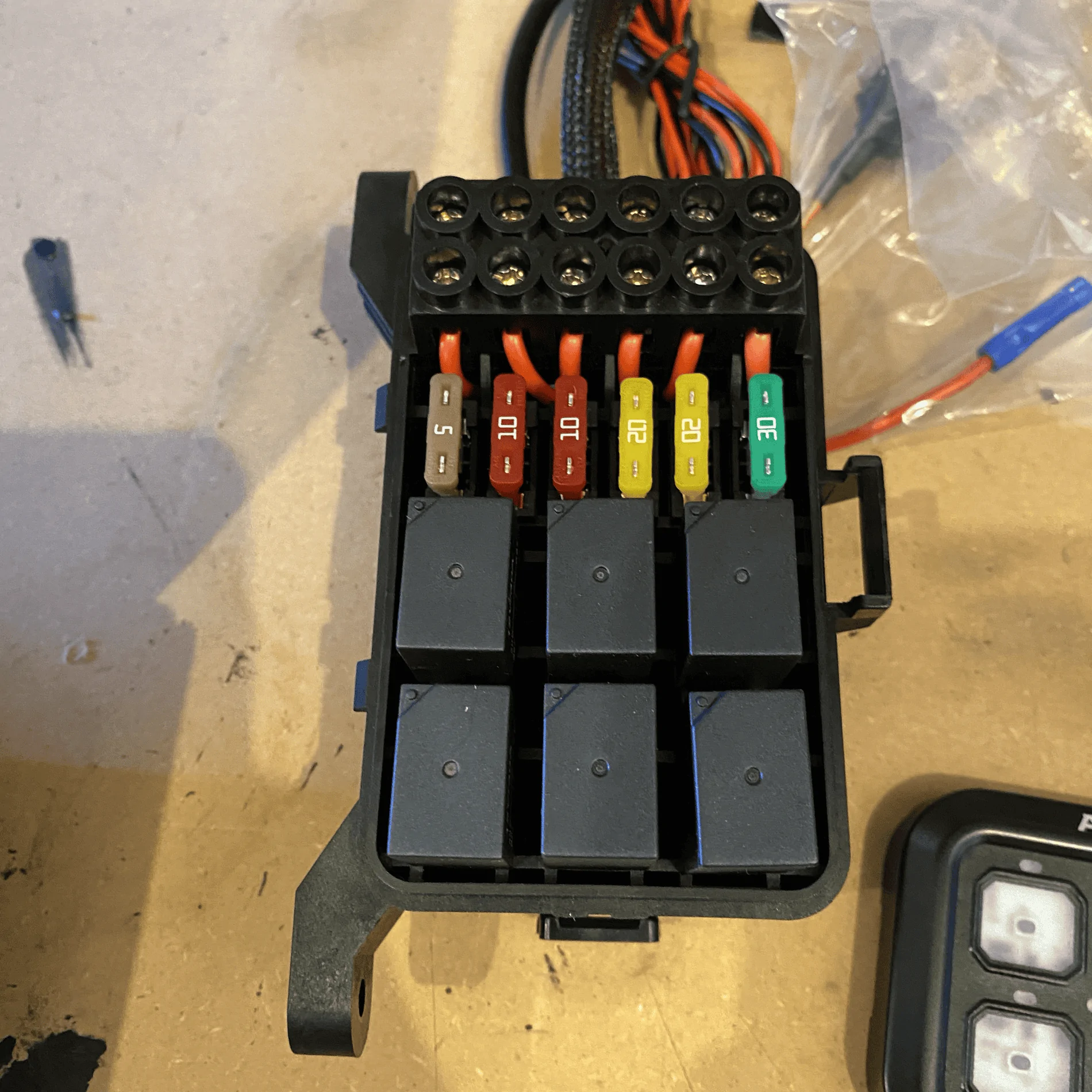

Well why in the heck is it over there? lol. The box i bought was $125, better than the $400+ for same capabilities. Also, I have come too far now lol
Advertisement



4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Messages
413
Reaction score
821
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Bronco
Outer Banks
Clubs

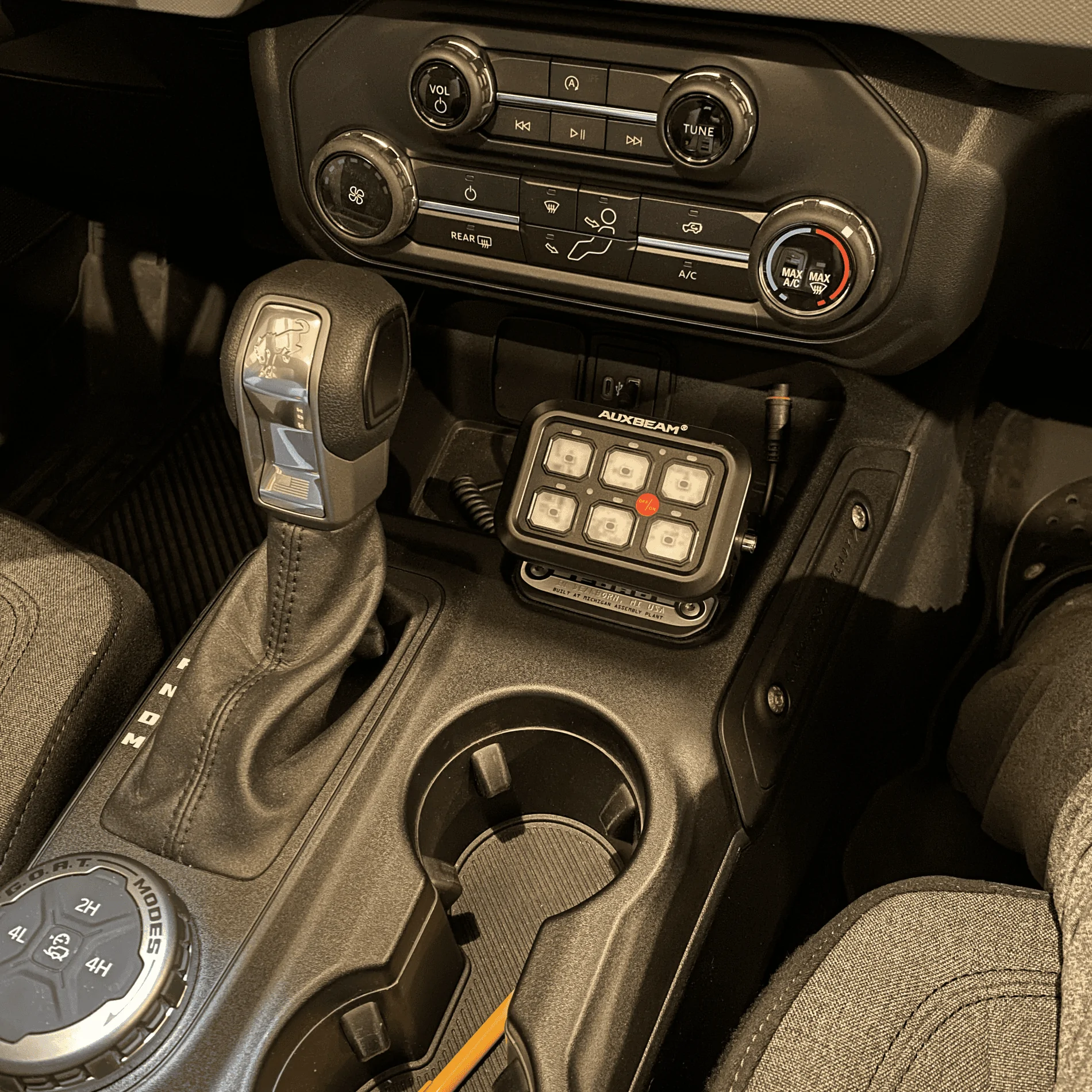

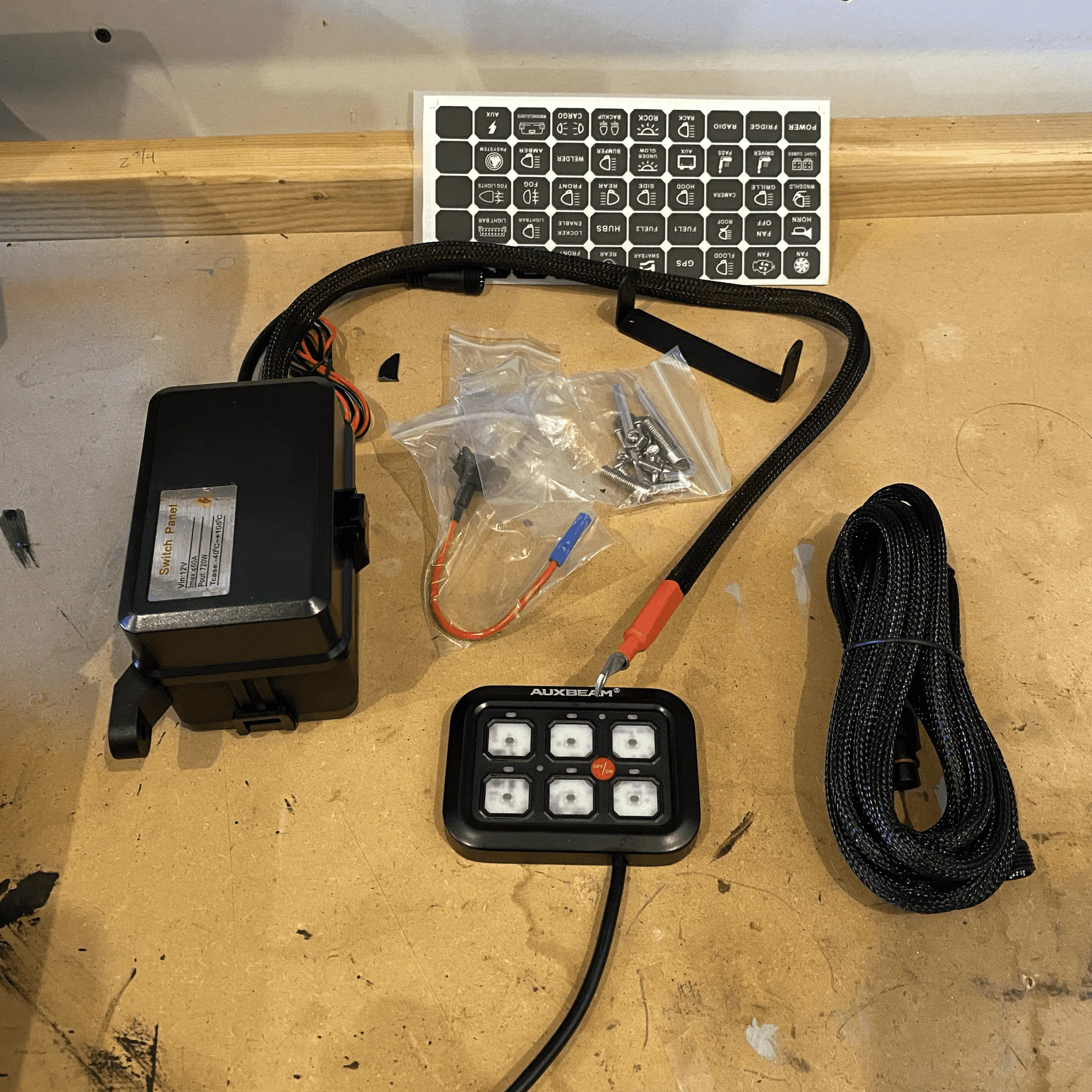

Got that 6 Gang switch kit from amazon. Real easy to mount in the cab, I utilized the Ford Bronco plate screws to mount the supplied mounting bracket under the plate. Seems like much of this truck is accessory ready! Lights will go on soon, they are on back order.

I plan to use the 8 switch version of this. We stock the AuxBeam panels here at 4x4TruckLEDs.com


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,300
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

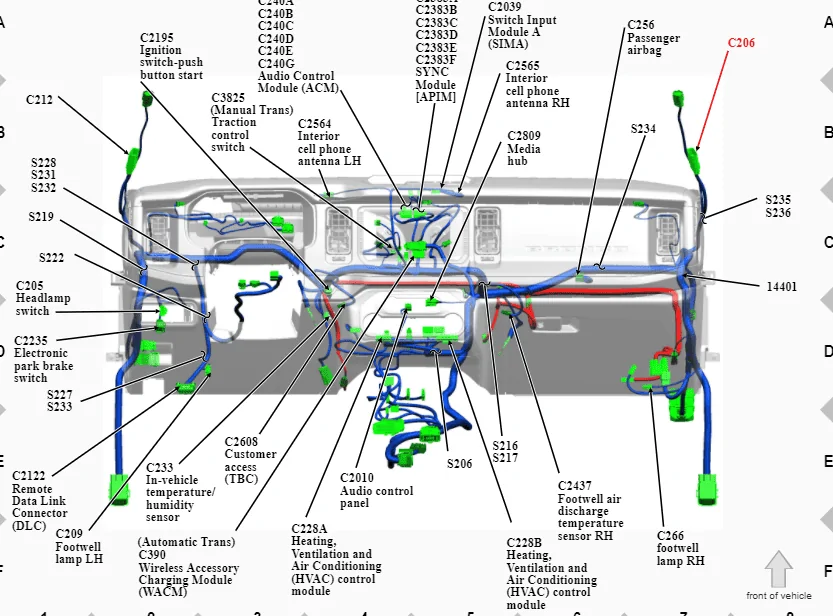

I think the connector going up is on the passenger side. C206




Connector Viewer - 150
C100AC100BC101C105C106C107C108C109C110C111C112C113C114C119C121C122C123C124C127C134C135C136C137C138C140C149C150C152C155C160C162C163C167C168AC168BC168CC171C175BC175EC177C181C182C183C184C192C197AC197BC200C201C203C205C206C207C209C210C212C216AC216BC217C218AC218BC218DC218EC218GC220AC220BC221C222C226AC226BC228AC228BC229C229AC229BC229CC233C236C240AC240BC240CC240DC248C256C258AC258BC259AC259BC266C278C285C286C289C296C297C300C301C302C305C310AC310BC318AC318CC319C322C322AC322BC322CC326C328BC328CC331C332C334C335C337C339C350C356C360C362C363C364C365C367C381C383C390C391C392C393C394C402AC402BC404C405C406C410C411C413C414C415C416C420C421C424C425C426C429C431C432C435C436C440C445C446C447C450C475C476C505C525C540C567C573C605C606C608C634C644C726C750C828C850C906C907C908C911C930AC930BC930CC930DC963C1016C1019C1021C1026C1033C1035AC1035BC1035CC1041C1047C1052C1062C1068C1073C1074C1077C1087C1100AC1100BC1100CC1100GC1100JC1101C1102C1104AC1104BC1104CC1107C1111C1112C1120C1137C1139C1140C1147C1148C1149C1151C1153C1160C1222C1271C1292C1293C1294AC1294BC1295AC1295BC1322C1323C1331C1365C1366C1367C1369C1370C1400C1401C1415C1416C1427C1428C1429C1430C1431C1445C1446C1450C1463AC1463BC1465C1466C1469C1513C1551BC1551EC1551TC1561C1562C1563C1564C1565C1566C1570C1582C1584C1615C1616C1617AC1617BC1617CC1617DC1617EC1617FC1617GC1621C1625C1627C1631C1632C1642C1643C1647C1648C1649C1655C1663C1674C1682C1689C1690C1702C1741C1748C1751C1766C1767C1792C1795C1836C1837C1840C1841C1842C1843C1844C1845C1846C1847C1848C1854C1895C1896C1901C1902C1903C1904C1905C1906C1915C1991C1992C1993C1994C1995C1996C2010C2010AC2010BC2010CC2039C2040C2091C2092C2122C2195C2235C2253C2254AC2254BC2280AC2280BC2280CC2280DC2280EC2280FC2280GC2280HC2354C2355C2356C2357C2363C2364C2370C2371C2383AC2383BC2383CC2383DC2383EC2383FC2383GC2385AC2385BC2385CC2405C2406AC2406BC2407AC2407BC2420C2421C2431AC2431CCC2431CDC2431CEC2436C2437C2438C2439C2490C2491C2494AC2494BC2494CC2515AC2515BC2515CC2515DC2564C2565C2608C2809C3006C3007C3051C3059C3075C3106C3159C3187C3189C3200C3201C3209C3210C3211C3212C3215C3216C3220C3240C3243C3245C3247C3318C3319C3323C3336C3336AC3336BC3336CC3338AC3338BC3388C3501C3502AC3502BC3522C3558C3559C3697C3698C3734C3825C4029C4046C4049C4099C4213C4223C4226AC4226BC4287C4320C4321C4330C4331C4336C4357C4359C4360C4369C4370C4397AC4397BC4397CC4452AC4452BC4452CC4478C4479C4544C4545C4546C4547C9018C9019C9026C9035C9064C9066C9224C9440AC9440BC9531​
Inline:DescriptionColorHarnessBase Part #Service Pigtail
C206INLINE14401 14335See Below
MALE
Harness
14401
FEMALE
Harness
14335


Check for Terminal Part Numbers

PinCircuitGaugeQualifier
1**
2CBP02 (GN)20
3CAC12 (GY-OG)14
4CMT18 (VT-OG)22
5RMT10 (VT-GN)22
6VMF05 (GY-BU)22
7VMF04 (BN-BU)22
8**
9CLN09 (YE-GN)22
10**
11**
12CMT10 (BU-BN)22
13VLN04 (VT-GY)22
14GD216 (BK-VT)20
15VDB25 (GN-OG)22
16VDB26 (GY-BU)22
17**
18**
19**
20**
PinCircuitGaugeQualifier
1**
2CBP02 (GN)20
3CAC12 (GY-OG)14
4CMT18 (VT-OG)22
5RMT10 (VT-GN)22
6VMF05 (GY-BU)22
7VMF04 (BN-BU)22
8CBBD9 (BN-WH)22
9CLN09 (YE-GN)22
10DMM13 (BK)22
11**
12CMT10 (BU-BN)22
13VLN04 (VT-GY)22
14GD216 (BK-VT)20
14GD216 (BK-VT)22
15VDB25 (GN-OG)22
16VDB26 (GY-BU)22
17**
18**
19RMM13 (BU)22
20VMM13 (YE-GN)22

You can buy the upper harness for one with aux.
For S&Gs I checked the passenger side A pillar for that harness connection, with no luck on the base trim. Thanks for the schematics @flip they are helpful for understanding where harness connections are to be found in the future.


Southern Girl

Outer Banks
Well-Known Member
Joined
Feb 9, 2020
Messages
2,439
Reaction score
5,896
Location
Florida
Vehicle(s)
1974 Bronco/2013 F-150 4x4/2021 Outer Banks Bronco
Bronco
Outer Banks
Vehicle Showcase
1
Clubs

I plan to use the 8 switch version of this. We stock the AuxBeam panels here at 4x4TruckLEDs.com
When you install, can you do a video? I don't need them now per se, but I ordered and the Bronco I have now isn't my order. I have a few things I would like to add, but no aux switches.


4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Messages
413
Reaction score
821
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Bronco
Outer Banks
Clubs

When you install, can you do a video? I don't need them now per se, but I ordered and the Bronco I have now isn't my order. I have a few things I would like to add, but no aux switches.
Sure. I may do it today


4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Messages
413
Reaction score
821
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Bronco
Outer Banks
Clubs


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,300
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

***Update to finding out if you have the up fitter harness from the factory;

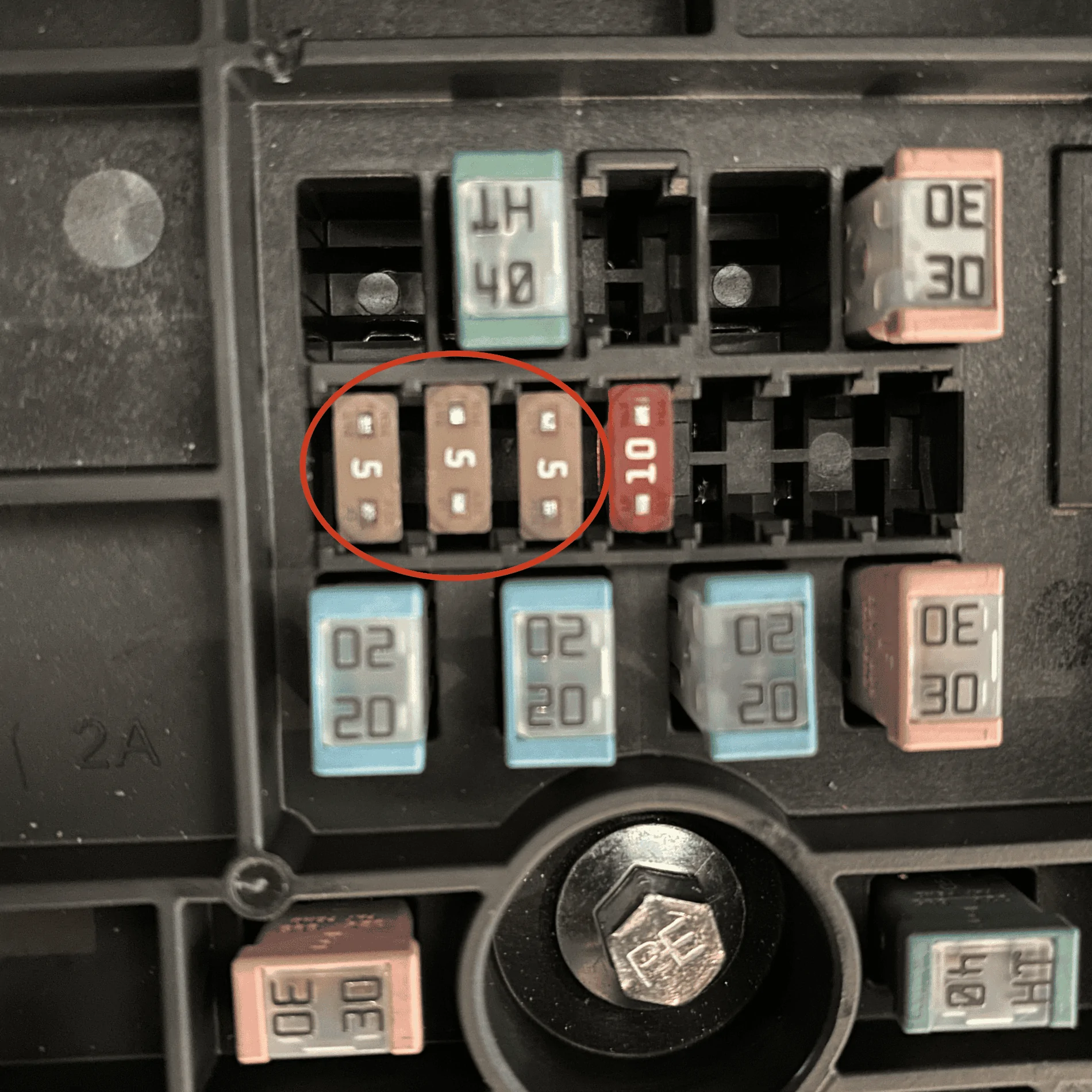

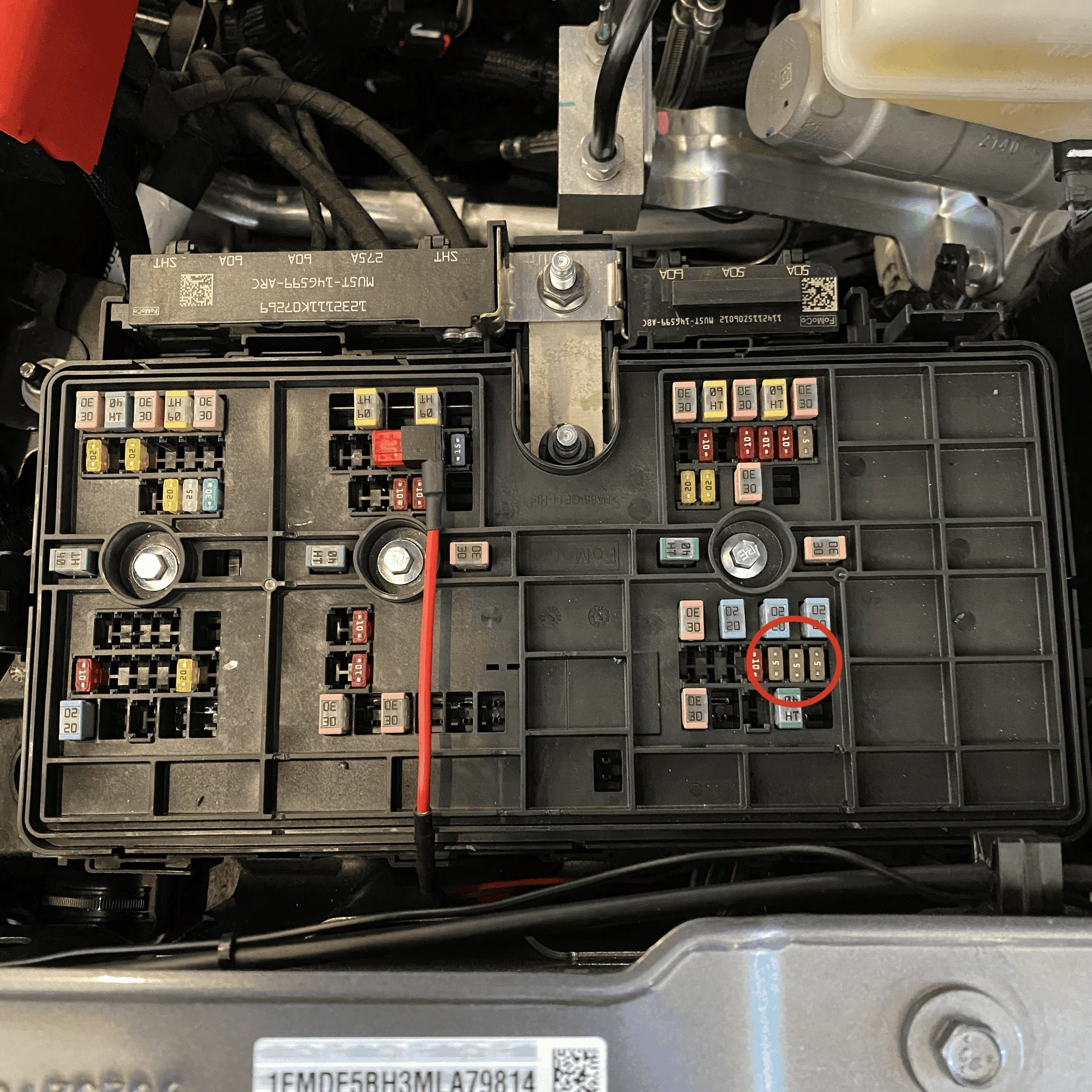

This is the Fuse box under the hood, left is the front of the truck. These 3 fuses circled in red are your AUX switches fuse location. In the manual these are marked as 20s (if equipped) but if you have 5s, there are no harness' to install the OEM switches within the cab.


Canonman11

Outer Banks
Active Member
First Name
Tim
Joined
Jul 25, 2021
Messages
39
Reaction score
31
Location
Tampa, FL
Vehicle(s)
2021 Bronco
Bronco
Outer Banks
Clubs

I would hope there might be some way to get them installed down the road? Not the news everyone was looking for but thanks for the effort. Was this confirmed by Ford?


Lagrange 6g

Black Diamond
Well-Known Member
First Name
Tony
Joined
Aug 7, 2020
Messages
259
Reaction score
310
Location
Austin , tx
Vehicle(s)
2018 f250 2014 landcruiser 1978 cj5
Bronco
Black Diamond

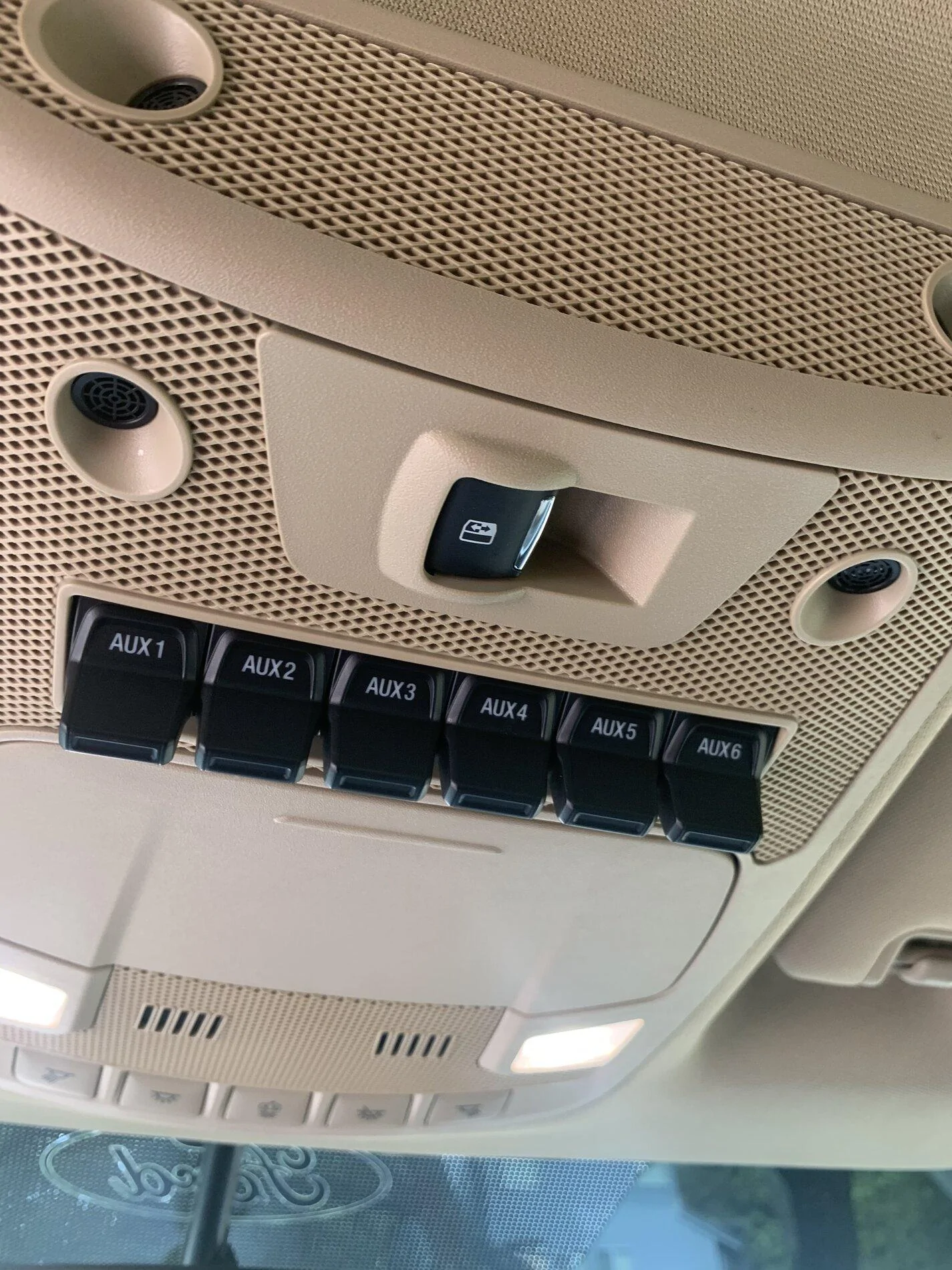

Did your Super Duty switch assembly looked like this?

I tried to do an image search for the part number that @flip posted, but it’s so new, there were no images available. The Super Duty switch assembly showed up during the same search, though, so I’m assuming the two switch assemblies might be similar even though the part numbers and actual dimensions and features are probably different.

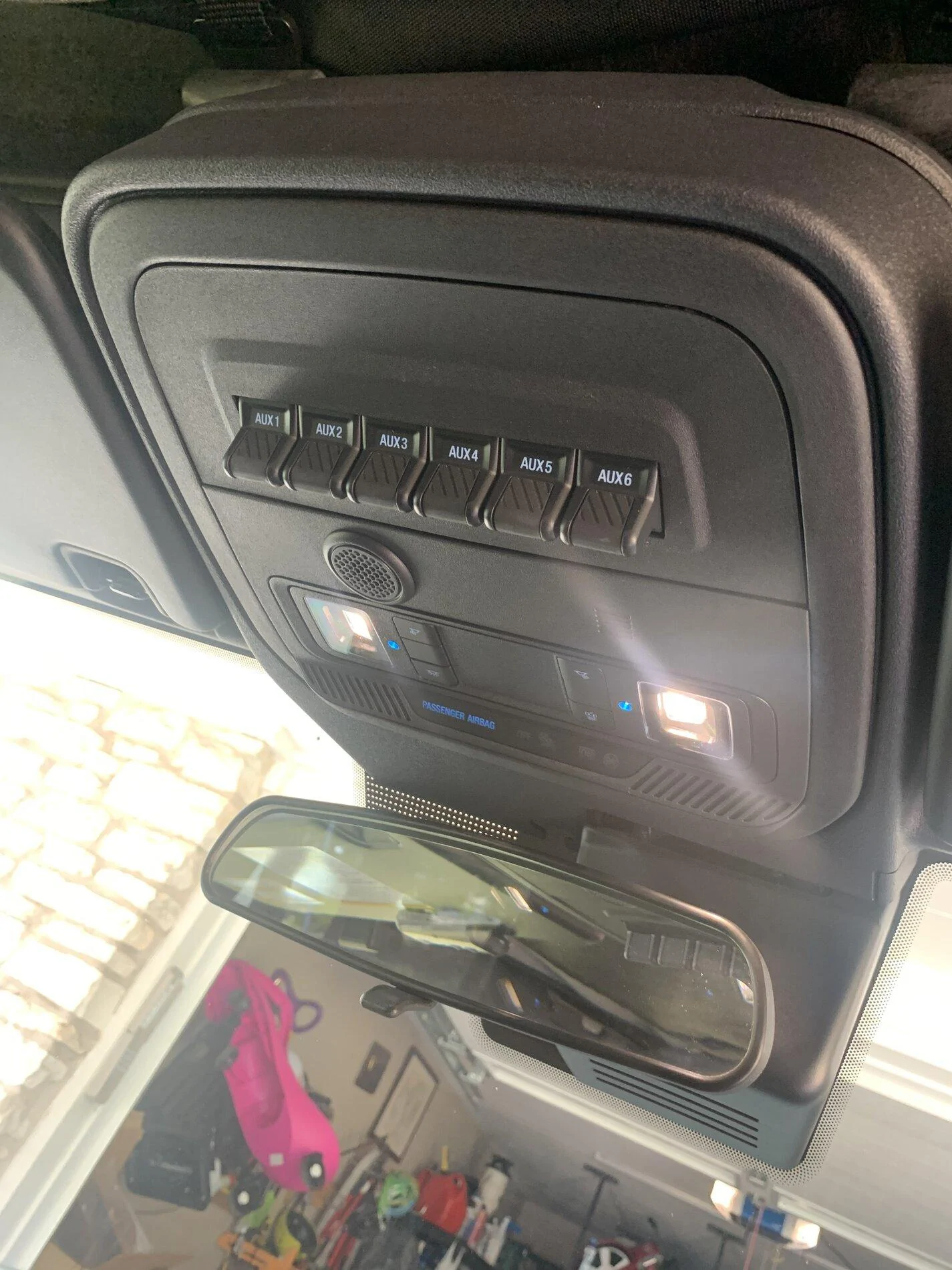

First pic is bronco second is 2018 f250





NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
577
Reaction score
1,300
Location
406
Vehicle(s)
1
Bronco
Base
Clubs

I would hope there might be some way to get them installed down the road? Not the news everyone was looking for but thanks for the effort. Was this confirmed by Ford?
Maybe possible, But I am pretty confident with the previous looking I performed on both of the A pillars and my electrical engineering background, There is no way a 5 amp fuse is capable to handle any aftermarket powered accessories, or a wiring harness. This is why Page 310+ in the owners manual shows a 20 amp if equipped. Having 5 amps on the fuse block seems it is necessary to pass power to other parts of the block, being wired in series.
