Installing overhead aux switches after sales?

West1

Base
Well-Known Member
First Name
DM
Joined
Jun 20, 2021
Messages
313
Reaction score
562
Location
Atlanta
Vehicle(s)
2014 JKU
Bronco
Base
Clubs

Ok for a slow guy, BLUF (bottom line up front), if you did not order the Aux Switches, most likely a wiring harness will be required, installation of which is a pain. You can confirm the presence (or absence) of the harness by looking in the fuse box - 20 amp fuses suggests the wiring harness is present and 5 amp fuses most likely mean it’s not there (see photo posted by NewBroncoOwner).

If by chance you have the wiring harness or are brave enough to install the same, you need a switch assembly and trim piece which will cost you approximately $400.

Any corrections are welcome.
Advertisement



ssolypop

Badlands
Well-Known Member
First Name
Solomon
Joined
Nov 18, 2020
Messages
648
Reaction score
945
Location
Hawaii
Vehicle(s)
Avenger
Bronco
Badlands
Clubs

forget that adm and find another dealer. If after the fact just get something like a Switchpro9100
Finding another dealer is a bit of a challenge. I'm in Hawaii and all dealers here markup at least $5K on new vehicles that are in demand. $7-10K in high demand and if it's something rare then $20K


KillerPenz

Base
Well-Known Member
Joined
Nov 30, 2021
Messages
104
Reaction score
265
Location
Georgia
Vehicle(s)
Focus ST
Bronco
Base
Just curious and may e this isn't the place to put it, but if you have a Big Bend with just a rear locker, means you'll have 2 less switches on the dash. Has anyone seen replacement rubber and switches to add toggles on the dash next to the others?
Or is it most likely too much of a PIA to even add in that location?


Southern Girl

Outer Banks
Well-Known Member
Joined
Feb 9, 2020
Messages
2,760
Reaction score
6,631
Location
Florida
Vehicle(s)
1974 Bronco/2013 F-150 4x4/2021 Outer Banks Bronco
Bronco
Outer Banks
Vehicle Showcase
1
Clubs

Just curious and may e this isn't the place to put it, but if you have a Big Bend with just a rear locker, means you'll have 2 less switches on the dash. Has anyone seen replacement rubber and switches to add toggles on the dash next to the others?
Or is it most likely too much of a PIA to even add in that location?
That's what I was wondering. Great question.


KillerPenz

Base
Well-Known Member
Joined
Nov 30, 2021
Messages
104
Reaction score
265
Location
Georgia
Vehicle(s)
Focus ST
Bronco
Base
That's what I was wondering. Great question.
Maybe @flip can tell us if he sees part numbers for an extra switch or 2 and also the rubber piece that covers them.

My brother in law installed pod lights and has his switch under the dash but he was thinking about running up top of dash. I suggested he didn't just cut a hole in there though.


flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Messages
1,566
Reaction score
5,970
Location
IN
Vehicle(s)
Fords
Bronco
Badlands
Clubs

Maybe @flip can tell us if he sees part numbers for an extra switch or 2 and also the rubber piece that covers them.

My brother in law installed pod lights and has his switch under the dash but he was thinking about running up top of dash. I suggested he didn't just cut a hole in there though.
There are 7 different HERO switch options. My assumption is they are a momentary switch instead of a latching type. Could you rig something up under one of the empty positions? Maybe, but the things range from $140-$175 so figure on throwing that away if it you want to experiment.



KillerPenz

Base
Well-Known Member
Joined
Nov 30, 2021
Messages
104
Reaction score
265
Location
Georgia
Vehicle(s)
Focus ST
Bronco
Base
There are 7 different HERO switch options. My assumption is they are a momentary switch instead of a latching type. Could you rig something up under one of the empty positions? Maybe, but the things range from $140-$175 so figure on throwing that away if it you want to experiment.

Wow... So a little piece of rubber starts at 140 bucks.

Yep, guess that's a waste, will have to rip apart BIL's BB to see if he even has the harness in the A pillar.


RustysBronco

Outer Banks
Active Member
First Name
Matt
Joined
Dec 17, 2021
Messages
34
Reaction score
49
Location
Jupiter, FL
Vehicle(s)
2021 Ford Bronco Outer Banks
Bronco
Outer Banks

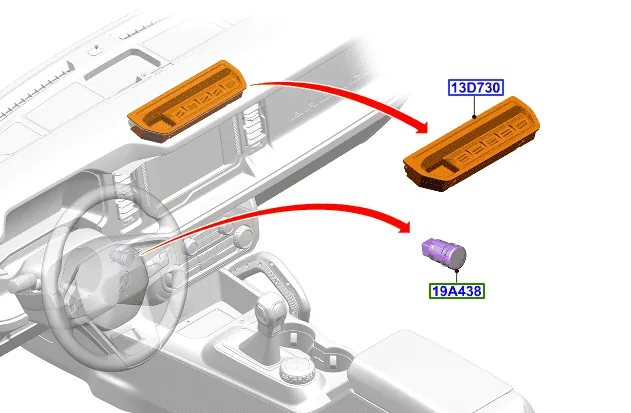

Came to this thread hoping to get a quick answer and after 8 pages of reading, I'm still unclear on what is needed to add the 6 aux OEM switches in place of the sunglass holder (tons of unnecessary comments).

For the benefit of the greater cause, lets assume nobody has pre-wiring from the factory. Can someone tell us exactly what parts/part numbers are needed to have a fully functional auxiliary switch panel?

Based on reading the last 8 pages:

6 Aux Switches - m2dz-13d730-ha
Trim Panel - m2dz-78519a70-jc
Wire Harness & Distribution Fuse Block - PN ???
Other parts???

I'll be glad to do full comprehensive write-up on installing if someone can answer the question in a single, concise response.


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
743
Reaction score
1,643
Location
Great Falls, Montana
Website
www.instagram.com
Vehicle(s)
2021 Ford Bronco Base
Bronco
Base
Clubs


RustysBronco

Outer Banks
Active Member
First Name
Matt
Joined
Dec 17, 2021
Messages
34
Reaction score
49
Location
Jupiter, FL
Vehicle(s)
2021 Ford Bronco Outer Banks
Bronco
Outer Banks

NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Messages
743
Reaction score
1,643
Location
Great Falls, Montana
Website
www.instagram.com
Vehicle(s)
2021 Ford Bronco Base
Bronco
Base
Clubs

Thanks for the tip. I am looking to keep the install OEM specific for this one item & imagine there's others who are looking to do the same.
I understand. I tried the same thing as well. The install after production has a lot of steps and many pricey parts, then the wiring is the biggest PITA. This is why i went the AUXBEAM route.


RustysBronco

Outer Banks
Active Member
First Name
Matt
Joined
Dec 17, 2021
Messages
34
Reaction score
49
Location
Jupiter, FL
Vehicle(s)
2021 Ford Bronco Outer Banks
Bronco
Outer Banks
Sharing the below for the benefit of others. If everything I've read/researched is correct, it would seem that the A1-A6 unterminated leads are just outputs from the power distribution block. So it would seem that a new wire chase/harness would be need to be added to connect the switches to the power distribution block, thus completing the circuit that controls these outputs & facilitate the addition of the OEM switches. Now whether or not Ford actually has that available remains to be seen.

ZomboDroid 23122021101218.jpg


RustysBronco

Outer Banks
Active Member
First Name
Matt
Joined
Dec 17, 2021
Messages
34
Reaction score
49
Location
Jupiter, FL
Vehicle(s)
2021 Ford Bronco Outer Banks
Bronco
Outer Banks
Came to this thread hoping to get a quick answer and after 8 pages of reading, I'm still unclear on what is needed to add the 6 aux OEM switches in place of the sunglass holder (tons of unnecessary comments).

For the benefit of the greater cause, lets assume nobody has pre-wiring from the factory. Can someone tell us exactly what parts/part numbers are needed to have a fully functional auxiliary switch panel?

Based on reading the last 8 pages:

6 Aux Switches - m2dz-13d730-ha
Trim Panel - m2dz-78519a70-jc
Wire Harness & Distribution Fuse Block - M2DZ-14335-C
Other parts???

I'll be glad to do full comprehensive write-up on installing if someone can answer the question in a single, concise response.
Adding that the correct harness is part M2DZ-14335-C. Steps to getting closer....


Roofus

Outer Banks
Active Member
Joined
Nov 26, 2021
Messages
41
Reaction score
78
Location
Swamp
Vehicle(s)
M3/Bronco
Bronco
Outer Banks
Clubs

Subscribing. In the same boat as some of you


BVan604

Big Bend
Member
Joined
Dec 13, 2021
Messages
12
Reaction score
3
Location
Vancouver, BC
Vehicle(s)
2021 Bronco, 2018 Wrangler
Bronco
Big Bend
Clubs

Following.....now, if only someone with the switches would tear apart their roll bar and a-pillar.to see where the wires go....
