Installing takeoff rock rails?

Xycarp

Base
Well-Known Member
First Name
M-Ditty
Joined
Feb 28, 2021
Threads
22
Messages
107
Reaction score
385
Location
Michigan
Vehicle(s)
Jeep Wrangler JKU
Your Bronco Model
Base

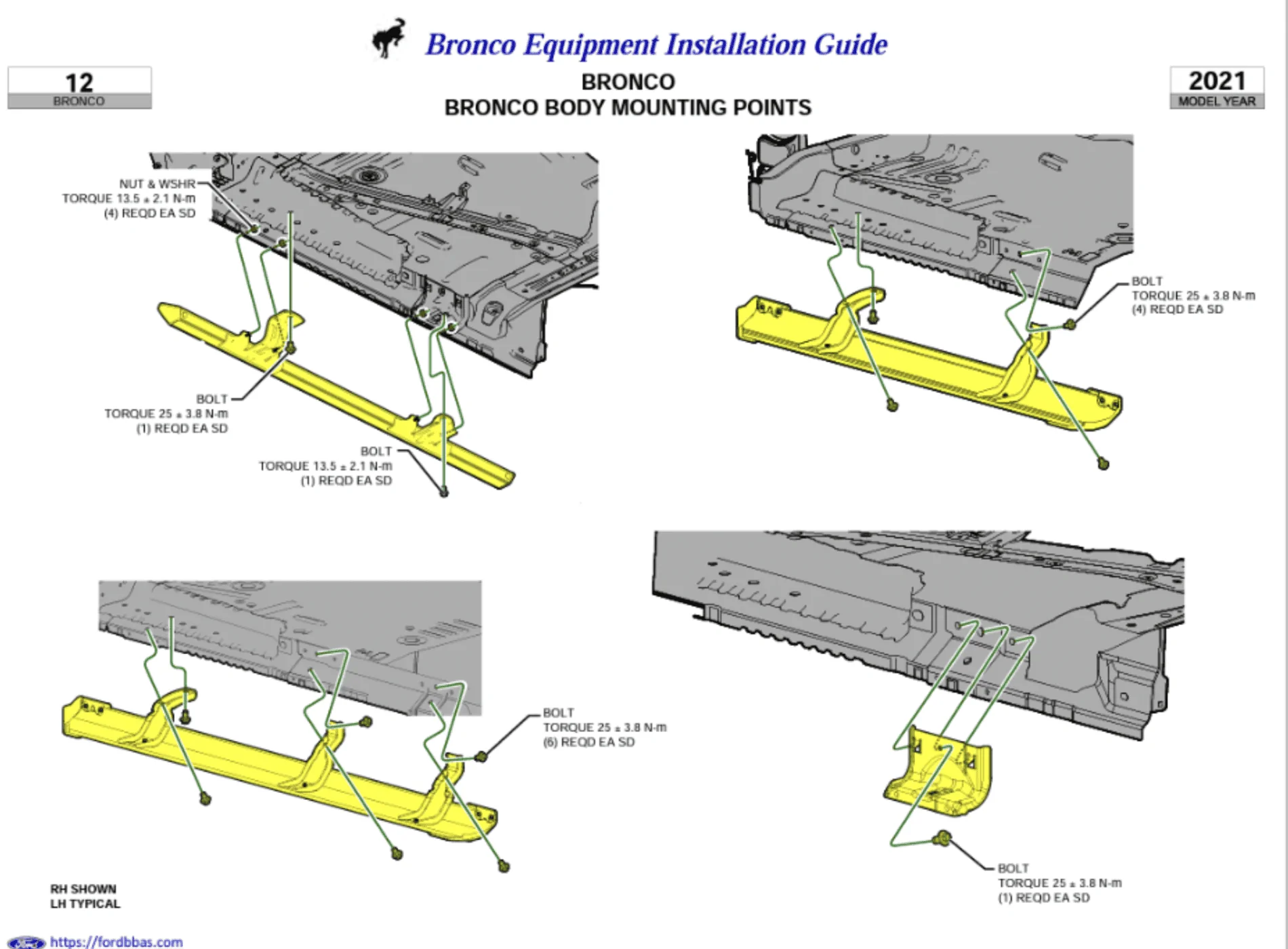

I bought a set of take off rock rails but need to sort out the installation. I know it’s not complicated, but those damned things are too heavy to muck with alone. Does anyone know of a video or diagram for the install of the OEM rock rails?
