Interior cargo rack

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
19
Messages
822
Reaction score
1,137
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs


Shawn_1121

Outer Banks
Well-Known Member
First Name
Shawn
Joined
Feb 25, 2022
Threads
12
Messages
265
Reaction score
410
Location
Hudson, NH
Vehicle(s)
22 Bronco OBX A51
Your Bronco Model
Outer Banks
Clubs

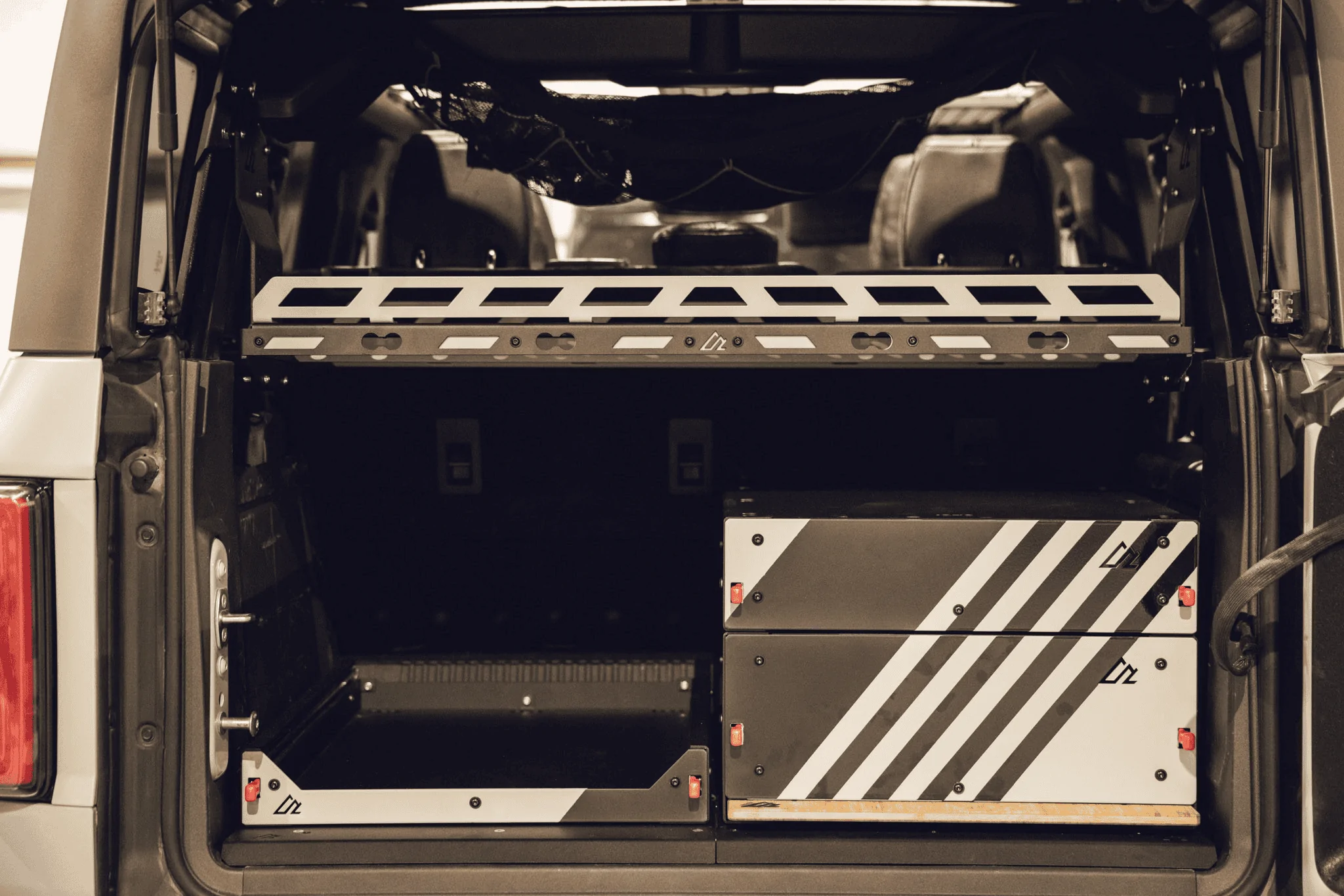

I have the AAL Cargo Rack. Love it. From the website -
Ford Bronco Interior cargo rack 1701440461827


bjpatten

Badlands
Well-Known Member
First Name
Brian
Joined
May 1, 2023
Threads
6
Messages
98
Reaction score
135
Location
Apple Valley Utah
Vehicle(s)
2022 Bronco
Your Bronco Model
Badlands
Clubs

I got one from Trail Hero for $150 but haven't installed it yet.


Sponsored

SubmarineNuke

Wildtrak
Well-Known Member
First Name
Richard
Joined
Feb 11, 2022
Threads
24
Messages
1,501
Reaction score
2,473
Location
Houston, TX
Website
twitch.tv
Vehicle(s)
Bronco Wildtrak
Your Bronco Model
Wildtrak
Clubs

that seems HIGH and that top seems to open a lot more than normal? Either way, GOAT Fab! check them out! Great cargo rack, american made!


IwannaGOfast

Badlands
Well-Known Member
First Name
Jon
Joined
Jan 6, 2022
Threads
10
Messages
649
Reaction score
1,042
Location
Brea, CA
Vehicle(s)
1991 Ranger Long Travel, 2014 Cruze Commuter
Your Bronco Model
Badlands
I have been looking at a bunch of these options as I am about to pull the trigger on one myself.

The Havoc one you posted seems to sit very high, blocking most of the view out the back window (even when empty). It also mounts to the top of the inside of the hardtop, so it needs to be removed to in order to remove the hardtop.

The M2M one is a cool idea, but since it folds up it is limited in how big it can be and IMO it’s just too small for my needs.

I want one that doesn’t need to be removed in order to remove the hardtop. That narrows down the list of options, but I feel like each has pros/cons.

American Adventure Labs is adjustable in height (highest amount of adjustability), large cargo size, looks very nice, removable side rails, has accessories made specifically for it, and made from aluminum. However the mounting brackets seem bulky and cover the nutserts on the roll bar, it’s expensive, the additional accessories are expensive and add up as well.

https://americanadventurelab.com/product/ford-bronco-mass-adjustable-height-cargo-shelf/

Goat Fab is adjustable in height, mounting brackets are sleek. However the sides are way to tall, its narrower than others (I think the height of sides plays a factor in this), it’s expensive and the basket only comes in steel.

https://goatfabrication.com/collections/4-door-bronco/products/goat-bronco-4-door-rear-cargo-basket

Rock Hard 4x4 has a nice large cargo size (widest), comes in aluminum or steel, mounting brackets are sleek, does not block rearview when empty and cheaper than first two options (aluminum $400, steel $350). However its main downfall is it has no adjustability.

https://www.rockhard4x4.com/product_p/rh-60940.htm

Hooke Road is the cheapest option ($230) and has the deepest platform. However it has no adjustability, the brackets are extremely bulky

https://www.hookeroad.com/collectio...d-bronco-interior-cargo-basket-storage-b8917s

Ultimately I like the AAL basket the most, the brackets from Goat Fab, and the price from Rock Hard. At this point I am considering getting the Rock Hard and fabricating my own adjustable brackets, unless I am very happy with the height it comes at. Sorry if none of this applies to your needs, but I figured it would give me a reason to write down the pros/cons and hopefully make a decision as I need it for a trip planned mid January.

Last edited:
OP
OP
adamruiz2001

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
19
Messages
822
Reaction score
1,137
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs

OP
OP
adamruiz2001

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
19
Messages
822
Reaction score
1,137
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs

I have been looking at a bunch of these options as I am about to pull the trigger on one myself.

The Havoc one you posted seems to sit very high, blocking most of the view out the back window (even when empty). It also mounts to the top of the inside of the hardtop, so it needs to be removed to in order to remove the hardtop.

The M2M one is a cool idea, but since it folds up it is limited in how big it can be and IMO it’s just too small for my needs.

I want one that doesn’t need to be removed in order to remove the hardtop. That narrows down the list of options, but I feel like each has pros/cons.

American Adventure Labs is adjustable in height (highest amount of adjustability), large cargo size, looks very nice, removable side rails, has accessories made specifically for it, and made from aluminum. However the mounting brackets seem bulky and cover the nutserts on the roll bar, it’s expensive, the additional accessories are expensive and add up as well.

https://americanadventurelab.com/product/ford-bronco-mass-adjustable-height-cargo-shelf/

Goat Fab is adjustable in height, mounting brackets are sleek. However the sides are way to tall, its narrower than others (I think the height of sides plays a factor in this), it’s expensive and the basket only comes in steel.

https://goatfabrication.com/collections/4-door-bronco/products/goat-bronco-4-door-rear-cargo-basket

Rock Hard 4x4 has a nice large cargo size (widest), comes in aluminum or steel, mounting brackets are sleek, does not block rearview when empty and cheaper than first two options (aluminum $400, steel $350). However its main downfall is it has no adjustability.

https://www.rockhard4x4.com/product_p/rh-60940.htm

Hooke Road is the cheapest option ($230) and has the deepest platform. However it has no adjustability, the brackets are extremely bulky

https://www.hookeroad.com/collectio...d-bronco-interior-cargo-basket-storage-b8917s

Ultimately I like the AAL basket the most, the brackets from Goat Fab, and the price from Rock Hard. At this point I am considering getting the Rock Hard and fabricating my own adjustable brackets, unless I am very happy with the height it comes at. Sorry if none of this applies to your needs, but I figured it would give me a reason to write down the pros/cons and hopefully make a decision as I need it for a trip planned mid January.
Thanks, this is some great information. I would need adjustability and would be nice to have either a half rack or full rack at times.

I appriciate your time on detailing each one, this info will be benaficial to others in the future. Thanks

-Adam


Sponsored
OP
OP
adamruiz2001

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
19
Messages
822
Reaction score
1,137
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs

I think you are right, one is for hard top only and the other is for either soft top or hard top


IwannaGOfast

Badlands
Well-Known Member
First Name
Jon
Joined
Jan 6, 2022
Threads
10
Messages
649
Reaction score
1,042
Location
Brea, CA
Vehicle(s)
1991 Ranger Long Travel, 2014 Cruze Commuter
Your Bronco Model
Badlands
Yes this one is for the hardtop, however in order to remove the hardtop you will need to uninstall this shelf. That is why I am looking for an option that mounts off of the roll cage, like the 4 above that I linked.


bronco_billy

Big Bend
Well-Known Member
Joined
Nov 19, 2021
Threads
5
Messages
121
Reaction score
246
Location
Indy
Vehicle(s)
Crown Vic
Your Bronco Model
Big Bend
Yes this one is for the hardtop, however in order to remove the hardtop you will need to uninstall this shelf. That is why I am looking for an option that mounts off of the roll cage, like the 4 above that I linked.
This from HookeRoad;
Ford Bronco Interior cargo rack IMG_2821
Ford Bronco Interior cargo rack IMG_2820
Ford Bronco Interior cargo rack IMG_2819
Ford Bronco Interior cargo rack IMG_2818
Ford Bronco Interior cargo rack IMG_2817

OP
OP
adamruiz2001

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
19
Messages
822
Reaction score
1,137
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs


IwannaGOfast

Badlands
Well-Known Member
First Name
Jon
Joined
Jan 6, 2022
Threads
10
Messages
649
Reaction score
1,042
Location
Brea, CA
Vehicle(s)
1991 Ranger Long Travel, 2014 Cruze Commuter
Your Bronco Model
Badlands
This from HookeRoad;
Ford Bronco Interior cargo rack IMG_2817
Ford Bronco Interior cargo rack IMG_2817
Ford Bronco Interior cargo rack IMG_2817
Ford Bronco Interior cargo rack IMG_2817
Ford Bronco Interior cargo rack IMG_2817
That is the rack that I linked in my initial post. It’s a great option, especially for the price. The things I did not care for are that first of all the height is not adjustable. Also the mounts cover one of the nutserts in the roll cage, so any other products that utilize those mounts, will most likely not be able to. Also the bracket sticks up past the top of the roll cage as well, further limiting usage. Obviously these are things that are concerns for me, and may not apply to others.
