I thought I'd familiarize myself with the use of the jack and the front and rear attachment locations for the jack. I'm doing this so I know before I need it, and also because I plan to buy a hydraulic jack for the car, simpler to use, and i was measuring the distance to the various atrachment points.

Rear: manual says use the axle tube.

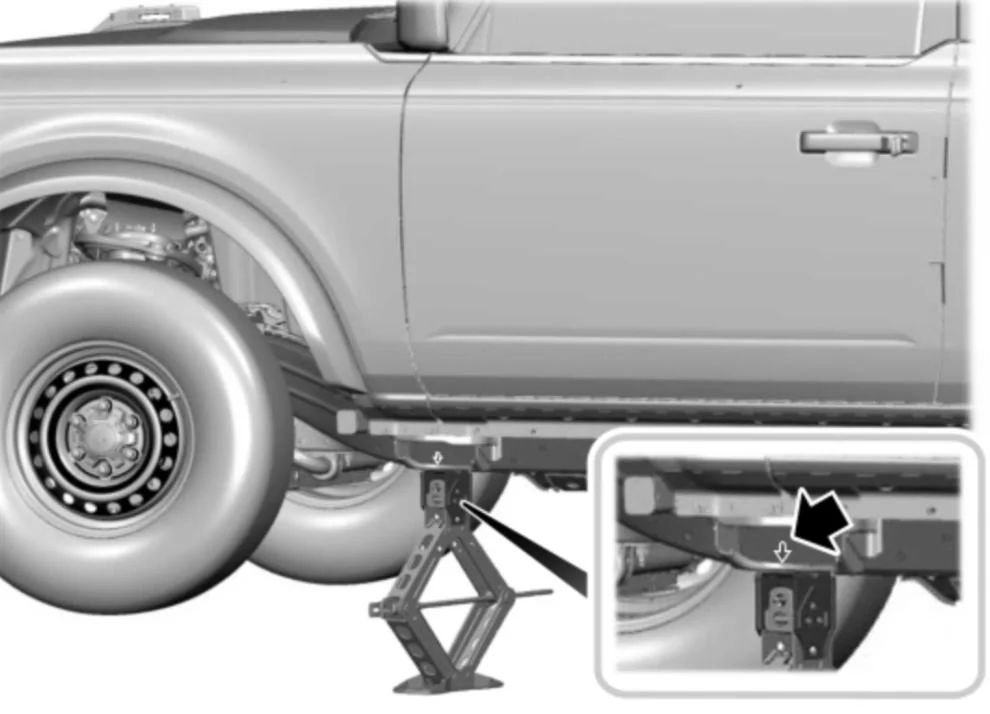

Front: the wishbone front suspension doesn't seem to have attachment points. Manual says to use the place on the front frame ehere the "arrow" is. I cant find any arrow. Pictures in "manual" are pretty bad. Clear as mud.

Can i have some clarification?





Sponsored



sgraing1

Black Diamond
Well-Known Member
First Name
Steve
Joined
Mar 30, 2021
Threads
23
Messages
761
Reaction score
1,637
Location
451xx
Vehicle(s)
2022 Bronco Black Diamond.A Bunch More Junk.
Your Bronco Model
Black Diamond
Looks like straight below the space between the rear of the fender and front of the door.

The middle square? What does the top of the jack look like?


Spray

Black Diamond
Well-Known Member
First Name
Scott
Joined
Aug 13, 2021
Threads
2
Messages
160
Reaction score
282
Location
Boca Raton Fl
Vehicle(s)
73 Bronco
Your Bronco Model
Black Diamond
Today
I thought I'd familiarize myself with the use of the jack and the front and rear attachment locations for the jack. I'm doing this so I know before I need it, and also because I plan to buy a hydraulic jack for the car, simpler to use, and i was measuring the distance to the various atrachment points.

Rear: manual says use the axle tube.

Front: the wishbone front suspension doesn't seem to have attachment points. Manual says to use the place on the front frame ehere the "arrow" is. I cant find any arrow. Pictures in "manual" are pretty bad. Clear as mud.

Can i have some clarification?

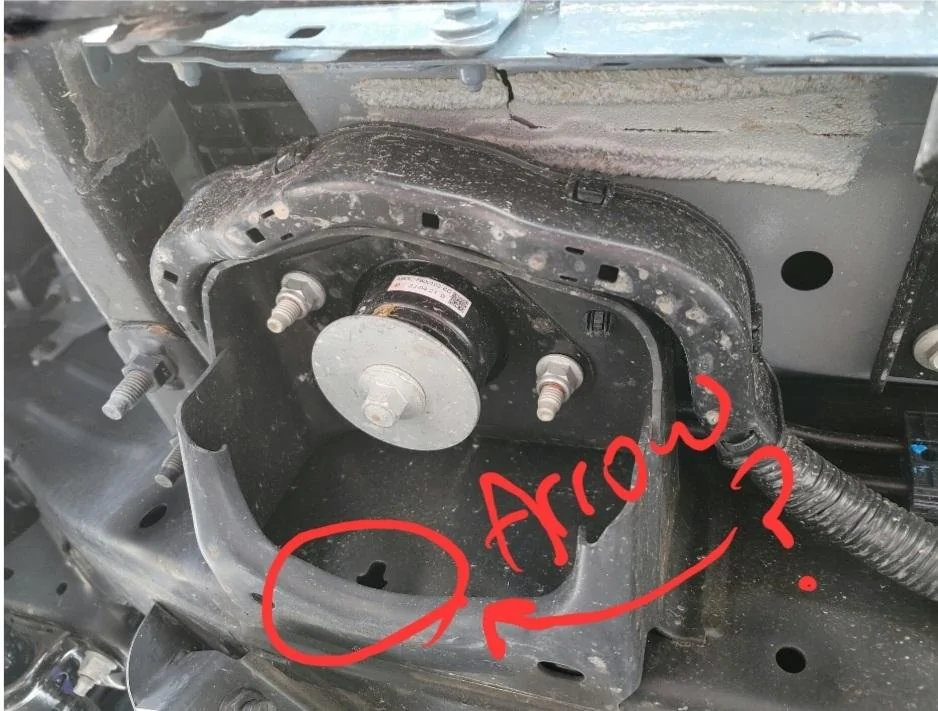

The arrow is in the picture of the body mount the you posted. It stamped through the metal frame. It’s in this picture.



604Bronco

Badlands
Well-Known Member
Joined
Apr 9, 2021
Threads
144
Messages
6,869
Reaction score
23,673
Location
British Columbia
Website
www.bronco6g.com
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Badlands
Clubs

This is like f*cking "Where's Waldo"... Someone just circle the damn arrow for us! :ROFLMAO:


Sponsored
OP
OP
lakesinai

lakesinai

Outer Banks
Well-Known Member
First Name
John
Joined
Mar 22, 2021
Threads
34
Messages
1,813
Reaction score
2,376
Location
Charleston SC
Vehicle(s)
2021 Bronco 4dr OBX MIC 2.7 Rear Locker A51 Roast
Your Bronco Model
Outer Banks
Clubs

This is like f*cking "Where's Waldo"... Someone just circle the damn arrow for us! :ROFLMAO:
I think he means this, and the point is obscured! But, where in the world does the jack go?? Ill have to look tomorrow!



GreyZ

Badlands
Well-Known Member
First Name
Eric
Joined
Sep 16, 2021
Threads
14
Messages
249
Reaction score
383
Location
Gulf South Louisiana
Vehicle(s)
Turbo 350z, Bronco Badlands, Xterra
Your Bronco Model
Badlands
Clubs

Ford Bronco Jack Location  for Changing flat tire 1636769372583

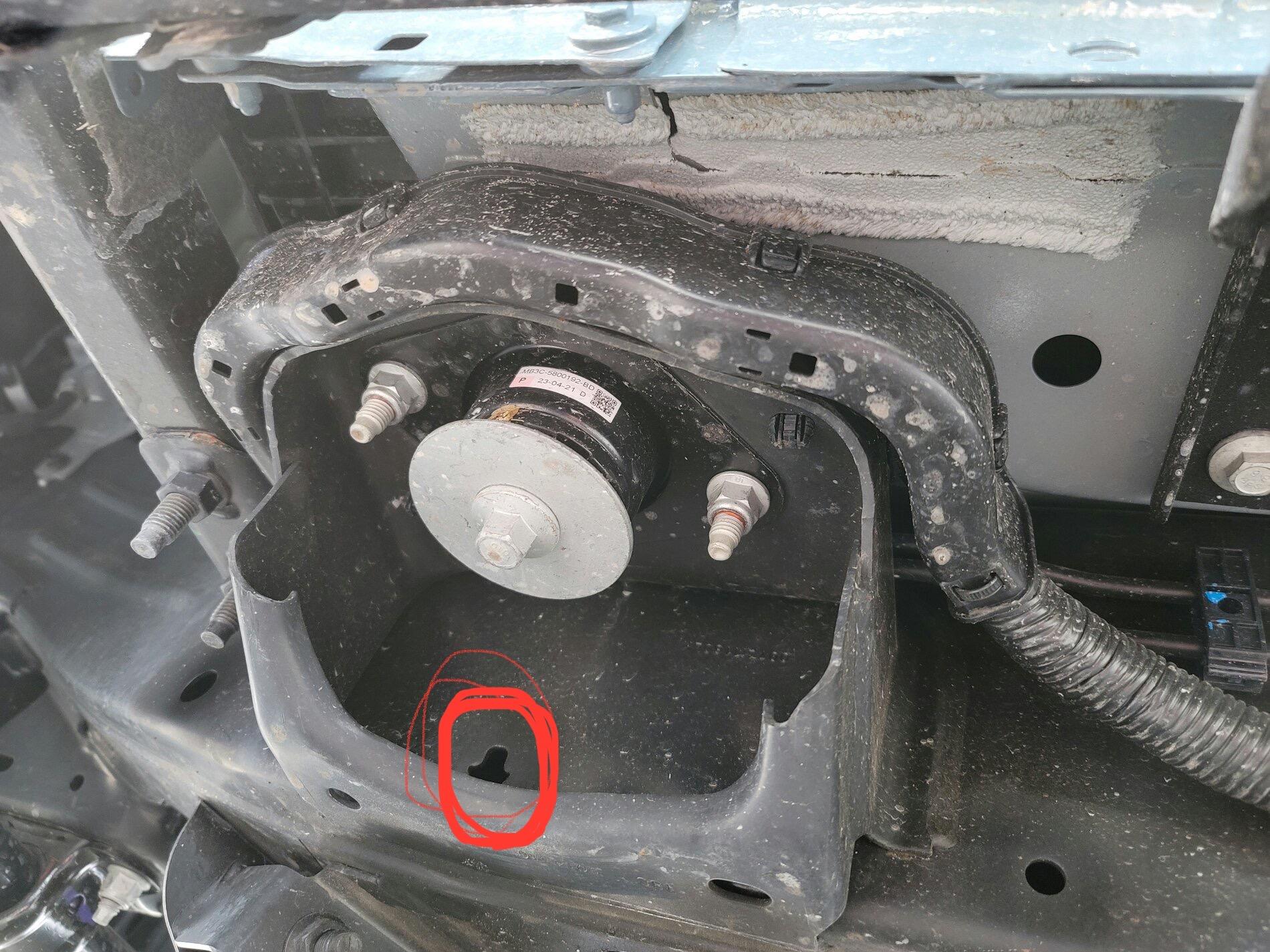

It seems pretty clear. The jack will cup the main frame rail at the indicated arrow


604Bronco

Badlands
Well-Known Member
Joined
Apr 9, 2021
Threads
144
Messages
6,869
Reaction score
23,673
Location
British Columbia
Website
www.bronco6g.com
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Badlands
Clubs

I even circled it

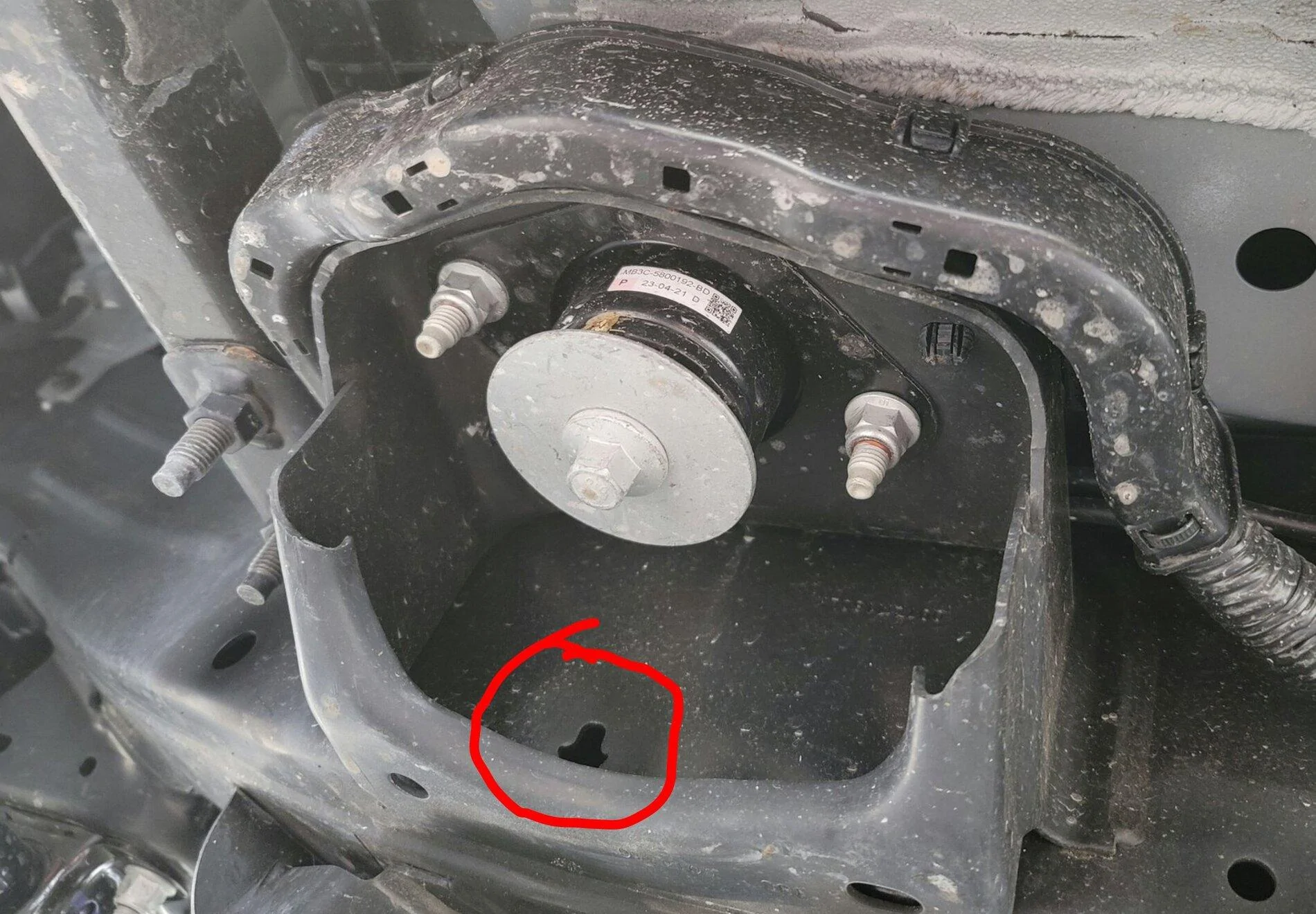

That looks somewhat like an arrow... I'll buy that lol. I was looking for it being stamped on the metal; not cut out. Thanks!

OP
OP
lakesinai

lakesinai

Outer Banks
Well-Known Member
First Name
John
Joined
Mar 22, 2021
Threads
34
Messages
1,813
Reaction score
2,376
Location
Charleston SC
Vehicle(s)
2021 Bronco 4dr OBX MIC 2.7 Rear Locker A51 Roast
Your Bronco Model
Outer Banks
Clubs


Sponsored
OP
OP
lakesinai

lakesinai

Outer Banks
Well-Known Member
First Name
John
Joined
Mar 22, 2021
Threads
34
Messages
1,813
Reaction score
2,376
Location
Charleston SC
Vehicle(s)
2021 Bronco 4dr OBX MIC 2.7 Rear Locker A51 Roast
Your Bronco Model
Outer Banks
Clubs

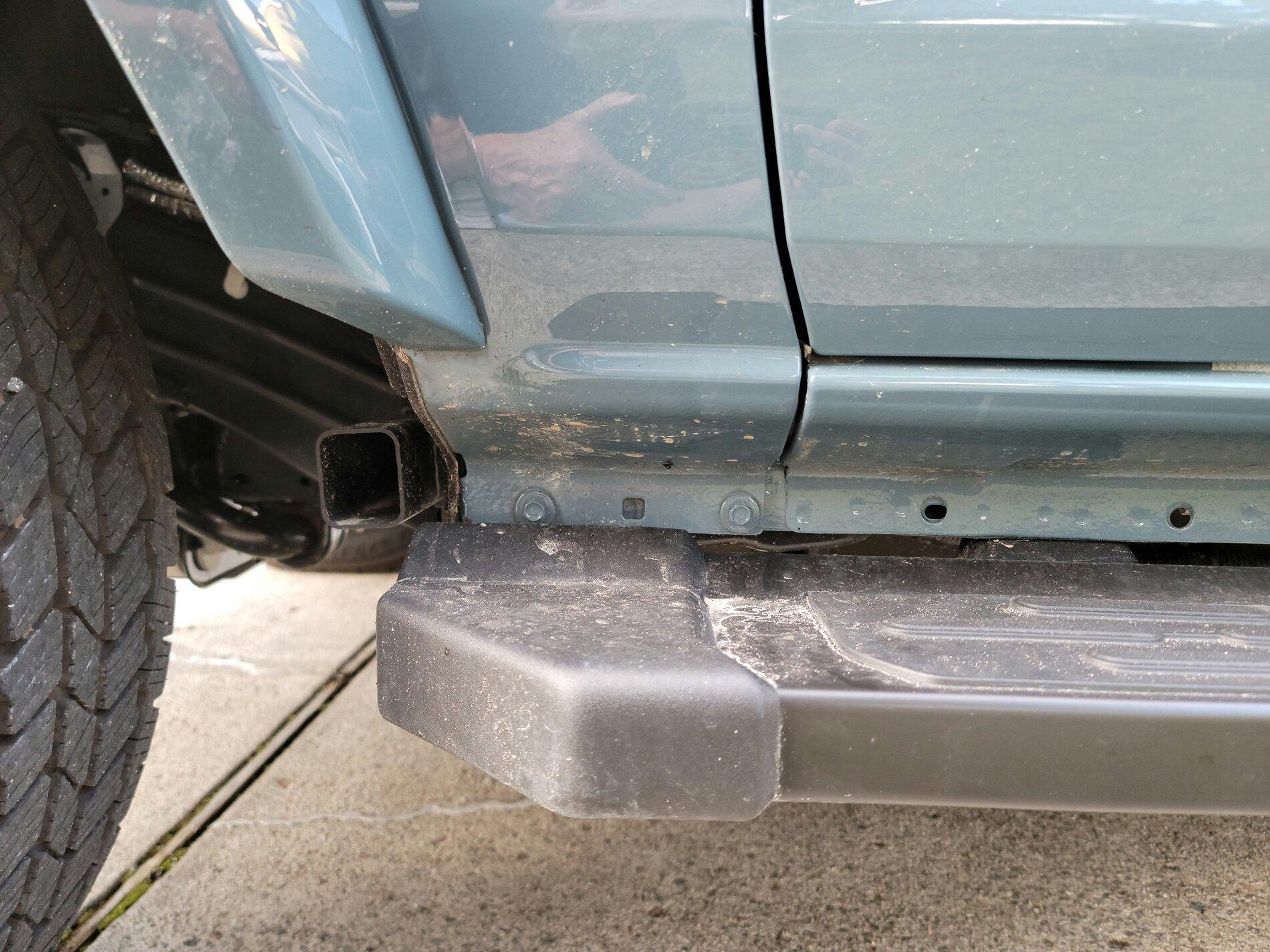

Yeah, probably. I was sitting on my garage floor when I took that pic.

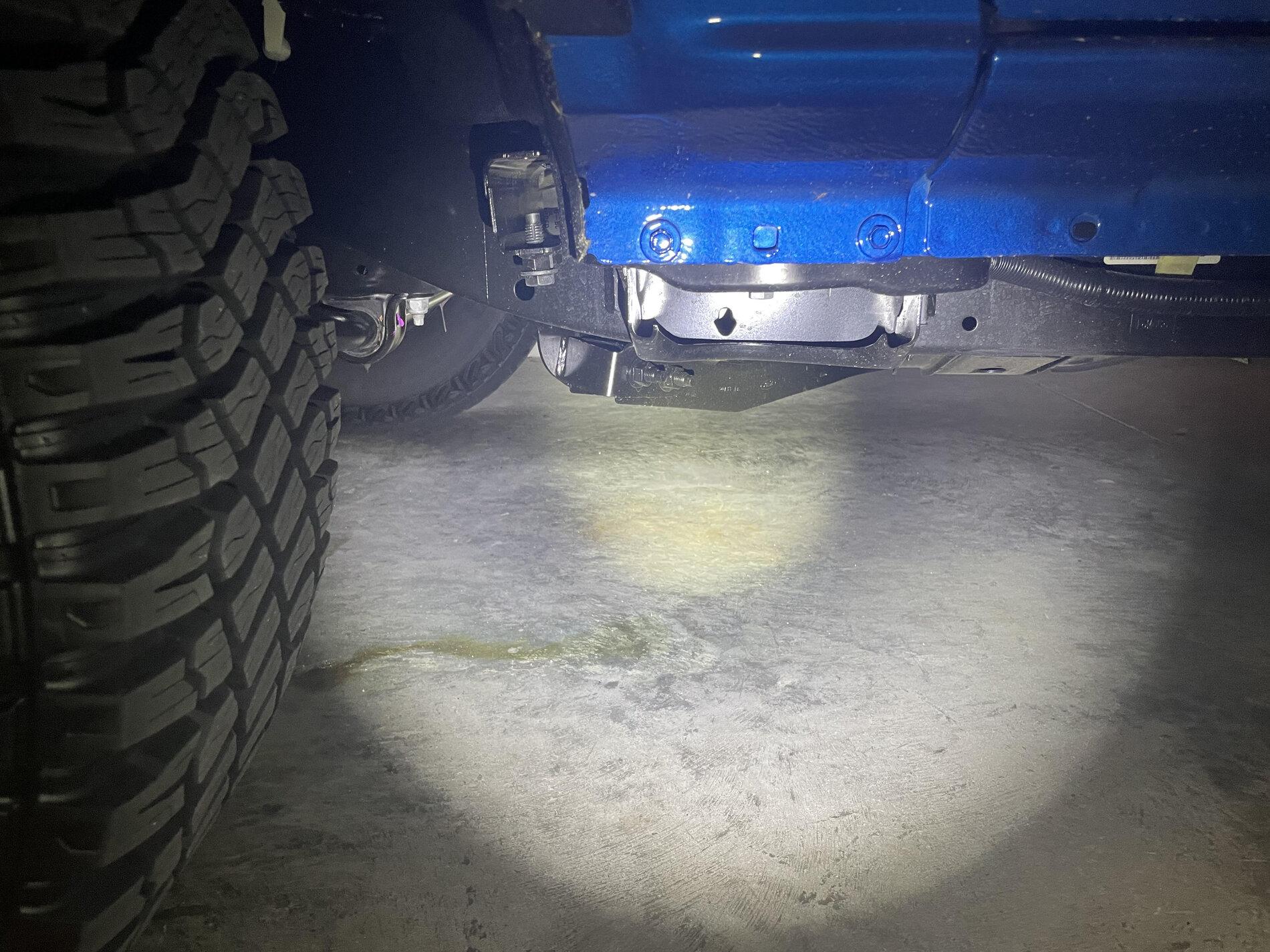

I still cant visualize how that's a jack lift location! Will have to get out the scissors jack tomorrow . . . !
