LeBronco Audio Build

LeBronco

Outer Banks
Well-Known Member
Joined
Jul 15, 2021
Threads
11
Messages
182
Reaction score
322
Location
NC
Vehicle(s)
'19 Expedition Platinum
Your Bronco Model
Outer Banks
description and more pics to come.

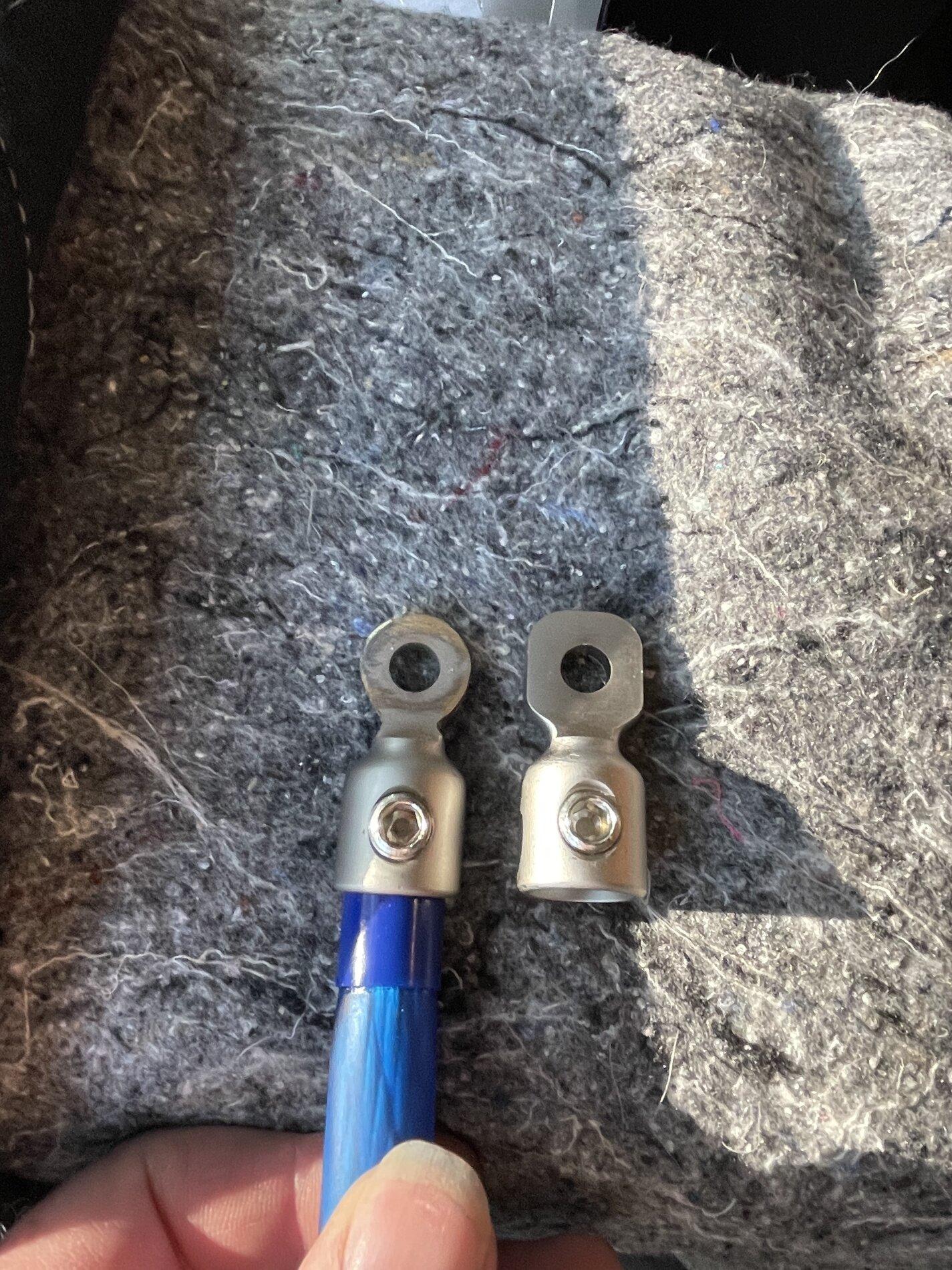

Ford Bronco LeBronco Audio Build 3EEA9FF1-16CF-47DA-BBBD-372DE916FC8E

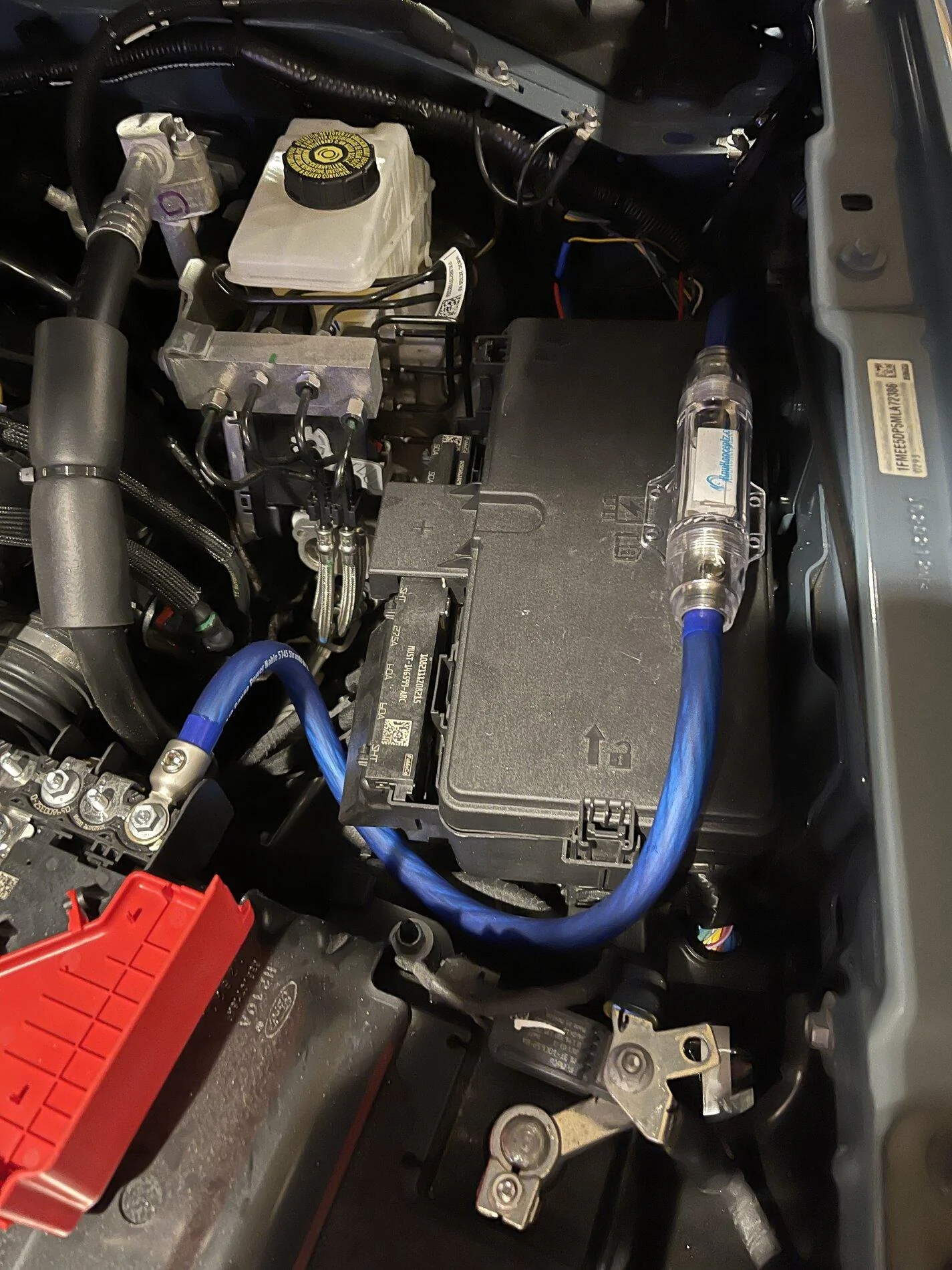

Ford Bronco LeBronco Audio Build A1F1C7BD-353F-4213-873F-627C90DC4A6E

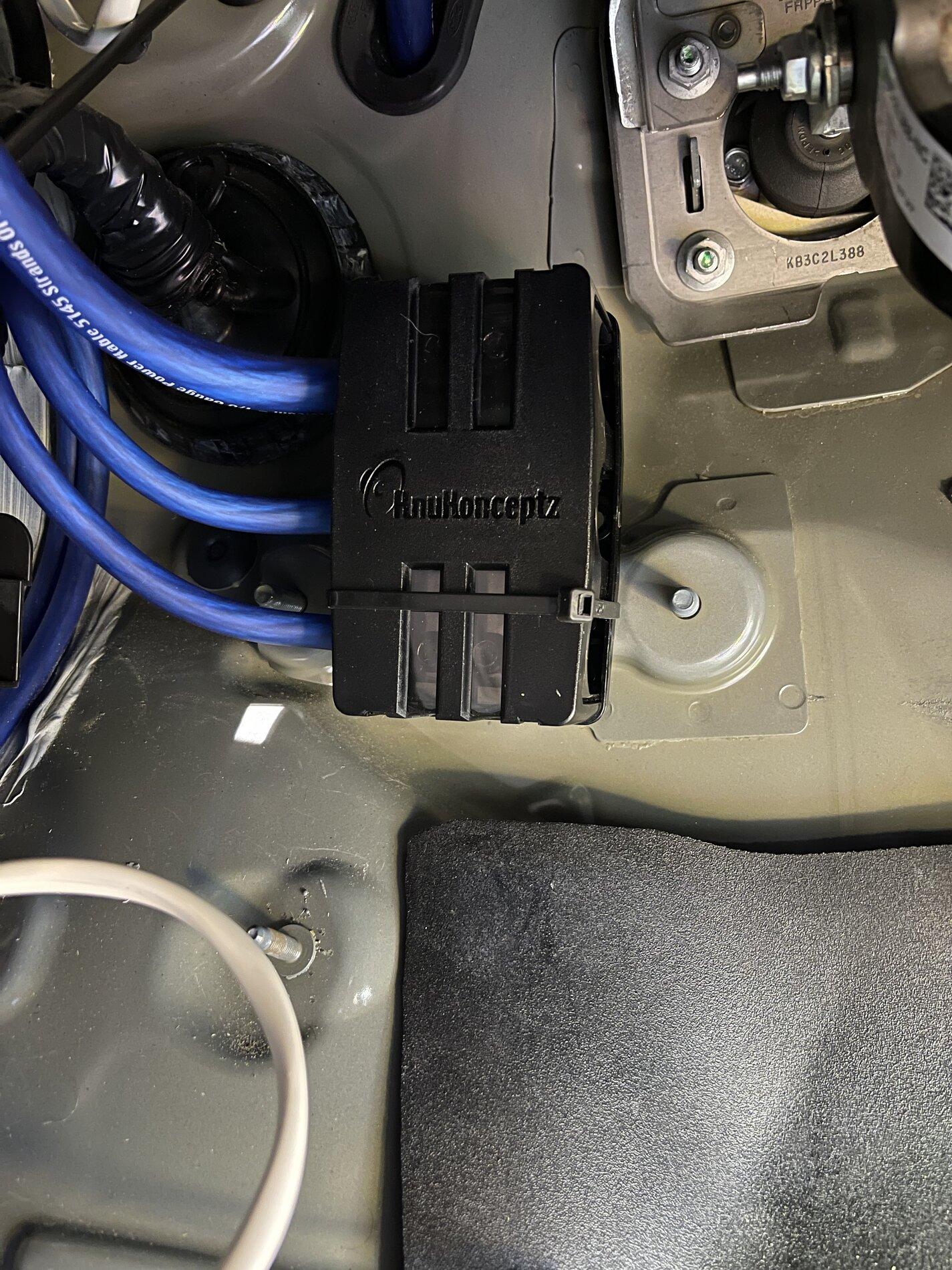

Ford Bronco LeBronco Audio Build 6FA931E9-8FED-448F-8F53-41825837C7E9

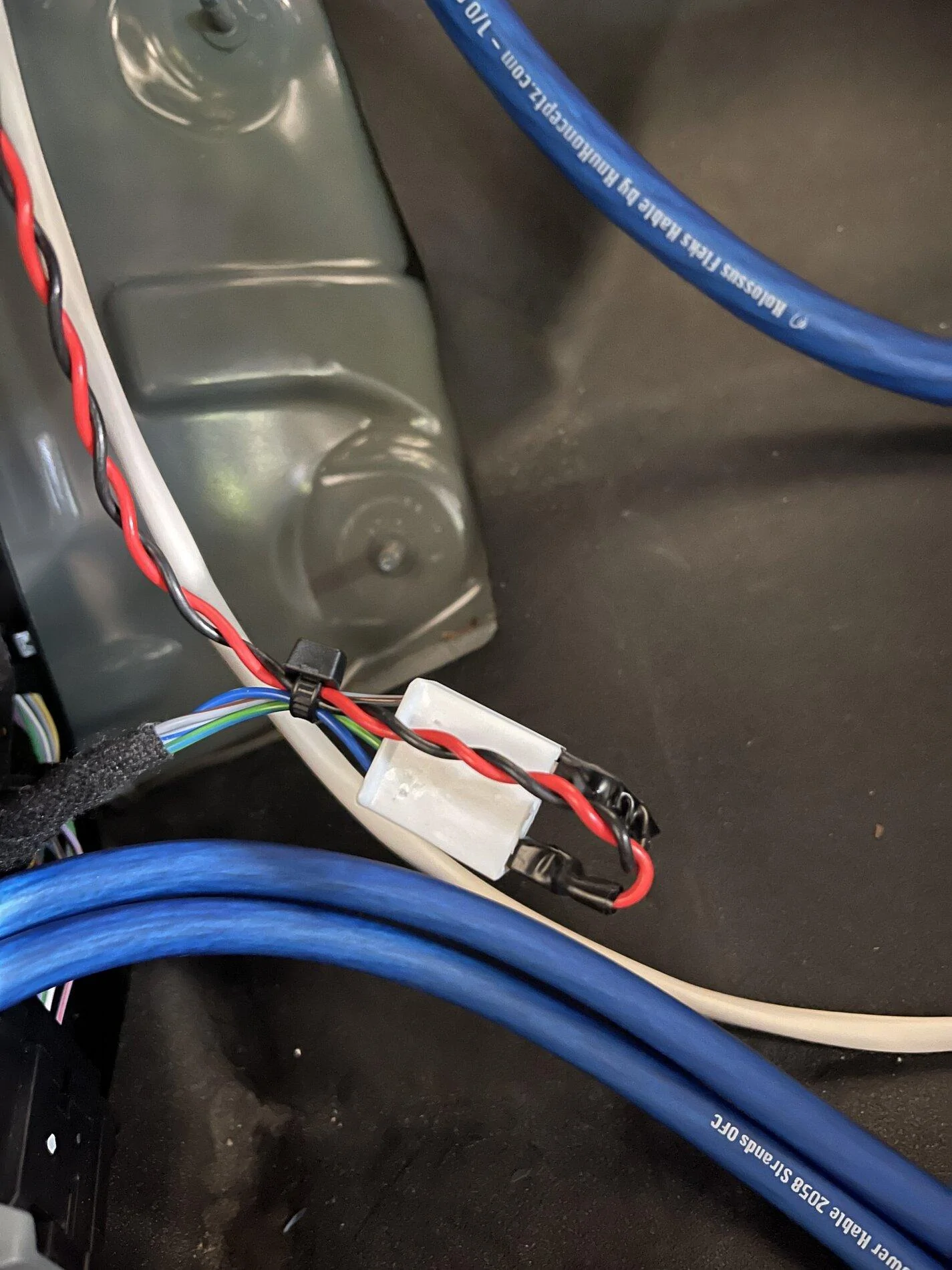

Ford Bronco LeBronco Audio Build 6742C7A8-140D-4087-BE02-74DE0929BC68
Sponsored



VoltageDrop

Base
Well-Known Member
First Name
Eric
Joined
Jul 22, 2020
Threads
14
Messages
1,414
Reaction score
3,952
Location
Fidalgo Island, WA
Vehicle(s)
23, 69 Bronco
Your Bronco Model
Base
Clubs

description and more pics to come.


Ford Bronco LeBronco Audio Build 6742C7A8-140D-4087-BE02-74DE0929BC68
Ford Bronco LeBronco Audio Build 6742C7A8-140D-4087-BE02-74DE0929BC68
Ford Bronco LeBronco Audio Build 6742C7A8-140D-4087-BE02-74DE0929BC68
Ford Bronco LeBronco Audio Build 6742C7A8-140D-4087-BE02-74DE0929BC68
I would use caution leaving that much wire between the battery and the fuse holder. I had a similar fuse wire setup in my first Bronco and one day while bouncing around in the mud that wire rubbed a fender support bracket and shorted through the insulation. It sort of welded itself on there and burned up several things tying the body to the frame, including completely severing the parking brake cable going to the rear axle :oops:

OP
OP

LeBronco

Outer Banks
Well-Known Member
Joined
Jul 15, 2021
Threads
11
Messages
182
Reaction score
322
Location
NC
Vehicle(s)
'19 Expedition Platinum
Your Bronco Model
Outer Banks
I would use caution leaving that much wire between the battery and the fuse holder. I had a similar fuse wire setup in my first Bronco and one day while bouncing around in the mud that wire rubbed a fender support bracket and shorted through the insulation. It sort of welded itself on there and burned up several things tying the body to the frame, including completely severing the parking brake cable going to the rear axle :oops:
It will be getting tech flex wrap but even without it is fine. It is not touching anything metallic. Everything it is touching is plastic.


chtucker

First Edition
Well-Known Member
Joined
Nov 24, 2019
Threads
179
Messages
2,068
Reaction score
3,921
Location
Kirkland, WA
Vehicle(s)
FJ Cruiser
Your Bronco Model
First Edition
I would use caution leaving that much wire between the battery and the fuse holder. I had a similar fuse wire setup in my first Bronco and one day while bouncing around in the mud that wire rubbed a fender support bracket and shorted through the insulation. It sort of welded itself on there and burned up several things tying the body to the frame, including completely severing the parking brake cable going to the rear axle :oops:
Ever wire a winch?


Sponsored

VoltageDrop

Base
Well-Known Member
First Name
Eric
Joined
Jul 22, 2020
Threads
14
Messages
1,414
Reaction score
3,952
Location
Fidalgo Island, WA
Vehicle(s)
23, 69 Bronco
Your Bronco Model
Base
Clubs

Ever wire a winch?
Most people don't run fuses on winches but that doesn't mean they shouldn't. You can certainly throw a 450A fuse right on the battery for one. I would at least put some split loom over that wire coming off the battery since there appears to be a bracket down there.


chtucker

First Edition
Well-Known Member
Joined
Nov 24, 2019
Threads
179
Messages
2,068
Reaction score
3,921
Location
Kirkland, WA
Vehicle(s)
FJ Cruiser
Your Bronco Model
First Edition
Most people don't run fuses on winches but that doesn't mean they shouldn't. You can certainly throw a 450A fuse right on the battery for one. I would at least put some split loom over that wire coming off the battery since there appears to be a bracket down there.
Mega fuses are available in 450 & 500 amps which will work. Just need to find a good spot to mount it. That "should" run a 10k winch. I think the Warn 10K Zeon is quoted at max amps at 410, the 16.5TI is rated at over 500--Another option is this https://www.bluesea.com/products/7700/ML-RBS_Remote_Battery_Switch_with_Manual_Control_-_12V_DC_500A


But getting back to the OP.. Use crimp terminals, There is far less chance of voltage drop/corrosion/resistance or mechanical failure. Those screw terminals make it "easy" but it is not the best way to do things. If you are only using it a few times https://www.harborfreight.com/elect...mpers/hydraulic-wire-crimping-tool-66150.html


Tonka Bronka

Badlands
Well-Known Member
Joined
Aug 5, 2020
Threads
9
Messages
693
Reaction score
1,169
Location
Duncansville
Vehicle(s)
F350, V60 Polestar, 900SS, K1300S, RnineT Racer
Your Bronco Model
Badlands
High dollar wire deserves full crimped connectors...
I knew that was coming, I like solder lugs and heat shrink myself. I must be getting old, I think the radio in my Bronco sounds alright.


edgeflyer

Banned
Wildtrak
Banned
Banned
First Name
Brian
Joined
Jul 17, 2020
Threads
45
Messages
1,417
Reaction score
3,467
Location
Texas
Vehicle(s)
2013 FX4
Your Bronco Model
Wildtrak
I knew that was coming, I like solder lugs and heat shrink myself. I must be getting old, I think the radio in my Bronco sounds alright.
I'm with you. More contact are than a crimp if done correctly and cleaner looking. You can also unsolder for modifications later if needed.


Sponsored

zombie

Badlands
Well-Known Member
Joined
Sep 23, 2021
Threads
4
Messages
1,288
Reaction score
2,901
Location
New Brunswick, Canada
Vehicle(s)
2021 Bronco Badlands (7spd) 2022 Mustang GT PP
Your Bronco Model
Badlands
Clubs

But getting back to the OP.. Use crimp terminals, There is far less chance of voltage drop/corrosion/resistance or mechanical failure. Those screw terminals make it "easy" but it is not the best way to do things. If you are only using it a few times
Nobody who knows how to solder uses crimp terminals


chtucker

First Edition
Well-Known Member
Joined
Nov 24, 2019
Threads
179
Messages
2,068
Reaction score
3,921
Location
Kirkland, WA
Vehicle(s)
FJ Cruiser
Your Bronco Model
First Edition
If you think crimp connectors are stronger than solder, you've never soldered anything properly.
I manage the tech in a fleet of over 3000 municipal vehicles.. Including a fleet of 15 boats from 15' to 90'+
