Lightweight wheels.

Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
30
Messages
3,015
Reaction score
4,956
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

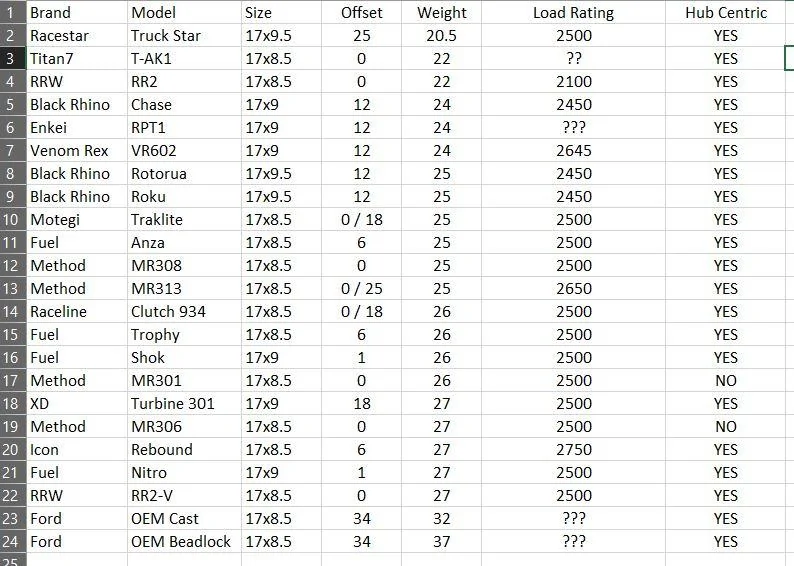

Over on the Raptor site we compiled a list of lightweight wheel options. Granted, this list is for the Raptor lug pattern but I am betting they also have options for the Bronco.


Ford Bronco Lightweight wheels. Light 17 inch.JPG
Sponsored


Last edited by a moderator:

GToddC5

Badlands
Well-Known Member
First Name
Todd
Joined
Jul 15, 2020
Threads
12
Messages
2,040
Reaction score
7,541
Location
South Jersey
Website
www.bronco6g.com
Vehicle(s)
2021 Bronco, 1971 Toyota FJ40, 1998 Corvette 'vert
Your Bronco Model
Badlands
Clubs

This is great, thanks!


L8apex

Badlands
Well-Known Member
Joined
Jul 14, 2020
Threads
30
Messages
1,075
Reaction score
3,822
Location
NC
Website
www.instagram.com
Vehicle(s)
'14 Focus ST, '21 Badlands
Your Bronco Model
Badlands
I'm all for adding lightness (Colin Chapman) but man those truck stars are ugly as sin!

The RRW wheels are more my style - wish they had weights listed on their site though. The ranger selections look pretty good.

OP
OP
Silver-Bolt

Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
30
Messages
3,015
Reaction score
4,956
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

I'm all for adding lightness (Colin Chapman) but man those truck stars are ugly as sin!

The RRW wheels are more my style - wish they had weights listed on their site though. The ranger selections look pretty good.
I have the Truck Stars on my Raptor. LOL. I wanted light and easy to clean. They excel in those areas. Cosmetics, not so much.


BuckyBronco

Badlands
Well-Known Member
Joined
Sep 22, 2020
Threads
1
Messages
96
Reaction score
416
Location
Denver
Vehicle(s)
Bronco Badlands
Your Bronco Model
Badlands
Are there weights available somewhere for all the OEM wheel options? I looked a bit, but couldn't find that info.


Sponsored
OP
OP
Silver-Bolt

Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
30
Messages
3,015
Reaction score
4,956
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

Are there weights available somewhere for all the OEM wheel options? I looked a bit, but couldn't find that info.
We were not able to find the published weights or strengths on the factory wheels. The weights listed are from weighing the actual wheels ourselves.


amccue90

Badlands
Well-Known Member
First Name
Andrew
Joined
Aug 7, 2020
Threads
10
Messages
651
Reaction score
1,151
Location
Illinois
Vehicle(s)
2021 Badlands
Your Bronco Model
Badlands
Clubs

Is it silly for me to consider larger diameter wheels and less tire wall to reduce the rolling weight of the bronco? Like maintaining overall diameter but increasing the wheel size to say 20" to drop weight for my day to day driving.

I've said it before, but any real offroading I'll be doing will be a planned trip as I have to travel, so I could see myself getting a second set of wheels+tires in a few years, and keeping the original to switch on for those trips. Plenty young enough to swap the wheels+tires for those times.


BroncoAZ

Badlands
Well-Known Member
First Name
Mitch
Joined
Mar 11, 2021
Threads
26
Messages
2,308
Reaction score
4,009
Location
Cape Cod, MA, formerly Flagstaff, AZ
Vehicle(s)
2021 2 Door Badlands manual, 2021 Tacoma TRD OR
Your Bronco Model
Badlands
"Simplify and add lightness". Reduced rotating mass is always a good thing.

Is it silly for me to consider larger diameter wheels and less tire wall to reduce the rolling weight of the bronco? Like maintaining overall diameter but increasing the wheel size to say 20" to drop weight for my day to day driving.

I've said it before, but any real offroading I'll be doing will be a planned trip as I have to travel, so I could see myself getting a second set of wheels+tires in a few years, and keeping the original to switch on for those trips. Plenty young enough to swap the wheels+tires for those times.
Typically smaller diameter rims and tires end up being lighter than 20" options. The best performing Bronco for daily driving and fuel economy is the base model with the 30" tires and 16" wheels, but that isn't the aesthetic we all want.

Last edited:

lobbs611

Badlands
Well-Known Member
First Name
Kyle
Joined
Jul 13, 2020
Threads
12
Messages
1,662
Reaction score
4,787
Location
Independence, MO
Vehicle(s)
2D JL Rubicon
Your Bronco Model
Badlands
Clubs

I really wish we had a major player or two, like Forgeline, that would jump over to the 17" forged off-road market. Most of those willing to do forged wheels for trucks cater to the bro-dozer 20"+ crowd. I'd love a set of 17"x8.5-9" forged wheels with some sense of style for my Badlands. Most of the aftermarket off-road wheels on the market are heavy, cast and garishly styled hot garbage.


Sponsored

Mr. Nice

Banned
Badlands
Banned
Banned
First Name
Jayson
Joined
Apr 27, 2021
Threads
1
Messages
678
Reaction score
911
Location
Minnesota
Vehicle(s)
12' Boss302, 08' Audi TT, 13' CRV, 14" Ridgeline
Your Bronco Model
Badlands
Look for lighter tires. They will make more of a difference than lighter wheels as their rotating mass is further from the axle.


BroncoAZ

Badlands
Well-Known Member
First Name
Mitch
Joined
Mar 11, 2021
Threads
26
Messages
2,308
Reaction score
4,009
Location
Cape Cod, MA, formerly Flagstaff, AZ
Vehicle(s)
2021 2 Door Badlands manual, 2021 Tacoma TRD OR
Your Bronco Model
Badlands

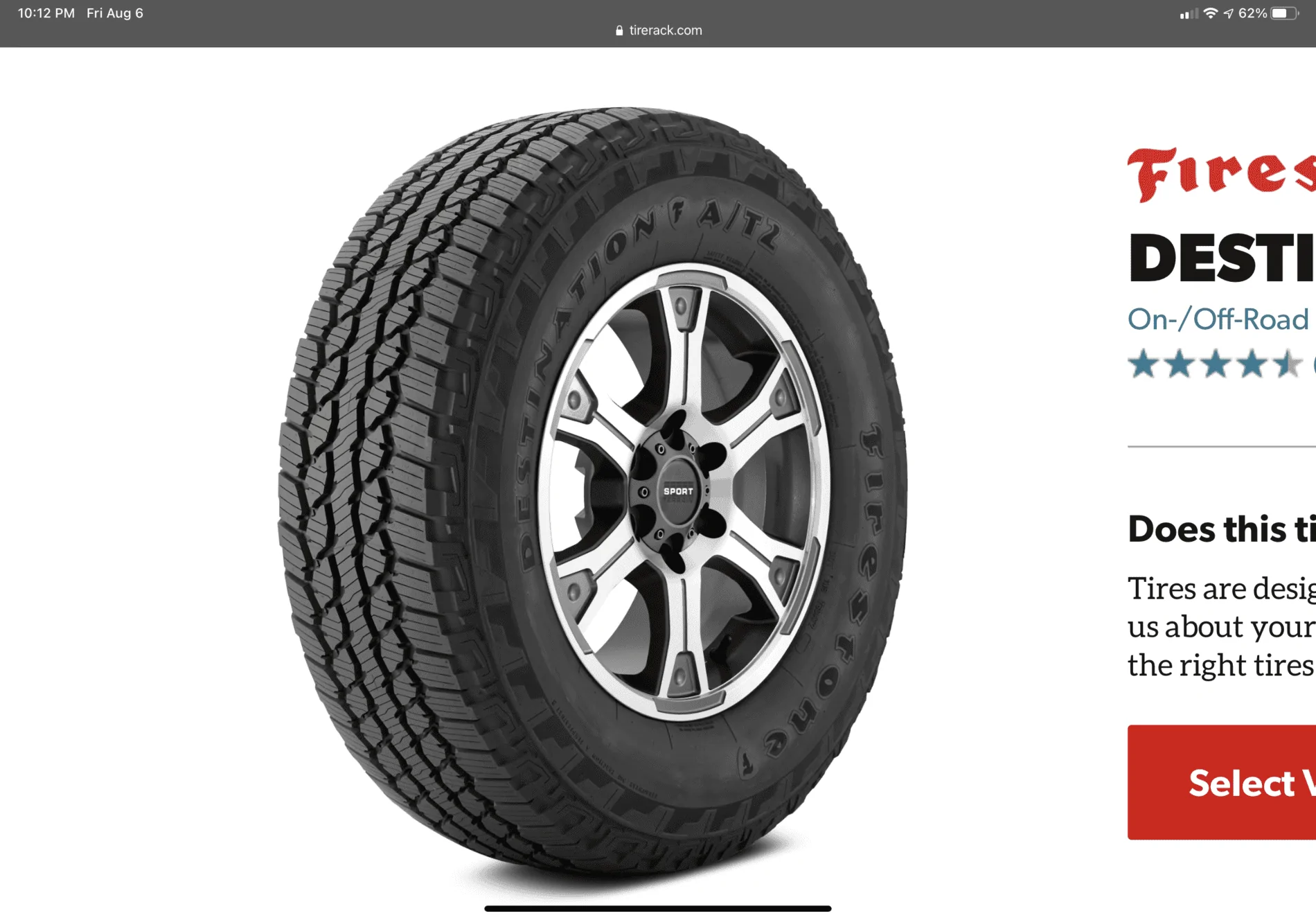

I’ve never run these, but the Firestone Destination AT2 are some of the lightest AT tires I’ve found in the search for my Tacoma. Their 285/70R17 are just. 41 pounds. The 265/75R16 should be perfect for a base with steelies.

Ford Bronco Lightweight wheels. 7F35D6F4-364C-4DB6-A519-7F4F6AF09F67

Ford Bronco Lightweight wheels. 0F65E785-4367-4BB2-82A6-A2F4344B8698


Whelan007

Outer Banks
Active Member
First Name
Jeff
Joined
Jan 27, 2020
Threads
3
Messages
44
Reaction score
52
Location
Austin
Vehicle(s)
2019 Jeep JL
Your Bronco Model
Outer Banks

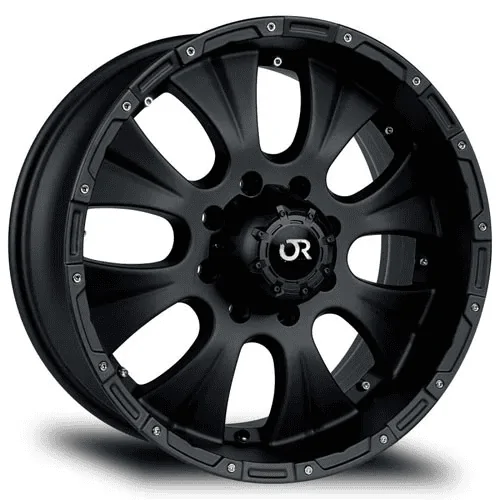

Saw these 24 lbs Would want to have them powder coated white

Ford Bronco Lightweight wheels. 1628644817274


RTX OFFROAD CRAWLER (PAINTED/MATTE BLACK) WHEELS

17 x 86/139.720 mm.108.0024.25 lbs.Matte Black081350$211.00


Bdockins

Well-Known Member
First Name
Ben
Joined
Mar 6, 2020
Threads
4
Messages
699
Reaction score
1,342
Location
Ga
Vehicle(s)
1990 F150
Your Bronco Model
Undecided
Clubs

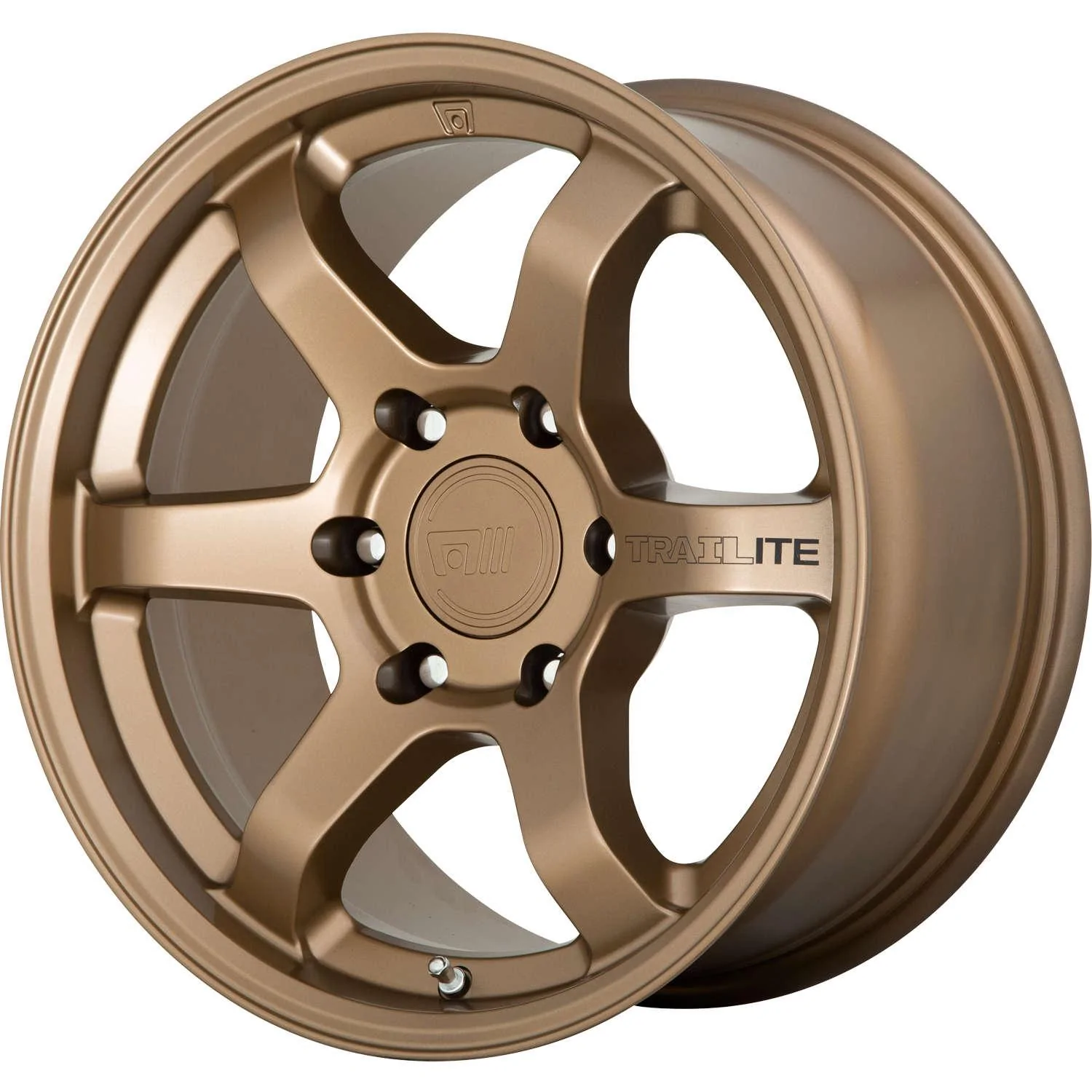

I'm probably going to end up with Motegi Trailites. 17x8.5, +18, and weigh just 24lb.

Ford Bronco Lightweight wheels. mr150_bronze_white
These look sharp. Thought I’d definitely consider painting the center of my badlands alt wheels a bronzish.. matching well with the 51 I think.
i wonder what those weigh?
