Lobo Off-Road is proud to introduce the next level in suspension performance for the Ford Bronco! Our front suspension system has been race inspired by our multiple decades of off-road racing experience and incorporating the X-Travel technology. All bronco owners know that the steering rack and tie rods are two of the weakest links on the bronco. That is why we teamed up with our friends over at X travel, to incorporate their patented virtual pivot system into our kit. Essentially eliminating the heavy loads that have been leaving people stranded on the trails or in the middle of the open desert.

Ford Bronco LOBO OFF-ROAD STAGE X FRONT SUSPENSION KIT P1260437X



KEY FEATURES!!!
-Increased track width by 4 inches per side, providing optimum stability
-Almost 30% more wheel travel with 12.5 inches of wheel travel
-HD outer ball joints
-1” uniball inner pivots
-Made with 4130 and 4140 chromoly
-TIG welded
- MADE IN USA
-SIGNIFICANTLY TAKES LOAD OFF THE FACTORY RACK AND TIE RODS

X-travel technology revolutionizes Independent Front off-road Suspension geometry by allowing the wheels to steer on a virtual axis that remains constantly centered through the wheel and tire assembly, throughout its range of suspension travel. The result is a new level of vehicle control at regardless of the speed or terrain, while alleviating punishment on steering components, reducing driver fatigue, and increasing safety.





The Lobo Offroad bronco suspension kit is entirely made out of high quality 4130/4140 chromoly, creating a robust front suspension kit, that provides not only, bind-free location control of the wheel and tire through its range of motion. We also were able to eliminate scrub radius, bump steer and virtually all terrain feedback through the steering system, but also provides confidence to push their vehicles further and faster while maintaining safer control of the vehicle, knowing that the kit is American made with high grade chromoly components.
Ford Bronco LOBO OFF-ROAD STAGE X FRONT SUSPENSION KIT P1260401X



KIT INCLUDES
-Upper links
-Lower links
- Shock mount trunnion
-Fabricated spindle
-Brake lines
-Tie rod extension
-Longer stub axles
-Necessary hardware

Learn more about the Lobo Front Suspension System with X-Travel Technology at our website
https://lobooffroad.com/product-category/shop-by-category/suspension/

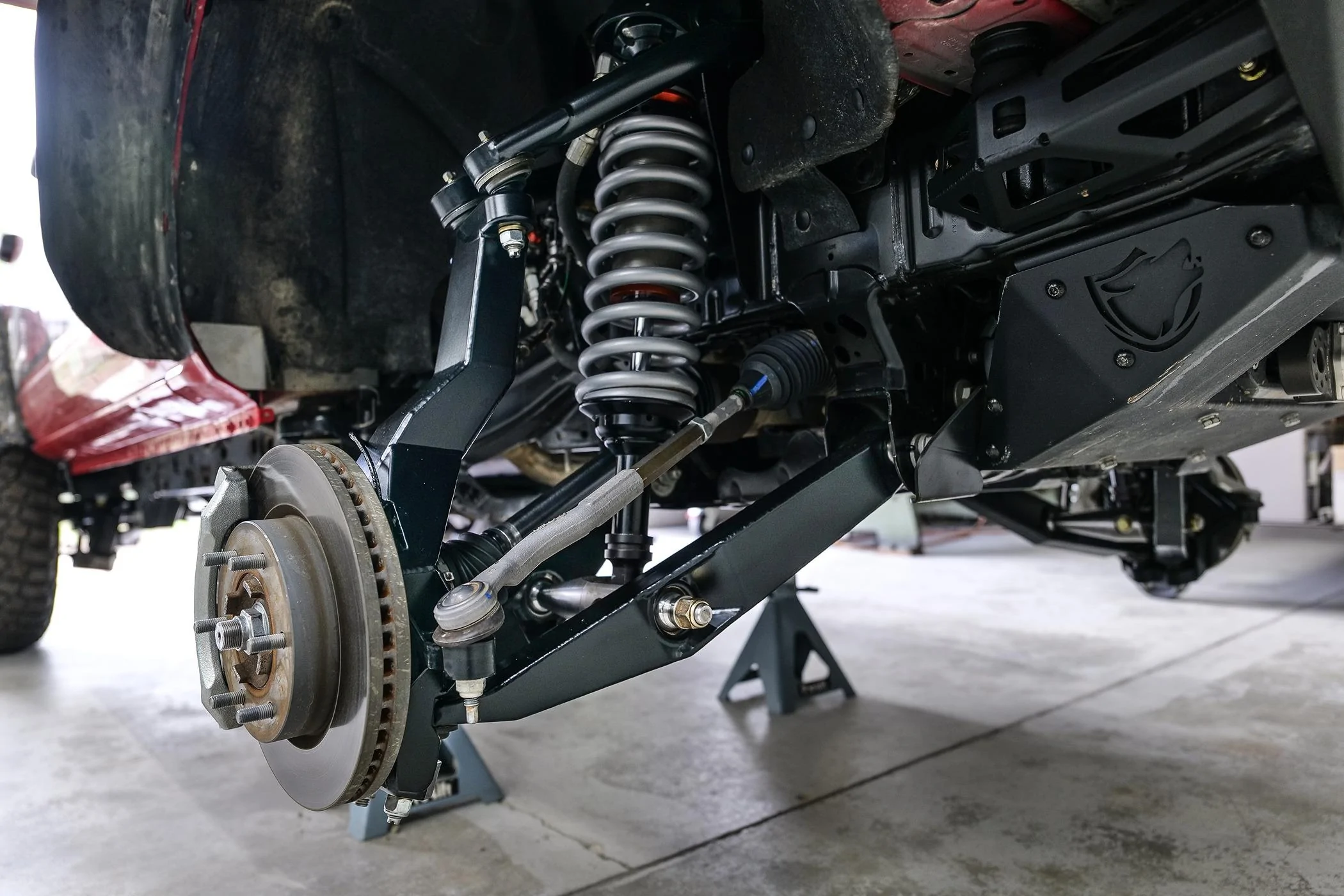

Ford Bronco LOBO OFF-ROAD STAGE X FRONT SUSPENSION KIT lobo-off-road-front-suspension

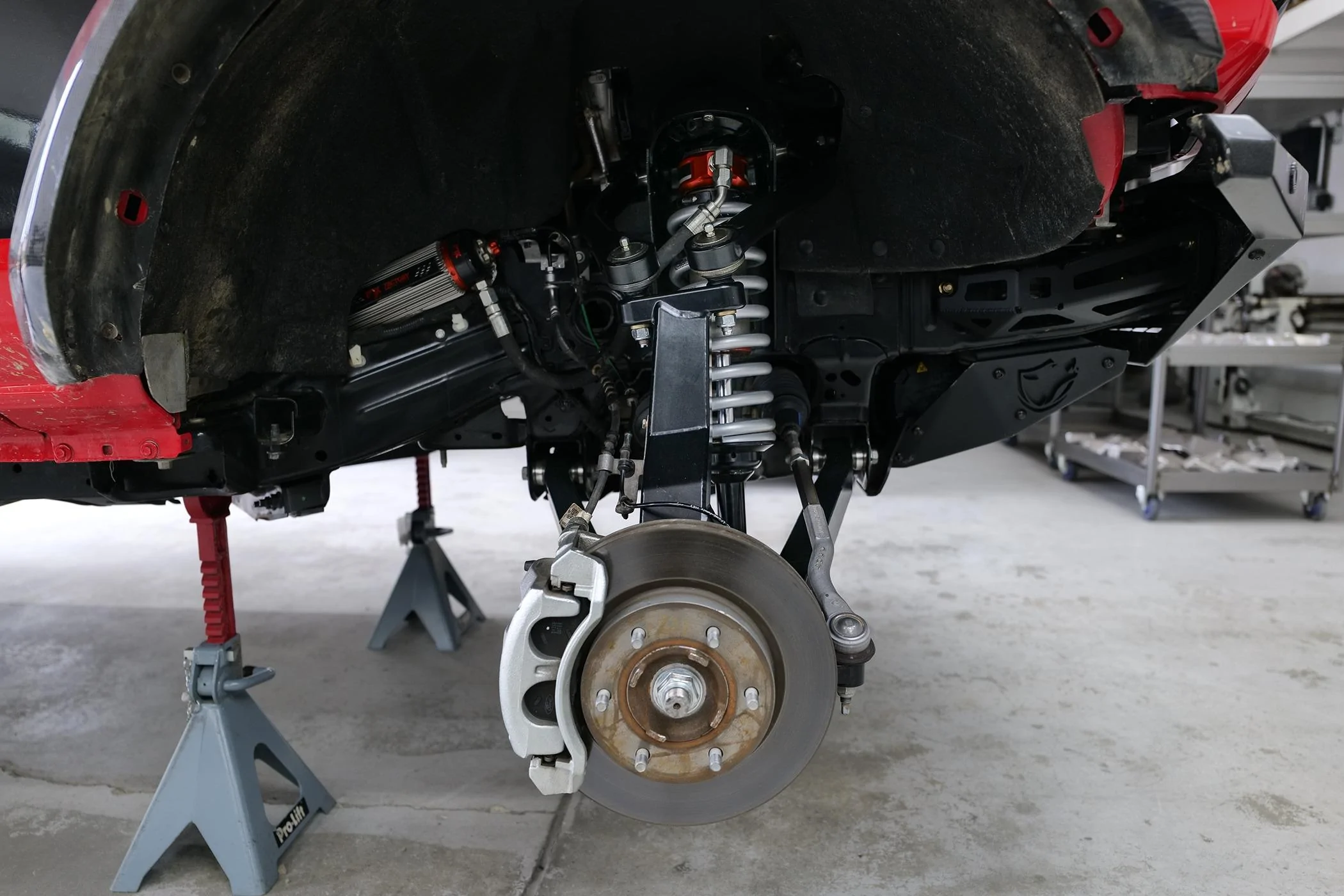

Ford Bronco LOBO OFF-ROAD STAGE X FRONT SUSPENSION KIT lobo-off-road-front-suspension-001

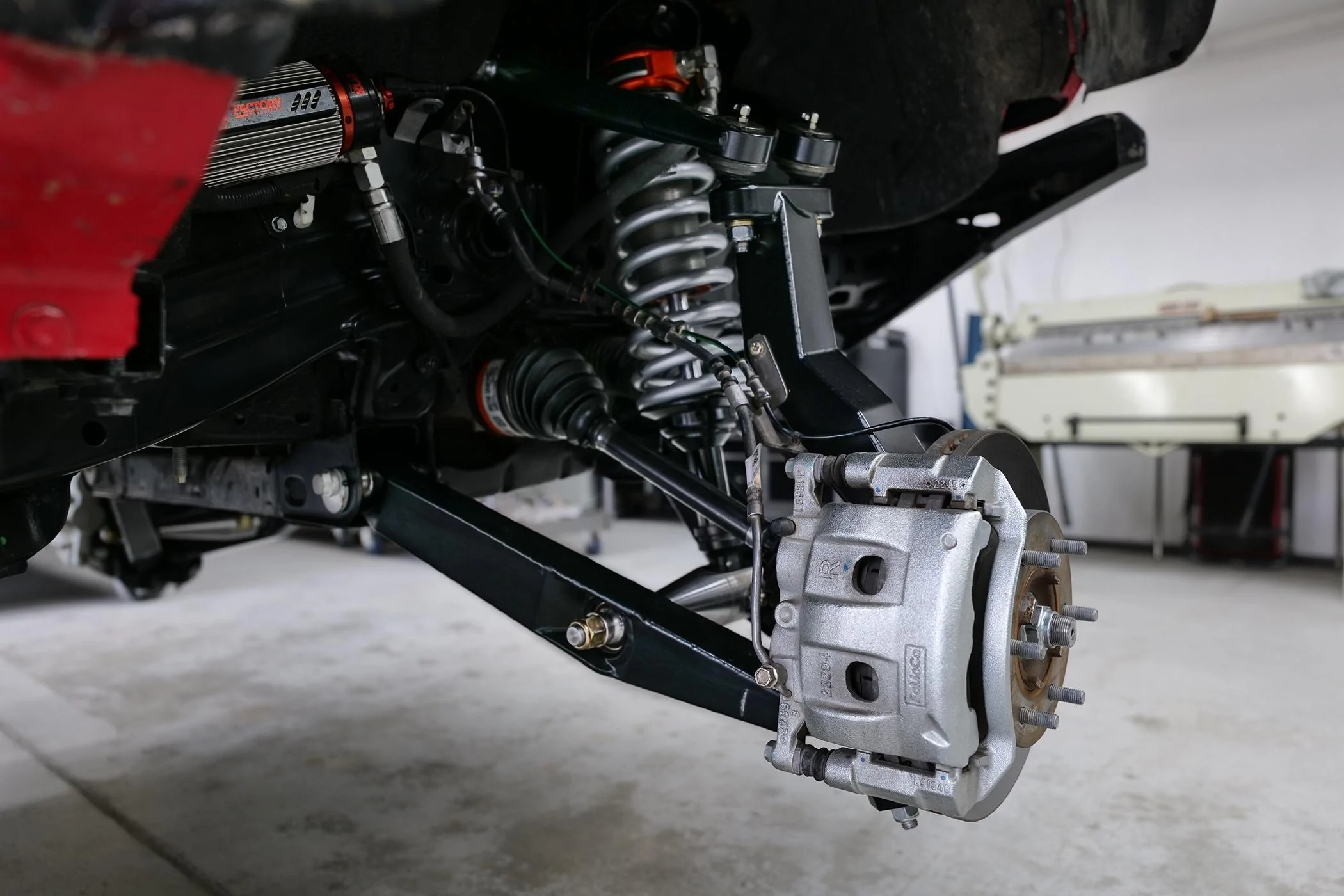

Ford Bronco LOBO OFF-ROAD STAGE X FRONT SUSPENSION KIT lobo-off-road-front-suspension-002

Also make sure to follow all our other social channels as we will posting all the content we have from testing, as well as all the adventures to come!!!
