Looking for headlight wiring schematic.

[BamaBronc]

Anyone have a diagram/schematic for the LED Bronco headlight harness?

Sponsored



[ajchiepalich]

Anyone have a diagram/schematic for the LED Bronco headlight harness?

Looking for this as well- did you find anything?



[BamaBronc]

Looking for this as well- did you find anything?

No



[Bessiethe67]

Anyone have a diagram/schematic for the LED Bronco headlight harness?

Might be worth the $134 depending on how much you'll be customizing... Says release at the end of the year. I'd love to be able to splice in a few light options as well.

https://www.factoryrepairmanuals.com/2021-ford-bronco-electrical-wiring-diagrams-manual-original/



[@BadBlueBronco]

Anyone? Lol



[MillerAndCheeto]

Anyone? Lol

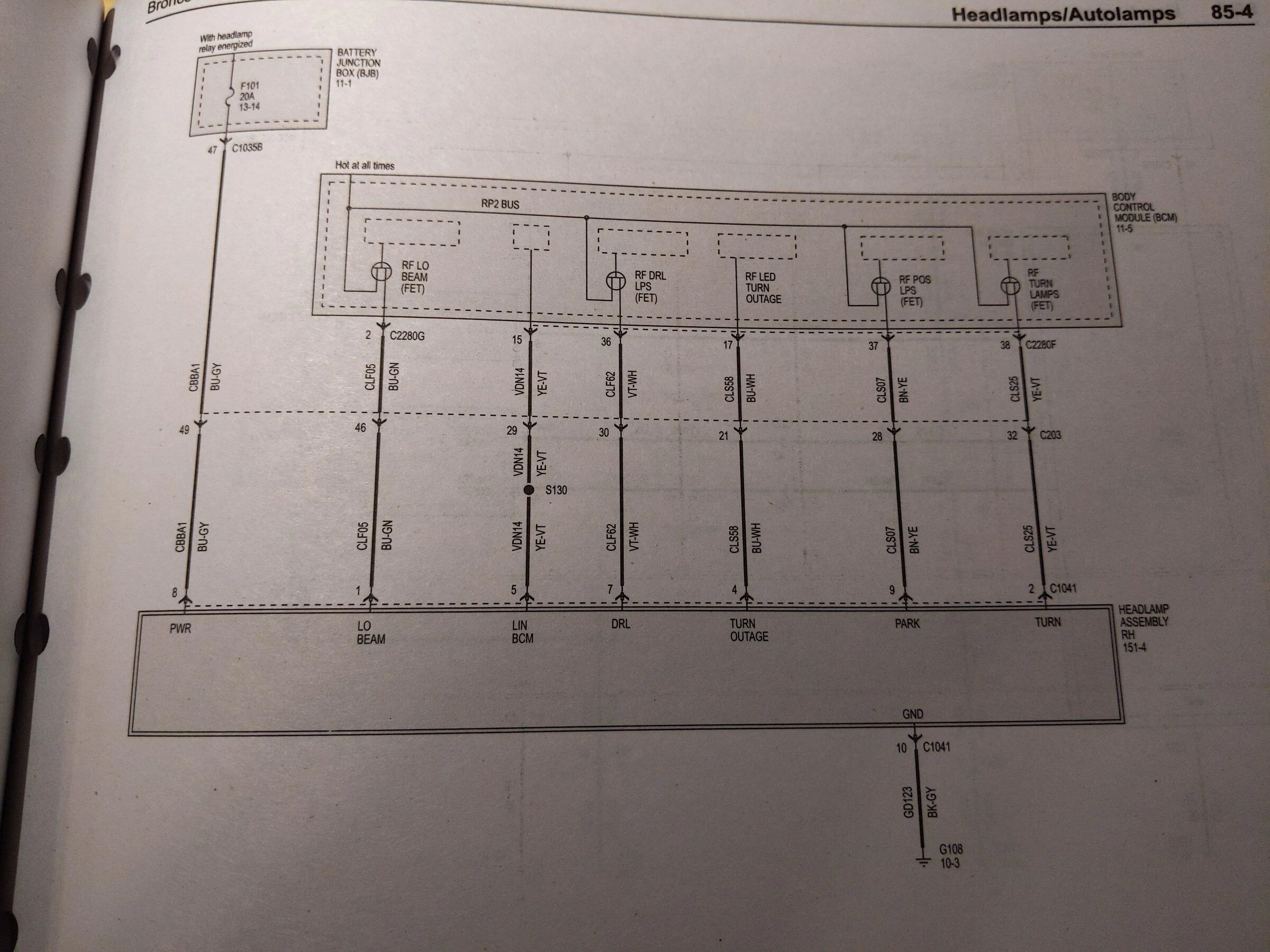

Here you go:



https://www.factory-manuals.com/exp...qbx-rQGagOva7BZX7EFN626pQkYAKt7EaApB9EALw_wcB



[@BadBlueBronco]

Here you go:



https://www.factory-manuals.com/exp...qbx-rQGagOva7BZX7EFN626pQkYAKt7EaApB9EALw_wcB

Thank you SOOOO much for reposting the same thing that has already been posted in this thread! It’s people like you that keep America great



[Bigmoose]



[Bee Bop]

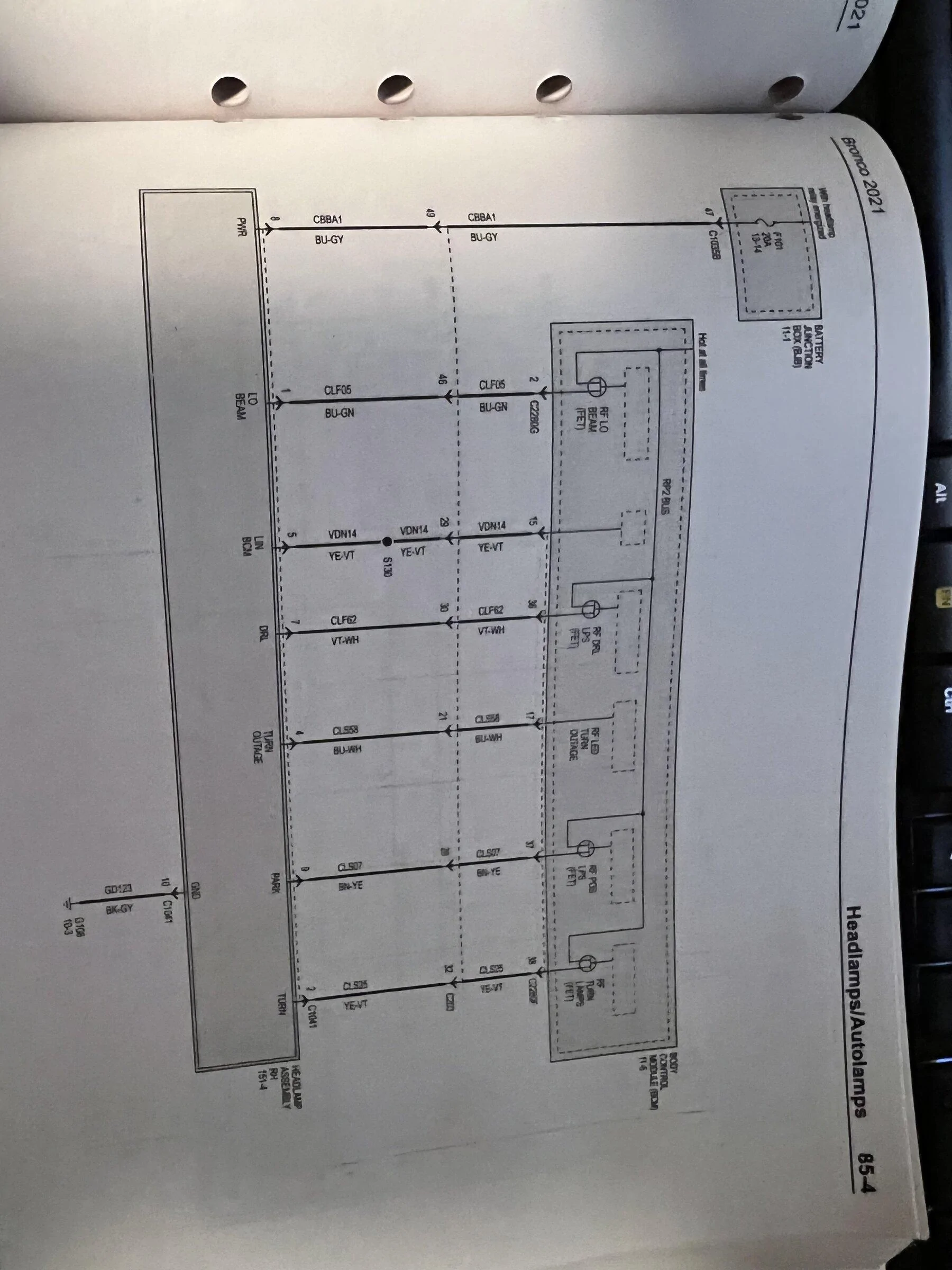

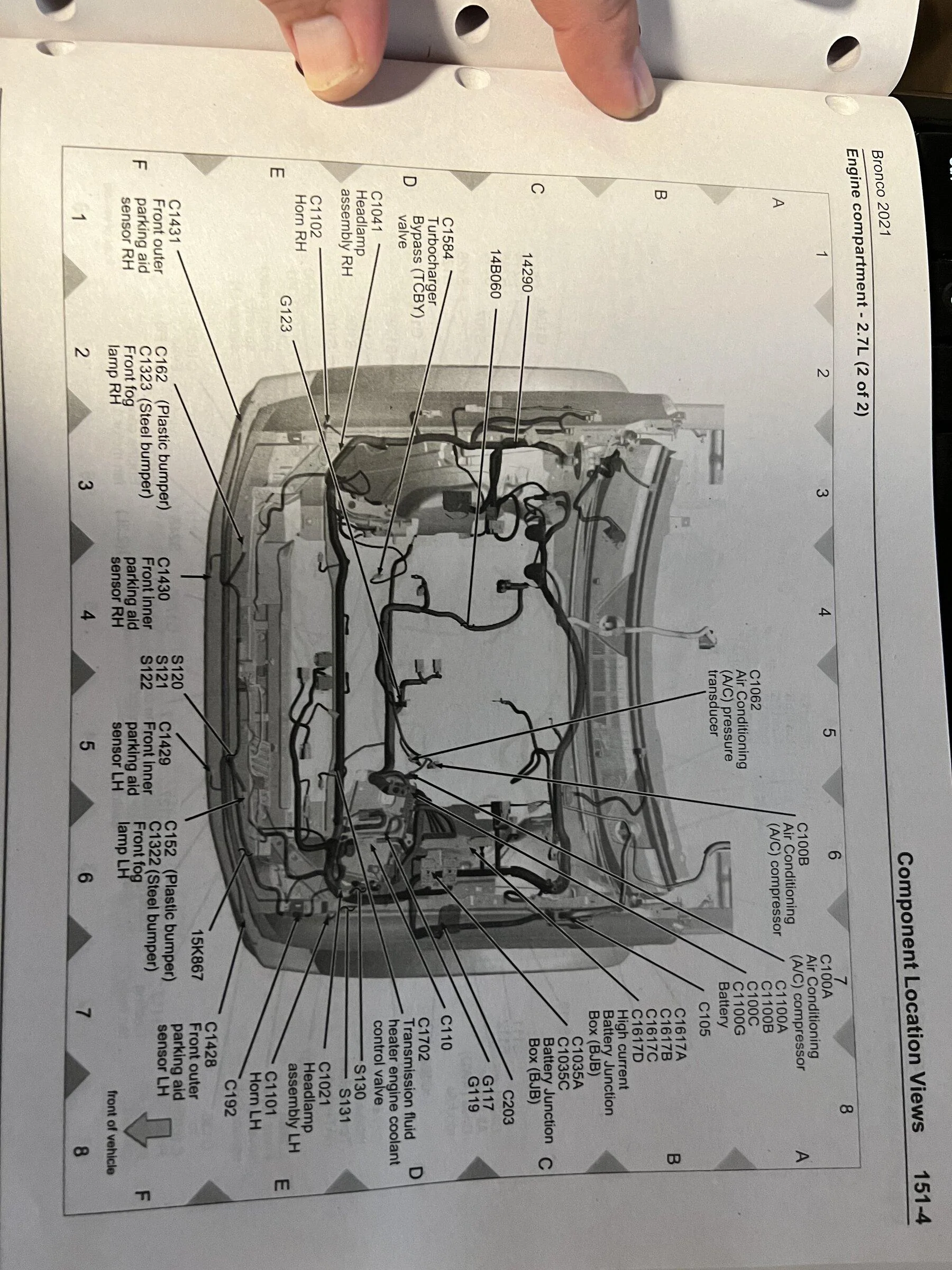

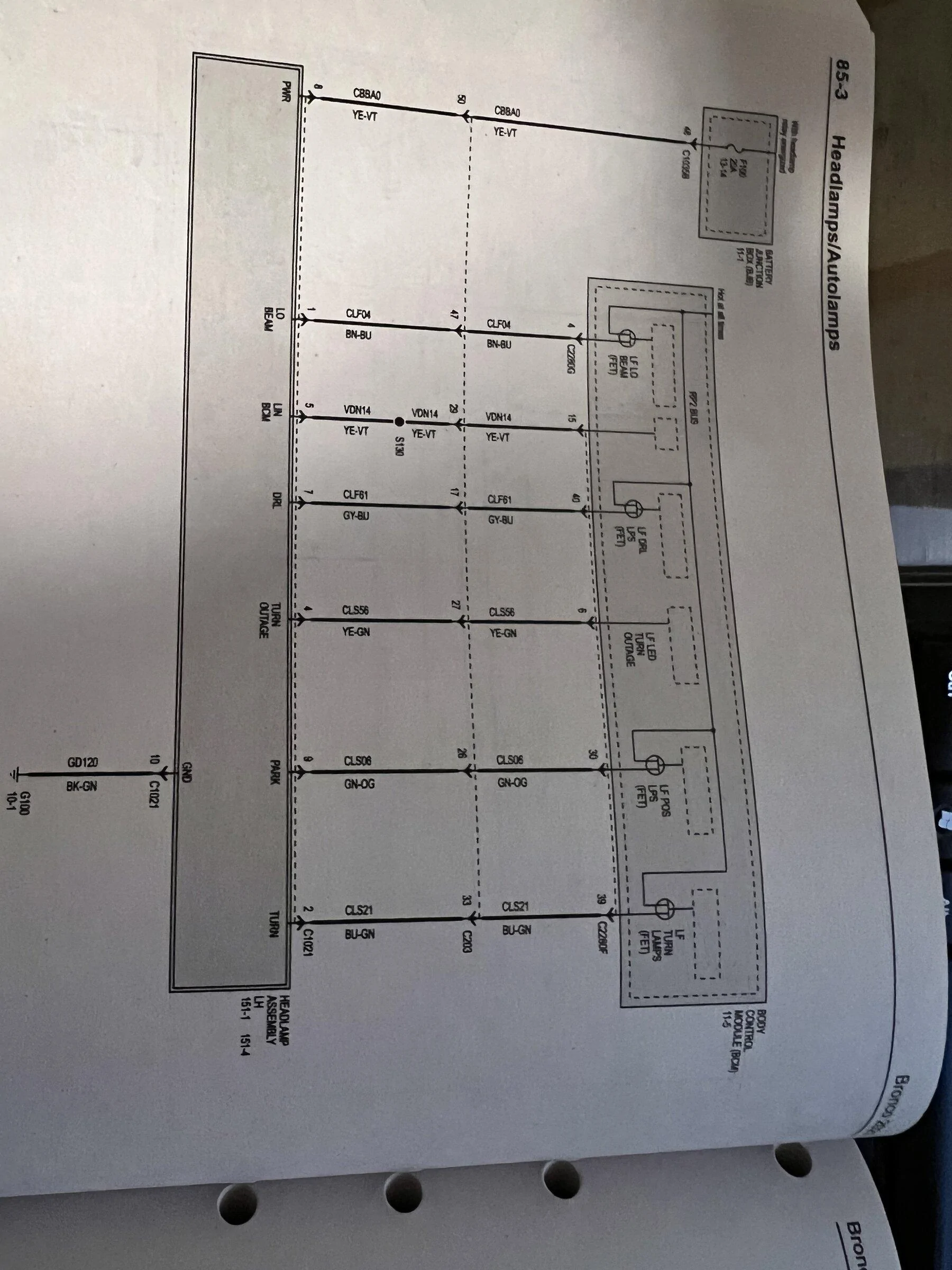

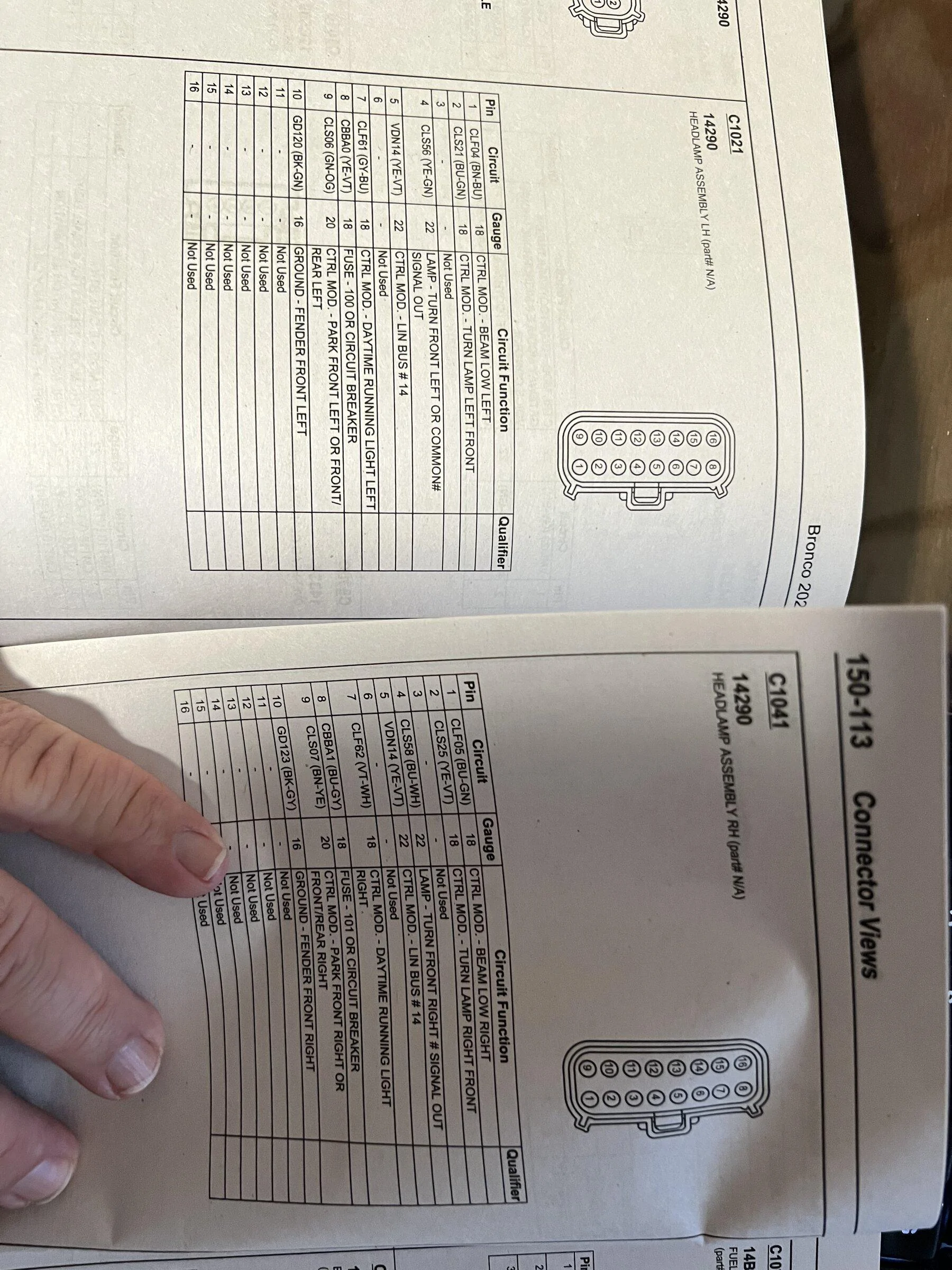

Here you go.



[BamaBronc]

Here you go.

Sooo much tank thank you!



[EXO Bronco]

Here you go.

MVP



[Jfoster05]

Sooo much tank thank you!

You're a GEM! Thank you for sharing all of this! Installing an AVS hood deflector with LED lights and this is going to save me so much time!!



[Bmadda]

Anyone have a diagram/schematic for the LED Bronco headlight harness?

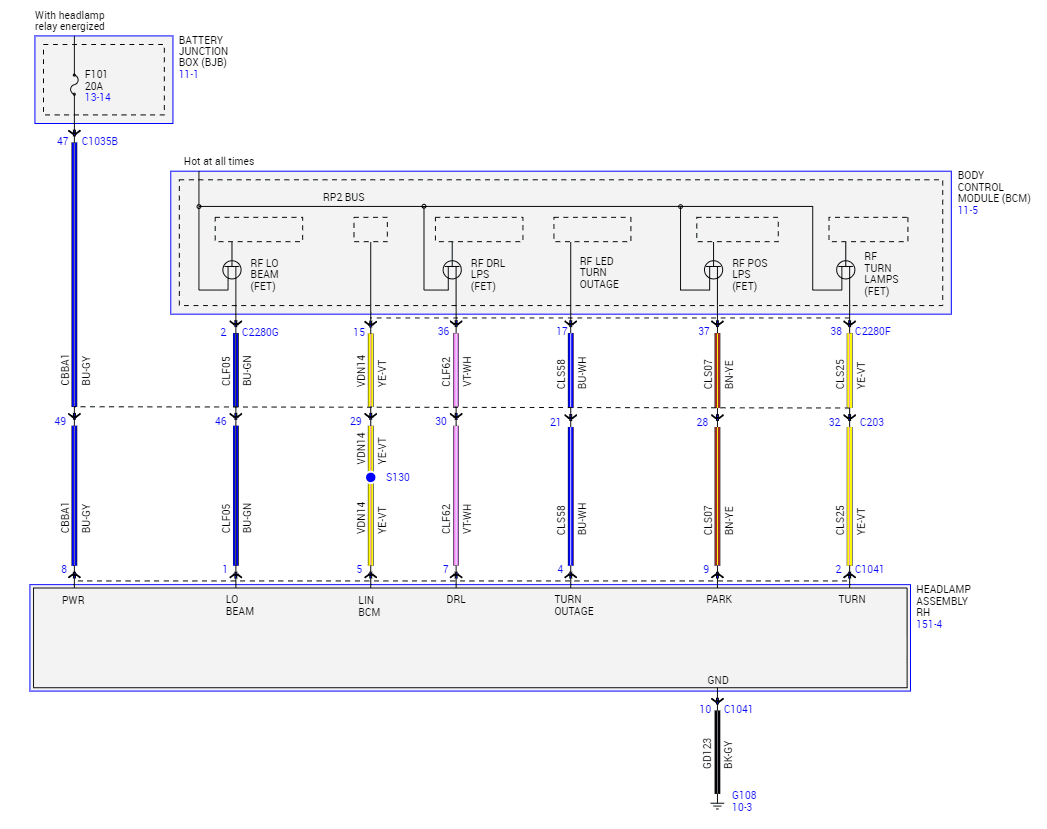

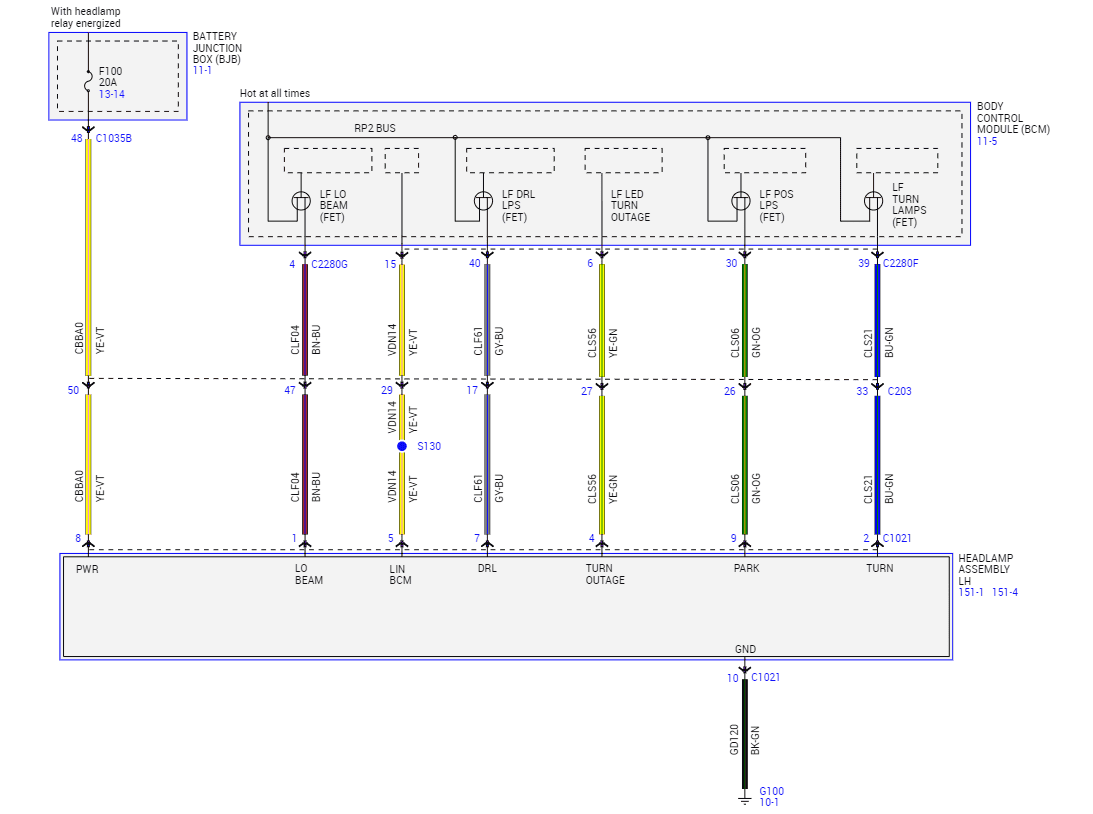

Is this what you wanted?



[CheekyOldMan]

Has anyone confirmed whether there’s a signal bus running over the headlamp system? Supposedly, some systems in newer Ford vehicles do, and tapping them can throw it out of sync.



[JP_Oracle]

Has anyone confirmed whether there’s a signal bus running over the headlamp system? Supposedly, some systems in newer Ford vehicles do, and tapping them can throw it out of sync.

High beam is LIN Bus controlled. Other than that, turn signals are bus monitored but that can be turned off in FORscan if needed.
