Sponsored

Lower Control Arm Cam Alignment Pins

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs

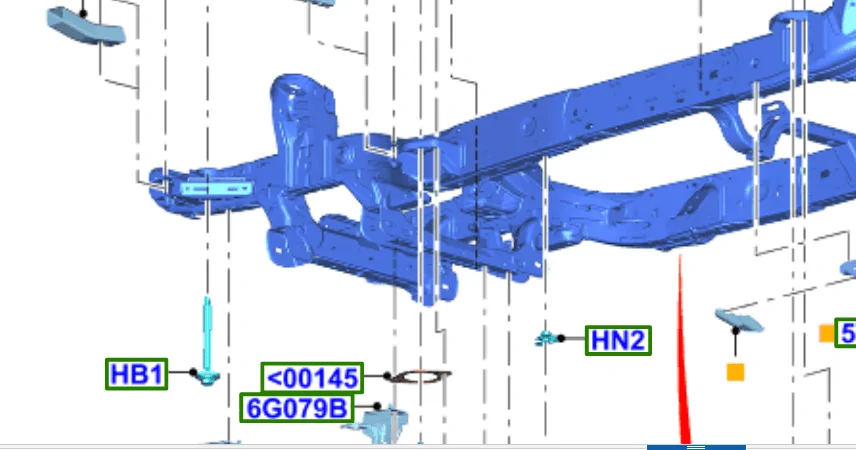

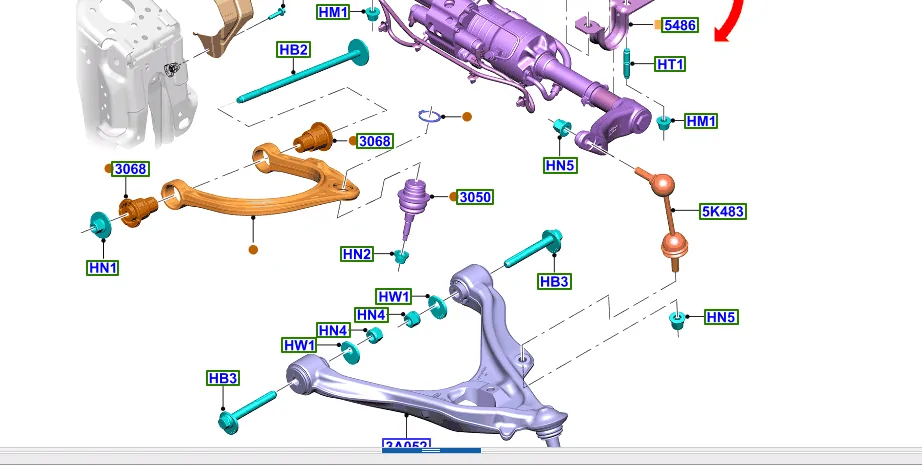

Anyone know of a replacement for the pins that the front lower control arm alignment cam bolts rest against? I've bent a few of mine. The pins are press fit into the frame and should be a replaceable item. Went to the dealership and the schematic isn't showing any part number or that they are even there. @flip
Ford Bronco Lower Control Arm Cam Alignment Pins 1678724741913


Ford Bronco Lower Control Arm Cam Alignment Pins 1678724762375


FYI, I was able to find some for a Chevy, but no idea if they'll fit.
Ford Bronco Lower Control Arm Cam Alignment Pins 1678726530162
Sponsored


Last edited:

V1Rotate

Wildtrak
Well-Known Member
First Name
Bryan
Joined
Oct 18, 2022
Threads
6
Messages
462
Reaction score
1,022
Location
Brevard, NC
Vehicle(s)
2022 Wildtrak
Your Bronco Model
Wildtrak
Clubs

I don’t have a source for those or p/n but curious how you bent them? Drive it with the nut loose?

OP
OP
Elevator Man

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs

I don’t have a source for those or p/n but curious how you bent them? Drive it with the nut loose?
Doing some rock crawling in the mud with poor traction. The front end slipped off and dropped about 4 feet and bent them.


Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
30
Messages
3,015
Reaction score
4,956
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2023 Wildtrak
Your Bronco Model
Wildtrak
Clubs

I doubt they are available as a separate P/N. Looks like they are swaged in from the back side.

OP
OP
Elevator Man

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs

I doubt they are available as a separate P/N. Looks like they are swaged in from the back side.
I've been able to remove the old ones easily, they are just a press fit. I did find some online for a Chevy, but no idea if they will work.
Ford Bronco Lower Control Arm Cam Alignment Pins 1678726475858


Sponsored
OP
OP
Elevator Man

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs

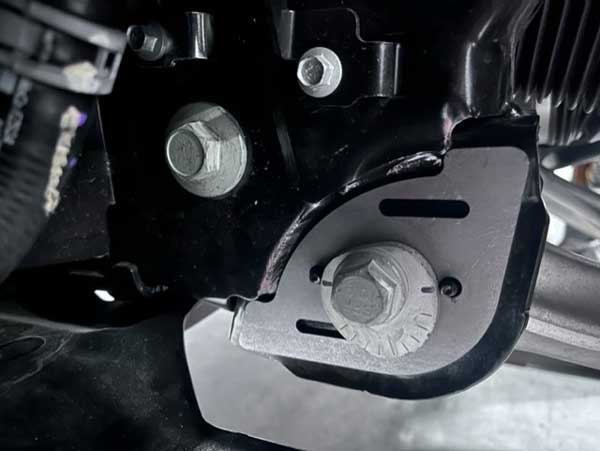

I have an alternative if I can't end up finding find the pins. I'm going to copy what Rough Country does for their higher lift kits and just weld a flat bar on in place of the pins.
Ford Bronco Lower Control Arm Cam Alignment Pins 1678727405675


flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,242
Reaction score
14,104
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

I saw Moog offers these but wasn't able to find looking up by year, make or model. May just have to punch one out and take some measurements.


Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
88
Messages
7,503
Reaction score
25,540
Location
PNW
Website
www.TD-Distributing.com
Vehicle(s)
21 Bronco, 88 Bronco II, 03 Ford F250
Your Bronco Model
Badlands
Clubs

OP
OP
Elevator Man

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs


Sponsored
OP
OP
Elevator Man

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs

OP
OP
Elevator Man

Elevator Man

Badlands
Well-Known Member
First Name
Dan
Joined
Dec 6, 2021
Threads
6
Messages
97
Reaction score
210
Location
California
Vehicle(s)
2016 Mercedes GLE, 2021 Badlands
Your Bronco Model
Badlands
Clubs

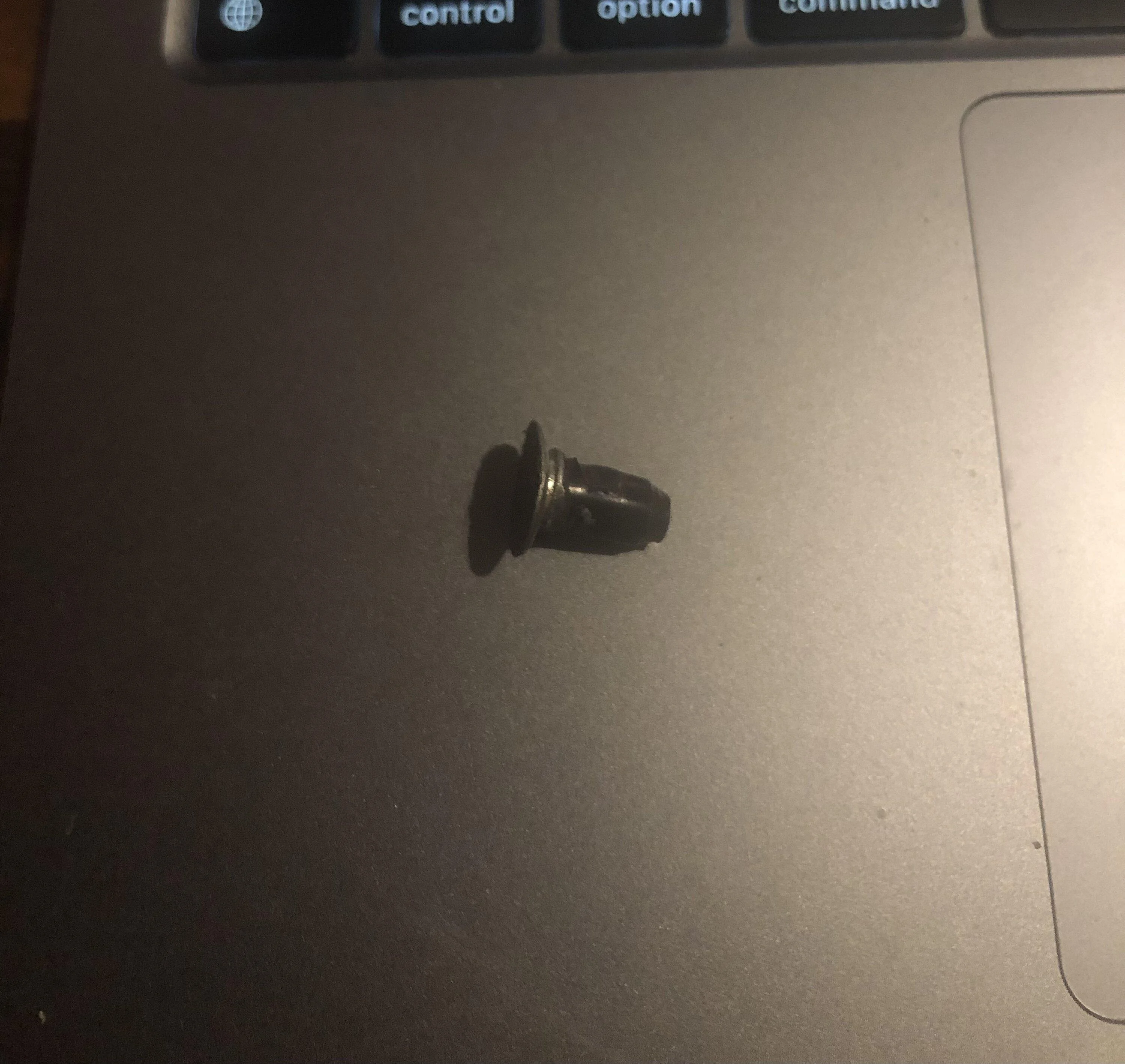

oh ok, I removed one and seems to be made out of aluminum

Ford Bronco Lower Control Arm Cam Alignment Pins IMG_3366
I got an alignment and the person said they sell replacements at Napa Auto Parts, but I havn't verified.
The stock ones are incredibly weak. Mine bent.


Wildtrak'n

Wildtrak
Active Member
First Name
Will
Joined
Jul 29, 2023
Threads
3
Messages
30
Reaction score
8
Location
Riverside CA
Vehicle(s)
22 Bronco
Your Bronco Model
Wildtrak
I got an alignment and the person said they sell replacements at Napa Auto Parts, but I havn't verified.
The stock ones are incredibly weak. Mine bent.
I ordered 2 different types from Amazon I will report back with info on if they worked
Sponsored





Top
