Many Bronco Modular Top Configurations Shown So far

Natai

Badlands
Well-Known Member
First Name
Sean
Joined
Jul 21, 2020
Messages
323
Reaction score
914
Location
Sacramento
Vehicle(s)
Nissan Sentra, Mercedes GLC
Clubs

I'm actually really impressed with the variety of configurations we seem to be able to get just from the modular hard top and standard soft top.

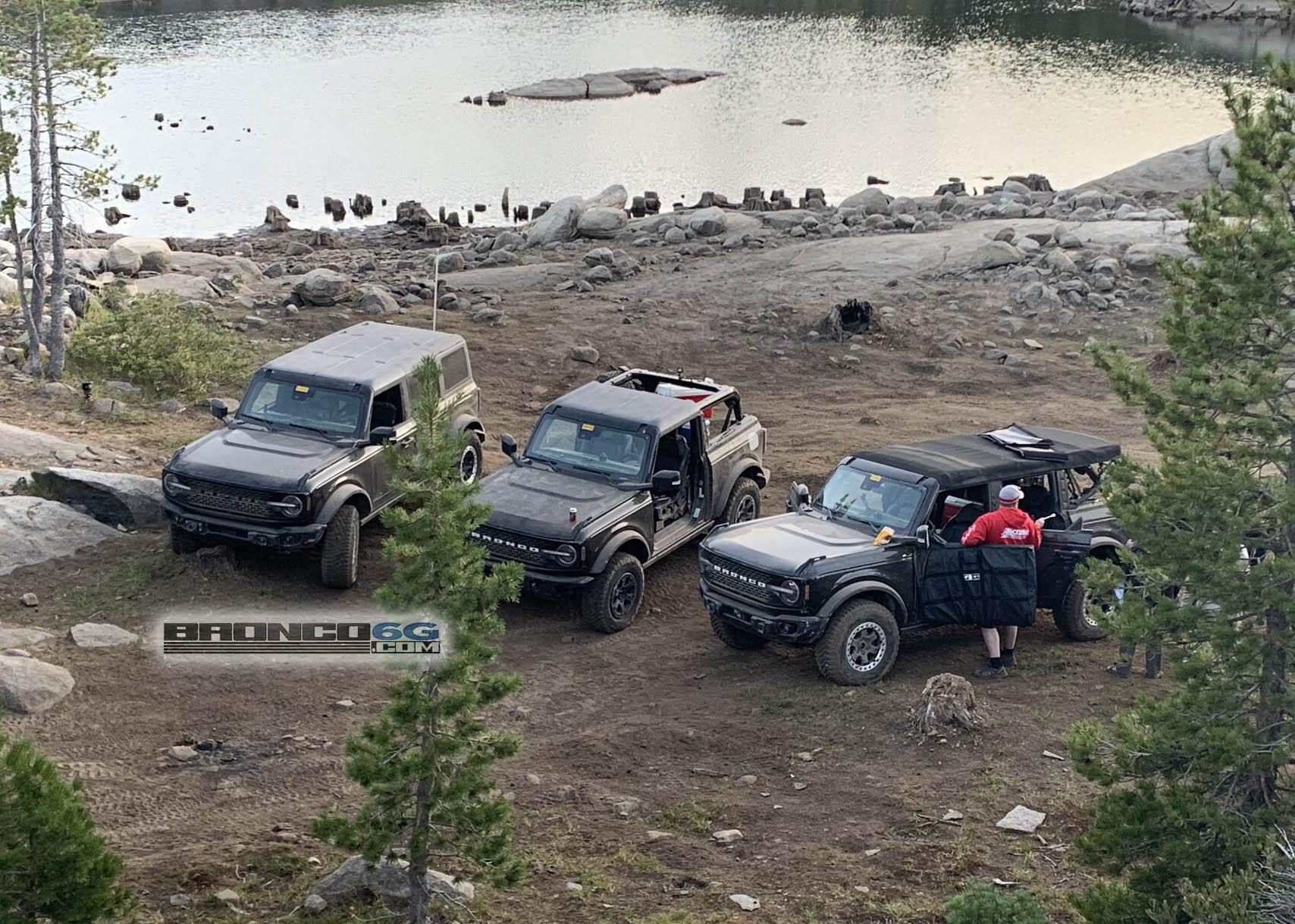

Image from the Rubicon pics / videos thread:



From the photos and videos we've seen, we've got (at least):

Full soft top
Soft top - top only (rear window section removed)
Soft top - front folded back
Soft top - entire top folded back and stowed
Full hard top
Hard top - front panels removed
Hard top - front and middle panels removed (4 door)
Hard top - rear section removed and front panels remain
And of course, No top


While I haven't seen any pics, it's also been stated that the rear quarter windows can be removed in the hard top, so that adds a couple more configurations.

Not certain the front and middle panels in the 4 door can remain in place if the rear section has been removed, but I'd be surprised if that's not a possibility.

So just by picking the dual tops option with modular and soft, you're getting roughly 8-12 different possible configurations. (Or more, if you factor in that you can remove the driver and passenger panel separately.)





Advertisement


Last edited by a moderator:

BroncoJay

Black Diamond
Well-Known Member
First Name
Jason
Joined
Jul 19, 2020
Messages
625
Reaction score
1,588
Location
Iowa
Vehicle(s)
Tacoma
Is the stock top that comes with all the trims a one piece or is it 3 pieces?


vrtical

Badlands
Well-Known Member
First Name
Doug
Joined
Jul 14, 2020
Messages
417
Reaction score
609
Location
TN
Vehicle(s)
Fords
Clubs

Last edited by a moderator:

Lucas718

Well-Known Member
Joined
Jan 23, 2020
Messages
53
Reaction score
94
Location
MD
Vehicle(s)
2017 Ford Escape
Just wondering, does anybody know if the side windows on the hard top can be taken out? Is that what they mean by modular?


Solfive

Wildtrak
Active Member
Joined
Jul 20, 2020
Messages
26
Reaction score
28
Location
NV
Vehicle(s)
2008 JKUR
I run my 4 door wrangler most often with only the front freedom panels on and the rear of the hardtop removed....super happy to see this is possible on the bronco also!


bluesun68

Wildtrak
Well-Known Member
First Name
Michael
Joined
Jul 30, 2020
Messages
60
Reaction score
91
Location
Havasu
Vehicle(s)
raptor, velar, f-type
If you were in a two door and took the panels over your head off, would it blow the rear hard top off at speed? It seemed awfully light weight.


Toccoa

Well-Known Member
Joined
Jan 30, 2020
Messages
1,384
Reaction score
5,389
Location
USA
Vehicle(s)
Isuzu Rodeo Sport
Vehicle Showcase
1
Not certain the front and middle panels in the 4 door can remain in place if the rear section has been removed, but I'd be surprised if that's not a possibility.
The front pieces are the same for the 4DR and 2DR. So, it will make no difference in removal.


Imissmy1996bronco

Base
Well-Known Member
Joined
Jun 16, 2020
Messages
212
Reaction score
706
Location
Colorado
Vehicle(s)
1st gen 2.7 eco f-150
Clubs

If you were in a two door and took the panels over your head off, would it blow the rear hard top off at speed? It seemed awfully light weight.
No, the rear shell of the hardtop is bolted down. Still quick to remove, but it’s pretty secure.


Studawg

Black Diamond
Well-Known Member
Joined
Jul 23, 2020
Messages
506
Reaction score
1,066
Location
SC
Vehicle(s)
02 Excursion 7.3 4x4, 96 Land Cruiser 3x locked
Just wondering, does anybody know if the side windows on the hard top can be taken out? Is that what they mean by modular?
Im trying to figure out if there are two different types of hard top. Basic and Modular.

On Fords spec sheets:

The "Molded In Color Carbonized Gray" hard top, none of these are listed as "Modular".

But the tops which are "Body Color Painted or Shadow Black Painted" are stated as "Modular"

Im thinking the 2 dr Modular top has a sunroof over the rear seat area and side cargo panels that are removable. The 2 Dr basic top has just the removable section over the front seats and the cargo panels don't pop out.

I feel like Ive seen pics of different 2 dr hardtops, some WITH the sunroof panel over the rear and some WITHOUT.

But for the 4 door, it seems stupid that they would make some with removable side cargo windows and some without.


CascadianCorvid

Badlands
Well-Known Member
Joined
Jul 21, 2020
Messages
66
Reaction score
183
Location
PNW
Vehicle(s)
Subaru
Clubs

I personally would love a single piece removable top. In the PNW, it's all or nothing; rain or shine. I'll leave it on stands in my garage when I want it off. I'd prefer that it didn't leak between the modular panels in the rain. (Hopefully there will be some after market gasket improvements like you can get for jeeps)

OP
Natai

Natai

Badlands
Well-Known Member
First Name
Sean
Joined
Jul 21, 2020
Messages
323
Reaction score
914
Location
Sacramento
Vehicle(s)
Nissan Sentra, Mercedes GLC
Clubs

  • Thread starter
  • Thread Starter
  • #12
in one of the video / pics floating around they had just the front on a 4 door of the modular top on only which seemed pretty cool.
Correct. I've seen it with just the front, and with the front and rear.

I have not seen one with the front and middle (the panel over the second row on the 4 door) with no rear section. Not sure how much the middle section depends on connections to the other panels.


rmc523

Wildtrak
Well-Known Member
Joined
Jan 14, 2020
Messages
1,166
Reaction score
2,038
Location
South Florida
Vehicle(s)
2009 Ford Flex; 2018 Mustang GT
Vehicle Showcase
2
Clubs

Just wondering, does anybody know if the side windows on the hard top can be taken out? Is that what they mean by modular?
Reportedly yes. Not sure if we've seen photos of that combo, though.


CascadianCorvid

Badlands
Well-Known Member
Joined
Jul 21, 2020
Messages
66
Reaction score
183
Location
PNW
Vehicle(s)
Subaru
Clubs

I'm actually really impressed with the variety of configurations we seem to be able to get just from the modular hard top and standard soft top.

From the photos and videos we've seen, we've got (at least):

Full soft top
Soft top - top only (rear window section removed)
Soft top - front folded back
Soft top - entire top folded back and stowed
Full hard top
Hard top - front panels removed
Hard top - front and middle panels removed (4 door)
Hard top - rear section removed and front panels remain
And of course, No top

While I haven't seen any pics, it's also been stated that the rear quarter windows can be removed in the hard top, so that adds a couple more configurations.

Not certain the front and middle panels in the 4 door can remain in place if the rear section has been removed, but I'd be surprised if that's not a possibility.

So just by picking the dual tops option with modular and soft, you're getting roughly 8-12 different possible configurations. (Or more, if you factor in that you can remove the driver and passenger panel separately.)
Are those hard tops black or the molded in gray standard hard top? I think the gray looks good with a black bronco, but kind of weird on the other colors. (Well, I haven't seen it with carbonized gray.)

OP
Natai

Natai

Badlands
Well-Known Member
First Name
Sean
Joined
Jul 21, 2020
Messages
323
Reaction score
914
Location
Sacramento
Vehicle(s)
Nissan Sentra, Mercedes GLC
Clubs

  • Thread starter
  • Thread Starter
  • #15
Is the stock top that comes with all the trims a one piece or is it 3 pieces?
I haven't seen any hard tops that appear to be one piece.

Are those hard tops black or the molded in gray standard hard top? I think the gray looks good with a black bronco, but kind of weird on the other colors. (Well, I haven't seen it with carbonized gray.)
Right now, the only molded hard tops are listed as being gray. We have seen a couple of pics with some that appear to be black, but all of the recent stuff has been gray. Whether or not that makes sense with the other molded parts or not is a whole other discussion that keeps coming up.

Im trying to figure out if there are two different types of hard top. Basic and Modular.

On Fords spec sheets:

The "Molded In Color Carbonized Gray" hard top, none of these are listed as "Modular".

But the tops which are "Body Color Painted or Shadow Black Painted" are stated as "Modular"

Im thinking the 2 dr Modular top has a sunroof over the rear seat area and side cargo panels that are removable. The 2 Dr basic top has just the removable section over the front seats and the cargo panels don't pop out.

I feel like Ive seen pics of different 2 dr hardtops, some WITH the sunroof panel over the rear and some WITHOUT.

But for the 4 door, it seems stupid that they would make some with removable side cargo windows and some without.
Yeah, that part is a little confusing. It definitely appears there is a difference between the Molded-in-Color tops and the Modular ones.

Looks like all the recent photos and videos have been of the Molded tops (which are already pretty modular), and the list in the OP is based off of those. To me it looks like the Molded top actually consists of 5 pieces: front panel, middle panel (4 dr), rear panel w/ rear glass, and 2 rear quarter windows. (Assuming the rear quarter windows are removeable in the the Molded top - haven't seen pics yet.)

We know that at least one of the hard tops has separate driver and passenger roof panel, but the recent shots of the Molded top don't seem to show a seam there, so I'm thinking that's on the Modular top. We've haven't seen as much of that one recently (in either paint option) but we have seen photos that show an oval shaped panel in roughly the middle of the roof. Don't know if that is a sunroof or just a cover for some of the seams between the other panels.

And since we don't have any pics of the rear quarter windows removed, we also don't know if that is limited to the Molded top, the Modular top, or both.

Edit: Looking at the hard tops in the current version of the Colorizer, it looks like the driver/passenger panels are actually separate on both the Molded and Modular painted top. The oval shaped panel is visible above the second row in the 2 door, so that could be a sunroof. So not sure exactly what the difference is between the Molded and Modular painted tops in terms of configurations. Possibly the rear quarter windows.

Last edited:
