MIC Hardtop Torque Specs

rzarezai

Badlands
Member
First Name
Rezai
Joined
Dec 17, 2022
Threads
3
Messages
13
Reaction score
18
Location
Chicago, IL
Vehicle(s)
23 EG Badlands Sas, 7MT
Your Bronco Model
Badlands
So I took my top off for the 4th and it was a blast. Plan to do it more often, but the time has come to put the top back on. Does anyone know the torque specs of the 10 TP50 bronco bolts that screw in to secure the top?

Thanks
Sponsored



Ducati1098

Wildtrak
Well-Known Member
Joined
Jul 14, 2020
Threads
13
Messages
5,028
Reaction score
10,427
Location
Midwest
Vehicle(s)
2022 Bronco Wildtrak, 2006 Corvette Z06, 2012 Ford Fusion
Your Bronco Model
Wildtrak
Clubs

  1. Remove the hard top rear cap mounting bolts on C-piller.
    Torque: 106 lb.in (12 Nm)
Ford Bronco {thread} {filename}
Ford Bronco {thread} {filename}
Ford Bronco {thread} {filename}

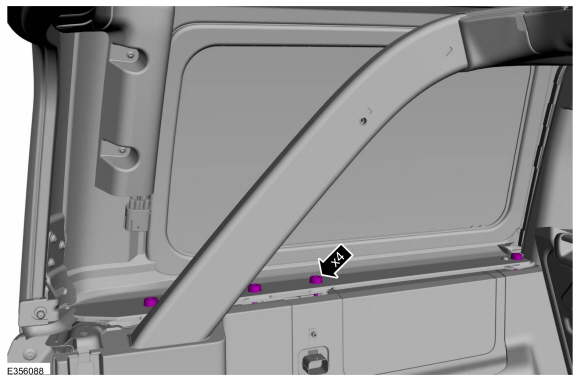

  1. NOTE: LH side shown, RH similar.
    Remove the 4 bolts from each side.
    Torque: 106 lb.in (12 Nm)
Ford Bronco {thread} {filename}
Ford Bronco {thread} {filename}
Ford Bronco {thread} {filename}

OP
OP

rzarezai

Badlands
Member
First Name
Rezai
Joined
Dec 17, 2022
Threads
3
Messages
13
Reaction score
18
Location
Chicago, IL
Vehicle(s)
23 EG Badlands Sas, 7MT
Your Bronco Model
Badlands
That is way lower than I expected. So only 9 ft Lbs?


Ducati1098

Wildtrak
Well-Known Member
Joined
Jul 14, 2020
Threads
13
Messages
5,028
Reaction score
10,427
Location
Midwest
Vehicle(s)
2022 Bronco Wildtrak, 2006 Corvette Z06, 2012 Ford Fusion
Your Bronco Model
Wildtrak
Clubs


ChrisB351

Black Diamond
Well-Known Member
First Name
Chris
Joined
Jan 4, 2022
Threads
17
Messages
1,562
Reaction score
2,903
Location
Shreveport, LA
Vehicle(s)
2022 2dr Bronco, 2005 ZX6r, 1993 Mustang GT
Your Bronco Model
Black Diamond
Clubs

Ive never even considered torque specs and just run em down tight with my cordless driver then 1/4 turn


Sponsored

JonDW29

Wildtrak
Well-Known Member
First Name
Jon
Joined
Feb 25, 2022
Threads
4
Messages
310
Reaction score
304
Location
NoVA
Vehicle(s)
'16 F-150
Your Bronco Model
Wildtrak
Clubs

I use the Rockworkx thumb screws and just screw them in until their hand snug. Even doing that sometimes I need to use a small screwdriver to get them started loosening up some. Never seen an issue.


X JBM X

Wildtrak
Well-Known Member
Joined
Sep 12, 2022
Threads
3
Messages
56
Reaction score
70
Location
boston
Vehicle(s)
wildtrak
Your Bronco Model
Wildtrak
cordless impact drill does the trick... i don't think they need to be super snug... but you don't want the top to come off either.


tock13

Big Bend
Well-Known Member
First Name
Tony
Joined
Oct 4, 2022
Threads
58
Messages
1,100
Reaction score
1,881
Location
WA State
Vehicle(s)
Mazda, 66 Honda CT90, ā€˜94 Toyota Xtra cab
Your Bronco Model
Big Bend
Clubs

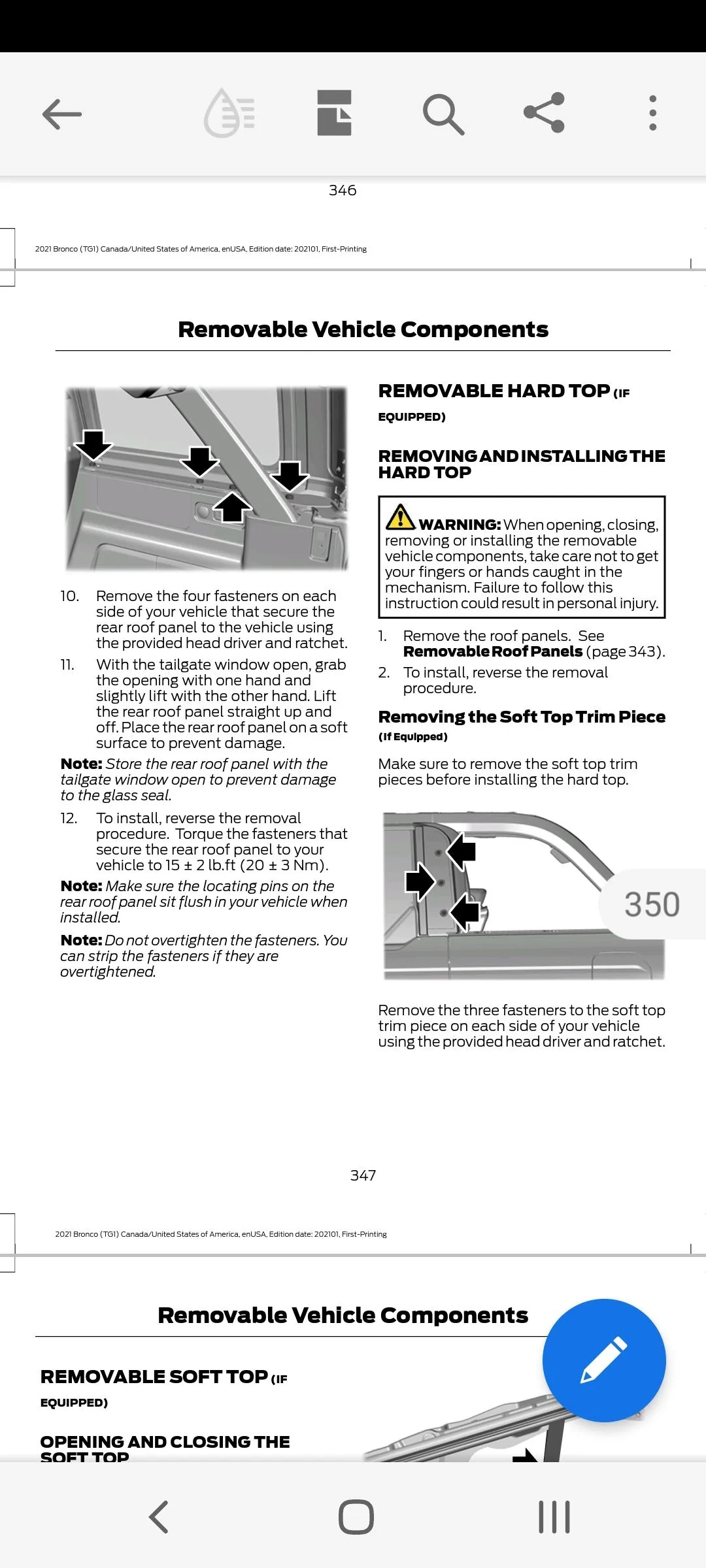

Weird soft top side trim piece? Don't think I removed it for the hardtop install and I wonder why it needs to be removed?
Iā€™m wondering the same thing. The soft price doesnā€™t seem to be built in a way it even comes close to touching the hard top. Iā€™d like to just leave the soft top piece in all the time.


Sponsored

Lak34ers

Big Bend
Well-Known Member
First Name
Troy
Joined
Oct 4, 2021
Threads
88
Messages
1,066
Reaction score
955
Location
Seattle
Vehicle(s)
F150
Your Bronco Model
Big Bend
Clubs

Iā€™m wondering the same thing. The soft price doesnā€™t seem to be built in a way it even comes close to touching the hard top. Iā€™d like to just leave the soft top piece in all the time.
All the videos I watched never mention the softtop piece. Must be fine to leave in.


Combustion_King

Badlands
Well-Known Member
First Name
Derek
Joined
Nov 19, 2022
Threads
42
Messages
567
Reaction score
712
Location
MA
Vehicle(s)
Yes
Your Bronco Model
Badlands
Clubs

I use my cordless ratchet to get them all in, then take the hand tool ratchet provided and final snug all of them
