One of the forum members asked me if I could get the dimensions for the Bronco Bolt Accessory Mounting Locations on the Badlands Modular Front Bumper on my visit to see the Bronco in person last weekend.

This is needed for anyone fabricating their own bull bar, brush guard, lighting mounts, fishing rod holders, etc. I will call this drawing the first draft as I'm lacking a 3D scanner or a 3D drawing program, therefore my measurements still have some uncertainty to them. Nevertheless, they can be used as a starting point for planning your favorite custom mounts.

@BuiltRight Industries has had access to the Bronco for 3D scanning so perhaps they will be able to share more accurate measurements or even the 3D file for the modular bumper with us in time.

Modular Bumper Bronco Bolt Accessory Mounting Locations v2 5-23-2021.png

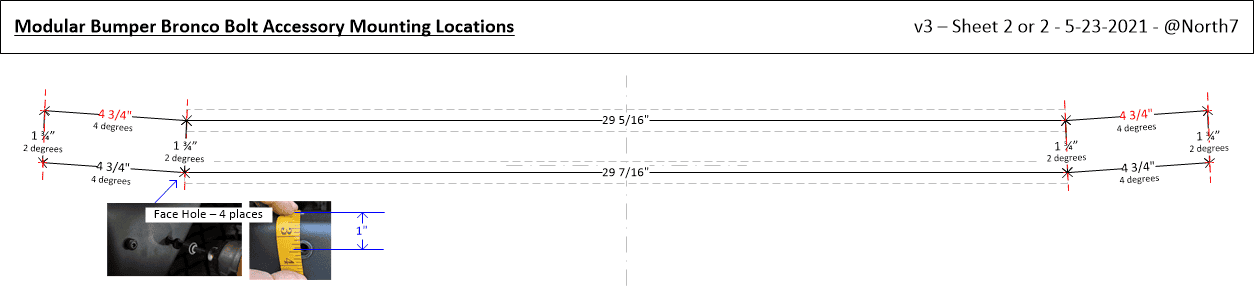

v2 - 5-23-2021: Design notes updated for angle
v3 - 5-23-2021: Added Sheet 2 to show angles, 4 13/16" dimension changed to 4 3/4".
Advertisement


Last edited:

Erock

Badlands
Well-Known Member
First Name
Eric
Joined
Jan 30, 2021
Messages
1,885
Reaction score
4,623
Location
US
Vehicle(s)
2018 F150 Alpine edition
Bronco
Badlands
Clubs

Thank you, very much. I’ll see what I can do.

OP
OP
North7

North7

Badlands
Well-Known Member
Joined
Feb 21, 2020
Messages
5,830
Reaction score
20,230
Location
North Texas
Vehicle(s)
Bronco Badlands
Bronco
Badlands
Clubs

I've updated the drawing to v2, I realized I did not have notes about the angles, here is the added note.

Angle offsets must be calculated based on the bumper curvature estimate and measured bolt hole patterns.​
I calculated the curvature of the bumper with a straight edge between the two inner Bronco bolts on the outer face, at the 29 7/16" dimension.
I looked at overlaying the angles on the drawing but when you see the dimensions are offset by only 1/16" to 1/8" (29 7/16" vs 29 5/16" and 4 3/4" vs 4 13/16"), along with the curvature of the bumper estimate and tolerances, I'm not able to calculate the angles with a high degree of confidence at this time since I'm only using a 2D drawing program and I was not able to calculate the compound curve when I measured the Bronco.


Scott1911

Badlands
Well-Known Member
First Name
Scott
Joined
Jul 9, 2020
Messages
96
Reaction score
269
Location
Oklahoma
Vehicle(s)
Jeep Wrangler JL
Bronco
Badlands

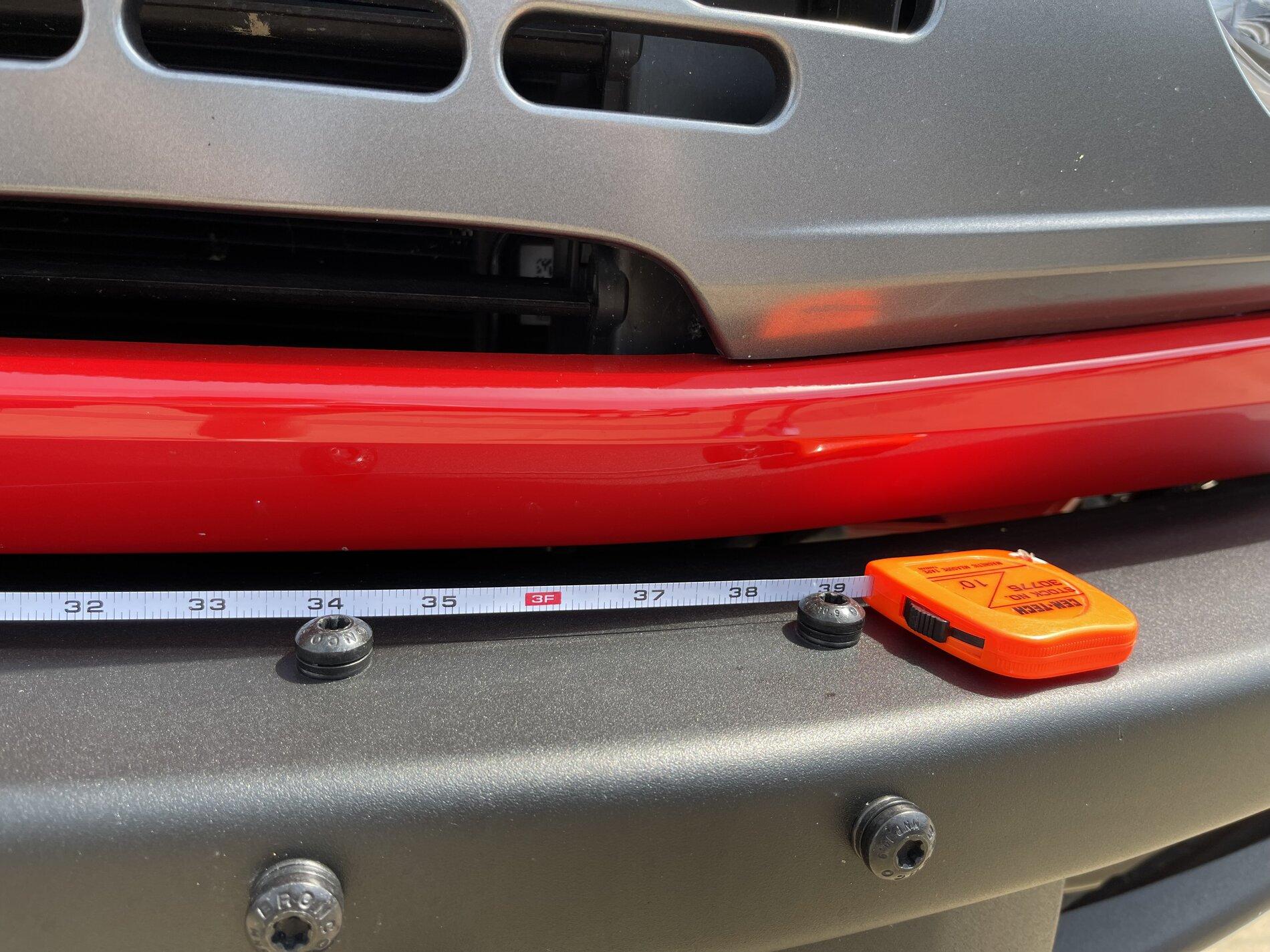

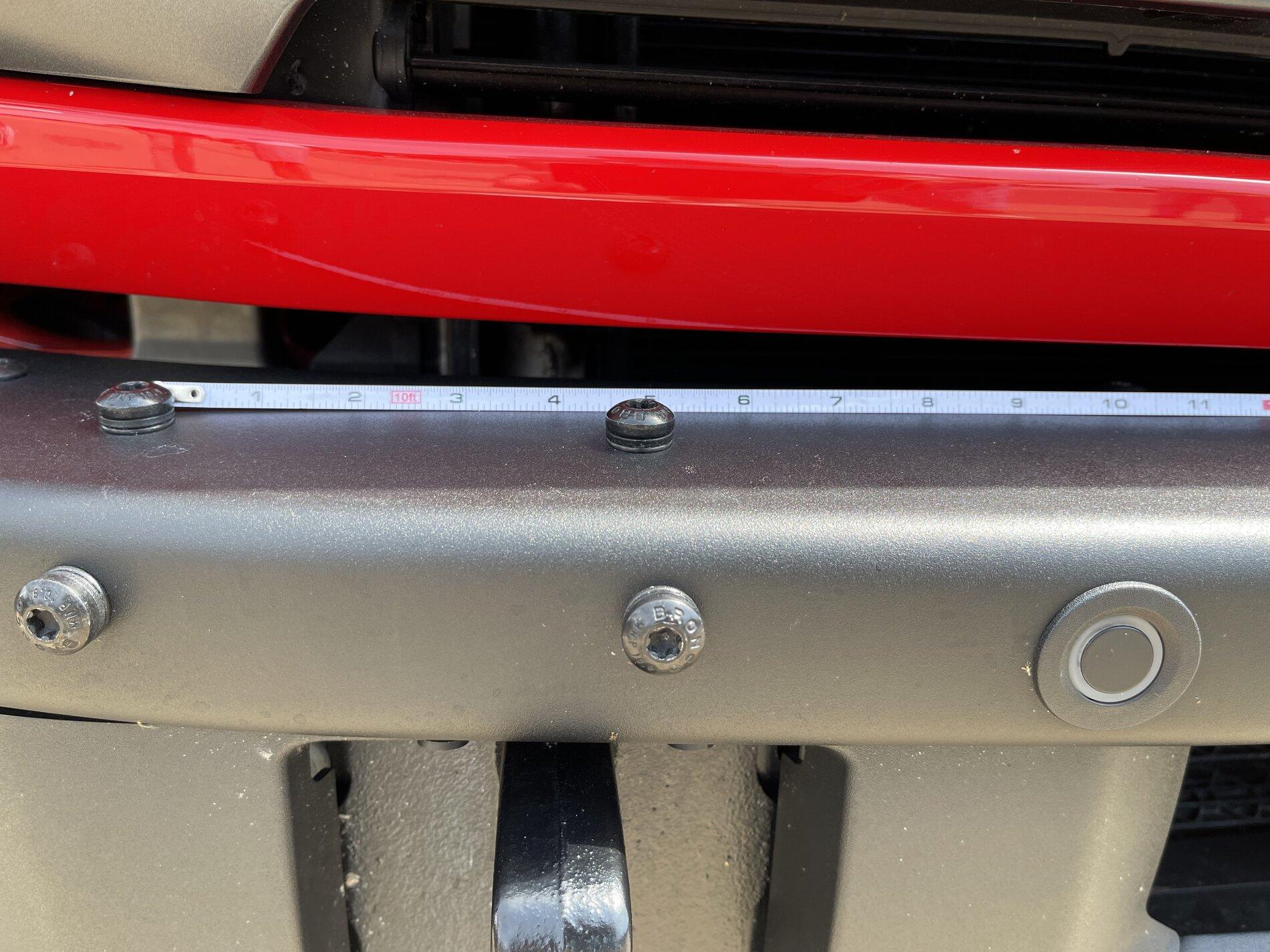

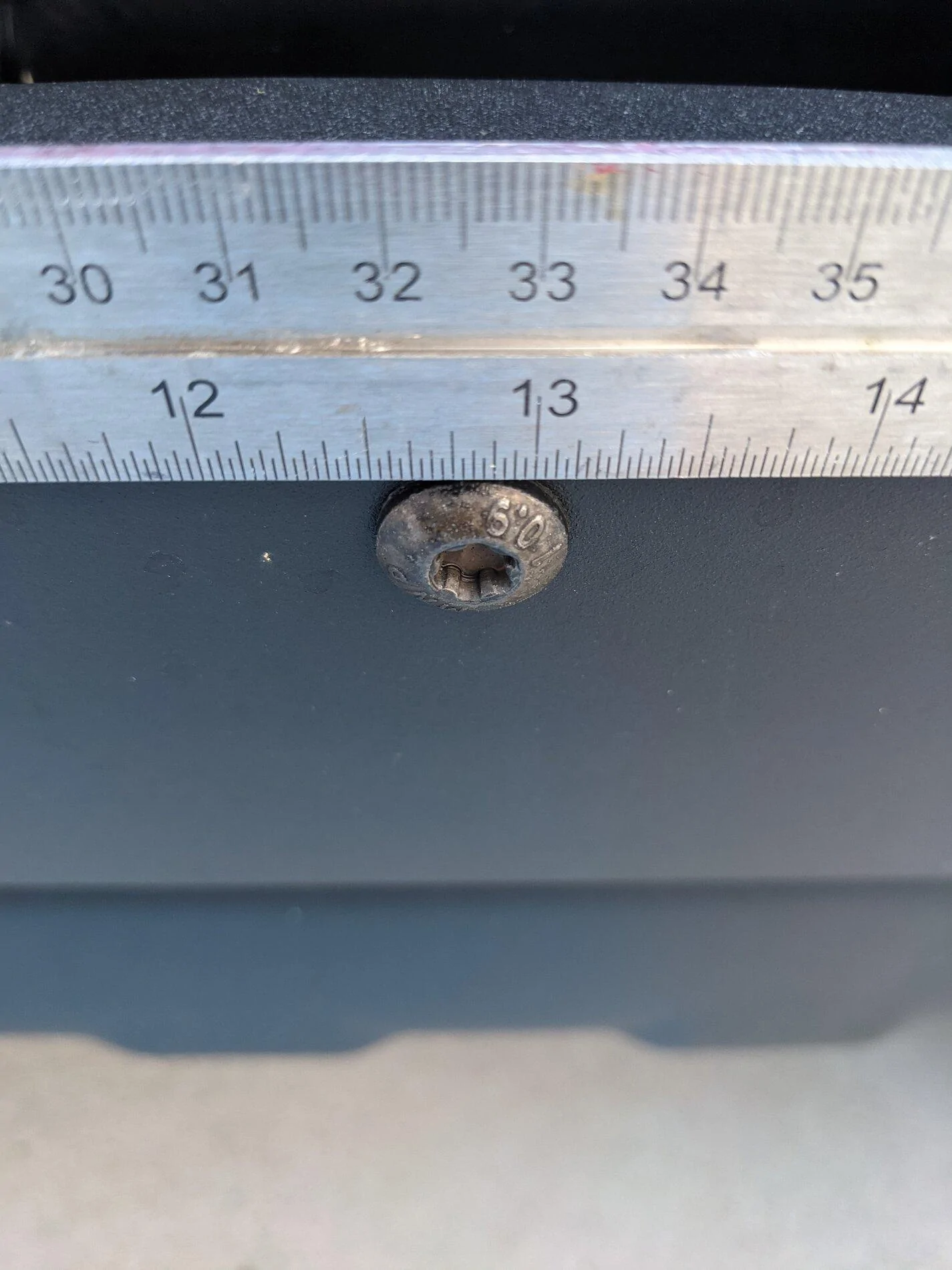

Not as accurate as yours, but I took these pictures at Frisco a couple weeks ago.



Grooticus

Big Bend
Well-Known Member
First Name
Chris
Joined
Oct 29, 2020
Messages
368
Reaction score
692
Location
Attleboro
Vehicle(s)
GMC
Bronco
Big Bend
It looks pretty easy to design a license plate mounting bracket that picks up on the outer Bronco bolts.

My worry is the D rings being in the way. Ideally I would like to find a way to use the brush guard mounts and hang something over the bumper but Im concerned it will get in the way of the sensors.

OP
OP
North7

North7

Badlands
Well-Known Member
Joined
Feb 21, 2020
Messages
5,830
Reaction score
20,230
Location
North Texas
Vehicle(s)
Bronco Badlands
Bronco
Badlands
Clubs

Not as accurate as yours, but I took these pictures at Frisco a couple weeks ago.

Those are excellent, you got a few measurements I missed, do you have any more?

(I keep getting interrupted, "what are you measuring for?", "who are you with?", etc.)

OP
OP
North7

North7

Badlands
Well-Known Member
Joined
Feb 21, 2020
Messages
5,830
Reaction score
20,230
Location
North Texas
Vehicle(s)
Bronco Badlands
Bronco
Badlands
Clubs

My worry is the D rings being in the way. Ideally I would like to find a way to use the brush guard mounts and hang something over the bumper but Im concerned it will get in the way of the sensors.

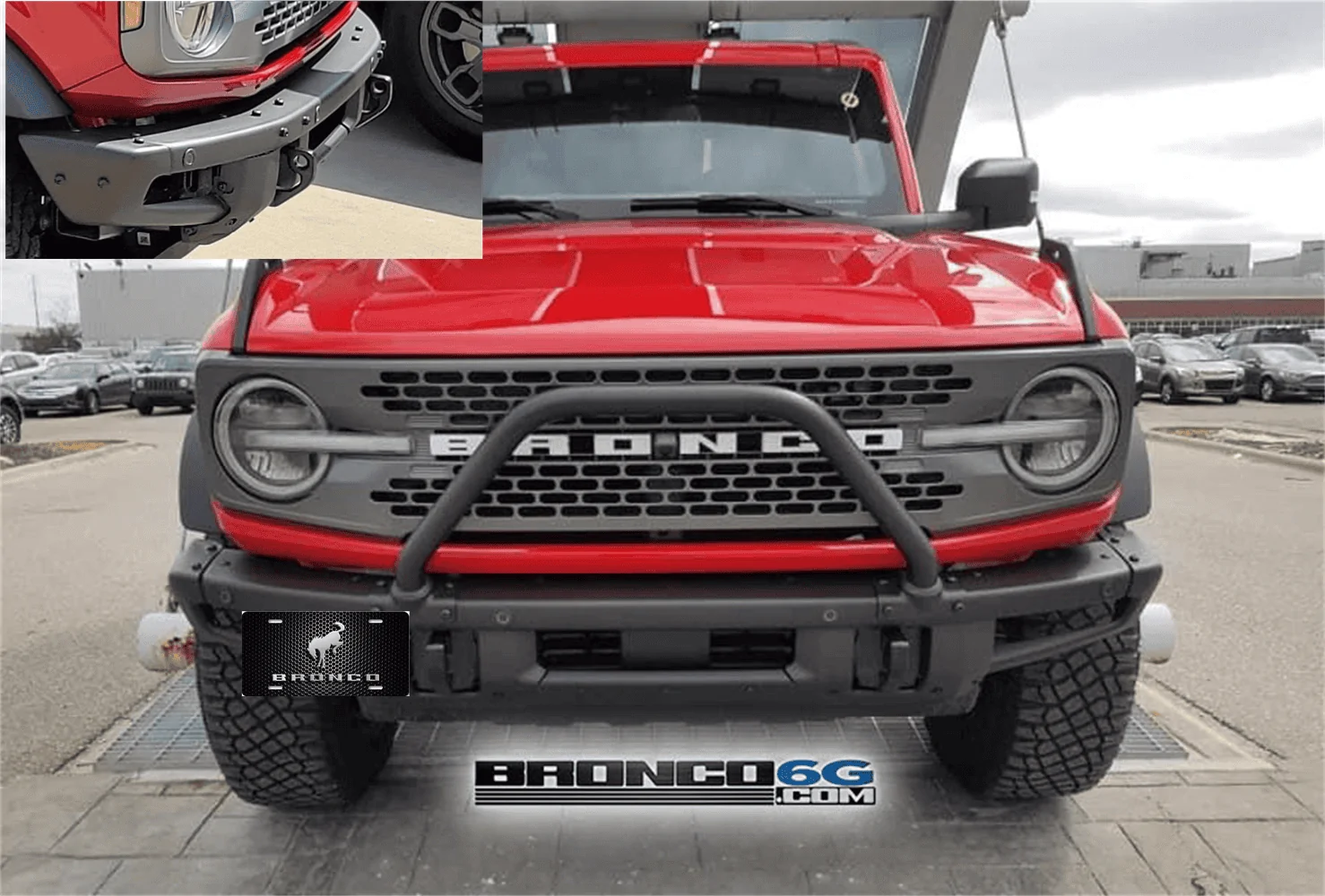

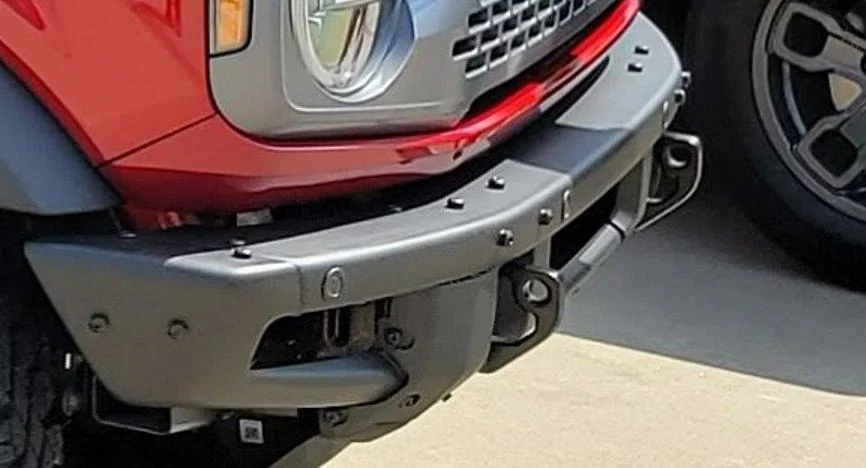

You definitely need to stay out of the center area where the intercooler and ACC sensor are. That's why I think left or right will work. It can hang between the outer face Bronco bolt and parking sensor or just below it.

20210515_105837 - Copy.jpg


BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Messages
2,136
Reaction score
8,115
Location
DFW
Vehicle(s)
'16 F150 KR - '13 JKU Moab - '21 Bronco BL
Bronco
Badlands

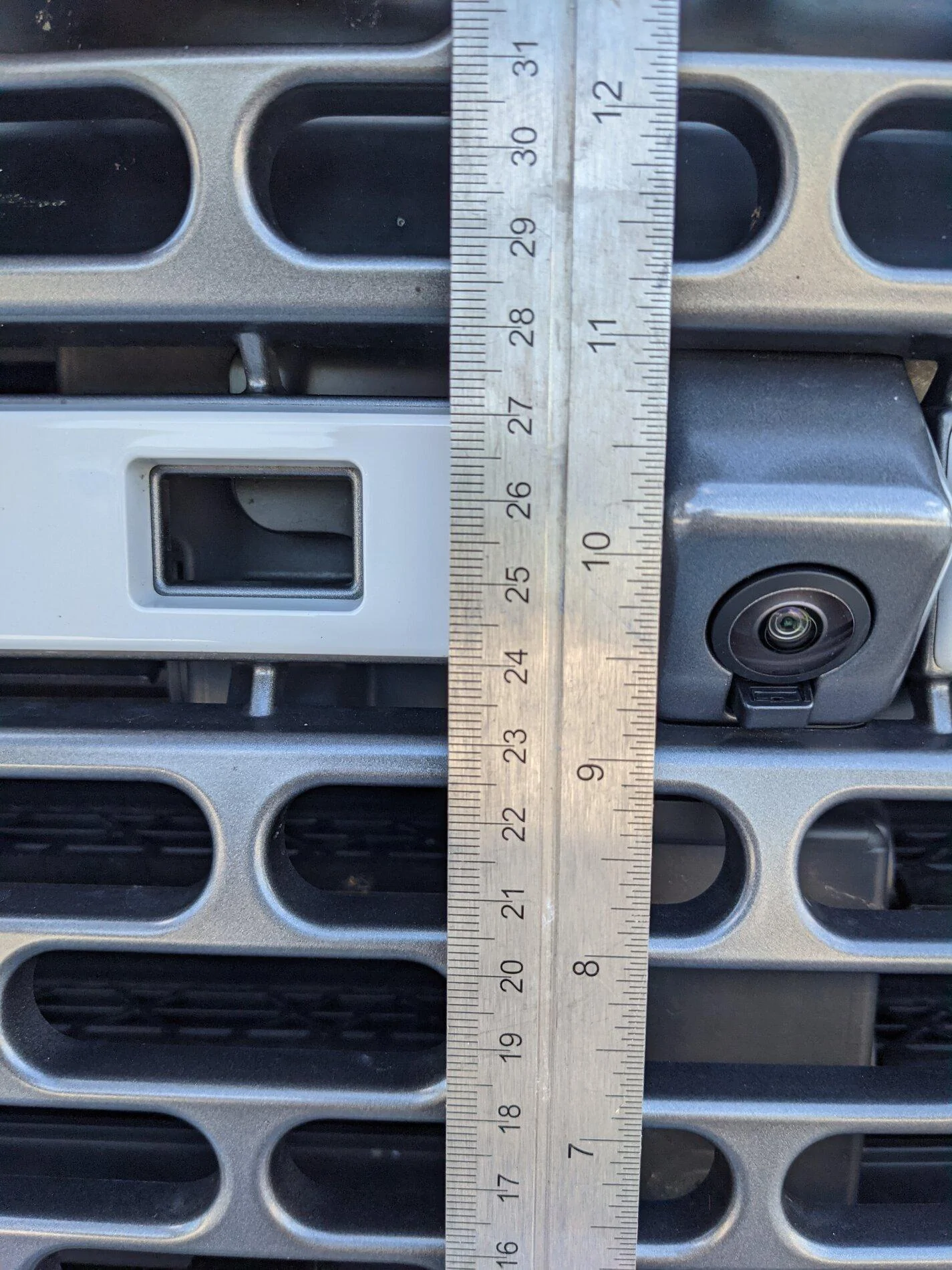

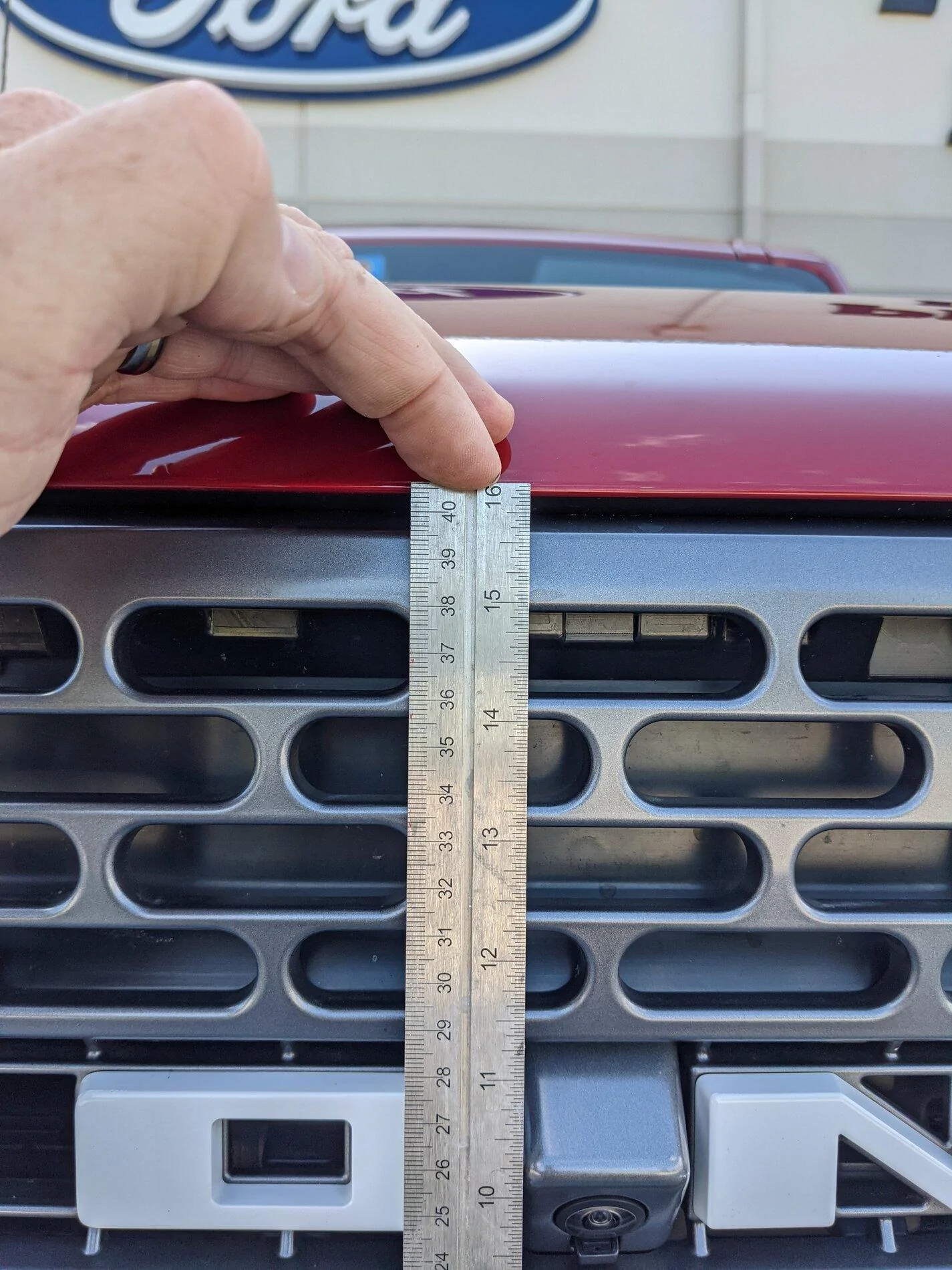

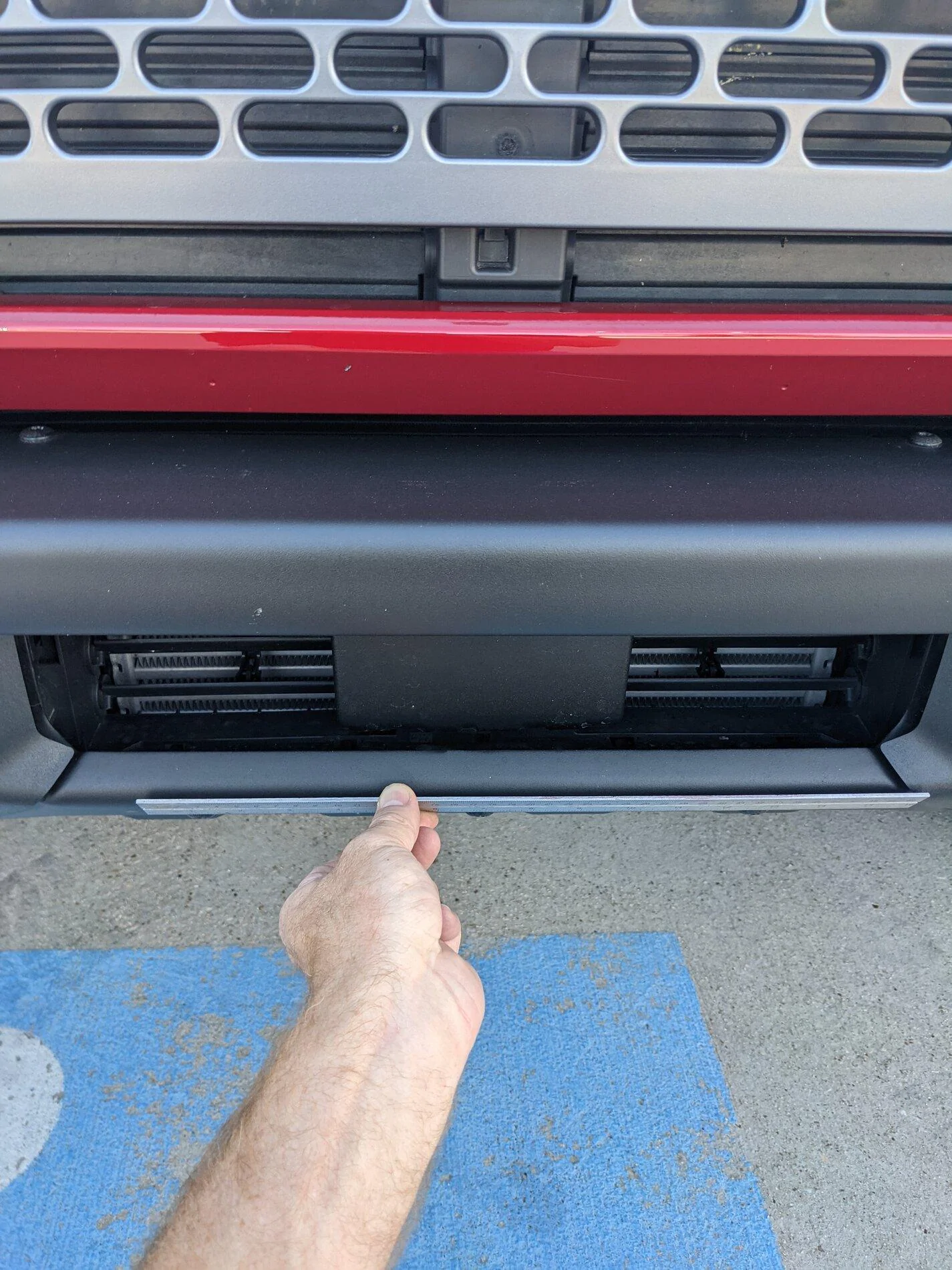

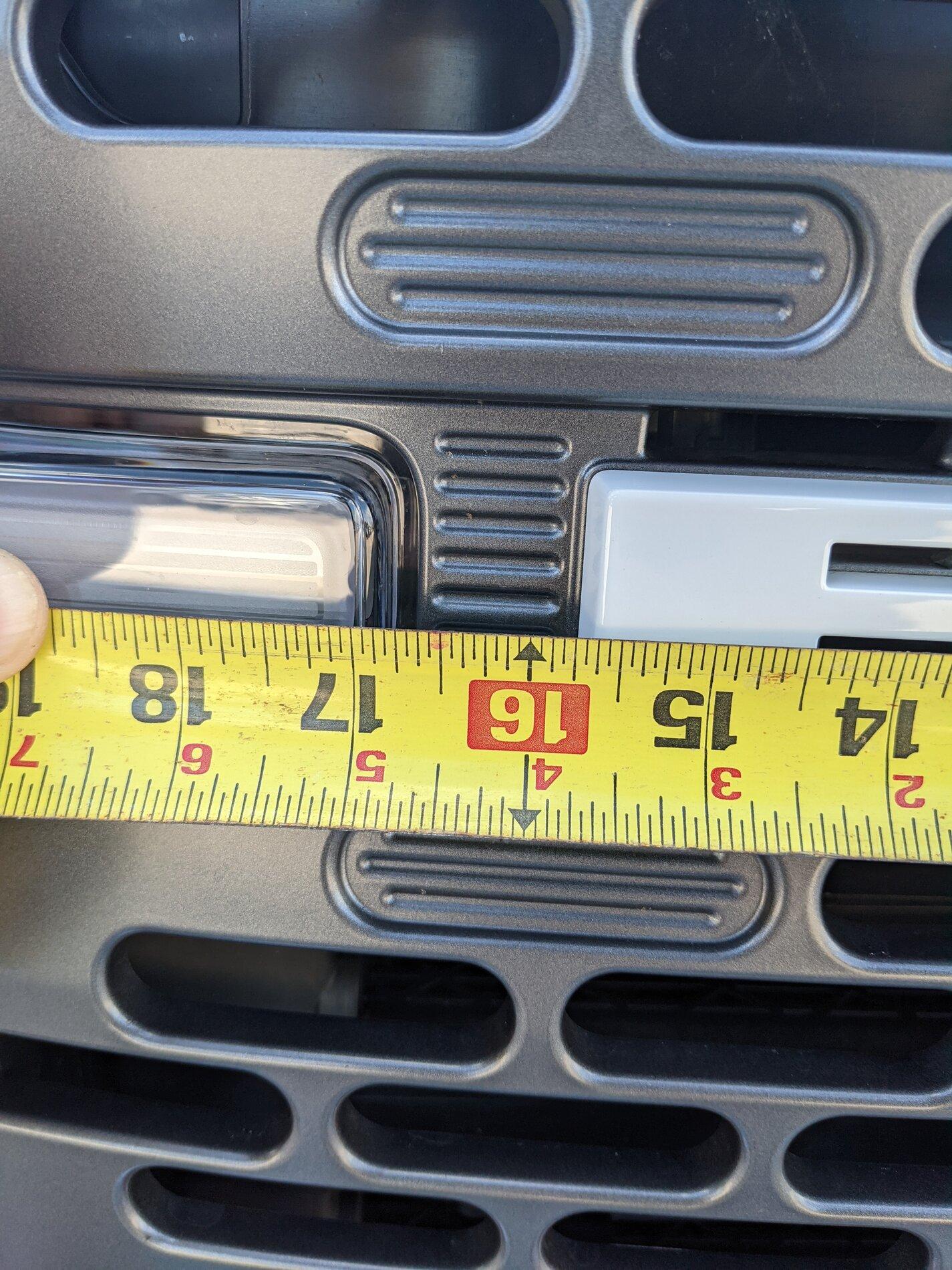

Distance along the curve. Unfortunately, didn't have the bolt hole as the focal point. This measurement is -1 inch.

From top of bumper


From center of camera

I will post my measurements taken on the bumper end cap accy points a bit later.


j_marinelli

Badlands
Well-Known Member
Joined
Jan 21, 2020
Messages
2,046
Reaction score
8,641
Location
Spring Branch, TX.
Vehicle(s)
2015 Mustang GT, 2012 Xterra Pro-4X
Bronco
Badlands
Vehicle Showcase
5
Clubs


BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Messages
2,136
Reaction score
8,115
Location
DFW
Vehicle(s)
'16 F150 KR - '13 JKU Moab - '21 Bronco BL
Bronco
Badlands
My plan is to still try and come up with something using the three lower bolts in the center that can be easily taken off for offroad use.

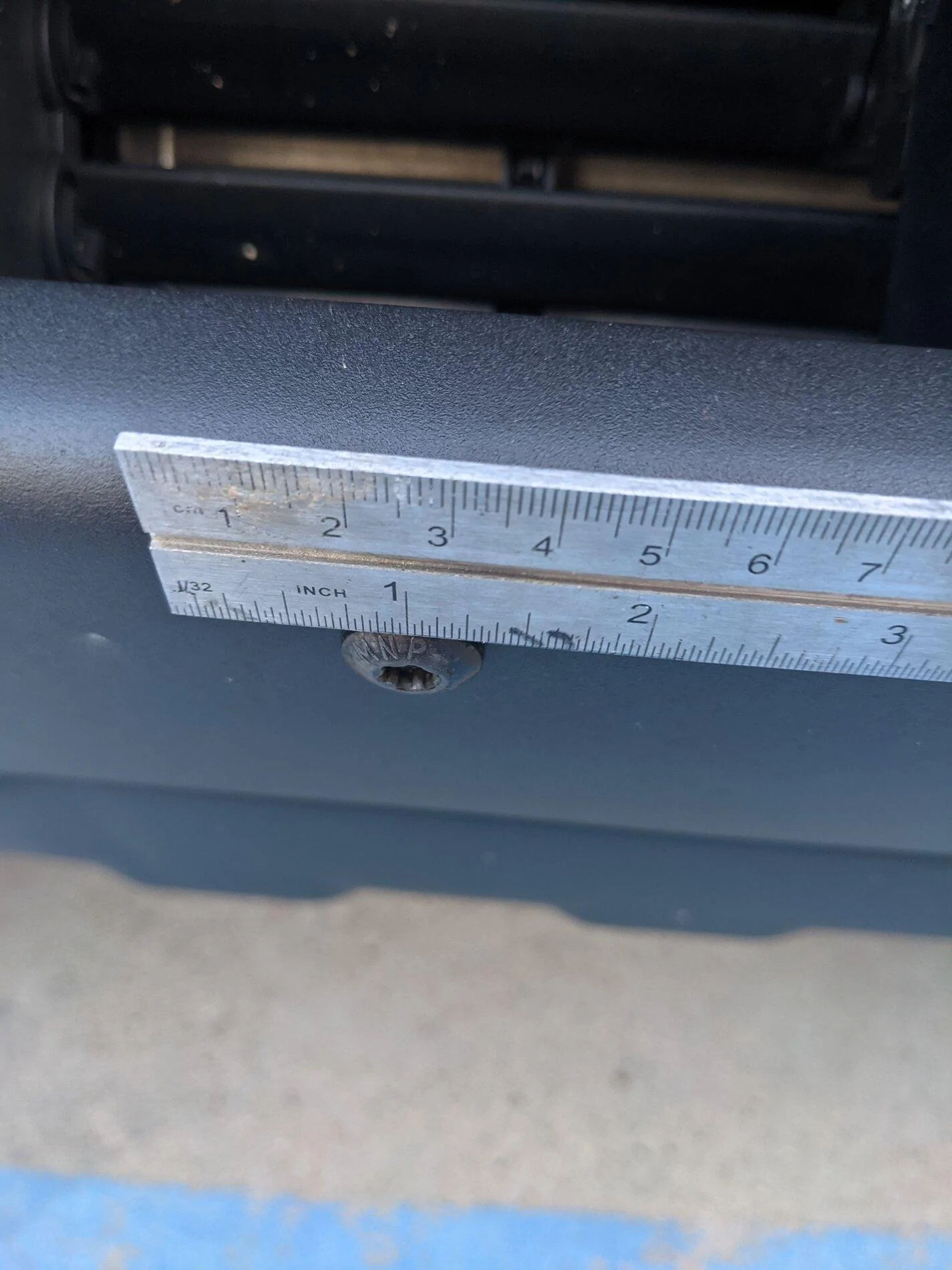

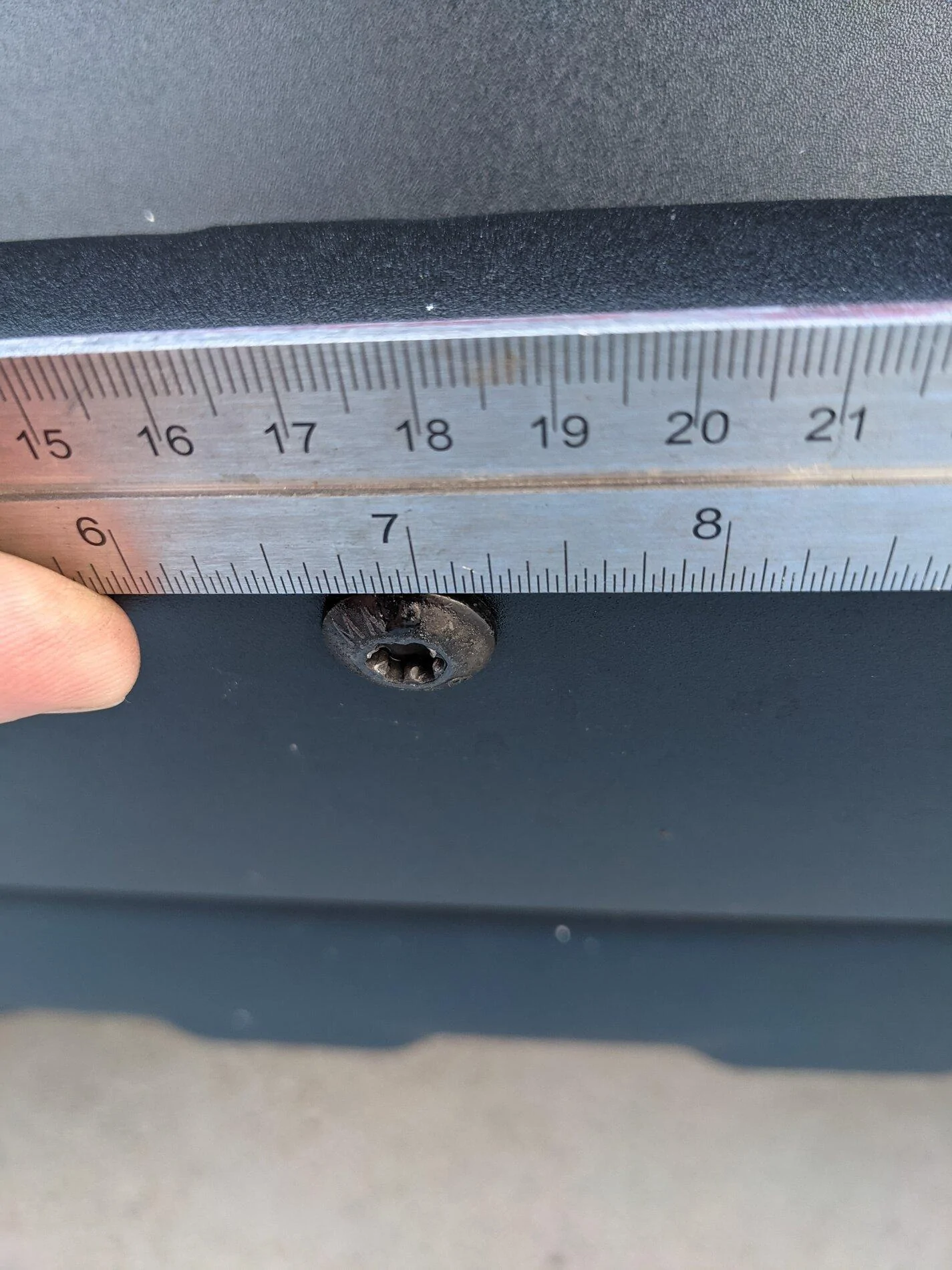

Lower bolt measurements. First pic is for reference of where I took the measurements from. These measurement are -1 inch.



604Bronco

Badlands
Well-Known Member
Joined
Apr 9, 2021
Messages
2,362
Reaction score
7,712
Location
British Columbia
Vehicle(s)
2020 Jeep Grand Cherokee Trailhawk
Bronco
Badlands
Great details, thanks @North7!

I’m far too incompetent to make something myself but can’t wait to see what accessories are available for this. I recall seeing a picture from Ford (I believe) that was a bar that mounted here for adding lights (not the “BO“ bar). I’m sure there I’ll be a few options of similar nature available in the aftermarket.

OP
OP
North7

North7

Badlands
Well-Known Member
Joined
Feb 21, 2020
Messages
5,830
Reaction score
20,230
Location
North Texas
Vehicle(s)
Bronco Badlands
Bronco
Badlands
Clubs

Great details, thanks @North7!

I’m far too incompetent to make something myself but can’t wait to see what accessories are available for this. I recall seeing a picture from Ford (I believe) that was a bar that mounted here for adding lights (not the “BO“ bar). I’m sure there I’ll be a few options of similar nature available in the aftermarket.

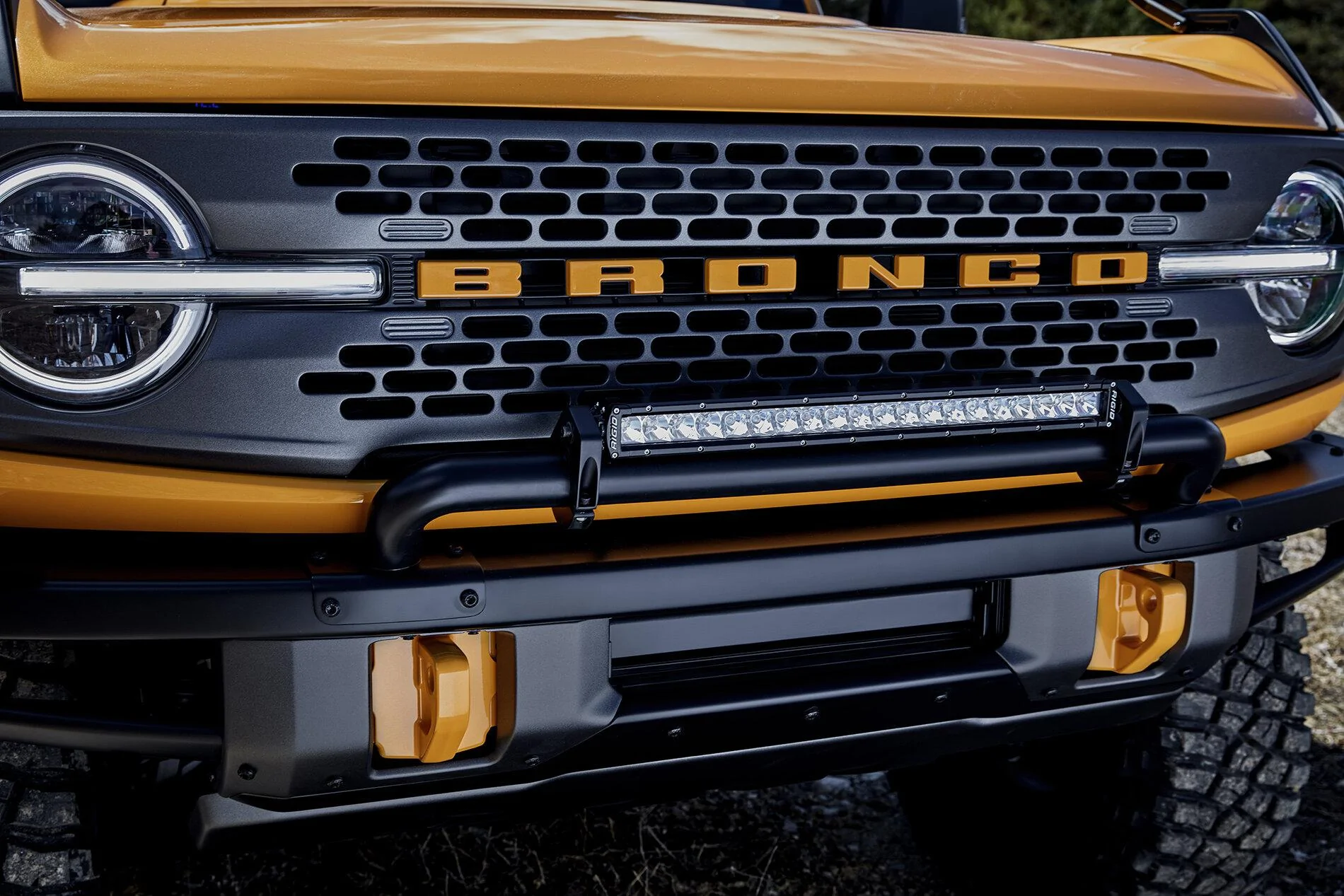

I'm sure we will see many creative ideas, such as...
