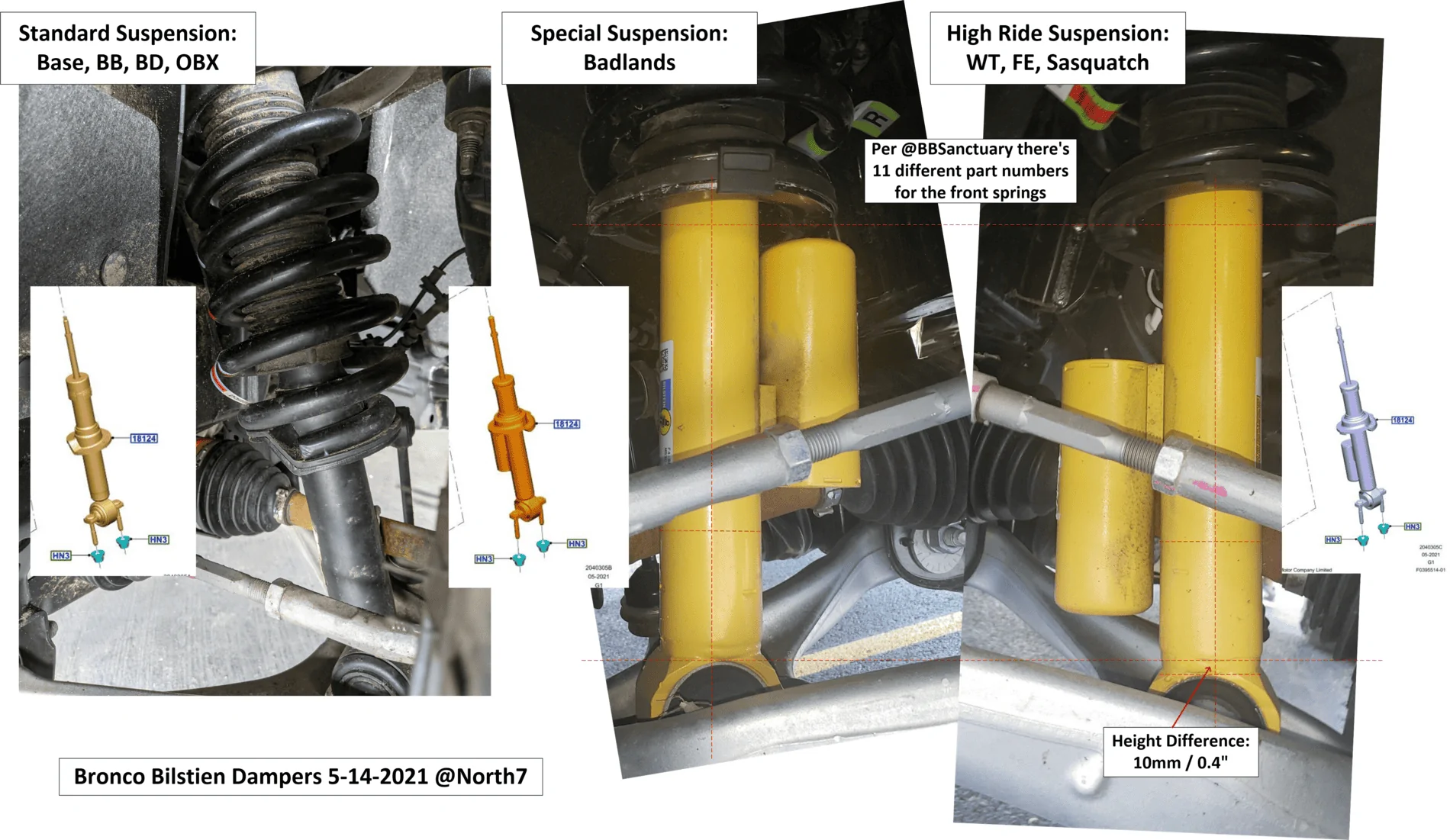

Bronco suspension:

FRONT:
3 different types- Standard, Special and High Ride

11 different spring part numbers, same 11 for all three types. (only 5 are active in the parts system, prices range from about $88.00-$120.00 each)

Standard has 3 shock choices: Big Bend, Outer Banks, Base #6, WildTrak #7 or 4 door Black Diamond or 2 door Black Diamond

Special has 2 shock choices: 2 door or 4 door

High Ride has 2 shock choices: 2 door or 4 door Big Bend, Black Diamond, WildTrak #7, Outer Banks, Base #6, Preferred Series, Badlands


REAR:
3 different types-Standard, Special and High Ride

6 different spring part numbers, same 6 for all three types. (all 6 are active in the parts system, prices range from about $147.00-$165.00 each)

Standard has 3 shock choices: 2 door WildTrak #7, Base #6, Big Bend, Outer Banks or 4 door Big Bend, WildTrak #7, Outer Banks, Base #6 or Black Diamond

Special has 2 shock choices: 2 door or 4 door

High Ride has 1 shock choice: 4 door Big Bend, Black Diamond, WildTrak #7, Outer Banks, Base #6, Preferred Series, Badlands



This was taken from the MicroCat, on-line parts catalogue. The part descriptions are accurate with the exception Ford calls the two door a 3 door and a four door a 5 door. I changed those to not add additional confusion. Shocks are technically “struts” but Ford calls them a, “Shock Absorber Assembly” so I’m going to use the term shock which is universally known as a suspension dampening device. If a specific VIN was used to look up these parts, it would (should) know the correct part for that application since it uses a version of historical vehicle bill of materials provided by Ford.

Spring descriptions appear to use the engineering number which would most likely be a tag attached to the spring itself. If using a VIN, the system should be able to pick the correct one or at least narrow it down to a couple of choices. No other specifications (coil heights, number of coils or coil diameters) are in the catalogue descriptions.

I'm not going to speculate on what "Preferred Series" means.

Front spring part numbers: MB3Z-5310-A,B,C,D,E,F,J,K,L,M,N

Front Shock: STD-MB3Z-18124-A,B,C Special-MB3Z-18124-D,E High-MB3Z-18124-J,K

Rear spring part numbers: MB3Z-5560-A,B,C,D,E,F

Rear Shock: STD-MB3Z-18125-A,B,C Special-MB3Z-18125-D,E High-MB3Z-18125-K





Advertisement


Last edited:

Aragonite

First Edition
Well-Known Member
Joined
Jun 4, 2020
Messages
140
Reaction score
300
Location
Honolulu
Vehicle(s)
1994 Ford Ranger 4x4, 1988 Toyota Pickup Xtra Cab 4x4
Maybe preferred series is the annual special edition?

2021: first edition
2022: heritage edition
2023: etc.


88to21bronco

Big Bend
Well-Known Member
First Name
Chris
Joined
Apr 15, 2021
Messages
126
Reaction score
314
Location
Tennessee
Vehicle(s)
2017 Nissan Titan XD
So I'm mostly suspension illiterate. Am I correct, though, in taking from this that one could order, say, the "Special" shocks/springs and have the ride height of a non-squatch Badlands on a Big Bend?


BAUS67

Base
Well-Known Member
First Name
redneck
Joined
Jan 3, 2020
Messages
2,117
Reaction score
7,346
Location
Central PA
Vehicle(s)
88 5.0 LX, 08 F-150 Stepside, 13 Explorer XLT, 97 Jeep Wrangler
Shocks are technically “struts” but Ford calls them a, “Shock Absorber Assembly” so I’m going to use the term shock which is universally known as a suspension dampening device.


Ok so I am going to be "that guy" here.

No offense flip, but I have covered this a year ago so we can call what the Bronco has correctly. It has even been mention in some videos I have watched.


One correction here, it is NOT technically a "strut". It is a coil over. which is a shock with a coil spring "over" it. Hence the name coilover.

A "strut" is an integral part of the suspension. It does the job of the upper control arm by locating the upper part of the knuckle.

"Technically" Ford is the most accurate. "shock absorber assembly" because that is what it is.

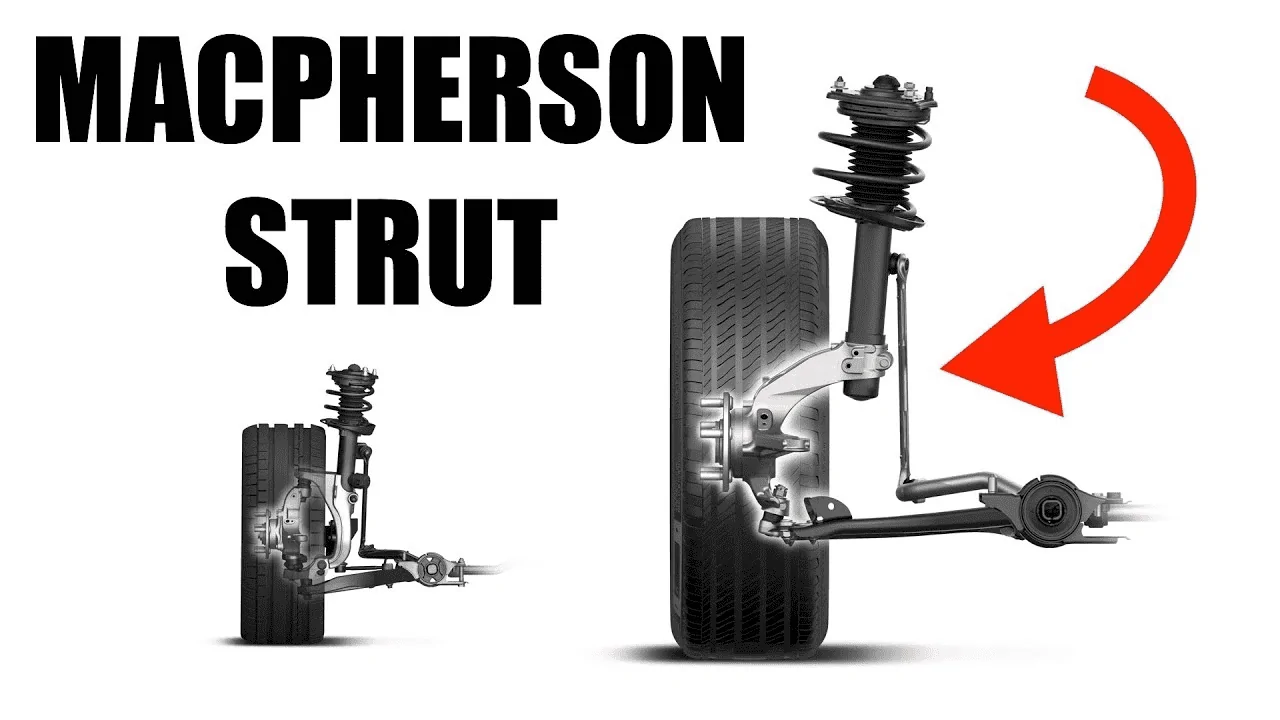

This is a "strut" suspension.




THIS is a coil over suspension.




As you can see there is a BIG difference. In a coil over it only has to support the vehicle and dampen the bumps. It is a shock with a coil spring over it. It does NOT locate the upper part of the knuckle. That is the job of the upper arm.


I just want the B6G community to understand what it is they have.


F-150 Coil over, Explorer strut.


Dads_bronze_bronco

Badlands
Well-Known Member
Joined
Feb 18, 2020
Messages
2,107
Reaction score
3,682
Location
NC
Vehicle(s)
08 JKUR / 00 TJ
Clubs

@flip I am curious: Why is Wildtrak listed under Standard? You sure on that one? (Interesting implications.)


rtsherry73

Outer Banks
Well-Known Member
First Name
Richard
Joined
Oct 13, 2020
Messages
263
Reaction score
542
Location
Boynton Beach, Florida
Vehicle(s)
Toyota
A pure McPherson strut uses the anti-roll bar as one of the 2 lower control arms. The original US Escort had this suspension. I'm surprised more people weren't killed. The compliance allowed by the bushings caused all sorts of issues.

OP
flip

flip

Well-Known Member
First Name
Phil
Joined
Jul 21, 2020
Messages
446
Reaction score
1,786
Location
IN
Vehicle(s)
Fords
Clubs

Ok so I am going to be "that guy" here.

No offense flip, but I have covered this a year ago so we can call what the Bronco has correctly. It has even been mention in some videos I have watched.


One correction here, it is NOT technically a "strut". It is a coil over. which is a shock with a coil spring "over" it. Hence the name coilover.

A "strut" is an integral part of the suspension. It does the job of the upper control arm by locating the upper part of the knuckle.

"Technically" Ford is the most accurate. "shock absorber assembly" because that is what it is.

This is a "strut" suspension.




THIS is a coil over suspension.




As you can see there is a BIG difference. In a coil over it only has to support the vehicle and dampen the bumps. It is a shock with a coil spring over it. It does NOT locate the upper part of the knuckle. That is the job of the upper arm.


I just want the B6G community to understand what it is they have.


F-150 Coil over, Explorer strut.
I intentionally didn’t post the pics to avoid menutia. Sorry I over thought it.

OP
flip

flip

Well-Known Member
First Name
Phil
Joined
Jul 21, 2020
Messages
446
Reaction score
1,786
Location
IN
Vehicle(s)
Fords
Clubs

@flip I am curious: Why is Wildtrak listed under Standard? You sure on that one? (Interesting implications.)
Dunno. Many times the part description in both the Ford and MicroCat catalogues has completely different wording compared to what the shop manual has. I have the fender badge part numbers and the descriptions will cook your brain trying to figure out what the hell it is.
