NEW EVERGLADES PRODUCT | KR Off-Road A-Pillar Brackets for Everglades Bronco (Now Shipping!)

[4x4TruckLEDs.com]

So for any of you Everglades owners you've known the problem installing A-Pillar lights is your Snorkel gets in the way. Some folks have gotten creative and/or removed their antenna to get some lights installed but it was never as CLEAN as they hoped.

Well introducing our KR Off-Road A-Pillar Brackets for the Everglades. This is based on our existing A-Pillar bracket design, only we've extended them inwards to allow the Everglades owner to mount their lights on the INSIDE of the cowl/hood area. This also works on non-Everglades Broncos as well if you like the look.

The brackets are made out of Aluminum right here in the USA and powder coated black. We have a flush 1/4"-20 stud installed as well which is where your light bracket will bolt to. This allows our bracket to do 2 things

1) It SQUISHES the 2-part cowl design together, getting rid of that annoying looking GAP/BUMP OUT.
2) It keeps our flack FLUSH against the cowl the entire way, allowing the light a VERY solid mounting base which will help avoid any vibrations/bouncing around.

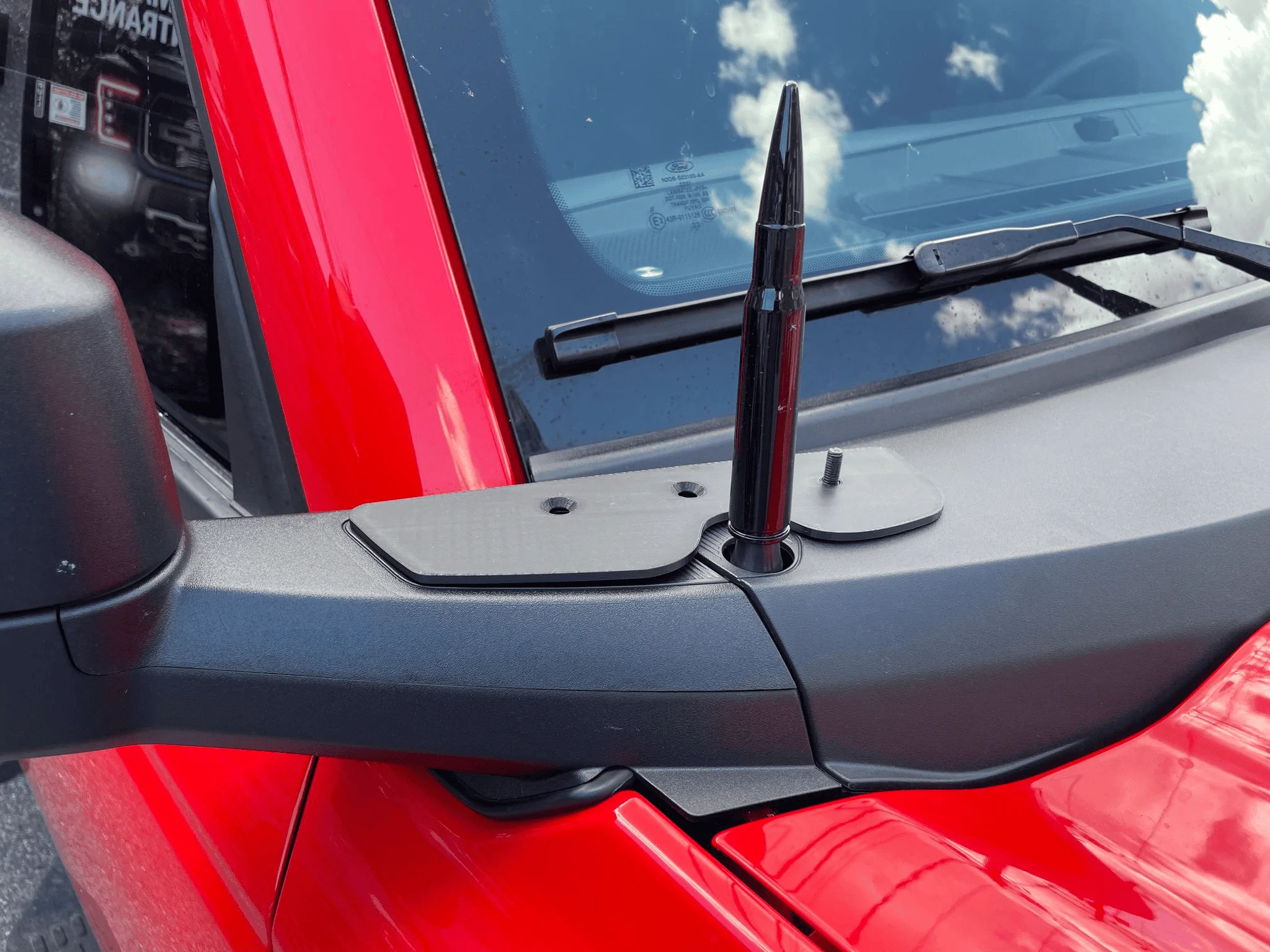

What's nice about our brackets is that we provide flush hardware so that the bolts DO NOT protrude from the top of the bracket. They sit nice and FLUSH. This is great for aesthetics but so that the snorkel doesn't sit on top of a bolt. It sits on top of the bracket, nice and flush! (Our prototype here doesn't have the hardware installed). You'll use the INCLUDED HARDWARE that we provide (but save your factory hardware in case you ever remove the kit)

NOW SHIPPING

You can order them here: https://www.4x4truckleds.com/kr-off...rackets-for-2021-ford-bronco-everglades-pair/

We have complete kits available as well which includes lights, harnesses & brackets

Baja Designs Kit: https://www.4x4truckleds.com/baja-designs-a-pillar-kit-for-2021-ford-bronco-w-kr-off-road-brackets/

Diode Dynamics SS3 Kit: https://www.4x4truckleds.com/diode-dynamics-stage-series-ss3-ditch-light-kit-for-2021-ford-bronco/

Diode Dynamics SS5 Kit: https://www.4x4truckleds.com/diode-dynamics-stage-series-ss5-ditch-light-kit-for-2021-ford-bronco/

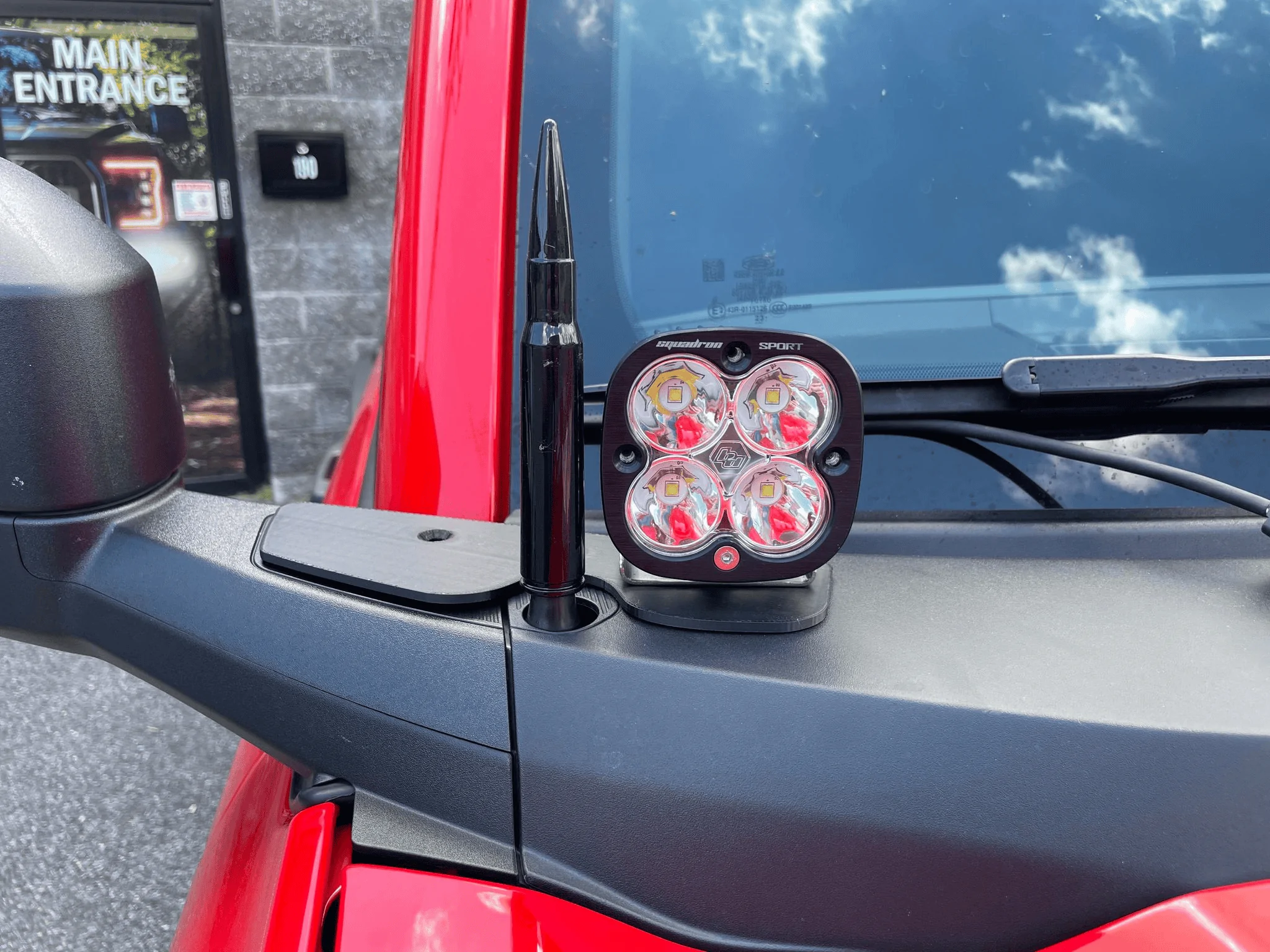

Shown here a regular Bronco but you get the idea. The driver side bracket also keeps the light on the inside for a uniform look. On an Everglades the factory snorkel support bracket will sit on top of our a-pillar bracket.

Sponsored



[Warhorn]

Perfect timing as I just took delivery of my everglades a few weeks ago and was looking at how I would do this! Do you have a picture with lights on both sides mounted to these, just to see how the full setup looks with the lights brought inside a bit?



[rdg04578]

perfect I would definitely be interested in these



[4x4TruckLEDs.com]

Perfect timing as I just took delivery of my everglades a few weeks ago and was looking at how I would do this! Do you have a picture with lights on both sides mounted to these, just to see how the full setup looks with the lights brought inside a bit?

I don't have a photo of the other side.. basically the same as the passenger side I posted above only no antenna mount. It keeps the lights in the same orientation on the "inside" so to speak instead of on the outer edge like you traditionally see.

I can take a photo tomorrow on a regular Bronco to give you an idea what it looks like. It would be the same with an Everglades only your snorkel is on the side.

Installation is easy.

1) Disconnect the 2 bolts holding the snorkel to the factory bracket
2) Remove the 2 bolts holding the snorkel support bracket from the cowl
3) Put our KR Off-Road A-Pillar bracket down
4) Reinstall the factory snorkel support bracket and put the bolts back on the cowl and snorkel

Then you can install your light. We have a 1/4"-20 stud already in place that won't move so it's easy to install your lights onto the bracket.

And as I said you can install anything as small as a Baja Designs S1 up to a larger Baja Designs XL80 or a Diode Dynamics SS5



[Warhorn]

I don't have a photo of the other side.. basically the same as the passenger side I posted above only no antenna mount. It keeps the lights in the same orientation on the "inside" so to speak instead of on the outer edge like you traditionally see.

I can take a photo tomorrow on a regular Bronco to give you an idea what it looks like. It would be the same with an Everglades only your snorkel is on the side.

Installation is easy.

1) Disconnect the 2 bolts holding the snorkel to the factory bracket
2) Remove the 2 bolts holding the snorkel support bracket from the cowl
3) Put our KR Off-Road A-Pillar bracket down
4) Reinstall the factory snorkel support bracket and put the bolts back on the cowl and snorkel

Then you can install your light. We have a 1/4"-20 stud already in place that won't move so it's easy to install your lights onto the bracket.

And as I said you can install anything as small as a Baja Designs S1 up to a larger Baja Designs XL80 or a Diode Dynamics SS5

Very exciting, I look forward to the picture! I understand the mounting but am just curious how it looks on both sides so appreciate the follow up. I also really like that it sounds like it replaces part of the factory mounting versus adding more to it with what’s already there.

It sounds super easy to install. Took my snorkel off yesterday prior to PPF install and this sounds like it would take all of maybe five minutes to throw on.



[4x4TruckLEDs.com]

Very exciting, I look forward to the picture! I understand the mounting but am just curious how it looks on both sides so appreciate the follow up. I also really like that it sounds like it replaces part of the factory mounting versus adding more to it with what’s already there.

It sounds super easy to install. Took my snorkel off yesterday prior to PPF install and this sounds like it would take all of maybe five minutes to throw on.

Well it doesn't replace your existing snorkel mount. It's a bracket that sits on top of the cowel. On the passenger side it will sit under the snorkel support bracket.

But yes it installs very quickly. 4 bolts on the passenger side that get removed, 2 on the driver side. Then all re-installed



[Superthornbird]

I'm available for testing and photography for you



[4x4TruckLEDs.com]

I'm available for testing and photography for you

Maybe i'll take you up on that.

You buy the lights from us and we'll provide the brackets at no charge for you to keep. Just send us some photos.

We don't see a lot of Everglades around these parts.



[GOATS]

This is exactly what I've been looking for.... something low profile in stainless steel, powdercoated, that can accommodate two lights. I'm 5 minutes from your store.... and will be buying these as soon as they're available. That set of 6 easy connect aux wire pigtails is pretty fancy too... Following. Thanks.



[rdg04578]

Maybe i'll take you up on that.

You buy the lights from us and we'll provide the brackets at no charge for you to keep. Just send us some photos.

We don't see a lot of Everglades around these parts.

If SuperThornbird doesn't take you up on that I will for sure



[Skunkape24]

Now that looks good.



[mmmain]

Any updates on this? Thanks in advance



[4x4TruckLEDs.com]

Any updates on this? Thanks in advance

Just looking for someone local to test the product before we release it to the masses. Make sure everything fits as we want it to. We designed them to fit larger lights such as the XL Series from Baja Designs and the SS5 from Diode Dynamics.



[TheWaterBronco]

Also interested in this. If you are still looking for testers I would buy lights too.



[4x4TruckLEDs.com]

We are currently testing various materials - probably switching to aluminum for these to save folks money - because we are not bending anything we don’t need stainless steels rigidity - it’s a flat piece - sompowderncoeter aluminum will work perfect and save folks a ton of $$
