I had an itch to work on designing something a little more versatile... I present the Modular Cargo Platform (MCP)

Using 10 series extrusion as a frame, this will increase rigidity and platform security. Additionally, horizontal T-slot tracks run the width of the cargo area to provide flexible mounting points for tie down anchors, fridge slides, leveling platform, or whatever you can imagine. Large panel access to the cargo storage areas is maintained, with split access for the larger one (in case something is mounted on one side or the other).

This is still just a concept. I've got other priorities at the moment, but hoping to build something like this soon.

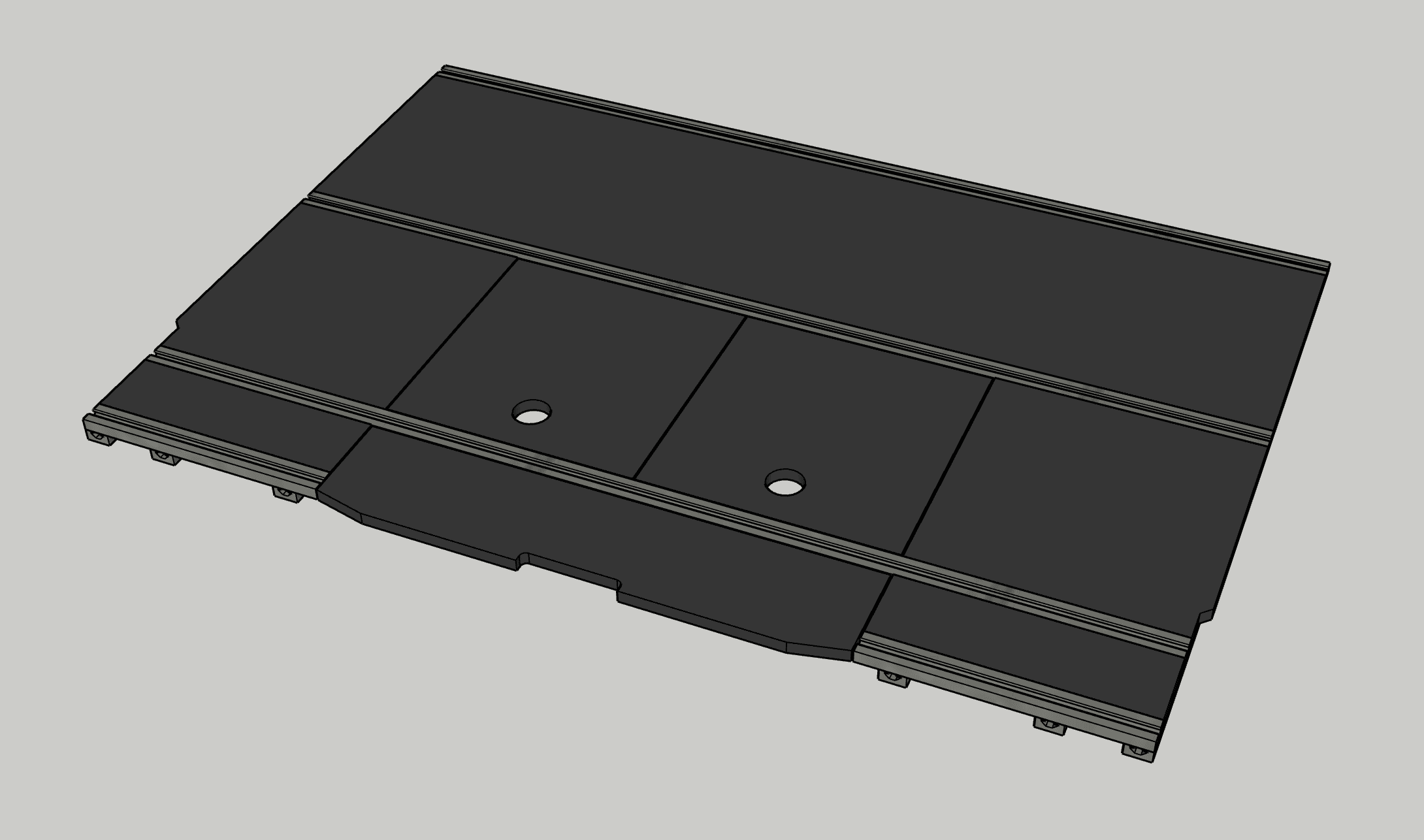

Screenshot 2023-11-12 at 5.35.12 PM.png
Nicely done! I like the t-track for keeping things from sliding back and forth; lateral movement can be limited more easily. Just include relief openings for sliding in T-bolts and this is a great start.
Sponsored


OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
458
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

Made a few brackets for the trunk. These should arrive late this week for proofing.

Edit* These will be added to the DIY Section of Modcrate

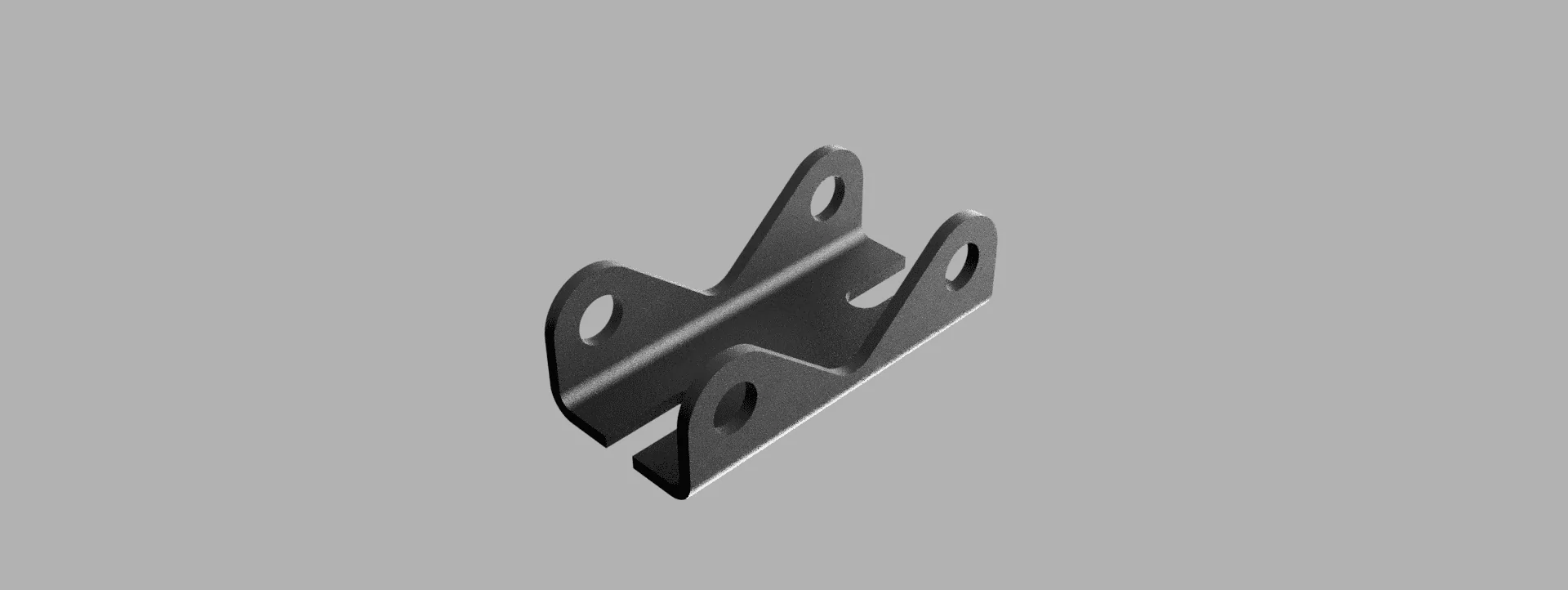

Ford Bronco Open-Source: Trunk Storage System (Open TSS) 88598243-e587-44e2-9ea6-a848448e5fe8.PNG

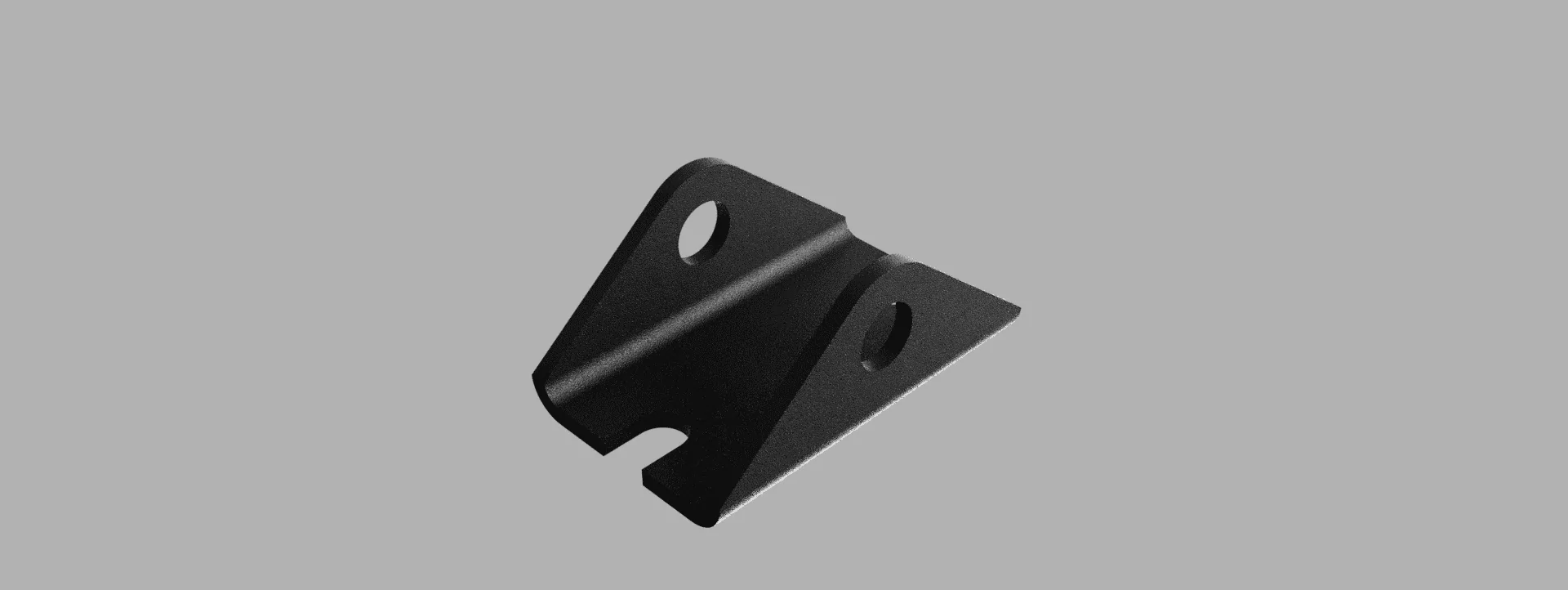

Ford Bronco Open-Source: Trunk Storage System (Open TSS) ab04d493-8d6f-4935-80c8-36ebc3345147.PNG

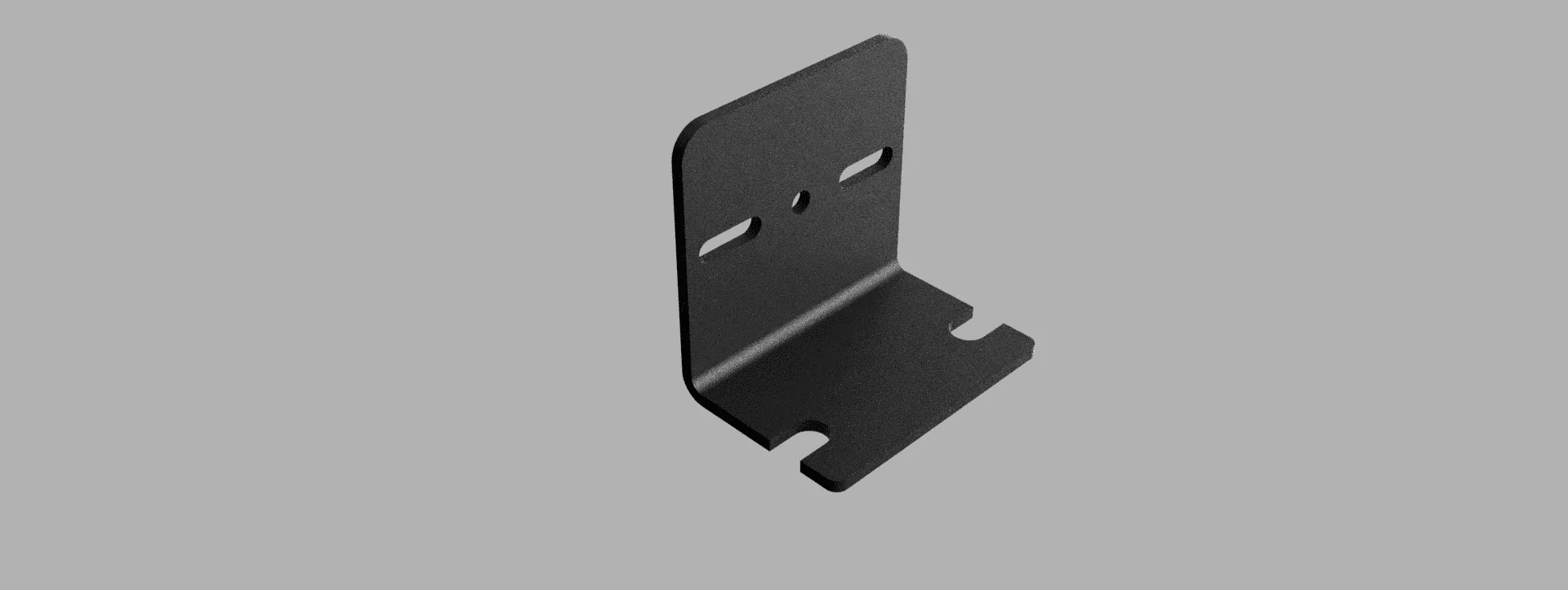

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Single_Floor_Side_mount_2024-Mar-19_06-12-29PM-000_CustomizedView72195863295

Last edited:
OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
458
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

Working on a base update. I hope to have to new base files uploaded and available by COB Friday.
As pictured will require use of a manual or CNC router.
Center removable panel drawn with 1/8 saw kerf

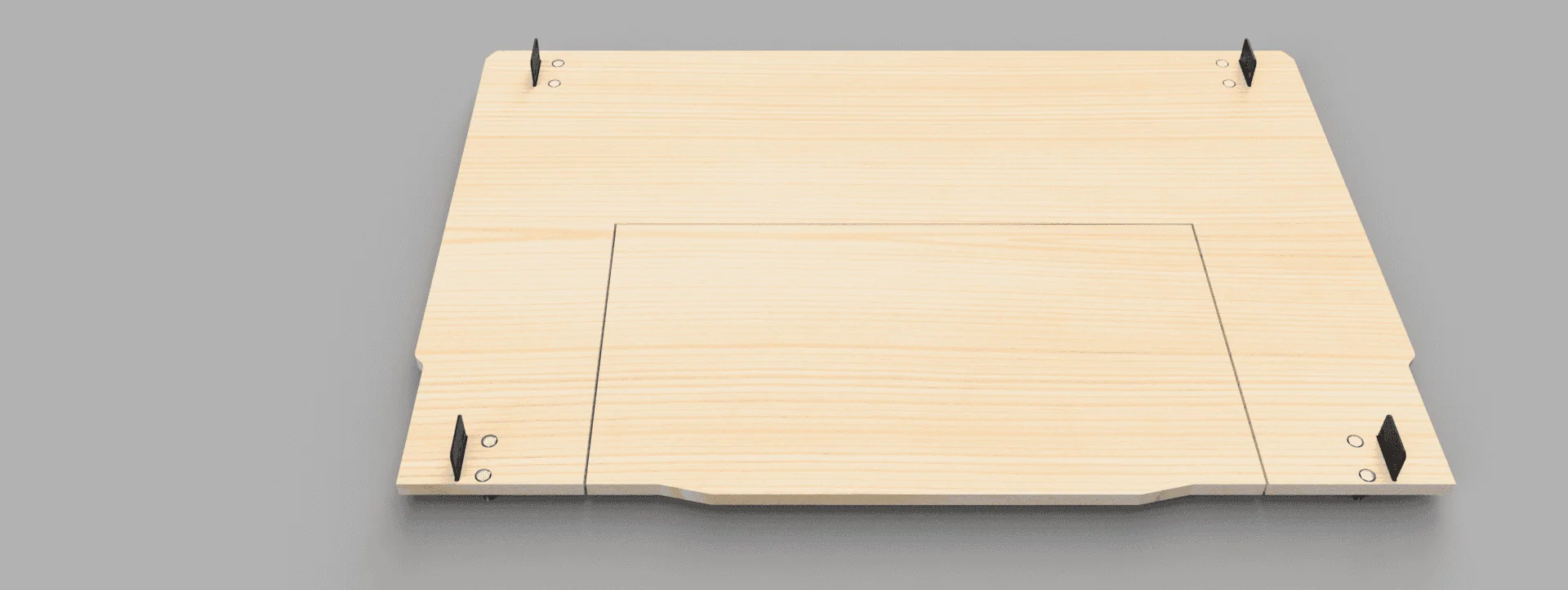

Ford Bronco Open-Source: Trunk Storage System (Open TSS) OTSS Update 25MAR24

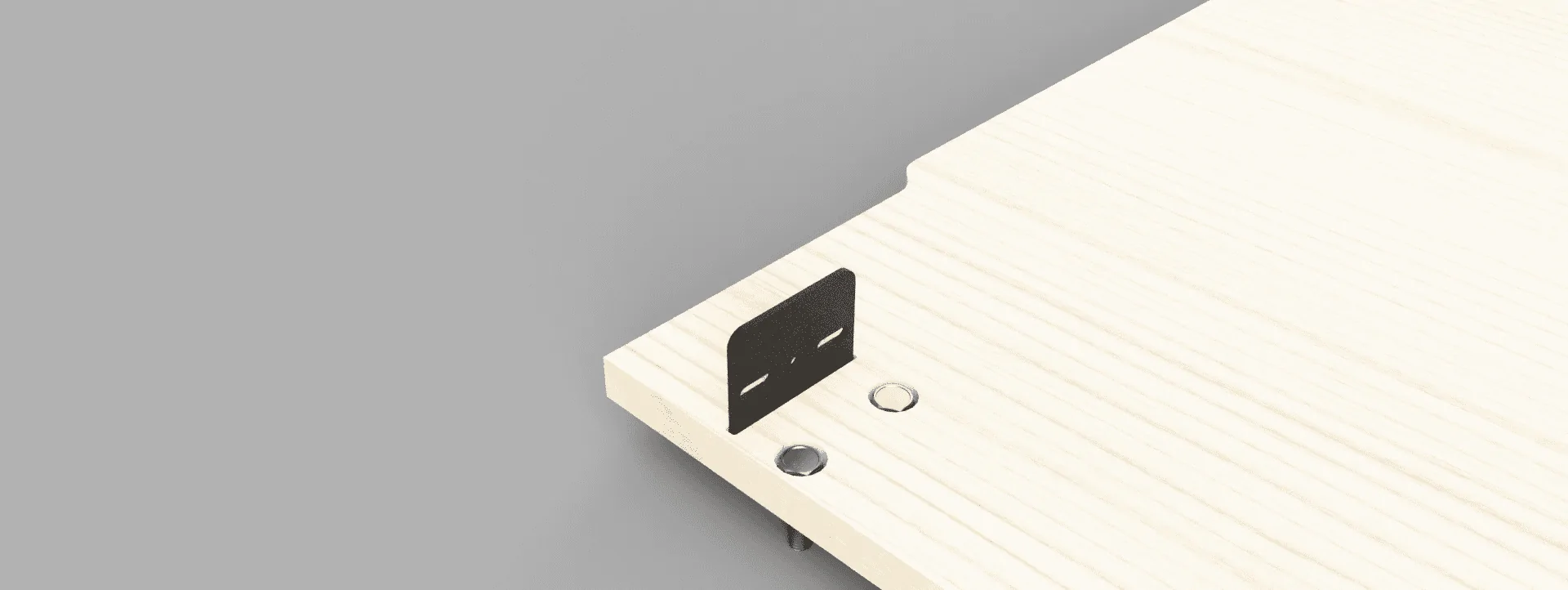

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Plywood_Cargo_Quick_Slide_version_2024-Mar-25_09-41-48PM-000_CustomizedView4188523275

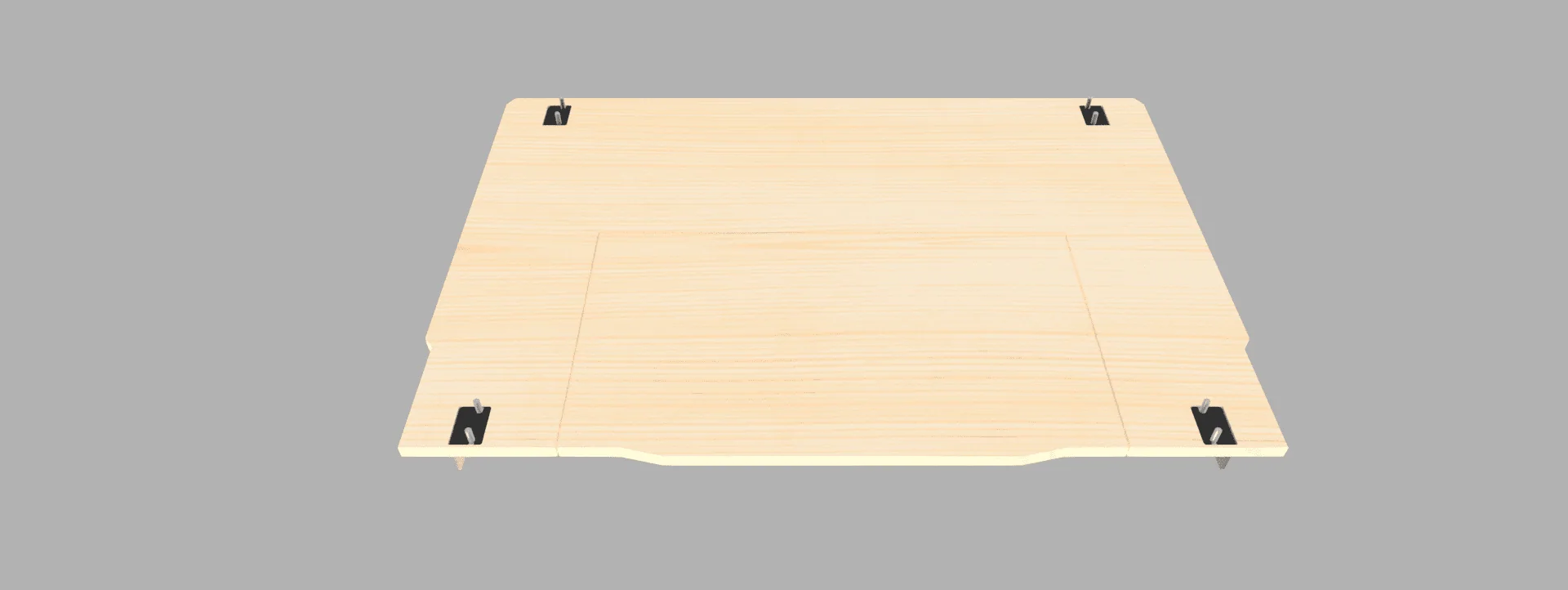

Ford Bronco Open-Source: Trunk Storage System (Open TSS) Plywood Cargo Quick Slide version v6 BV
.

OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
458
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

Apologies to anyone watching this thread. I received my military orders and am planning a cross country move. Update attached.

Consider checking out Bronco Mods – ModCrate purchases support my DIY projects.

If you have your own cnc router and need 3d files message me and ill sort you out.

*EDIT: Pocket detail dimensions to come later today.


Attachments

Last edited:

Shawn_1121

Outer Banks
Well-Known Member
First Name
Shawn
Joined
Feb 25, 2022
Threads
13
Messages
292
Reaction score
441
Location
Hudson, NH
Vehicle(s)
22 Bronco OBX A51
Your Bronco Model
Outer Banks
Clubs

does anyone have the dimensions/measurements to where the bolts would go in the corners to tie the platform down?


Sponsored
OP
OP
Russ.Cere

Russ.Cere

Wildtrak
Well-Known Member
Lux Sponsor (Level 2)
First Name
Russ
Joined
Apr 16, 2023
Threads
25
Messages
172
Reaction score
458
Location
Washington State
Website
modcrate.myshopify.com
Vehicle(s)
Bronco
Your Bronco Model
Wildtrak
Clubs

does anyone have the dimensions/measurements to where the bolts would go in the corners to tie the platform down?

I'll add that later today, see edit on previous post.
