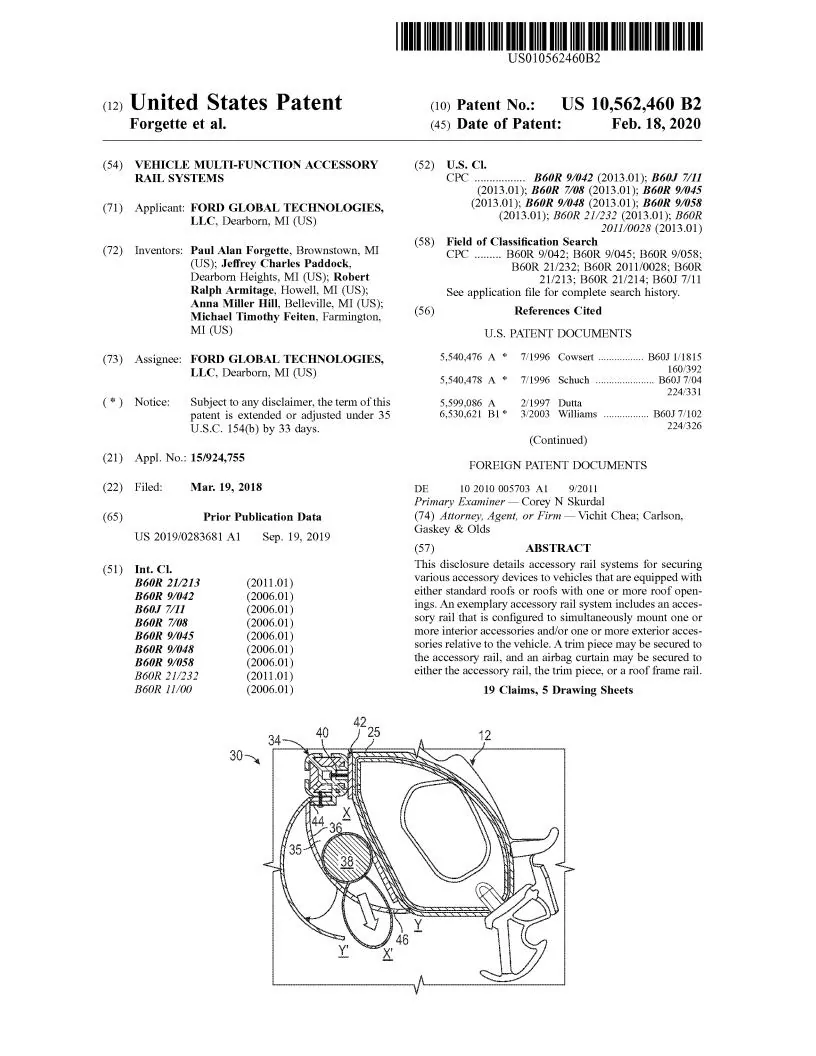

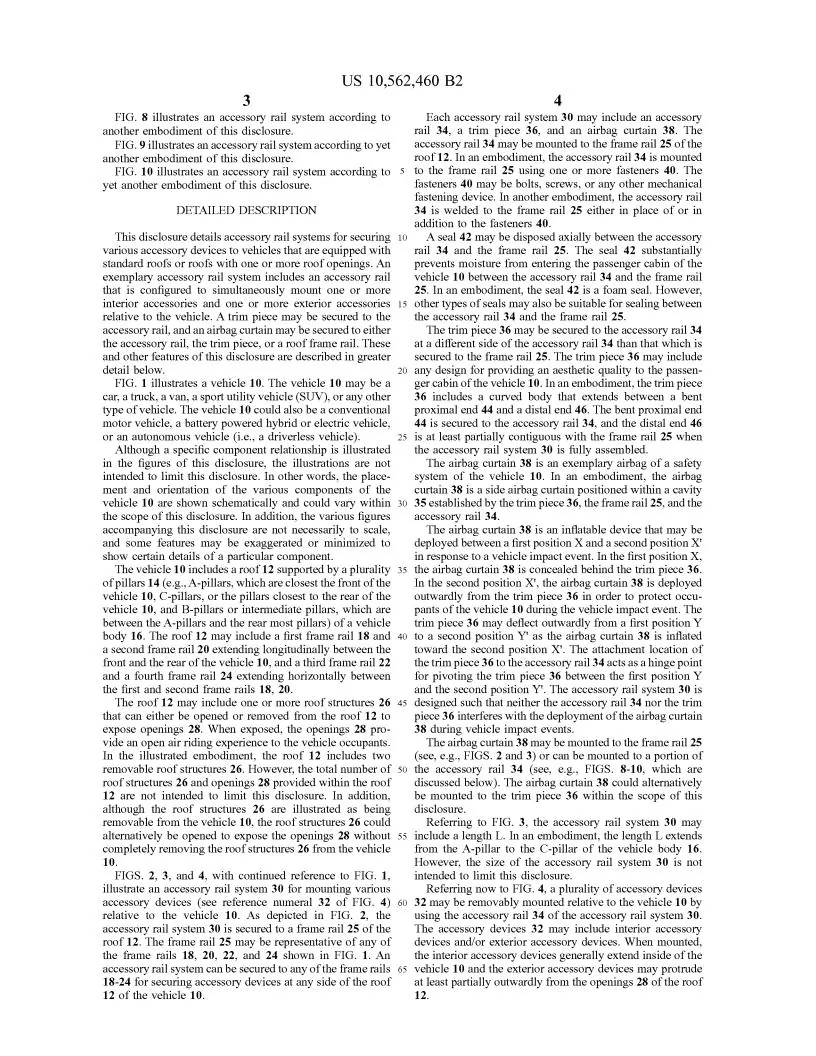

Patent: Accessory Rail System for Bronco

Topnotch

Member
Joined
Jul 23, 2016
Messages
11
Reaction score
30
Location
NYC



Advertisement




Mustang313

Well-Known Member
Joined
Mar 2, 2015
Messages
133
Reaction score
148
Location
Michigan
Vehicle(s)
Mustang GT (s197)

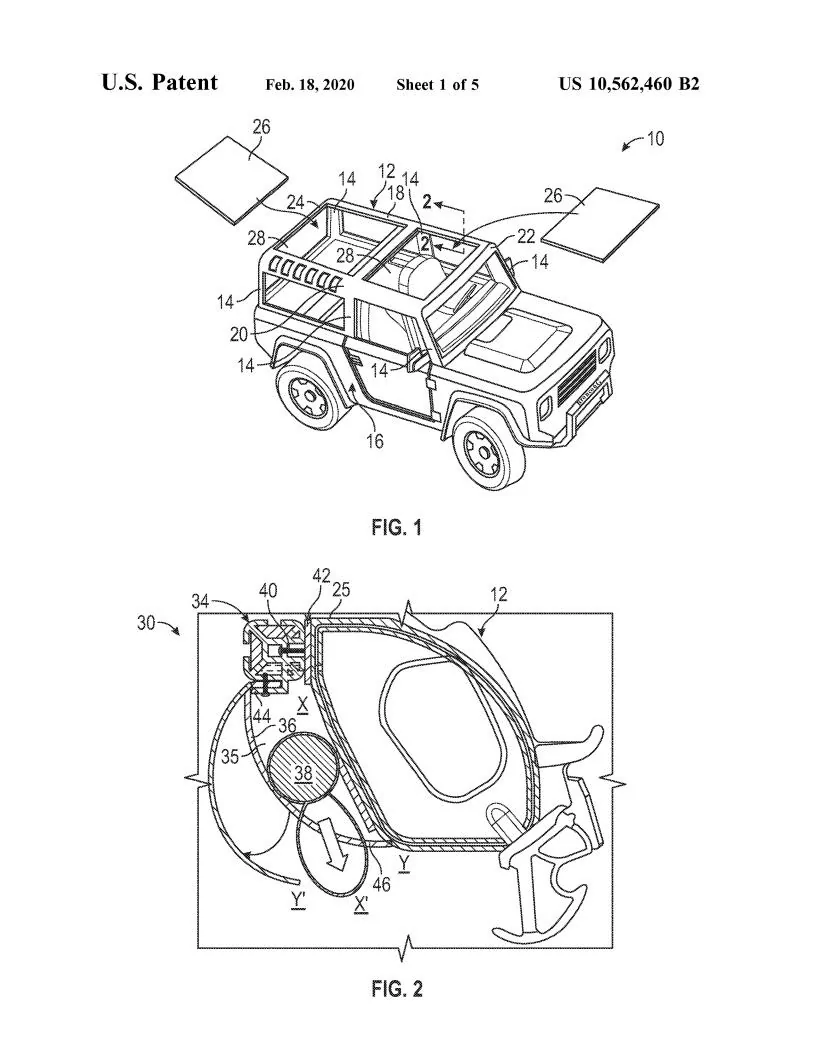

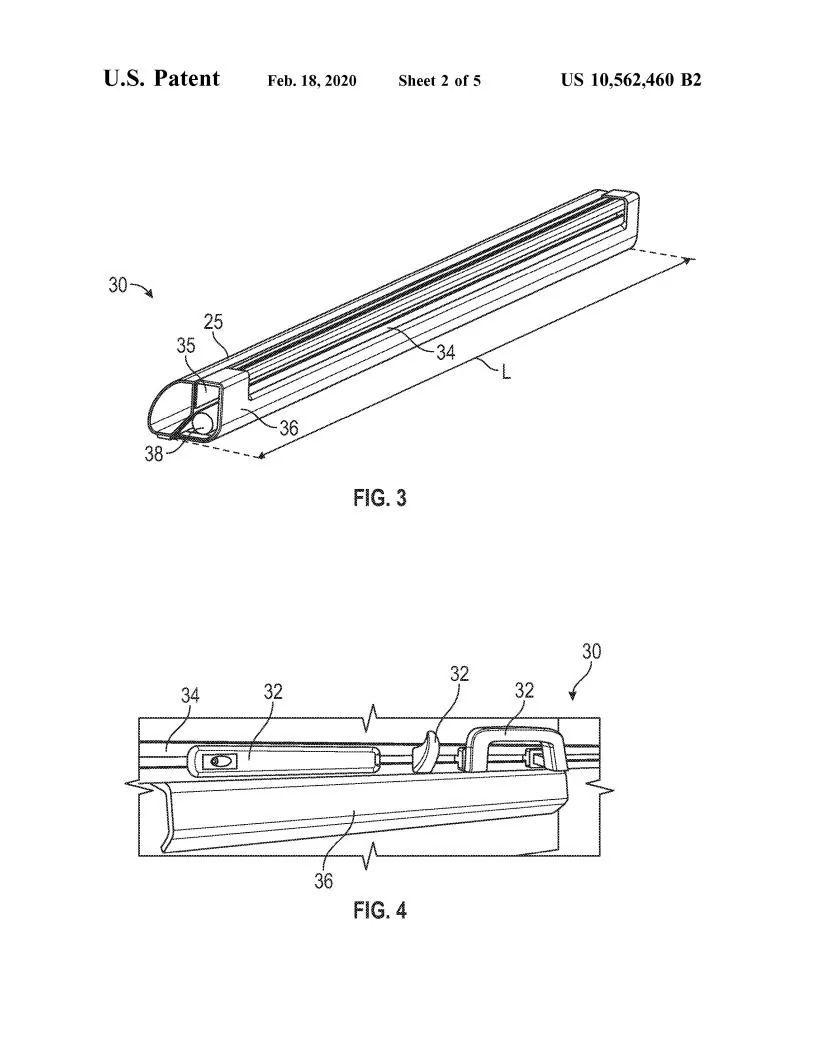

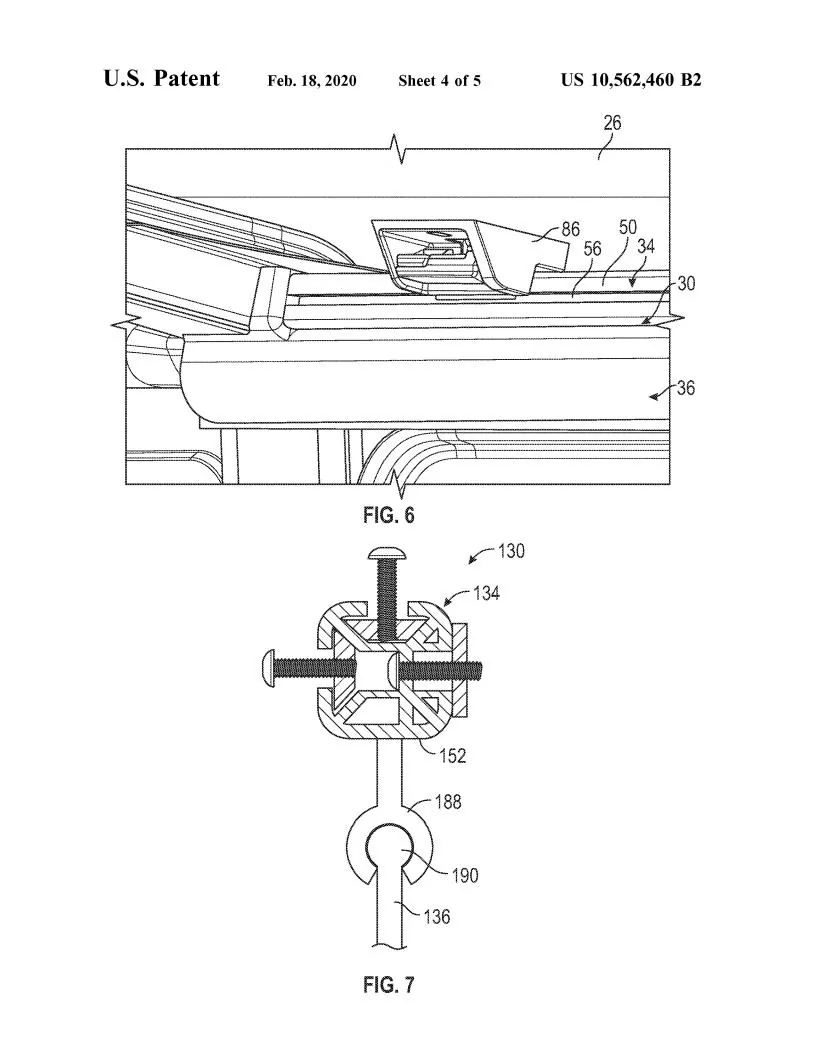

This pretty much shows the design of the removable panels and there's the hood scoop (??) At first I thought this was like Jeep's trail rail management system but this seems to mount along the top cage.


Amos Moses

Well-Known Member
First Name
Trae
Joined
Feb 7, 2020
Messages
57
Reaction score
111
Location
North Florida
Vehicle(s)
71 highboy, 78 bronco, 79 bronco, 81 bronco, 84 bronco, 86 bronco, 91 bronco, 97 f250, 98 mazda b2500, 2011 f250
This pretty much shows the design of the removable panels and there's the hood scoop (??) At first I thought this was like Jeep's trail rail management system but this seems to mount along the top cage.
Isn't that the 04 concept just with removable panels?


frinesi2

Well-Known Member
First Name
Eric
Joined
Nov 7, 2019
Messages
910
Reaction score
2,126
Location
MD
Vehicle(s)
'96/'97 Jeep Grand Cherokee 4.0L, '92 Mitsubishi Pajero 2.5TD, '15 VW Golf TDI

FirstOnRaceDay

Well-Known Member
First Name
Devin
Joined
Feb 7, 2020
Messages
462
Reaction score
554
Location
Toledo Ohio
Vehicle(s)
2000 Mercury Grand Marquis, 2017 Honda Civic, 2019.5 Chevy Silverado
More evidence for my theory!!!!
I believe the rear body is a tubular frame.

with removable FRAMELESS doors.
Allowing the roof to to be removed in 3 separate FLAT pieces (like a T top style)
then the rear glass between the C/D (or B/C) pillars will be another set of panels. And the rear glass retracts into the door.

picture it like a T top style for the roof over the doors

then the rear roof slides out the back as does the side rear glass.

making removal of all the pieces light and small enough to easily be removed by one person and stored easily

(a very common complaint of the Wrangler people about the hard top is it’s very hard to do with 1/2 people and large space needed to store)

Last edited:

Randy92Fox

Well-Known Member
First Name
Randy
Joined
Sep 29, 2019
Messages
194
Reaction score
322
Location
Washington
Vehicle(s)
66 Half Cab, 7.3 Powerstroke, 5.0 Convertible Fox
The main body is definitely the 04 concept and we have seen before Ford using placeholders in their patents so I'd take the vehicle itself with a grain of salt.
