Pre-Run Wiring Locations

[Dreadnought]

Does anyone know for certain where the ends of the aux switch pre-run wiring are located?

Need fog lights on my Badlands.

Sponsored



[PWillette]

Seems though there was a previous thread or video showing a junction box mounted in the engine bay.



[Thed]

The relay box for the Aux switches is next to the standard fuse box by the battery. The wires will be wrapped up in the harness right next to it.



[Hey19]

I'd like to see that location as well, it makes sense it would be in the battery/fuse/relay box area.



[Tricky Nick]

Does anyone know for certain where the ends of the aux switch pre-run wiring are located?

Need fog lights on my Badlands.

look through this thread...I recall it had a lot of good information...

https://www.bronco6g.com/forum/threads/aux-switches-wiring.11220/



[Dreadnought]

Very helpful responses- thank you.



[Thed]

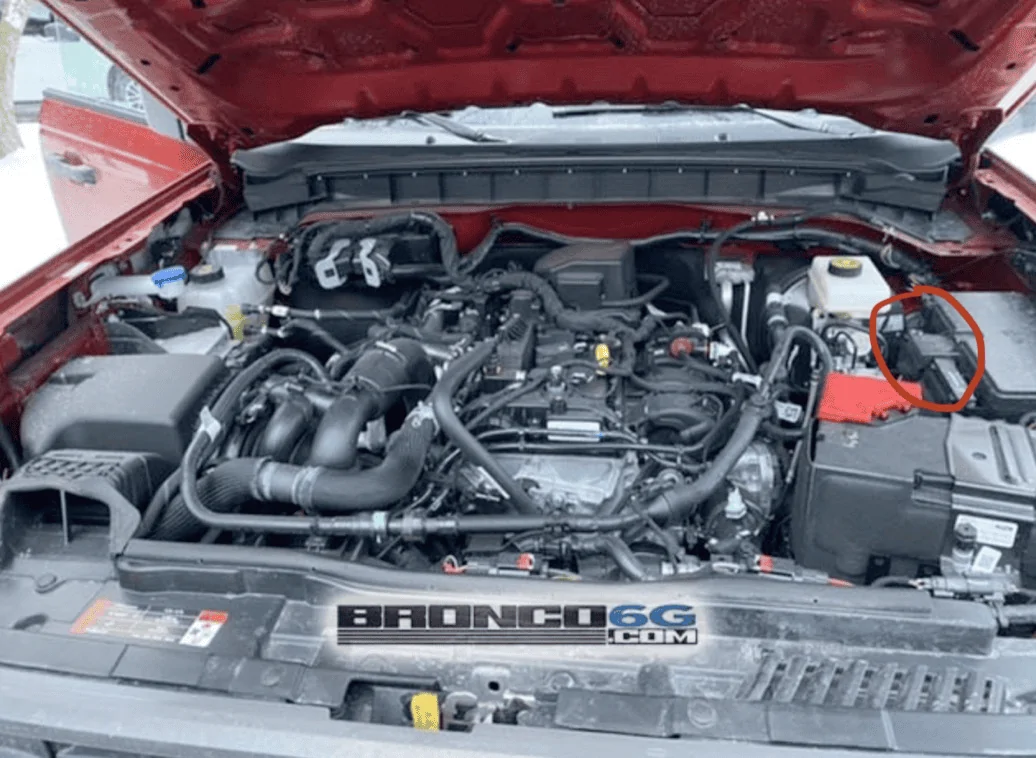

Here's the relay box



[Mattwings]

Do we know if there are any plugs in the firewall to run wires into the interior? Seems to be harder and harder to route wiring as cars get more complex and access is tighter. I will likely want to run power to an amplifier and reverse/work lights.



[Thed]

Do we know if there are any plugs in the firewall to run wires into the interior? Seems to be harder and harder to route wiring as cars get more complex and access is tighter. I will likely want to run power to an amplifier and reverse/work lights.
