Radio (GMRS/HAM/CB) Installations

Vinny6G

Black Diamond
Well-Known Member
First Name
Jason
Joined
Aug 13, 2020
Threads
9
Messages
586
Reaction score
1,632
Location
Texas
Vehicle(s)
Bronco
Bronco
Black Diamond
Clubs

Oh so there's no cutting involved for that location? That's great!
Nope, no cutting or drilling. If you pull that bottom panel open, it just swings down. Theres a metal piece in there, not sure what it’s for but I just took it out and stuck the radio to the bottom of the column. Once you close that panel back up, it squeezes the radio just snug enough not too move.


Advertisement


Advertisement

ICUGAZN

Badlands
Well-Known Member
First Name
Kevin
Joined
Apr 11, 2021
Threads
19
Messages
691
Reaction score
705
Location
Woodbridge, Virginia
Vehicle(s)
2019 Raptor
Bronco
Badlands
Clubs

My setup

Nagoya NMO Lip Mount
Browning Antenna (GMRS tuned)
AnyTone AT-778UV Radio (temporary, Wouxun KG1000 on order)
Powered by Aux switch #6

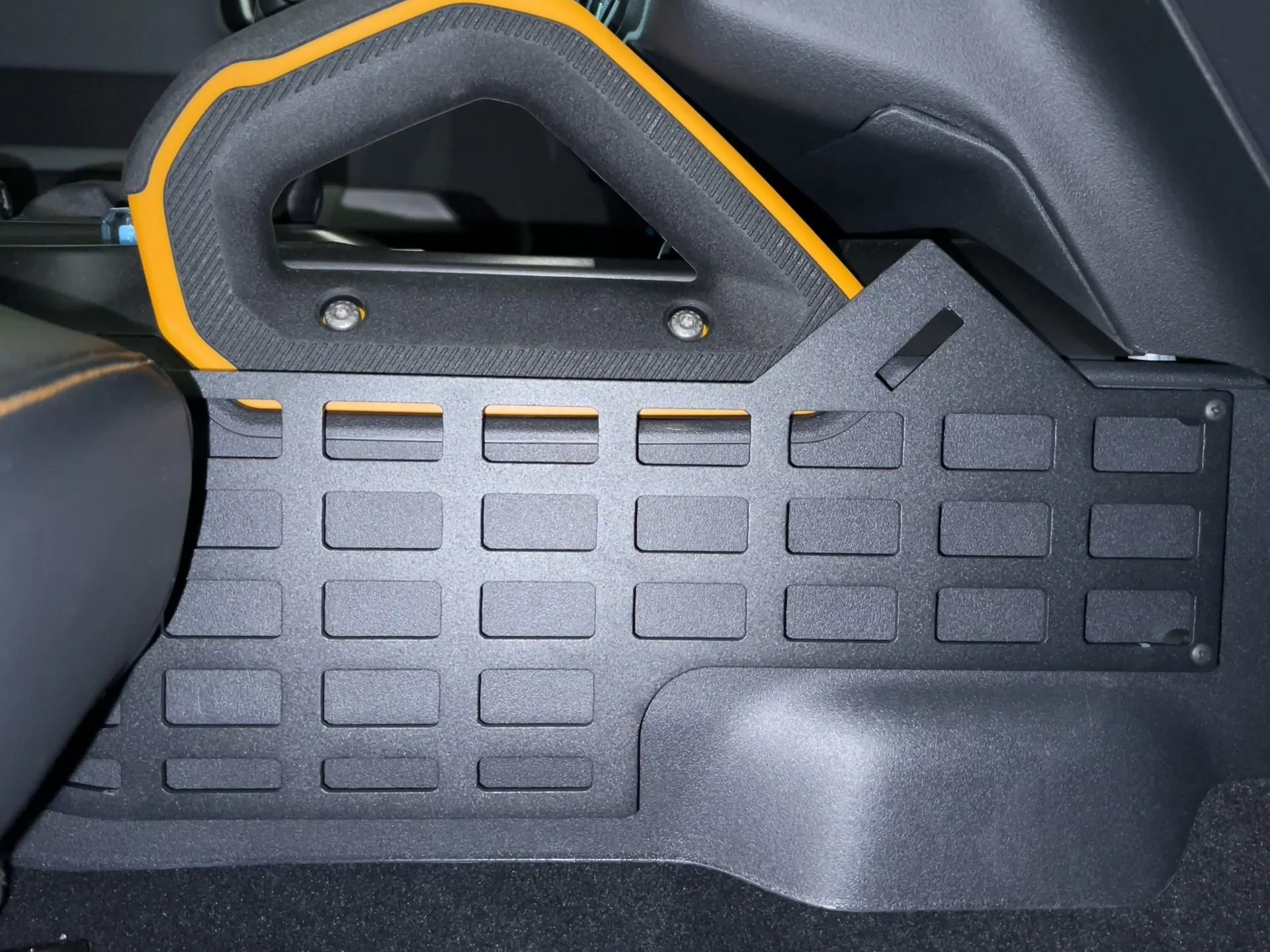

Interesting Location. I was thinking of trying to do something by mounting it to this @JcrOffroad console panel.


Vinny6G

Black Diamond
Well-Known Member
First Name
Jason
Joined
Aug 13, 2020
Threads
9
Messages
586
Reaction score
1,632
Location
Texas
Vehicle(s)
Bronco
Bronco
Black Diamond
Clubs

Interesting Location. I was thinking of trying to do something by mounting it to this @JcrOffroad console panel.
This is just my temporary setup, have another radio on the way with a detachable faceplate so I may end up putting the body in the glove box or something. That JCR mount in another option too


Raptor18

First Edition
Well-Known Member
Joined
Jun 15, 2021
Threads
8
Messages
244
Reaction score
501
Location
Colorado
Vehicle(s)
2020 F-250 Tremor, 2021 Bronco
Bronco
First Edition
Clubs

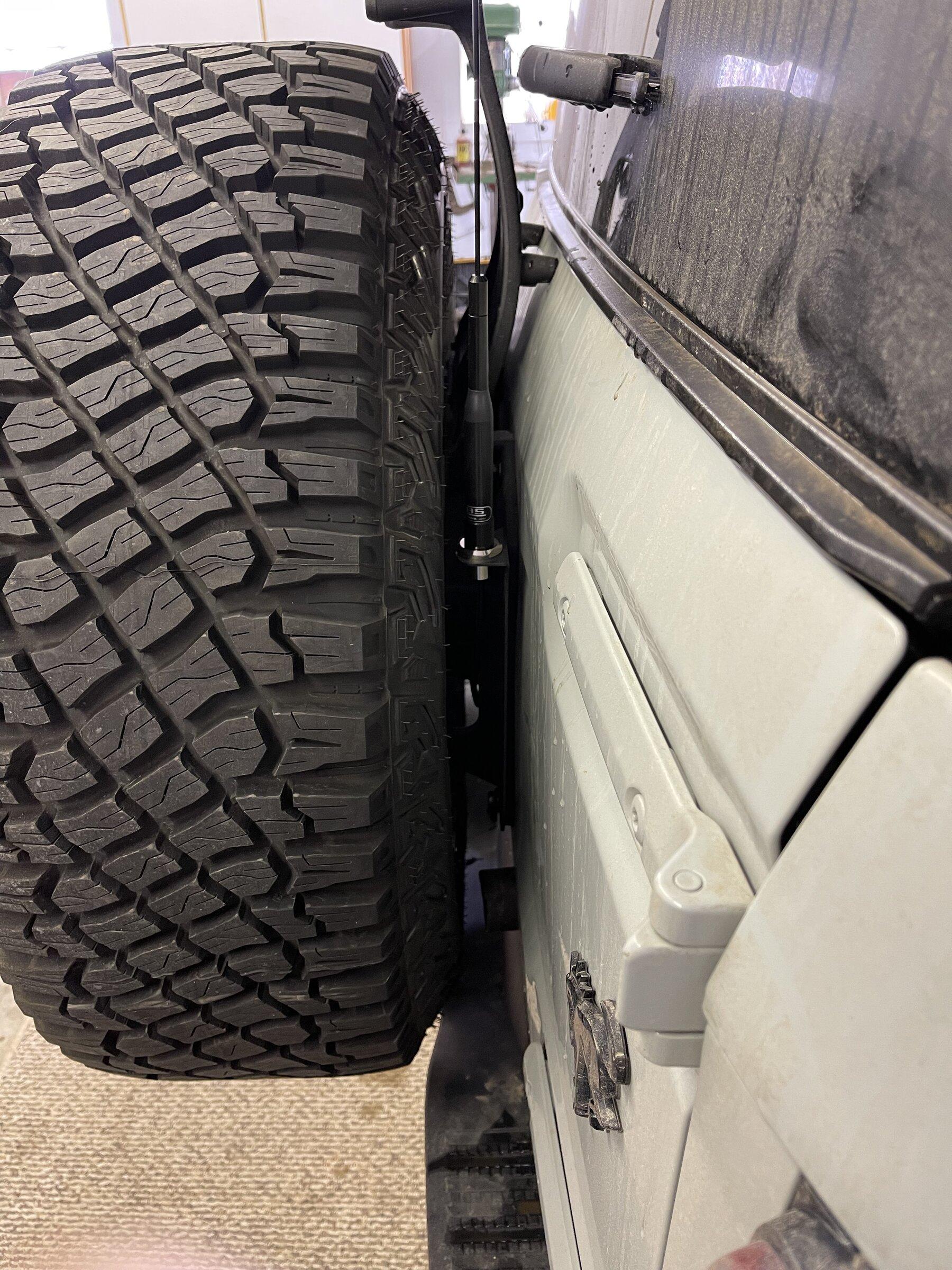

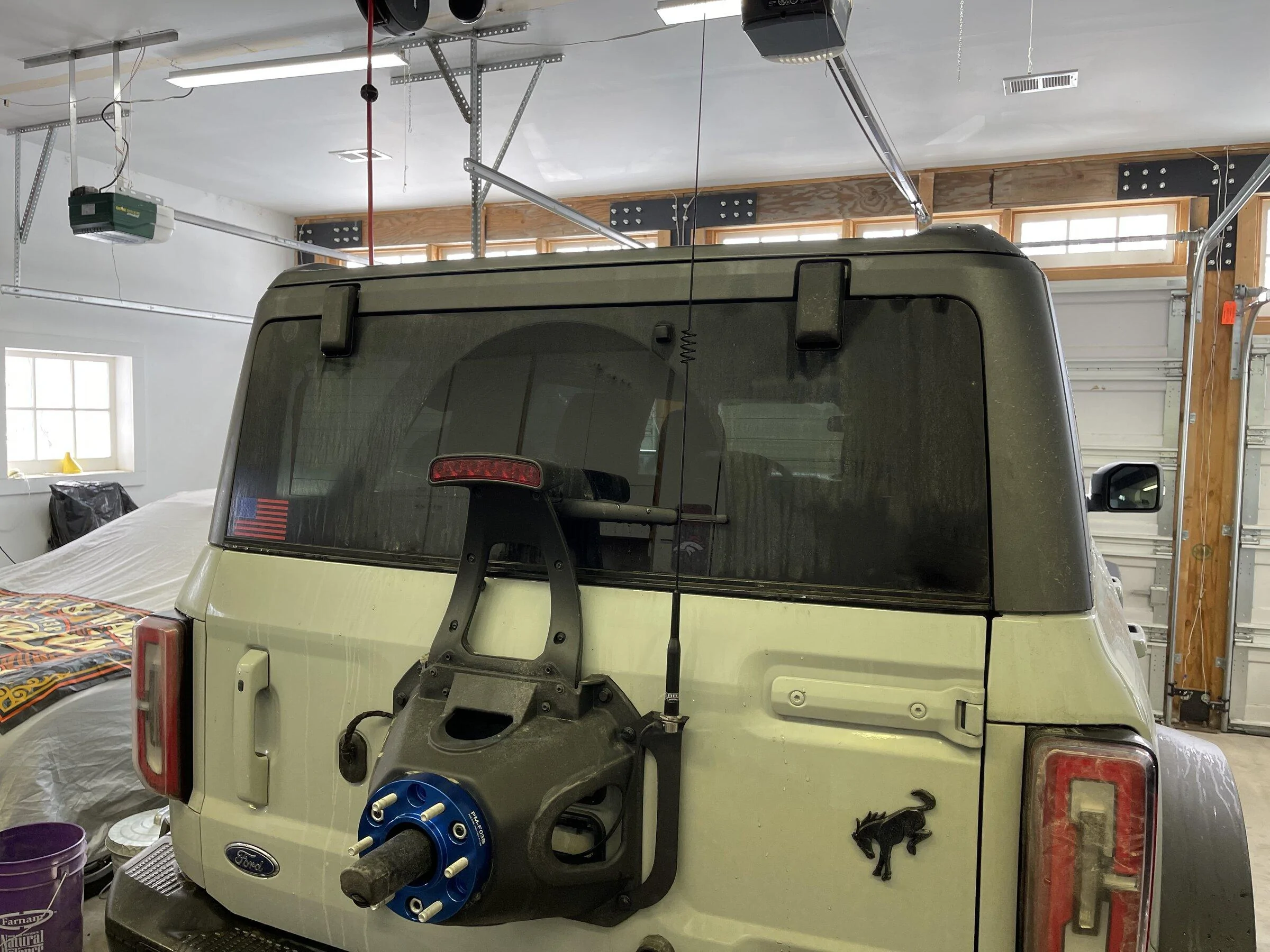

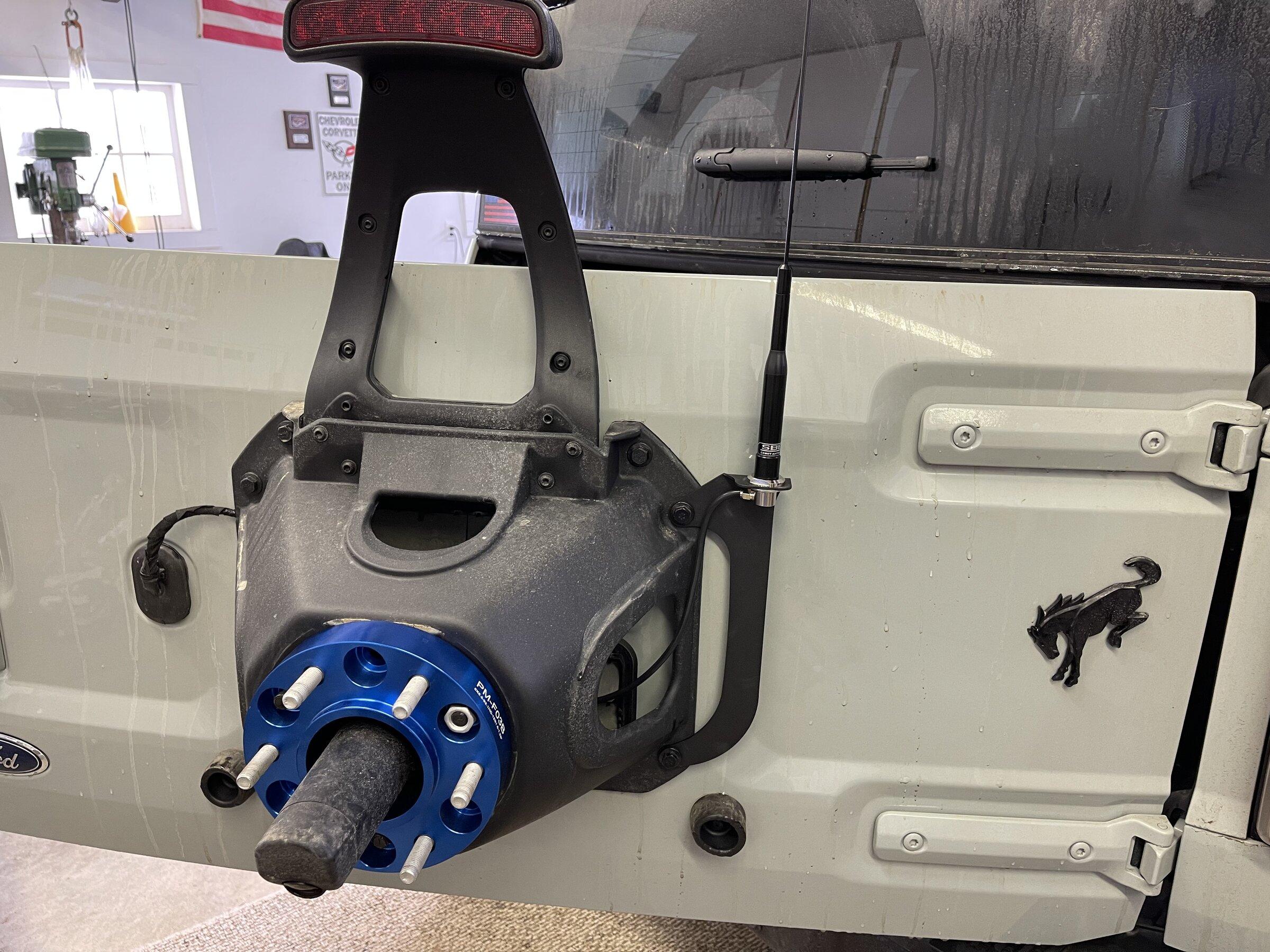

I mounted my antenna at the spare tire location using a Jeep antenna mount.
Jeep and Ford have the same spare bolt pattern.
Amazon link for the mount: Here
This mod requires to push the wheel out a bit, I went with a 1.25” wheel spacer but you “might” be able to get away with a 1” spacer.

I couldn’t be happier with the results. The spacers come in a 4 pack, so if anyone in CO needs a spacer, I have three left.









hoss

Big Bend
Well-Known Member
Joined
Jul 18, 2020
Threads
1
Messages
71
Reaction score
128
Location
southeast
Vehicle(s)
4Runner
Bronco
Big Bend
I mounted my antenna at the spare tire location using a Jeep antenna mount.
Jeep and Ford have the same spare bolt pattern.
Amazon link for the mount: Here
This mod requires to push the wheel out a bit, I went with a 1.25” wheel spacer but you “might” be able to get away with a 1” spacer.

I couldn’t be happier with the results. The spacers come in a 4 pack, so if anyone in CO needs a spacer, I have three left.
How did you route the coax for the antenna?


Raptor18

First Edition
Well-Known Member
Joined
Jun 15, 2021
Threads
8
Messages
244
Reaction score
501
Location
Colorado
Vehicle(s)
2020 F-250 Tremor, 2021 Bronco
Bronco
First Edition
Clubs

How did you route the coax for the antenna?

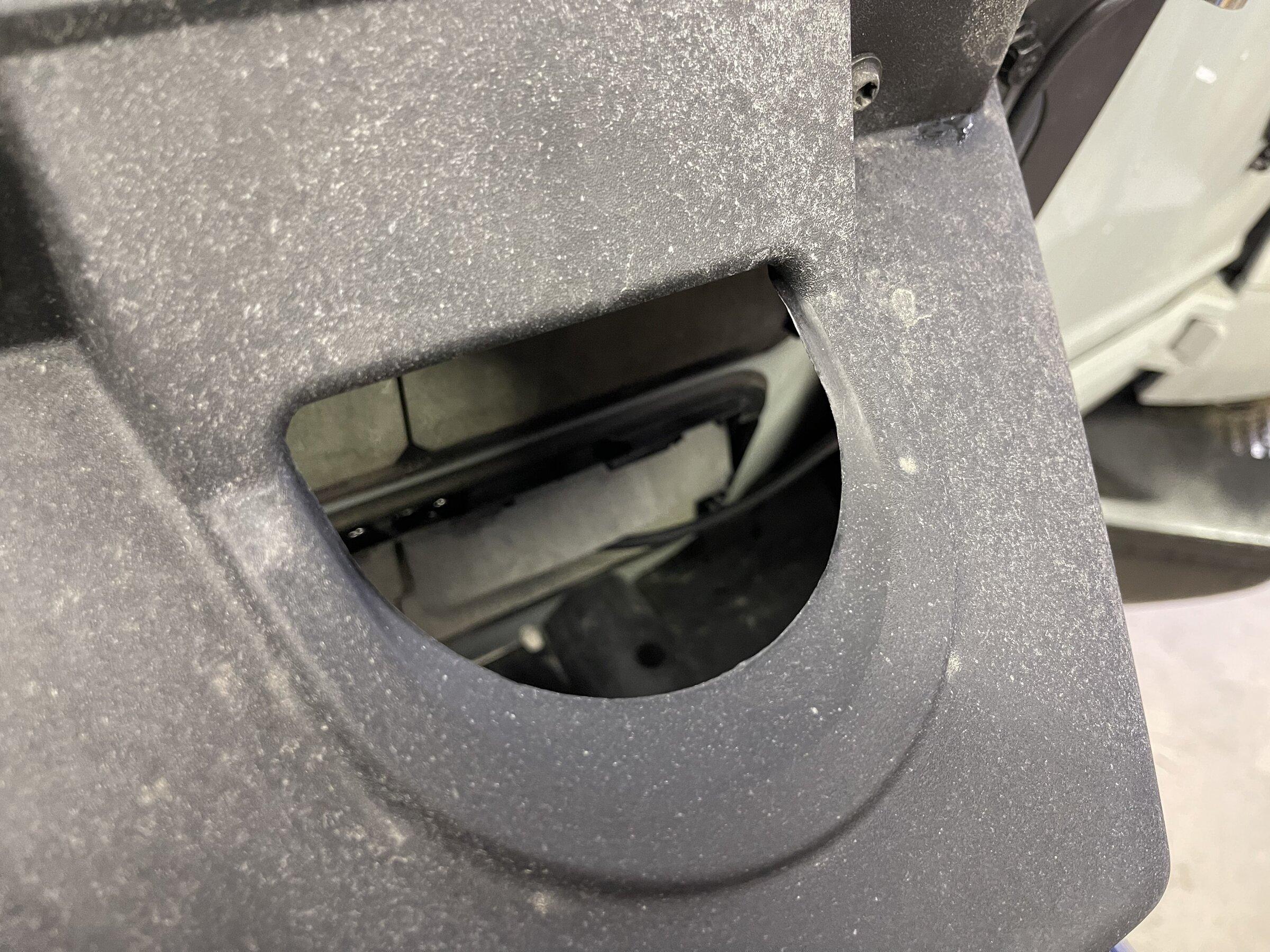

I went through the air vent behind the spare mount, I may pull it back and pop through the grommet to the left of the mount.
There is a plastic trim piece on the inside of the door that allows to feed inside through a hole and follow the factory wires to the inside of the cargo area. From there I stayed low tucking under the interior trim and door threshold trim panels.



Advertisement

KompressorV12

Badlands
Well-Known Member
Joined
Apr 30, 2021
Threads
21
Messages
660
Reaction score
1,486
Location
Portland, Oregon
Vehicle(s)
19' Jeep Grand Cherokee High Altitude
Bronco
Badlands
Clubs

My setup

Nagoya NMO Lip Mount
Browning Antenna (GMRS tuned)
AnyTone AT-778UV Radio (temporary, Wouxun KG1000 on order)
Powered by Aux switch #6




How is this wired up? Where did you route your antenna cable?


Vinny6G

Black Diamond
Well-Known Member
First Name
Jason
Joined
Aug 13, 2020
Threads
9
Messages
586
Reaction score
1,632
Location
Texas
Vehicle(s)
Bronco
Bronco
Black Diamond
Clubs

How is this wired up? Where did you route your antenna cable?
Power is from the Aux #6 wire and a ground in the engine bay. The antenna coax and the power cables are routed through a small removable grommet in the firewall on the driver's side and the radio sits directly underneath the steering column.

Joined
Oct 21, 2021
Threads
3
Messages
19
Reaction score
34
Location
Arkansas
Vehicle(s)
1974 Bronco
Bronco
Badlands
Clubs

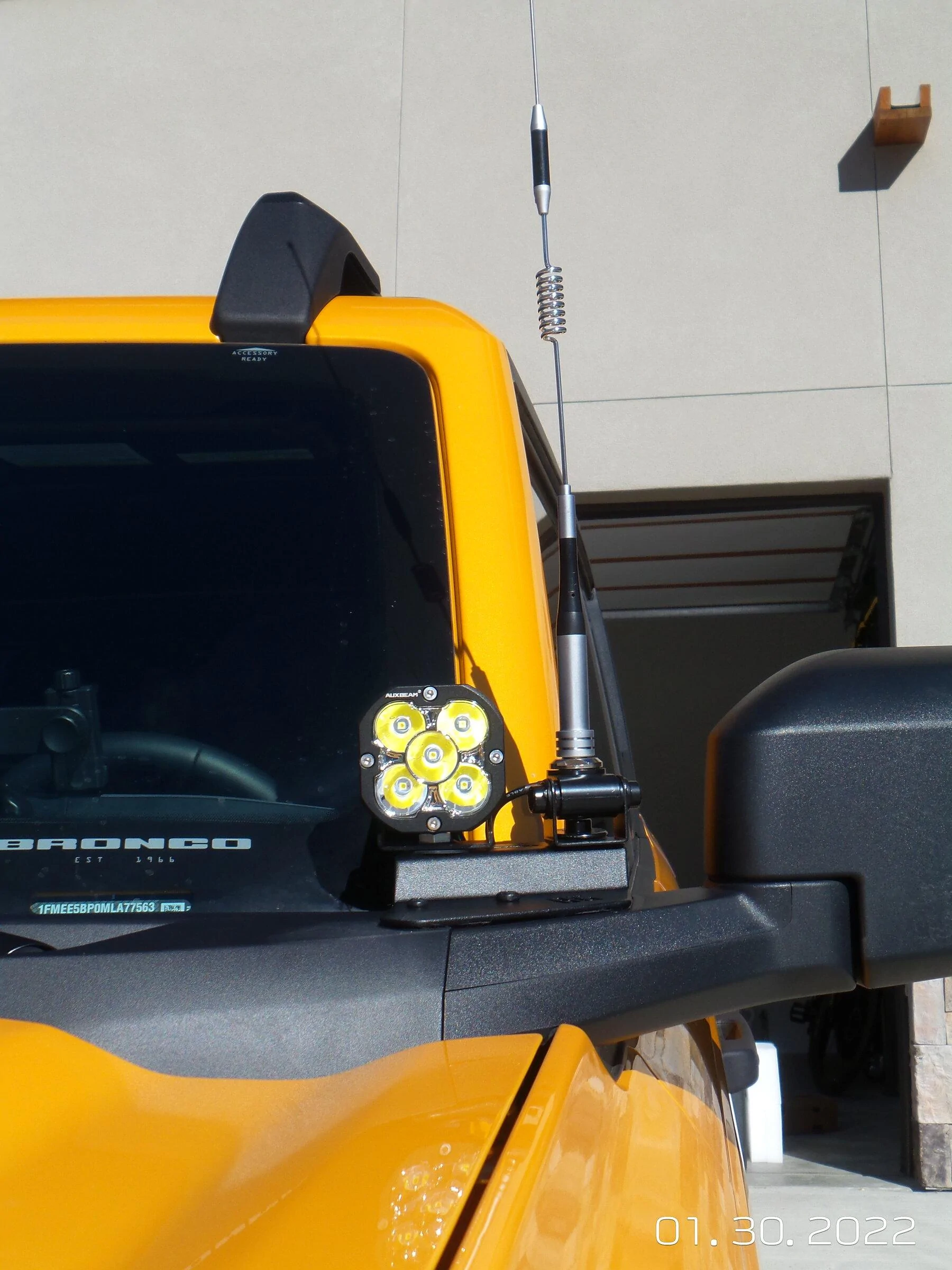

Here’s my take on a GMRS install. I wanted it hidden and to be able to remove and store the microphone easily. I found a stud by the brake pedal and fabbed up a bracket to mount the radio. I still have to fab up a nicer bracket to mount the antenna and hide the antenna wire under the cowl.









Jpursuit

Badlands
Well-Known Member
First Name
J
Joined
Sep 12, 2020
Threads
4
Messages
76
Reaction score
127
Location
Houston
Vehicle(s)
2008 f250 king ranch 4wd, 2021 Bronco
Bronco
Badlands
Clubs

I mounted my antenna at the spare tire location using a Jeep antenna mount.
Jeep and Ford have the same spare bolt pattern.
Amazon link for the mount: Here
This mod requires to push the wheel out a bit, I went with a 1.25” wheel spacer but you “might” be able to get away with a 1” spacer.

I couldn’t be happier with the results. The spacers come in a 4 pack, so if anyone in CO needs a spacer, I have three left.







I initially did the same antenna mount but found the spare wheel and metal of the tailgate degraded my signal considerably. Hope your radio performance is better than what I experienced with that antenna mount and a Midland MXTA26 antenna. Looks like your antenna base may be elevated enough to mitigate the high reflected signal from the nearby metal.

If the radio performance does not meet your needs then you might look at your signal with the spare tire off and then again with it on.


I'm still trying to decide on where to place the microphone mount.

Last edited:

M4Madness

Base
Well-Known Member
First Name
David
Joined
Feb 12, 2022
Threads
1
Messages
141
Reaction score
223
Location
Indiana
Vehicle(s)
F-150 FX4
Bronco
Base
Amateur Extra checking in. LOL!

I currently have a UHF/VHF rig in my FX4, but may go one step further on the Bronco (when it arrives) and install an HF unit. I drilled the roof for an antenna mount on the FX4, but I'm certainly not doing that on a brand new Bronco. LOL! Tagged for future reference.
