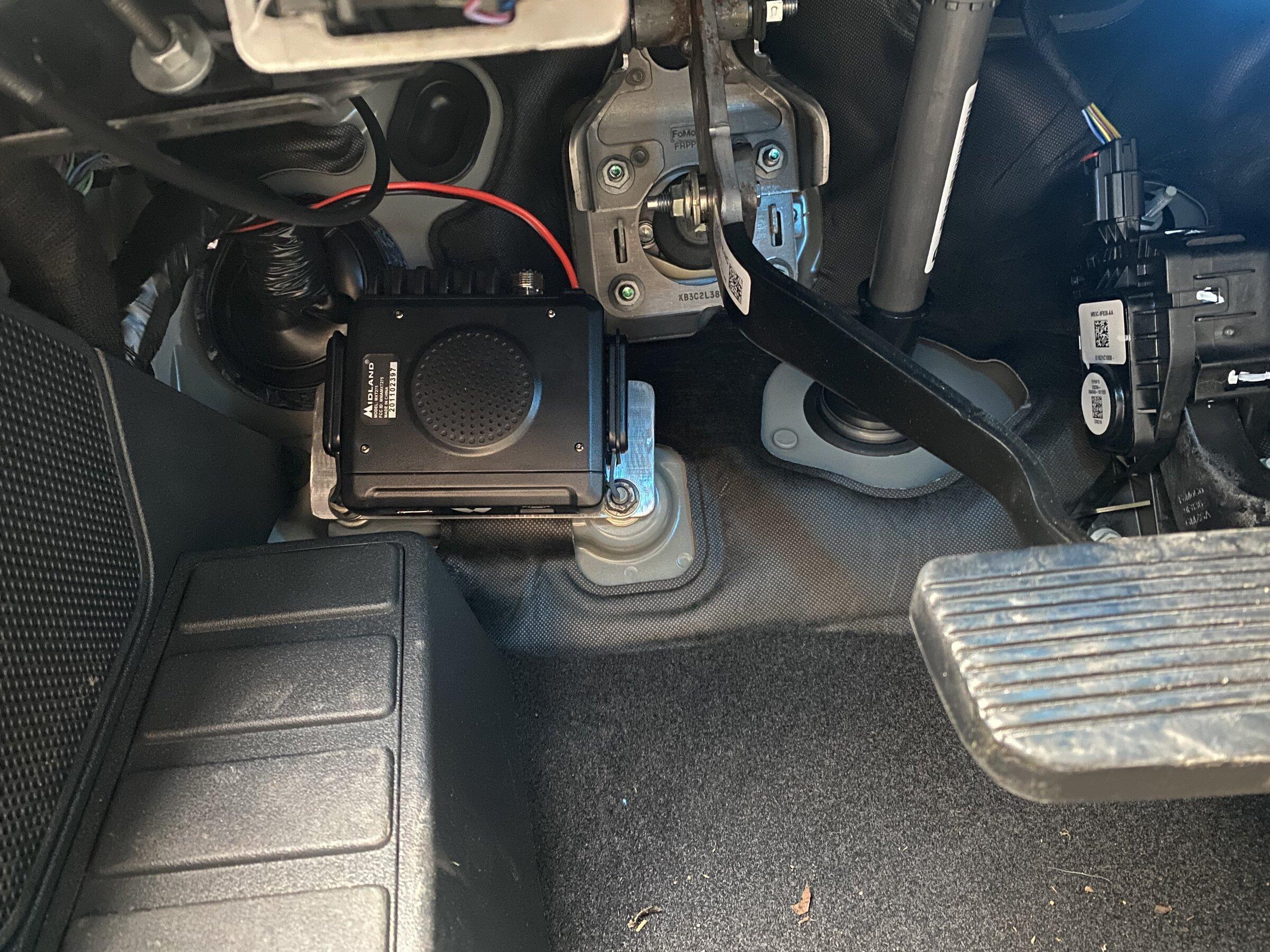

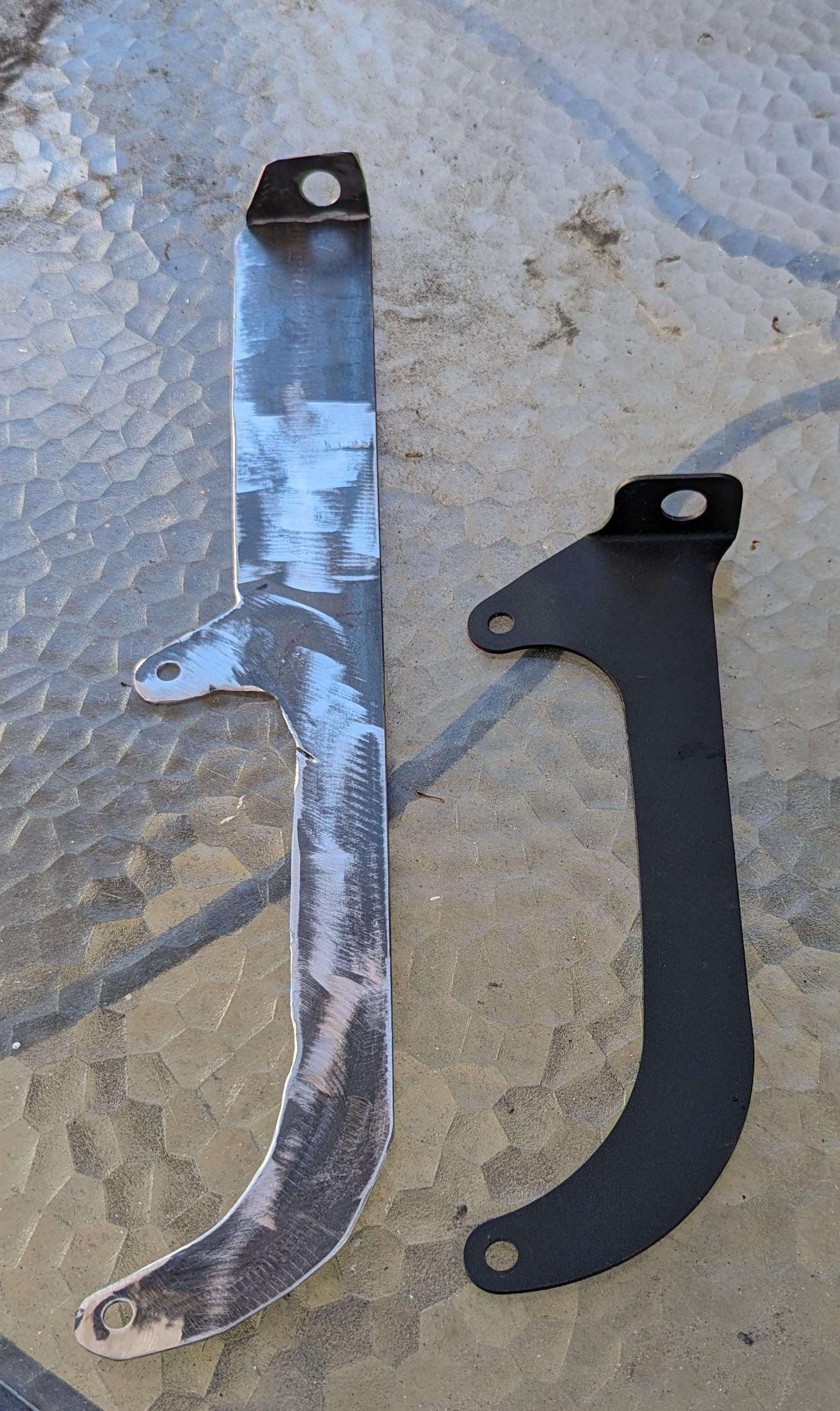

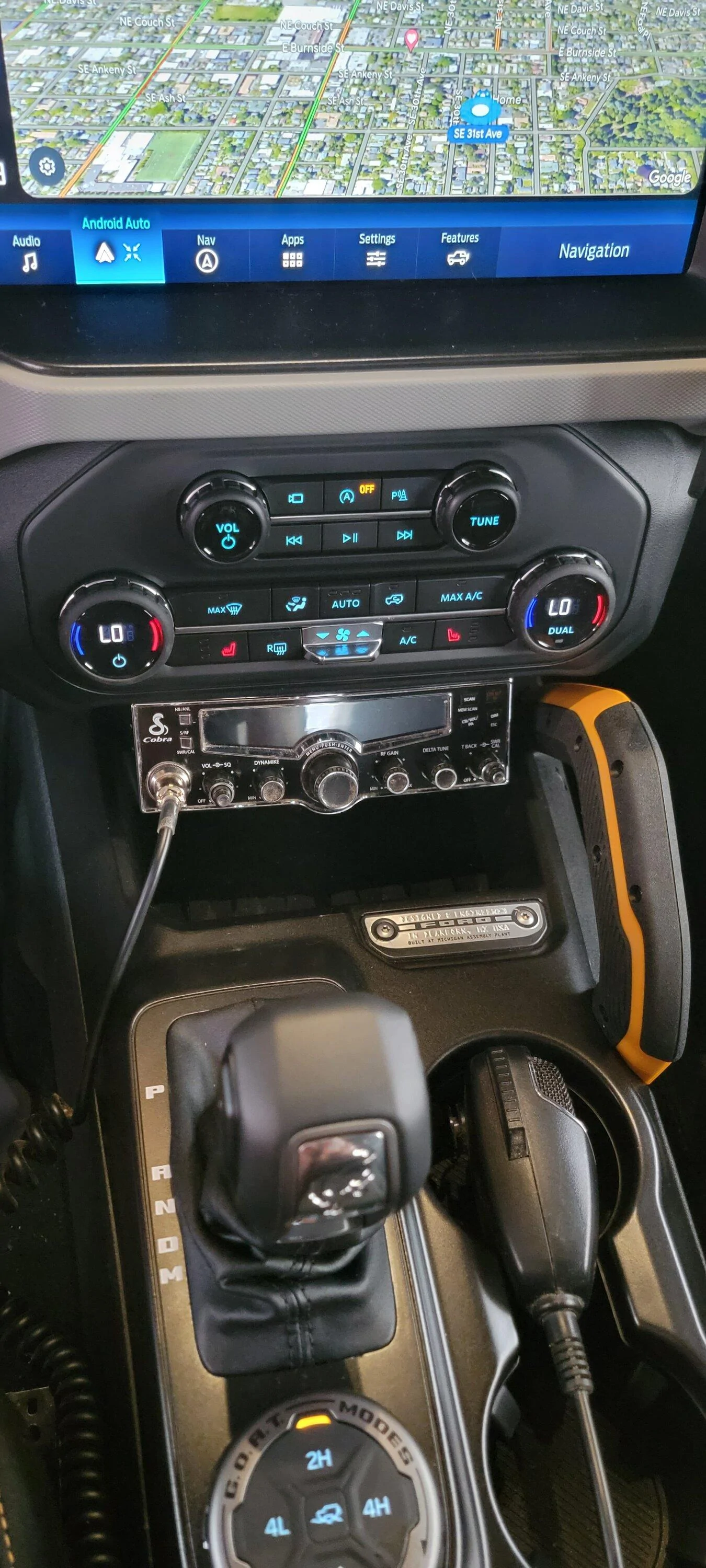

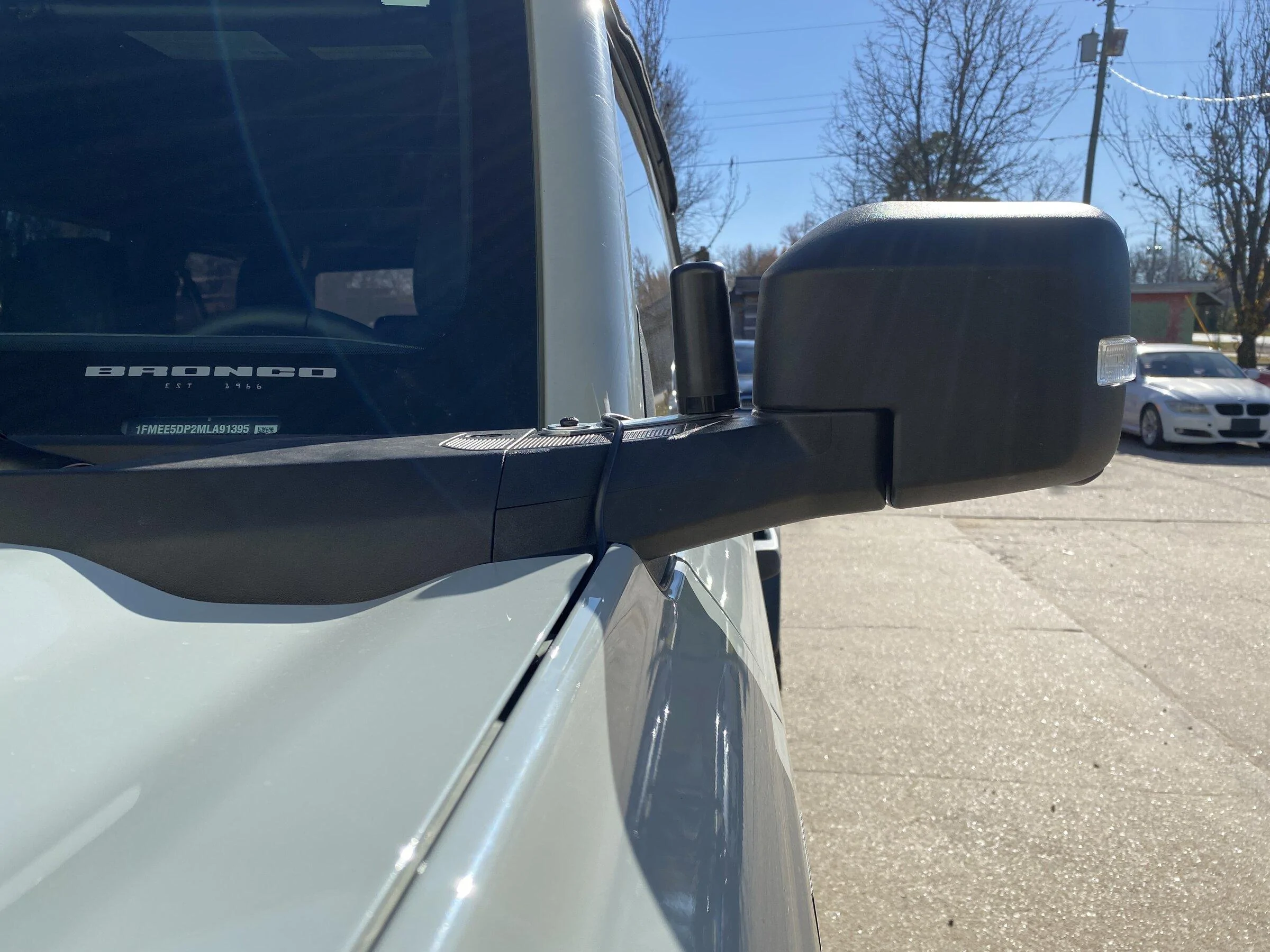

Here’s my take on a GMRS install. I wanted it hidden and to be able to remove and store the microphone easily. I found a stud by the brake pedal and fabbed up a bracket to mount the radio. I still have to fab up a nicer bracket to mount the antenna and hide the antenna wire under the cowl.







Can I ask what mic extender you used?


Advertisement


UtahBrandon

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Brandon
Joined
Oct 5, 2020
Threads
31
Messages
405
Reaction score
1,048
Location
Utah
Website
www.puravidaoffroad.com
Vehicle(s)
a number of classics and my 4dr Badlands
Your Bronco Model
Badlands
Clubs

Installed my Midland MXT275 today and I’m very happy about how it went and how stealth it is.

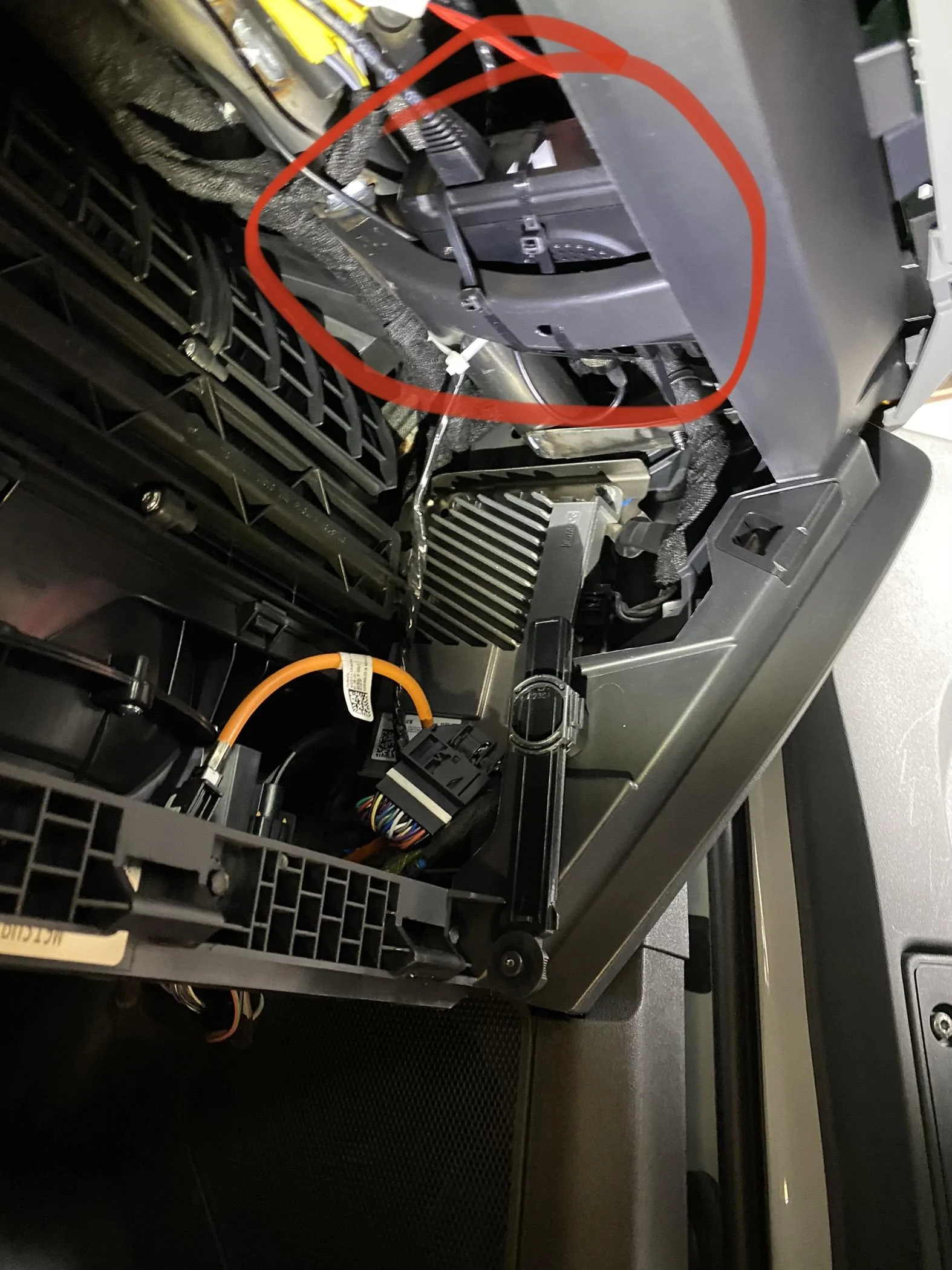

I wanted the main module somewhere behind the glove box and found a horizontal support that I could zip tie it to on the right side. I pretty much just did the same thing the Ford tech did when they installed the VSS security system and zip tied the module to the left side horizontal support.

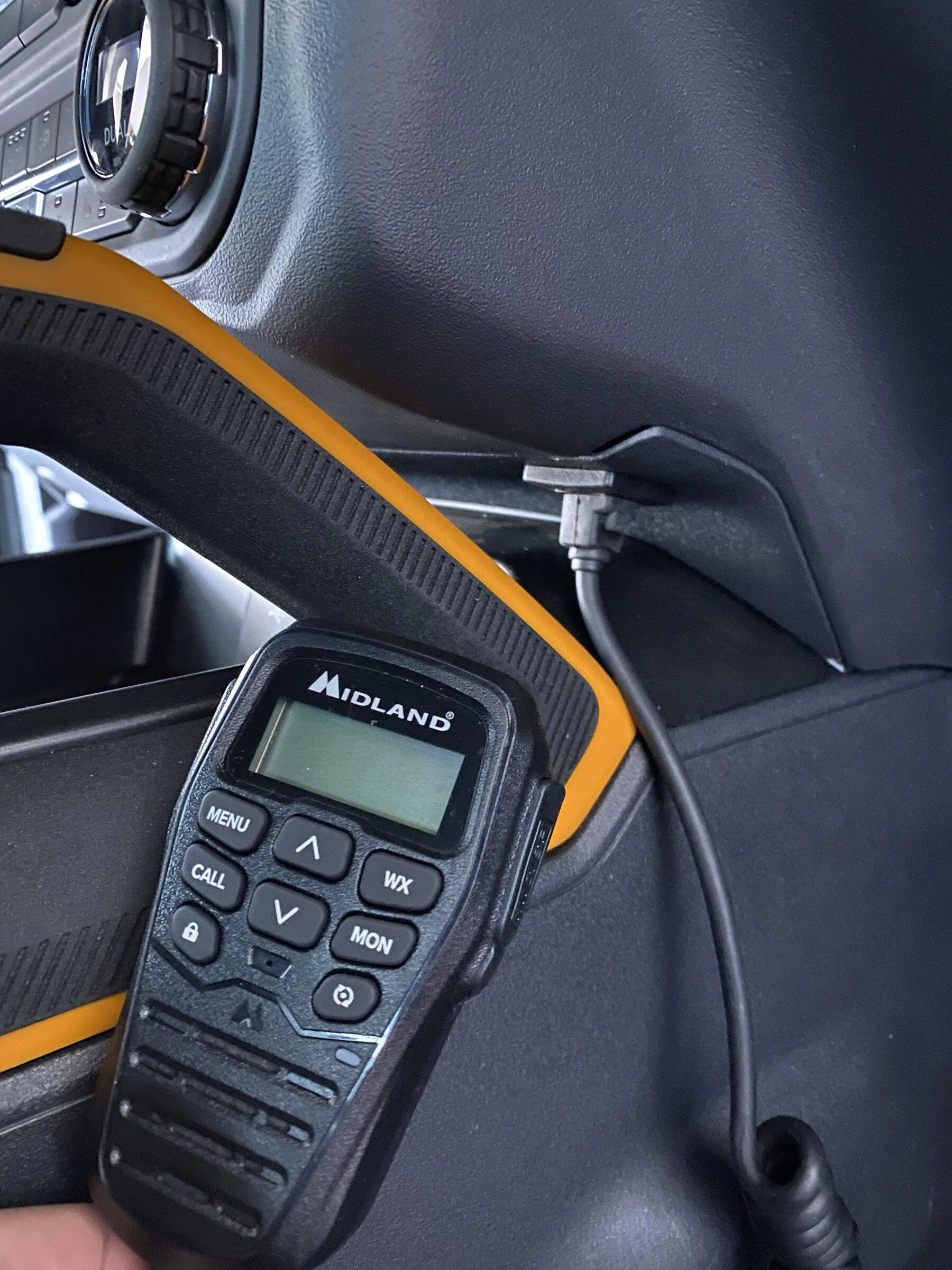

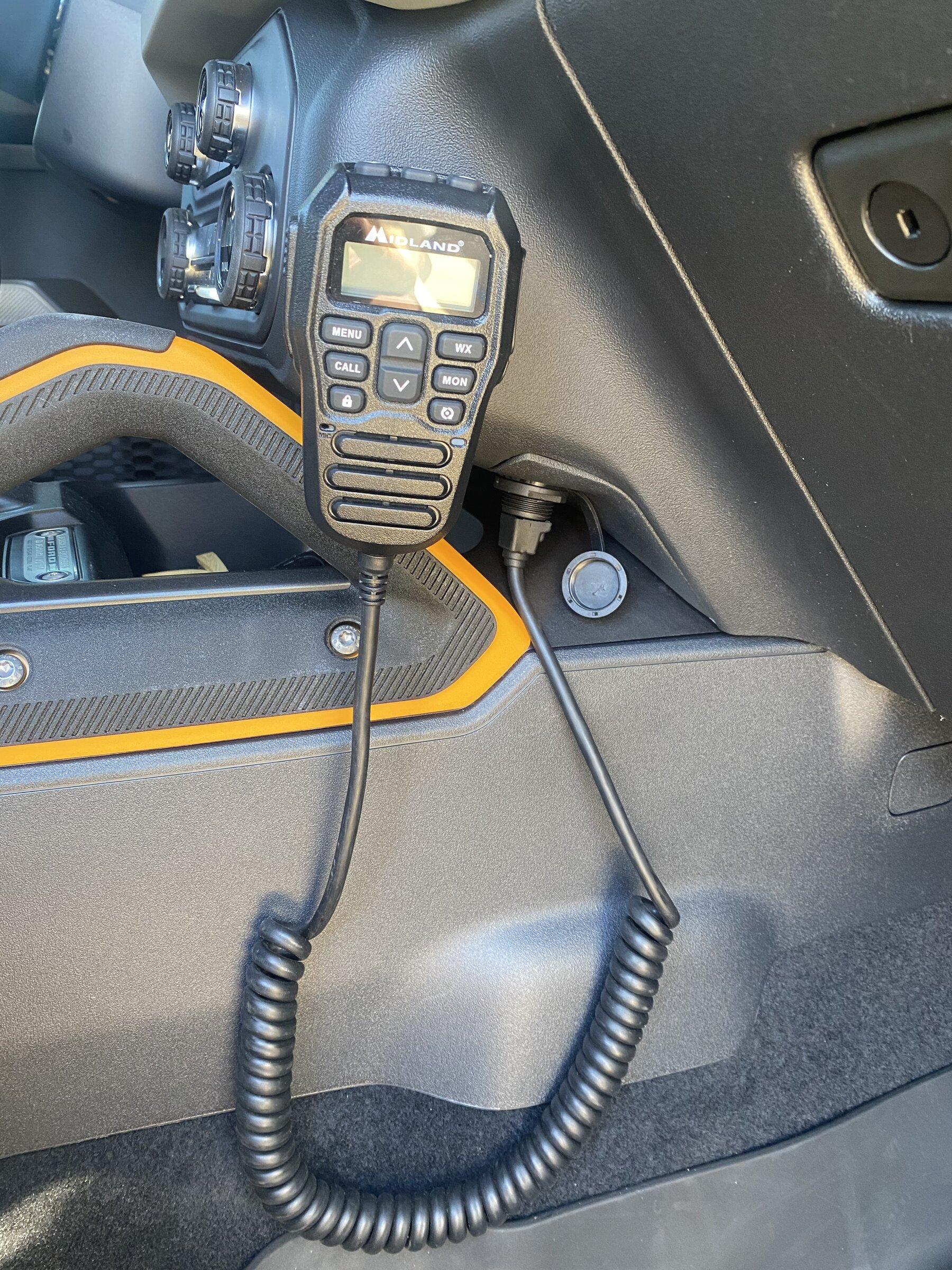

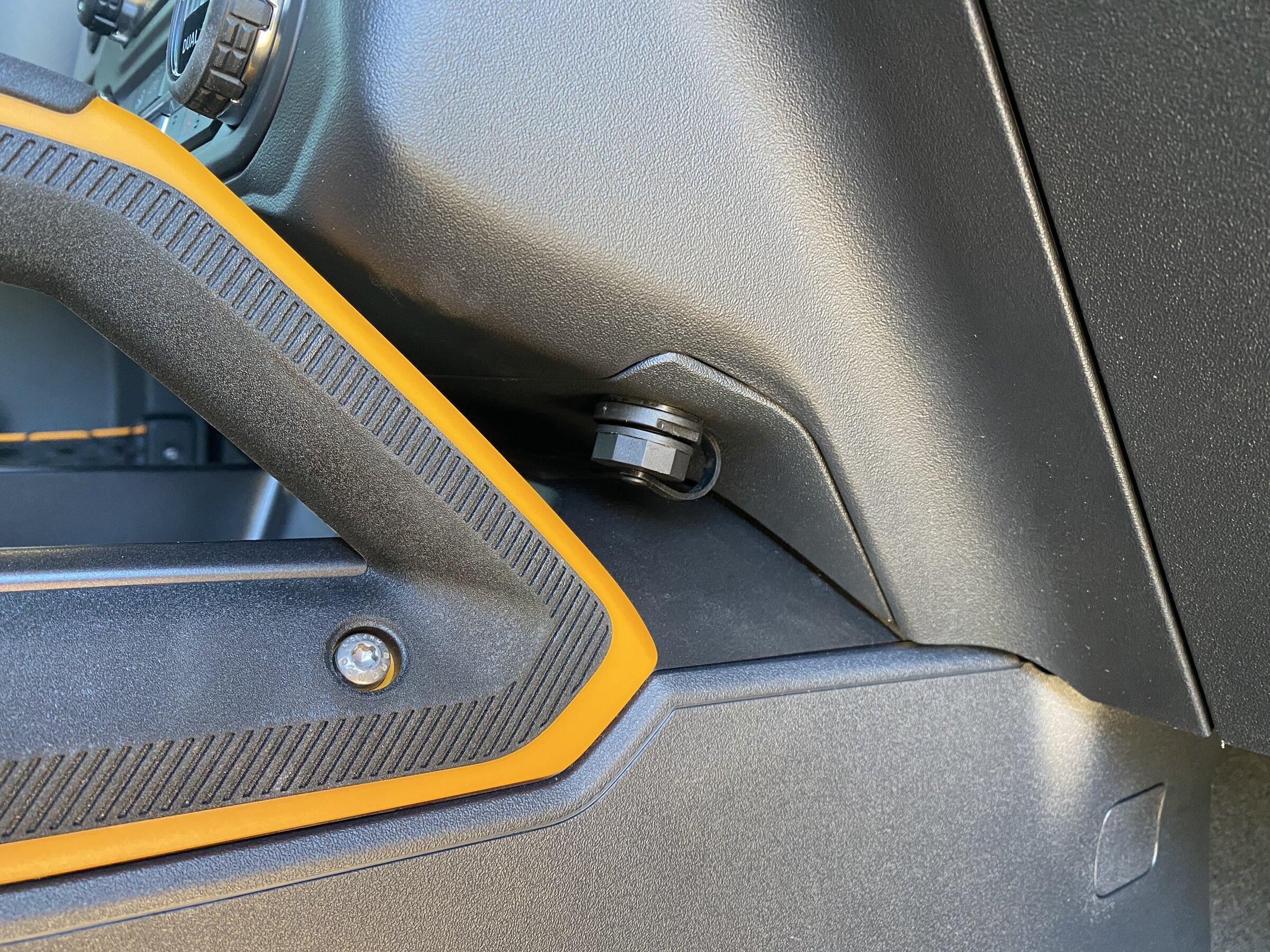

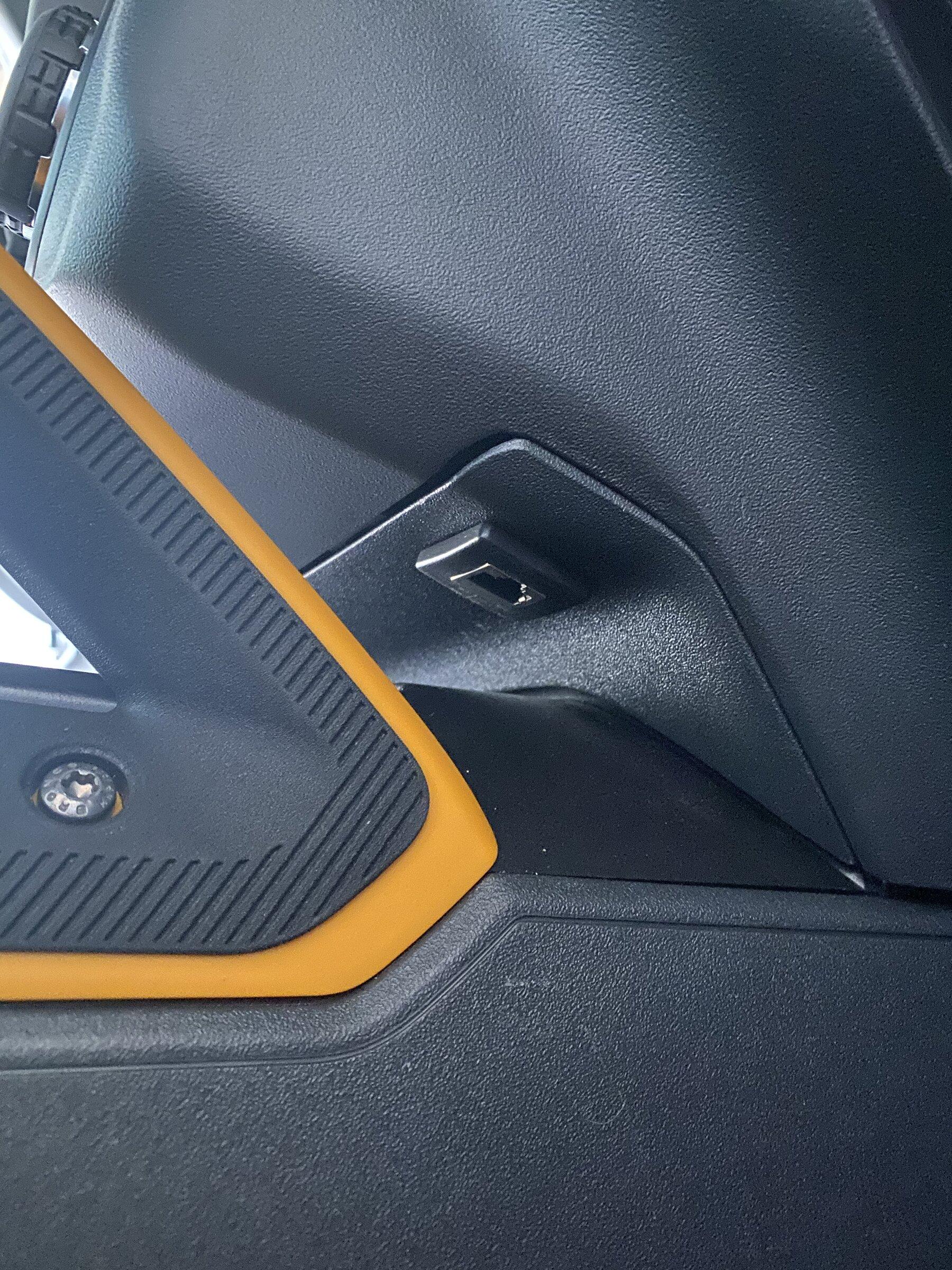

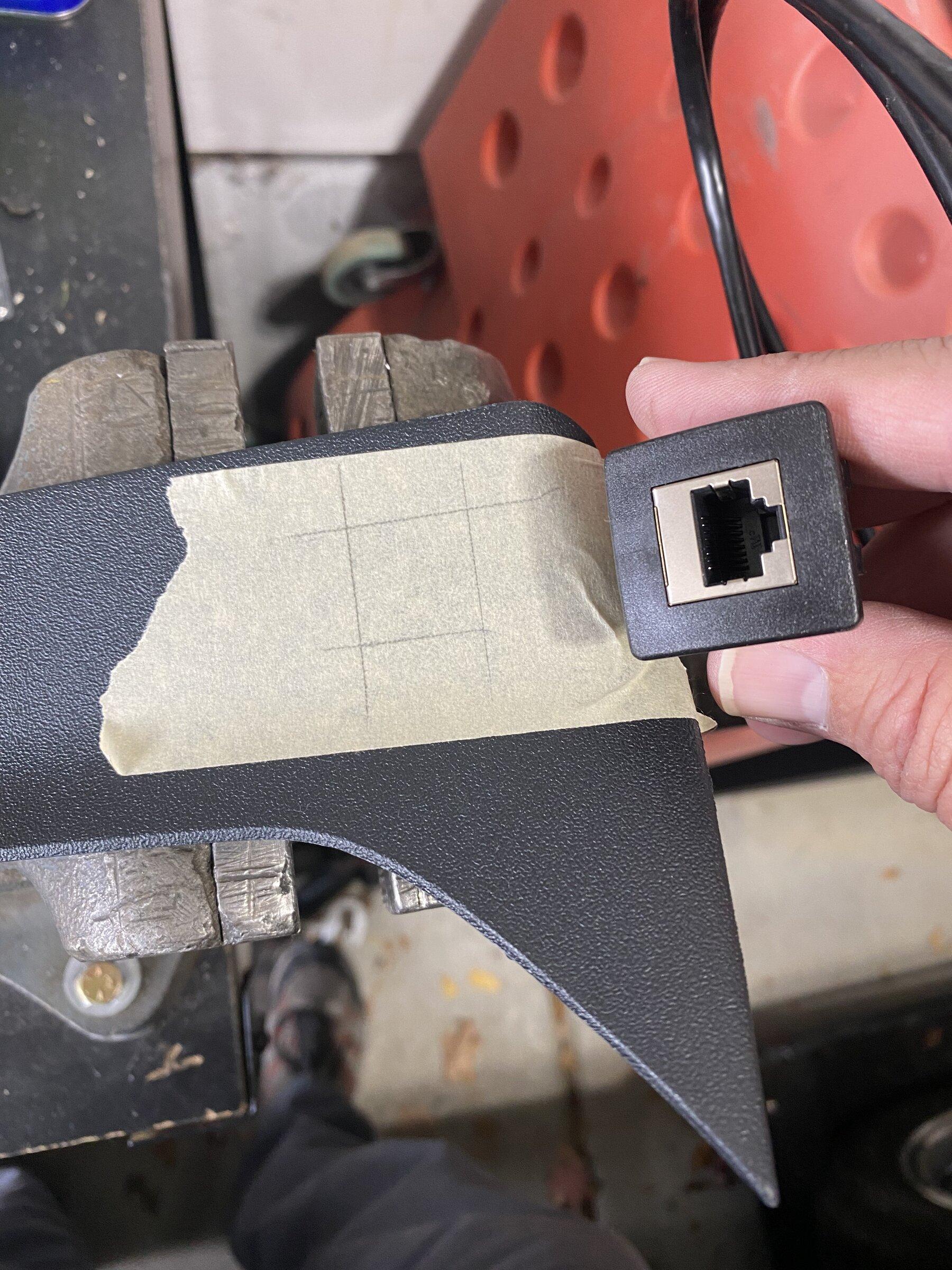

I installed a flush RJ45 mount under the right side hvac controls and ran the power and antenna wires to the drivers side firewall pass through. I connected the red direct to the battery and the ground to an existing ground post in the area.

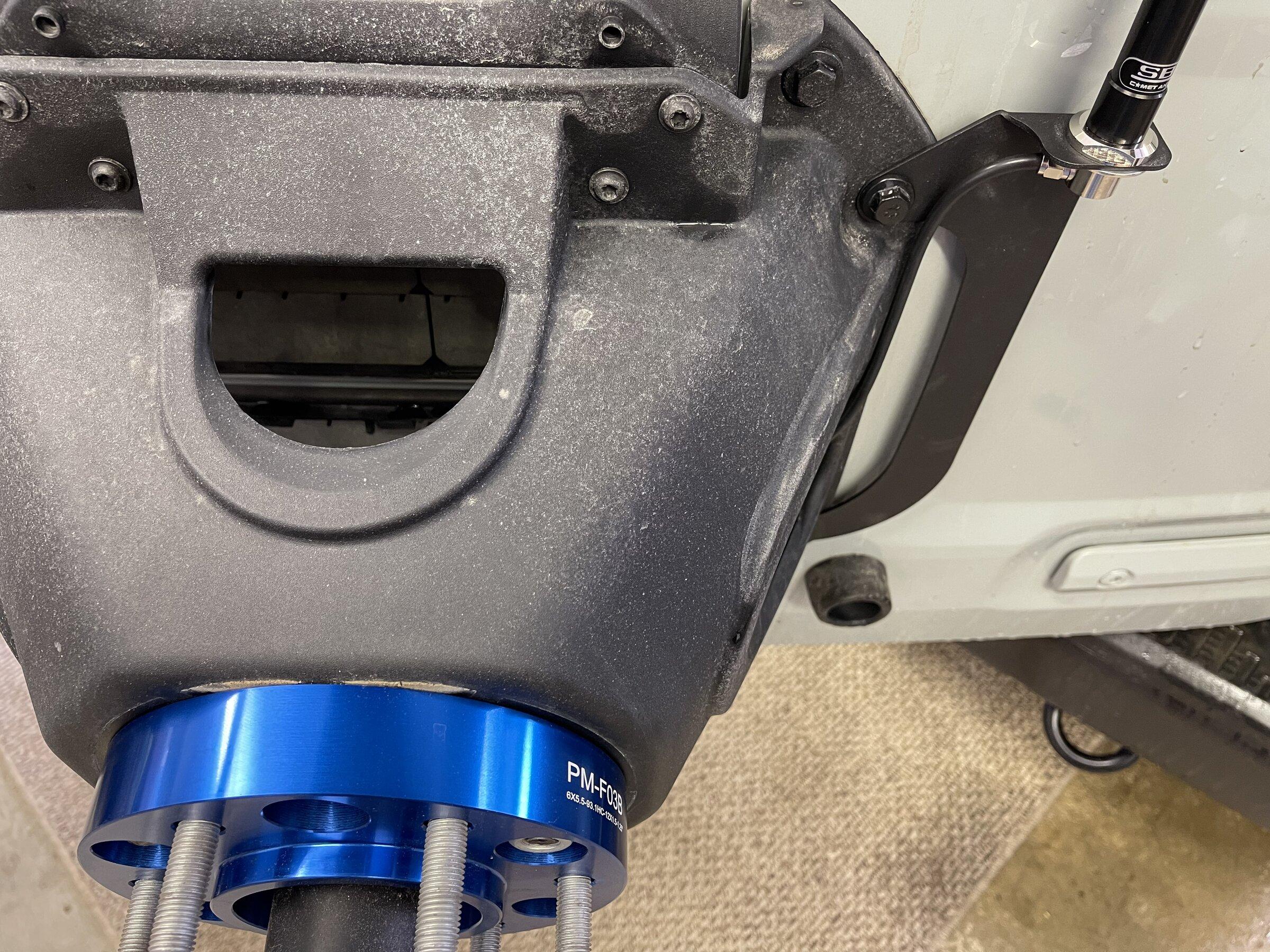

I just need a better solution to mount the antenna. I’ll probably get some ditch light mounts thatHave extra holes for the antenna knowing that I just can’t operate the lights at the same time as the radio.




Tidy2000

Black Diamond
Active Member
First Name
Jon
Joined
Oct 26, 2021
Threads
1
Messages
25
Reaction score
33
Location
STL
Vehicle(s)
2017 Ford F150 Raptor SCrew
Your Bronco Model
Black Diamond
Here’s my take on a GMRS install. I wanted it hidden and to be able to remove and store the microphone easily. I found a stud by the brake pedal and fabbed up a bracket to mount the radio. I still have to fab up a nicer bracket to mount the antenna and hide the antenna wire under the cowl.







Great install ideas. I have that exact same ethernet coupler (round screw on cap)... we're thinking we're going to mount ours just to the right of the USB outlet in the cubby in front of the shifter.


KompressorV12

Badlands
Well-Known Member
Joined
Apr 30, 2021
Threads
25
Messages
781
Reaction score
1,728
Location
Portland, Oregon
Vehicle(s)
19' Jeep Grand Cherokee High Altitude
Your Bronco Model
Badlands
Clubs

Here’s my take on a GMRS install. I wanted it hidden and to be able to remove and store the microphone easily. I found a stud by the brake pedal and fabbed up a bracket to mount the radio. I still have to fab up a nicer bracket to mount the antenna and hide the antenna wire under the cowl.







Where is the power wire connected to?


Advertisement
Joined
Oct 21, 2021
Threads
3
Messages
19
Reaction score
34
Location
Arkansas
Vehicle(s)
1974 Bronco
Your Bronco Model
Badlands
Clubs

Where is the power wire connected to?
I ran power and ground straight from the battery with an inline fuse. I wanted constant power to it. There is an unused grommet right there on the firewall behind it. I ran it through there.


Bonnie6G

Badlands
Well-Known Member
First Name
Kyle
Joined
Mar 3, 2021
Threads
20
Messages
590
Reaction score
992
Location
Denver
Vehicle(s)
Badlands LuxSquatch
Your Bronco Model
Badlands
Clubs

I’m thinking about putting my base unit under the center console with a mic connection point put in the wall of the console storage box. Should I have any concerns about airflow/cooling of the main unit if it’s enclosed under the cup holders? Wouxon 1000g 50w by the way.


Nick72

Base
Active Member
First Name
Nick
Joined
Nov 29, 2020
Threads
0
Messages
41
Reaction score
61
Location
North GA
Vehicle(s)
2021 Bronco
Your Bronco Model
Base
Clubs

I’m thinking about putting my base unit under the center console with a mic connection point put in the wall of the console storage box. Should I have any concerns about airflow/cooling of the main unit if it’s enclosed under the cup holders? Wouxon 1000g 50w by the way.
That is a very nice radio which I plan to eventually get.
If it does fit in the center console under the cup holders, I would be concerned about airflow, especially when transmitting. That particular radio has a cooling fan that may help a little in an enclosed area, but it does produce a good deal of heat.
I will most likely be looking at installing mine in the glovebox.


Bonnie6G

Badlands
Well-Known Member
First Name
Kyle
Joined
Mar 3, 2021
Threads
20
Messages
590
Reaction score
992
Location
Denver
Vehicle(s)
Badlands LuxSquatch
Your Bronco Model
Badlands
Clubs

That is a very nice radio which I plan to eventually get.
If it does fit in the center console under the cup holders, I would be concerned about airflow, especially when transmitting. That particular radio has a cooling fan that may help a little in an enclosed area, but it does produce a good deal of heat.
I will most likely be looking at installing mine in the glovebox.
Agreed on the heat production. I feel like the glovebox would have less space and be harder for the unit to breath?


Nick72

Base
Active Member
First Name
Nick
Joined
Nov 29, 2020
Threads
0
Messages
41
Reaction score
61
Location
North GA
Vehicle(s)
2021 Bronco
Your Bronco Model
Base
Clubs

Agreed on the heat production. I feel like the glovebox would have less space and be harder for the unit to breath?
The glovebox is open to the top, so there should be more airflow with the dash cavity getting air in from the front floorboards.
When I replaced my dash speakers, I could see down into the glovebox from the passenger side speaker location.
