BroncoSarge

Badlands
Well-Known Member
First Name
Jeffrey
Joined
Sep 1, 2020
Threads
32
Messages
1,118
Reaction score
1,497
Location
Fort Bragg, North Carolina
Vehicle(s)
2021 AMB Bronco, 2021 CO Bronco
Your Bronco Model
Badlands
Clubs

Went back and forth on the subject. Should I remove the modular bumper? Should I go with factory, JCR, Rough Country? Sorry Mabett. Your timeline to manufacturing is too long. I decided price was gonna be the defining factor. How far it sticks out, approach angle and other factors weren’t that different.

Rough Country High Winch Mount:
I will say the instructions aren’t that great. I found it much easier to install the bottom half of the mount first. was having a tough time balancing the weight of the mount and winch to attach it to the bumper. Mounting the bottom half gave me room to get my hands in there as well. Then I mounted the winch to the plate. I followed up by wiring it, then mounting the top plate to the bottom half. The instructions also call for shaving down the back of the sensor they provide. This was not the case with the winch I chose. I think each winch will differ in that step.

Smittybilt Winch:
Pretty cut and dry. I just wired the longer cables before I bolted the plate down. It’s tough to work behind the RC mount, it’s pretty tight to the grill. Removed all the decals and painted the “Smittybilt” and the switch for free spool.
https://www.amazon.com/dp/B00K150VAI?ref_=cm_sw_r_cp_ud_dp_X9K6SBMZCMGCJKQ54PAT

Control Box Relocation:
I decided to mount it to the lid of the fuse box. Was a simple install and it wasn't going to eat up space on the other side of the motor. Saving that for ARB compressor and maybe train horn. I used the Warn kit. Only needed the cables and black rubber boots.
https://www.amazon.com/dp/B00ANYN2G2?_encoding=UTF8&psc=1&ref_=cm_sw_r_ud_dp_R4PZ7CFEPPNMRR261BBV

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 823ED22B-A6CB-4AF2-AA09-6198561E02DC

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation E7AF1904-8055-4FB1-8A4F-BF3B8FF99DE2

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 74A93C72-0E6B-428D-B07F-CAF9A6380D4A

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation A098518A-7B06-498B-A605-2352BD39F5B6

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 66576545-99DB-490B-A9DB-B282E1B4D9B1

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 82F3EC10-5811-4303-8E79-866659892B7D

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 4DD06805-95F6-46D7-B6A3-C7238081C476
Sponsored


Last edited:

Hossamus Prime

Badlands
Well-Known Member
First Name
Brian
Joined
Aug 21, 2020
Threads
11
Messages
750
Reaction score
2,830
Location
Arkansas
Website
www.instagram.com
Vehicle(s)
21 BadSquatch,‘21 ExplorerST , RIP 84 & 90 Broncos
Your Bronco Model
Badlands
Clubs

Did you remove the bumper to install? Seen some have had to for the sensors.


Jpursuit

Badlands
Well-Known Member
First Name
J
Joined
Sep 12, 2020
Threads
7
Messages
119
Reaction score
179
Location
Houston
Vehicle(s)
2008 f250 king ranch 4wd, 2021 Bronco
Your Bronco Model
Badlands
Clubs

Nice job! I'm looking at doing a similar setup. Could you post what you're front camera sees? And, what did you use to remove the stickers? DId you paint the entire winch?


Dads_bronze_bronco

Raptor
Well-Known Member
Joined
Feb 18, 2020
Threads
7
Messages
4,196
Reaction score
7,478
Location
NC
Vehicle(s)
08 JKUR / x_x 00 TJ x_x
Your Bronco Model
Raptor
Clubs

How’s the front camera blockage? Relo needed or did moving the Control Box do the trick?

OP
OP
BroncoSarge

BroncoSarge

Badlands
Well-Known Member
First Name
Jeffrey
Joined
Sep 1, 2020
Threads
32
Messages
1,118
Reaction score
1,497
Location
Fort Bragg, North Carolina
Vehicle(s)
2021 AMB Bronco, 2021 CO Bronco
Your Bronco Model
Badlands
Clubs

Did you remove the bumper to install? Seen some have had to for the sensors.
I took off the bumper. I did not remove the shackle or back plate though. I was an;e to pop loose the sensors with a small screwdriver. Then I attached the cable extentions RC included to keep from losing the plugs back into the bumper.


Sponsored
OP
OP
BroncoSarge

BroncoSarge

Badlands
Well-Known Member
First Name
Jeffrey
Joined
Sep 1, 2020
Threads
32
Messages
1,118
Reaction score
1,497
Location
Fort Bragg, North Carolina
Vehicle(s)
2021 AMB Bronco, 2021 CO Bronco
Your Bronco Model
Badlands
Clubs

Nice job! I'm looking at doing a similar setup. Could you post what you're front camera sees? And, what did you use to remove the stickers? DId you paint the entire winch?
The decals came off clean except the yellow one. Used goo gone on that one. only painted the “SMITTYBILT” spool switch on top. They are easy to remove, paint and put back on.

OP
OP
BroncoSarge

BroncoSarge

Badlands
Well-Known Member
First Name
Jeffrey
Joined
Sep 1, 2020
Threads
32
Messages
1,118
Reaction score
1,497
Location
Fort Bragg, North Carolina
Vehicle(s)
2021 AMB Bronco, 2021 CO Bronco
Your Bronco Model
Badlands
Clubs

The camera is still blocked atm. I don’t use it much anyway. RC says a relocation kit is coming soon. If not, I can use the one that JCR sells.


Rubisquatch

Wildtrak
Well-Known Member
Joined
Jul 24, 2020
Threads
140
Messages
2,040
Reaction score
8,864
Location
Pittsburgh, PA
Vehicle(s)
2021 Bronco Wildrak
Your Bronco Model
Wildtrak
Clubs

Nice work, can we see some more pics such as side shot and a bit further away showing whole. Upper.


Gene Dios

Badlands
Well-Known Member
Joined
Jul 27, 2020
Threads
8
Messages
352
Reaction score
1,062
Location
Atlanta
Vehicle(s)
Ford Explorer
Your Bronco Model
Badlands
Clubs

The camera is still blocked atm. I don’t use it much anyway. RC says a relocation kit is coming soon. If not, I can use the one that JCR sells.
Mind posting a photo of the front cam on screen showing how much coverage the winch has?


okbob

Badlands
Well-Known Member
Joined
Feb 25, 2016
Threads
9
Messages
1,443
Reaction score
3,186
Location
North of the Red
Vehicle(s)
71' u15, 66' u14, 66' u14
Your Bronco Model
Badlands
Clubs

Did you remove the bumper to install? Seen some have had to for the sensors.
I started out not removing mine, but got a sensor sideways back there and couldn't get it turned around to retrieve it. I just sit unhooked the main harness plug on the drivers side, sit in a chair right in front of the bumper, impact the six bolts out and took the bumper off and sit across my knees, then stood up and then sit it across the chair arms, did the sensor work and then put it back on. The bumper hangs in the front end when not bolted in, it won't just fall on the floor when the bolts come out.


Sponsored
OP
OP
BroncoSarge

BroncoSarge

Badlands
Well-Known Member
First Name
Jeffrey
Joined
Sep 1, 2020
Threads
32
Messages
1,118
Reaction score
1,497
Location
Fort Bragg, North Carolina
Vehicle(s)
2021 AMB Bronco, 2021 CO Bronco
Your Bronco Model
Badlands
Clubs

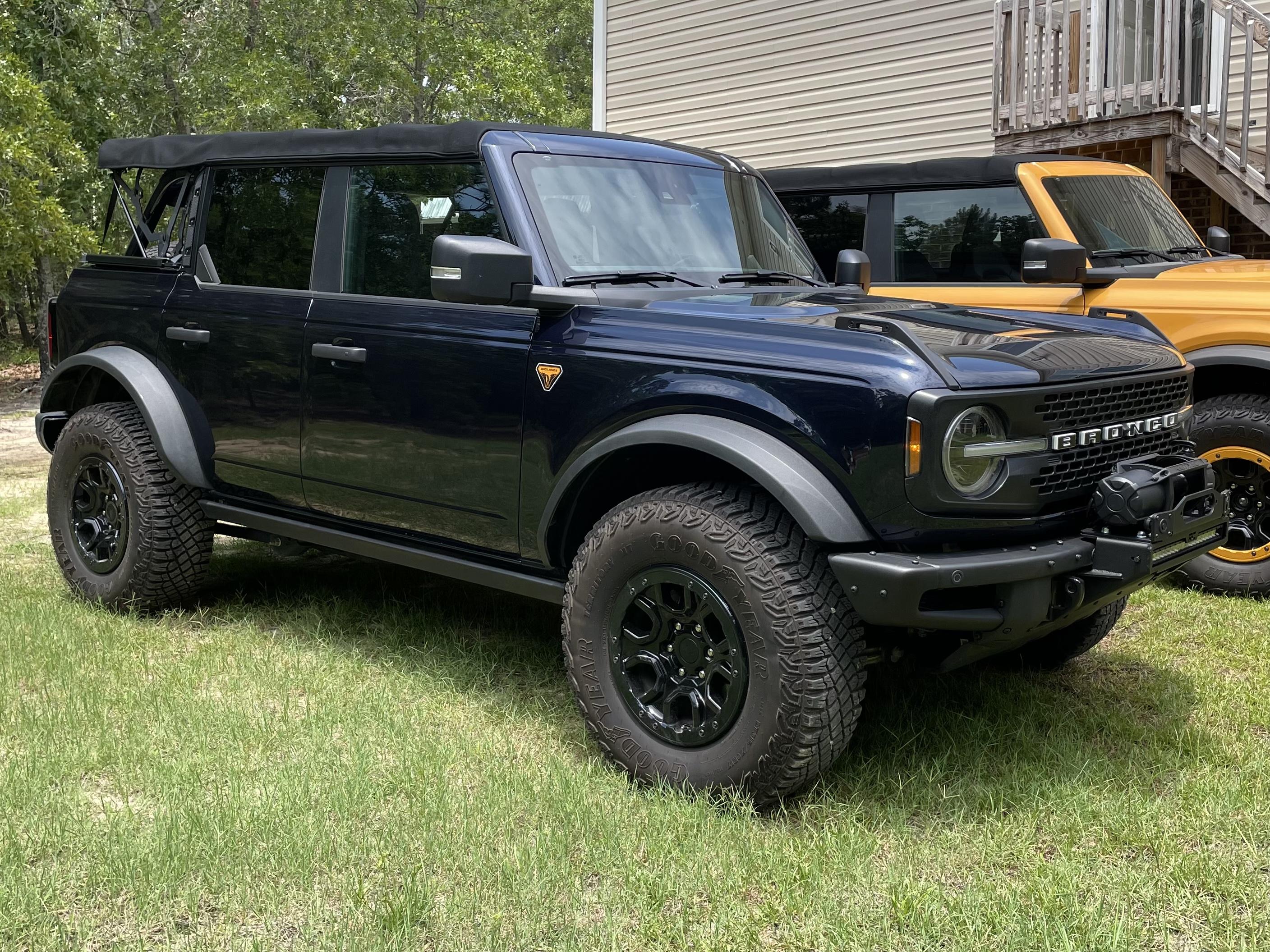

Nice work, can we see some more pics such as side shot and a bit further away showing whole. Upper.
Sure.
Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 501659DC-26FD-4E2C-82EF-DF84E8797E20

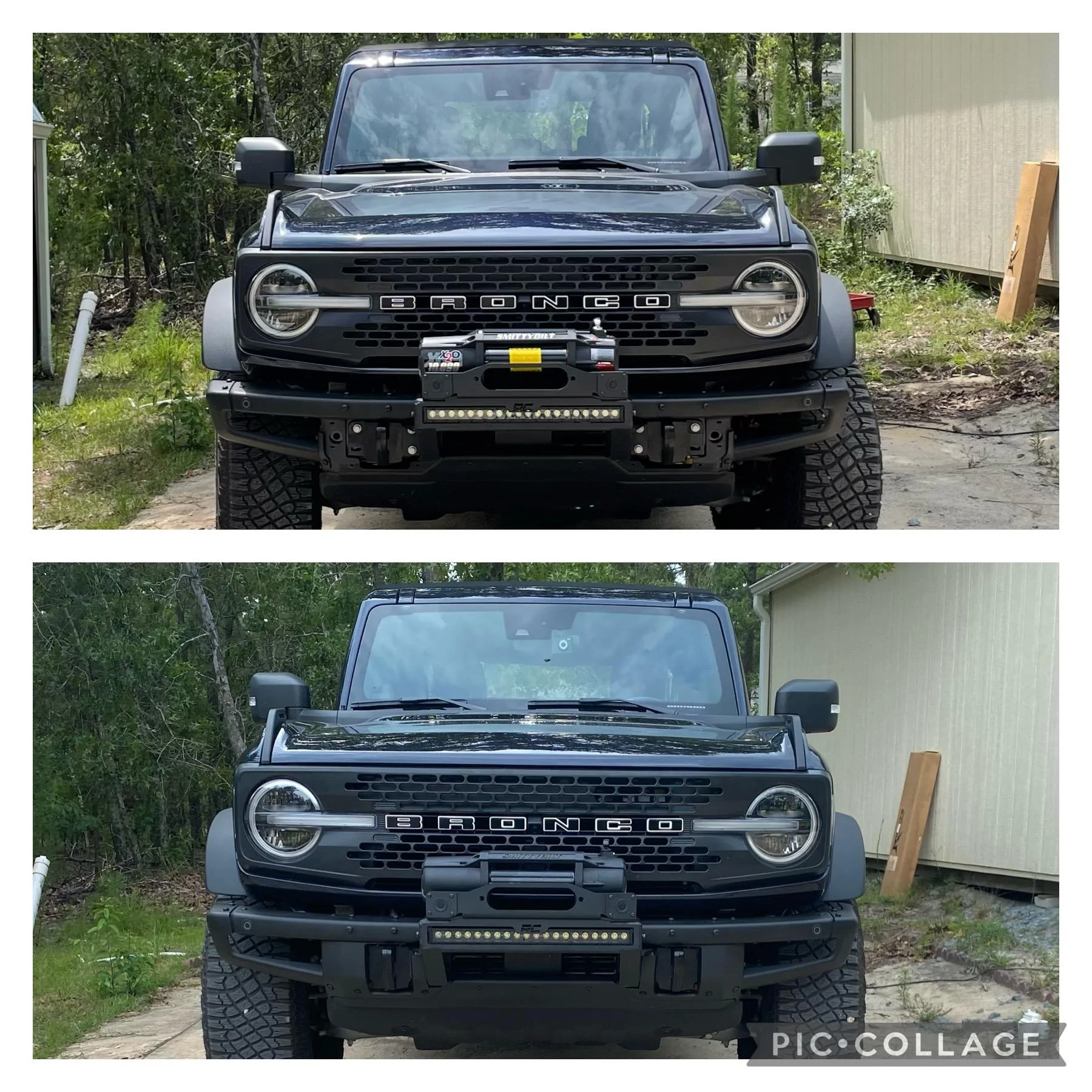

Here is one with and without the decals.
Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 98F61B45-7985-4097-830C-F56F4032EF27


Here are some measurements I have done.

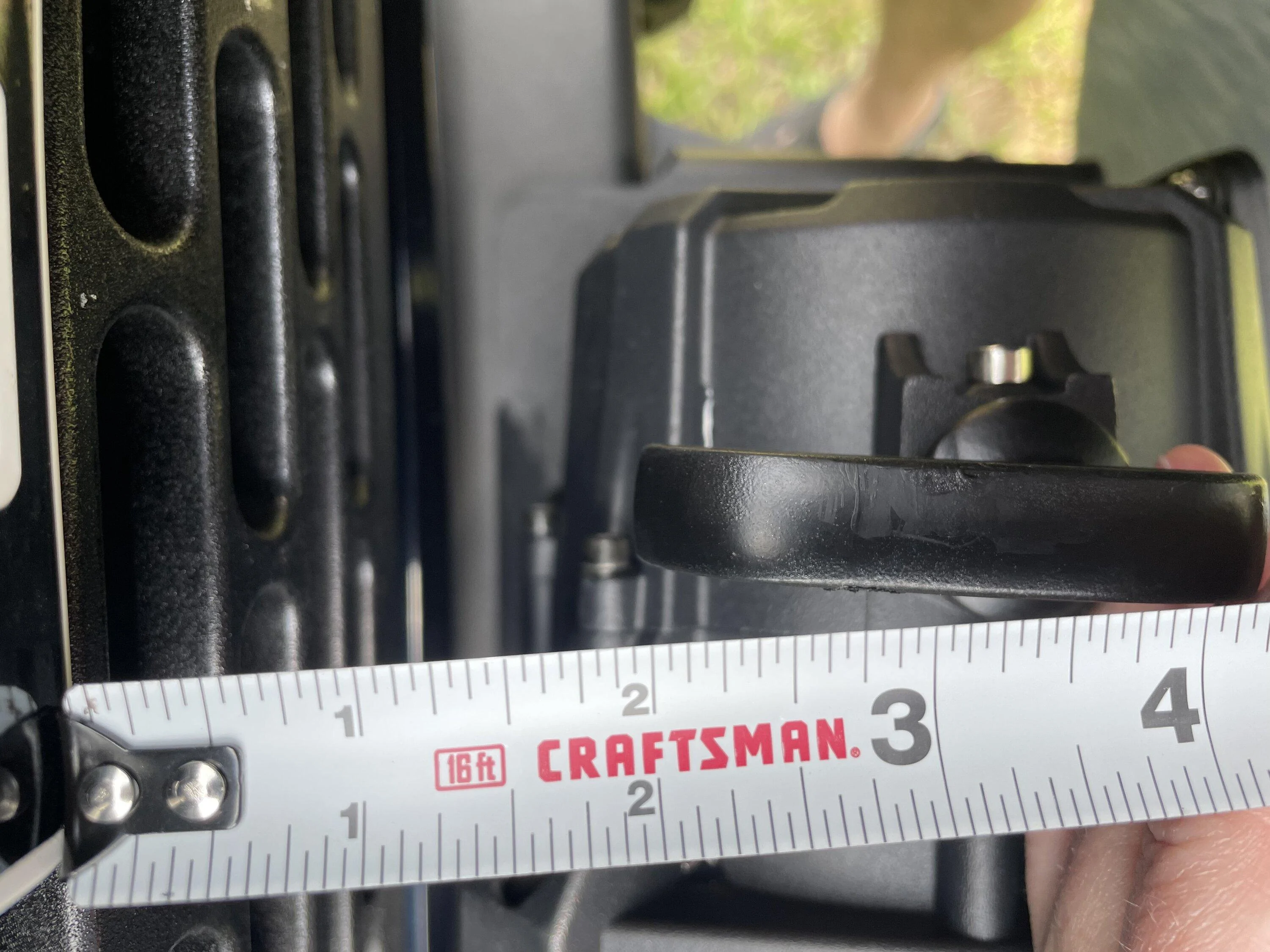

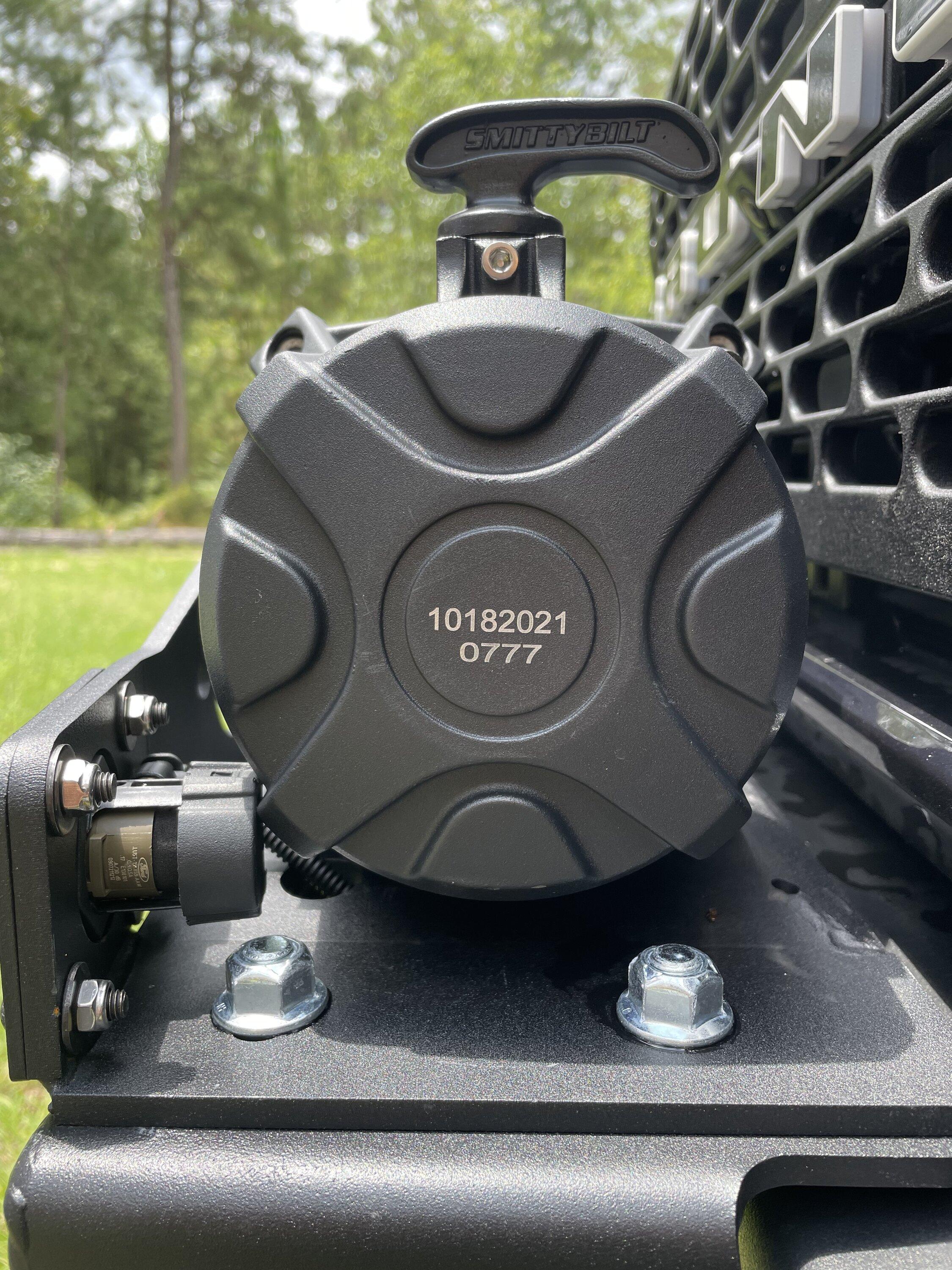

Barely 1.5” from the grill to the winch. Nicely tucked in.
Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 77E0B0CF-46EB-41E0-BD34-23B82BA611A6

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 21E76847-2A64-475A-A9F1-BBA168E21698

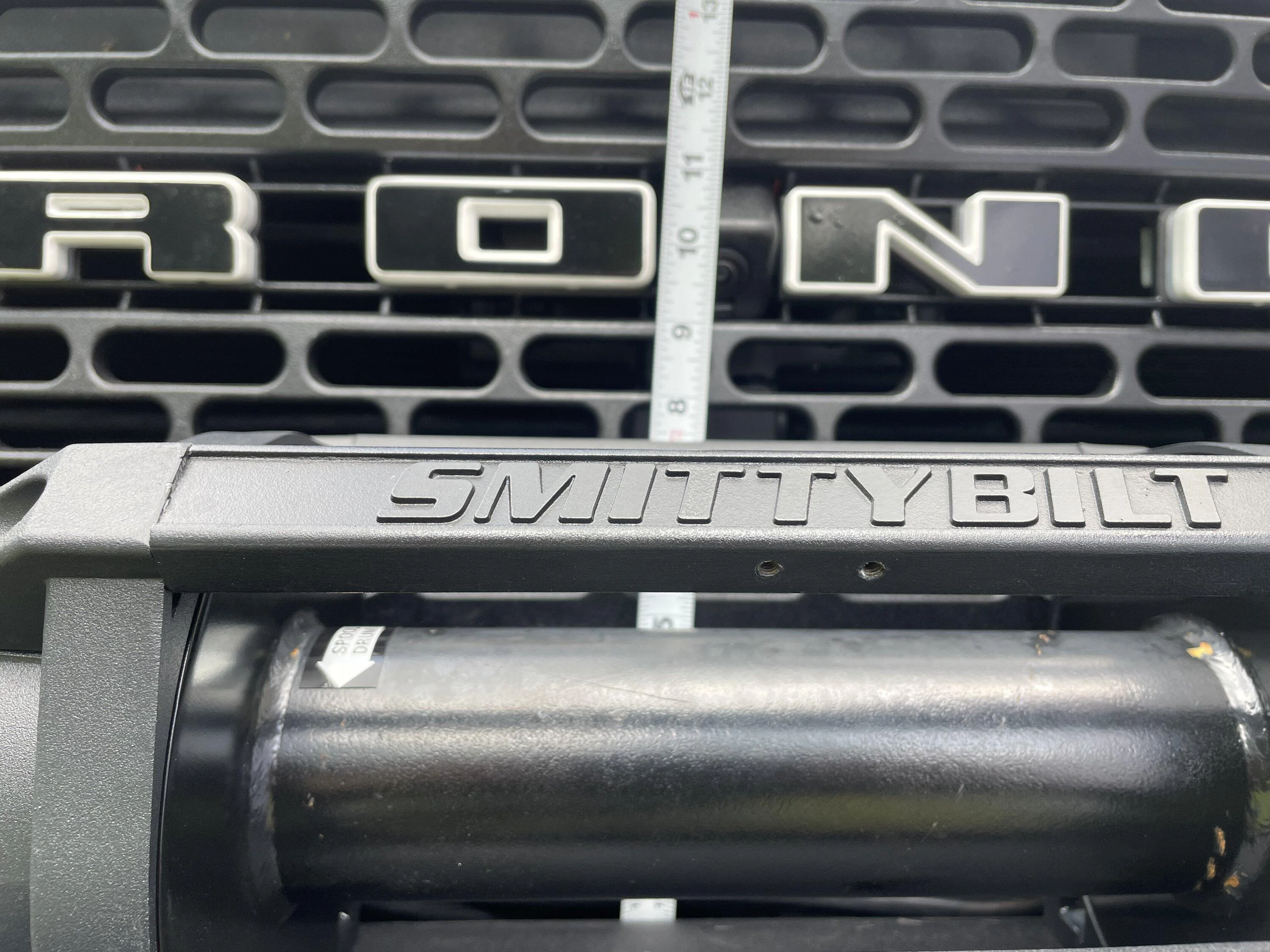

Height of the winch w/o the control box is about 2” below the Bronco letters.
Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 2B79E9BE-EC54-446C-A49F-910B59F981F1

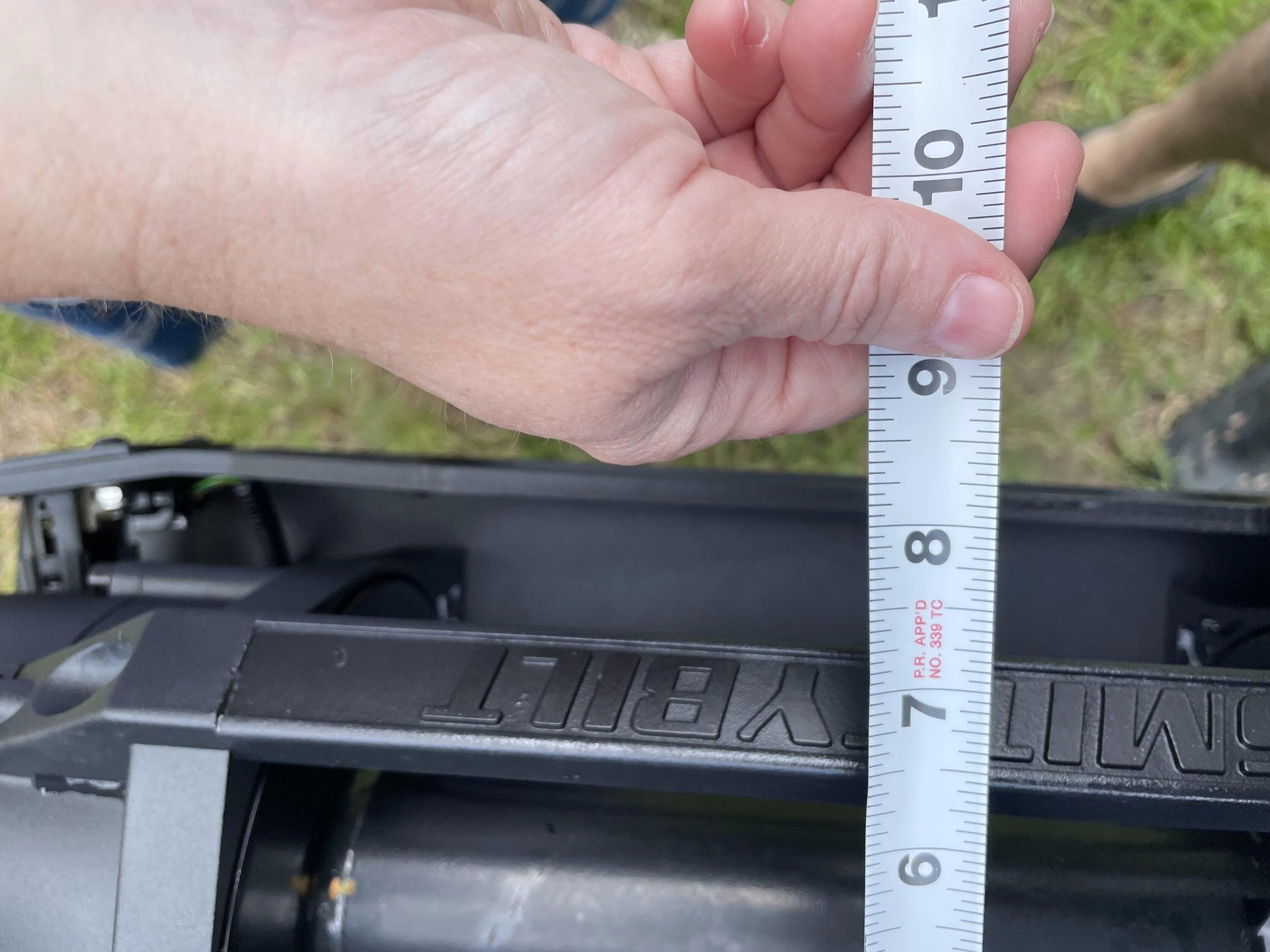

The winch and Winch mount distance from the grill face.
Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation 0C28F991-77D1-4433-9D52-14A846DBA1DF


Vellicate

Badlands
Well-Known Member
First Name
James
Joined
Feb 23, 2021
Threads
1
Messages
117
Reaction score
371
Location
Michigan
Vehicle(s)
2018 F150, 2014 Flex Limited
Your Bronco Model
Badlands
Sure.

Here is one with and without the decals.


Here are some measurements I have done.

Barely 1.5” from the grill to the winch. Nicely tucked in.


Height of the winch w/o the control box is about 2” below the Bronco letters.


The winch and Winch mount distance from the grill face.
Very nice setup! Just finished mine up over the weekend, I relocated my control box to the passenger side since I don't plan on running a compressor. I ordered a JCR camera bracket as well, hoping to see that soon.

Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation inbound7034940434603417980


Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation inbound162902971580131311


Ford Bronco RC High Winch Mount & Winch Install w/ Control Box Relocation inbound2231653323137747076


‘21OBX

Outer Banks
Well-Known Member
First Name
Ken
Joined
Jan 24, 2022
Threads
97
Messages
2,494
Reaction score
3,206
Location
90Bronco19
Vehicle(s)
2022 bronco outer banks
Your Bronco Model
Outer Banks
Clubs

Wow! I like the fact that the wires are on the back side of the winch. It’s a much cleaner look! That’s the same place I mounted my controls. Not enough to remove the one I have but If it ever fails I’d switch for that reason.


Blksn955.o

Badlands
Well-Known Member
First Name
Greg
Joined
Jun 14, 2020
Threads
17
Messages
1,266
Reaction score
2,587
Location
Wentzville, MO
Vehicle(s)
17 Ford Escape Ti, 94 Ford Mustang GT, 21 BL
Your Bronco Model
Badlands
Clubs

Waiting for my RC mount to ship. I spent a little bit of time and completely disassembled the Badlands Apex control box guts. Plan is to attach to the frame horns you would cut off with the remote rc mount and extend the Bluetooth switch, Bluetooth module, and hardline plug to the top of the front radiator support.

OP
OP
BroncoSarge

BroncoSarge

Badlands
Well-Known Member
First Name
Jeffrey
Joined
Sep 1, 2020
Threads
32
Messages
1,118
Reaction score
1,497
Location
Fort Bragg, North Carolina
Vehicle(s)
2021 AMB Bronco, 2021 CO Bronco
Your Bronco Model
Badlands
Clubs

Very nice setup! Just finished mine up over the weekend, I relocated my control box to the passenger side since I don't plan on running a compressor. I ordered a JCR camera bracket as well, hoping to see that soon.
Looks great!
