I talked with Stellar. They were willing to do another but I had to drop my Bronco (approx 2,000 miles from me) and work was by the hour. It’s all custom and intricate stuff. The front included a skid plate and also custom mounts for crash bar removal.

*Approximate* estimates shared with me put both bumpers as shown in the $9-10k range. Had the wife bought in, but distance was the deal killer for us. And I couldn’t find a local shop with skills or time to tackle this project.
Lawdy. Suddenly I’m feeling content with what I’ve done…
Sponsored



1st 75th ranger

Black Diamond
Well-Known Member
First Name
jeffrey
Joined
Sep 20, 2022
Threads
1
Messages
639
Reaction score
286
Location
nj
Vehicle(s)
2021 ford bronco bd 4 dr sasquatch
Your Bronco Model
Black Diamond

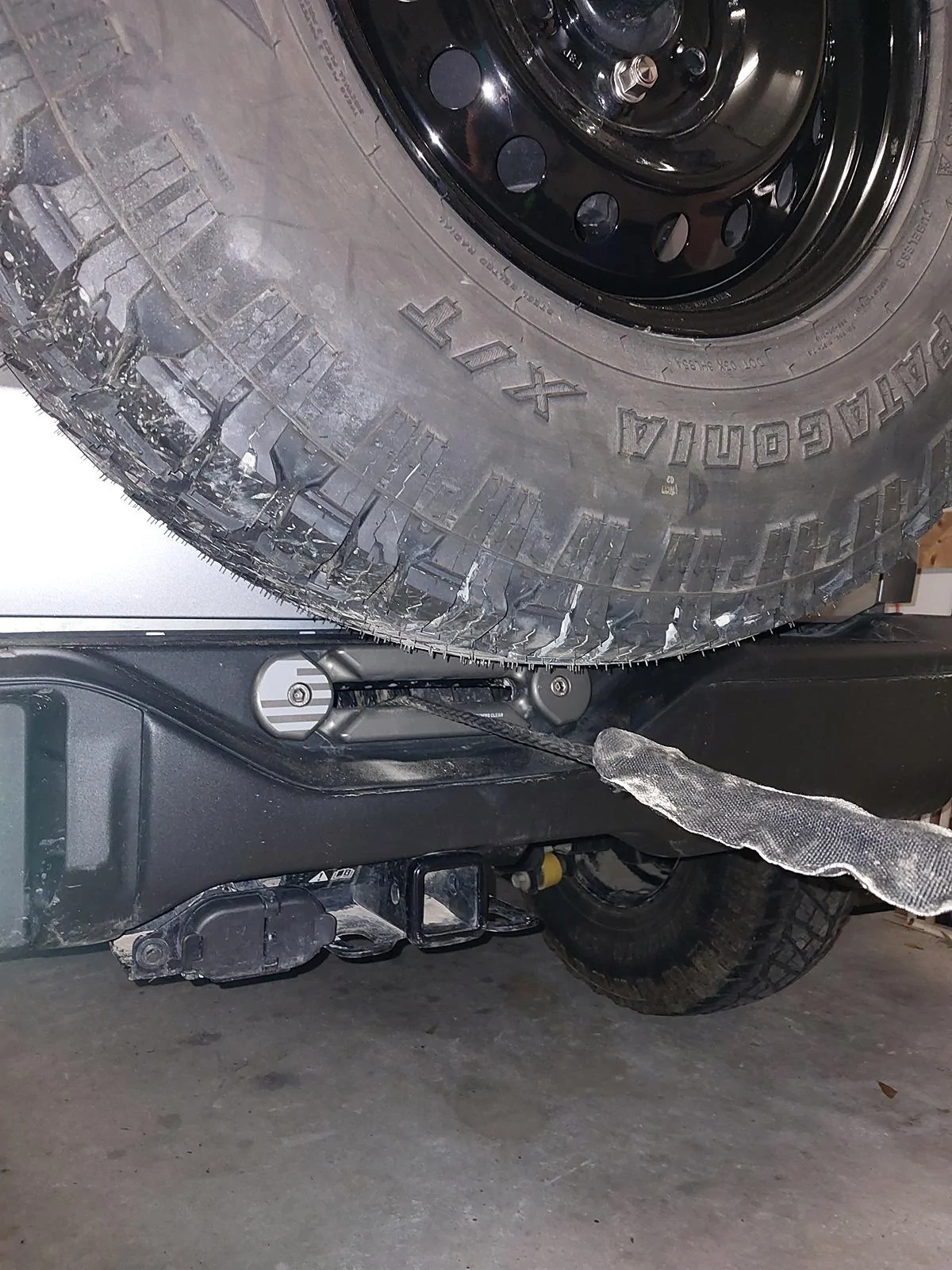

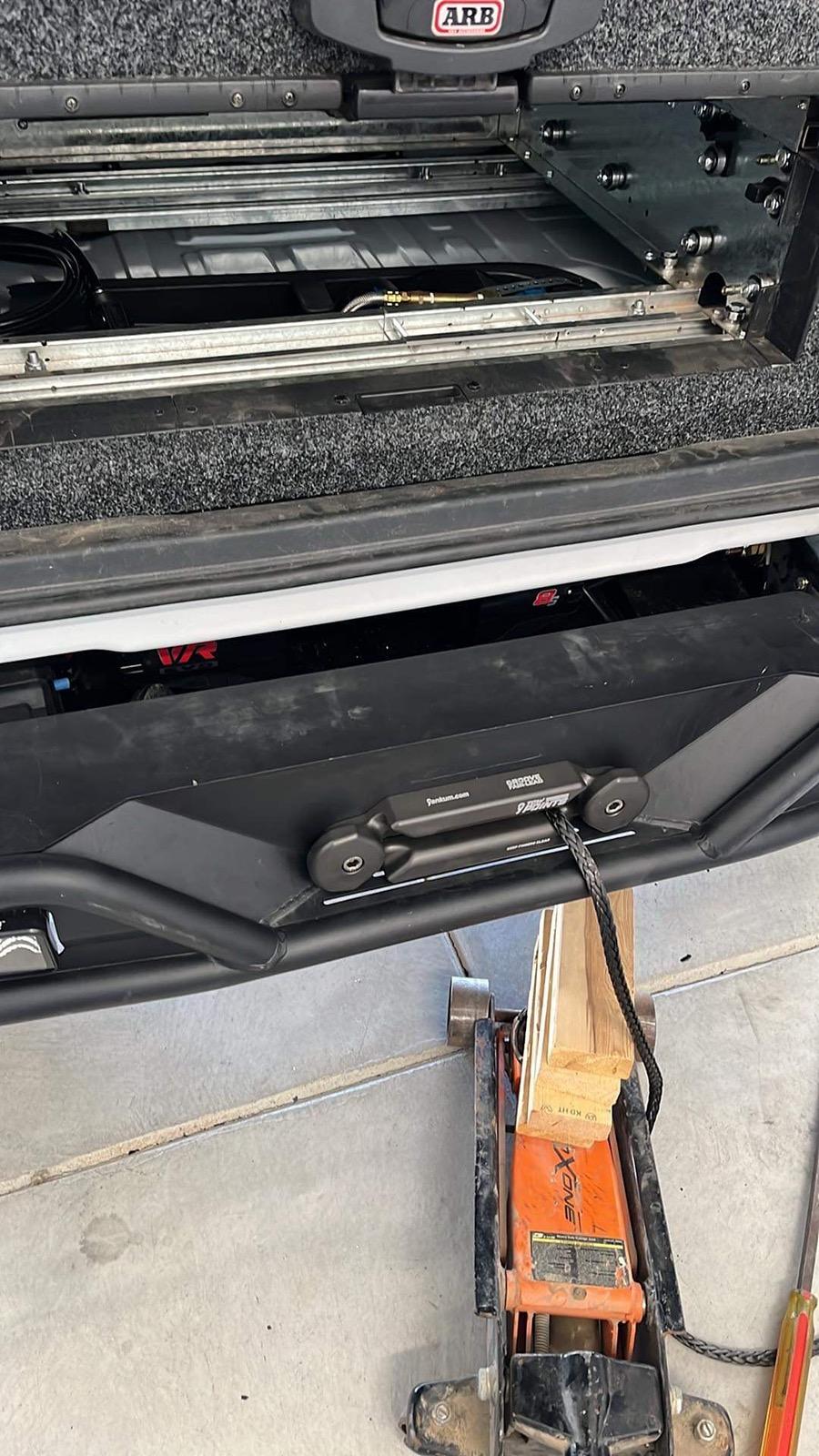

Here’s the write up on the rear winch install we just completed using the APG rear winch mount.

With the triangulated four link and PB&J lower links (shipping today) it looks like it shouldn’t take too much to pinch the exhaust between the truss and the frame. We took the exhaust back with a simple flowmaster muffler on amazon. Tapped the frame and made our own secondary mount out of the factory brackets no longer being used. Now with all that room free’d up, why not throw a winch back there? So we did.

I’ll start off by saying the powdercoat on this mount is pretty awful. You look at it crosseyed and it flakes off. Pretty embarrassing. The mount itself lined up well enough and only required the use of a floor jack and mallet to get into place. APG says this mount is designed for a Warn S8 so naturally, that’s what we purchased. However the only way you’ll be able to get that to fit is to remove the hidden compartment under the floor. We took off the control panel and mounted it sideways to the skid plate holding the winch. Bonus-if we need to plug in the remote it is ridiculously easy to reach now. (In their marketing materials they say everything is very easy to reach. This makes sense if you have that compartment removed)

You’ll need to cut through your frame and rear bumper to run the winch line. Originally I had planned on bracing the frame but after looking at the design of the mounting plate and how it attaches to the sides I’m not worried about it. Also, you’ll need to get some new bolts and nuts in place of the receiver bolts. We used the Warn fairlead on the inside of the frame and a Yankum fairlead on the outside of the bumper.
