RPG Perch Collars Installed.

Wildtrak84

Wildtrak
Well-Known Member
First Name
Juan
Joined
Jul 6, 2021
Threads
20
Messages
62
Reaction score
384
Location
Texas
Vehicle(s)
Ford Raptor
Your Bronco Model
Wildtrak
Installing RPG perch collars or any collars can be a pretty tough job to do. Since you have to disassemble they entire strut on all four corners. It may not be a job most want to tackle. I did this video to show you how & what it takes to do this. There is a couple special tools that will be needed to accomplish this job but you could also rent them from a local parts store. I hope you guys find this video helpful.


Advertisement


RainbowStix

Badlands
Well-Known Member
Joined
Oct 7, 2021
Threads
16
Messages
492
Reaction score
329
Location
A Big Island
Vehicle(s)
Toyota Tacoma
Your Bronco Model
Badlands
Well put together video! When you were taking out the front coilover, you were pushing down on that cv quite a bit. Any cause for concern doing it that way?


Felix808

Badlands
Well-Known Member
Joined
Jul 19, 2020
Threads
16
Messages
2,093
Reaction score
3,981
Location
SRV CA
Vehicle(s)
After 746 days, a MY22 4-door Badlands Bronco :-)
Your Bronco Model
Badlands
Clubs

Nicely done.

OP
OP
Wildtrak84

Wildtrak84

Wildtrak
Well-Known Member
First Name
Juan
Joined
Jul 6, 2021
Threads
20
Messages
62
Reaction score
384
Location
Texas
Vehicle(s)
Ford Raptor
Your Bronco Model
Wildtrak
Well put together video! When you were taking out the front coilover, you were pushing down on that cv quite a bit. Any cause for concern doing it that way?
No CV axle would not be affected as the axle nut was removed to not put any strain on the joints. Thanks for watching.


Advertisement

Inlinejohn

Badlands
Well-Known Member
Joined
Feb 6, 2022
Threads
19
Messages
385
Reaction score
256
Location
WA
Vehicle(s)
Several
Your Bronco Model
Badlands
I
Installing RPG perch collars or any collars can be a pretty tough job to do. Since you have to disassemble they entire strut on all four corners. It may not be a job most want to tackle. I did this video to show you how & what it takes to do this. There is a couple special tools that will be needed to accomplish this job but you could also rent them from a local parts store. I hope you guys find this video helpful.
Great video and thanks for doing. I’ve done several different vehicle coil removals and never had to take about the main axle CV joint. Is this absolutely necessary? Why?

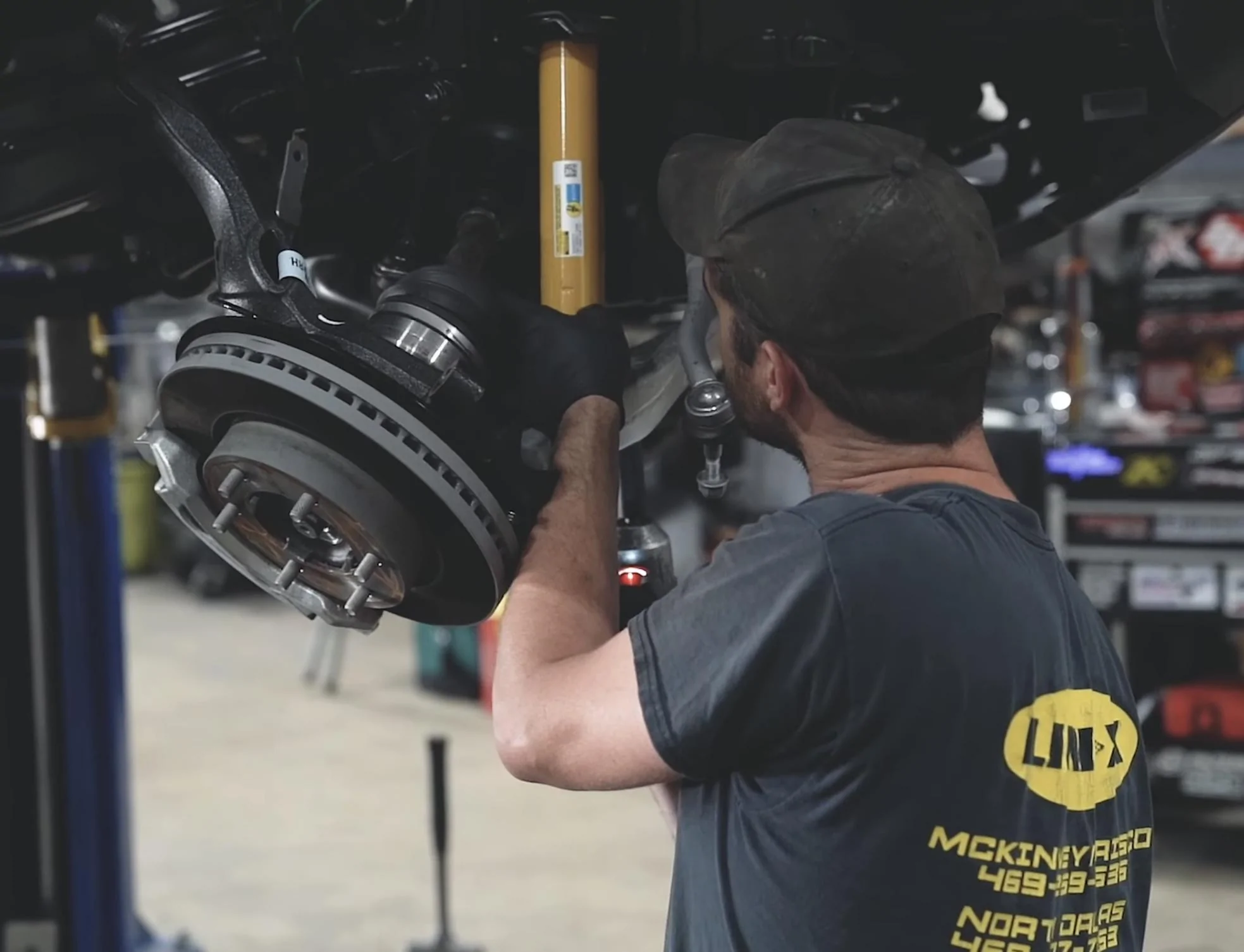

This snapshot of a video looks like they just moved LCA assy outta the way like I’ve done so many times


Last edited:

CyberOrangeBronco

Badlands
Well-Known Member
Joined
Feb 20, 2022
Threads
4
Messages
66
Reaction score
112
Location
Houston
Vehicle(s)
2015 Mustang GT, 2021 Bronco Badlands
Your Bronco Model
Badlands

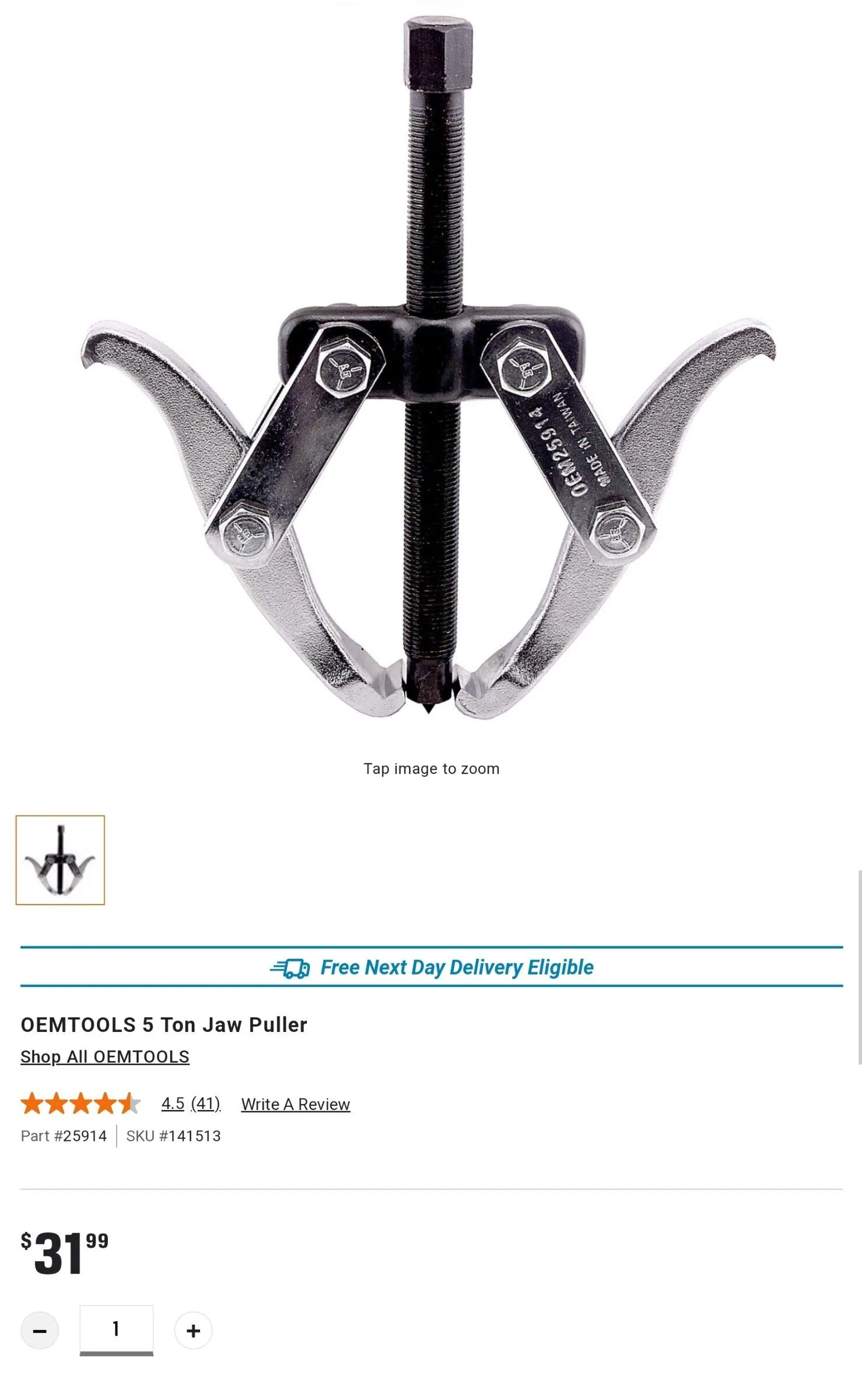

Wanted to thank you for your install video. Was working on this yesterday and destroyed the same dead blow hammer you used trying to break the cv joint loose. Rather than continue pounding away I wised up and remembered I had a jaw puller that should work well for this. Would highly recommend anyone looking to follow this install video to use one of these instead. Was way too easy this way, and required a lot less effort on the puller than I thought it would.



RainbowStix

Badlands
Well-Known Member
Joined
Oct 7, 2021
Threads
16
Messages
492
Reaction score
329
Location
A Big Island
Vehicle(s)
Toyota Tacoma
Your Bronco Model
Badlands
So Icon’s instructions for their spacer kit say to disconnect the lower control arm from the frame instead of disconnecting the CV. Is there any advantage to one over the other?

Maybe increased clearance disconnecting the LCA when maneuvering a taller shock in and out of the bucket since they’re using top hat spacers? just wondering…


Badassbronco

Base
Well-Known Member
Joined
Nov 15, 2021
Threads
38
Messages
253
Reaction score
240
Location
Georgia
Vehicle(s)
F150
Your Bronco Model
Base
Clubs

Installing RPG perch collars or any collars can be a pretty tough job to do. Since you have to disassemble they entire strut on all four corners. It may not be a job most want to tackle. I did this video to show you how & what it takes to do this. There is a couple special tools that will be needed to accomplish this job but you could also rent them from a local parts store. I hope you guys find this video helpful.
Can you post some more photos of your Bronco with the lift and 35s?


Badassbronco

Base
Well-Known Member
Joined
Nov 15, 2021
Threads
38
Messages
253
Reaction score
240
Location
Georgia
Vehicle(s)
F150
Your Bronco Model
Base
Clubs

Are you still liking these and have you off-roader with it yet? What offset are your wheels?
