In preparation for the upcoming @EXO Bronco expedition, I decided to install a dual band radio which can work on both GMRS and HAM frequencies. Most of the content out there is focused on GMRS only or compact radios so I figured I'd post this and maybe this will inspire somebody.

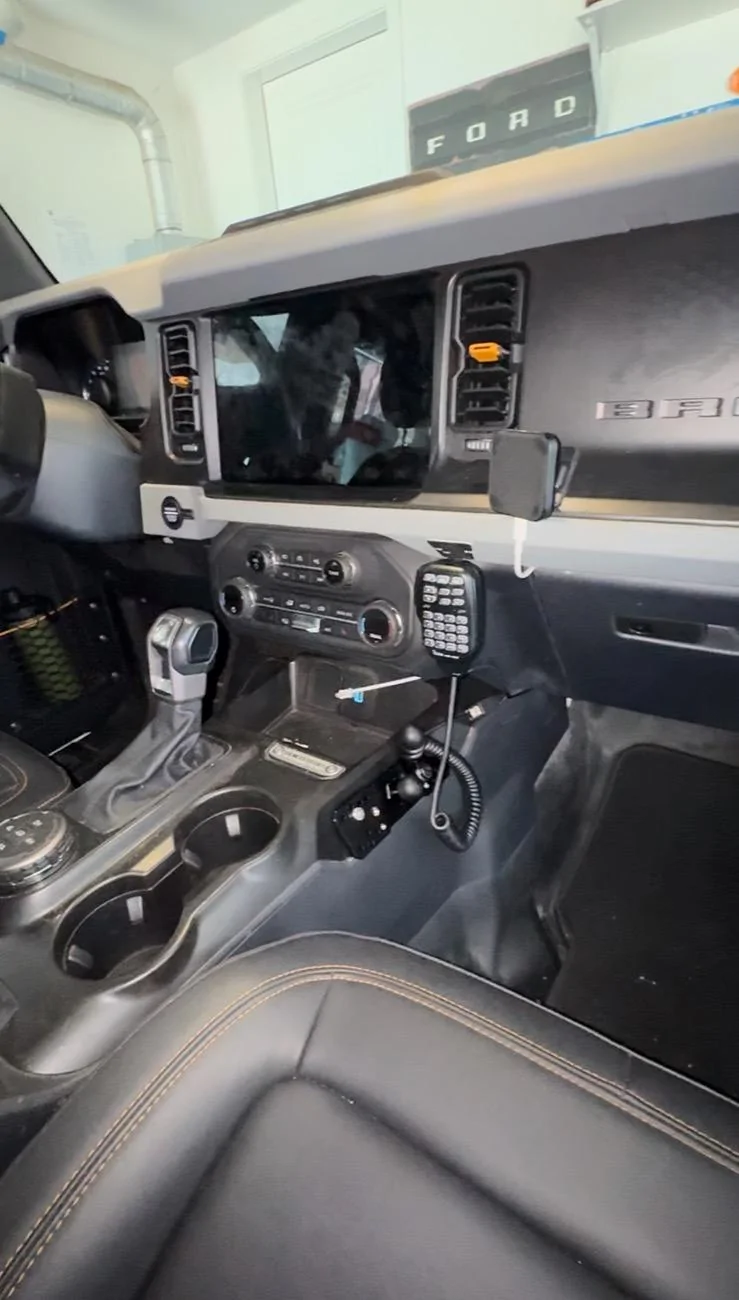

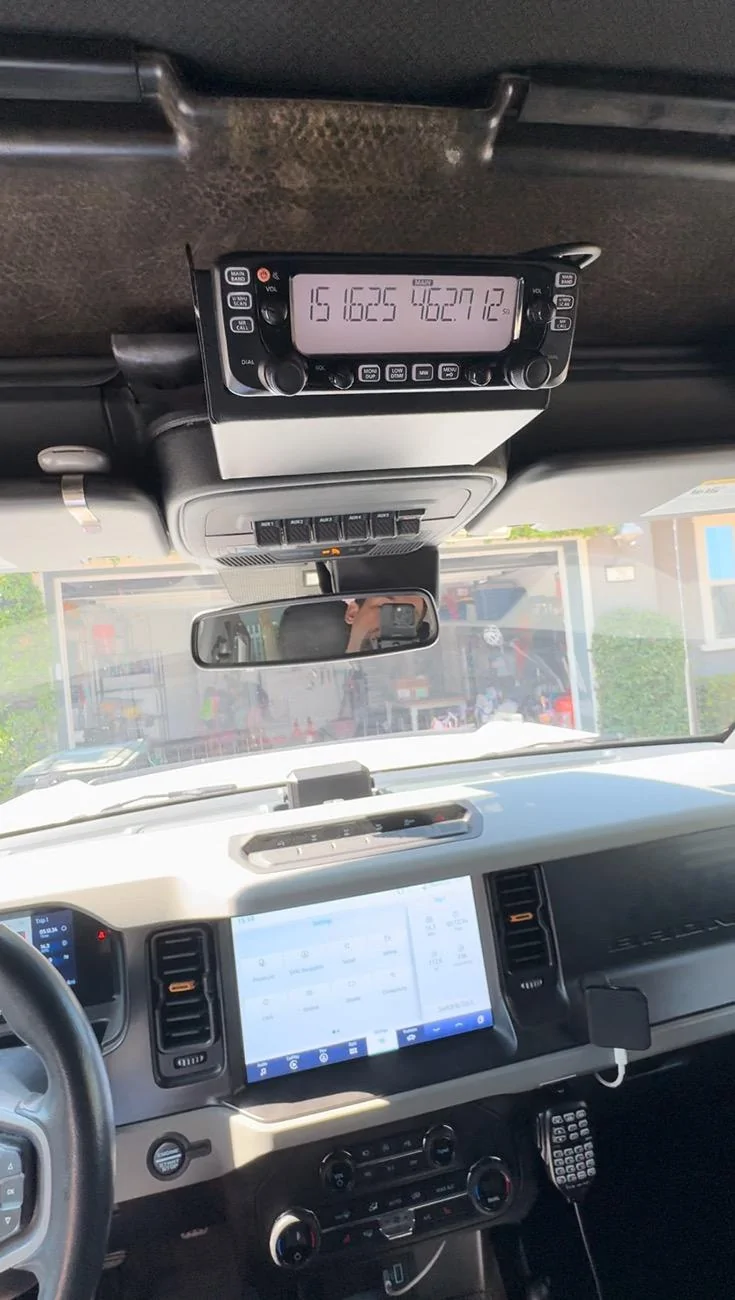

The neat thing about this radio is that the controller unit detaches which allowed me to mount the radio above the glove box and disperse the remaining components (controller, speaker, microphone + antenna).

Let me know if you have any questions.

Main Parts:
Radio: ICOM-2730A (50 Watts) + MARS Mod

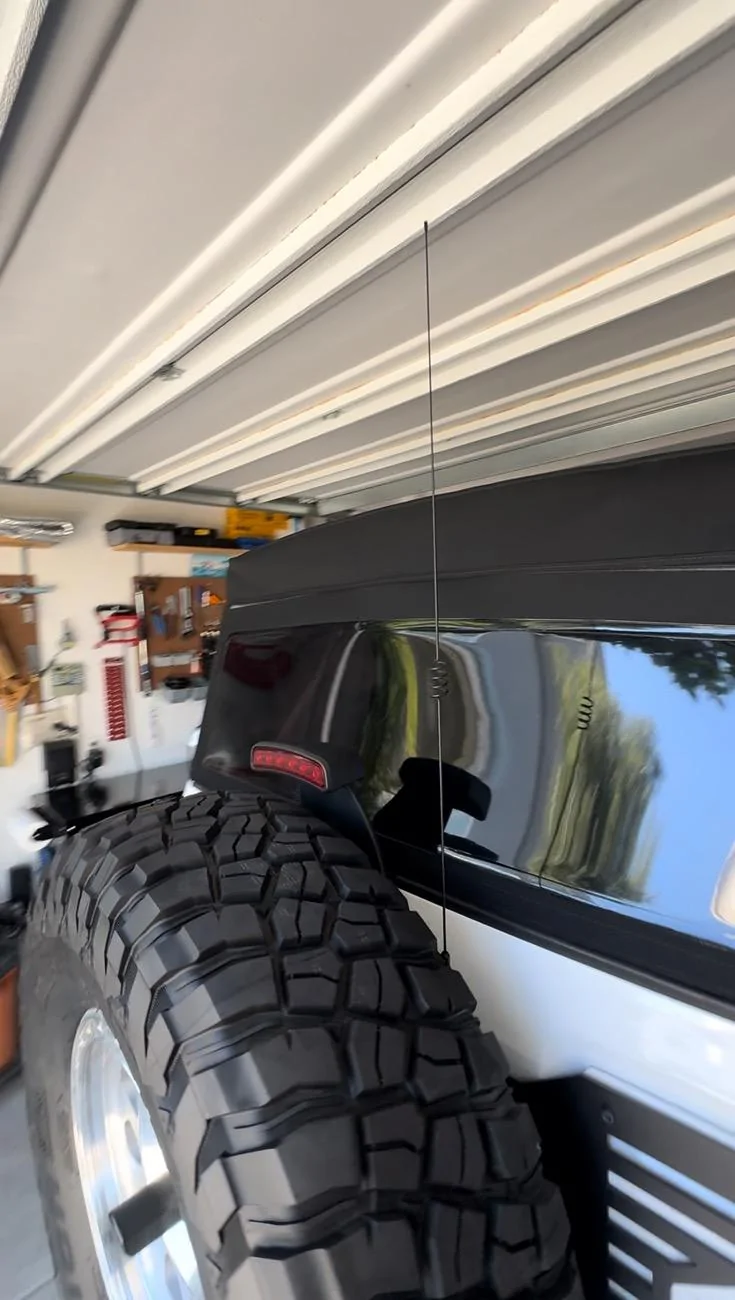

Antenna: Comet SBB-5NMO 2M/70cm Dual Band
Antenna Cable: Midland NMO Antenna Cable
Antenna Mount: LOD Offroad Spare Tire Mount

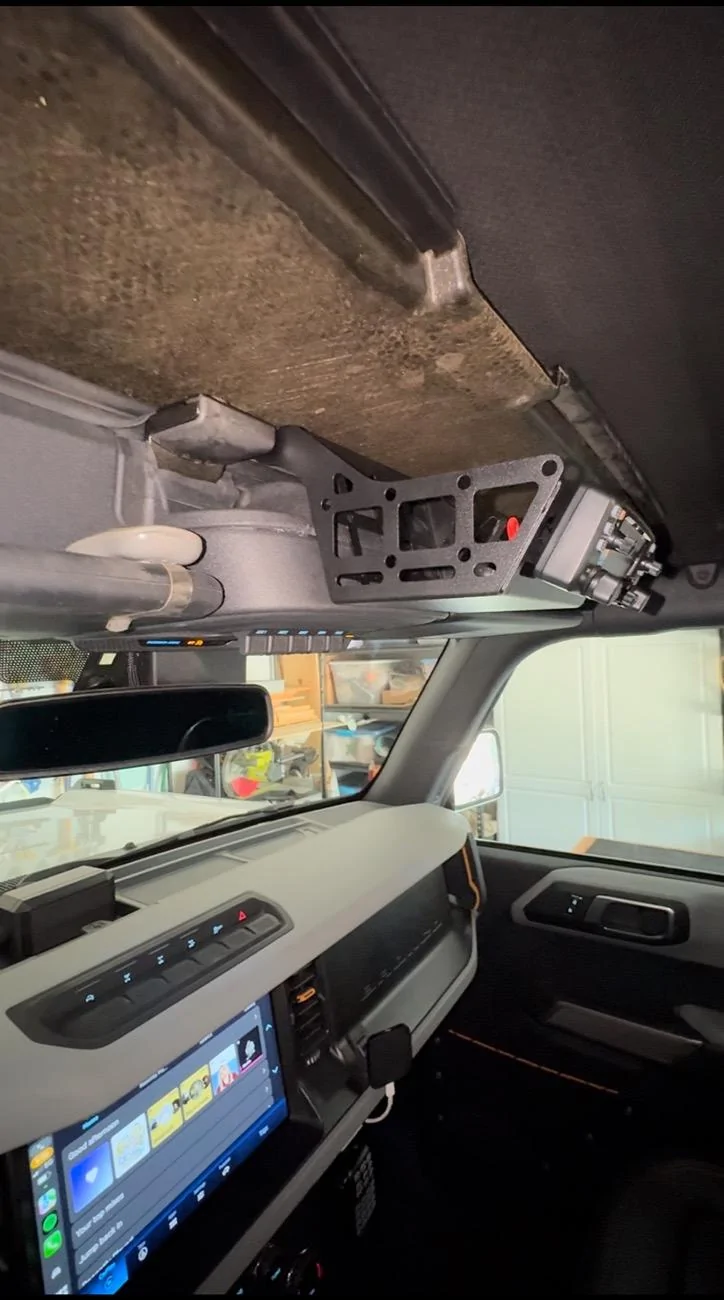

Controller Mount: M2M Overhead Basket
Mic Extension: DONG 3 Meter Mic Extension
Speaker: 5W HAM Radio Speaker

Optional:
Center Console Mount: 1" Ball Mounting Plate
NOTE: I don't really love the center console mount. I didn't want to pay $100+ for Archetype Racing's mount so I grabbed some Amazon off brand one and made it work. You don't need it for this set up but I wanted to also have a ball for mounting an iPad in the future. Looks like there's some good options lately, maybe I'll 3D print one.

Total cost was about $650.

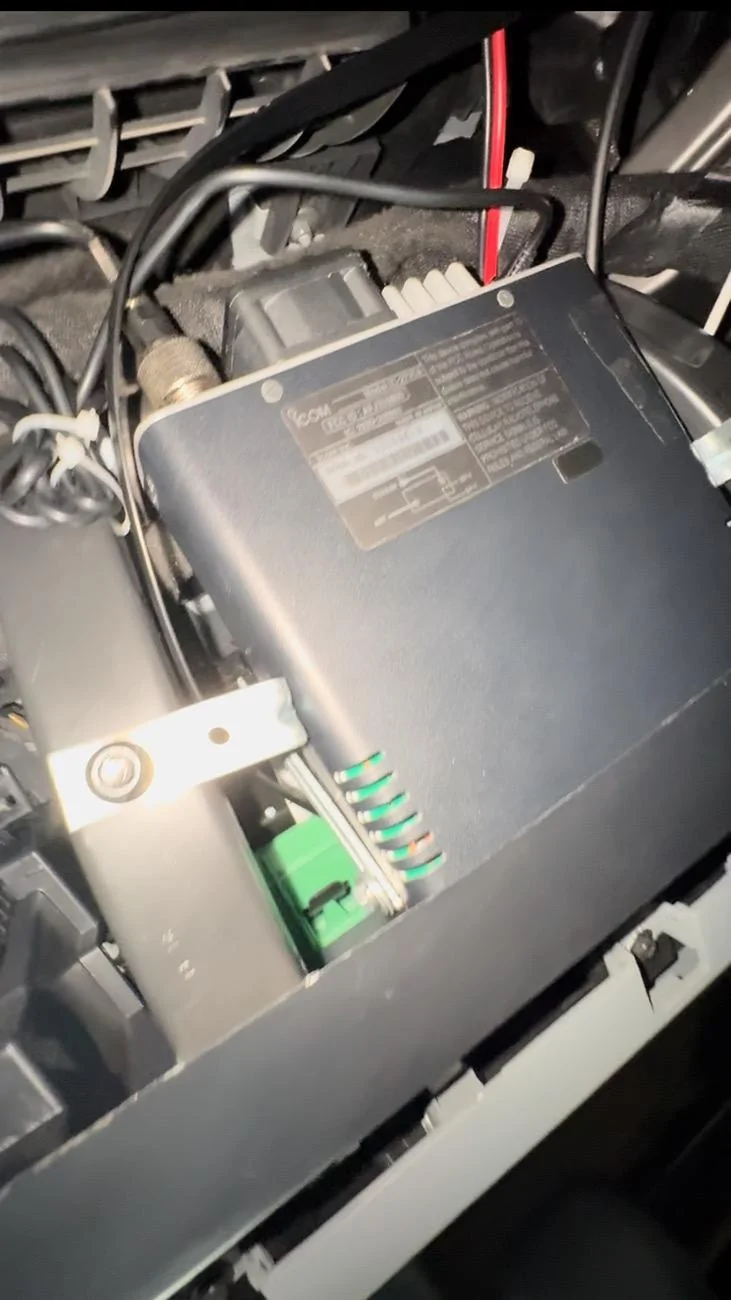

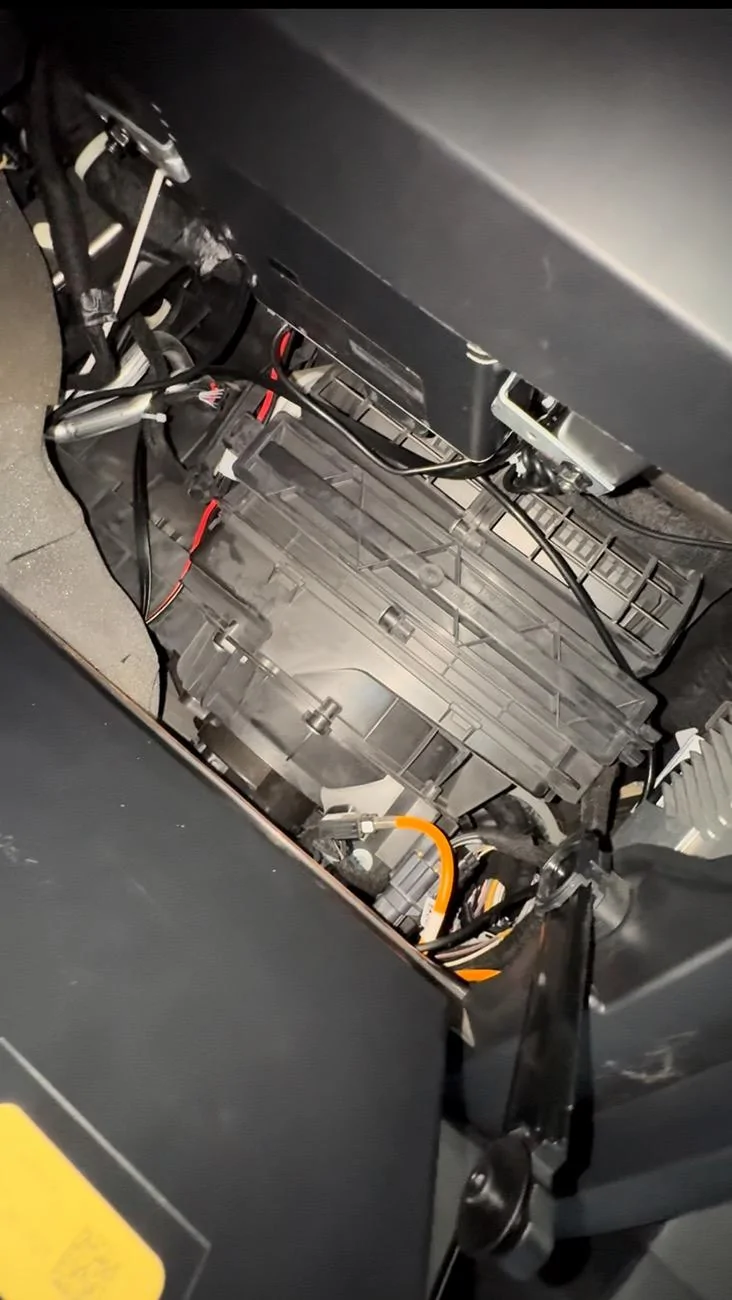

The main radio unit is mounted above the glove box. It doesn't interfere with the glove box and it doesn't block the air filter. I mounted it using some basic $3 corner brackets from Home Depot (M2M does make a bracket but it's $50 and I don't think it will actually do the job because the unit is so much bigger).

Pictures:
YT Short: https://www.youtube.com/shorts/E1CqnVO0ucw

Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1143
Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1145
Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1146

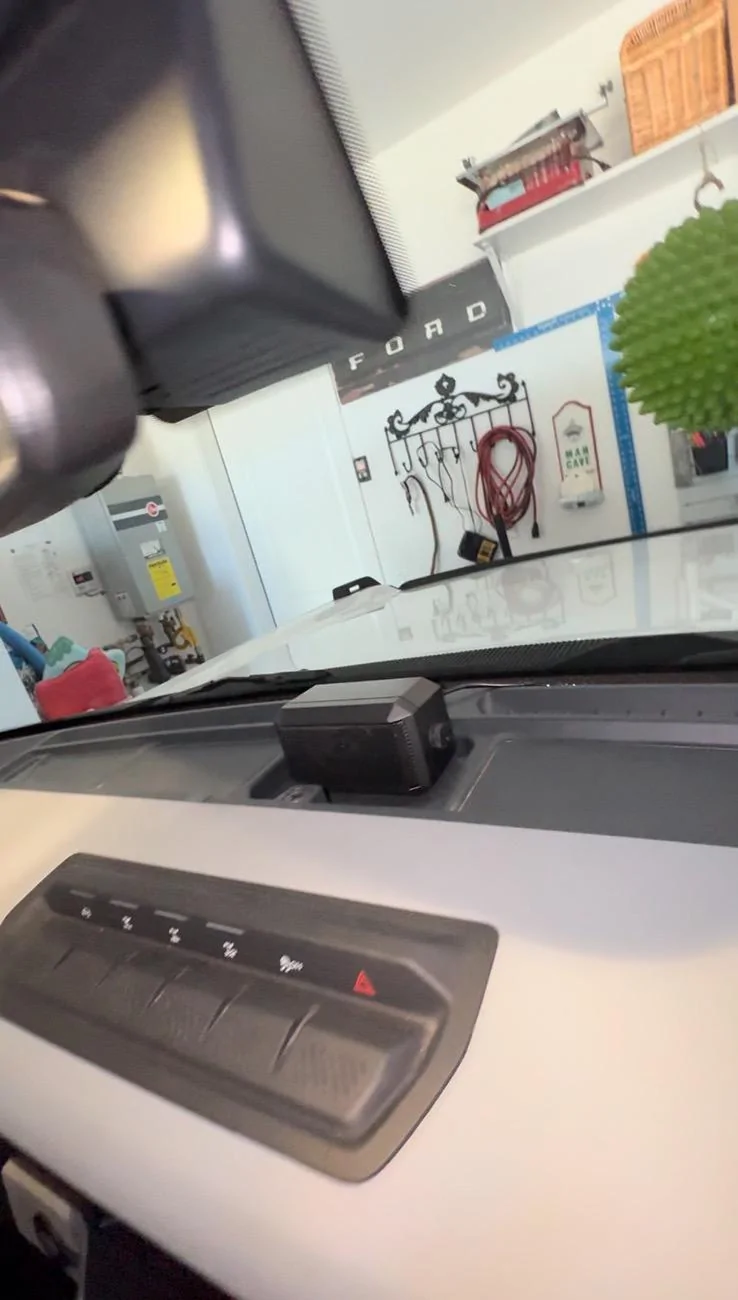

Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1144
Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1147
Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1148

Ford Bronco Sleeker Dual Band Radio Install (UHF/VHF) ICOM-2730A IMG_1149
Sponsored



EOSeabee

Badlands
Well-Known Member
First Name
Patrick
Joined
Sep 19, 2021
Threads
15
Messages
144
Reaction score
184
Location
Las Vegas
Vehicle(s)
2022 Ford Bronco 4 Door Badlands
Your Bronco Model
Badlands
How did you run power to the unit in the roof? I also have that basket.

OP
OP
Dimitar

Dimitar

Badlands
Well-Known Member
First Name
Dimitar
Joined
Oct 26, 2020
Threads
15
Messages
371
Reaction score
737
Location
Orange County, CA
Vehicle(s)
21 Bronco
Your Bronco Model
Badlands
Clubs

How did you run power to the unit in the roof? I also have that basket.
It’s a single data/power cable from the main unit. I ran it behind the trim in the A-Pillar.


murphtron

Badlands
Well-Known Member
First Name
T
Joined
Mar 11, 2021
Threads
10
Messages
370
Reaction score
399
Location
Berkeley, CA
Vehicle(s)
2023 Badlands, 2013 Toyota Highlander, 2000 Miata
Your Bronco Model
Badlands
Clubs

Nice setup. I didn’t realize dual band radios are available. That simplifies things. Baja is all HAM. Been many times. Enjoy that EXO trip. That’s a bucket list thing for me.

for the antenna cable I assume you had to remove the interior panels and run that through the tailgate. Is that accurate? I just did that for a compressor.

just gotta figure out where to locate the controller. I have a j-top so can’t use the M2M basket.

just curious why you don’t have a dash rail to mount things to.


Arokcrwlr

Wildtrak
Well-Known Member
First Name
Kraig
Joined
Jun 2, 2021
Threads
30
Messages
802
Reaction score
1,496
Location
US - Alabama
Vehicle(s)
2014 F150, 2014 Focus, 1973 Bronco
Your Bronco Model
Wildtrak
Clubs

Looks good! Good use of the Squatch basket...

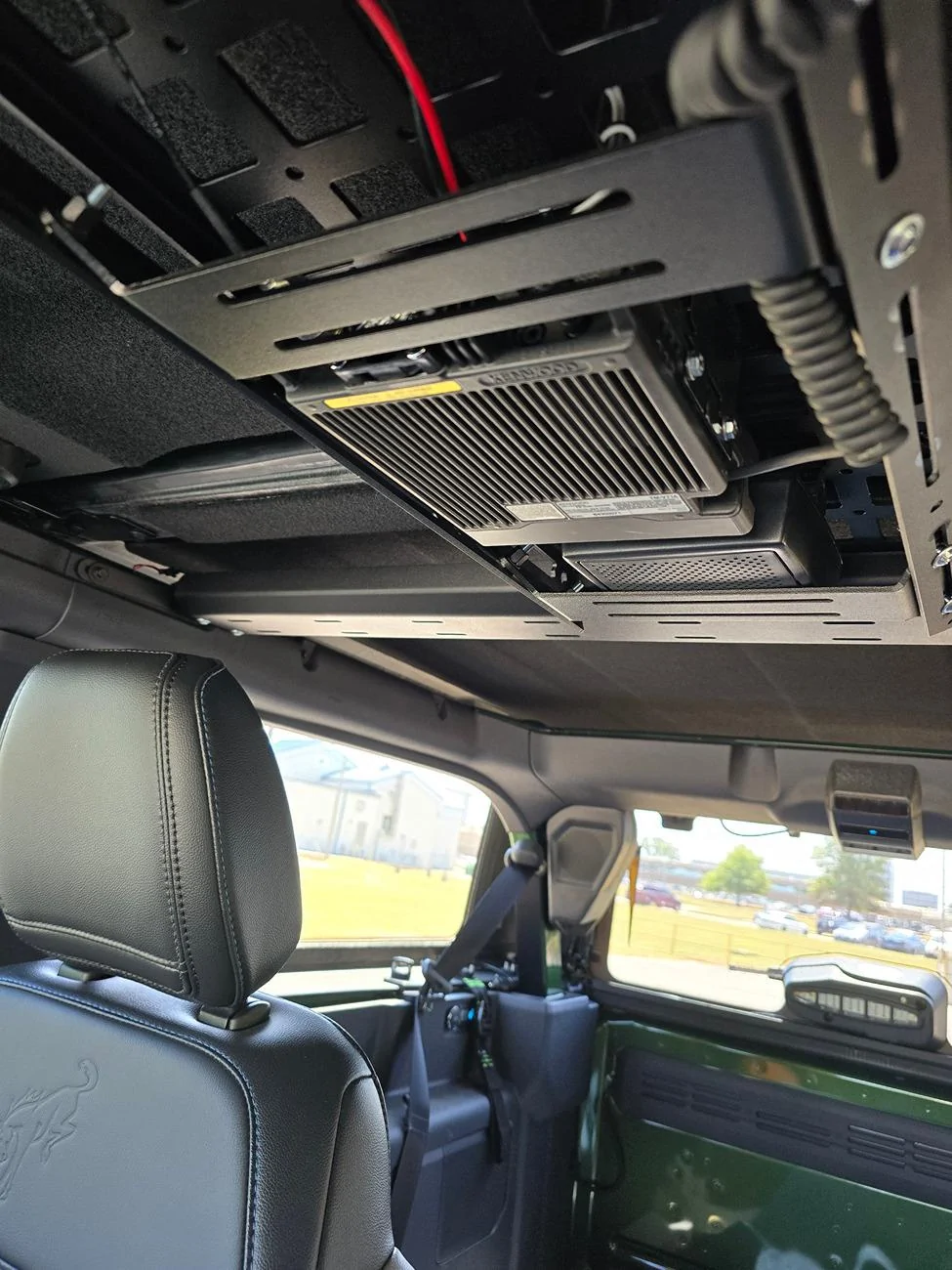

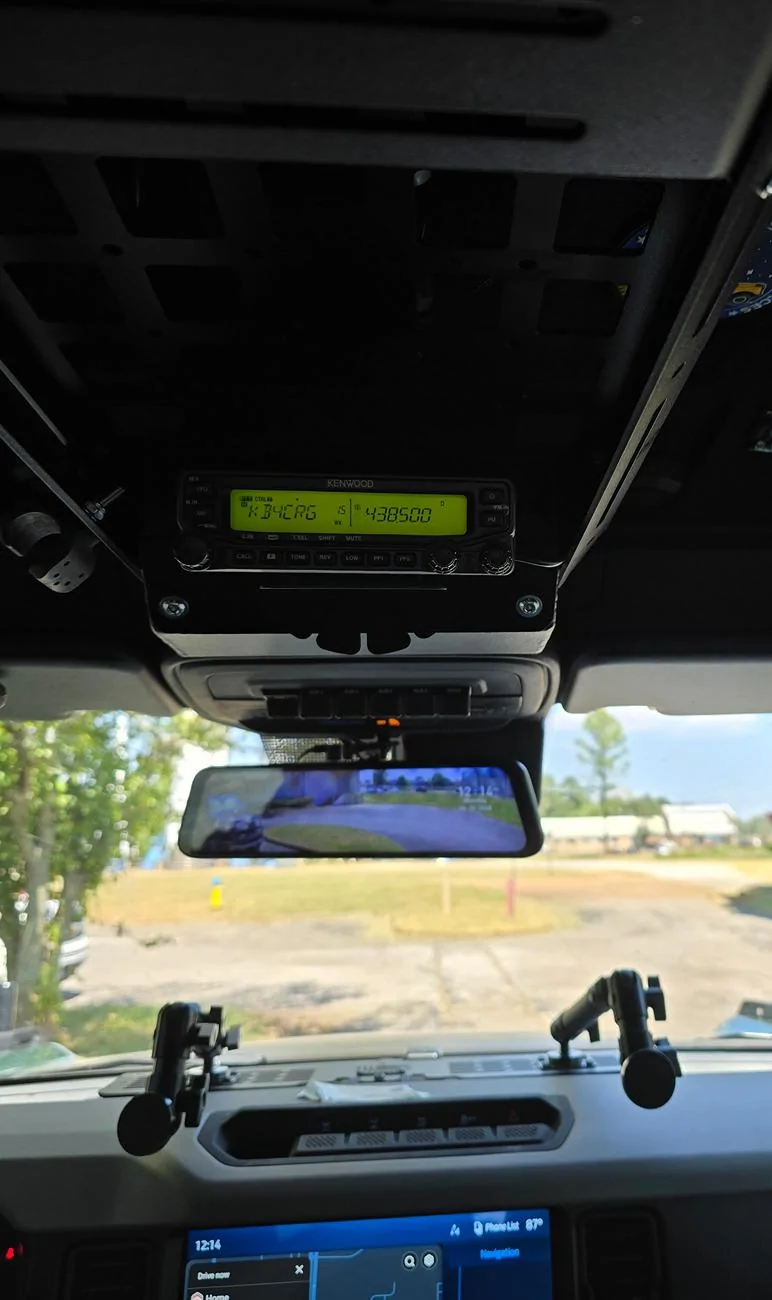

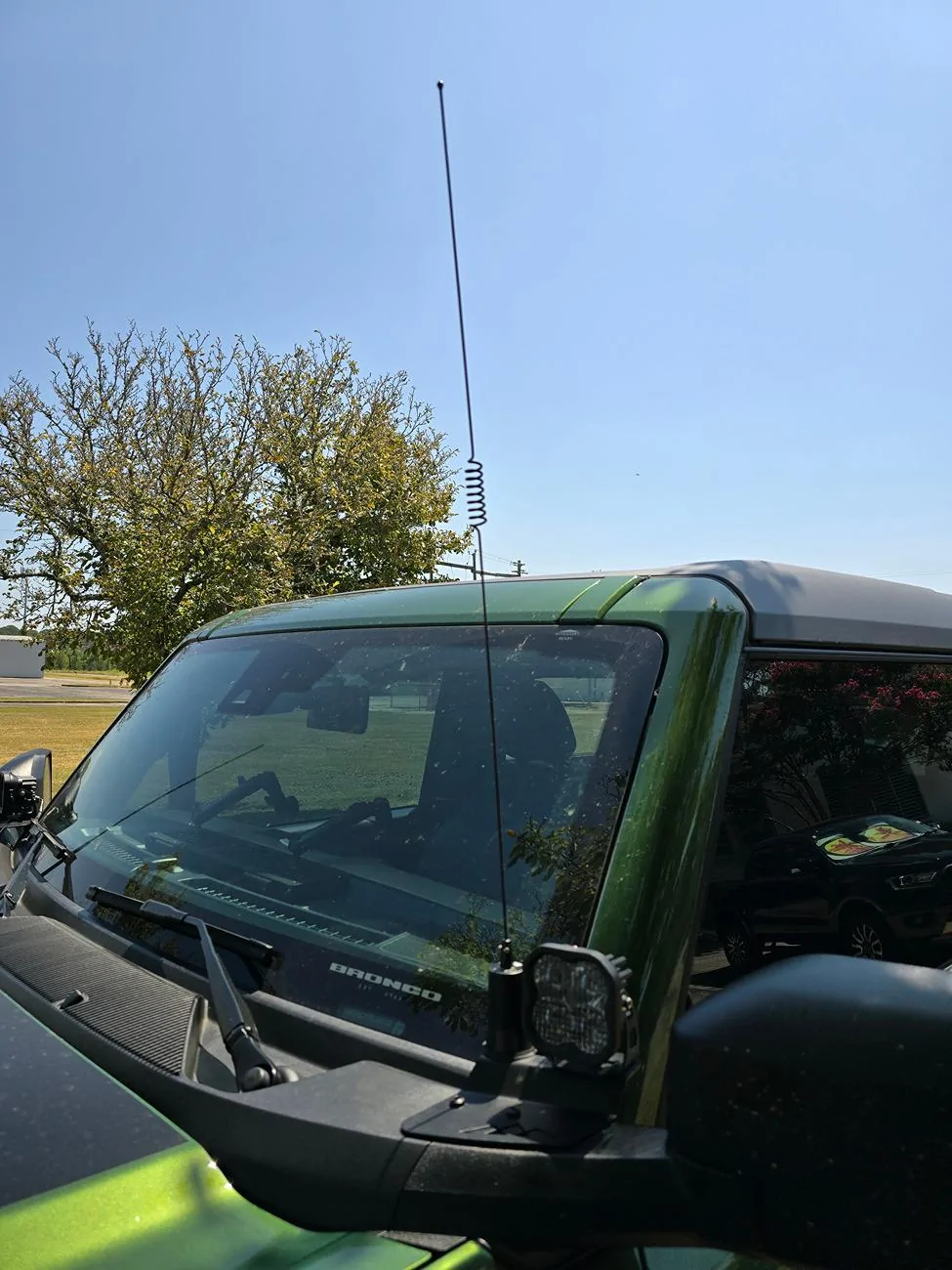

I mounted my Kenwood TM-V17A to a Lobo overhead mount system. The transceiver and external speaker is mounted at the rear, and the front panel is mounted to the SwitchPros mounting plate. I have it wired to Aux1 using the factory wiring in the roof/kick panel. I'm using a Larsen NMO2/70B dual band antenna on a MTM pod light mount.
