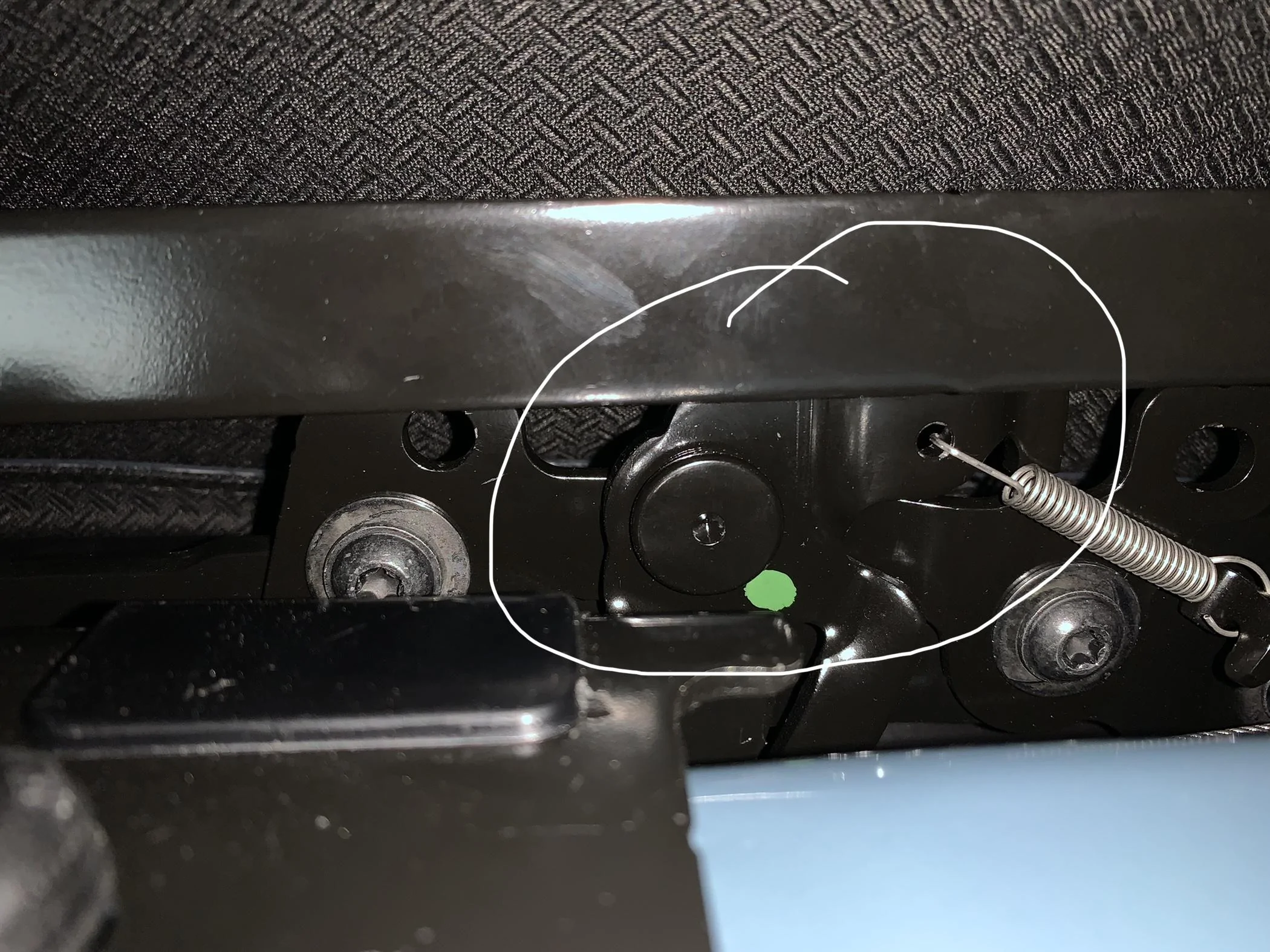

Hi all, my soft top has been clicking while driving and I’ve heard it over my right shoulder. I eventually narrowed it down to the area right over the rear passenger side window and found a pice that feels loose (it’s the piece that’s circled in the photo with the spring attached to it). It doesn’t look like there’s a way to tighten it back. Anyone else have this issue and/or would anyone be able to check their soft top to see if this feels loose?



Advertisement


RyanP

Badlands
Well-Known Member
First Name
Ryan
Joined
Jul 21, 2020
Threads
8
Messages
564
Reaction score
853
Location
Maryland
Vehicle(s)
Mazda CX-9
Your Bronco Model
Badlands
Clubs

Yes. I have a clicking sound coming from the rear too, but I think it's coming from all the way in the back where the top meets the rear window. I haven't been able to figure out the cause of the "clicking" noise yet. As an aside, the same piece that you mentioned and showed is loose on mine too and only on the right side. I don't see a way to tighten it up, but I haven't really looked into it yet. In my case, I don't think this is the clicking noise coming from the rear of mine.


Neejmais

Badlands
Member
First Name
Steve
Joined
Jul 30, 2020
Threads
3
Messages
16
Reaction score
8
Location
Dianavang16
Vehicle(s)
Subaru wrx
Your Bronco Model
Badlands
Mine does too with the clicking noise but I haven’t got chance to check it. Let me know what u guy find


Melvin

Big Bend
Member
First Name
Bill
Joined
Mar 10, 2022
Threads
0
Messages
8
Reaction score
3
Location
Texas
Vehicle(s)
2021 Bronco
Your Bronco Model
Big Bend
You can adjust that peice upward to make it tighter

OP
OP
stm378

stm378

Badlands
Well-Known Member
First Name
Sean
Joined
Oct 22, 2020
Threads
12
Messages
281
Reaction score
392
Location
Maryland
Vehicle(s)
Highlander
Your Bronco Model
Badlands
You can adjust that peice upward to make it tighter
Won’t it just fall back down? There’s a lot of slack left to right.


Melvin

Big Bend
Member
First Name
Bill
Joined
Mar 10, 2022
Threads
0
Messages
8
Reaction score
3
Location
Texas
Vehicle(s)
2021 Bronco
Your Bronco Model
Big Bend
It's 2 T-30 bolts on the side of that peice just loosen pull up a little and tighten back. There shouldn't be any movement right or left, just up and down.
