Welcome to the most advanced accessory switcher available Alpha12.

-12 Fully Programmable Outputs Controlled by an LCD Touch-Button Display
-180 Amp Load Capable with 6 High-Current/6 Low-Current Outputs
-Choose From 60+ Pre-Loaded Button Images or Upload Your Own
-Power/Ground Direct Connections w/Weather-Proof Connectors
-Solid-State Outputs, No Fuses or Relays Needed
-Configurable Amperage Limitations Per Output
-Weather-Proof: IP67 Brain and IP65 Controller
-Hyper-Brite Display for Day/Night Mode
-System Health / Hazard Warnings



https://ssvworks.com/products/alpha12-digital-smart-switcher-with-12-outputs

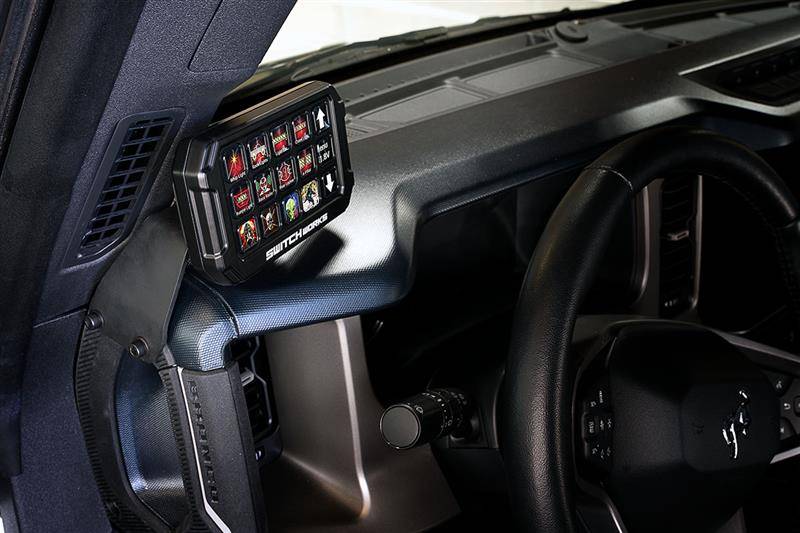

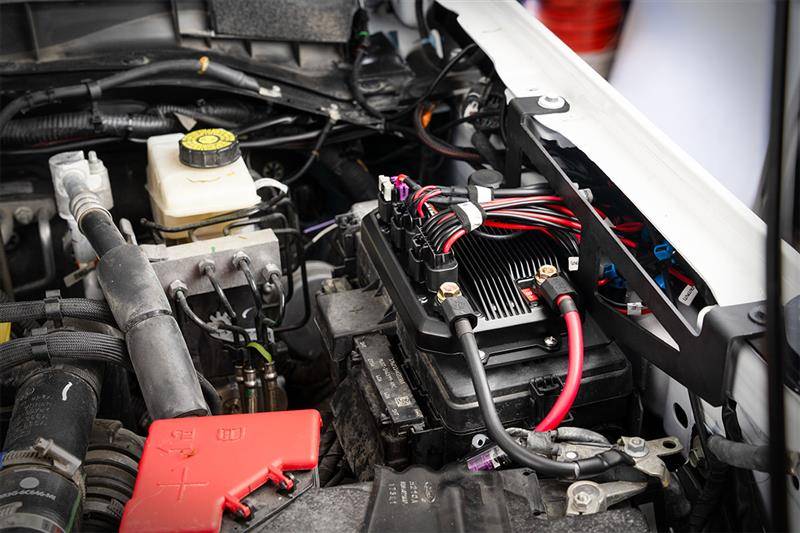

We also offer a Bronco specific mounting kit to mount up the brain and the controller using factory locations, so no cutting or drilling required.

Ford Bronco SWITCH Works Alpha12 Digital Smart Switcher - Ditch The Stickers! 9adbfd3d-2f11-405c-b91c-bc247eba3b40

Ford Bronco SWITCH Works Alpha12 Digital Smart Switcher - Ditch The Stickers! c71f5082-e9f1-4471-928a-882718a11aa9



https://ssvworks.com/collections/al...ford-bronco-switch-works-alpha12-mounting-kit

DM us for a discount code offered to Bronco6G members.

Head on over to the site and pick yours up today!
Sponsored



Rydfree

Badlands
Well-Known Member
First Name
Benny
Joined
Aug 12, 2020
Threads
11
Messages
1,444
Reaction score
3,982
Location
Alabama
Vehicle(s)
2007 Ford F-150 Supercrew 4WD King Ranch
Your Bronco Model
Badlands
seems like a pretty cool set up.... Buuuttt.... how do you get to the fuse box????
Looks like you would remove the 2 bolts from the fender bracket and lift it out of the way .


5GENIDN

Heritage
Well-Known Member
First Name
Joe
Joined
Jul 1, 2023
Threads
9
Messages
1,992
Reaction score
5,406
Location
Idaho
Vehicle(s)
23 Ford Bronco Heritage Limited 2dr
Your Bronco Model
Heritage
Clubs

Looks like you would remove the 2 bolts from the fender bracket and lift it out of the way .
Does not look like you are going to lift very far.... all that wiring is still connected. Kind of like having a big floppy wing in the way. Then I would be worried about the bracket scratching the paint as I work underneath that big floppy wing.

I like how clean the wiring looks. and it looks like it would be pretty darn solid with that bracket.


Sponsored

Rydfree

Badlands
Well-Known Member
First Name
Benny
Joined
Aug 12, 2020
Threads
11
Messages
1,444
Reaction score
3,982
Location
Alabama
Vehicle(s)
2007 Ford F-150 Supercrew 4WD King Ranch
Your Bronco Model
Badlands
Does not look like you are going to lift very far.... all that wiring is still connected. Kind of like having a big floppy wing in the way. Then I would be worried about the bracket scratching the paint as I work underneath that big floppy wing.

I like how clean the wiring looks. and it looks like it would be pretty darn solid with that bracket.
Just looking at the pic it appears that the wiring is just snapped in. Remove 2 fender bolts , unsnap wiring connectors and lift toward engine to access factory fuses. It's about $400 over what I would be willing to pay so I'm not ever gonna have that issue anyway, lol.

OP
OP
Switchworks_Kyle

Switchworks_Kyle

Badlands
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Kyle
Joined
Oct 12, 2023
Threads
19
Messages
98
Reaction score
105
Location
Oxnard California
Vehicle(s)
2022 Ford Bronco
Your Bronco Model
Badlands
seems like a pretty cool set up.... Buuuttt.... how do you get to the fuse box????
The bracket to mount the brain is bolted up using 2 bolts so just remove them to expose your fuse box. You can always mount the brain in another location too depending on your set up or preference.
