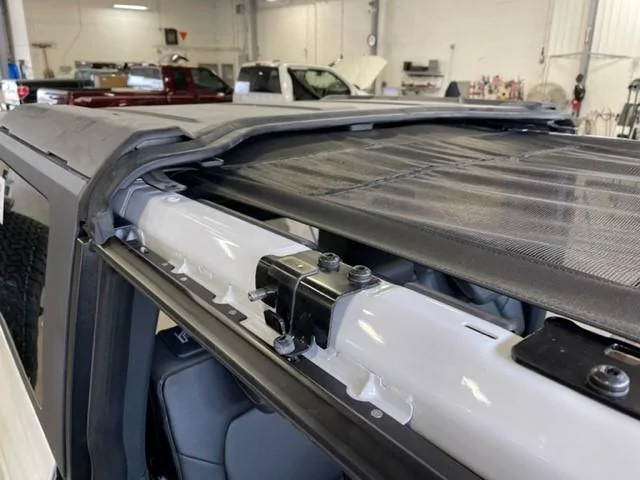

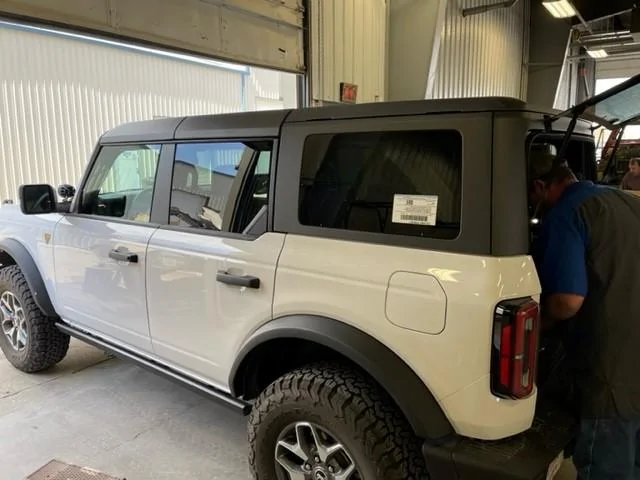

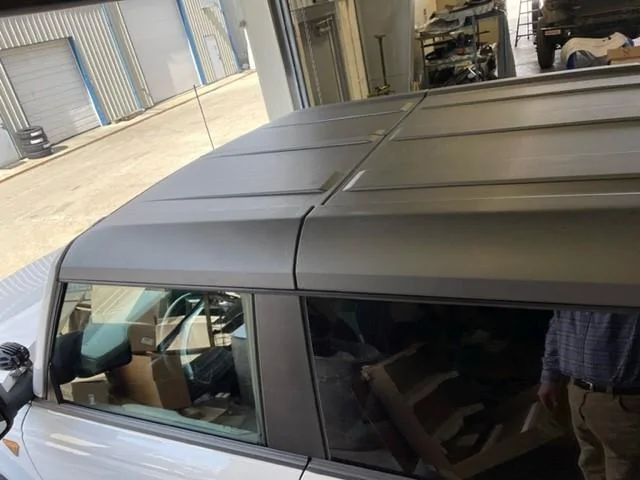

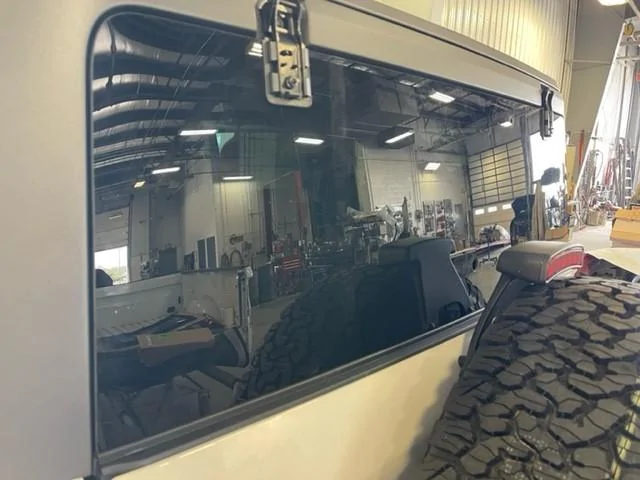

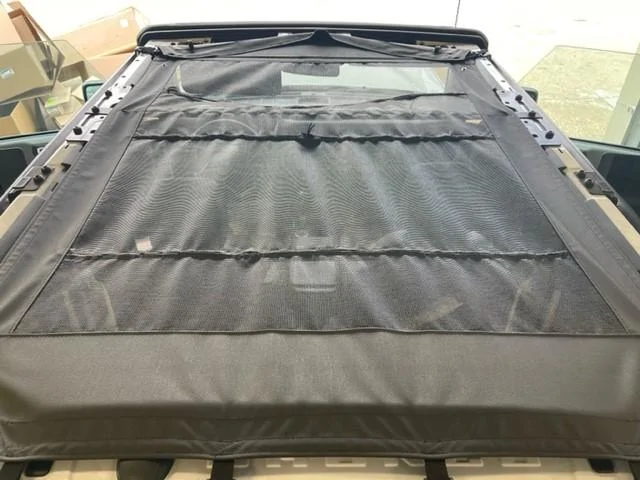

Finally installed the hard top today. After figuring out the bimini was a PITA to try and do installed, it went bye bye. It's highly probable I'll not take the it off any further than the front two panels anyway. Brackets, remove soft top side window front attachment panels, a few bolts and done. Since I was built pre-prep package we're just going to plug the wiper hole in the glass once we find the right size. The next one will take about 45 minutes after the glass is glued in the cap.













P/NDescriptionQuan.
M2DZ-78502G33-AAPANEL ASSY - ROOF, CARBONIZED GRAY, COMPLETE ASSEMBLY
1​
M2DZ-78502G32-AAPANEL ASSY - ROOF, CARBONIZED GRAY, INCLUDES ATTACHING HARDWARE
1​
M2DZ-7850284-AAPANEL ASSY - ROOF, CARBONIZED GRAY, RH, INCLUDES ATTACHING HARDWARE
1​
M2DZ-7850285-AAPANEL ASSY - ROOF, CARBONIZED GRAY, LH, INCLUDES ATTACHING HARDWARE
1​
M2DZ-7829700-AGLASS - QUARTER WINDOW, RH
1​
M2DZ-7829701-AGLASS - QUARTER WINDOW, LH
1​
M2DZ-7842006-AGLASS - REAR DOOR
1​
M2DZ-7842104-ALIFT ASSY - GAS, RH
1​
M2DZ-7842105-ALIFT ASSY - GAS, LH
1​
M2DZ-78420B00-ACOVER, RH
1​
M2DZ-78420B01-ACOVER, LH
1​
W717246-S450BBOLT
2​
M2DZ-78245A26-BSUPPORT, RH
1​
M2DZ-78245A27-BSUPPORT, LH
1​
W721070-S450BBOLT, BOLT AND WASHER, M8 X 33MM
4​
W721071-S450BBOLT, BOLT AND WASHER, M8 X 24MM
10​
M2DZ-17603-AJET
1​
W790541-S900NUT, M10 X 1.5MM
1​
M2DZ-9946410-ACOVER
1​
M2DZ-17508-AMOTOR ASY - WIPER
1​
W506942-S450BSCREW, 4 X 10MM
3​
W711910-S437NUT, M6
3​
M2DZ-9946410-BCOVER
1​
M2DZ-17C582-AGROMMET
1​
M2DZ-17526-AARM ASSY - GUIDE
1​
M2DZ-17528-BBLADE ASSY - WIPER
1​
W708312-S442NUT, M8
1​
M2DZ-17C526-ACAP
1​
VM2DZ-58521A03-U5 DOOR, ACCESSORY, HARD TOP ROOF LINER KIT
1​
Sponsored


Last edited by a moderator:

BroncoBoy22

Badlands
Well-Known Member
Joined
Aug 1, 2018
Threads
45
Messages
3,895
Reaction score
7,937
Location
Laker Land
Vehicle(s)
'11 Mustang GT 5.0
Your Bronco Model
Badlands
SICK!!! Nice Phil!!

Whereā€™d you source your top from if you donā€™t mind my asking?

OP
OP
flip

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,242
Reaction score
14,104
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

SICK!!! Nice Phil!!

Whereā€™d you source your top from if you donā€™t mind my asking?
Ordered it through normal parts channel. Took about 4 months for everything to get here and am still waiting on the sound deadening pads and rear window hinge trim caps.


RichL

Base
Member
First Name
Rich
Joined
Jul 13, 2020
Threads
2
Messages
20
Reaction score
10
Location
Troy
Vehicle(s)
Ford Escape
Your Bronco Model
Base
I thought you could not get a hard top through parts yet? can you describe the process and how much it cost to get a hard top.


Sponsored
OP
OP
flip

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,242
Reaction score
14,104
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

P/NDescriptionQuan.
M2DZ-78502G33-AAPANEL ASSY - ROOF, CARBONIZED GRAY, COMPLETE ASSEMBLY
1​
M2DZ-78502G32-AAPANEL ASSY - ROOF, CARBONIZED GRAY, INCLUDES ATTACHING HARDWARE
1​
M2DZ-7850284-AAPANEL ASSY - ROOF, CARBONIZED GRAY, RH, INCLUDES ATTACHING HARDWARE
1​
M2DZ-7850285-AAPANEL ASSY - ROOF, CARBONIZED GRAY, LH, INCLUDES ATTACHING HARDWARE
1​
M2DZ-7829700-AGLASS - QUARTER WINDOW, RH
1​
M2DZ-7829701-AGLASS - QUARTER WINDOW, LH
1​
M2DZ-7842006-AGLASS - REAR DOOR
1​
M2DZ-7842104-ALIFT ASSY - GAS, RH
1​
M2DZ-7842105-ALIFT ASSY - GAS, LH
1​
M2DZ-78420B00-ACOVER, RH
1​
M2DZ-78420B01-ACOVER, LH
1​
W717246-S450BBOLT
2​
M2DZ-78245A26-BSUPPORT, RH
1​
M2DZ-78245A27-BSUPPORT, LH
1​
W721070-S450BBOLT, BOLT AND WASHER, M8 X 33MM
4​
W721071-S450BBOLT, BOLT AND WASHER, M8 X 24MM
10​
M2DZ-17603-AJET
1​
W790541-S900NUT, M10 X 1.5MM
1​
M2DZ-9946410-ACOVER
1​
M2DZ-17508-AMOTOR ASY - WIPER
1​
W506942-S450BSCREW, 4 X 10MM
3​
W711910-S437NUT, M6
3​
M2DZ-9946410-BCOVER
1​
M2DZ-17C582-AGROMMET
1​
M2DZ-17526-AARM ASSY - GUIDE
1​
M2DZ-17528-BBLADE ASSY - WIPER
1​
W708312-S442NUT, M8
1​
M2DZ-17C526-ACAP
1​
VM2DZ-58521A03-U5 DOOR, ACCESSORY, HARD TOP ROOF LINER KIT
1​


RichL

Base
Member
First Name
Rich
Joined
Jul 13, 2020
Threads
2
Messages
20
Reaction score
10
Location
Troy
Vehicle(s)
Ford Escape
Your Bronco Model
Base
Good for you to just go out and get it done! Looks like it can at least be done. and the parts look nice. I'll probably be sticking to my soft top for a while.

OP
OP
flip

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,242
Reaction score
14,104
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

Obviously, this is not practical for anyone right now. We wanted to see what was involved since we will, hopefully, be doing these swaps once Ford comes out with a kit. I'll probably jump this to my next bronco assuming I go with a soft top again and they don't do any major design changes.


McBroncface

Outer Banks
Member
First Name
Steve
Joined
Mar 11, 2022
Threads
1
Messages
6
Reaction score
5
Location
NY
Vehicle(s)
Tesla S, Subaru Forrester
Your Bronco Model
Outer Banks
Hi Phil, on my old build sheet for 2021 the 2 tops MIC + soft top was $1795. Are you saying that the aftermarket hard top is $10K? From Ford? Thanks


ChanceA51BD

Black Diamond
Active Member
First Name
Shawn
Joined
Mar 2, 2022
Threads
3
Messages
27
Reaction score
58
Location
Pearland, TX
Vehicle(s)
2021 Bronco, 2018 VW Atlas, 2016 F150
Your Bronco Model
Black Diamond
Clubs

Hi Phil, on my old build sheet for 2021 the 2 tops MIC + soft top was $1795. Are you saying that the aftermarket hard top is $10K? From Ford? Thanks
I know my personal experience, I could order just the parts from the parts counter for ~$7500 and there would be there in 5 days. We asked for a quote when we picked our Bronco last month. I didn't question any thing further since we're not willing to spend that. We'll wait for prices to come down...


Sponsored
OP
OP
flip

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,242
Reaction score
14,104
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

Hi Phil, on my old build sheet for 2021 the 2 tops MIC + soft top was $1795. Are you saying that the aftermarket hard top is $10K? From Ford? Thanks
I'm saying, in order to get a hard top after the fact, without a kit being offered by Ford, the retail cost to piece everything together on a 4D is just over $10K retail. This includes the sound deadener, all glass, hardware, wiper, wiper motor, washer jet and brackets. Those with the prep package will not have to buy a few pieces of hardware and the front brackets so this list applies to those pre Sept. 1, 2021.

I have to believe that Ford will offer a kit that has everything needed in one "box" that can be purchased and installed for $4K-$5K. The cap itself was in a huge crate, all the glass was sent in separate packages, etc. If this setup is more than $4K, it's going to be a hard sell.


El Bronco Blanco

Wildtrak
Well-Known Member
First Name
Matt
Joined
Sep 29, 2020
Threads
2
Messages
476
Reaction score
654
Location
Scottsdale, AZ
Vehicle(s)
2013 Ford Explorer XLT, 2021 Mazda CX-9
Your Bronco Model
Wildtrak
Clubs

@ADV Fiberglass bout to get real busy. Those color ones looking real good to some of you right about now at a "discount" huh?


Papa Smurf

Wildtrak
Well-Known Member
First Name
Chris
Joined
Jul 13, 2020
Threads
11
Messages
1,495
Reaction score
3,897
Location
Jax, FL
Vehicle(s)
ā€˜23 Bronco WT. ā€˜23 Maverick. Hybrid. '23 Rav4
Your Bronco Model
Wildtrak
Clubs

Dammit Phil!!!! Iā€™ve been waiting nearly 2 months for my warranty claim hard top and here you go with a shiny new one!!!! Well done my friend. Howā€™s the quality of the MIC these days?


BroncoBoy22

Badlands
Well-Known Member
Joined
Aug 1, 2018
Threads
45
Messages
3,895
Reaction score
7,937
Location
Laker Land
Vehicle(s)
'11 Mustang GT 5.0
Your Bronco Model
Badlands
Thanks Phil!! I knew people would be shocked at how much these things cost rn lol
