If you go to Curt or Draw-Tite’s websites, neither show a product available so I guess Curt doesn’t have their own website current?
Correct, i stumbled on the Part number on etrailer, then plug it into Curt and it will show. I ultimately bought from RealTruck, very reasonable, fast shipping. Curt PN 13493
Sponsored


Last edited:

Bronco4

First Edition
Well-Known Member
First Name
Frank
Joined
Jul 4, 2020
Threads
0
Messages
613
Reaction score
1,008
Location
Medford Oregon
Vehicle(s)
2017 F350 CCLB
Your Bronco Model
First Edition
Clubs

Look what showed up today. Who said tow package is a commodity problem?? Guess I'm going to clean out the depot now.

ETA: This is NOT a factory tow setup it is just the hitch and trailer light module. There were a few in the depot so I ordered them to use in developing a solution for those wanting tow but dropped the order option. I will post updates as they become available.

Bronco tow pkg.jpg












Updated June 13



































Flip what Ford parts do i need for a Brake controller and how do i wire it for a non Ford trailer tow package???

OP
OP
flip

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,243
Reaction score
14,106
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

Flip what Ford parts do i need for a Brake controller and how do i wire it for a non Ford trailer tow package???
I haven’t messed with that yet. Give me a couple weeks. Out of the office this coming week.


gizmohd

Badlands
Well-Known Member
First Name
Darren
Joined
Apr 22, 2021
Threads
27
Messages
425
Reaction score
721
Location
Florida
Vehicle(s)
Bronco Sport (Wife), Bronco Badlands (Sasquatch)
Your Bronco Model
Badlands
Clubs

Found this document that may be helpful....


Attachments

nic

Badlands
Well-Known Member
First Name
Nic
Joined
Jul 22, 2020
Threads
1
Messages
53
Reaction score
90
Location
Marietta, GA
Vehicle(s)
'00 Ranger
Your Bronco Model
Badlands
Clubs

Probably a dumb question, but I've got the aux switches. What would be the harm in stealing the pre-wired rear 12-volt to tie into the 7-pin? Seems like it would work without having to dig into that wheel well panel. Just need to ensure you flip the switch when in-use.


Sponsored
OP
OP
flip

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,243
Reaction score
14,106
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

Probably a dumb question, but I've got the aux switches. What would be the harm in stealing the pre-wired rear 12-volt to tie into the 7-pin? Seems like it would work without having to dig into that wheel well panel. Just need to ensure you flip the switch when in-use.
If you are adding tow wiring, you have to open the panel to access the tail light wiring so no extra effort. If it already has factory TT, pin 5 on the trailer plug has 12V+ for trailer battery charging. No reason you can't tap into this even if you have the breakaway battery.


Gangstead

Black Diamond
Well-Known Member
Joined
Jul 5, 2020
Threads
18
Messages
259
Reaction score
550
Location
Texas
Vehicle(s)
'21 BD 4DR 7MT Soft
Your Bronco Model
Black Diamond
Clubs

I'm thinking of picking up that Curt hitch as well. I will only use it for a bike rack so it's actually cleaner without the plate for the harness and the install doesn't involve dropping the bumper. The price is right too. Let us know how you like it.
Happy to follow up that I got the Curt Hitch yesterday and put it in. Only takes a few minutes. 100% worth paying 1/3 the OEM hitch price. Pics in thread: https://www.bronco6g.com/forum/threads/curt-hitch-installed.23720/


Bronco4

First Edition
Well-Known Member
First Name
Frank
Joined
Jul 4, 2020
Threads
0
Messages
613
Reaction score
1,008
Location
Medford Oregon
Vehicle(s)
2017 F350 CCLB
Your Bronco Model
First Edition
Clubs


Gangstead

Black Diamond
Well-Known Member
Joined
Jul 5, 2020
Threads
18
Messages
259
Reaction score
550
Location
Texas
Vehicle(s)
'21 BD 4DR 7MT Soft
Your Bronco Model
Black Diamond
Clubs

How do you mount the 4/7 pin wire connector to the Curt Hitch?
We'll see when Flip's kit starts shipping! My plan (eventually) is to leave the wires for the 4 pin long and have them routed to the storage under the back cargo lid. Then when I need to use it I just unroll it out and shut the tail gate on it. That's how I've done it for my Outback and Odyssey and it never caused any problems and the connector doesn't live its life exposed to the elements. 99% of my hitch usage is bike rack with a small u-haul trailer rental once or maybe twice per year so having it tucked away and stored is my preference.

Etrailer also looks like they have some that bolt to the bumper or use a pipe clamp onto the frame or nearby mounting point.
https://www.etrailer.com/Accessories-and-Parts/Tow-Ready/18144.html (drill holes)
https://www.etrailer.com/Accessories-and-Parts/Tow-Ready/18140.html (pipe clamp)


KustomKarl

Badlands
New Member
Joined
Sep 20, 2021
Threads
1
Messages
3
Reaction score
5
Location
54021
Vehicle(s)
Bronco
Your Bronco Model
Badlands

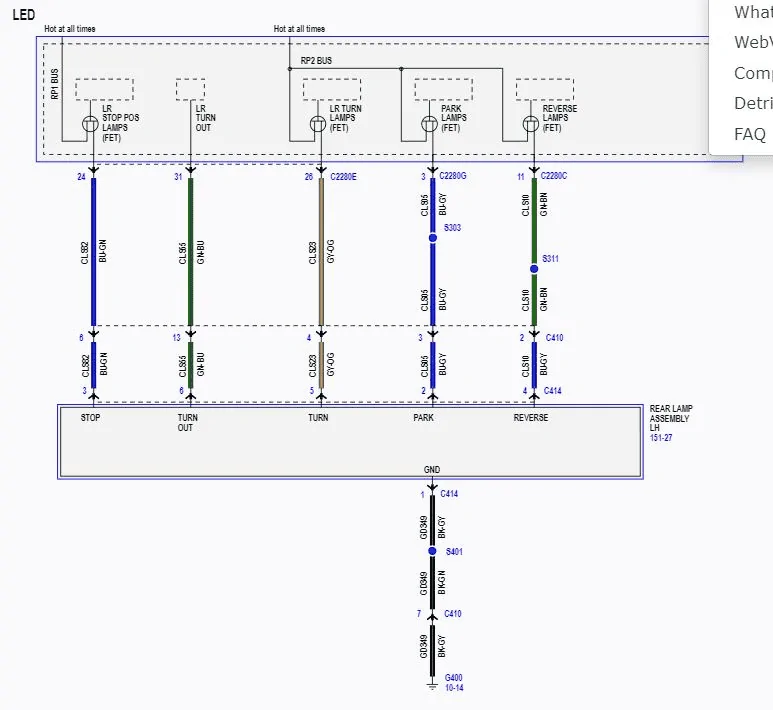

These branches would supply the needed signals to the converter. Have to figure out how to get the turn signal from the right side to the left. The main harness runs behind the rear seat and doesn't have any connectors after it comes out of the BCM in the front until it hits the C411 connector.
Flip, is there any reason not to T into the circuit at C414/C415 vs C410/C411? Seems like there would be less wires to deal with in creating a T harness at C414/C415. Do you have connector type/pinout info on C414/C415?

Ford Bronco Tow Package arrived - contents inside 1632240738057

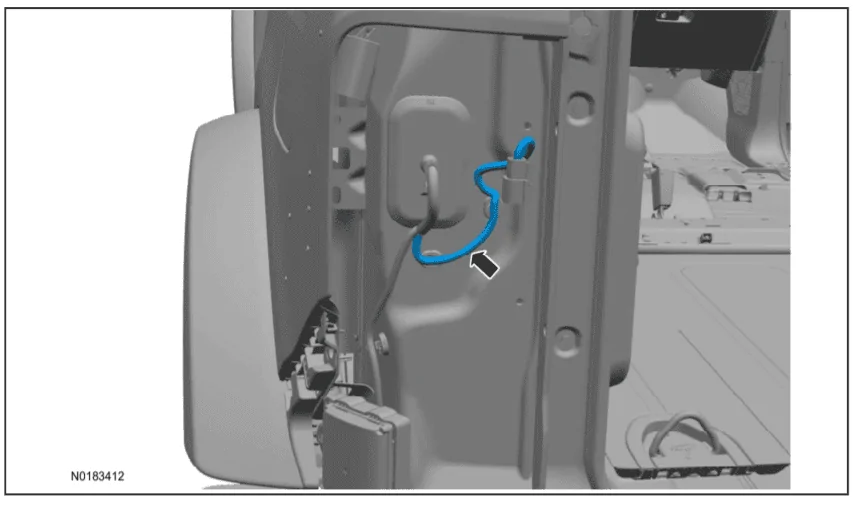

Any chance the connectors are the same as a Bronco Sport?

Bronco Sport connector:
Ford Bronco Tow Package arrived - contents inside 1632241098303

Ford Bronco Tow Package arrived - contents inside 1632241364577


Sponsored

skoorb76

Base
Well-Known Member
Joined
Sep 30, 2021
Threads
4
Messages
65
Reaction score
80
Location
Michigan
Vehicle(s)
Junk
Your Bronco Model
Base

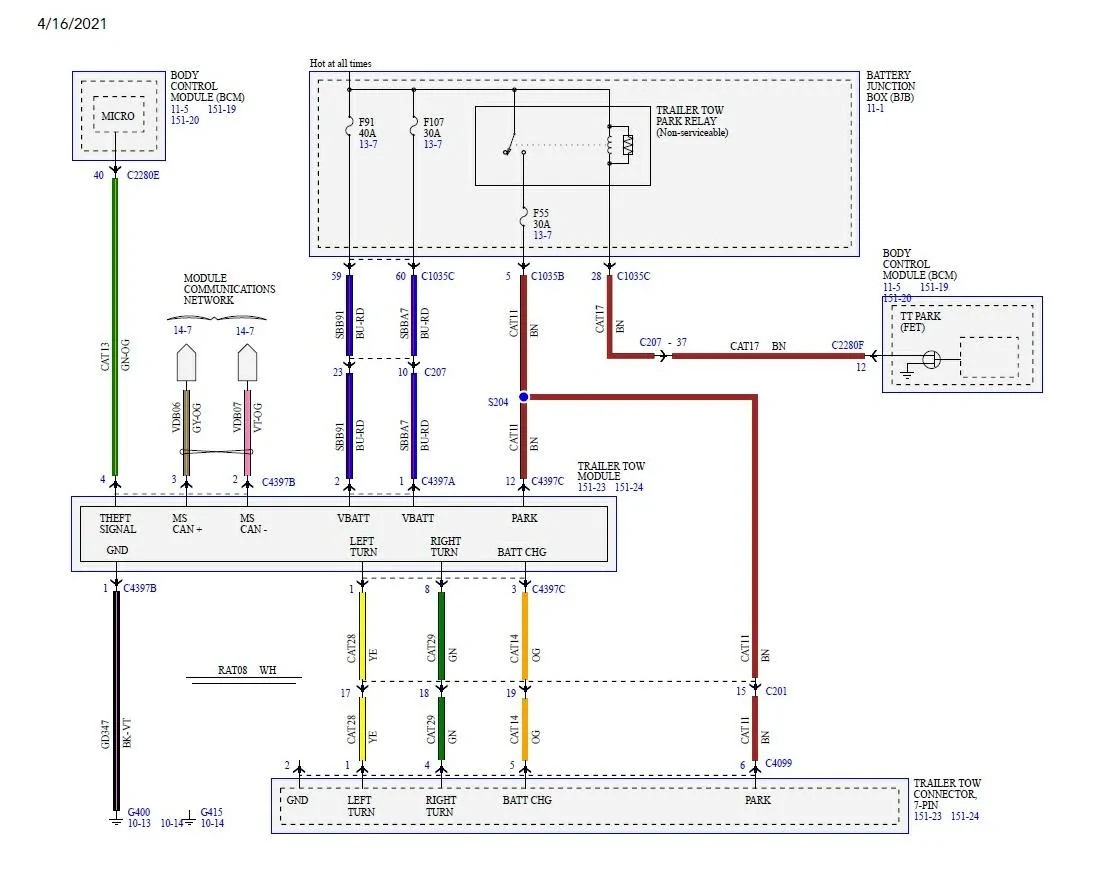

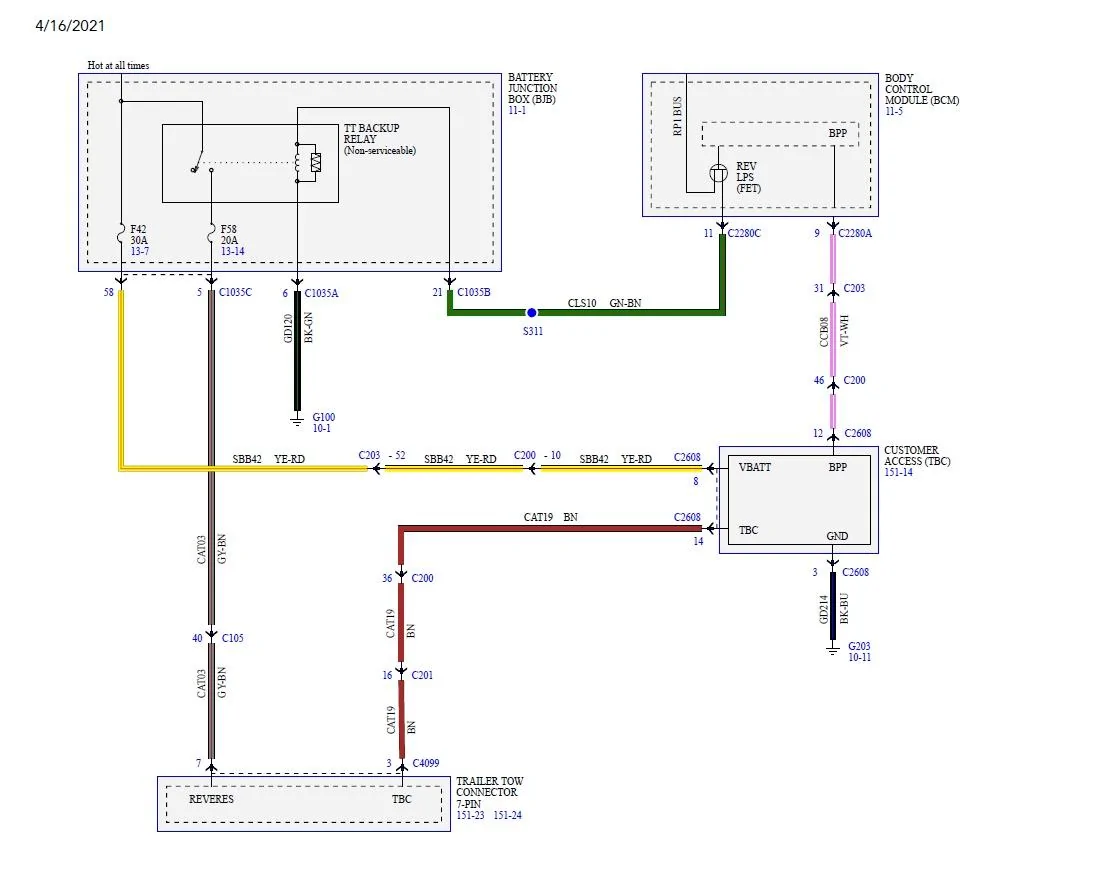

@flip, are those two 12V+ at the middle trailer tow module connector fed directly and dedicated from the fuses? do you have a diagram showing the power from fuses to connector?

Would you recommend taking power for the converter from one of the pins (and reducing the fuse to 15A up front) and then taking the other one for the constant 12V+ on the 7-pin?

At this point I'm planning:
1. Use the Curt or Tekonsha plug and play that's coming out now
2. Powering its converter from the plug you have shown (replace fuse with 15A)

Then possibly, or maybe in the future:
3. Grabbing the other circuit from your plug to use as hot 12V+ for a future 7-way (and pull the fuse if not being used)
4. Stabbing a reverse wire on the Curt PnP harness to drive a relay for future 7-way reverse (will a standard automotive relay work for this?)

The addition of reverse and 12V would allow for the future use of a wireless brake controller if necessary, no brake wire needed.


RPF

First Edition
Well-Known Member
Joined
Oct 22, 2020
Threads
0
Messages
255
Reaction score
454
Location
FL, HI
Vehicle(s)
11 Raptor 15 Q70S/5.6 19 F-450 21 Bronco FE
Your Bronco Model
First Edition
@flip, are those two 12V+ at the middle trailer tow module connector fed directly and dedicated from the fuses? do you have a diagram showing the power from fuses to connector?

Would you recommend taking power for the converter from one of the pins (and reducing the fuse to 15A up front) and then taking the other one for the constant 12V+ on the 7-pin?

At this point I'm planning:
1. Use the Curt or Tekonsha plug and play that's coming out now
2. Powering its converter from the plug you have shown (replace fuse with 15A)

Then possibly, or maybe in the future:
3. Grabbing the other circuit from your plug to use as hot 12V+ for a future 7-way (and pull the fuse if not being used)
4. Stabbing a reverse wire on the Curt PnP harness to drive a relay for future 7-way reverse (will a standard automotive relay work for this?)

The addition of reverse and 12V would allow for the future use of a wireless brake controller if necessary, no brake wire needed.
This is basically what I'm planning on doing initially. For the reverse light relay, I'd recommend using one that is diode-suppressed or soldering in a diode on your relay connector to prevent the reverse current spike from damaging the BCM. It may also be a good idea to put a relay on the battery charge line (if that line isn't already ignition switched) to keep a trailer from draining the battery.

Eventually I plan on getting the factory TRM and figuring out which wiring harnesses are necessary to get it working 100% OEM. The dealer mannequin I had for a while had the factory tow package. I downloaded all of its module data using Forscan. There is not much in the TRM and all the towing options in the IPC and BCM are available in the plaintext options screen. The Forscan 2.4 branch supports module programming should the module come in blank. My new vLinker FS USB adapter that supports all of the new programming modes including FEPS 18V just arrived so that I can do this programming. The devs recommend using wired modules instead of BlueTooth for this but BT ones can be used to do configuration and downloads. They now recommend this module over the OBDLink EX USB (and it's $12 cheaper!).


skoorb76

Base
Well-Known Member
Joined
Sep 30, 2021
Threads
4
Messages
65
Reaction score
80
Location
Michigan
Vehicle(s)
Junk
Your Bronco Model
Base
This is basically what I'm planning on doing initially. For the reverse light relay, I'd recommend using one that is diode-suppressed or soldering in a diode on your relay connector to prevent the reverse current spike from damaging the BCM. It may also be a good idea to put a relay on the battery charge line (if that line isn't already ignition switched) to keep a trailer from draining the battery.

Eventually I plan on getting the factory TRM and figuring out which wiring harnesses are necessary to get it working 100% OEM. The dealer mannequin I had for a while had the factory tow package. I downloaded all of its module data using Forscan. There is not much in the TRM and all the towing options in the IPC and BCM are available in the plaintext options screen. The Forscan 2.4 branch supports module programming should the module come in blank. My new vLinker FS USB adapter that supports all of the new programming modes including FEPS 18V just arrived so that I can do this programming. The devs recommend using wired modules instead of BlueTooth for this but BT ones can be used to do configuration and downloads. They now recommend this module over the OBDLink EX USB (and it's $12 cheaper!).
Sweet, keep us posted on that for sure. I have used Forscan to hack a few things on my 2014 Flex (adding Sync 3 APIM, making keys, some tweaky things). I have a wired ELM adapter with the MS/HS CAN switch (cheapie). Will tread lightly with the newer model for sure.
