They do? If I dont have the factory wiring what does it connect to?

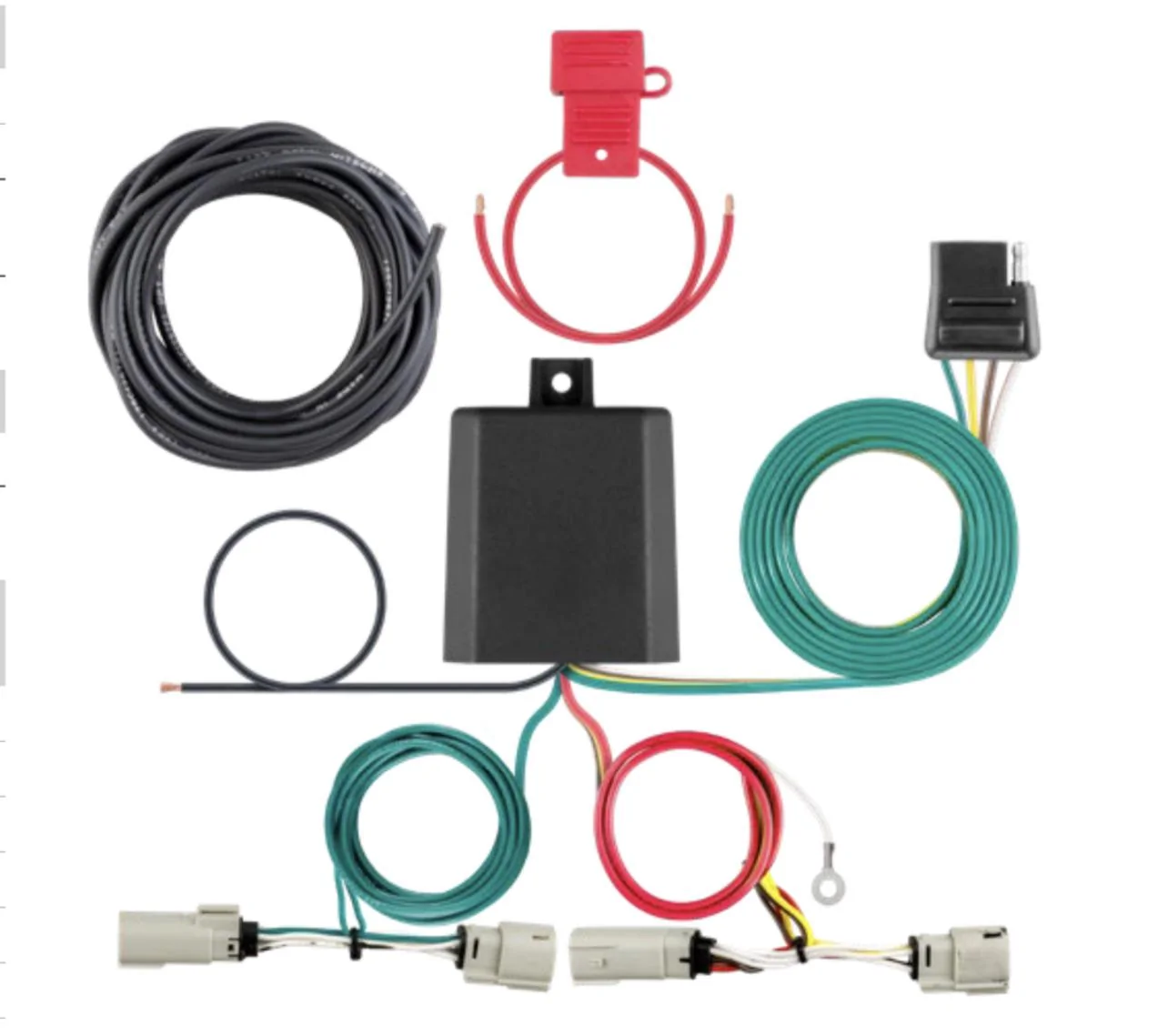

I think it comes with wiring harnesses to clip into the tail light wiring then it requires a 12v positive that runs up to the battery
https://www.curtmfg.com/part/56468

also: it’s a 4 pin so if you need a 7 pin you might be out of luck for now


Sponsored

mmorgan

Big Bend
Well-Known Member
First Name
Mark
Joined
Jul 22, 2020
Threads
5
Messages
423
Reaction score
1,004
Location
South Carolina
Vehicle(s)
GMC JImmy
Your Bronco Model
Big Bend
Clubs


Firefight911

Wildtrak
Well-Known Member
First Name
Phil
Joined
Aug 24, 2020
Threads
9
Messages
1,358
Reaction score
4,417
Location
Simpsonville, South Carolina
Vehicle(s)
2022 Ford Bronco 4-door Wildtrak, Eruption Green
Your Bronco Model
Wildtrak
Clubs


P52Ranch

Badlands
Well-Known Member
First Name
Bryan
Joined
Oct 24, 2020
Threads
20
Messages
1,152
Reaction score
3,063
Location
Oklahoma
Vehicle(s)
2DR 7MT Badlands, F150 Lightning, New Holland 4030
Your Bronco Model
Badlands
I wonder if the Curt wiring harness works the same for the regular taillights and the LED taillights? I would have concerns on the LED taillights and that harness.

OP
OP
Clean68

Clean68

First Edition
Well-Known Member
First Name
Michael
Joined
Aug 6, 2020
Threads
14
Messages
67
Reaction score
70
Location
California
Vehicle(s)
1968 Ford Bronco, 2008 Triumph Thuxton
Your Bronco Model
First Edition
I think it comes with wiring harnesses to clip into the tail light wiring then it requires a 12v positive that runs up to the battery
https://www.curtmfg.com/part/56468

also: it’s a 4 pin so if you need a 7 pin you might be out of luck for now

Not having trailer brakes might be an issue. I’ll be doing mountain roads. Does the ford 7pin work if installed after the build?


Sponsored
OP
OP
Clean68

Clean68

First Edition
Well-Known Member
First Name
Michael
Joined
Aug 6, 2020
Threads
14
Messages
67
Reaction score
70
Location
California
Vehicle(s)
1968 Ford Bronco, 2008 Triumph Thuxton
Your Bronco Model
First Edition
Do any of you know if I need a drop down hitch? With the Sasquatch package? Also I should have no issue with a 6x12 trailer right? I’ll be towing a uhaul trailer.

Ordered the hitch from summit racing for $111 free shipping and the wiring from e trailer. All in for everything was only $200

Lastly, think this can be wired to work?
Tekonsha Prodigy RF wireless brake controller
https://www.google.com/search?q=Tek...troller&ie=UTF-8&oe=UTF-8&hl=en&client=safari

Last edited:

skoorb76

Base
Well-Known Member
Joined
Sep 30, 2021
Threads
4
Messages
65
Reaction score
80
Location
Michigan
Vehicle(s)
Junk
Your Bronco Model
Base
Do any of you know if I need a drop down hitch? With the Sasquatch package? Also I should have no issue with a 6x12 trailer right? I’ll be towing a uhaul trailer.

Ordered the hitch from summit racing for $111 free shipping and the wiring from e trailer. All in for everything was only $200

Lastly, think this can be wired to work?
Tekonsha Prodigy RF wireless brake controller
https://www.google.com/search?q=Tek...troller&ie=UTF-8&oe=UTF-8&hl=en&client=safari
My understanding with those is that the only extra wire you should need is the constant hot to feed into the wireless controller.

I think if you start with the 4-pin plug and play, there is a 4-way to 7-way converter cable that plugs into the 4-way with an extra pigtail to add the brake signal, constant hot, and reverse. just need the constant hot if you can get away with no reverse on the trailer. then that plug into the wireless controller. This is what I would plan to do if I needed brakes... I don't at the moment and haven't done this, but have looked into it. https://www.etrailer.com/question-274209.html

Constant hot should be easy, but reverse seems elusive.


UberGadgetFreak

First Edition
Well-Known Member
First Name
Joe
Joined
Apr 13, 2021
Threads
8
Messages
322
Reaction score
723
Location
Mt. Holly, NC
Vehicle(s)
21 FE Bronco 22 FE Mav, 23 Mav Tremor, 03 Marauder
Your Bronco Model
First Edition
Revisiting this thread since I just installed mine.
Ford Tow hitch, but used the Curt kit. Modified to use the Ford 4-way so it mounts to the hitch like it should.

However, in the Curt instructions, it doesn't say to actually connect the black power wire in the steps (1-10):
56468_INS.pdf (curtmfg.com)

But it is shown on the last page. Does this need to be wired up? Mine isn't wired up yet and it seems to work fine.

OP
OP
Clean68

Clean68

First Edition
Well-Known Member
First Name
Michael
Joined
Aug 6, 2020
Threads
14
Messages
67
Reaction score
70
Location
California
Vehicle(s)
1968 Ford Bronco, 2008 Triumph Thuxton
Your Bronco Model
First Edition
I got the same system, installed 2 days ago. I called and they said it must be installed.


Revisiting this thread since I just installed mine.
Ford Tow hitch, but used the Curt kit. Modified to use the Ford 4-way so it mounts to the hitch like it should.

However, in the Curt instructions, it doesn't say to actually connect the black power wire in the steps (1-10):
56468_INS.pdf (curtmfg.com)

But it is shown on the last page. Does this need to be wired up? Mine isn't wired up yet and it seems to work fine.


dgorsett

Big Bend
Well-Known Member
Joined
Apr 3, 2019
Threads
24
Messages
3,877
Reaction score
7,793
Location
colorado
Vehicle(s)
F250, Mustang, Explorer
Your Bronco Model
Big Bend
Clubs

Revisiting this thread since I just installed mine.
Ford Tow hitch, but used the Curt kit. Modified to use the Ford 4-way so it mounts to the hitch like it should.

However, in the Curt instructions, it doesn't say to actually connect the black power wire in the steps (1-10):
56468_INS.pdf (curtmfg.com)

But it is shown on the last page. Does this need to be wired up? Mine isn't wired up yet and it seems to work fine.
Interesting...keep us posted...maybe just with the LED's? I've got the Curt kit and it would be awesome not to have to bring 12v
