Updated 7/20: @PREMiERdrum's MIC top exhibiting further issues:

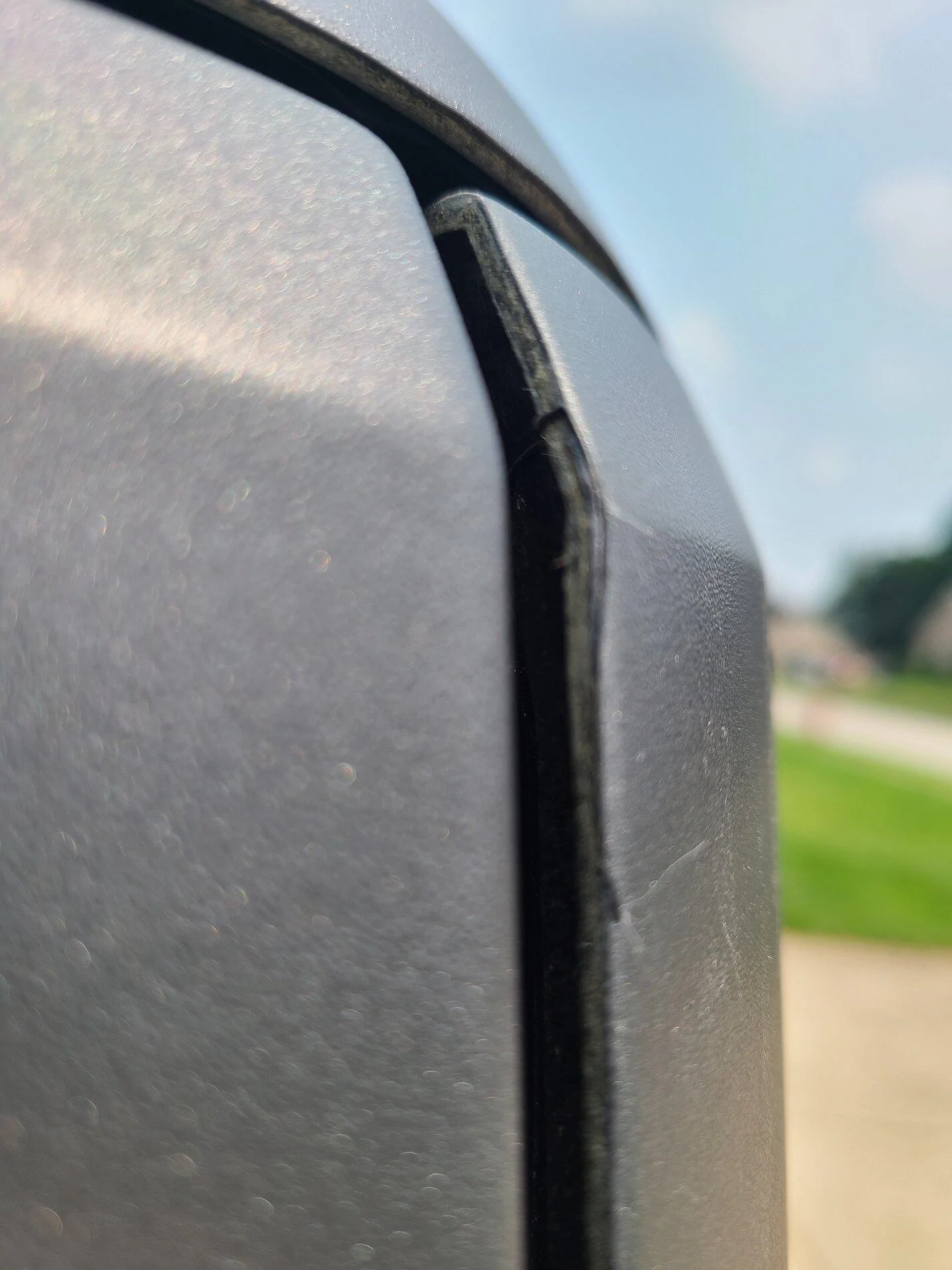

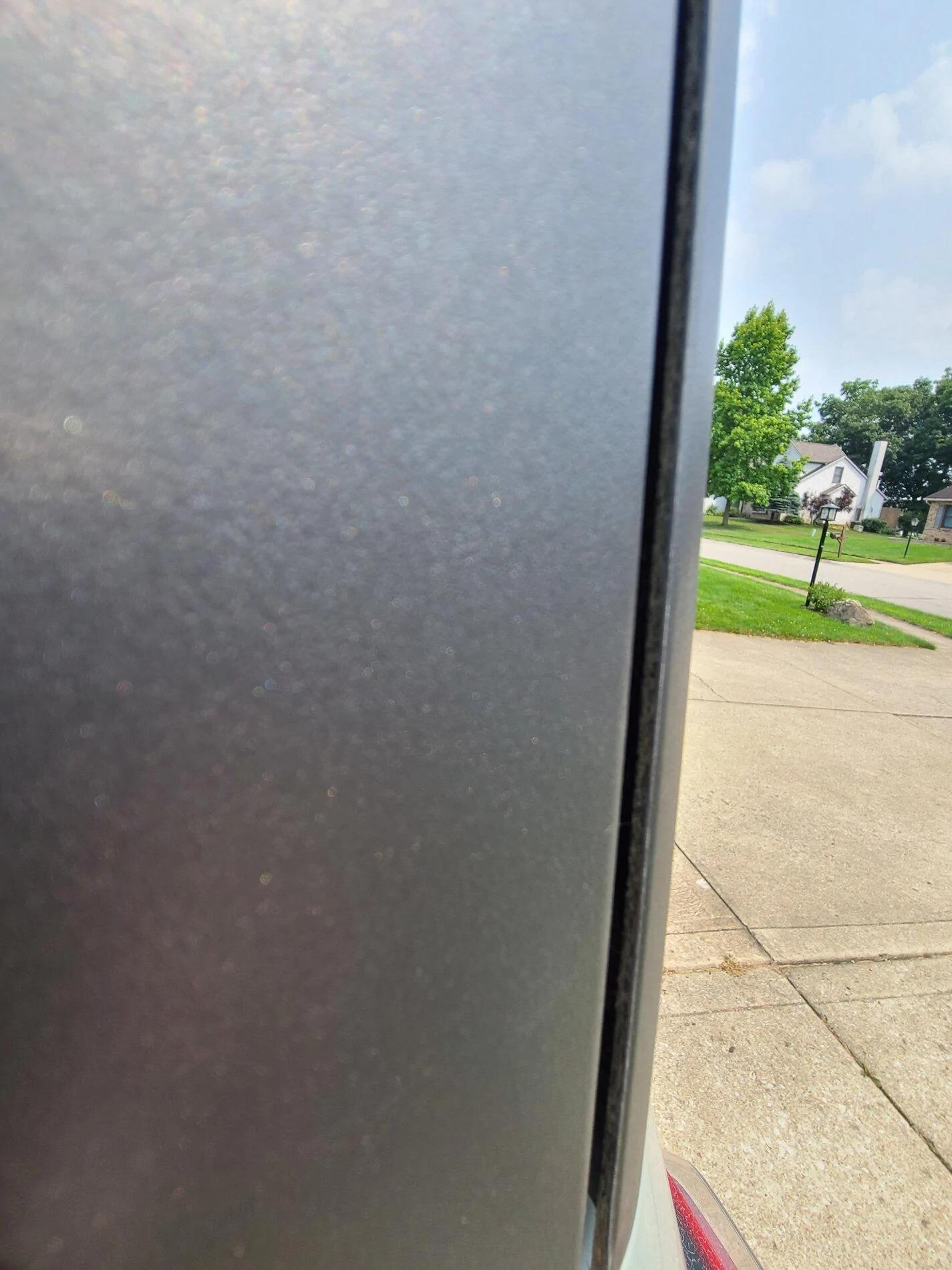

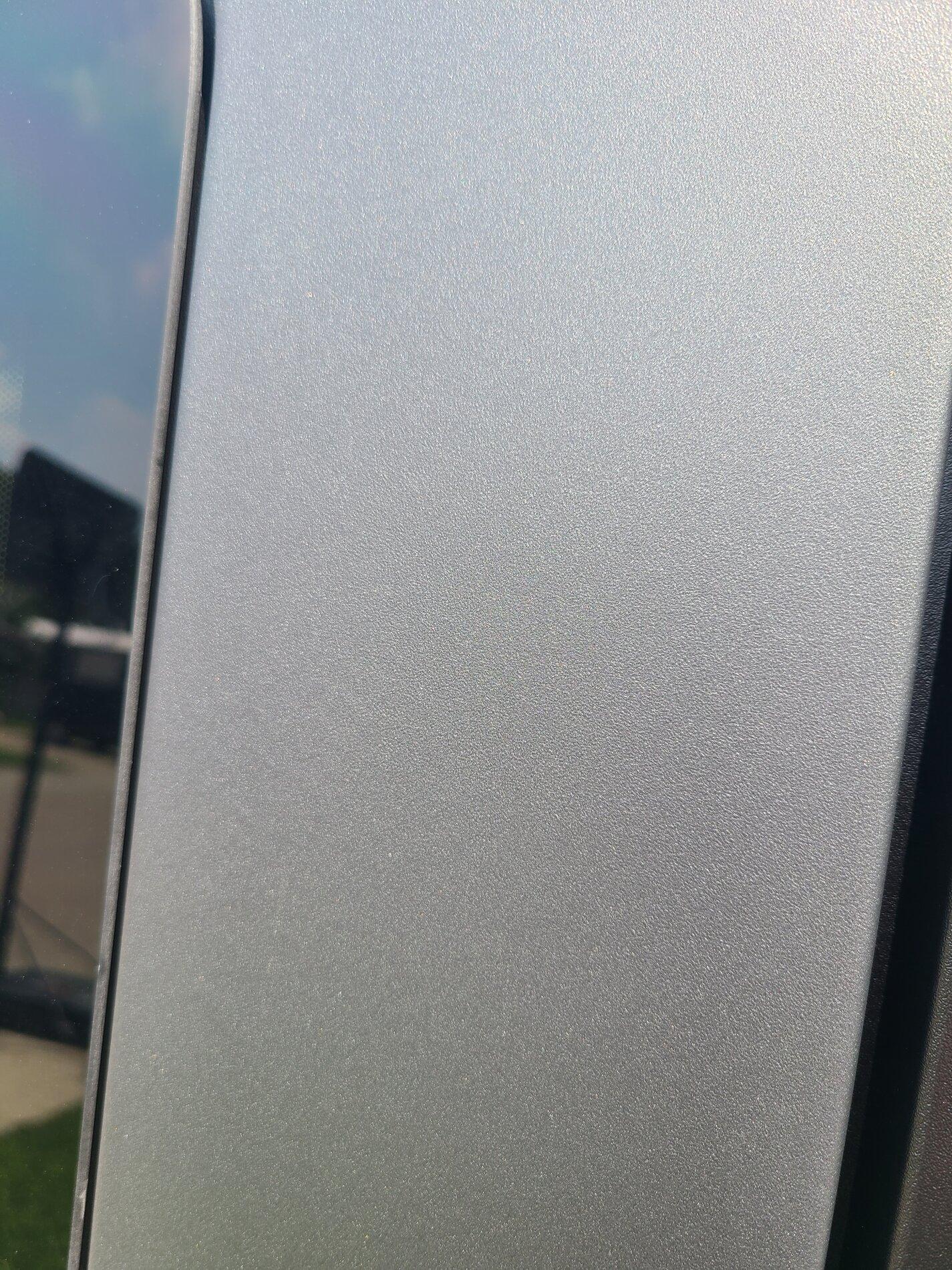

The gift that keeps on giving. New today I have the "snakeskin" texture on both sides of my clamshell and signs of delamination all the way down the drivers side rear clamshell seam. There is also a dark rubberized vinyl streak that has obviously peeled off from somewhere clinging to the top of the raw edge, I'm wondering if this is the material they used to cover those edges to look properly finished?

My MIC roof hasn't been waxed or treated with any product in the 3 weeks since delivery.

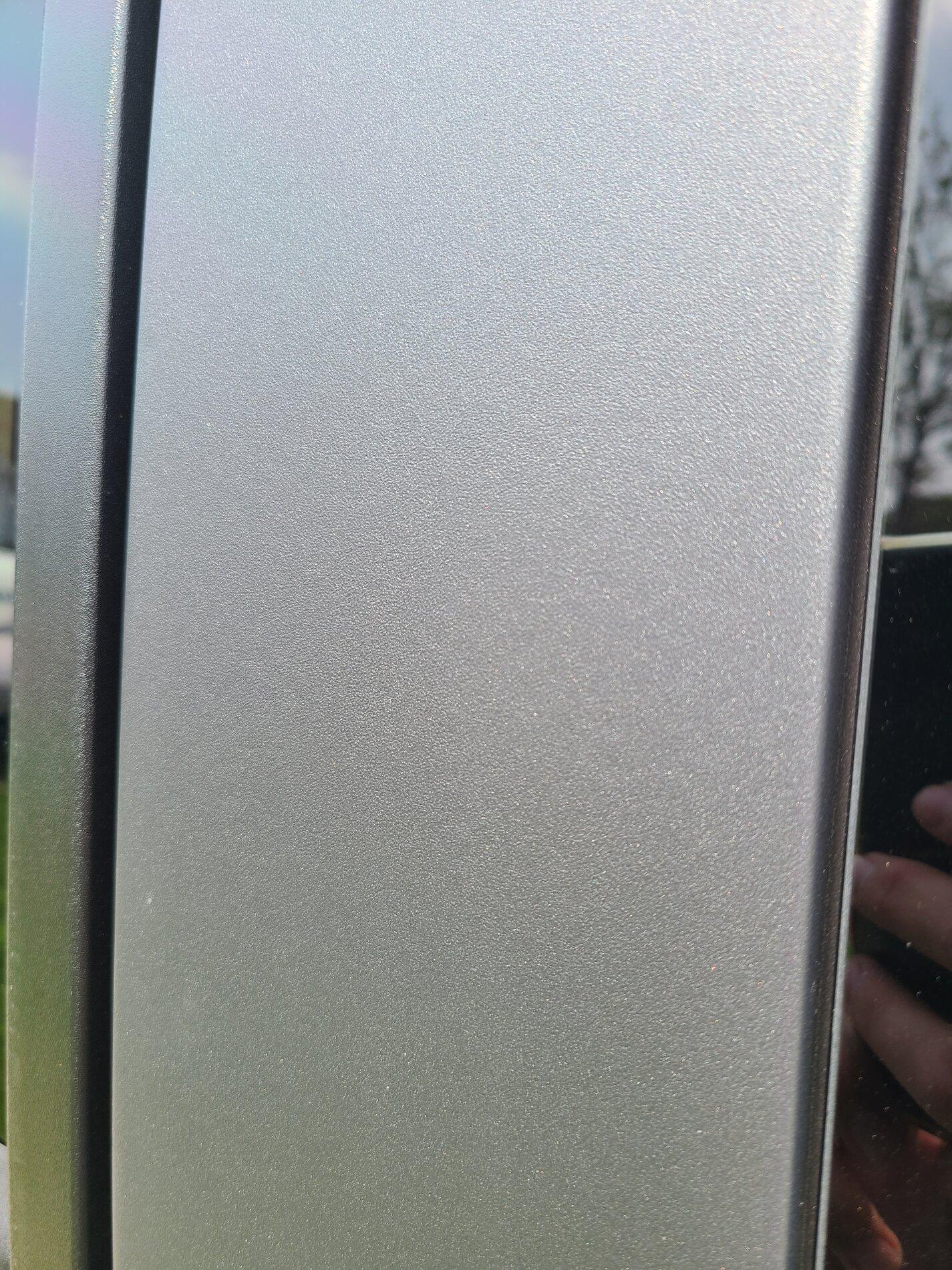

The snakeskin texture is difficult to photograph but is quite obvious to the eye. It cannot be felt, only seen.
















Updated 7/19: @PREMiERdrum now also reporting issues with his MIC hardtop:

Mine was delivered 3 weeks ago tomorrow with no visible problems. Even the "raw" (non-rolled) edges were uniform in color and texture and the headliner fit was great.

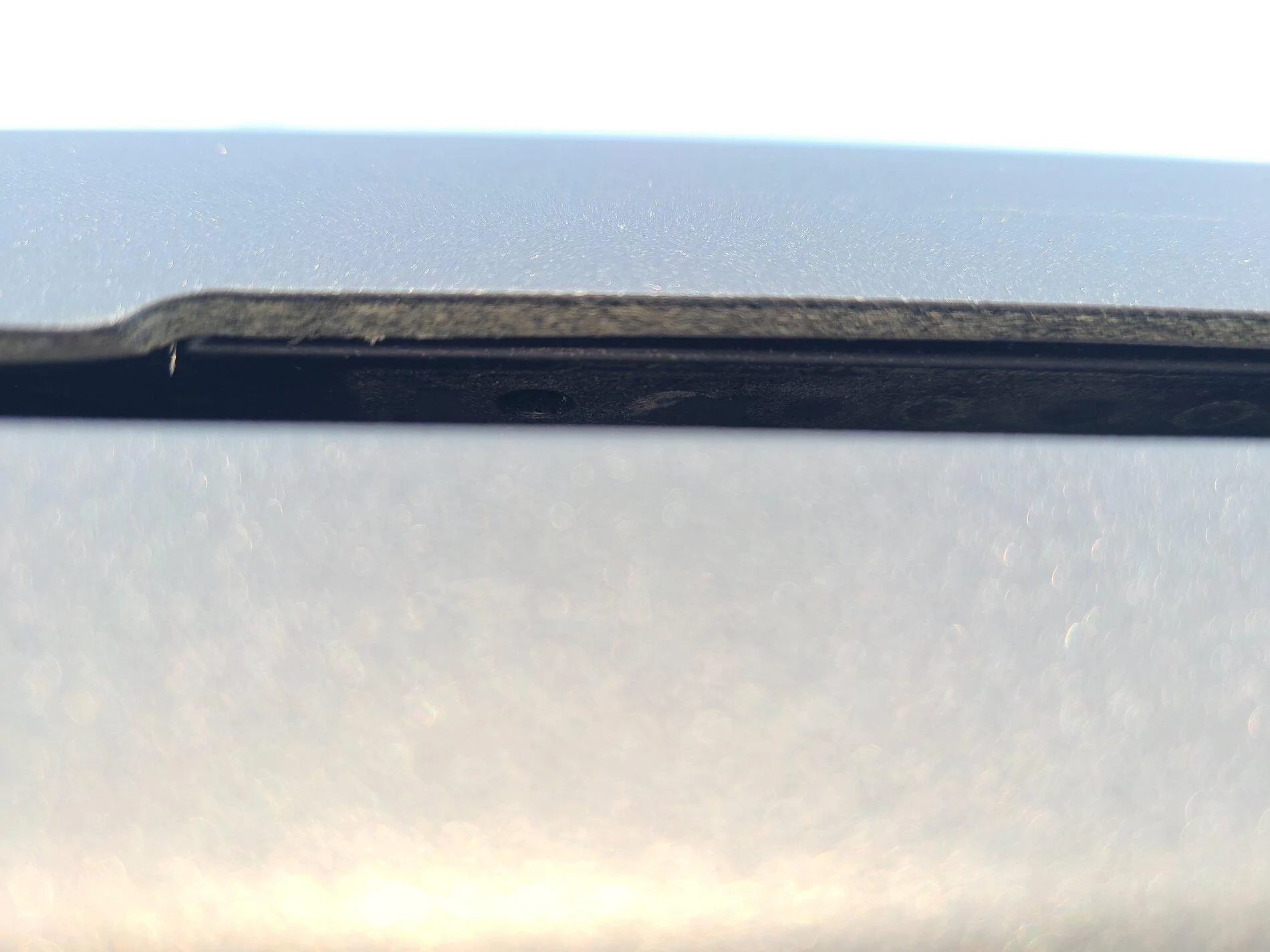

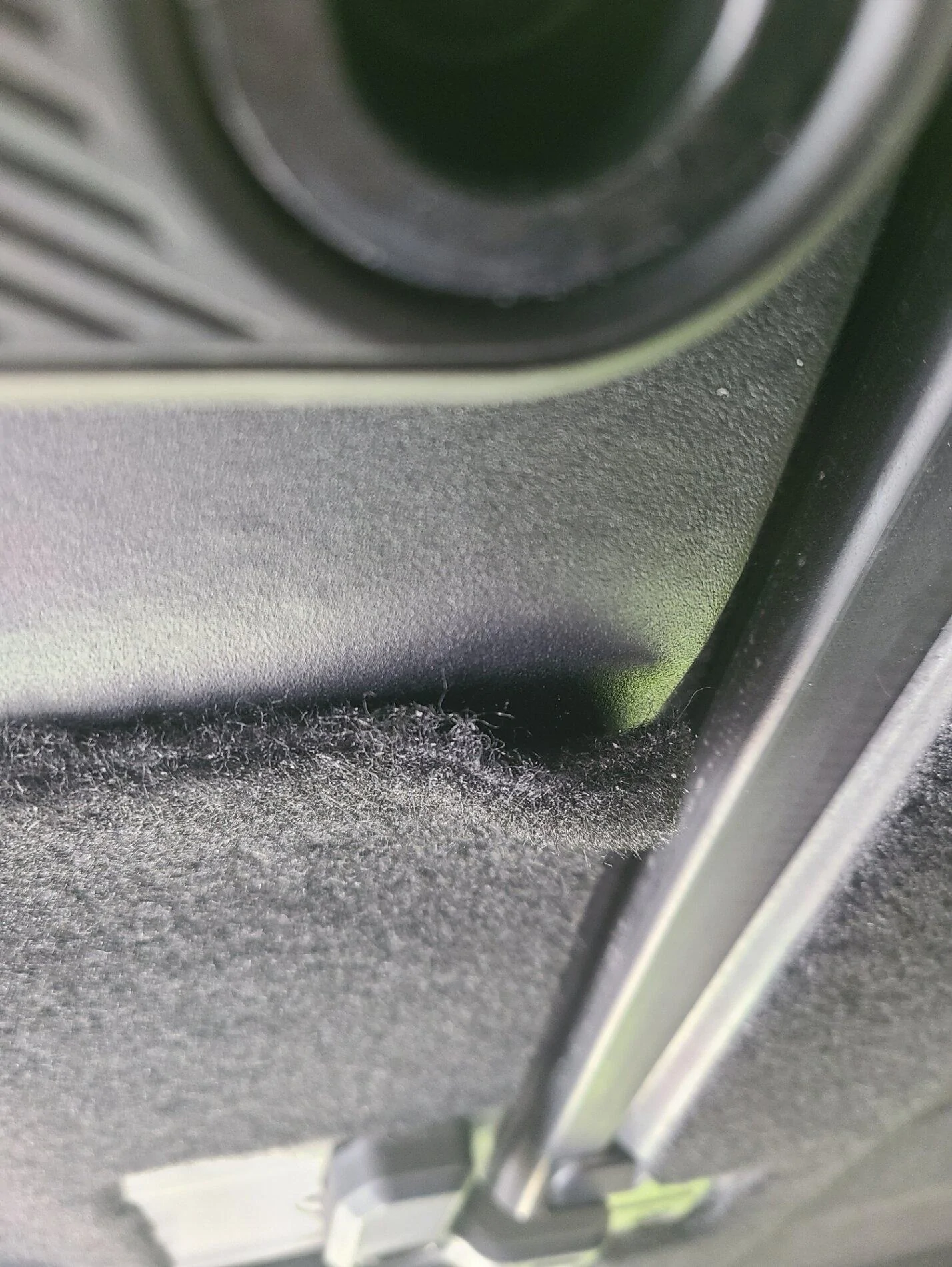

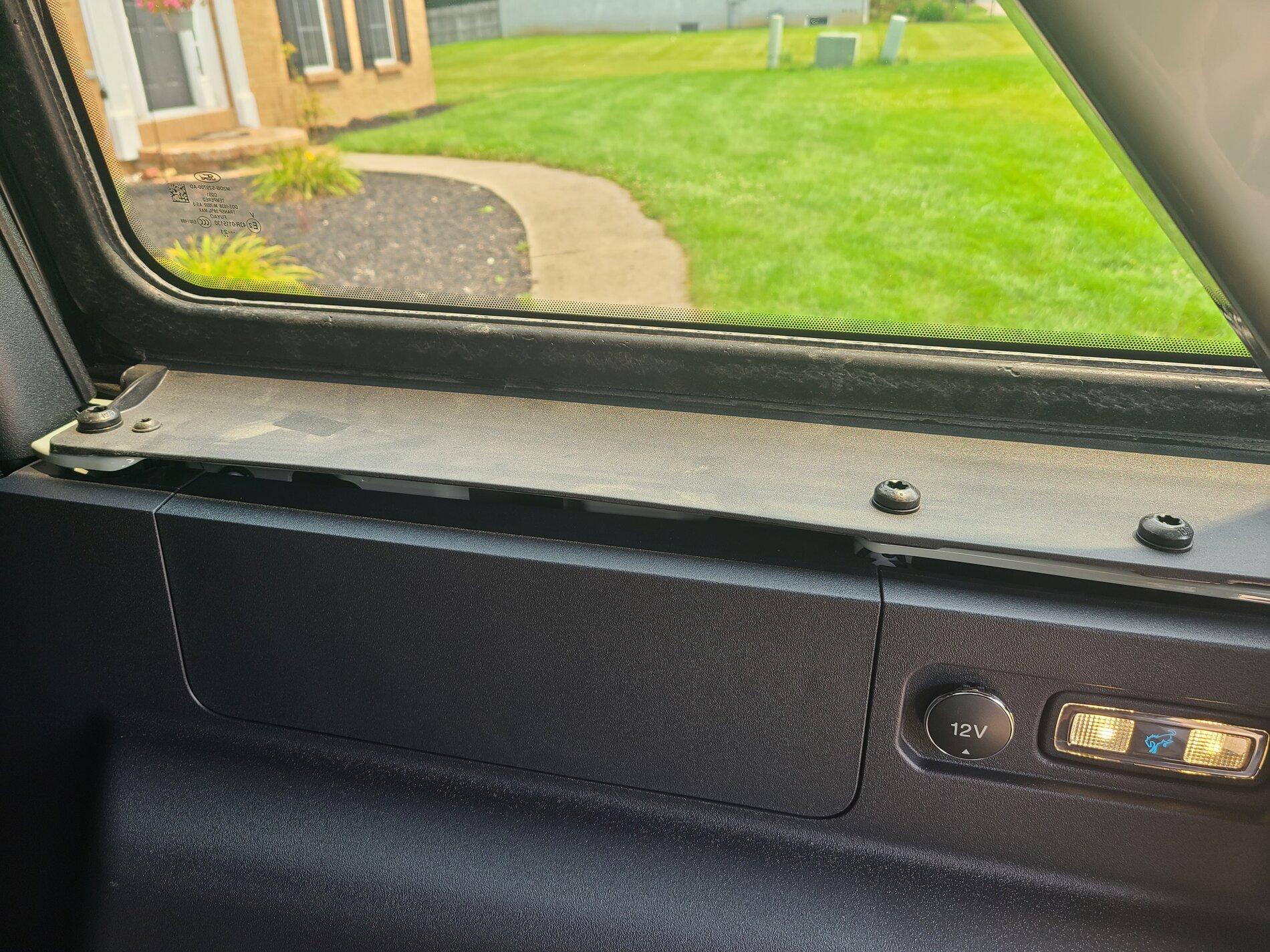

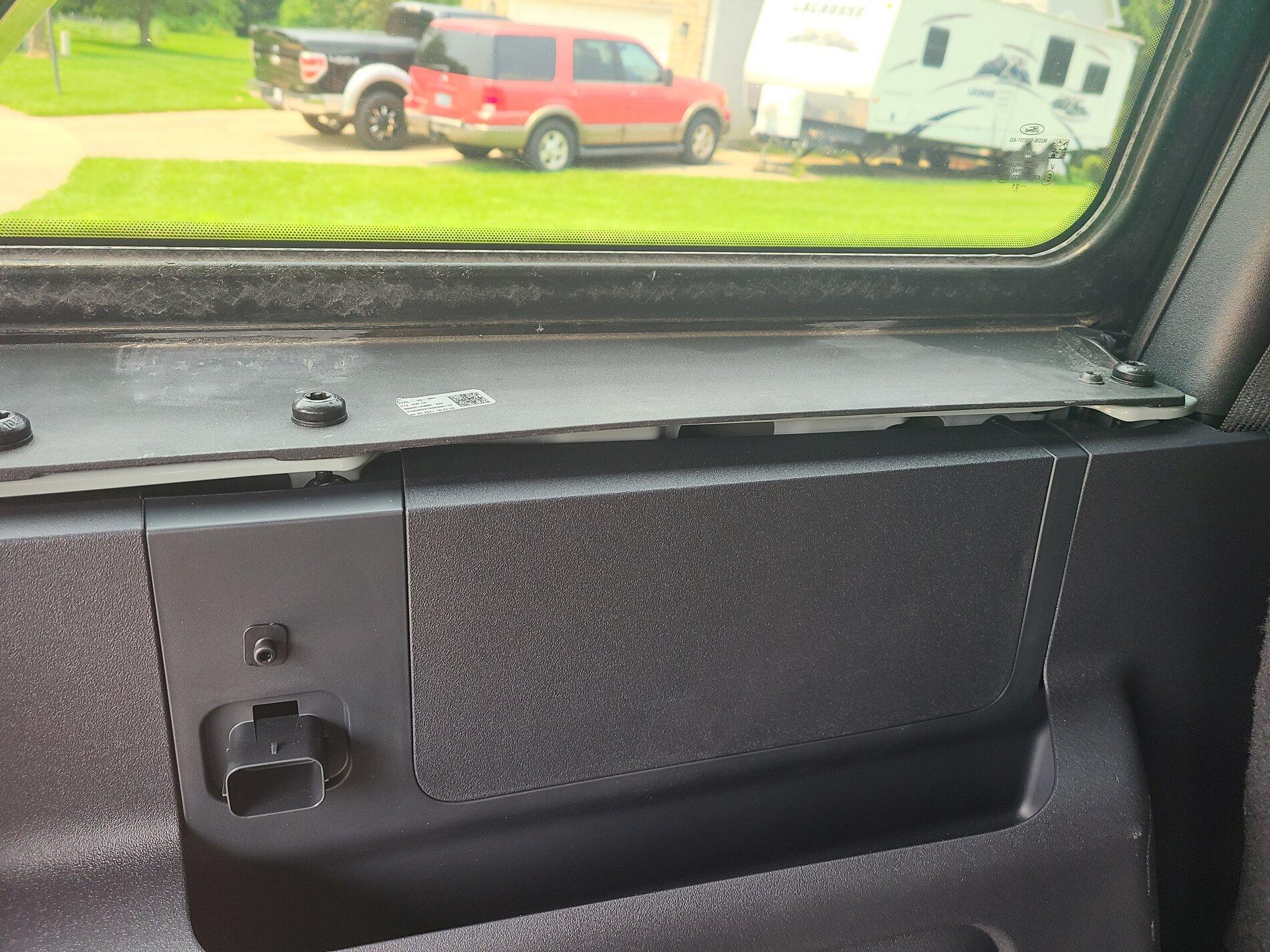

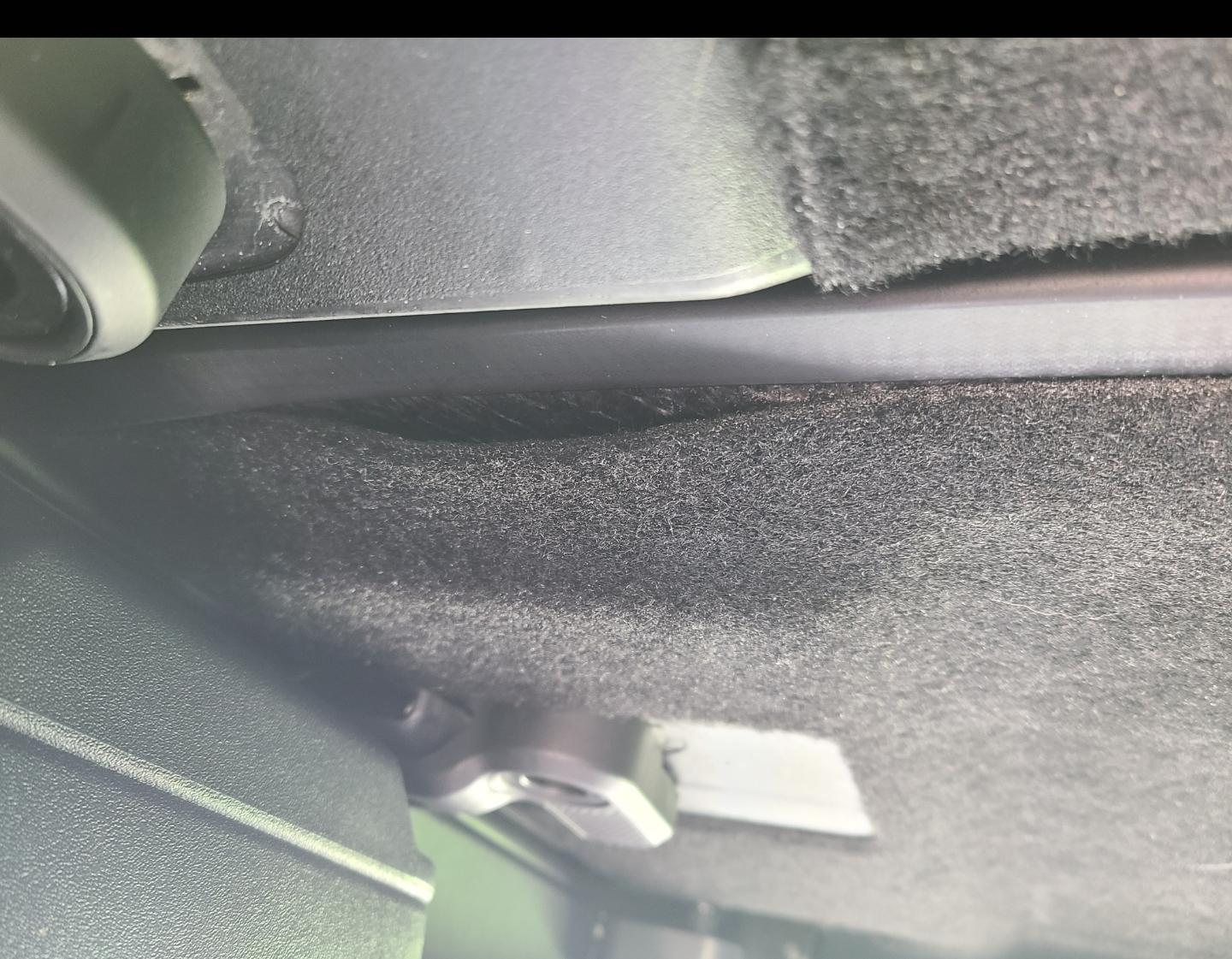

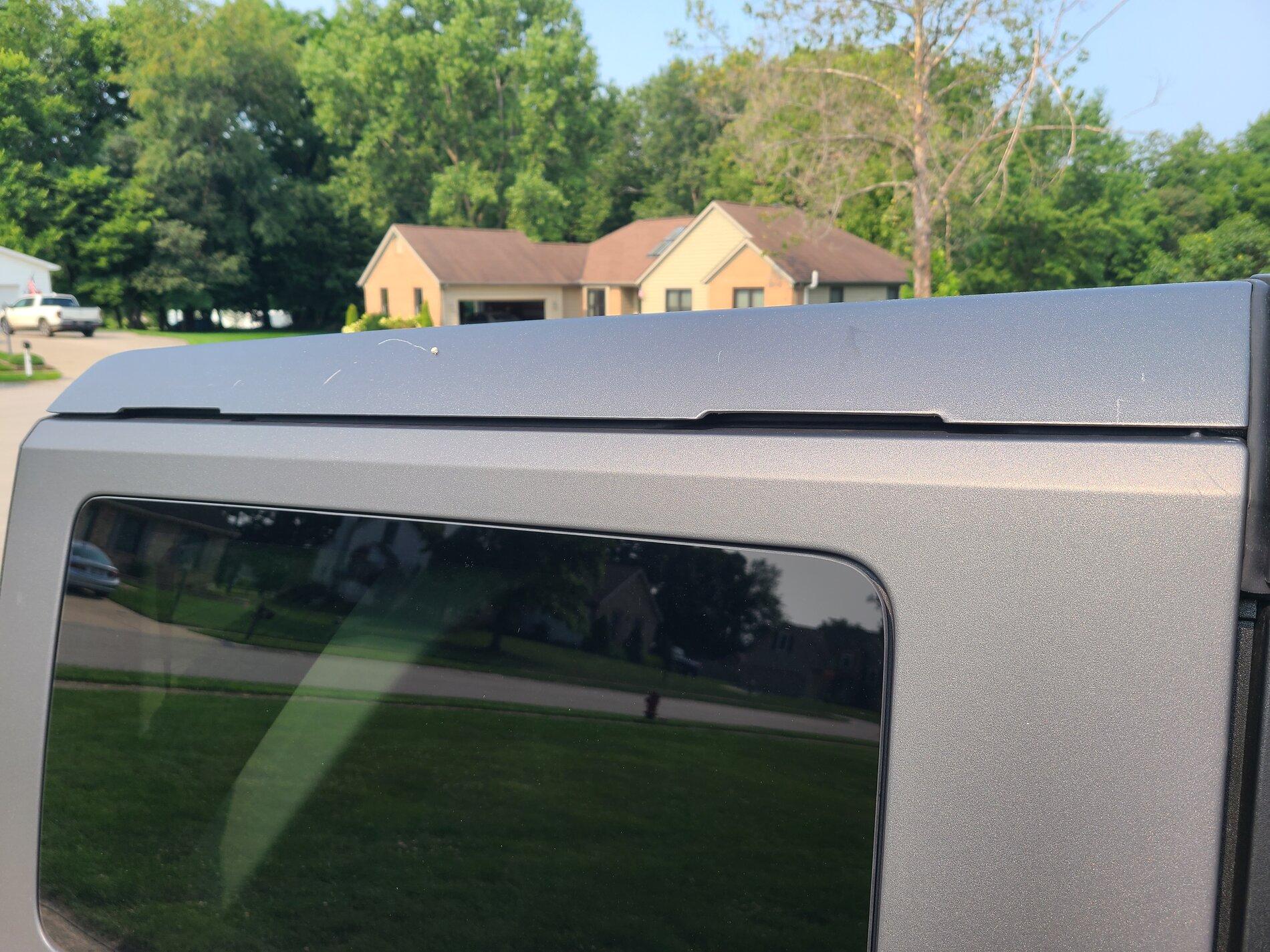

As of today, we have the headliner separating from the roof panels in two spots, raw edges fading to light gray / white with small cavities visible from obvious material loss, the clamshell reveal line flexing to uneven width across the passenger side rear quarter, and warping / flexing around the roof mounting bolts in the cargo area.

If this much can happen on these things in 3 weeks, I anticipate a rough few months ahead for those of us with early MIC builds. They just weren't ready for prime time.




















Updated 7/18 with more info from @PREMiERdrum:

The first of many we'll see of these. It's becoming apparent that many tops were delivered that had their outer laminate layer cast too thin. Commodity intake procedures weren't able to tell because they looked fine. This - along with other laminating issues - are what spurred the additional inspections that held so many units over the last 2 weeks.

FWIW my roof is still 100% fine, and I'm realizing just how lucky I havr been with this build.

A bit more info: Issues with thickness uniformity of the 3 layers is what's behind the lamination issues (and these unsightly "thin" spots). There isn't an easy fix at this point.

Watch this space.




Original post:

I haven't seen any mention or photos of this phenomenon yet. Just today I noticed a honeycomb or snakeskin like pattern starting to appear on most of the rear shell.

Anyone else also experience this? Is it UV related? Reaction with Meguiars Hybrid Ceramic Wax? Something internal? 🤔

You can't feel the texture, it's strictly visual.

Interested in hearing some theories...


2021 Bronco MIC top issue - honeycomb or snakeskin pattern developing 2.jpg


2021 Bronco MIC top issue - honeycomb or snakeskin pattern developing 1.jpg





Advertisement


Last edited by a moderator:

CO-Bronco

Badlands
Well-Known Member
First Name
Pat
Joined
Jul 9, 2021
Messages
206
Reaction score
240
Location
Sarnia
Vehicle(s)
4dr/COBadlands/MIC/7spd/Tow
Clubs

Noooooo. This is TERRIBLE.
If this is occuring AFTER a thorough QC then what's to say it won't plaque all the MICs what I'm the wild sooner or later!?

If this is wide spread RIP to the production of any MICs. Softtops only until they can get their sh*t together.

giphy (4).gif


Tricky Dick

Badlands
Well-Known Member
Joined
Apr 12, 2021
Messages
1,216
Reaction score
3,775
Location
PNW
Vehicle(s)
Bronco
OP
OP
DETT

DETT

Wildtrak
Well-Known Member
First Name
Steve
Joined
Jul 17, 2020
Messages
328
Reaction score
1,482
Location
Michigan
Vehicle(s)
2018 F-150
Clubs

Did you notice immediately after applying the ceramic wax?
I applied the wax almost exactly 24 hours ago. Didn't notice anything this morning. Went to get pick up the kid and get groceries. Were out maybe 3 hours total. I just noticed when we returned and unpacked.


Lazerus

Well-Known Member
First Name
Sean
Joined
Jul 1, 2021
Messages
52
Reaction score
258
Location
Las Vegas, NV
Vehicle(s)
Wrangler JL. Land Rover Discovery Sport
You should not be seeing that. Was it like that when received and maybe you didn't notice? Or is it just starting to 'wear through' ? Either way, you should not be seeing the internal structure...

OP
OP
DETT

DETT

Wildtrak
Well-Known Member
First Name
Steve
Joined
Jul 17, 2020
Messages
328
Reaction score
1,482
Location
Michigan
Vehicle(s)
2018 F-150
Clubs

You should not be seeing that. Was it like that when received and maybe you didn't notice? Or is it just starting to 'wear through' ? Either way, you should not be seeing the internal structure...
Definitely was not there or not at all noticable. It's pretty obvious in person now. Looks prematurely UV aged
