Updated 4/26/23 with latest photos:













START OF JOURNAL

So long term I'll be putting a lift, bigger tires, wider wheels, bumpers, winch and various other goodies ad nauseum on here but here are a couple of early on cheapie goodies to start!

Ford Bronco Valhalla's Long term build thread image (1)
Sponsored


OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

First thing I did was to find a place to put my 60" high lift, it's just to big for inside and in a roll situation you don't want this floating around in your personal space.
I bought this off of Ebay because this kind of stuff in my opinion does not need to be from a premium supplier.

https://www.ebay.com/itm/266026589813

This is a picture after install
Ford Bronco Valhalla's Long term build thread 20230129_102718
II This is a bottom foot with adjustable knob for quick access
Ford Bronco Valhalla's Long term build thread 20230129_102731
The top bar closes around the jack and uses the knob to secure it there were two rubber mounts inside to squeeze the jack but there was no way it was closing around it. I removed one side and it fits fine. There is a hole for a padlock under the knob for security.
Ford Bronco Valhalla's Long term build thread 20230129_102735

It actually has a place for you to remove and store the handle I opted to leave mine on. Side note it won't accommodate a handle isolator. I used the extra rubber I removed to wedge in the handle to reduce rattle.
Ford Bronco Valhalla's Long term build thread 20230129_102741
This is it mounted on the jack holder (https://hi-lift.com/hi-lift-jacks/x-treme/)
Ford Bronco Valhalla's Long term build thread 20230129_103332

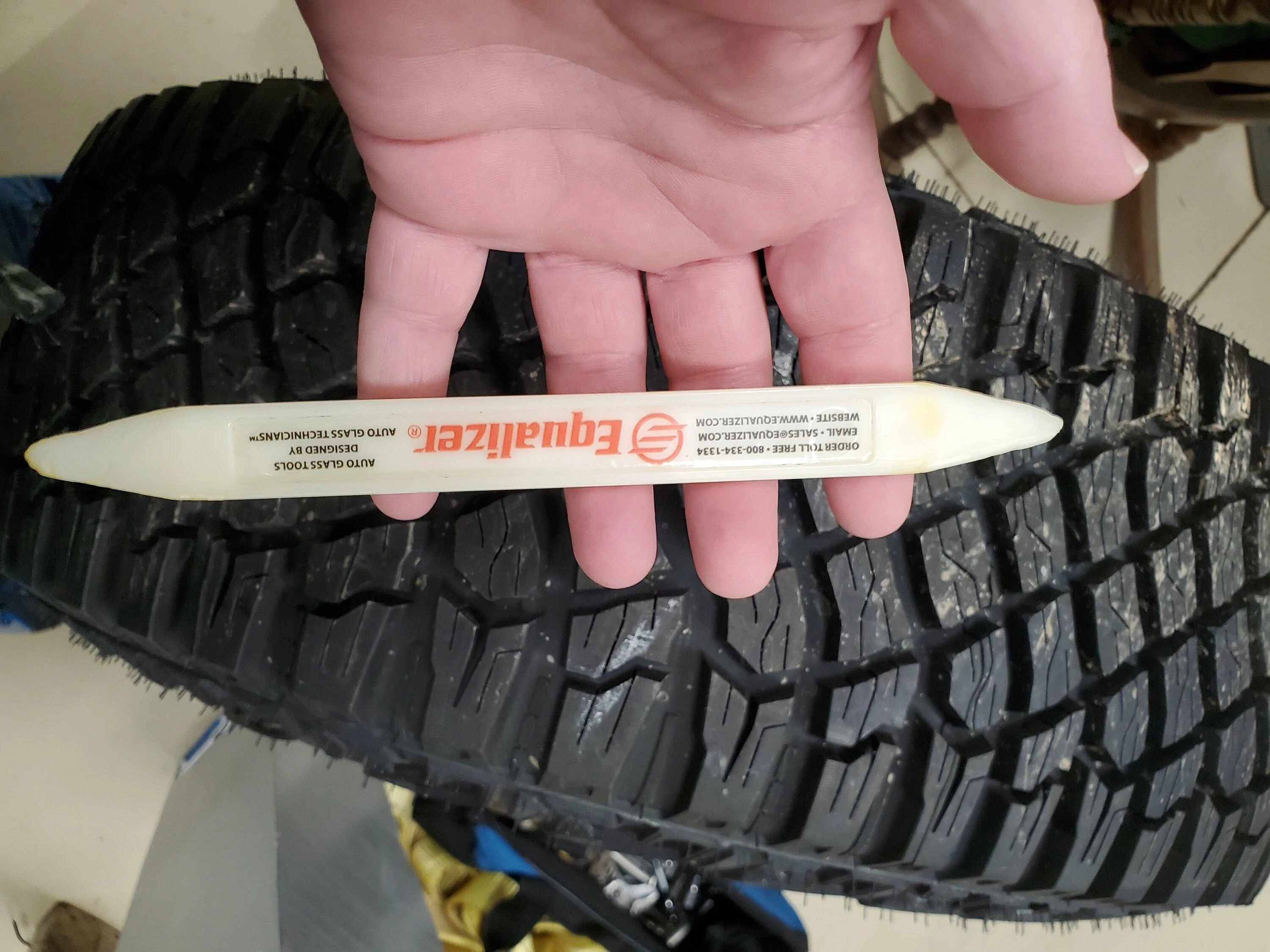

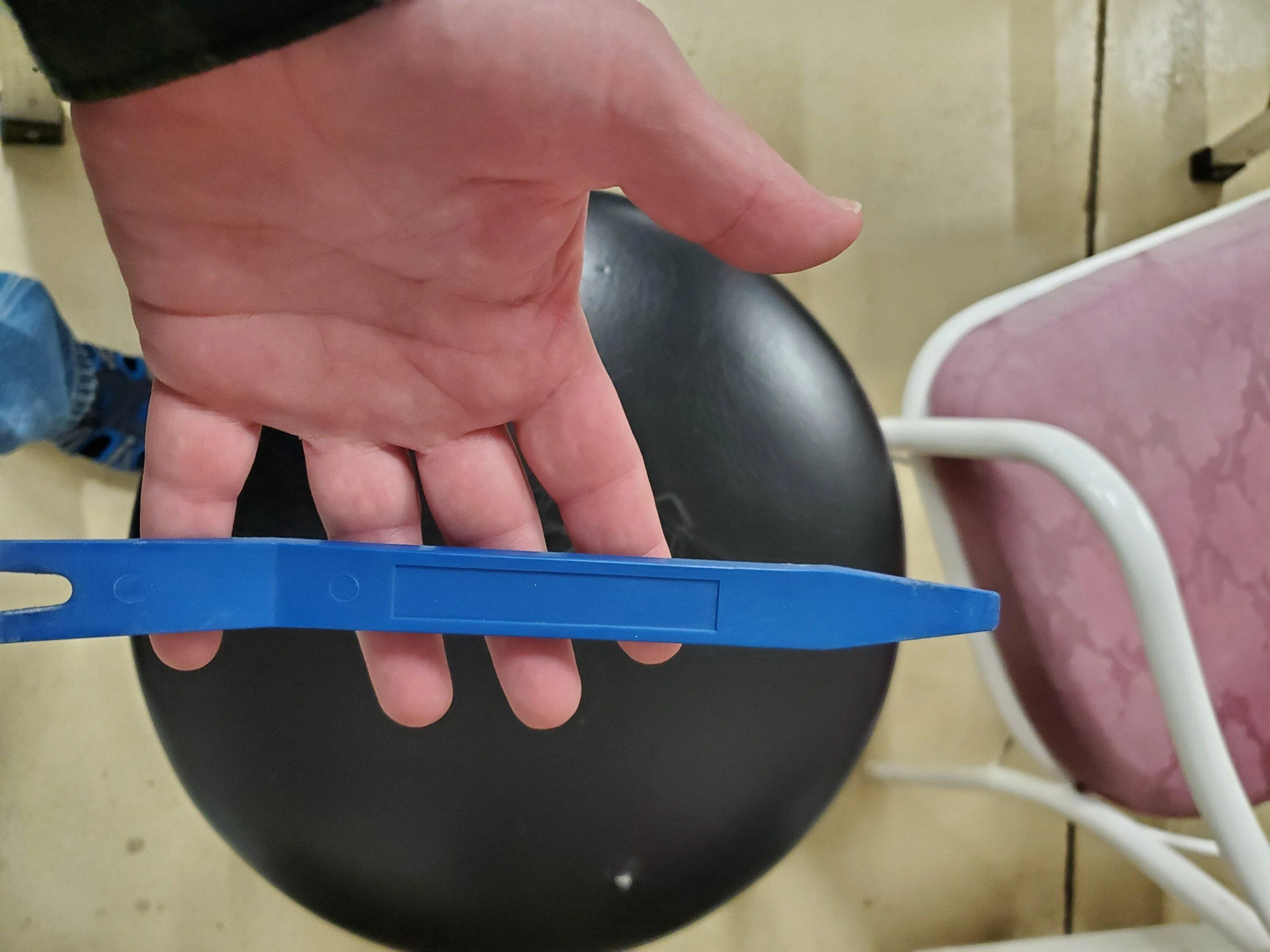

This is a glass fitment tool, I used it to make sure i was back to where i needed to be on gate fitment. if you don't have a fitment tool you could use a body trim removal tool as a gauge.
Ford Bronco Valhalla's Long term build thread 20230129_132200


Ford Bronco Valhalla's Long term build thread 20230129_103429


Ford Bronco Valhalla's Long term build thread 20230129_132218

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

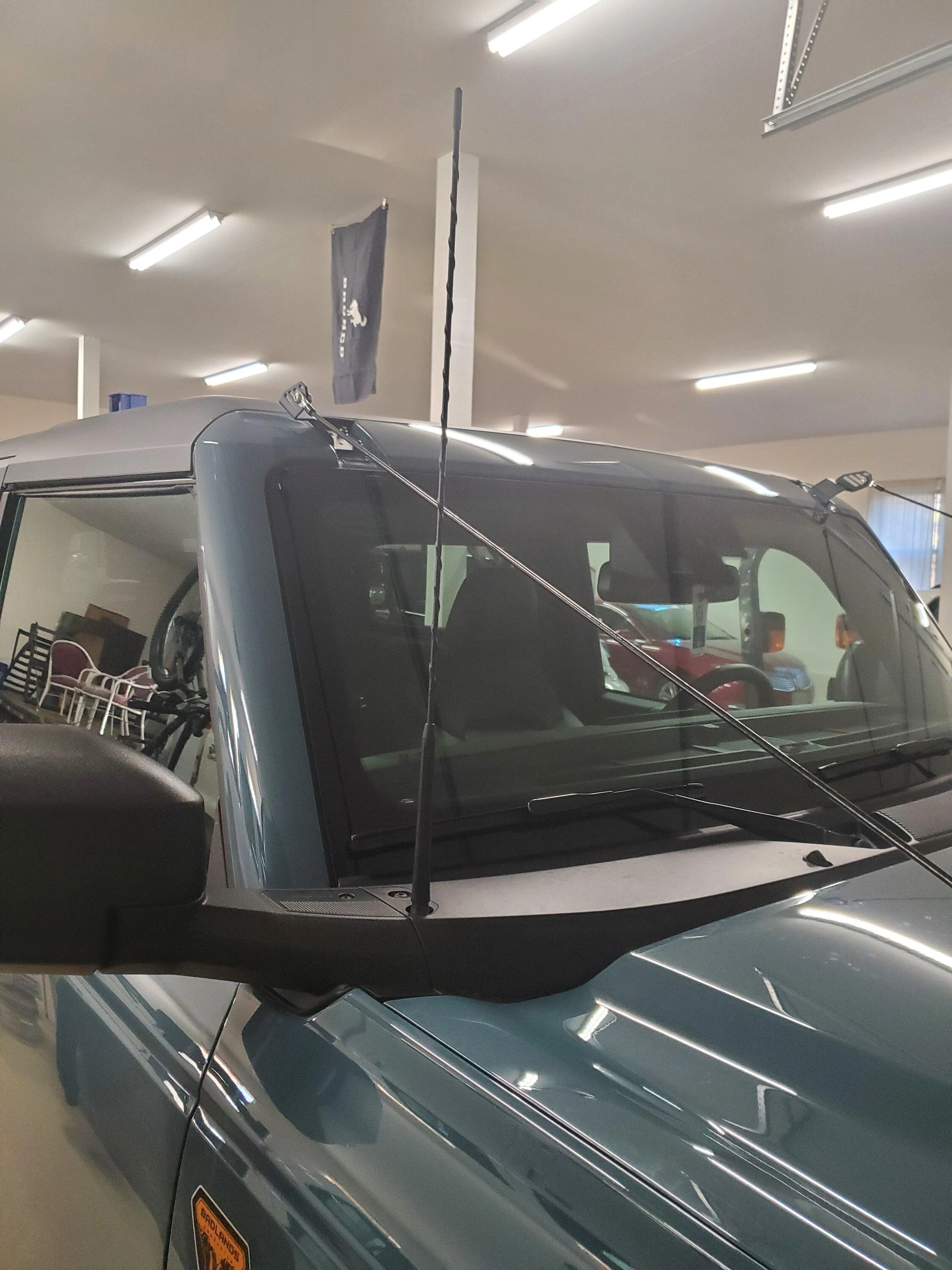

Next I installed some limb risers I found on Ebay to keep the visibility higher when the trees and bushes overhang in the trail.

https://www.ebay.com/itm/385252564911

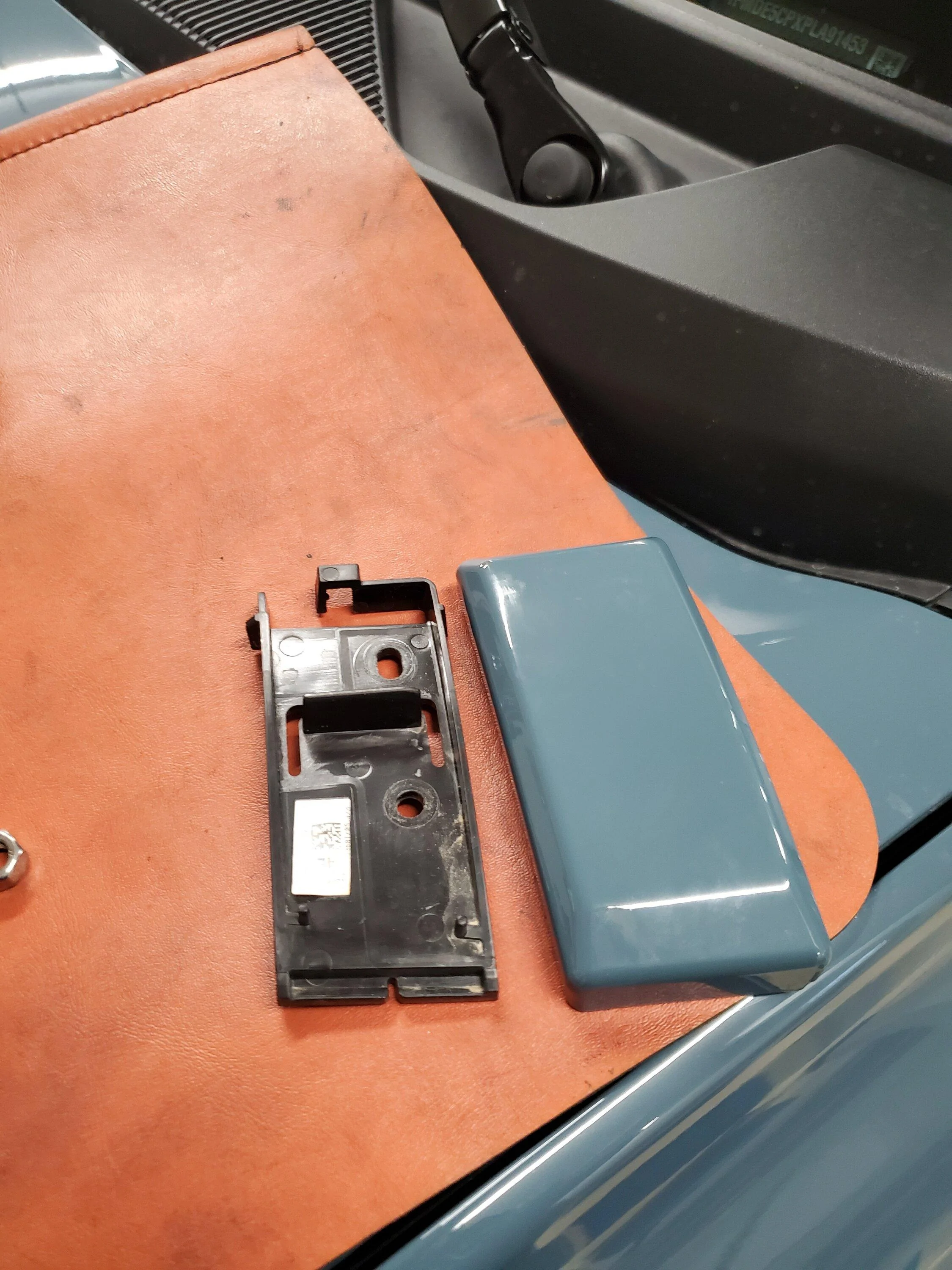

If you didn't know the new bronco comes equipped with a windshield accessory mount. the black piece is the mount for the trim piece. on the top of the trim piece you can squeeze in on this to remove the trim. Once removed two 10mm nuts hold the bracket on. Remove and discard the trim and bracket, retaining stock mounting hardware.
Ford Bronco Valhalla's Long term build thread 20230129_104246

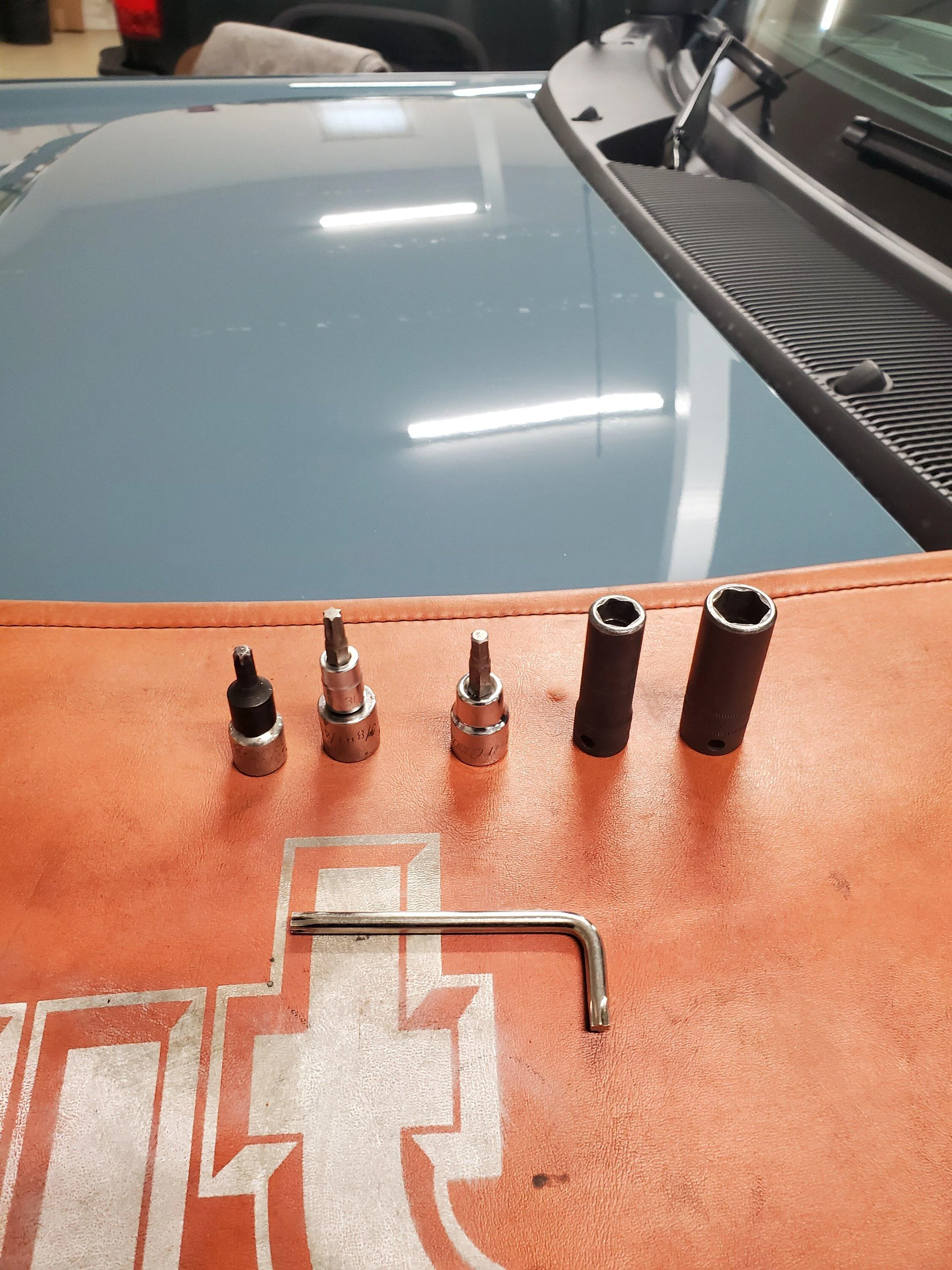

I used two #30 torx a 5 mm allen a 10 mm and 13 mm socket. They supply a 30 torx but I used my own tools instead. Not pictured i also used a 10mm box end wrench and a straight pick for the adjuster.
Ford Bronco Valhalla's Long term build thread 20230129_104256

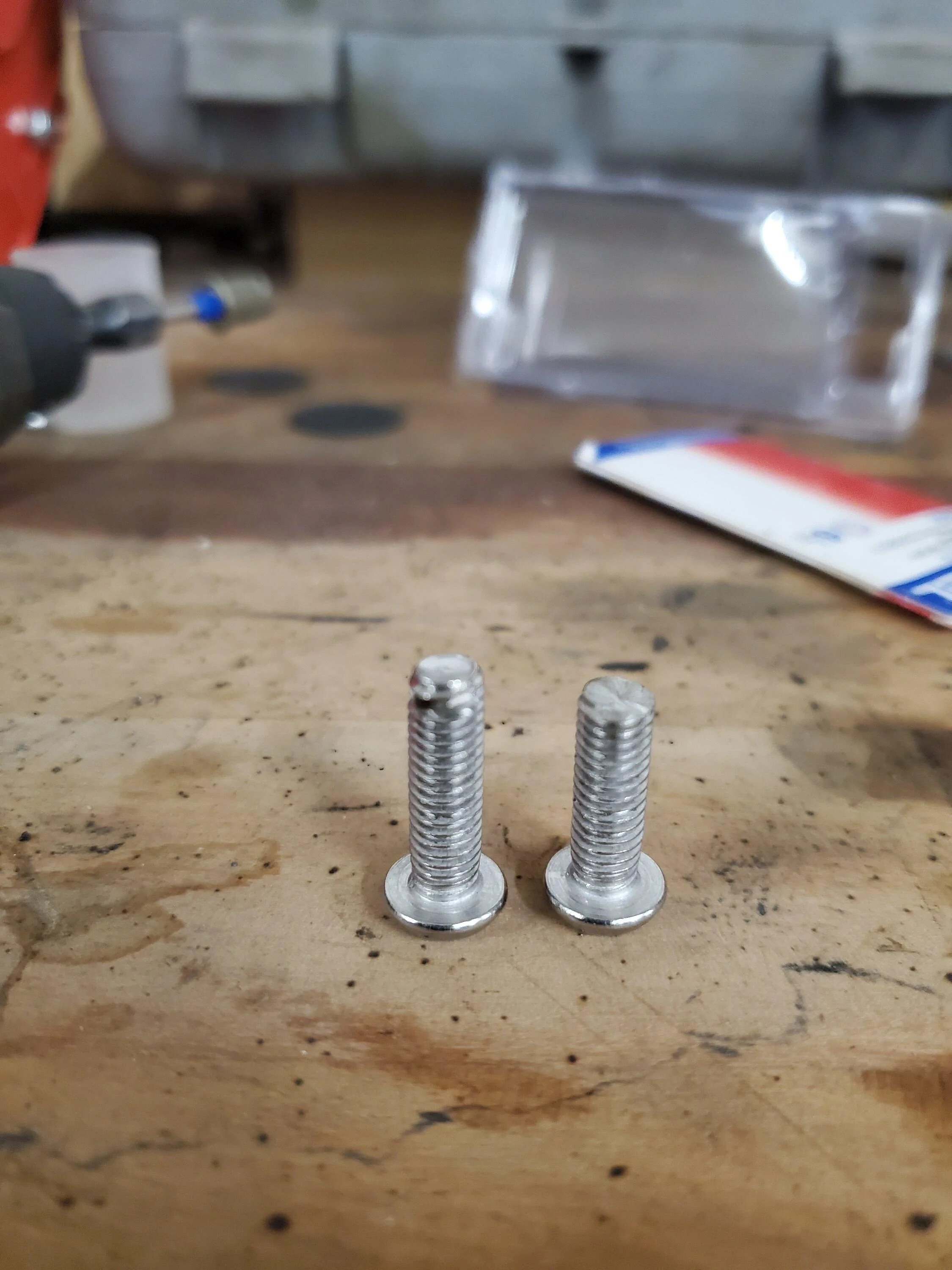

You can use the supplied screw and washer but I decided to eliminate the washer and cut off about two threads on the screws for a cleaner appearance.
Ford Bronco Valhalla's Long term build thread 20230129_104514

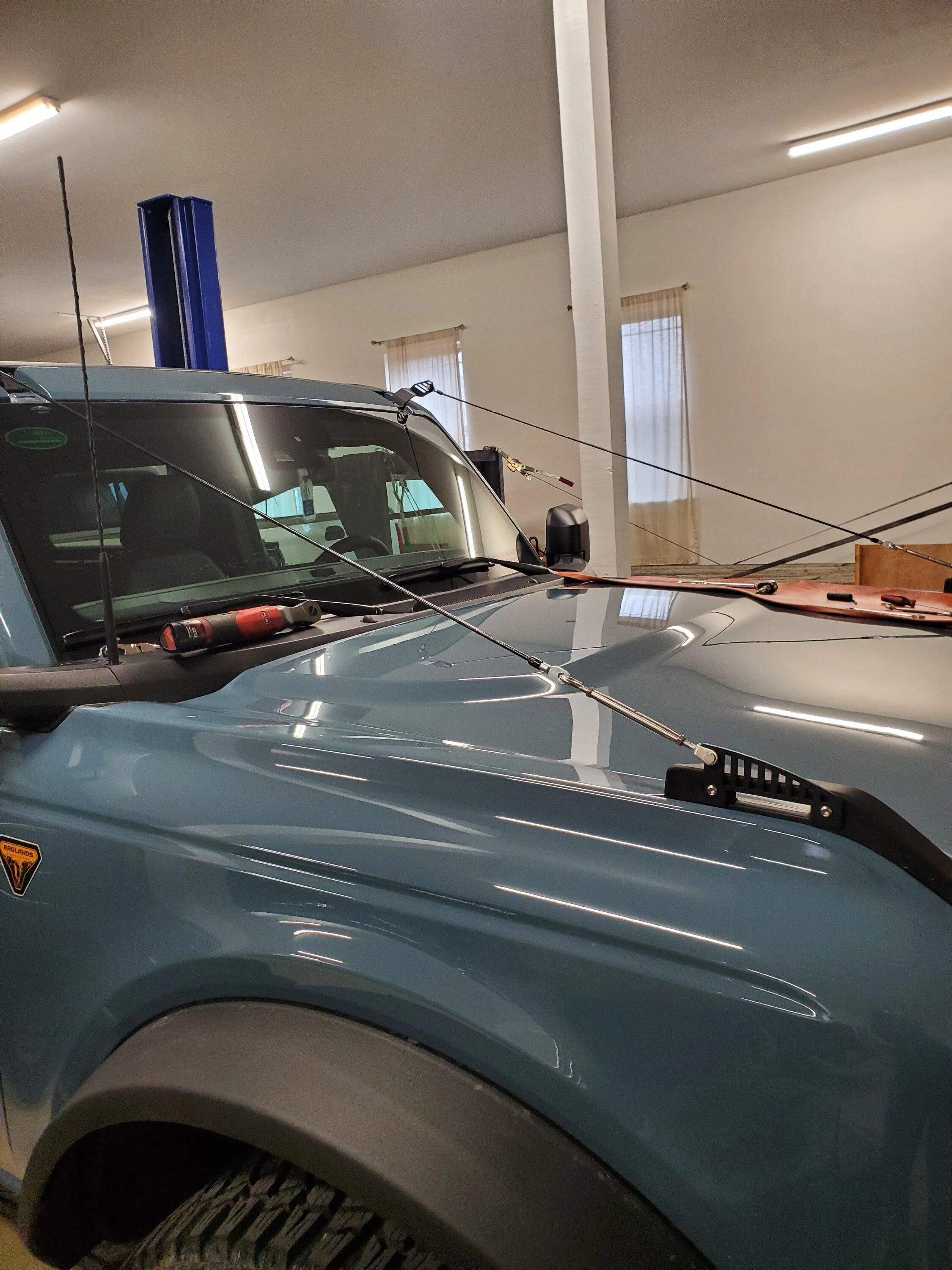

After mounting the windshield brackets with the stock hardware you then use there supplied screws and mount to the stock torx cap. After that you attach the cable to the windshield mount with the supplied allen head bolt and lock washer. You then hook the adjuster to the fender side bracket and the cable then adjust and lock it in place using a 10 mm open end wrench. After i finished I used some black pearl touch up paint to color the hardware black for a cleaner look. i will spray paint the rest of the parts at a warmer date so it's not chrome and has better corrosion protection.
Ford Bronco Valhalla's Long term build thread 20230129_120010

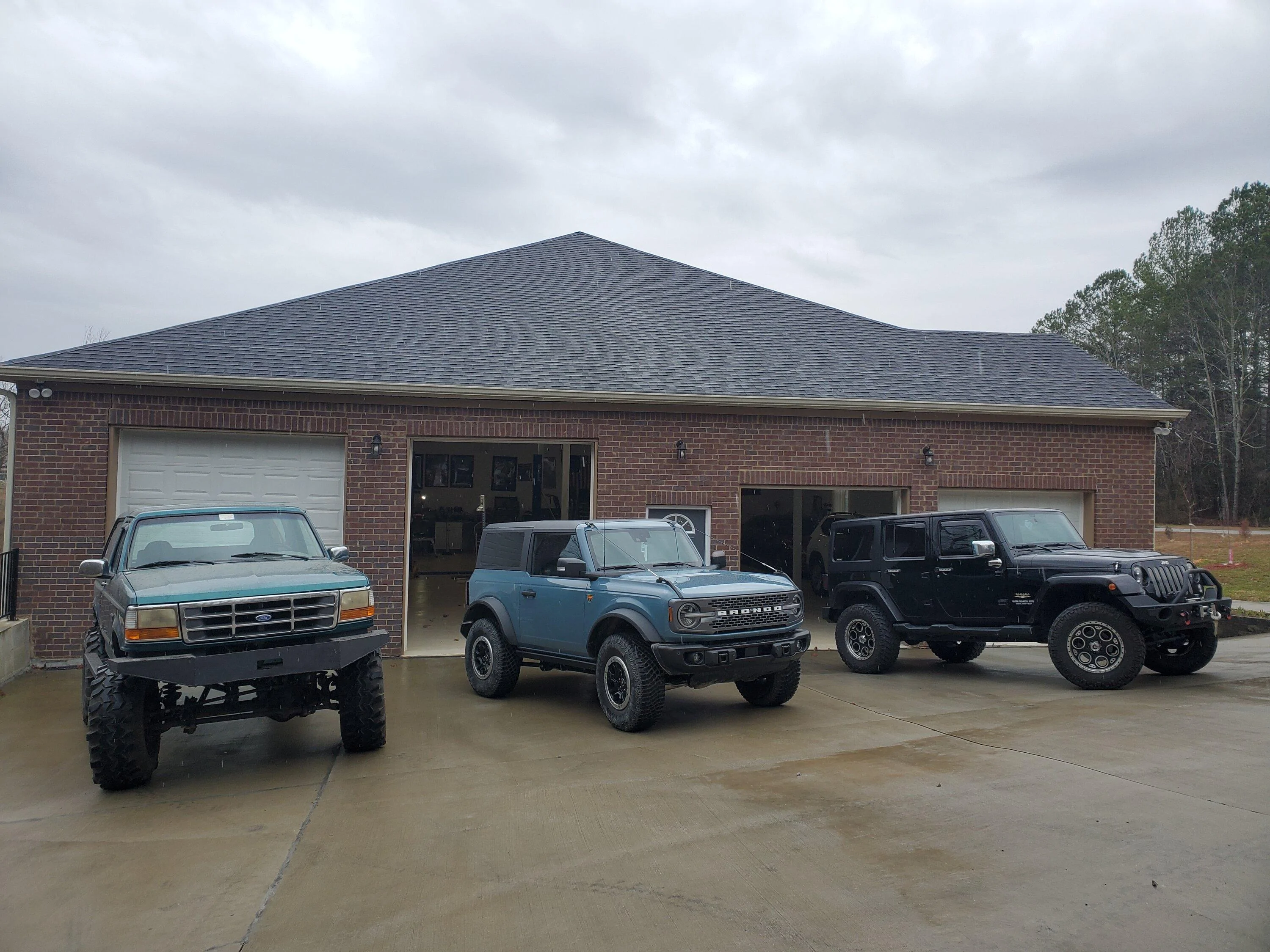

Just a quick shot of the finished product and a couple of our toys. ( My wife is the black jeep of the family)
Ford Bronco Valhalla's Long term build thread 20230129_121536
Ford Bronco Valhalla's Long term build thread 20230203_093935
*EDIT* I thought i'd post a picture of how I used the spare rubber piece from the jack mount and the provided strap to kill noise from the handle rattling on the lift.

Last edited:
OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

Last edited:

Sponsored
OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

Thanks sir!


tdiddy

Black Diamond
Well-Known Member
First Name
Tommy
Joined
Sep 3, 2021
Threads
2
Messages
198
Reaction score
426
Location
Illinois
Vehicle(s)
2010 Ford F150, 2012 Ford Focus
Your Bronco Model
Black Diamond
Nice mods! Can you share a photo showing how close the Jack is to the taillight with the swinggate open?

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

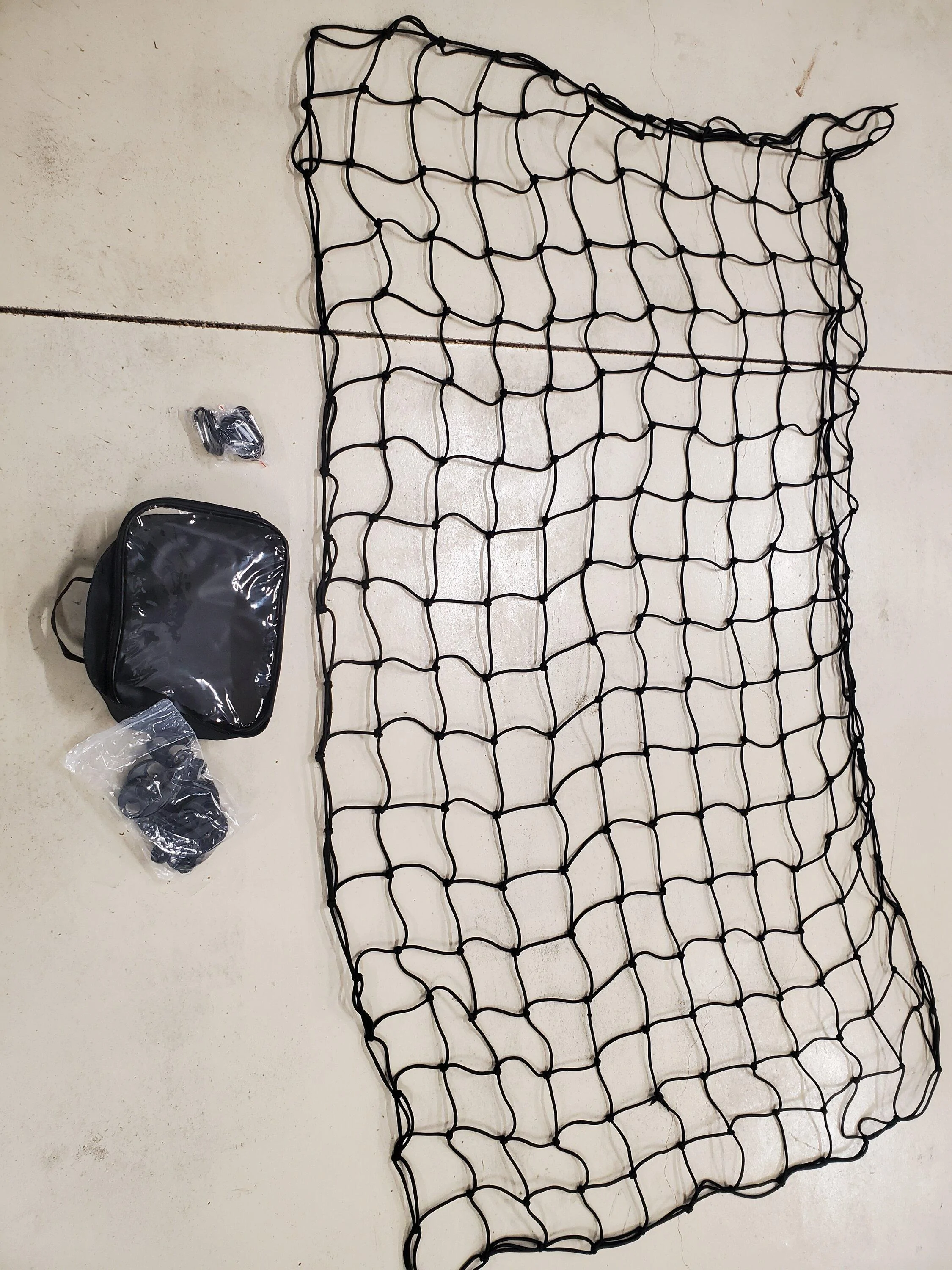

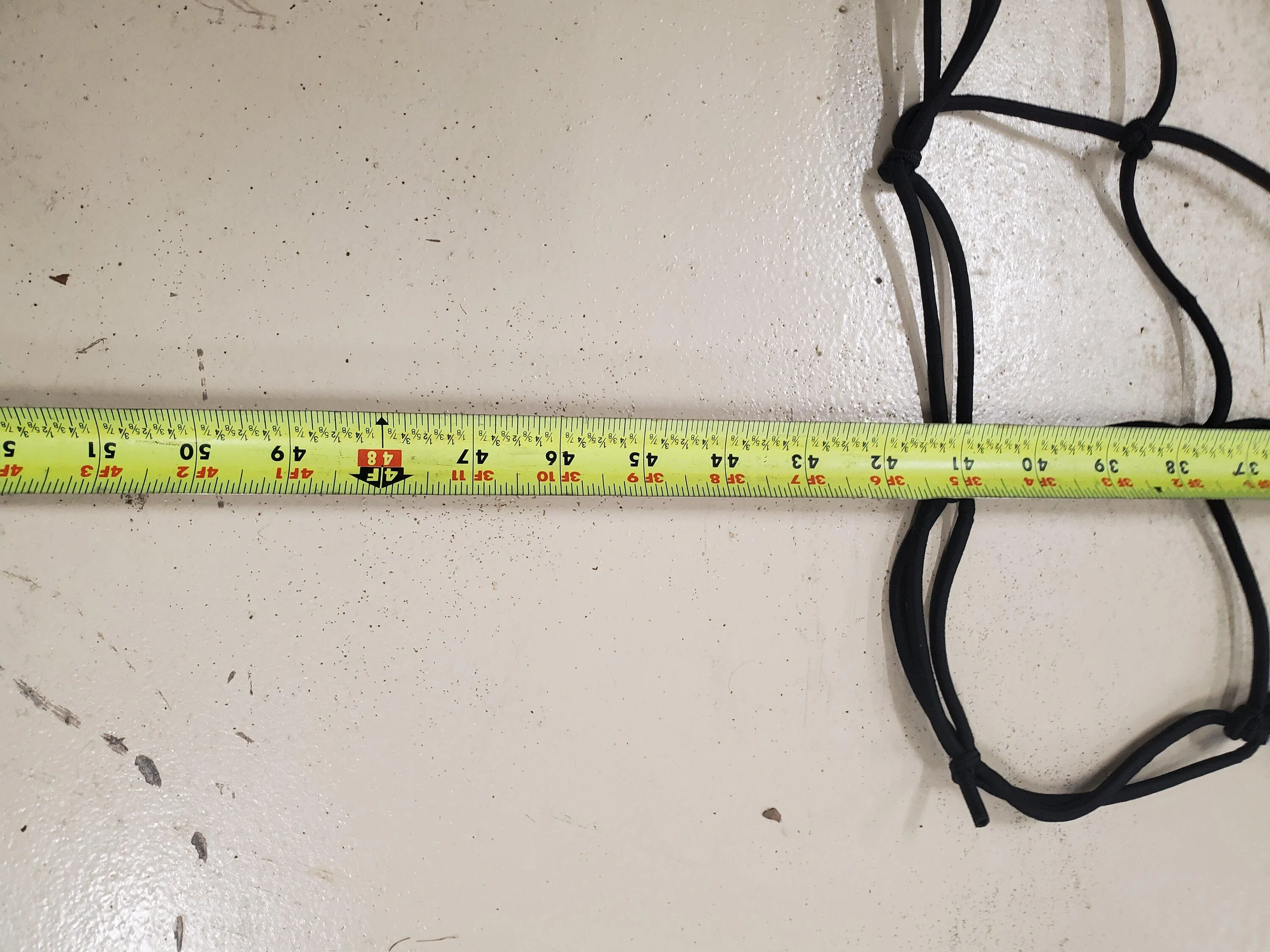

I thought I'd be doing the delete for the spare next, this got here first...

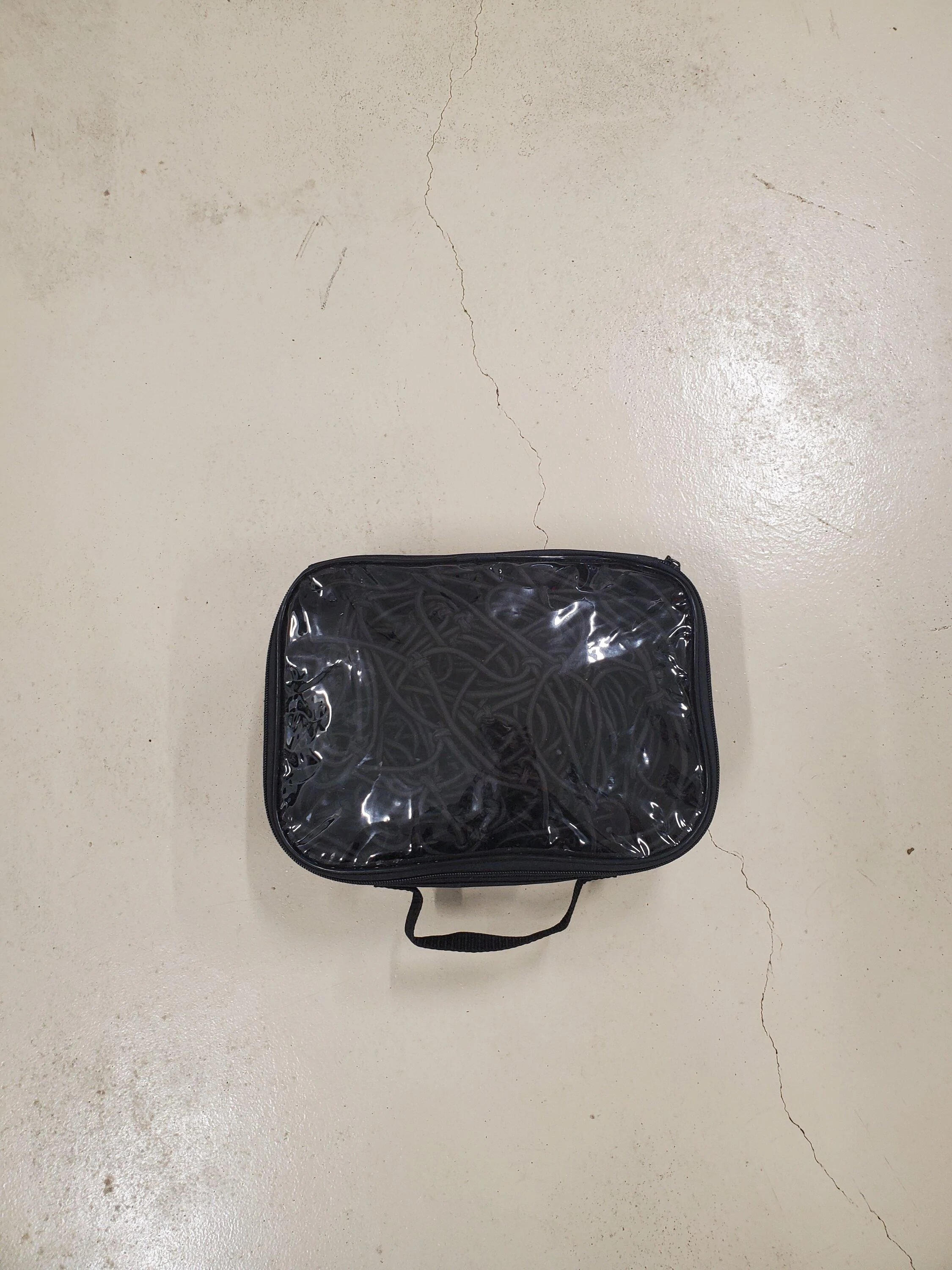

Ford Bronco Valhalla's Long term build thread 20230202_103016
Ford Bronco Valhalla's Long term build thread 20230202_103204

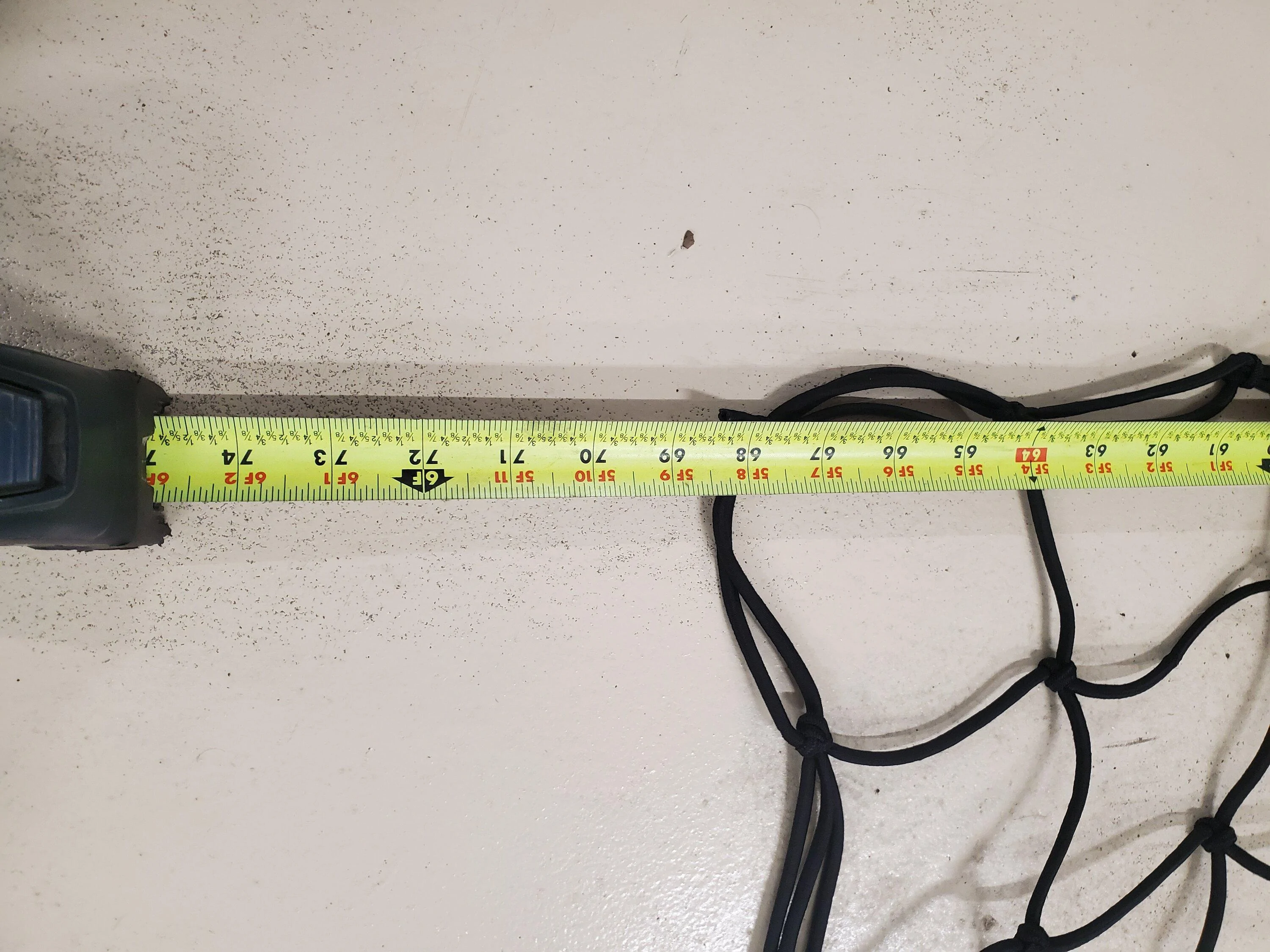

Ford Bronco Valhalla's Long term build thread 20230202_103244
Ford Bronco Valhalla's Long term build thread 20230202_103255

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

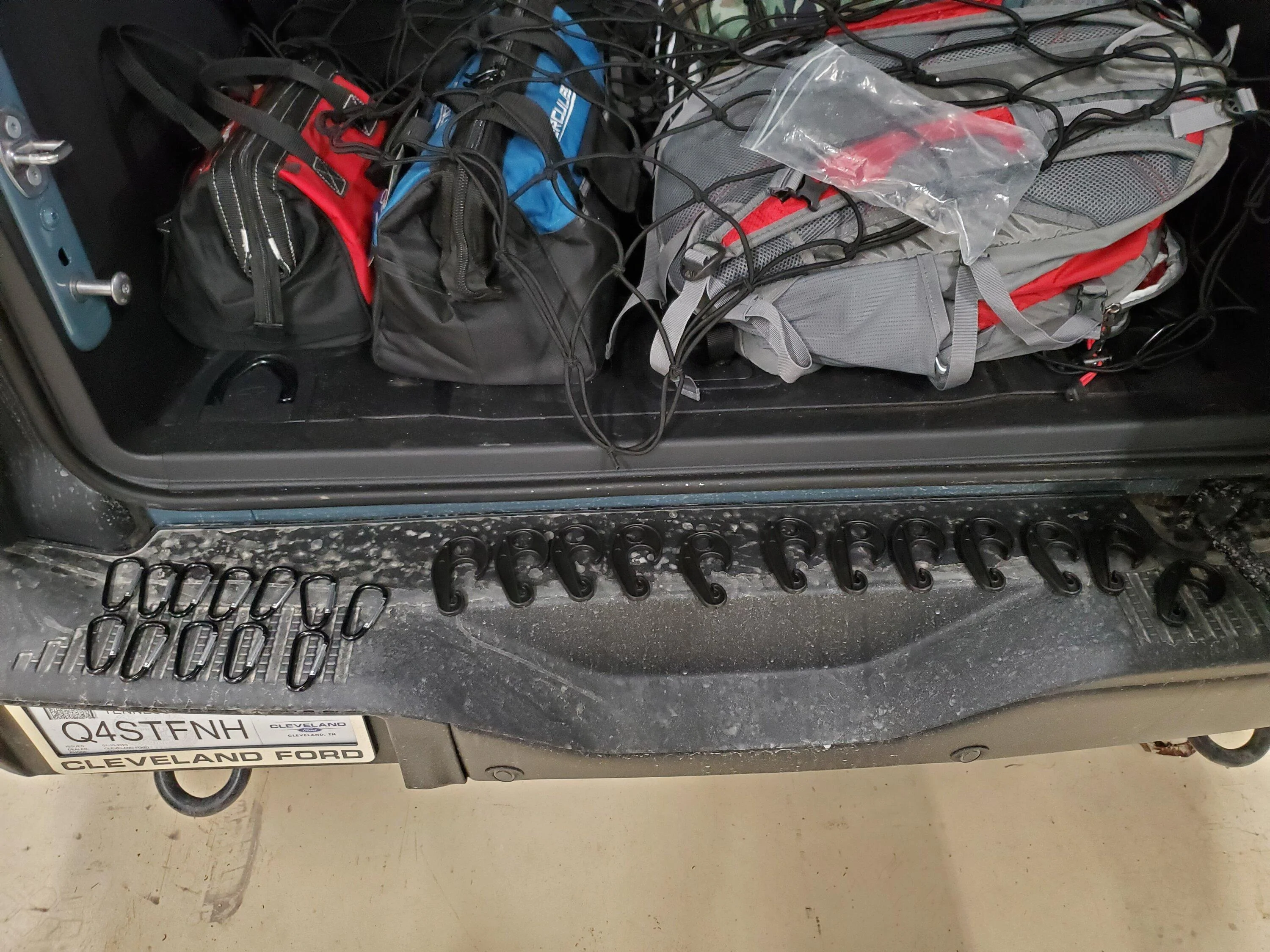

You may ask yourself why do a cargo net... My answer would be in the 34 years i've been wheeling I've only rolled once... my head was missed by inches with my CD storage box (a wine crate sitting between the seats of my '82 Bronco) and we heard the highlift the shovel and the double bladed axe tumbling around in our washing machine of life.
Ford Bronco Valhalla's Long term build thread 20230202_103621
The contents of the red bag are two 10 foot 7,500# chains and 4 D rings. The blue bag is various tools the red is my go bag (first aid dry socks matches paper towels extra gloves etc.


Sponsored
OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

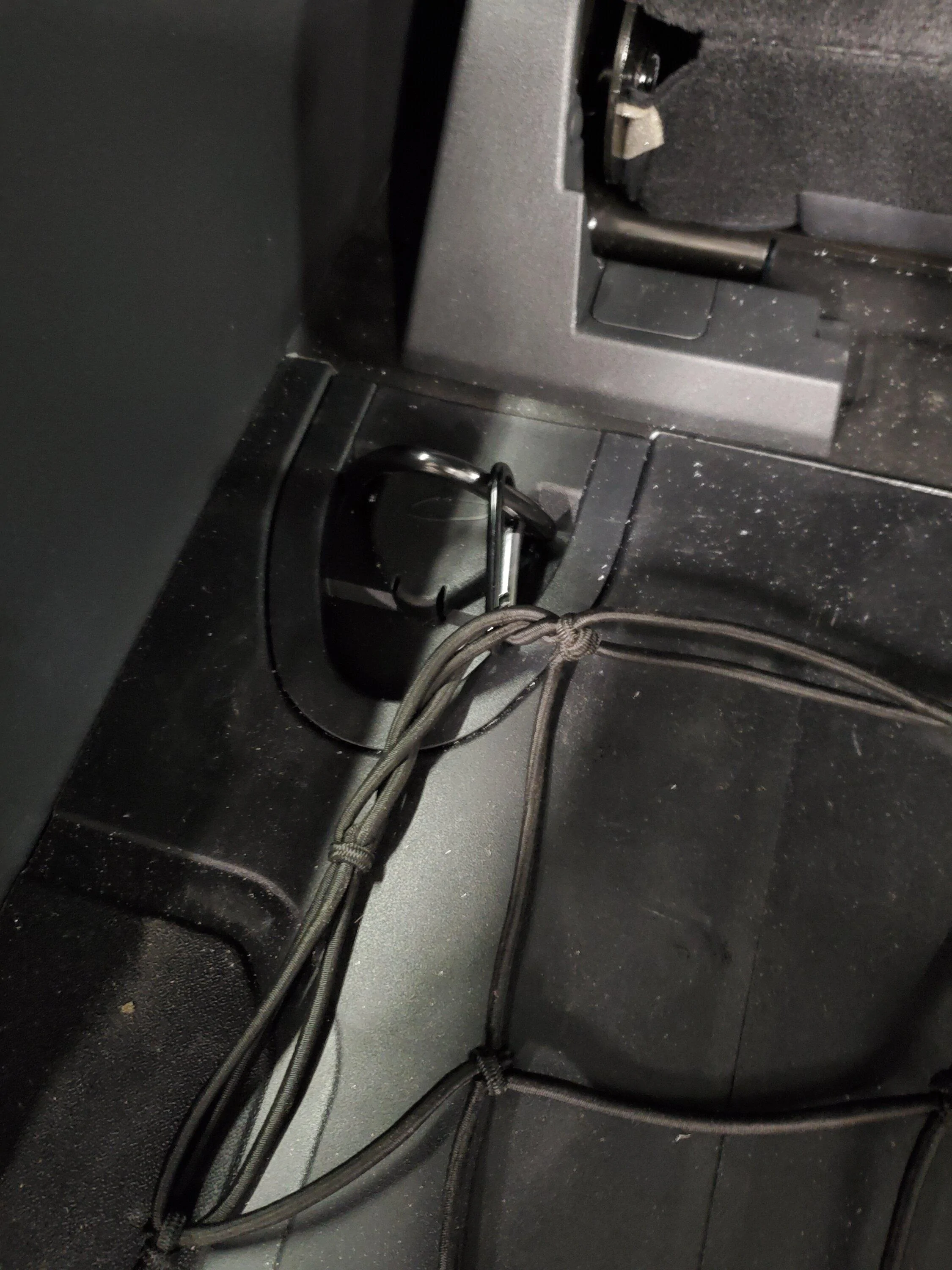

I wanted it wrapped under and secured as much as possible.
Ford Bronco Valhalla's Long term build thread 20230202_104109

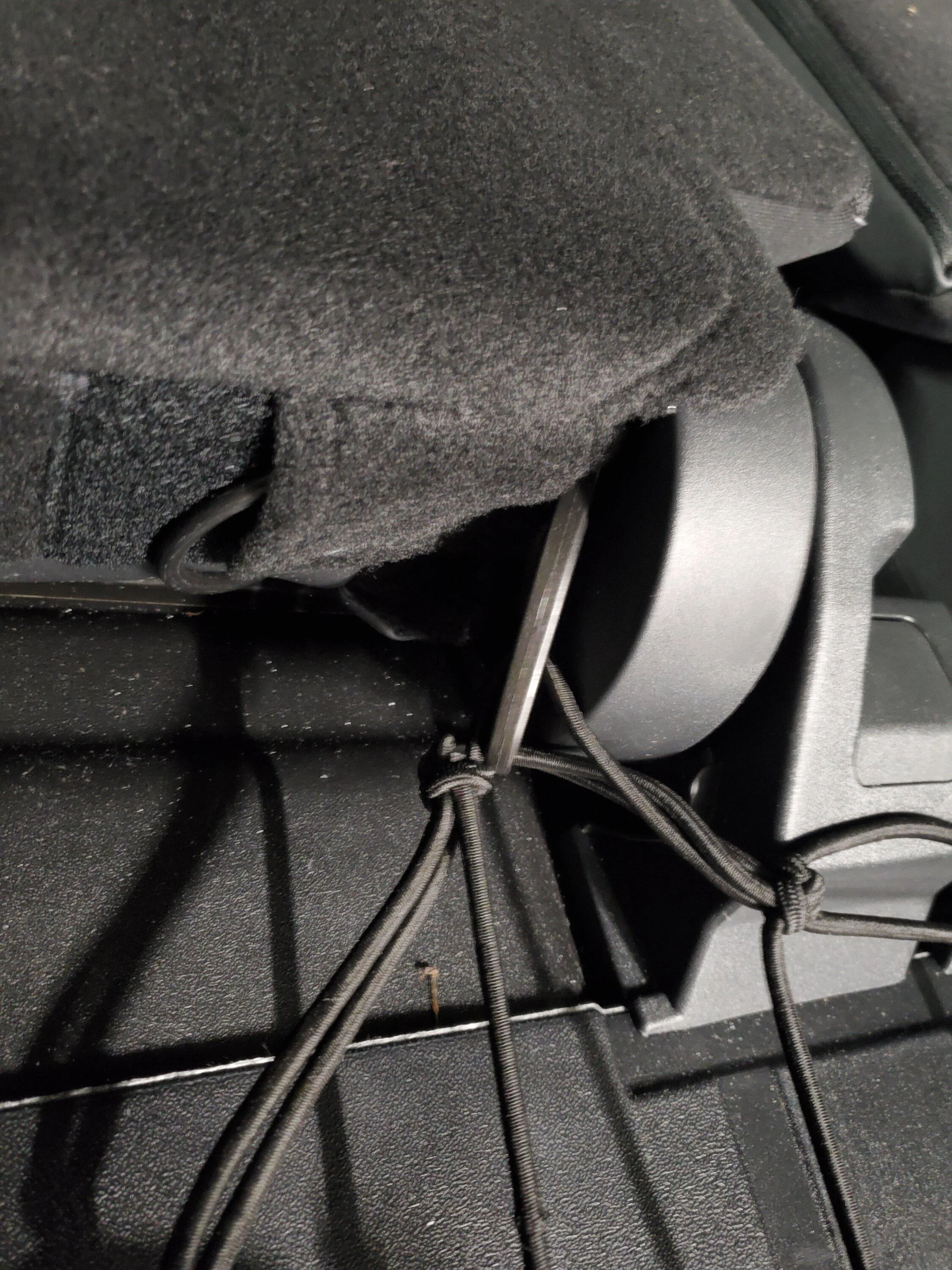

Inboard D ring
Ford Bronco Valhalla's Long term build thread 20230202_104115
Hooked to seat

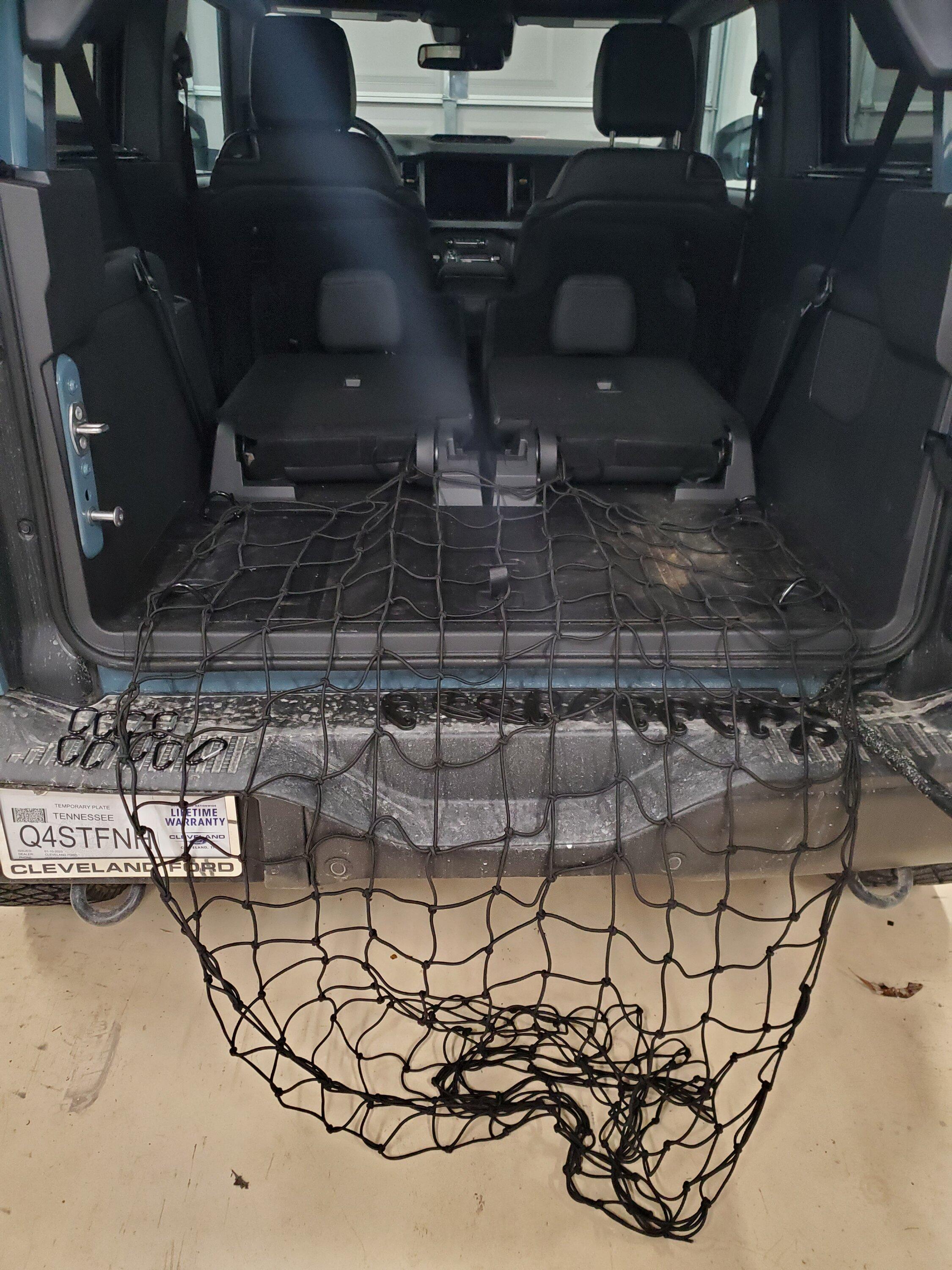

Ford Bronco Valhalla's Long term build thread 20230202_104121
Ready to put things in.

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

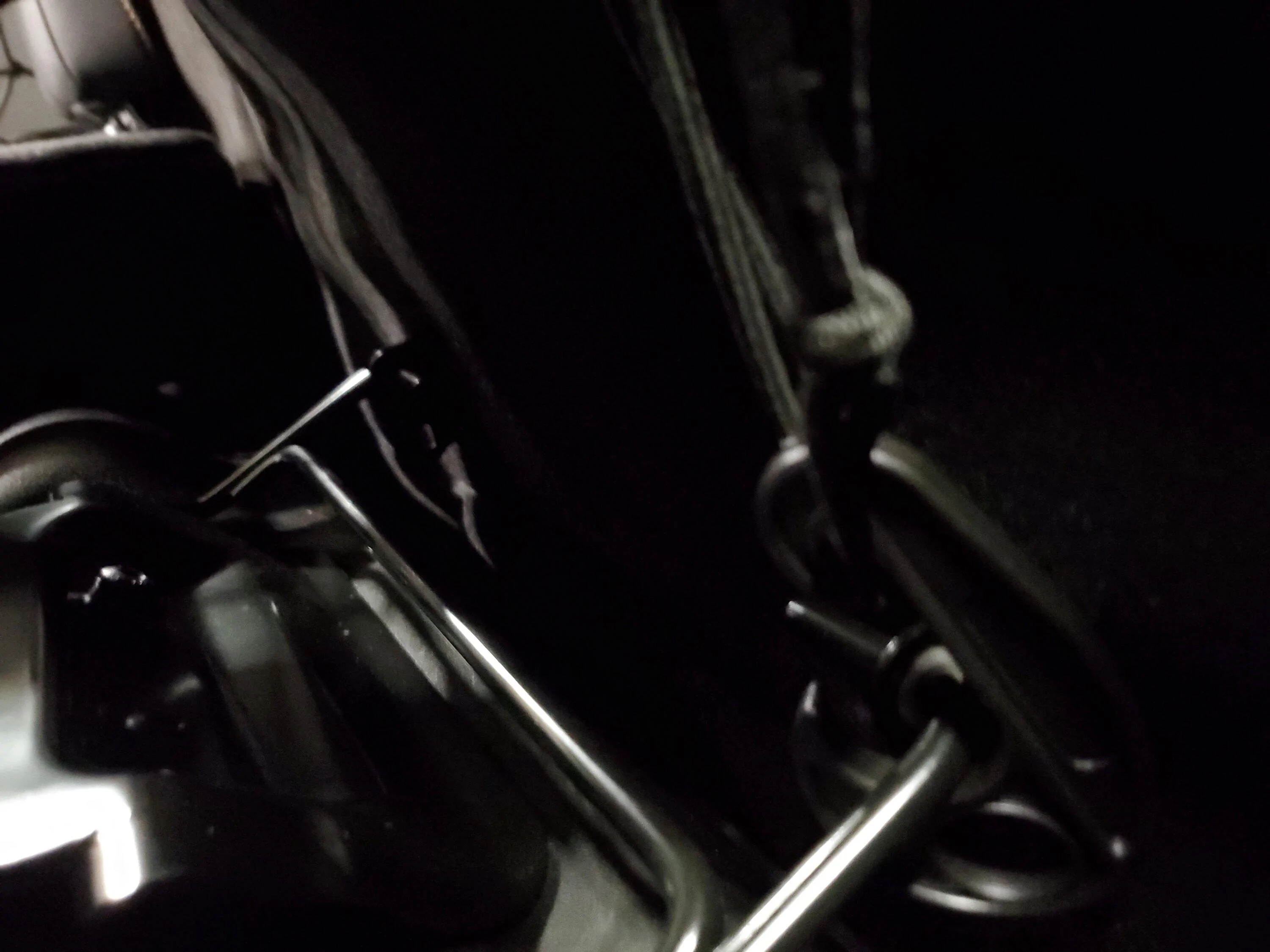

Where to attach up front... Come on Ford!!!
Ford Bronco Valhalla's Long term build thread 20230202_104749
So I attached to the seat bottoms with hooks so i could easily unhook to flip seats up (pictured) and to the center of the seat backs (not shown ) supplied carabiner. Not optimal and since i rarely have more than two I am contemplating removing the rear seats.
Ford Bronco Valhalla's Long term build thread 20230202_104824

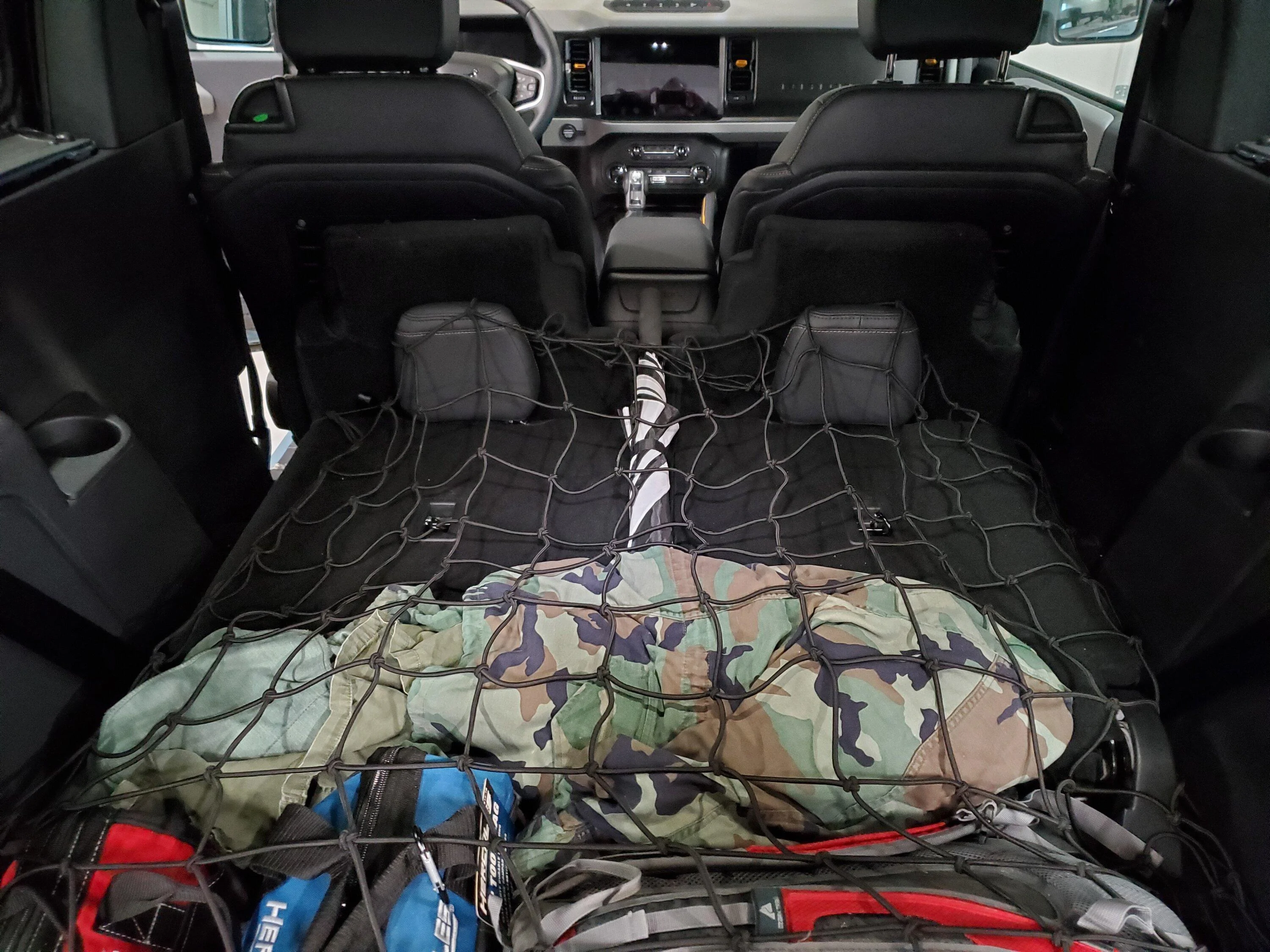

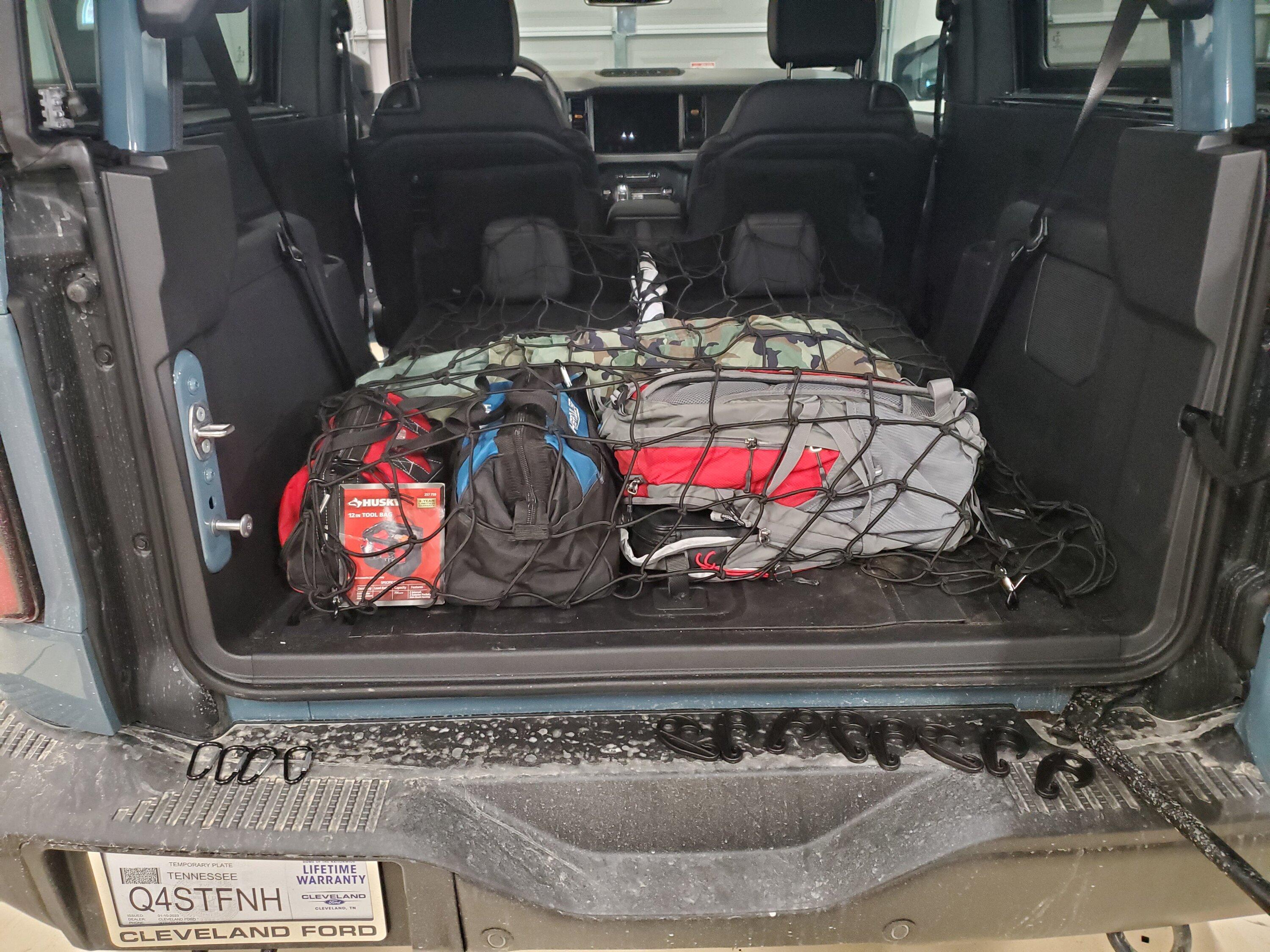

All done look, and left over hardware.

Ford Bronco Valhalla's Long term build thread 20230202_104830
This shows carabiners holding the heavy bags to the net and you can just see the attachment to the rear seats.

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

OP
OP
Valhalla

Valhalla

Badlands
Well-Known Member
First Name
Valhalla
Joined
Jan 29, 2017
Threads
35
Messages
865
Reaction score
1,601
Location
Cleveland Tn
Vehicle(s)
2023 Bronco,1996 Bronco, F350, JKU, MKZ, Silverado
Your Bronco Model
Badlands
Clubs

Before I even start on the tire delete Absolutely do not buy the DV8 spare tire delete unless you are prepared to do fabrication work for the camera mount! The stock mount is on an almost 45* angle DV8 went flat, you'll be looking at the sky. I actually new this at purchase and planned to fabricate because there price point was reasonable.

OK let's dive in:
I cut this out because I did not know if I liked the tube gasket they had to keep it off of the paint. I'm currently trying out there gasket. If it holds dirt and debris behind it I'll probably change to this piece I cut front the foam rubber they shipped this part in.
Ford Bronco Valhalla's Long term build thread 20230204_153454
Ford Bronco Valhalla's Long term build thread 20230204_153056
I knew the camera mount was wrong so i prepared to fabricate.
Ford Bronco Valhalla's Long term build thread 20230204_163530
Ford Bronco Valhalla's Long term build thread 20230204_164534
You have to cut slits to tilt this at 45*, there is also internally a camera retainer that needs cut loose and then rewelded the cameras width behind this piece. As I recall the depth is 5/8".
Ford Bronco Valhalla's Long term build thread 20230204_164637
Using a piece of weldable 16 gauge I cut son sides that i ran inside to where I removed the camera retainer.
Ford Bronco Valhalla's Long term build thread 20230204_171605
Sides welded in:
Ford Bronco Valhalla's Long term build thread 20230204_184716
Welded up and painted. the top moved some when welding.
Ford Bronco Valhalla's Long term build thread 20230204_194238
You use the stock screws to mount the brake light. I had to notch it slightly to clear the camera and also slightly notched the top for camera clearance. This is a semi permanent change for me to lose the weigh of the spare. So instead of trying to fab in the supplied retainer I put a thin line of epoxy on one edge of the camera.
Ford Bronco Valhalla's Long term build thread 20230204_211247
Final product looks god enough for me and functions as stock did..
Ford Bronco Valhalla's Long term build thread 20230204_224018
You should know going in that the way DV8 designed the nut brackets that are for the screws holding the inner plate to the outer sucks the sweat off of a dead mans balls. They can (and did) pop out while trying to get their hardware (which will barley engages the screws!) to attach. I spent over 30 minutes trying to get their pieces together :pro tip use the two stock screws that fit these nuts to retain them while you try to get the others to engage.

Honestly DV8 you should really spring for screws that are 4 mm longer. I know that might break the bank getting these shipped from China though so you do you.
