BAUS67

Base
Well-Known Member
First Name
redneck
Joined
Jan 3, 2020
Threads
16
Messages
2,848
Reaction score
7,103
Location
Central PA
Vehicle(s)
88 5.0 LX, 08 F-150 Stepside, 13 Explorer XLT, 97 Jeep Wrangler
Bronco
Base
Clubs

Found this little video of Vaughn and Loren testing the new 4600 Bronco and thought some here might enjoy it.



These will be racing at KOH this upcoming weekend.

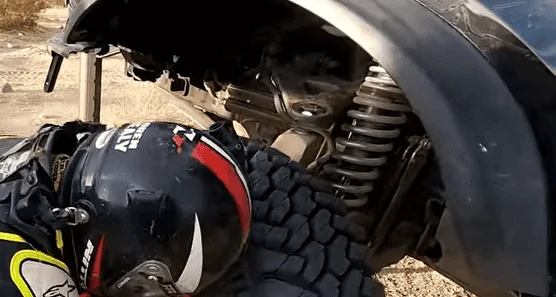

One thing I did notice about the portals is the coilover is no longer inside the UCA. The UCA is in front of the coilover.



Very interesting setup. :cautious: :unsure:

😁


Advertisement

Last edited:

Squatch

Badlands
Well-Known Member
Joined
Jul 14, 2020
Threads
11
Messages
3,350
Reaction score
13,400
Location
Miami
Vehicle(s)
F150, Jeep
Bronco
Badlands
Okay, street version in MY23? $100K?

Oh... never?

I like seeing it even though Ford will only offer special editions of the wagon. Great find!


Advertisement

Free Pizza

Badlands
Well-Known Member
First Name
Tommy
Joined
Jun 22, 2020
Threads
3
Messages
383
Reaction score
725
Location
New jersey
Vehicle(s)
Jeep cherokee
Bronco
Badlands
I wonder if that is the factory steering rack? What's the count on failed racks now that we have seen? Around 6?


BigMeatsBronco

First Edition
Well-Known Member
First Name
Allan
Joined
Nov 25, 2021
Threads
18
Messages
851
Reaction score
2,068
Location
97301
Vehicle(s)
2021 FE 2 door
Bronco
First Edition
Clubs

Like I've said in other threads the front suspension on this truck utilizes the portals 4-5” lift and turns it into usable wheel travel... the shocks and coils are longer and the upper shock mount is taller.
A-arms are stock length, or nearly the same length. The increased travel originates from the CV angle now being ”flat“ at the middle of the travel. In stock form, ford's design does NOT allow for full upward travel of the angle the CVS are capable of. Stock it only uses about 60% of the mid and lower range of motion available.

So what this means is that this 4600 truck has about 4.5” of additional droop (over a stock SAS) or down travel (from portals) AND also has and additional 4.5”of compression travel available due to the additional tire clearance and the longer shock towers and shocks.

I'm guessing close to 15” of front wheel travel.

Last edited:
OP
OP
BAUS67

BAUS67

Base
Well-Known Member
First Name
redneck
Joined
Jan 3, 2020
Threads
16
Messages
2,848
Reaction score
7,103
Location
Central PA
Vehicle(s)
88 5.0 LX, 08 F-150 Stepside, 13 Explorer XLT, 97 Jeep Wrangler
Bronco
Base
Clubs

I wonder if that is the factory steering rack? What's the count on failed racks now that we have seen? Around 6?

Not factory, Vaughn mentions it in the comments.


Cypher

Wildtrak
Well-Known Member
First Name
Justin
Joined
Jan 19, 2020
Threads
0
Messages
51
Reaction score
96
Location
AZ
Vehicle(s)
2020 JLUR
Bronco
Wildtrak
Need details on that winch mount. im assuming it was a 2.7 amd the bumper looked like the modular one. so there may be hope after all for a hidden mount. (like the 2.3 has available)


IfIHMadeA2021Scout

Badlands
Well-Known Member
Joined
Jul 24, 2020
Threads
17
Messages
397
Reaction score
1,536
Location
Republic of Kakistocracy
Vehicle(s)
F-250 Tremor, IH Scout 80
Bronco
Badlands
I know the title is clickbait but that front suspension isn’t remotely stock. Lol
I wonder if that is the factory steering rack? What's the count on failed racks now that we have seen? Around 6?
It does not have to be for a 4600 car.


4600: Stock Class This class has been racing in ULTRA4 since 2012. It is one of the 3 classes that races on KOH week during the 4WP Every Man Challenge. Currently, these cars do not have to qualify to race in the EMC race during KOH Week. At regional races, this class usually races with either the 4500 or 4800 cars.

Class Characteristics:

  • Stock OEM Frame
  • Factory Engine
  • Factory Transmission
  • 35” DOT approved tires
  • Single 2.5 inch diameter shocks per corner
  • Mechanical Steering
This is truly an everyman class. Steering just has to be mechanical.


Advertisement

jonesh242

Badlands
Well-Known Member
First Name
John
Joined
Oct 7, 2021
Threads
0
Messages
86
Reaction score
112
Location
Southern Cal-unicorn-ia
Vehicle(s)
Jeep Cherokee Trail-Squak, YT Capra 29er ;)
Bronco
Badlands
Super cool. 😎 Love their slider & skids set up...lotsa UHMW sheeting on there! The 2dr really shines in this environment! I didn't catch whether their using the 4 cyl or 6 cyl??


Seventyfouronthefloor

Well-Known Member
First Name
Jordan
Joined
Mar 19, 2020
Threads
8
Messages
200
Reaction score
429
Location
Michigan
Vehicle(s)
1974 Bronco, LUBR, Chrome Yellow, 2016 Tacoma
Bronco
Undecided
I wish Ford would just mass produce the 4600 instead of a Raptor. I’d buy a basic 2dr base as a daily and keep this BAMF on a trailer for the trails and dunes.


MrGreen55

Badlands
Well-Known Member
First Name
Kyle
Joined
Jul 6, 2021
Threads
11
Messages
518
Reaction score
972
Location
Oregon
Vehicle(s)
toyota scion xb
Bronco
Badlands
Clubs

Let's see the bronco on Marling RCLT now. :)


4runner

Outer Banks
Well-Known Member
First Name
4runner
Joined
Jan 3, 2022
Threads
9
Messages
82
Reaction score
122
Location
Los Angeles
Vehicle(s)
Ford Bronco Toyota 4 Runner
Bronco
Outer Banks
Finally people catching on that a real bronco is a 4 door not a 2 door !
