I’m pretty particular (ok, anal) about installing items in my vehicle and want as much of a factory look as possible. Because of that, I spent a lot of time (admittedly too much!) redoing this install so I could get to a point that required minimal modifications. Standard install with the M2M bracket requires notching the back of the glove box, which I didn’t want to do and looked for a cleaner way. After a lot of trial and error, I was finally able to get the radio installed with only the relocation of one wire connector. The steps and pictures below outline what I did to get it installed. Sorry, no video. Several steps have been covered by others so I kind of glossed over those (like removing the center console and running the antenna wire). If there is a step that you have a question on or would like more information, please let me know.

First, I’ll start with the links for all the components I used. Some would be optional (mic holder items) and you could do a different way.

Midland

Mountains2Metal

Archetype Racing

67 Designs

Innovative Products

Penglin

Home Depot

Ok, on to the install!

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount M2M Bracket

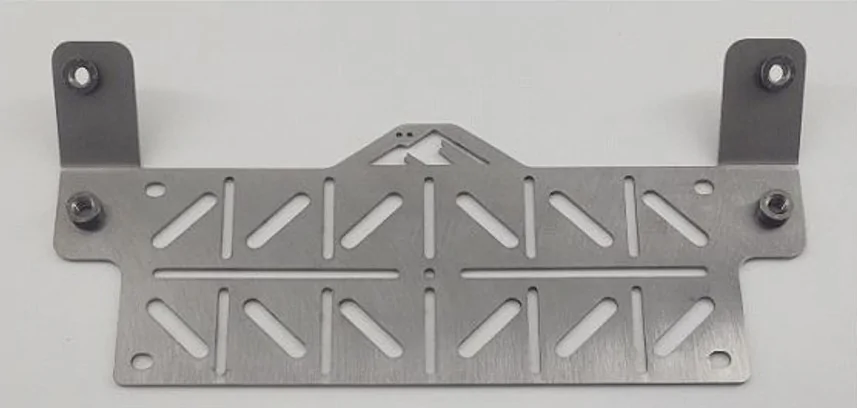

Stock M2M Radio bracket. The standard install has the radio attached to the bracket with the front of the radio pointed towards the passenger seat. The radio is long and this causes it to be very difficult to attach the mic extension to the front jack as it is right up against the inside of the dash. The back of the radio hangs down which requires notching the glove box to get it to fit. I found that if you mount the radio sideways, you can just get it too fit between the dash rails above the glove box. To do this required some tweaks to the M2M bracket to get the radio in sideways. Here are the tweaks that are needed.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1851

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1852

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1855

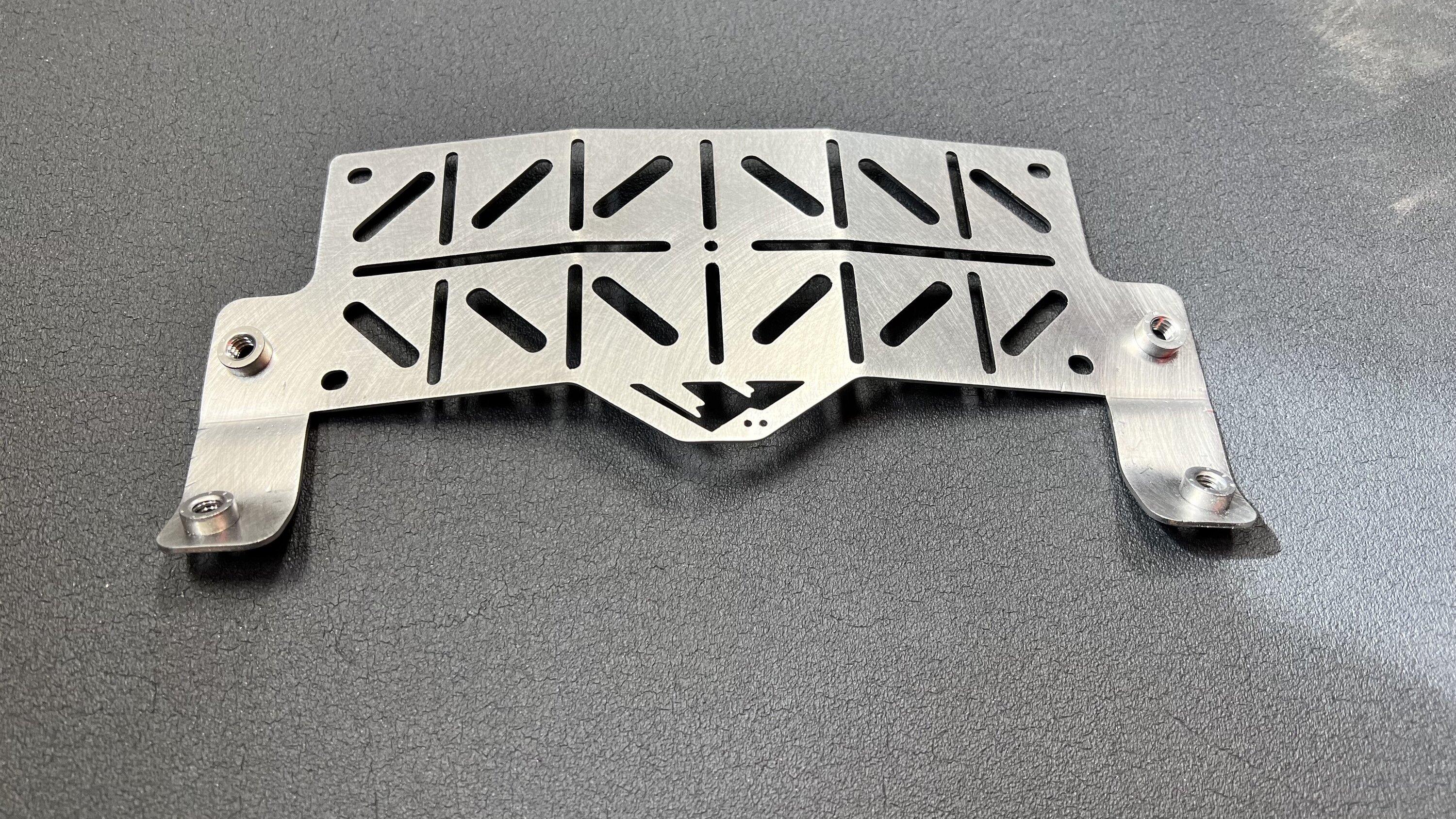

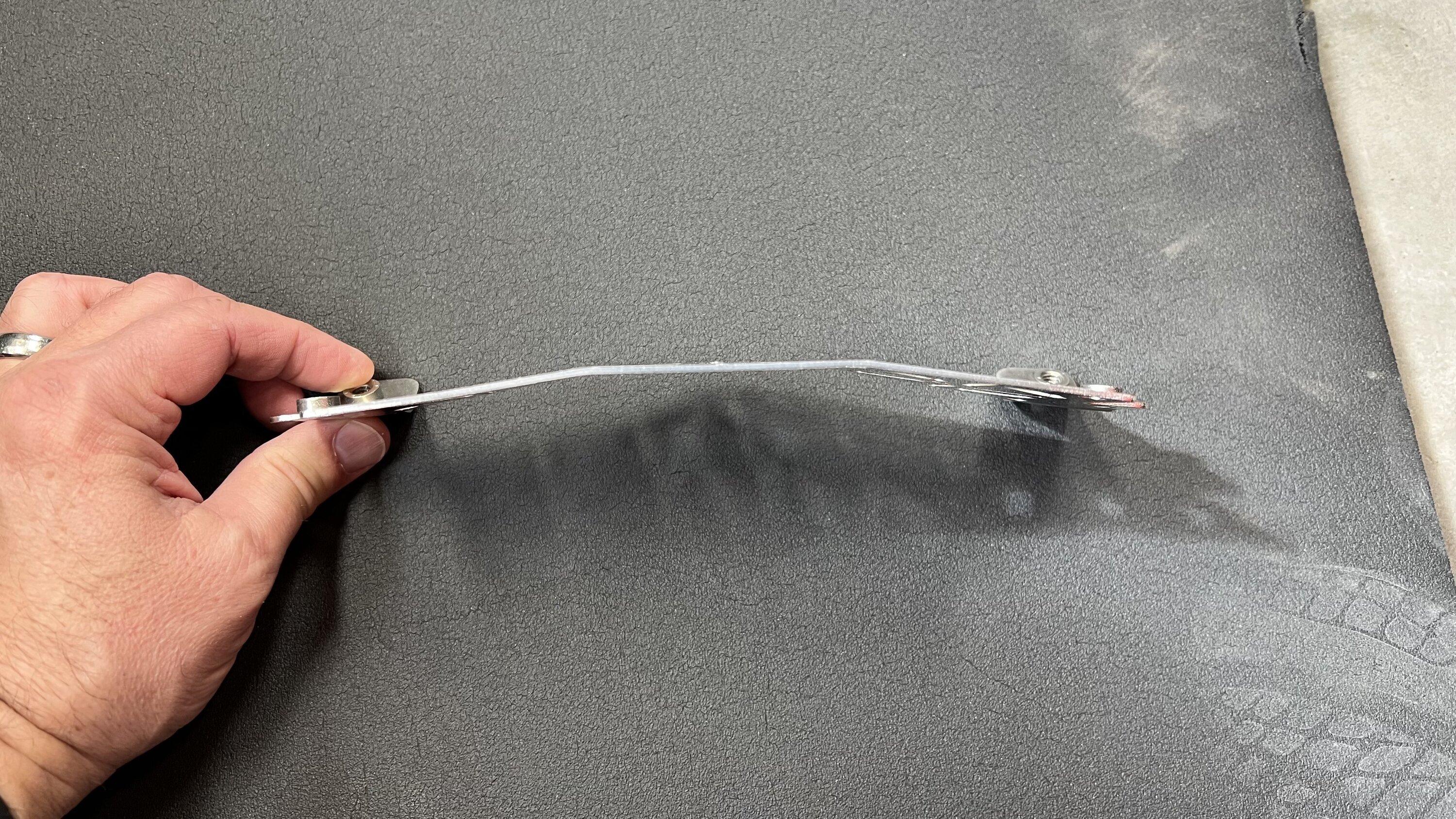

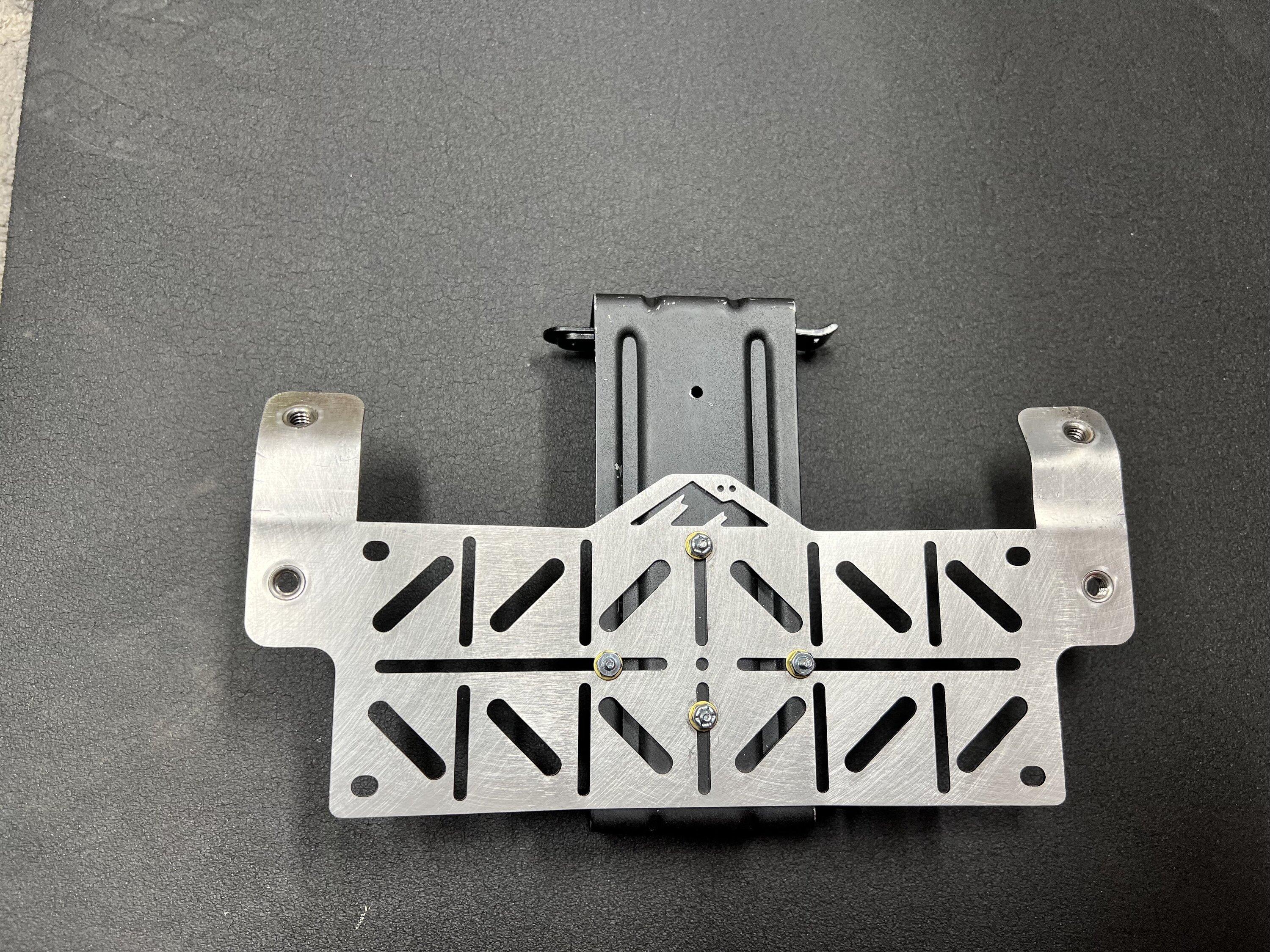

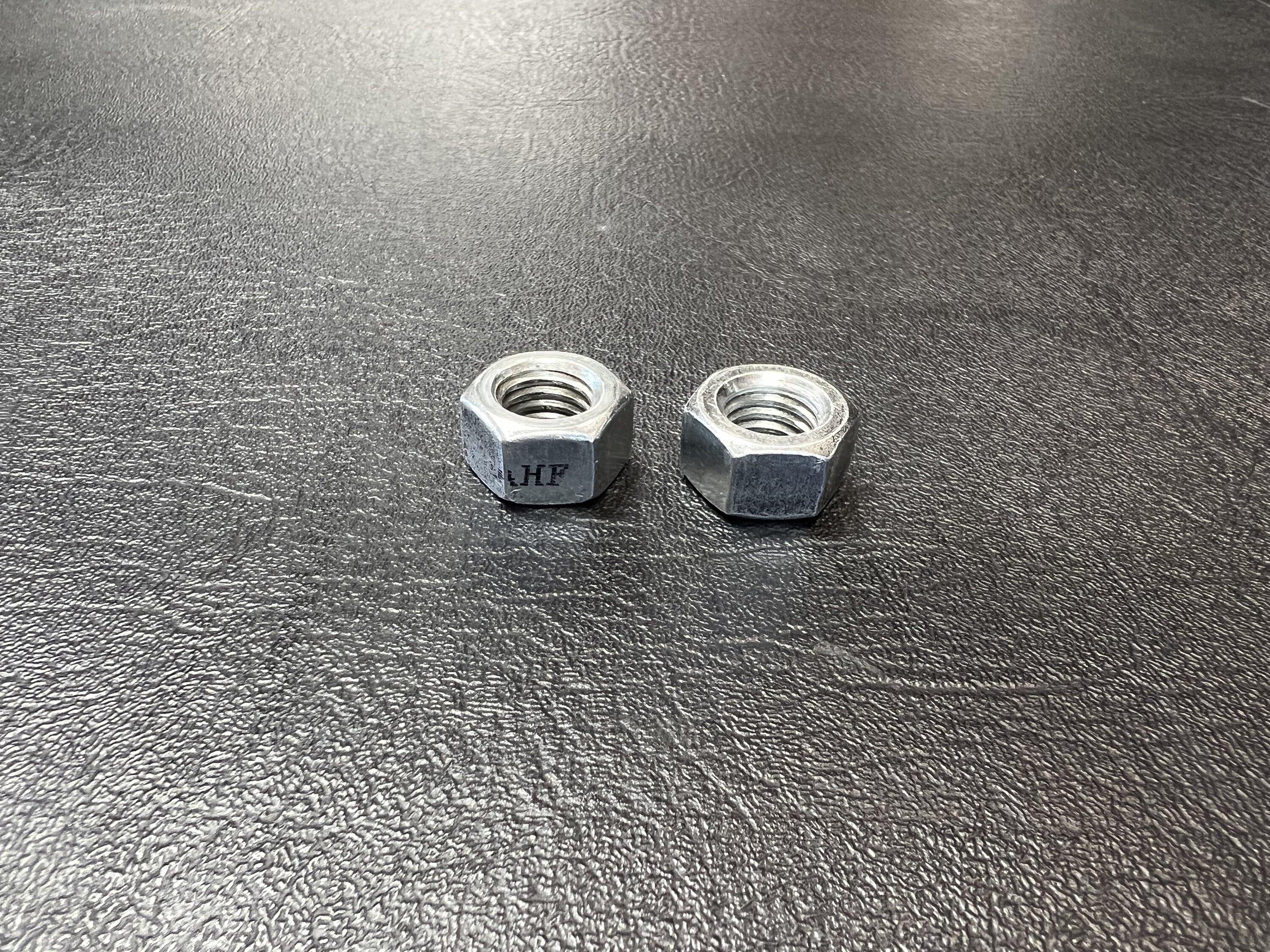

Tweaks I made to the M2M bracket. These changes allowed me to get the radio installed sideways and ports above the rails so mic and antenna can easily be attached.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1866

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1865

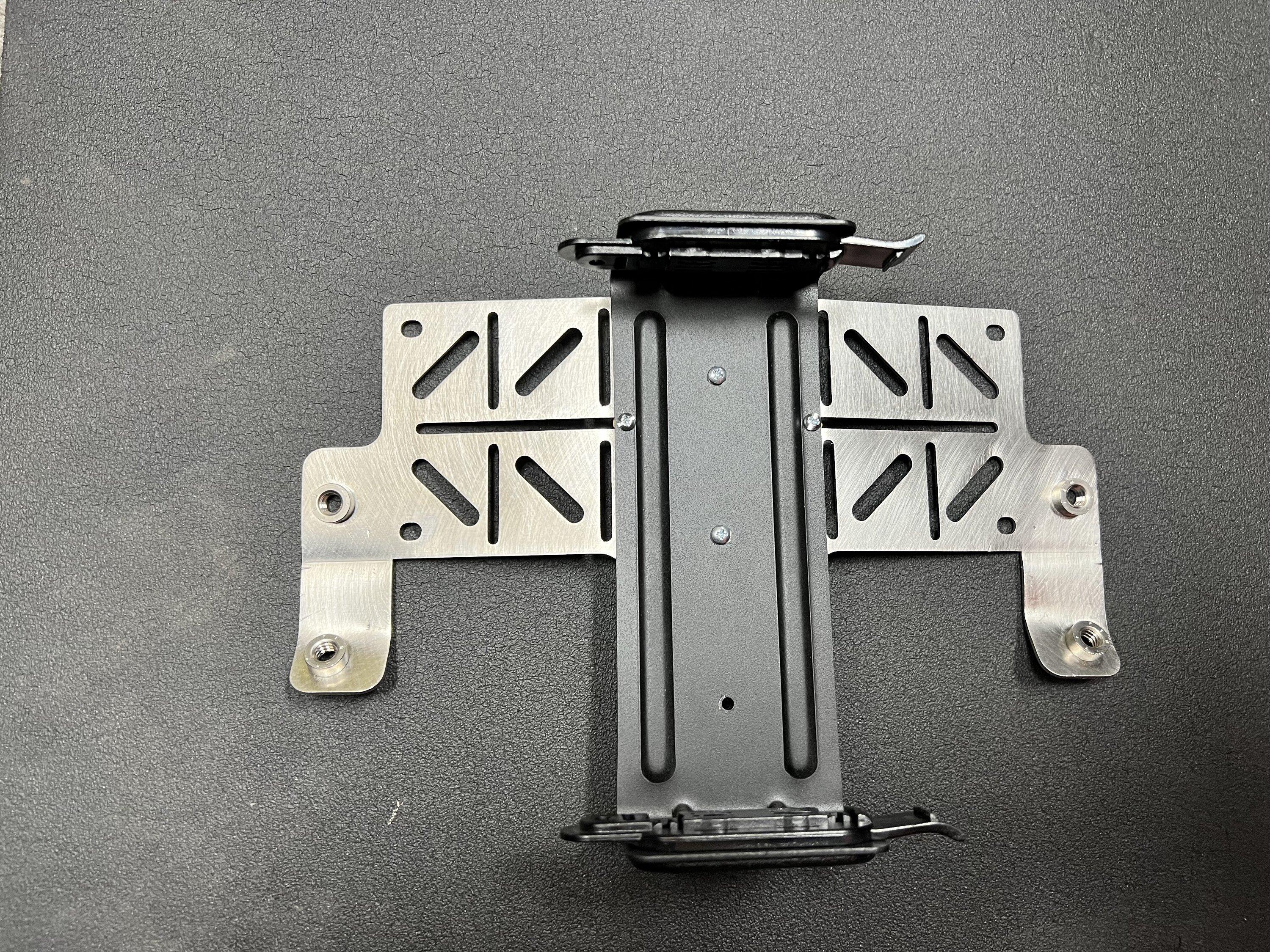

Attachment of the radio mount to the M2M Bracket. I did drill and add the 2 screws on the sides. With just the 2 screws in the middle, the bracket had a tendency to bend in the middle where the slots are. With the four screws, it was a very solid mount.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1868

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1869

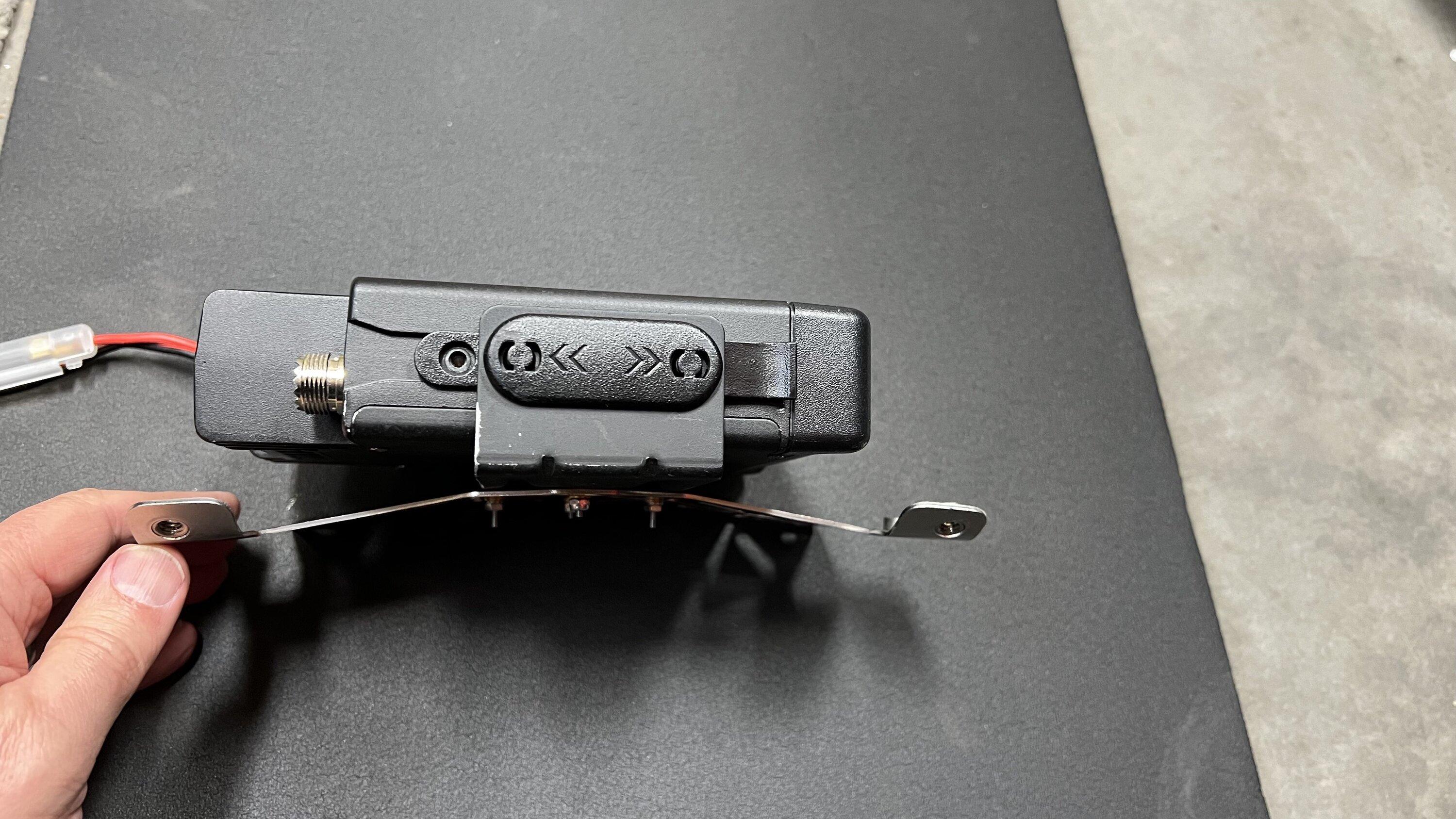

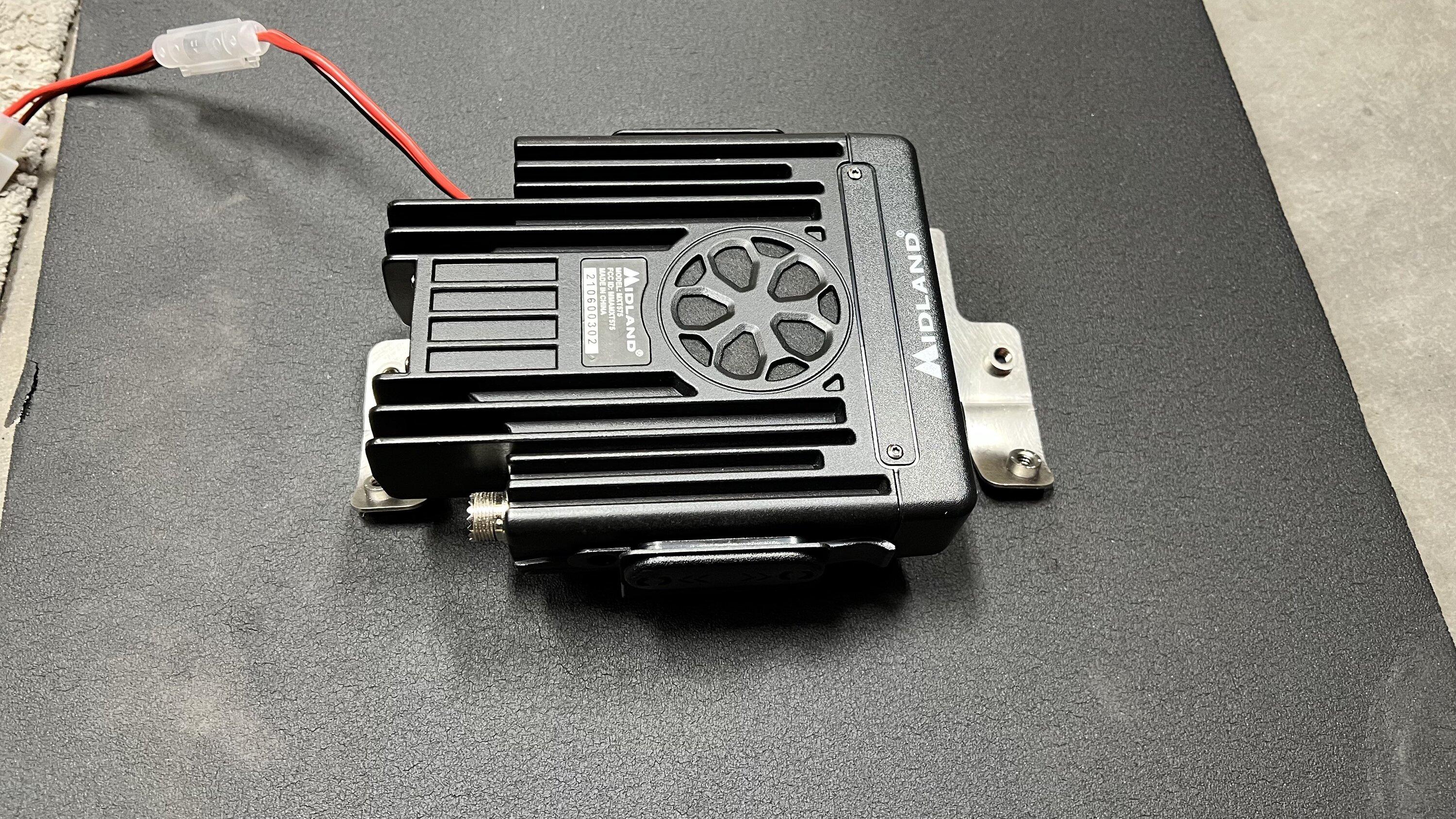

Radio snapped into bracket. The bend in the center of the M2M bracket was to get the radio high enough so the antenna cable and Mic cables to clear the top of the metal dash brackets above the glove box. Turning the radio sideways gives good access to the front and back of the radio for connecting the antenna and Mic cables.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1856

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1874

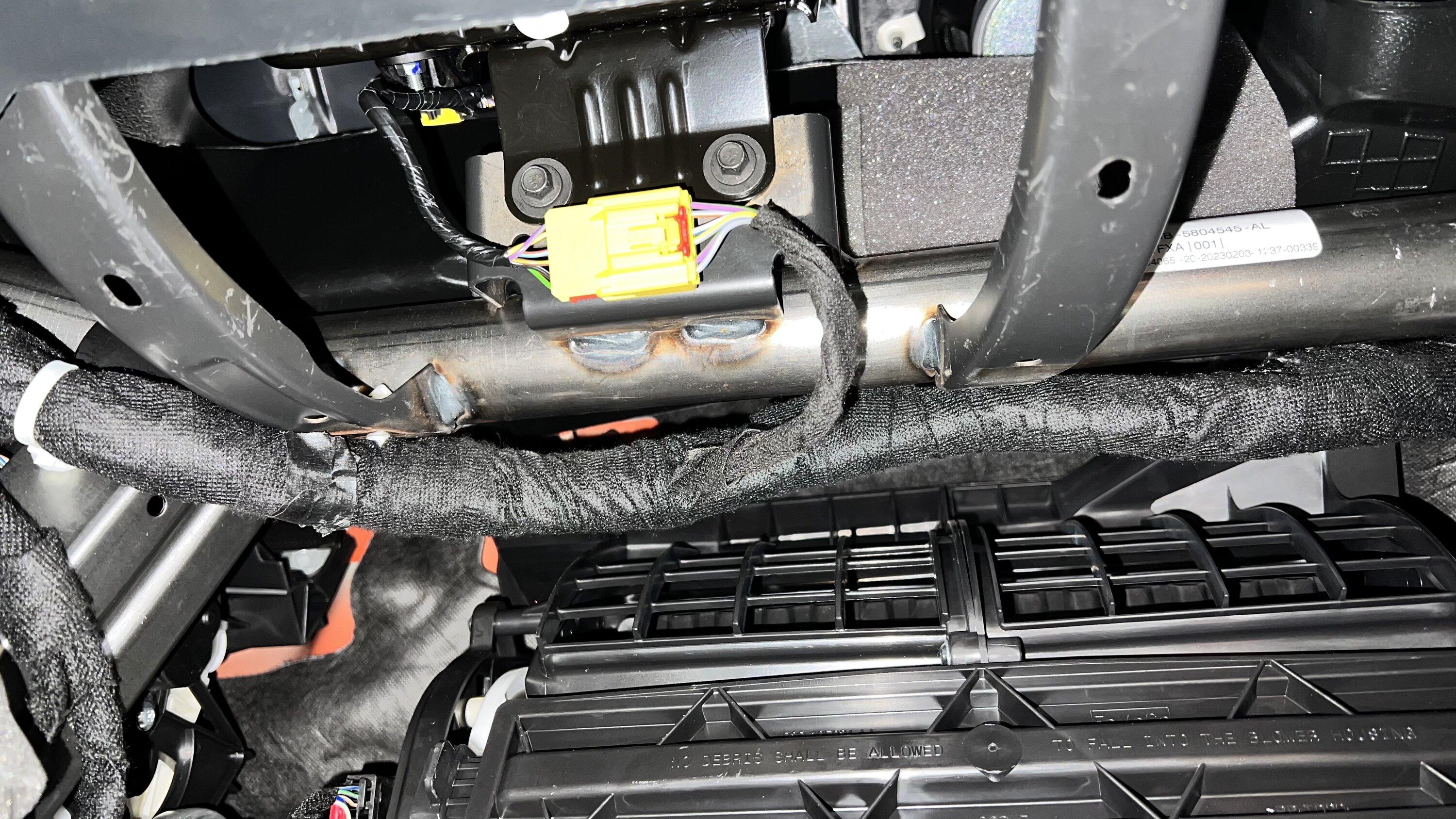

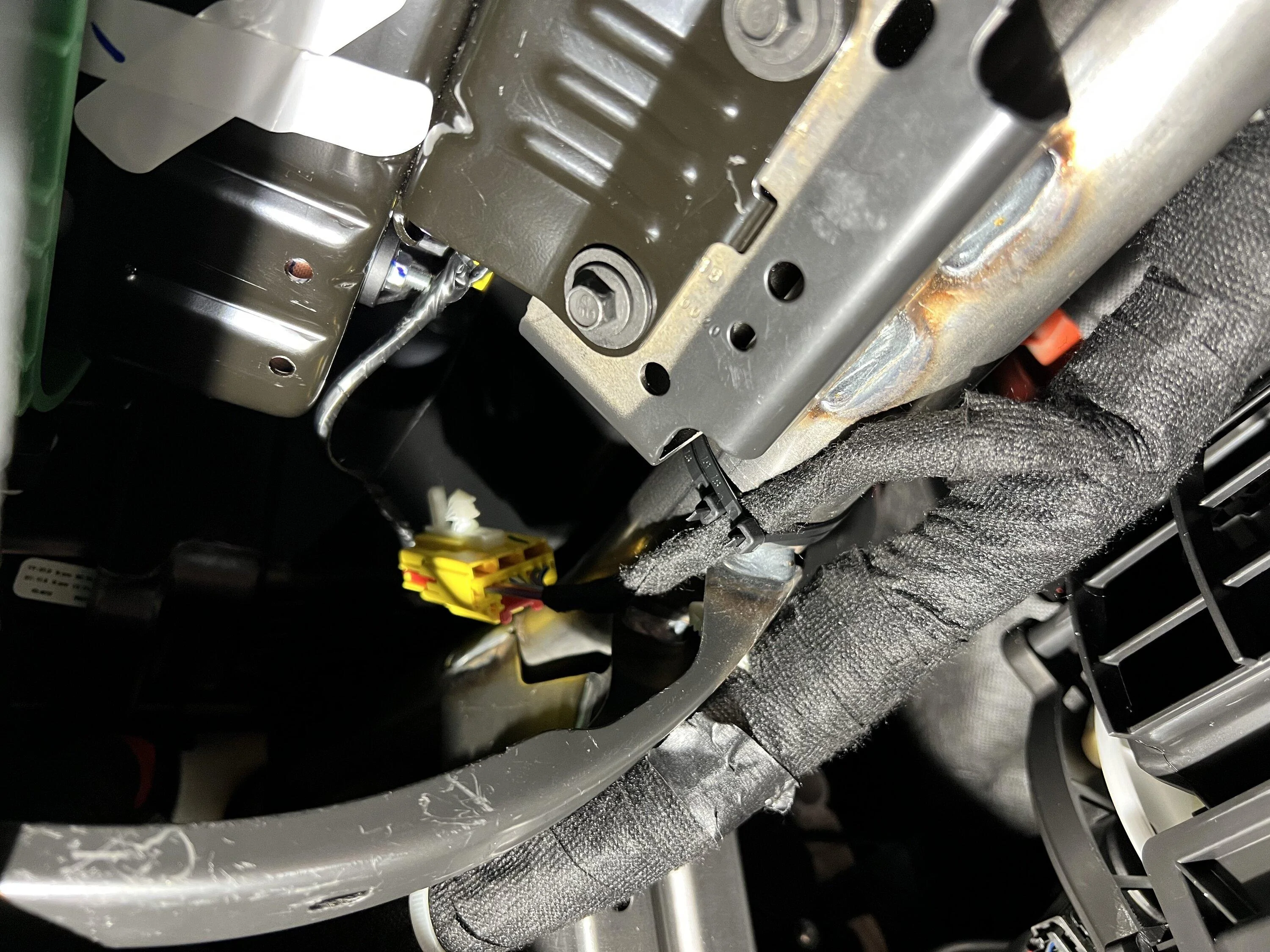

The one connector (yellow) that needs to be moved. I just pried it off the metal bracket and zip tied it up to the left. Hard to see in below picture but, the rounded metal edge at the bottom where the yellow connector was attached, has a very tight clearance with the radio when installed. I put some double sided foam tape along here to prevent rattling.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2001

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2007

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2062

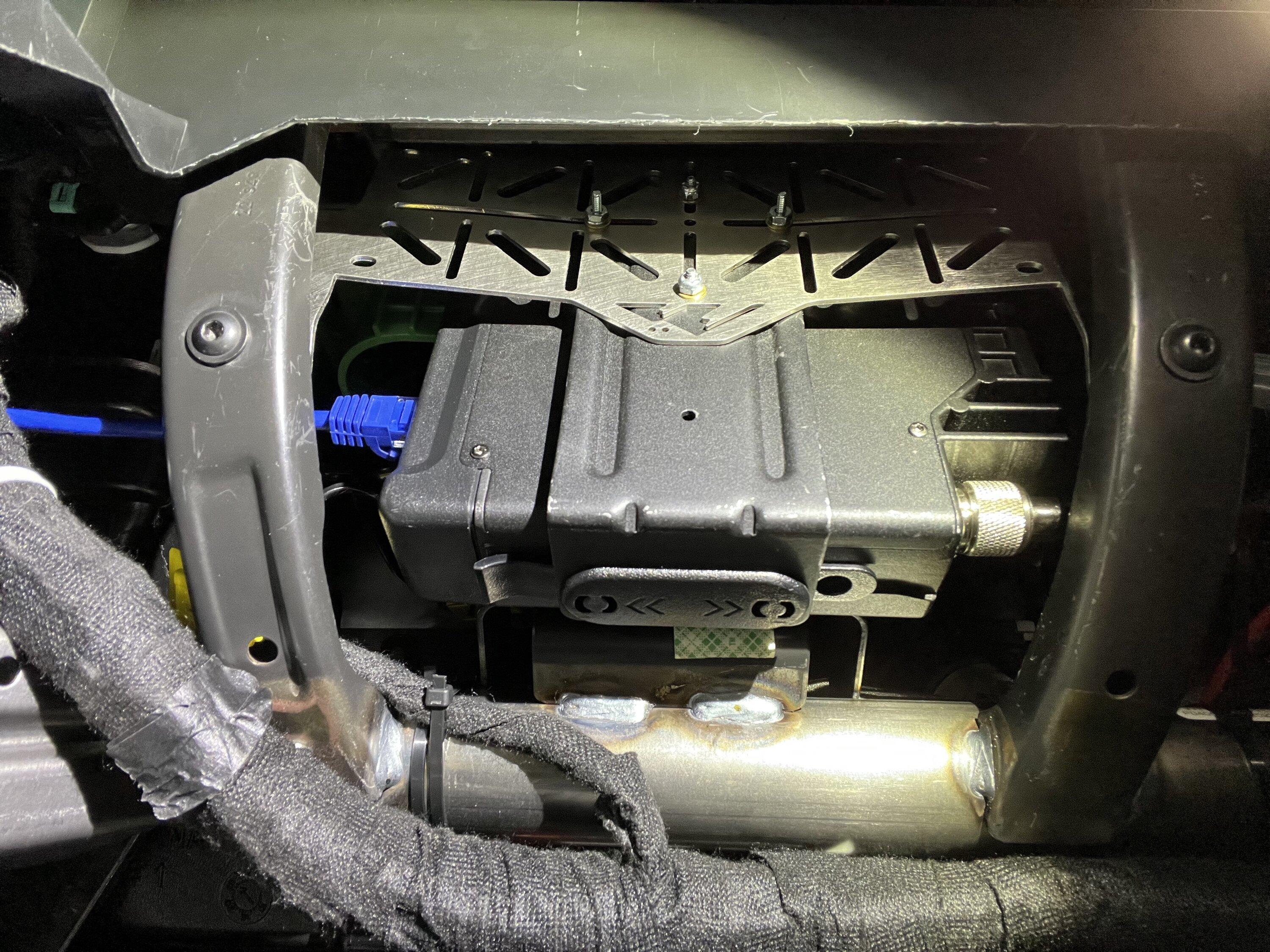

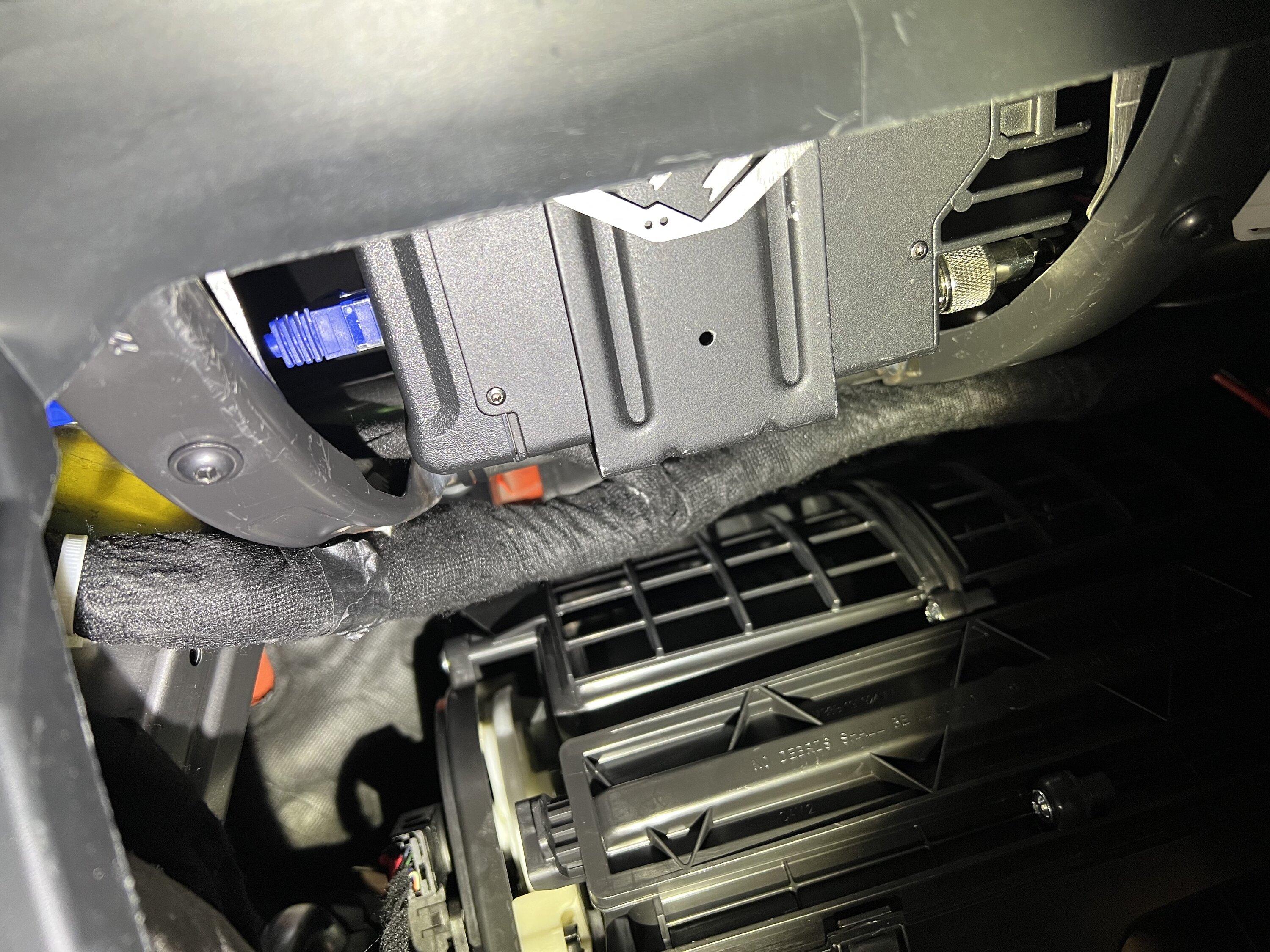

Getting the radio up inside was the most difficult part. It is a tight fit but, with a little patience it will just slide in place on top of the rails. I had the best luck by pushing it up and towards the passenger fender and then sliding back towards center on top of the other rail. I used the mounting screws from M2M but found when I started to tighten them, the U shaped dash rail started to flatten. I just grabbed some ½” nuts and placed them in the channel of the rail. They were the perfect height for a standoff and placed the bracket just above the ‘U’ rail with the mounting screw passing through the center of them.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2063

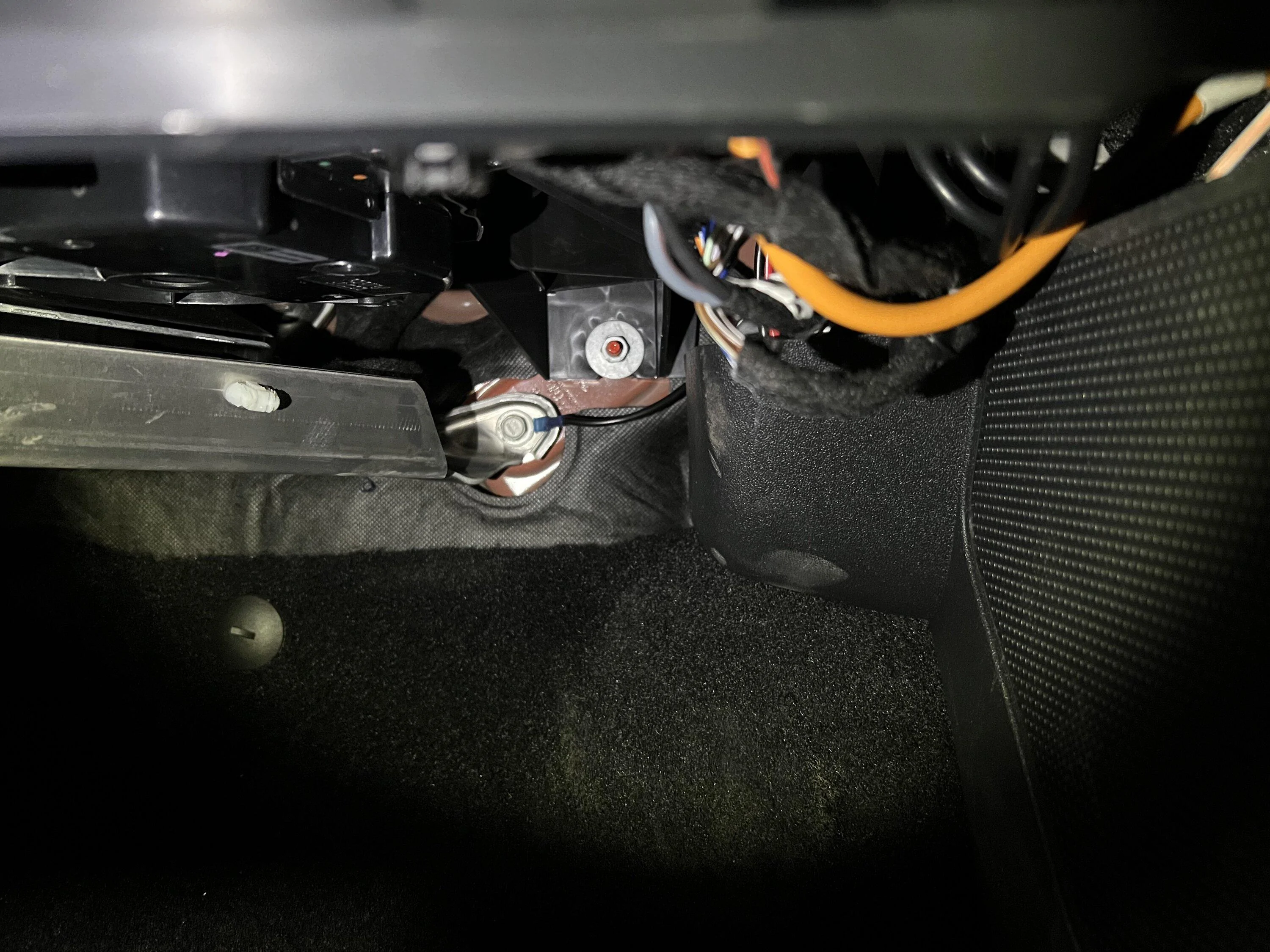

I utilized Upfitter switch 2 for power (On BRaptor this is a 15 AMP circuit). I connected Upfitter switch 2 to the White/Orange wire that went into the passenger cabin by glove box and connected it to the power feed on the Radio. I connected the radio ground to the bolt on the firewall in passenger footwell as shown above. For the Antenna, I did like others and ran the cable over to the drivers side, through the firewall grommet and back over to the passenger side. The excess antenna cable I coiled up behind the passenger kick panel. I used the M2M Antenna bracket installed on the passenger mirror mount for the Midland MXTA25 antenna.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2068

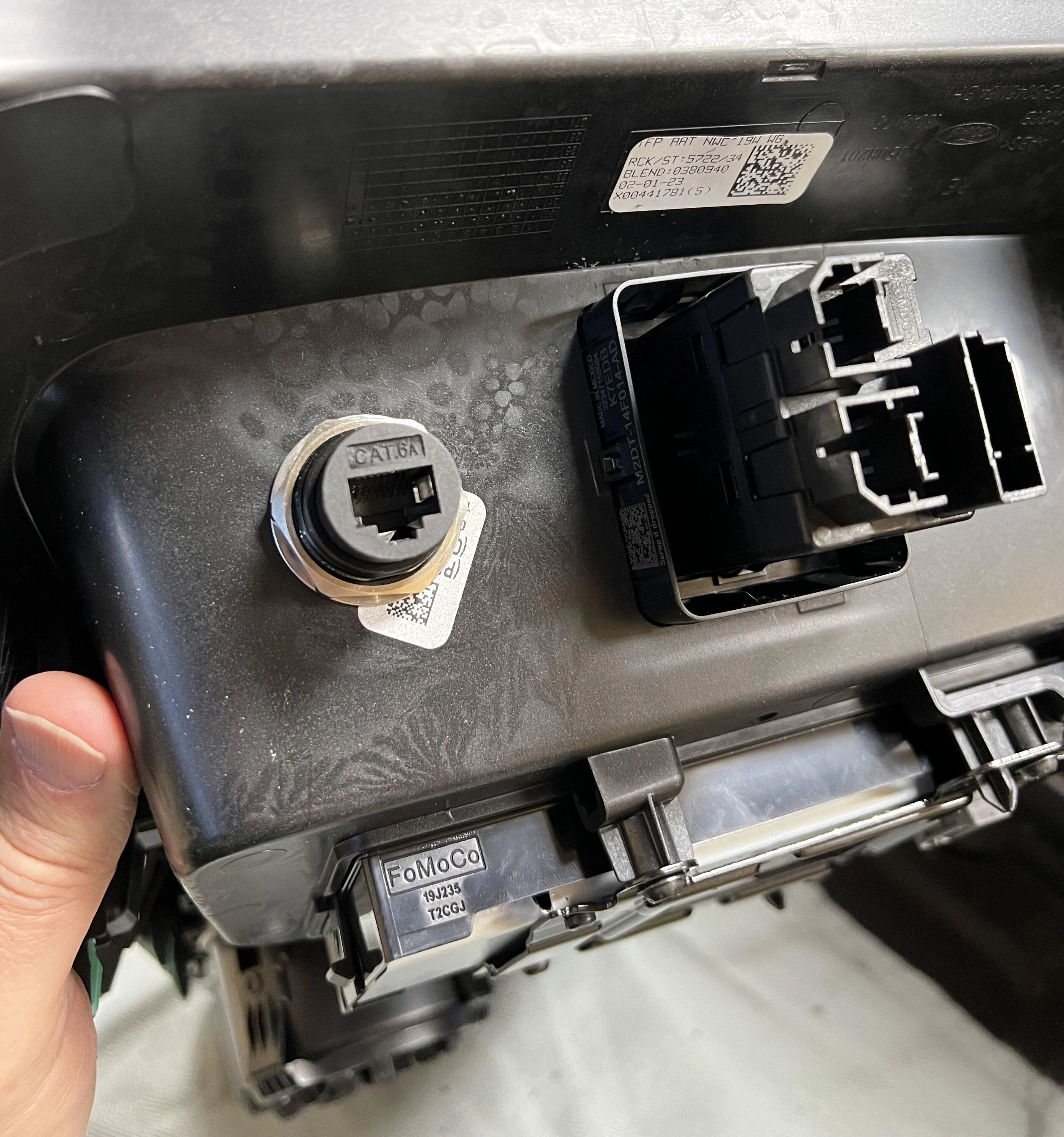

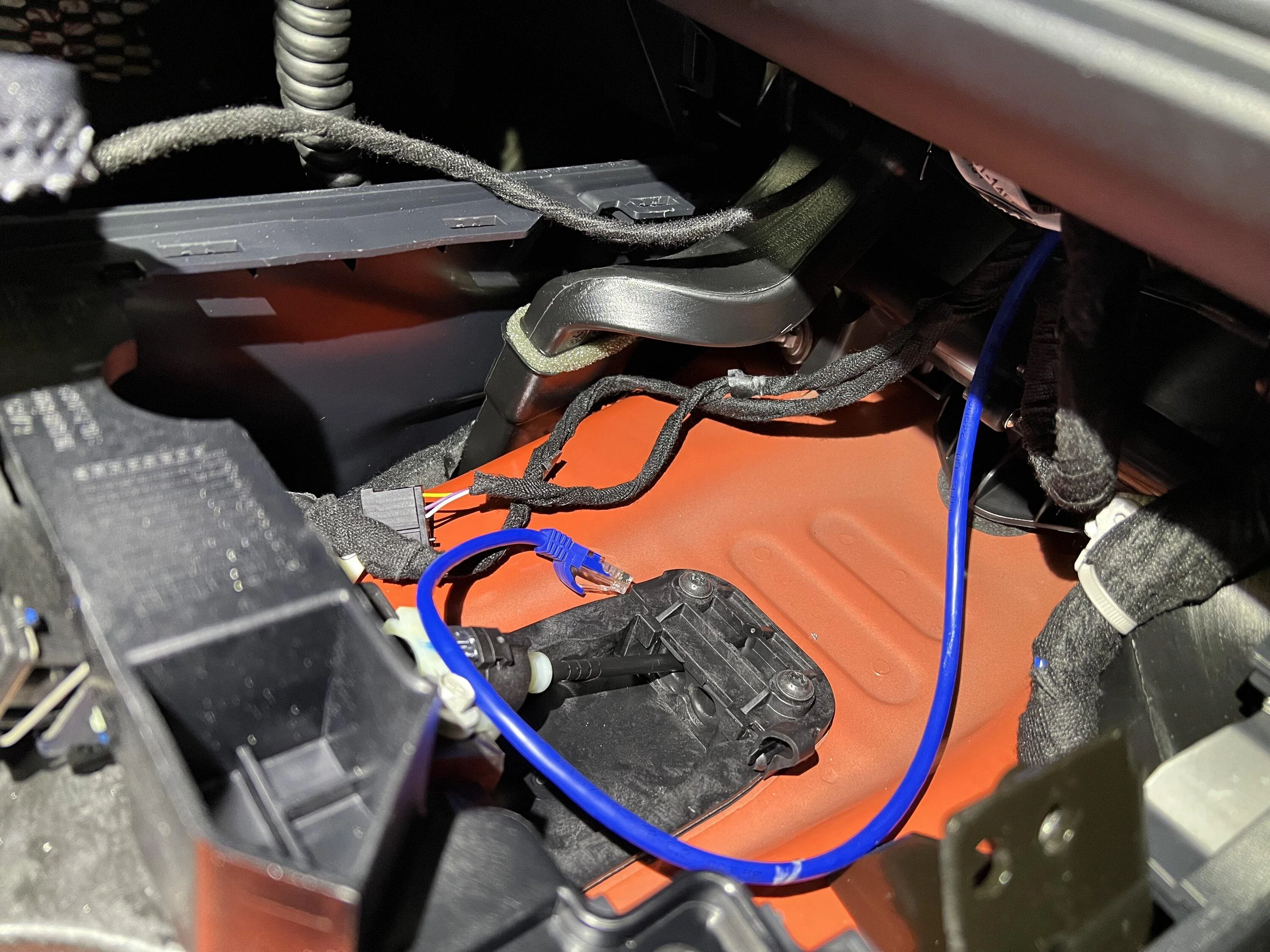

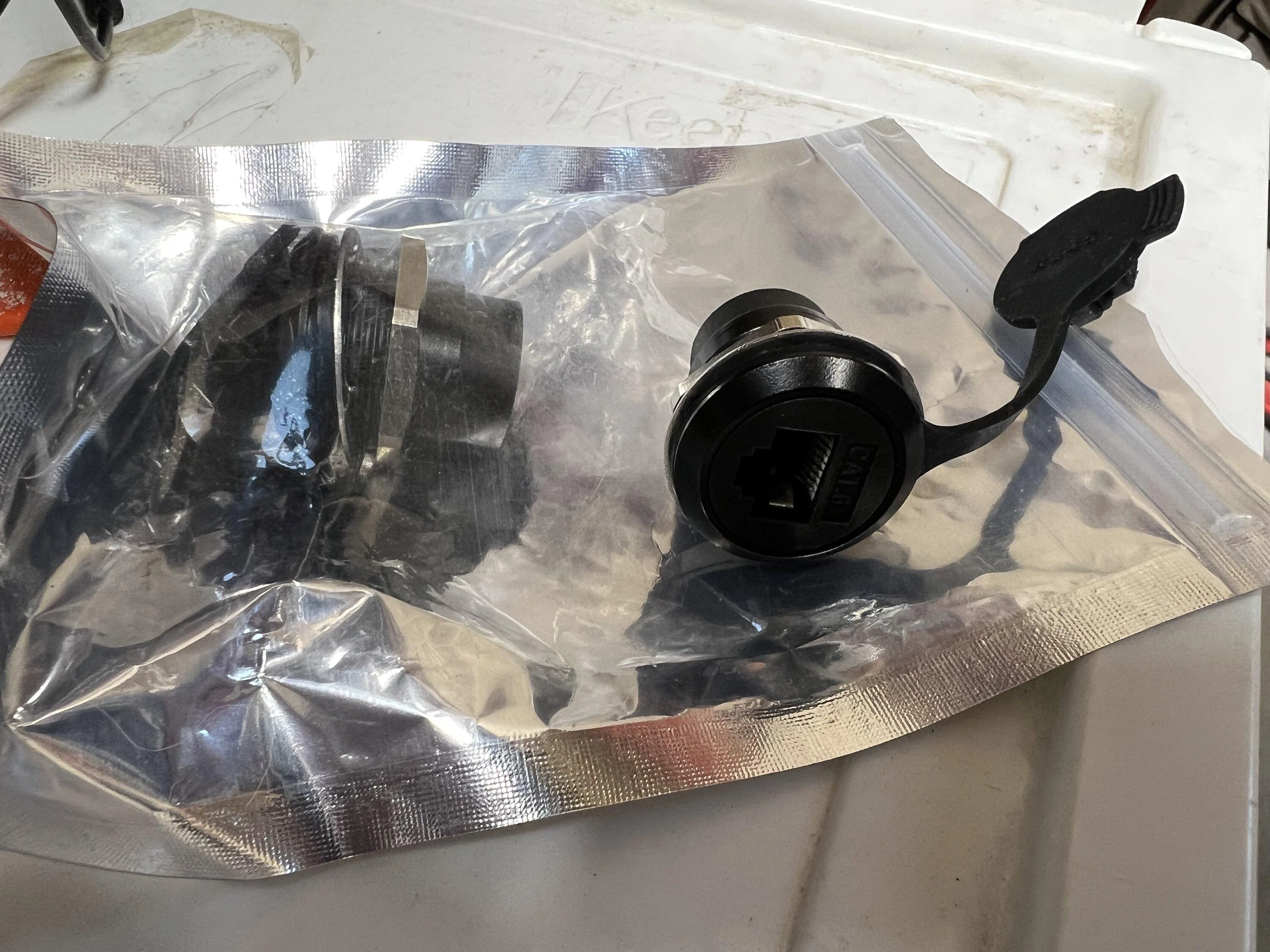

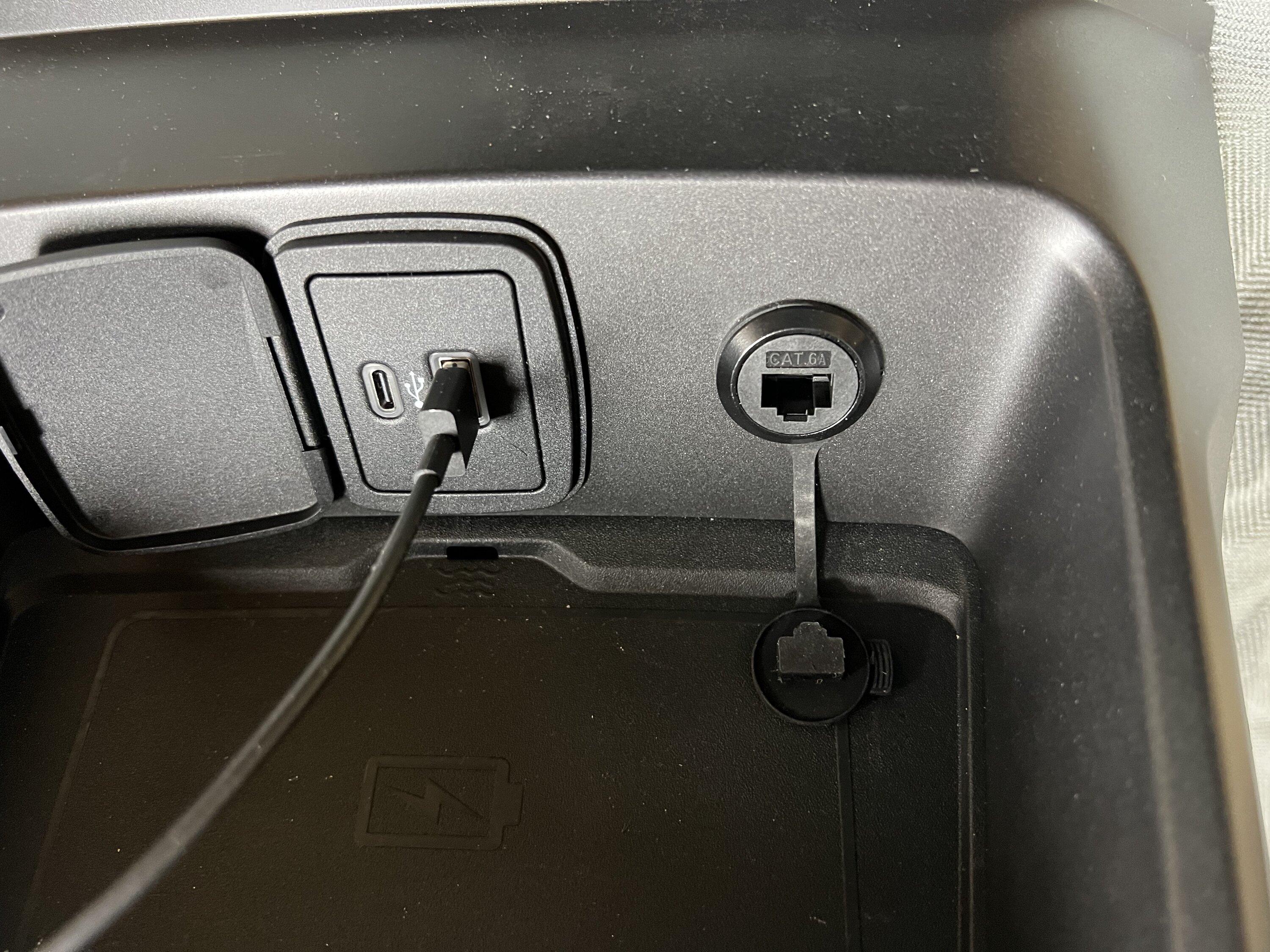

For the remote mic connection, I wanted the jack in the center console but wanted a dust cover on it (to protect when unplugged) along with the ability to unplug the cable from the back of the console if/when I have to remove the center console again. I used a Benglin RJ45 panel mount along with a 3’ Cat6 patch cable to the radio.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1993

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1998

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_1997

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2008

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2012

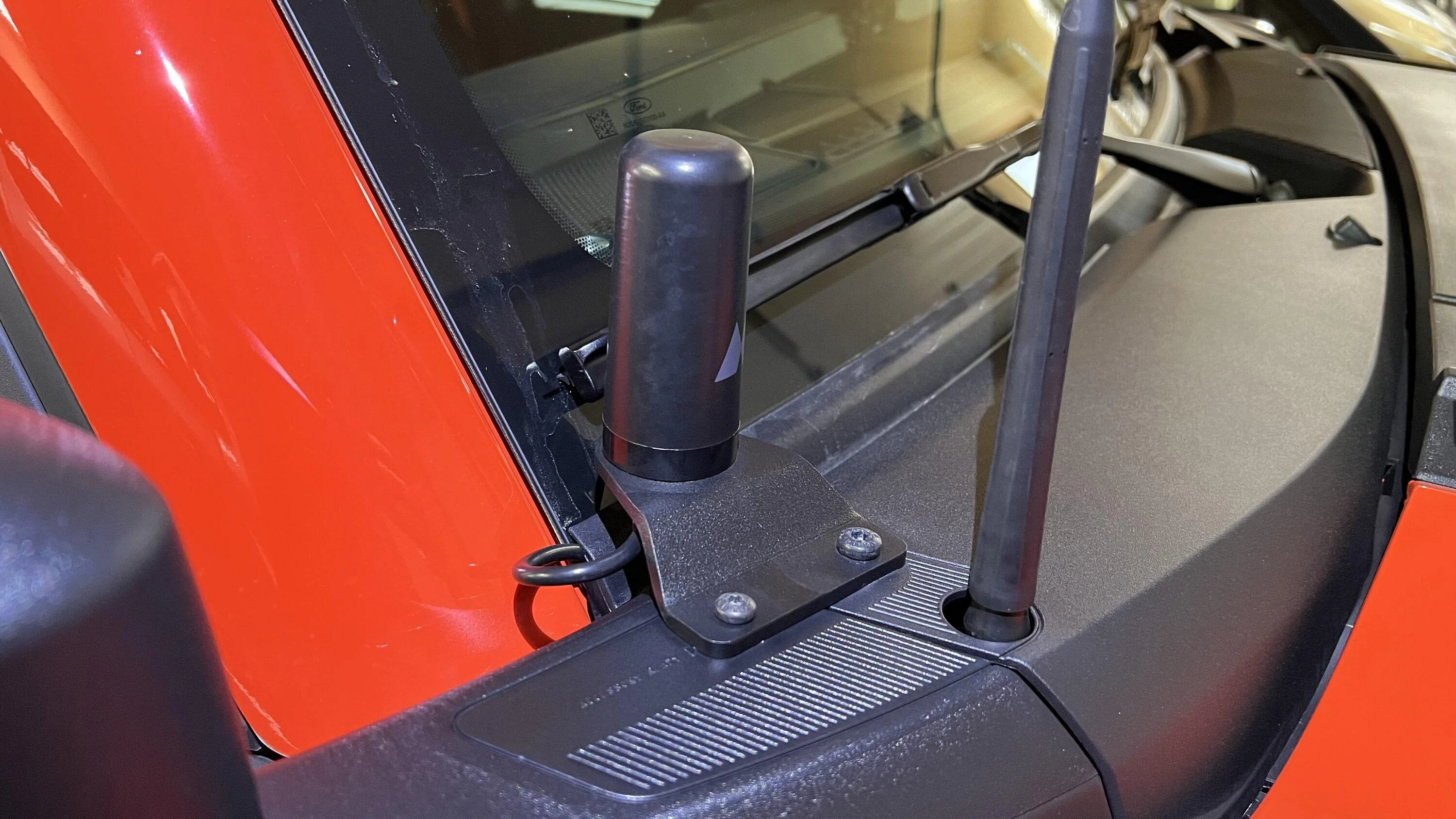

It was an easy install with just a 15/16" hole needing to be drilled.

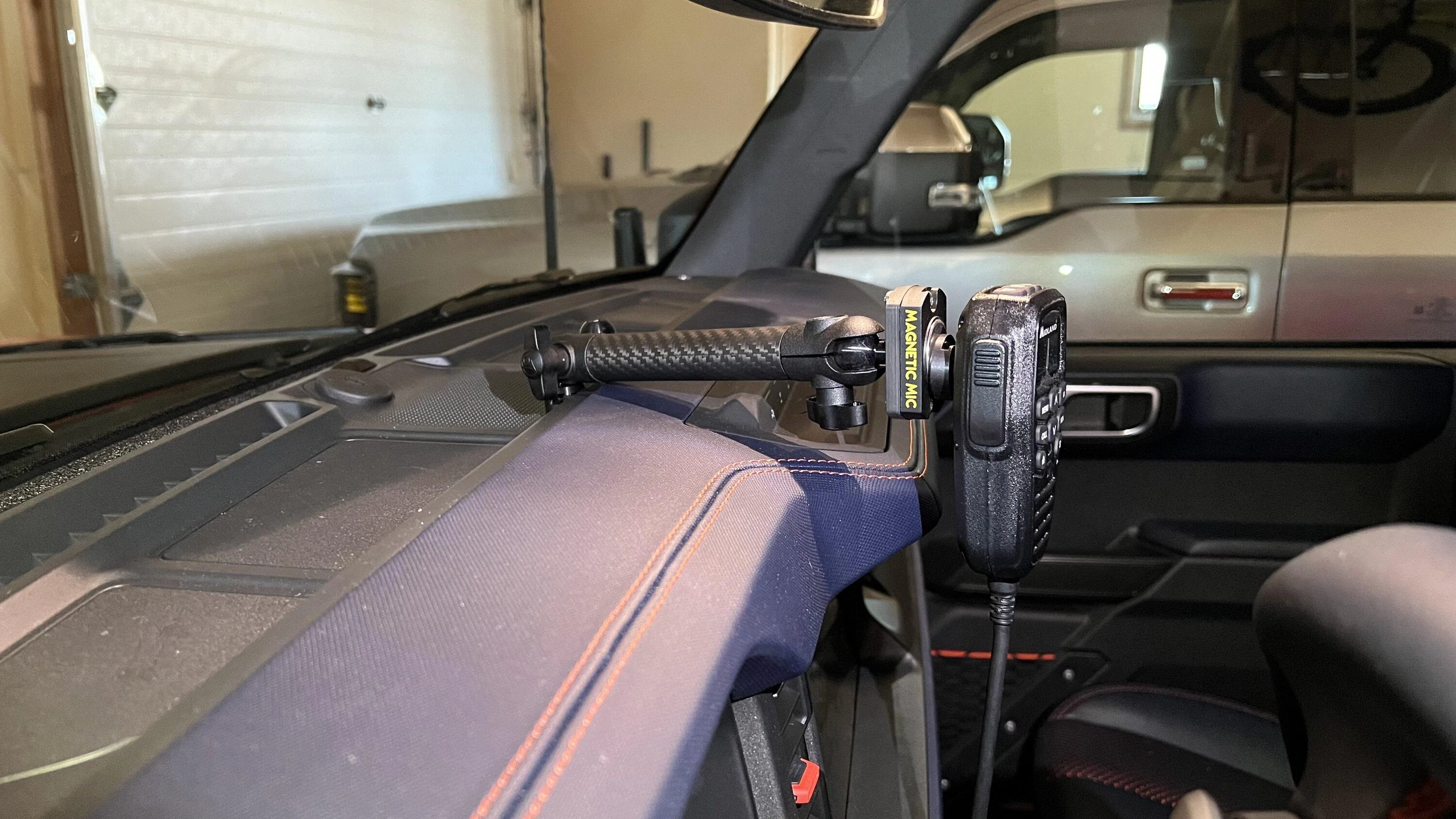

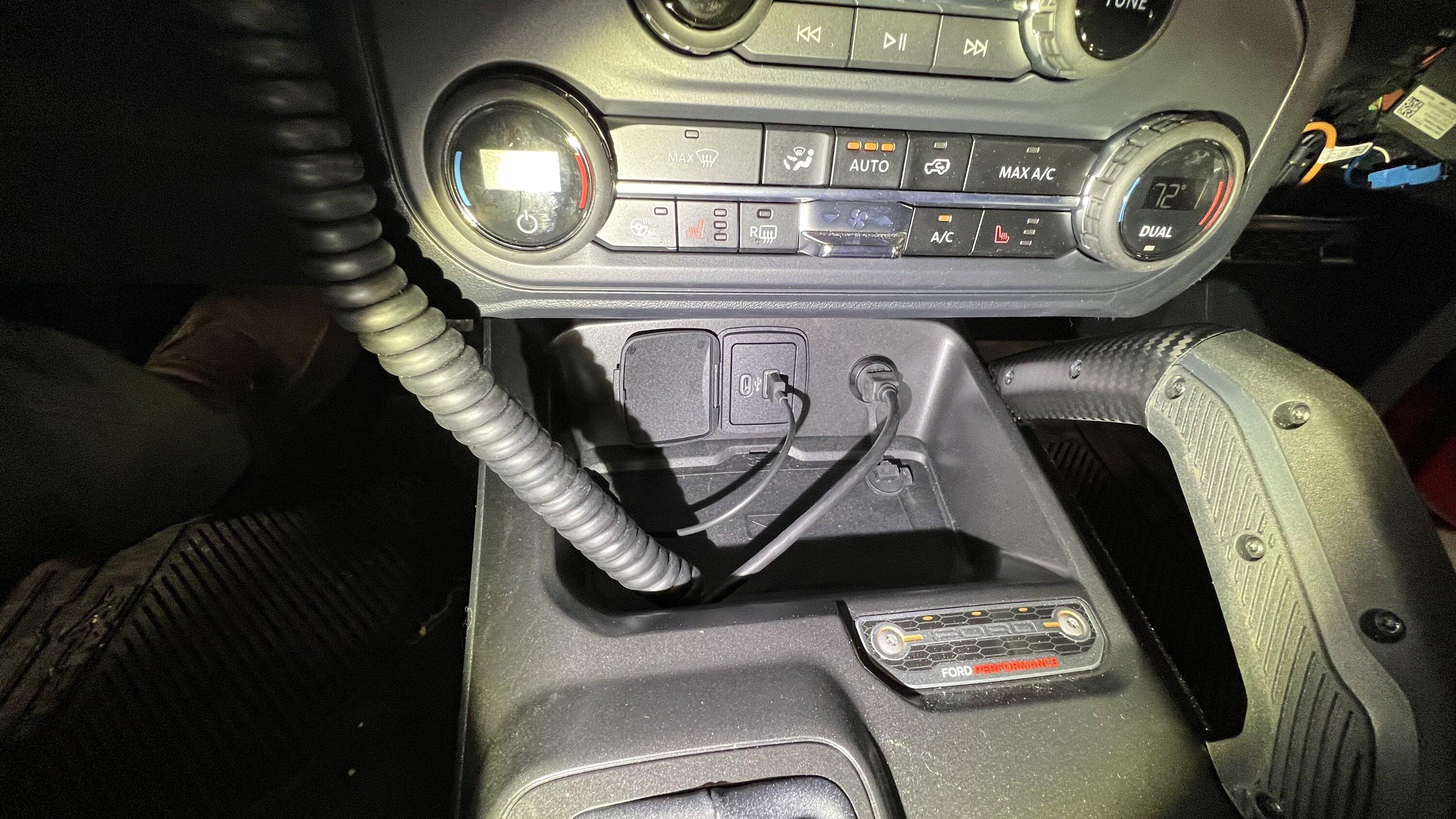

For the mic mount, I utilized parts from Archetype Racing, 67 Designs and Magnetic Mic. This setup worked really well at putting the mic in a good position and not blocking buttons or vents.
Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2059

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

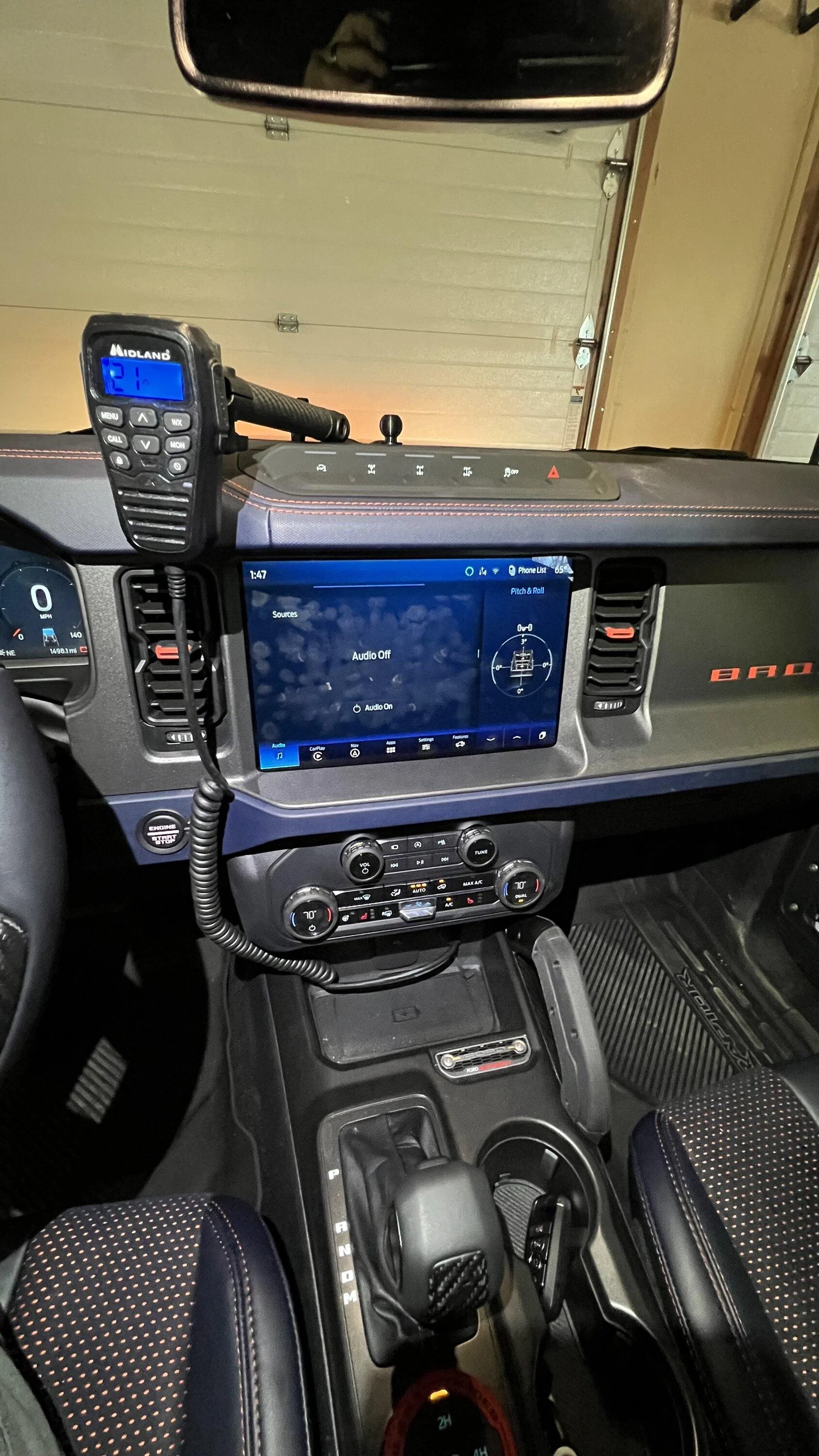

Since installing, I’ve been on several trail rides with no issues of rattling or mic falling. Very easy to use while on the trail. Thanks to Mountains2Metal and 67 Designs for some great products that made this install very clean and straightforward to do. The BAM from AR gives 3 mount points instead of the 1 from the factory. Easy to install and now I can mount the mic and have my dash cam (or phone) mounted as well. Please let me know if you have any questions on the install or would like to see additional pictures.
Sponsored


Last edited:

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
21
Messages
851
Reaction score
1,207
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs

Very nice! Great job on the clean install and it's always the small details that make a huge differance!


adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
21
Messages
851
Reaction score
1,207
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs

And get a screen protector on that screen ASAP, I have one that doesn't show finger prints, those are the things that drive me crazy :ROFLMAO: 🍻

OP
OP
Jabaen

Jabaen

Raptor
Active Member
First Name
Brandon
Joined
Mar 20, 2023
Threads
3
Messages
42
Reaction score
126
Location
Grand Junction, CO
Vehicle(s)
53 Ford Tractor, 76 Bronco, 03 Ranger, 20 F250
Your Bronco Model
Raptor
And get a screen protector on that screen ASAP, I have one that doesn't show finger prints, those are the things that drive me crazy :ROFLMAO: 🍻
Thanks! Yeah, noticed that when I posted the picture. Next thing I'm getting! :)


LABlueBronco

Badlands
Well-Known Member
First Name
Brian
Joined
Dec 20, 2021
Threads
4
Messages
290
Reaction score
343
Location
Louisiana
Vehicle(s)
2001 Jeep TJ on 37" SSRs and 2010 Silverado
Your Bronco Model
Badlands
Clubs

Not to highjack, but @adamruiz2001, do you know of a quality one fits well?

I bought the Xpel one directly from their website. Fit well, but would not recognize finger touches. Thankfully, it was only $14 or something, so not too much wasted on it.


Sponsored

adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
21
Messages
851
Reaction score
1,207
Location
SoCal
Vehicle(s)
Ford SVT Lightning
Your Bronco Model
Wildtrak
Clubs

Not to highjack, but @adamruiz2001, do you know of a quality one fits well?

I bought the Xpel one directly from their website. Fit well, but would not recognize finger touches. Thankfully, it was only $14 or something, so not too much wasted on it.
I went with this one, its anti glare and finger print, plus the sensitivity is still perfect, put mine on day one and haven't had issues with it.

https://www.stickerfab.com/collecti...tector-kit-2021-bronco?variant=40661578186863


TigerBronco

First Edition
Well-Known Member
First Name
Charles
Joined
Mar 13, 2020
Threads
17
Messages
461
Reaction score
1,066
Location
35758
Vehicle(s)
2011 F-150 F/X 4, 2019 Honda Odyssey, 2001 Nissan Pathfinder, 1992 BMY M923A2 M
Your Bronco Model
First Edition
I’m pretty particular (ok, anal) about installing items in my vehicle and want as much of a factory look as possible. Because of that, I spent a lot of time (admittedly too much!) redoing this install so I could get to a point that required minimal modifications. Standard install with the M2M bracket requires notching the back of the glove box, which I didn’t want to do and looked for a cleaner way. After a lot of trial and error, I was finally able to get the radio installed with only the relocation of one wire connector. The steps and pictures below outline what I did to get it installed. Sorry, no video. Several steps have been covered by others so I kind of glossed over those (like removing the center console and running the antenna wire). If there is a step that you have a question on or would like more information, please let me know.

First, I’ll start with the links for all the components I used. Some would be optional (mic holder items) and you could do a different way.

Midland

Mountains2Metal

Archetype Racing

67 Designs

Innovative Products

Penglin

Home Depot

Ok, on to the install!

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Stock M2M Radio bracket. The standard install has the radio attached to the bracket with the front of the radio pointed towards the passenger seat. The radio is long and this causes it to be very difficult to attach the mic extension to the front jack as it is right up against the inside of the dash. The back of the radio hangs down which requires notching the glove box to get it to fit. I found that if you mount the radio sideways, you can just get it too fit between the dash rails above the glove box. To do this required some tweaks to the M2M bracket to get the radio in sideways. Here are the tweaks that are needed.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Tweaks I made to the M2M bracket. These changes allowed me to get the radio installed sideways and ports above the rails so mic and antenna can easily be attached.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Attachment of the radio mount to the M2M Bracket. I did drill and add the 2 screws on the sides. With just the 2 screws in the middle, the bracket had a tendency to bend in the middle where the slots are. With the four screws, it was a very solid mount.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Radio snapped into bracket. The bend in the center of the M2M bracket was to get the radio high enough so the antenna cable and Mic cables to clear the top of the metal dash brackets above the glove box. Turning the radio sideways gives good access to the front and back of the radio for connecting the antenna and Mic cables.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

The one connector (yellow) that needs to be moved. I just pried it off the metal bracket and zip tied it up to the left. Hard to see in below picture but, the rounded metal edge at the bottom where the yellow connector was attached, has a very tight clearance with the radio when installed. I put some double sided foam tape along here to prevent rattling.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Getting the radio up inside was the most difficult part. It is a tight fit but, with a little patience it will just slide in place on top of the rails. I had the best luck by pushing it up and towards the passenger fender and then sliding back towards center on top of the other rail. I used the mounting screws from M2M but found when I started to tighten them, the U shaped dash rail started to flatten. I just grabbed some ½” nuts and placed them in the channel of the rail. They were the perfect height for a standoff and placed the bracket just above the ‘U’ rail with the mounting screw passing through the center of them.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

I utilized Upfitter switch 2 for power (On BRaptor this is a 15 AMP circuit). I connected Upfitter switch 2 to the White/Orange wire that went into the passenger cabin by glove box and connected it to the power feed on the Radio. I connected the radio ground to the bolt on the firewall in passenger footwell as shown above. For the Antenna, I did like others and ran the cable over to the drivers side, through the firewall grommet and back over to the passenger side. The excess antenna cable I coiled up behind the passenger kick panel. I used the M2M Antenna bracket installed on the passenger mirror mount for the Midland MXTA25 antenna.

For the remote mic connection, I wanted the jack in the center console but wanted a dust cover on it (to protect when unplugged) along with the ability to unplug the cable from the back of the console if/when I have to remove the center console again. I used a Benglin RJ45 panel mount along with a 3’ Cat6 patch cable to the radio.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

It was an easy install with just a 15/16" hole needing to be drilled.

For the mic mount, I utilized parts from Archetype Racing, 67 Designs and Magnetic Mic. This setup worked really well at putting the mic in a good position and not blocking buttons or vents.
Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

Since installing, I’ve been on several trail rides with no issues of rattling or mic falling. Very easy to use while on the trail. Thanks to Mountains2Metal and 67 Designs for some great products that made this install very clean and straightforward to do. The BAM from AR gives 3 mount points instead of the 1 from the factory. Easy to install and now I can mount the mic and have my dash cam (or phone) mounted as well. Please let me know if you have any questions on the install or would like to see additional pictures.
Excellent work! Looks super clean and factory.


Bruno

Base
Well-Known Member
First Name
Bruno
Joined
Apr 24, 2021
Threads
49
Messages
852
Reaction score
915
Location
Montclair
Vehicle(s)
F150
Your Bronco Model
Base
Clubs

For the remote mic connection, I wanted the jack in the center console but wanted a dust cover on it (to protect when unplugged) along with the ability to unplug the cable from the back of the console if/when I have to remove the center console again. I used a Benglin RJ45 panel mount along with a 3’ Cat6 patch cable to the radio.

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061



Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2061

It was an easy install with just a 15/16" hole needing to be drilled.
Was there a location under the drivers side dash to mount the mic jack - so the center console cubby stayed more usable?

OP
OP
Jabaen

Jabaen

Raptor
Active Member
First Name
Brandon
Joined
Mar 20, 2023
Threads
3
Messages
42
Reaction score
126
Location
Grand Junction, CO
Vehicle(s)
53 Ford Tractor, 76 Bronco, 03 Ranger, 20 F250
Your Bronco Model
Raptor
Was there a location under the drivers side dash to mount the mic jack - so the center console cubby stayed more usable?
There were several places that I looked at and would have worked. On the drivers side of the center console, in the dash just below the start button, in the pop out panel below the radio and above the center console. Even looked at just to the left of the glove box. Lots of space in those locations and doable. I would have preferred to put it on the left side of the cubby but, with the USB cover open, it blocked it. (Even looked at flipping the USB ports). In the end, the right side of the cubby made the most sense to me. It really doesn’t block or hinder use of the cubby at all. I have also looked at 45degree RJ45 adapters that would point the cable up from the console jack. This would get the cable out of the cubby.

Last edited:

Sponsored

Dads_bronze_bronco

Raptor
Well-Known Member
Joined
Feb 18, 2020
Threads
6
Messages
4,170
Reaction score
7,457
Location
NC
Vehicle(s)
08 JKUR / x_x 00 TJ x_x
Your Bronco Model
Raptor
Clubs

Nice job - where exactly is the firewall grommet? I have a few things to push through there.

OP
OP
Jabaen

Jabaen

Raptor
Active Member
First Name
Brandon
Joined
Mar 20, 2023
Threads
3
Messages
42
Reaction score
126
Location
Grand Junction, CO
Vehicle(s)
53 Ford Tractor, 76 Bronco, 03 Ranger, 20 F250
Your Bronco Model
Raptor
Nice job - where exactly is the firewall grommet? I have a few things to push through there.

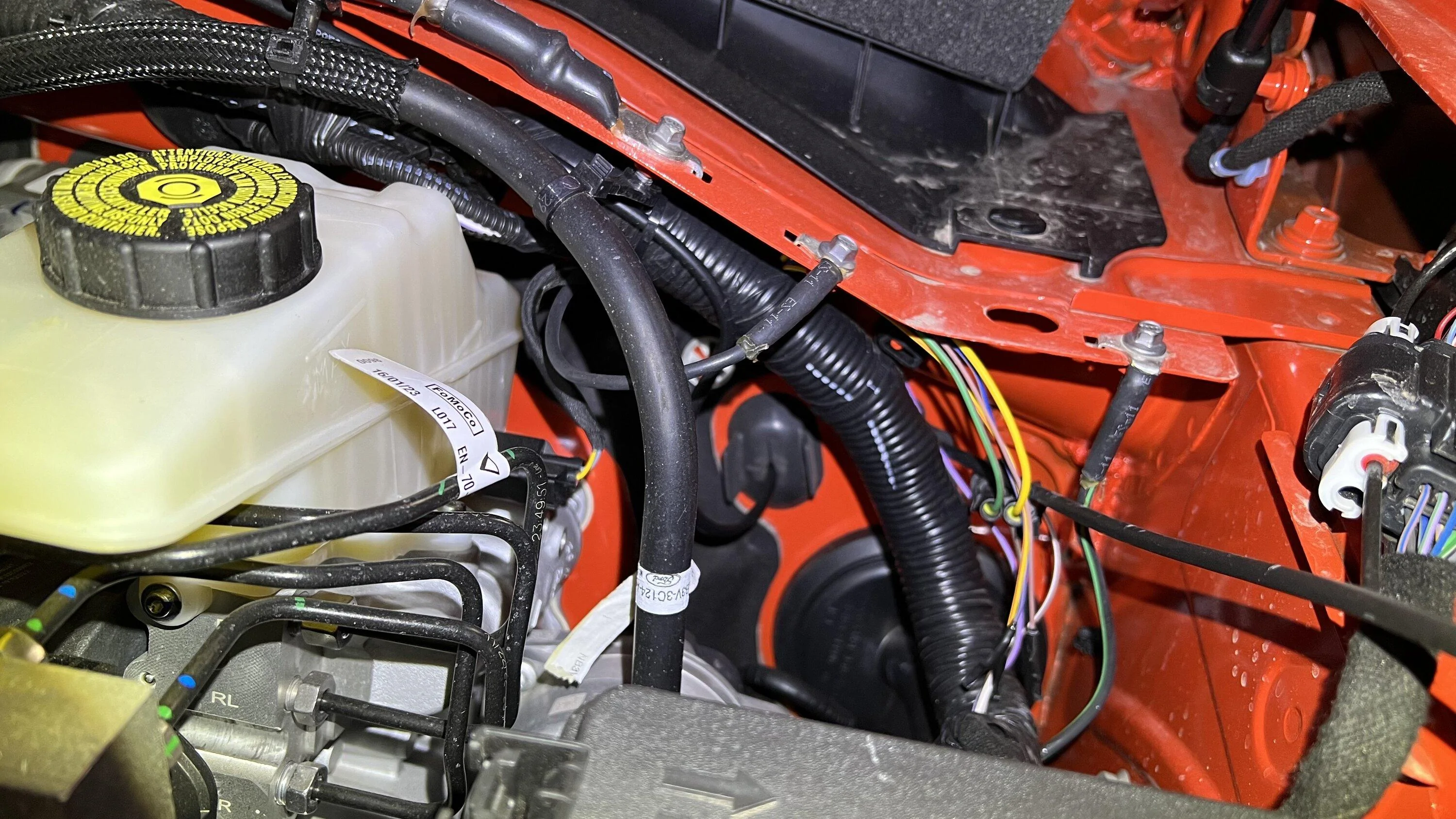

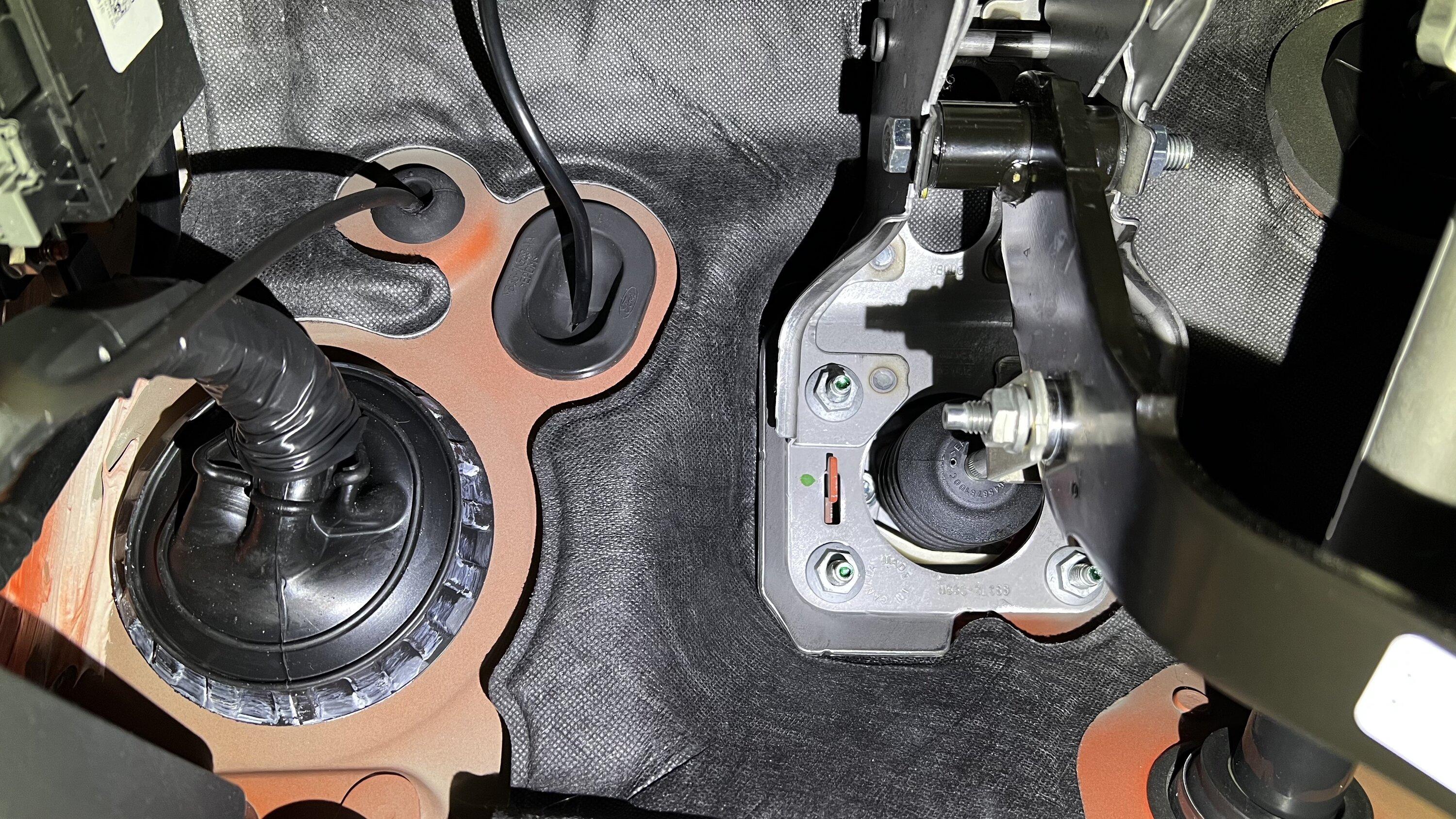

It is just to the left of the Brake mount. It is the oval one in the picture below with the single antenna wire going through it. The center of the bottom picture shows it in the engine compartment.
Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2069

Ford Bronco Very Clean Midland MXT575 GMRS Radio Install with Mountains2Metal Bracket and 67 Designs Mic Mount IMG_2070


Press it through from the engine compartment into the drivers foot well. It is solid so you have to drill a hole or cut slices into it. Then run your wires through and using the tabs on the sides, pull it back into the engine compartment.


HorizonHunter

Badlands
Well-Known Member
First Name
Joseph
Joined
Oct 13, 2020
Threads
23
Messages
824
Reaction score
1,138
Location
Chapel Hill, NC
Vehicle(s)
Grand Cherokee Trailhawk
Your Bronco Model
Badlands
Clubs

Nice job - where exactly is the firewall grommet? I have a few things to push through there.
If you're like me with a MT, no luck, there isn't. :cry: But your raptor should be fine.

OP
OP
Jabaen

Jabaen

Raptor
Active Member
First Name
Brandon
Joined
Mar 20, 2023
Threads
3
Messages
42
Reaction score
126
Location
Grand Junction, CO
Vehicle(s)
53 Ford Tractor, 76 Bronco, 03 Ranger, 20 F250
Your Bronco Model
Raptor
If you're like me with a MT, no luck, there isn't. :cry: But your raptor should be fine.
Ah, didn't think about MT. I assume that grommet is where the clutch pedal goes through? I was originally going to go through the grommet left of it where the hood release cable goes through. Would have been tight. Wish Ford would have put a grommet on the passenger side. But, can't complain, everything else was so easy to do. Ford engineers put a lot of thought into making it easy to modify and upgrade.


Jeffola

Outer Banks
Well-Known Member
First Name
Jeff
Joined
Jul 7, 2020
Threads
26
Messages
187
Reaction score
145
Location
Southeast Florida
Vehicle(s)
2023 Bronco, 2023 Hyundai Santa-Fe, 2019 GT350
Your Bronco Model
Outer Banks
Clubs

Stellar install. 73's!
