I wasn’t sure about the exact details of the washout floors. Figured some might also need a better look.

Couple of noted things. Some are assumptions since I haven’t had the interior get filled with water. Soon.

They do come with carpet floor mats for daily driving. Water will get under the flooring. The plugs are under the floor steel and over the washout flooring. The air vent under the seat is in a low spot that will let water under the flooring and inside the vents. No idea how water between the floors and flooring will escape. I will have to dig deeper on this thought. I will lift the truck at work and take some photos. The plugs are attached. While this may work for not losing them, you could damage them with your feet when they are open. I will be removing mine during off road times. Lastly, do not put anything that cannot get wet in the back. Water will most likely get under the cargo cover often.

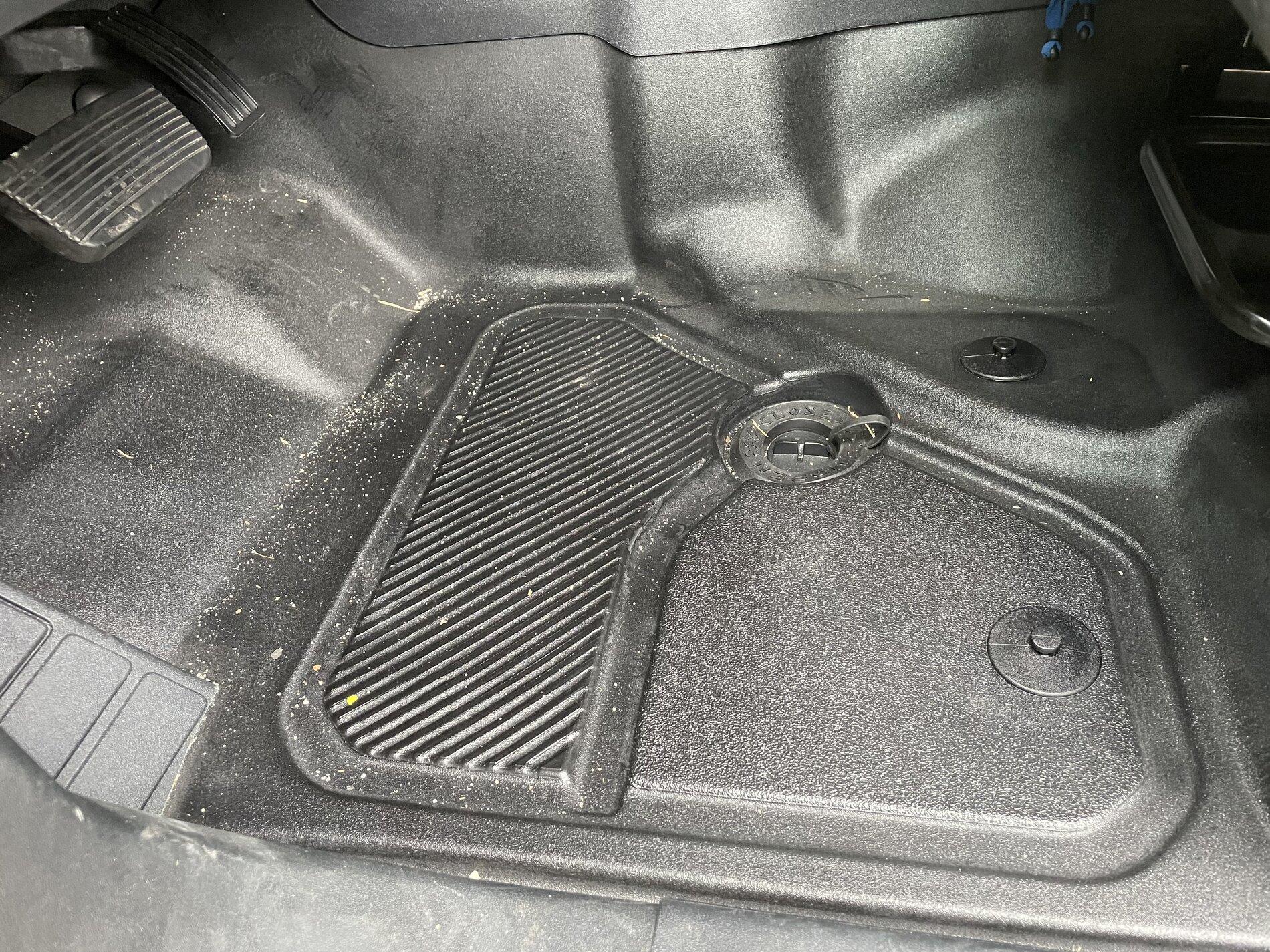

Driver side with included floor at installed:

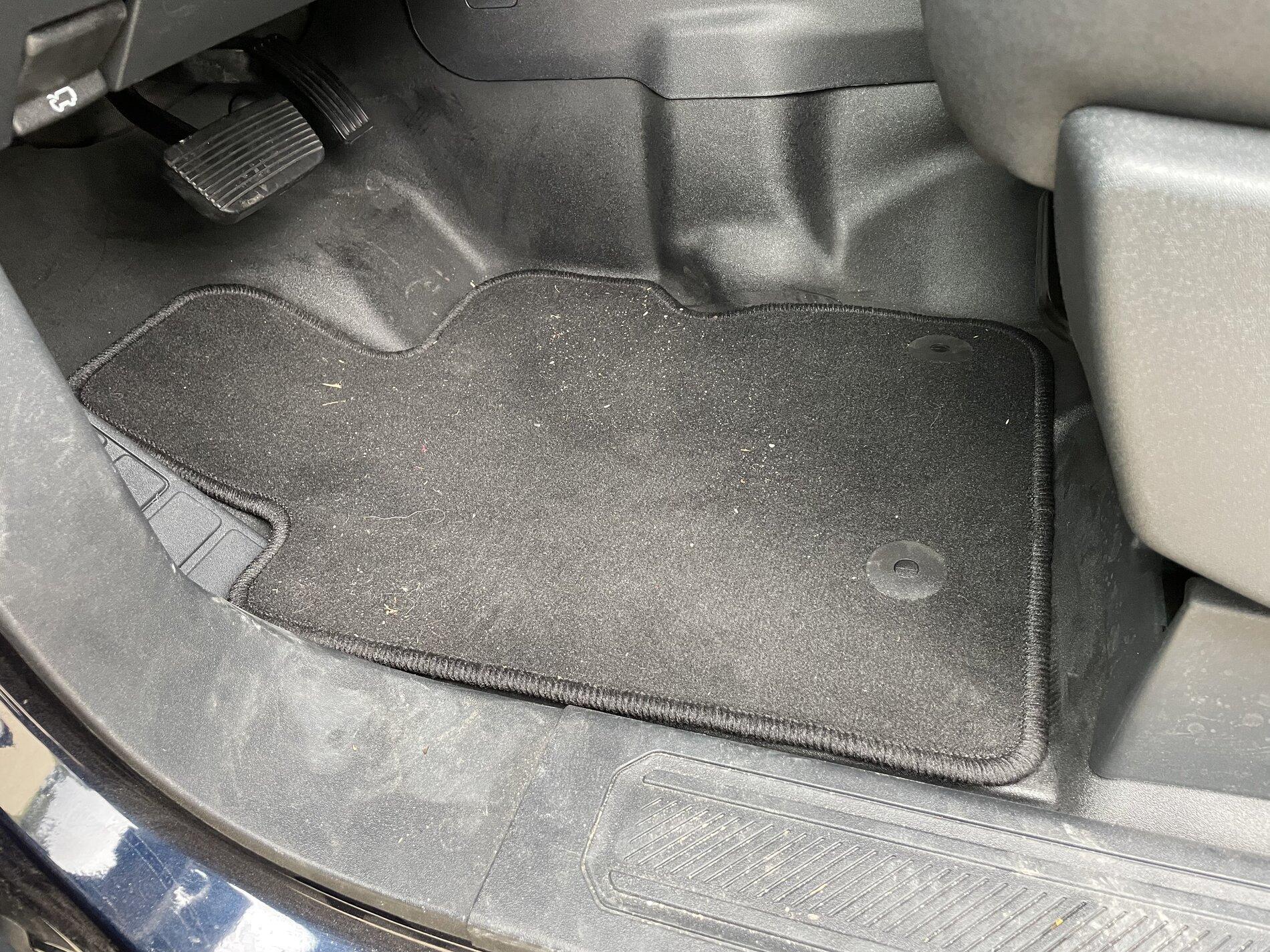

Driver side with the floor mat removed:

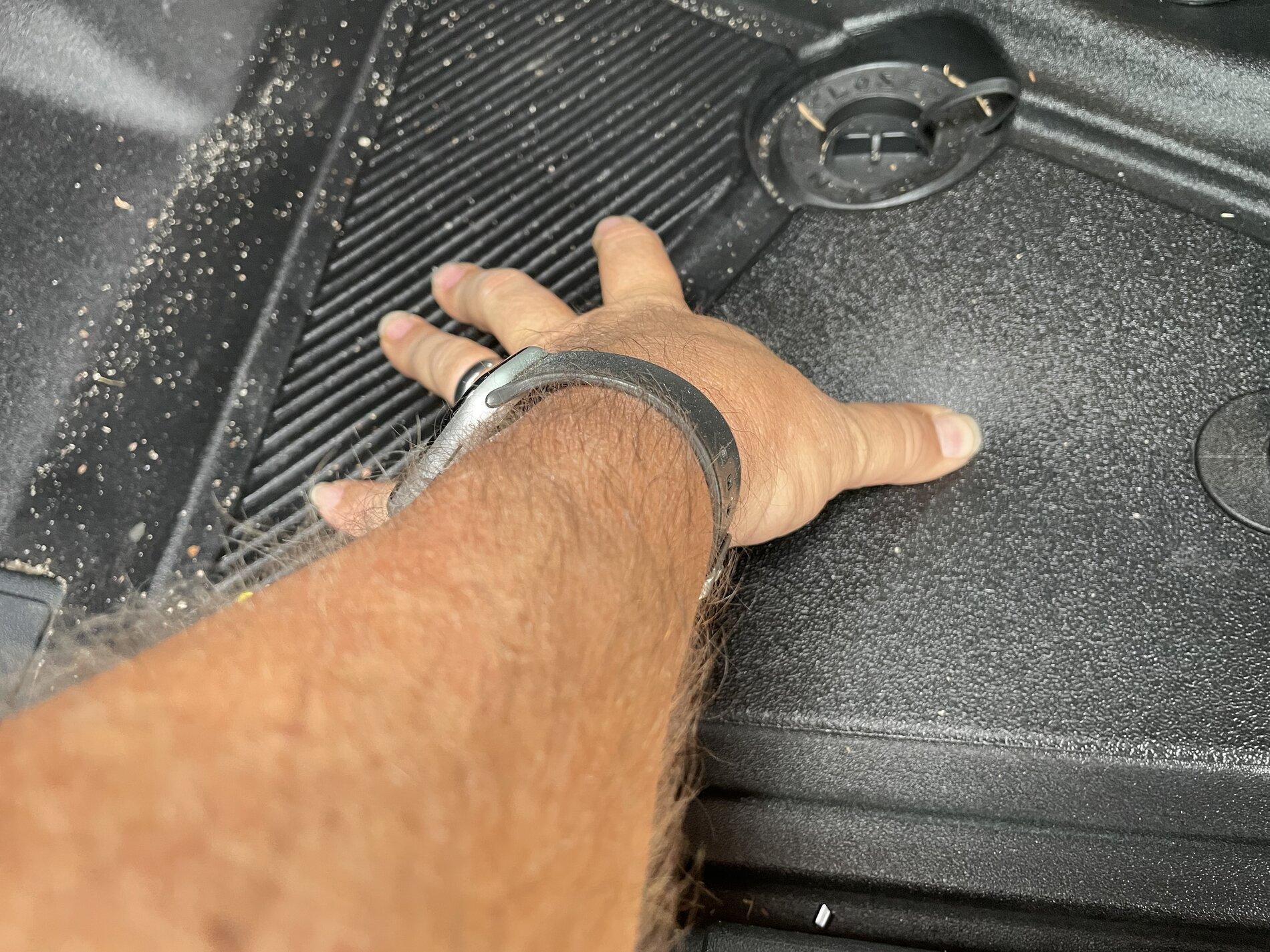

They are insulated and feel like foam underneath:

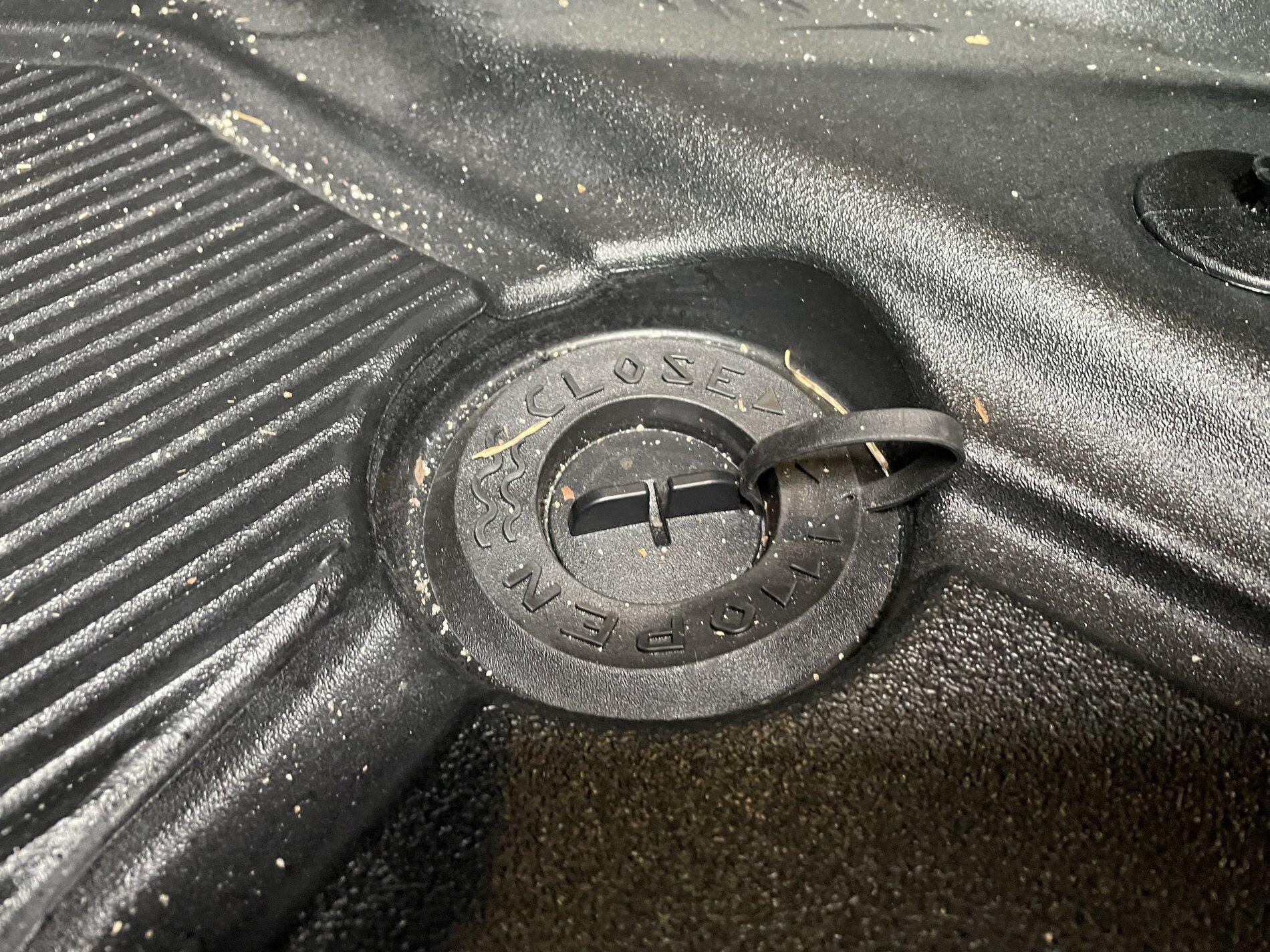

Closeup of the plug closed:

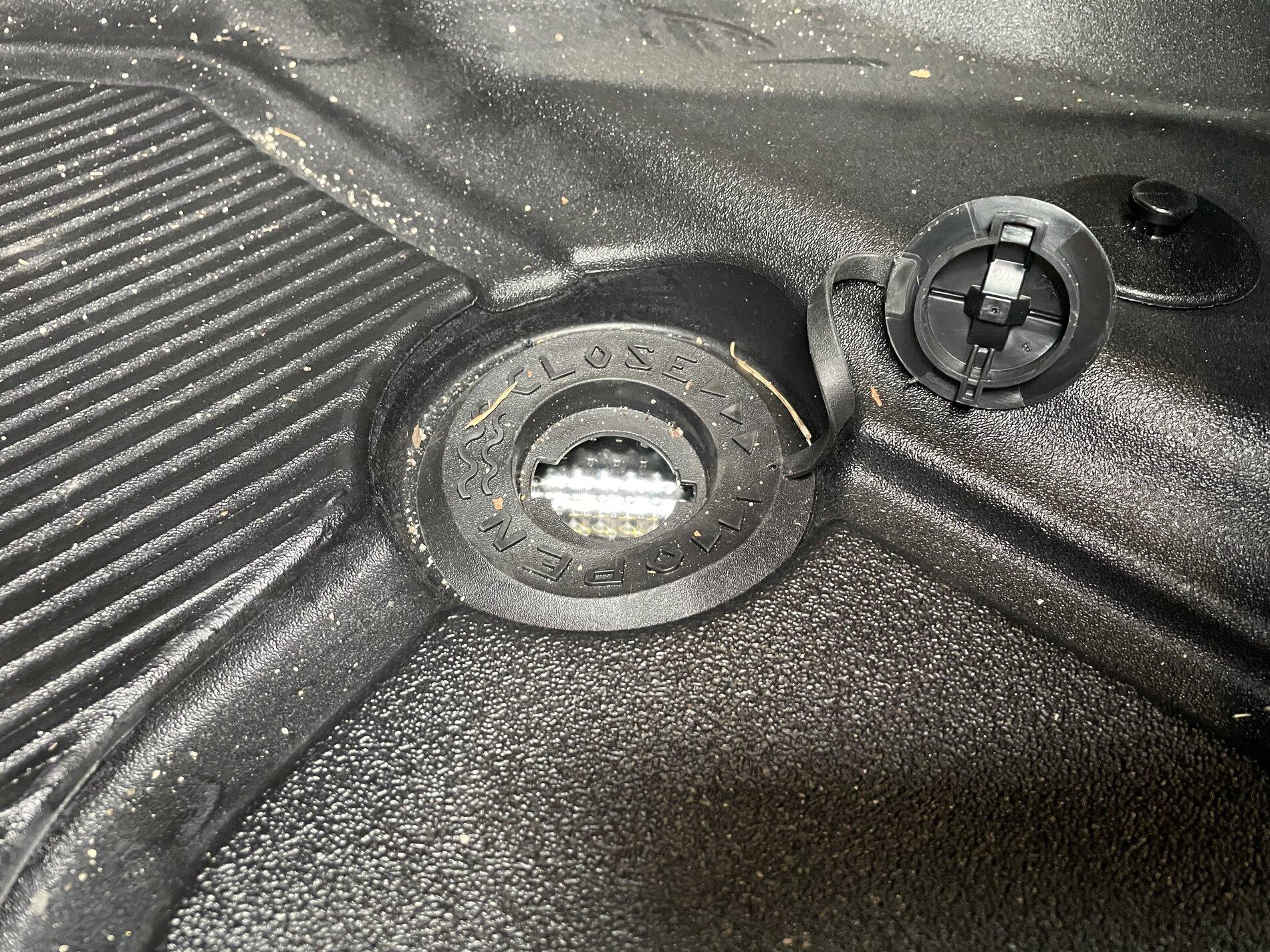

closeup with the plug removed:

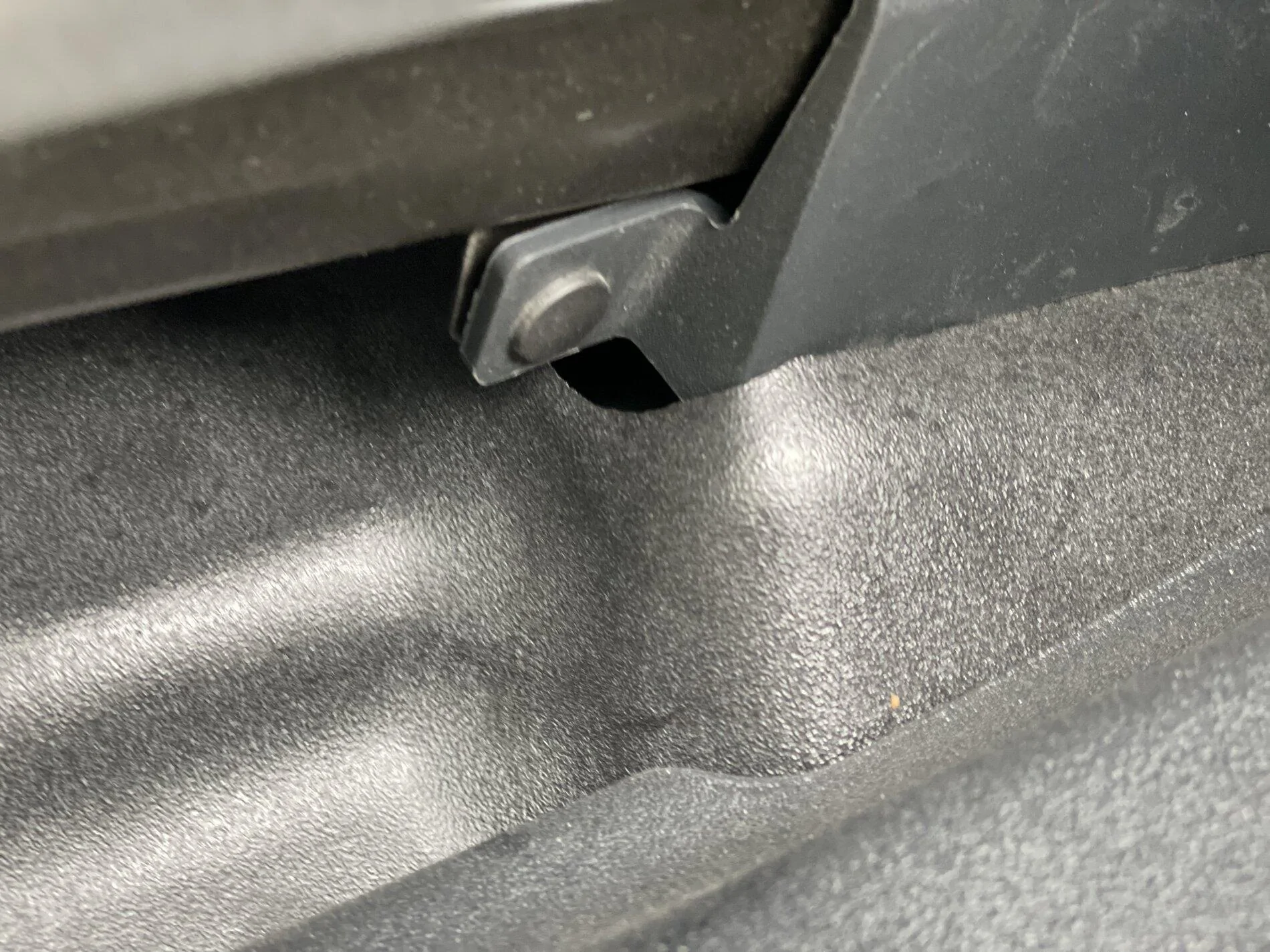

Front seat attaching poin:

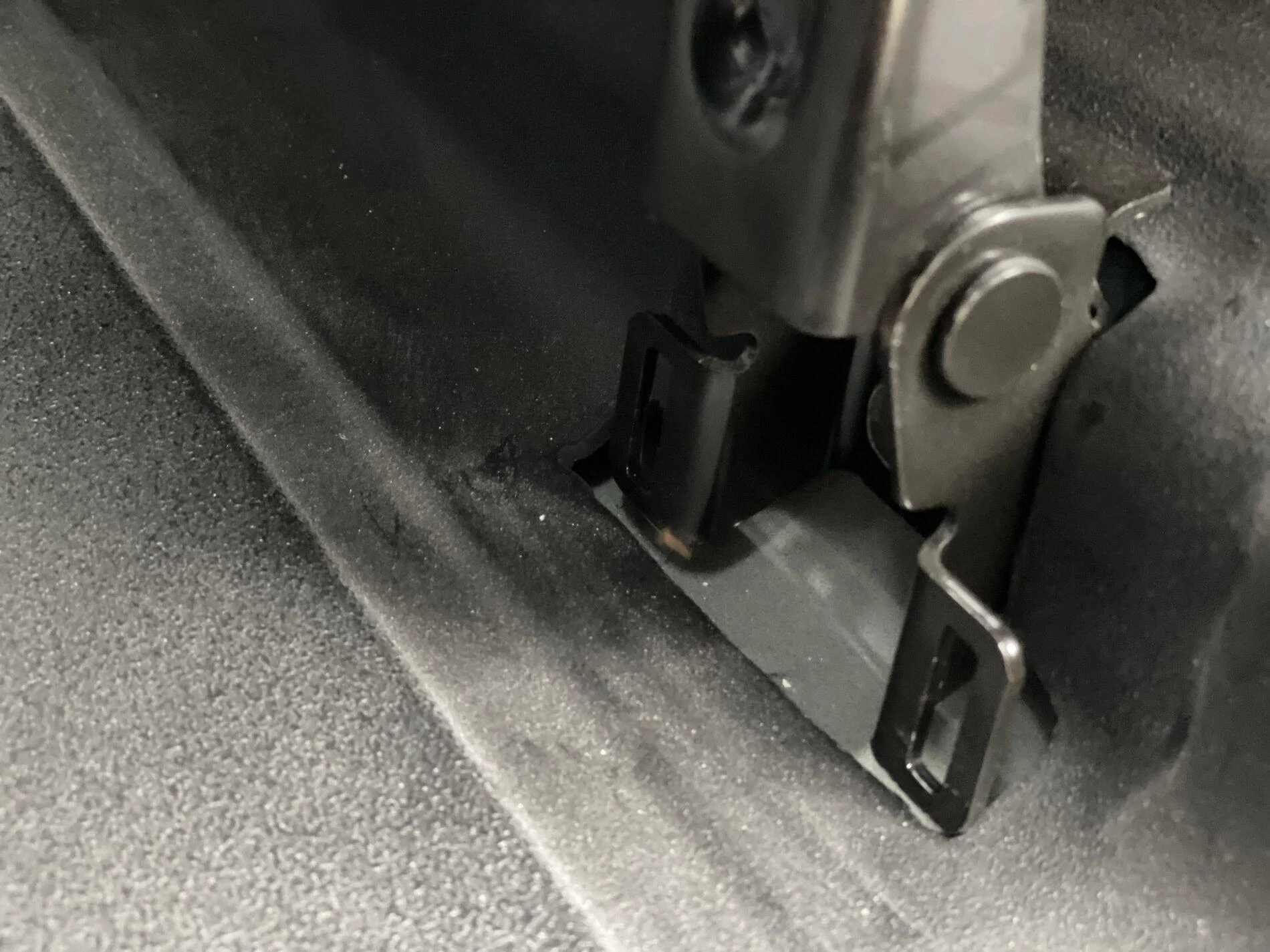

Back seat attaching point:

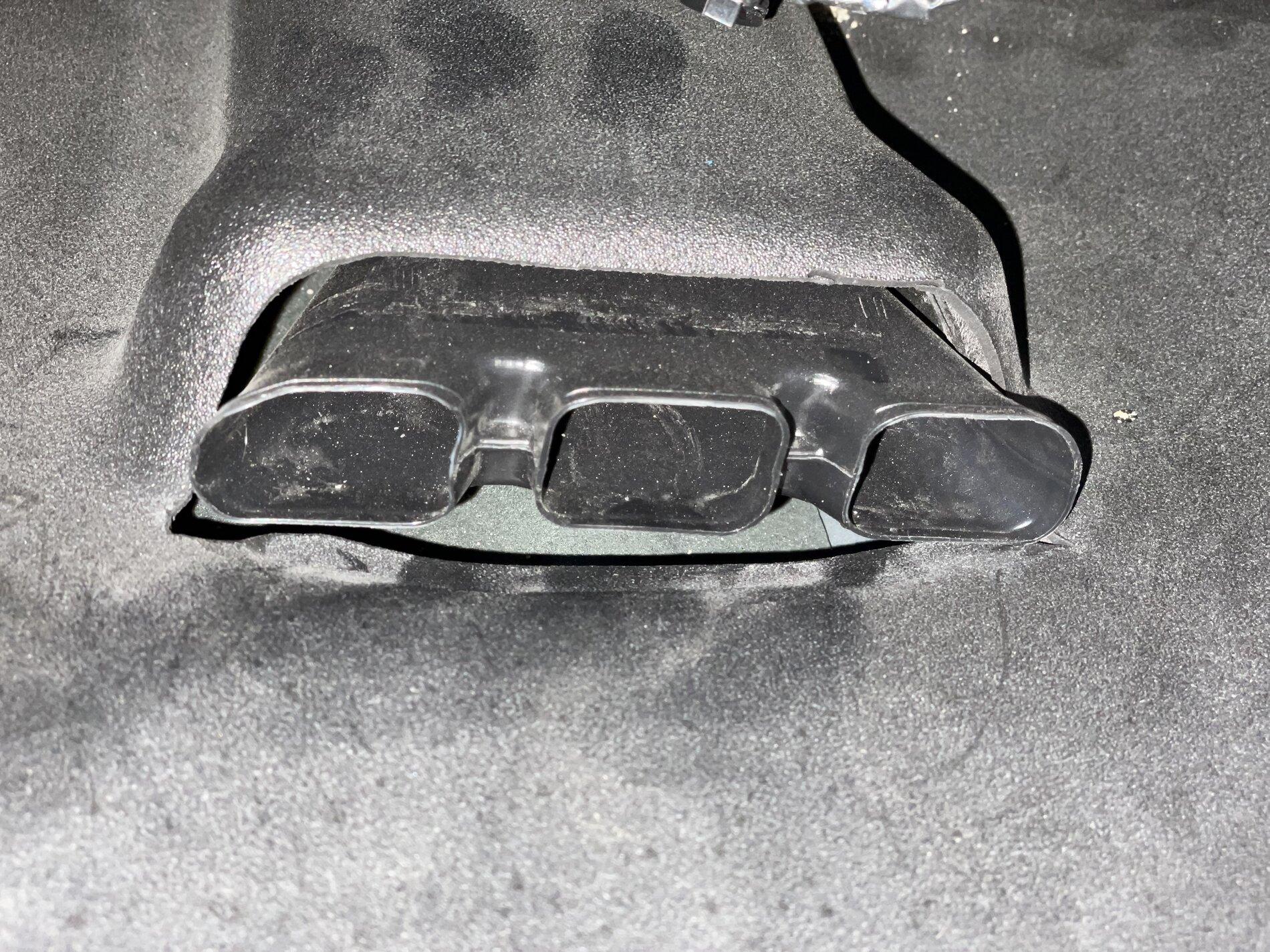

Rear air vent under the front seat:

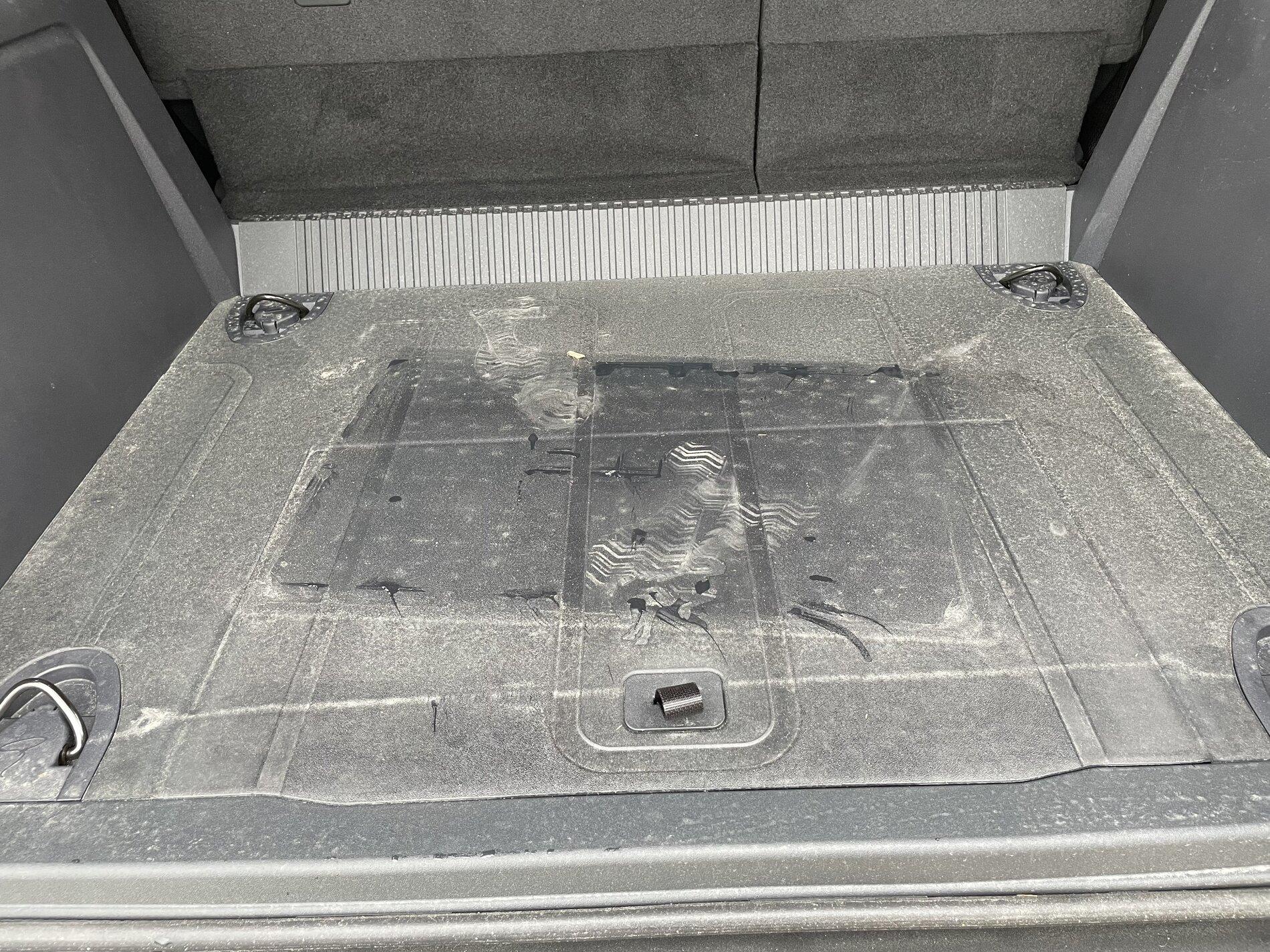

Rear cargo area:

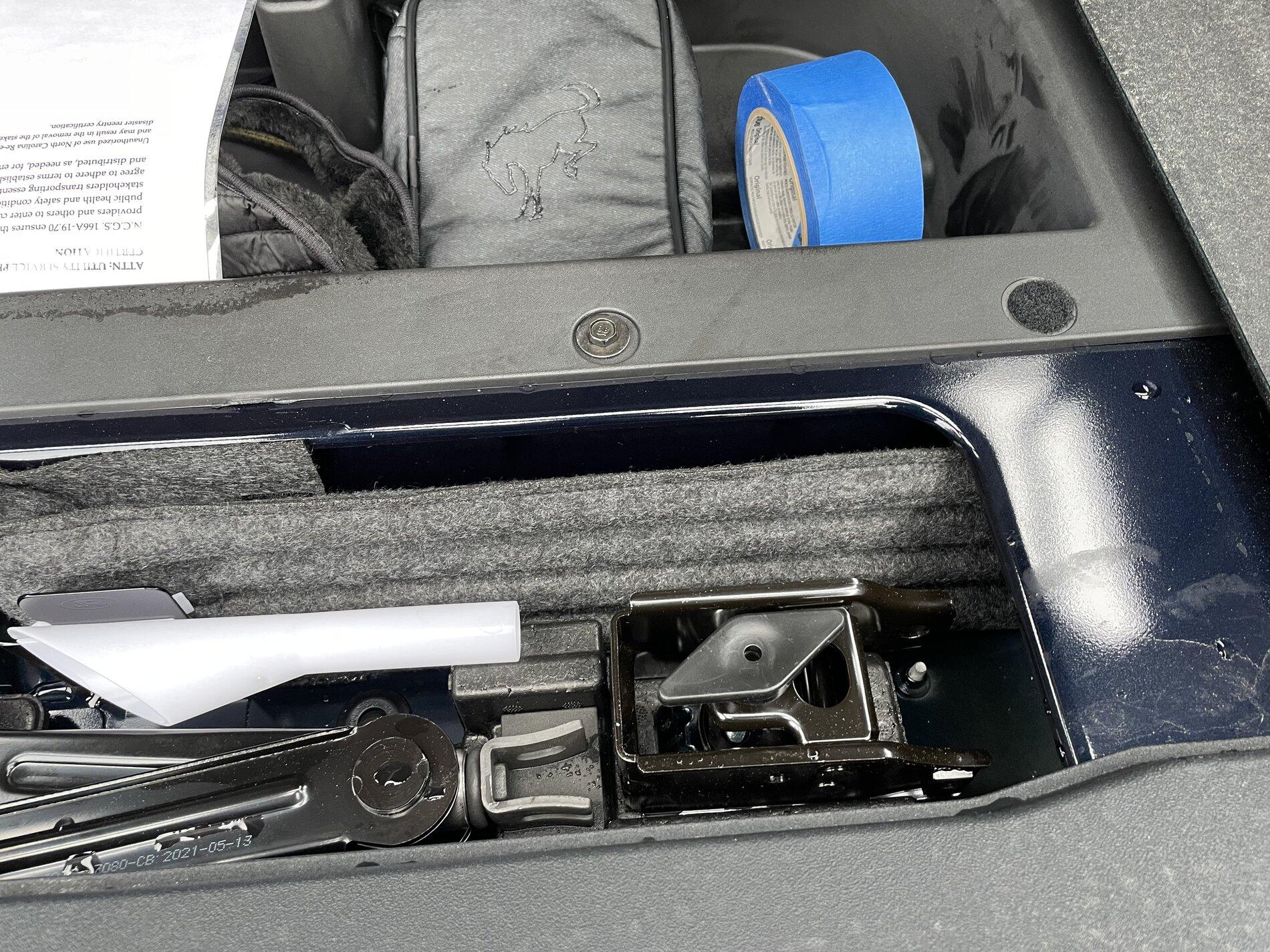

Under rear cargo cover:
Advertisement



bodie_38

Active Member
First Name
Bodie
Joined
Nov 25, 2020
Messages
41
Reaction score
71
Location
San Diego
Vehicle(s)
Cadillac ELR, Mazda CX-5
Bronco
Undecided
Clubs

I was surprised when I finally saw it in person that it was just a rubber liner. Seems like a terrible idea that will trap moisture. I thought it would be like Line-X spray in liner and sealed to the body tub. I had the whole interior of the 71 in my avatar sprayed from the firewall to the tail gate. Awesome stuff.


Garemlin

Black Diamond
Well-Known Member
Joined
Jan 28, 2020
Messages
1,031
Reaction score
2,627
Location
Delaware
Vehicle(s)
2021 Jeep Gladiator
Bronco
Black Diamond
I have always wondered about water getting trapped in between the rubber floor and the metal. This confirms it will probably happen. This will be a breeding ground for rust and mold. Seriously second guessing the BD now. Maybe Amrorlite will make a full rubberized flooring for the Bronco like they have for the Jeeps.

Armorlite


tracythemighty

Base
Well-Known Member
First Name
Tracy
Joined
Jan 24, 2021
Messages
294
Reaction score
393
Location
U.S.
Vehicle(s)
Mini Cooper
Bronco
Base
Clubs

I was surprised when I finally saw it in person that it was just a rubber liner. Seems like a terrible idea that will trap moisture. I thought it would be like Line-X spray in liner and sealed to the body tub. I had the whole interior of the 71 in my avatar sprayed from the firewall to the tail gate. Awesome stuff.
Would that add a lot of weight to it? I wonder why @Ford Motor Company didn't just use some kind of rubber spray liner to begin with.


Razorbak86

Badlands
Well-Known Member
Joined
Jul 19, 2020
Messages
1,750
Reaction score
6,437
Location
Northwest Arkansas
Vehicle(s)
Lexus RX 450h, BMW R1150 GS
Bronco
Badlands
Clubs

This post from another thread is very informative and addresses some of the concerns about drainage voiced in this thread..

I found this over at Bronconation.com regarding the flooring: https://thebronconation.com/forums/threads/guide-washout-flooring-of-the-ford-bronco.5221/


The washout flooring of the Bronco is high on many customers’ wish lists, especially those who plan on using their vehicle in the dirt and mud. Drain plugs may be a non-negotiable option for some, yet nearly everyone would say they are a “nice to have.”

Washout floors with drain plugs come standard on Black Diamond and Badlands. To stick with the rubberized flooring on Badlands, you’ll need to keep the standard Marine Grade Vinyl (MGV) seating. Choosing leather-trimmed seating means moving to carpeted floors (which are easily protected with available floor liners).

Active vs. Passive Drain Plugs

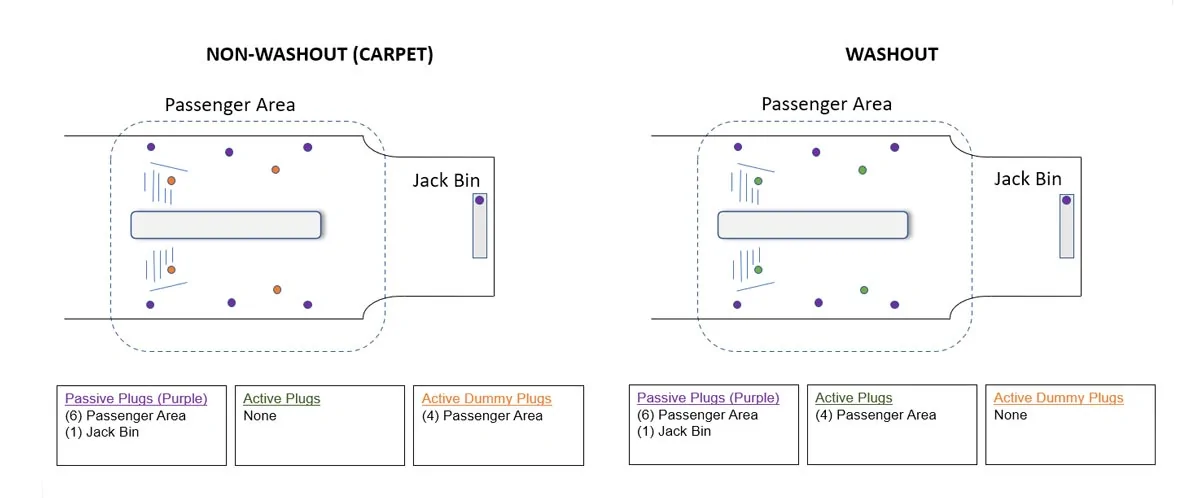

Even carpeted Broncos have drain plugs. You won’t be hosing out a Bronco optioned that way, but Ford has added in passive drain plugs under the carpet in case water gets in to where it’s not supposed to be. There are six passive plugs in the passenger area of the 4-door models and one in the jack compartment.



These passive plugs carry over to Broncos with the washout floors as well. In addition to the seven passive drain plugs in the 4-doors, there are four active plugs. The reason for the passive drain plugs is to drain water that gets in below the rubberized wash-out liner – for example if you tackle an overly ambitious water crossing.

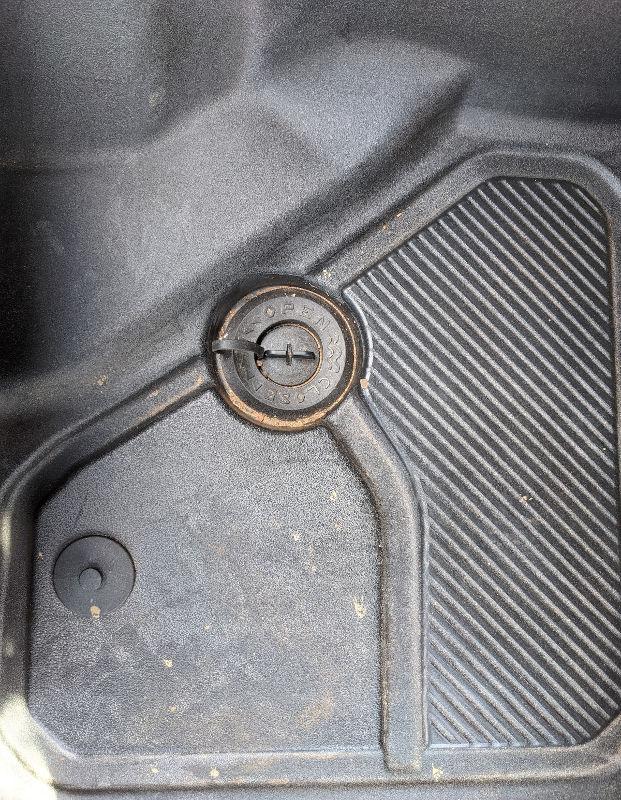

  • Active-plug-1.jpg

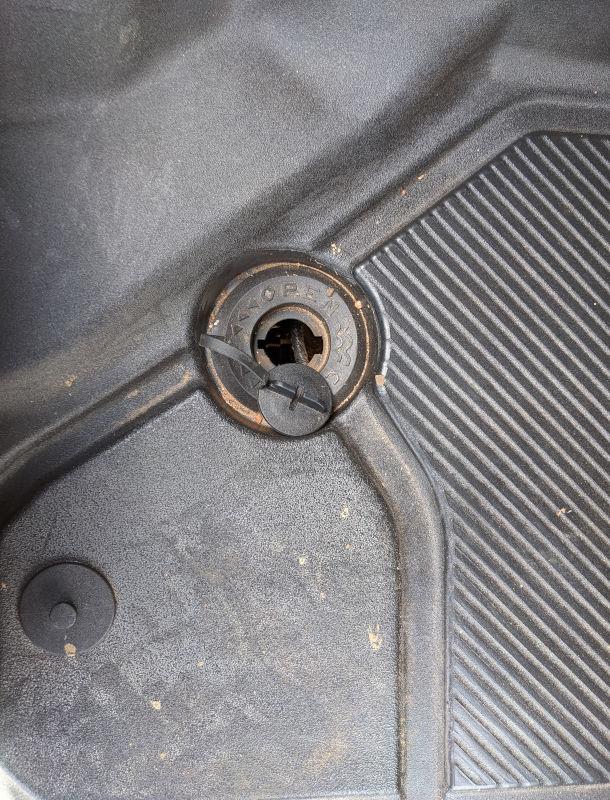

  • Active-Plug-2.jpg

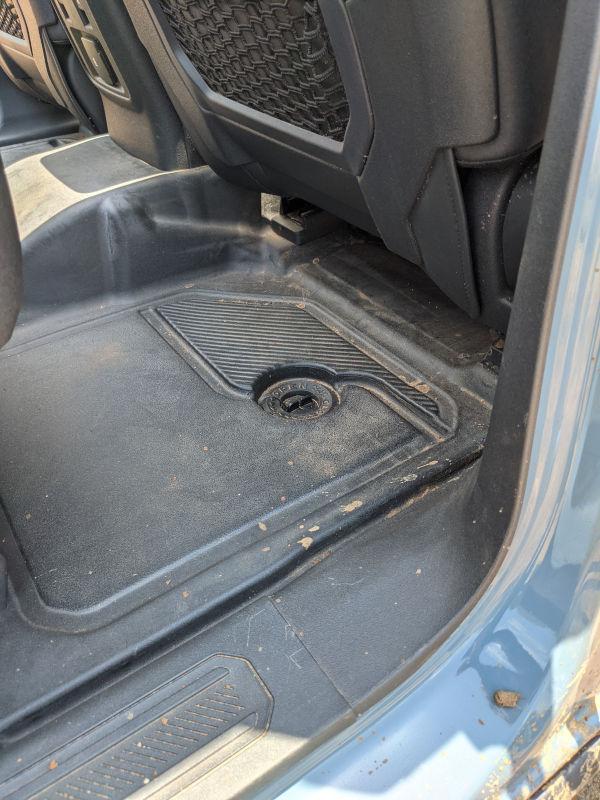

  • Active-Plug-3.jpg
  1. 1
  2. 2
  3. 3

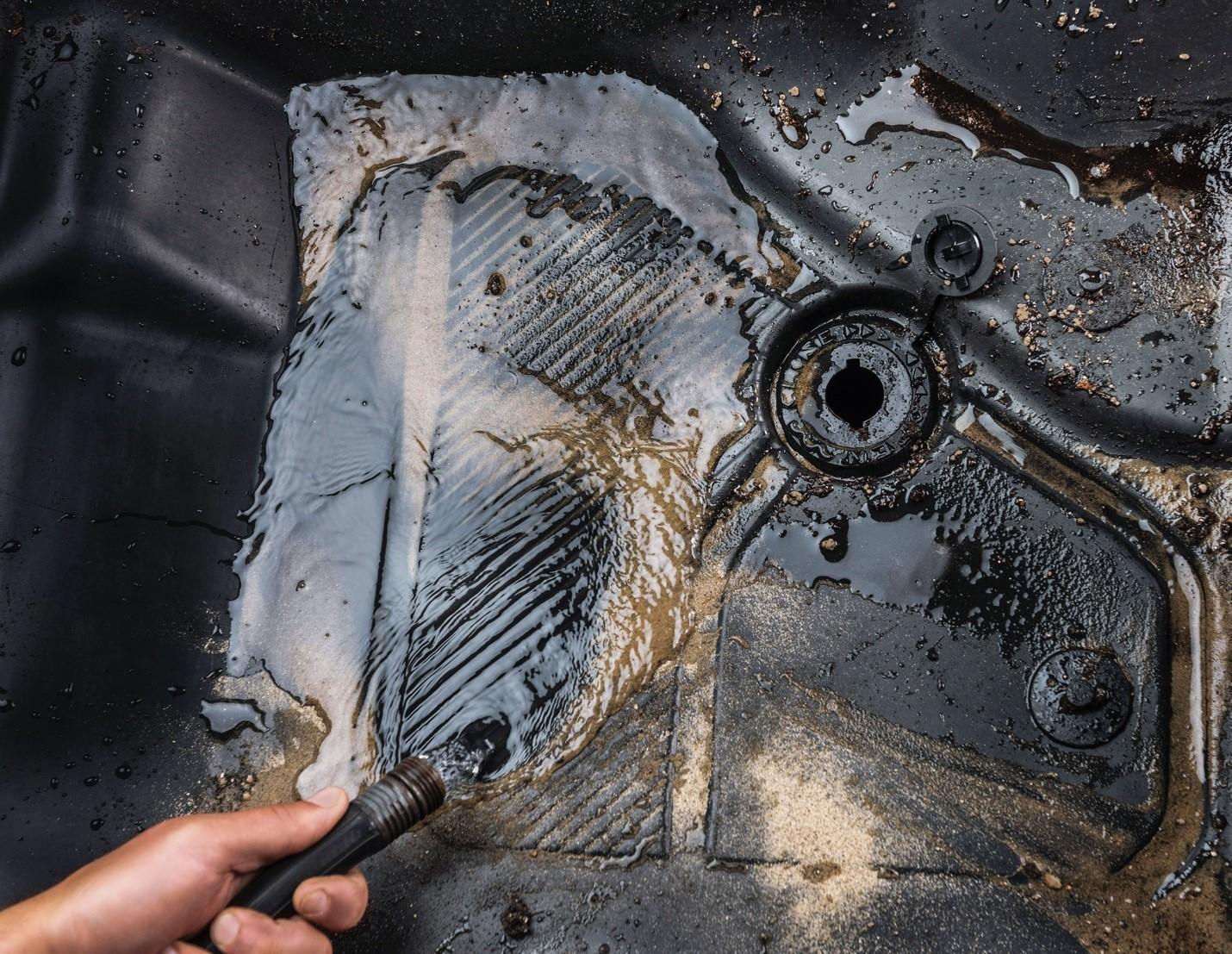

Using the Active Plugs
