Watts Linkage on lifted 2 door

[jimbo92]

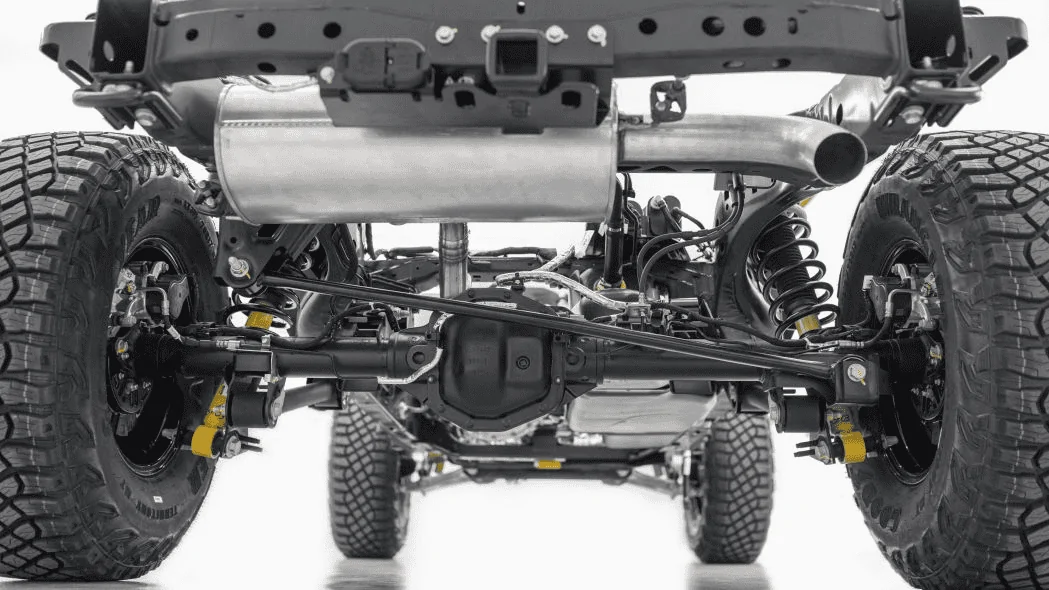

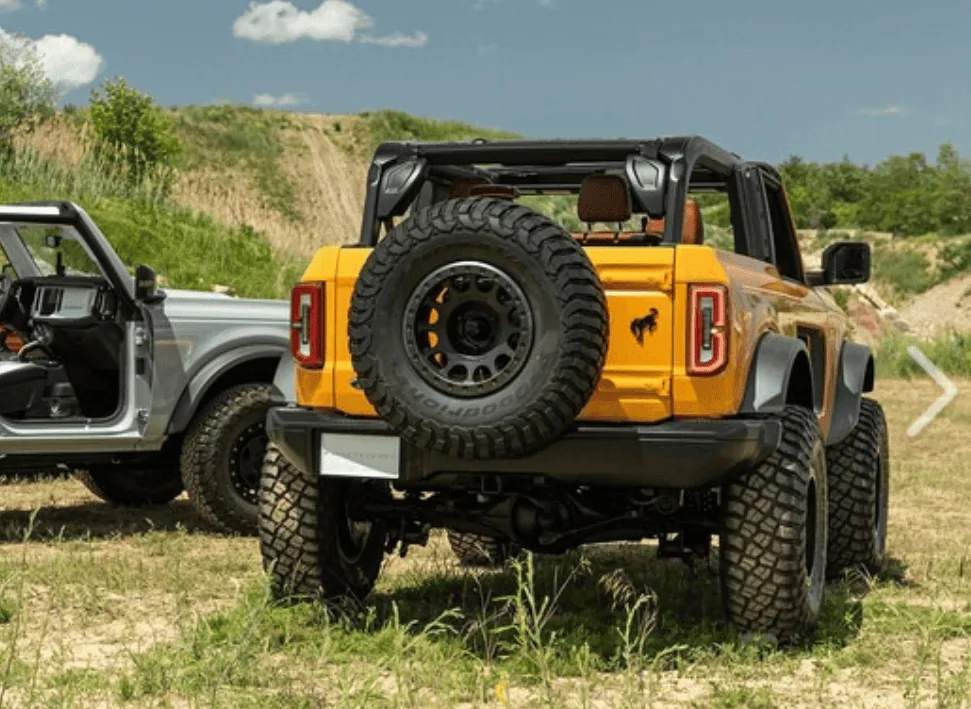

Found this interesting. Was buzzing through some bronco pics and this caught my eye. Rear end appears to be more in line of the Everest configuration. Watts linkage and drop out 3rd member as opposed to dana rear and 4/5 link. Super early chassis mule? Is this why we never see this one drive around?

Sponsored



[jimbo92]

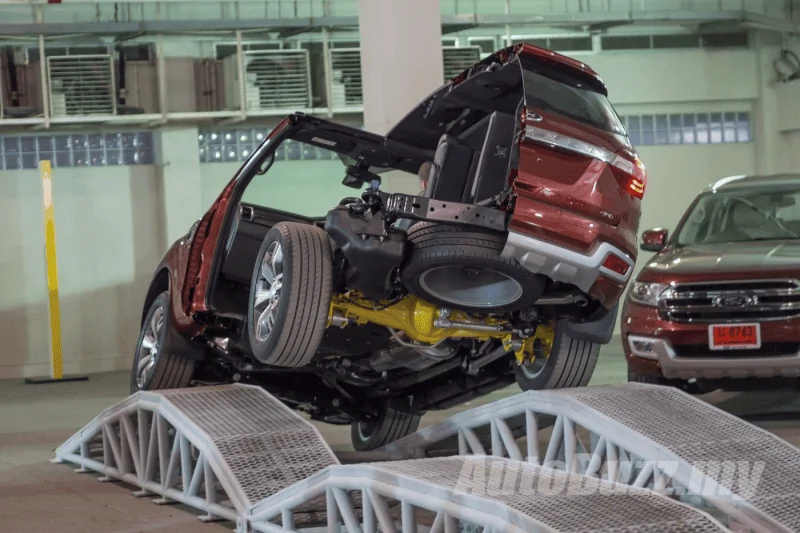

Everest cut-away for reference:



[jimbo92]

And a typical bronco rear end setup:



[Monster79]

And a typical bronco rear end setup:

You know, I saw a clip of that rear end and thought it was odd..



[Spooled]

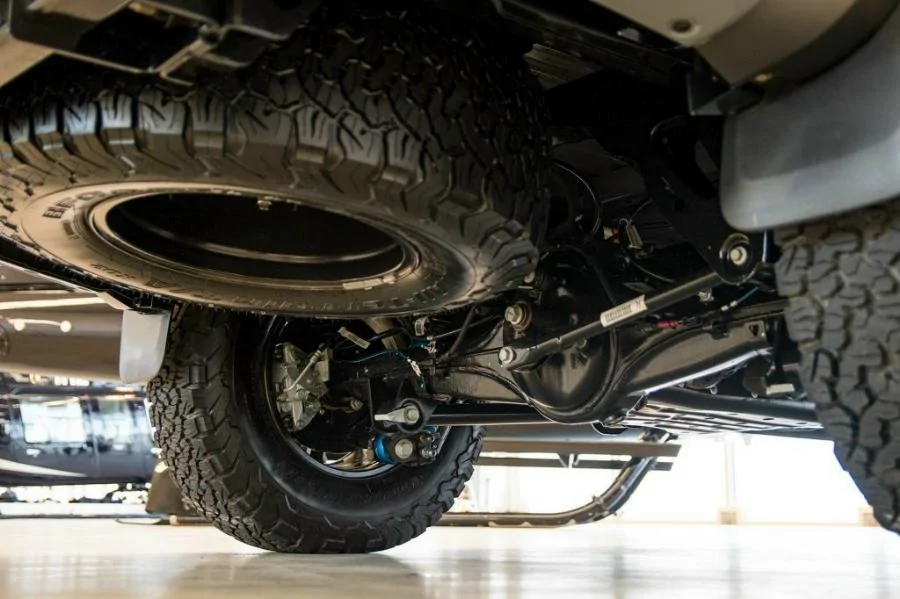

It's been discussed here... I forget which thread it was in... Rear suspension is identical to a Ranger Raptor. Possibly a super early test mule



[Monster79]

It's been discussed here... I forget which thread it was in... Rear suspension is identical to a Ranger Raptor. Possibly a super early test mule

Must have been discussed while I was taking a break from the forum lol



[BigMeatsBronco]

Yep those pics virtually proves my suspicions...that the Bronco suspension was based off the ranger raptor international version... they did preliminary tests using ranger raptor stuff and then dumned it down for mass production.
