Weight of the 2021 Bronco Hardtop Panel Pieces and Soft Top

[Bullitt]

Courtesy Bronco Nation.

Sponsored



[Toccoa]

Nice find!



[ilbastarge]

125 vs 110 for top weights? Lot closer than I would have thought.



[ZackDanger]



[codydb19]

70lbs on that rear cap? Shittttt. I’ll be able to pop that off all by myself.

getting it from the alleyway, over the fence and into storage may be a different story...



[Toccoa]

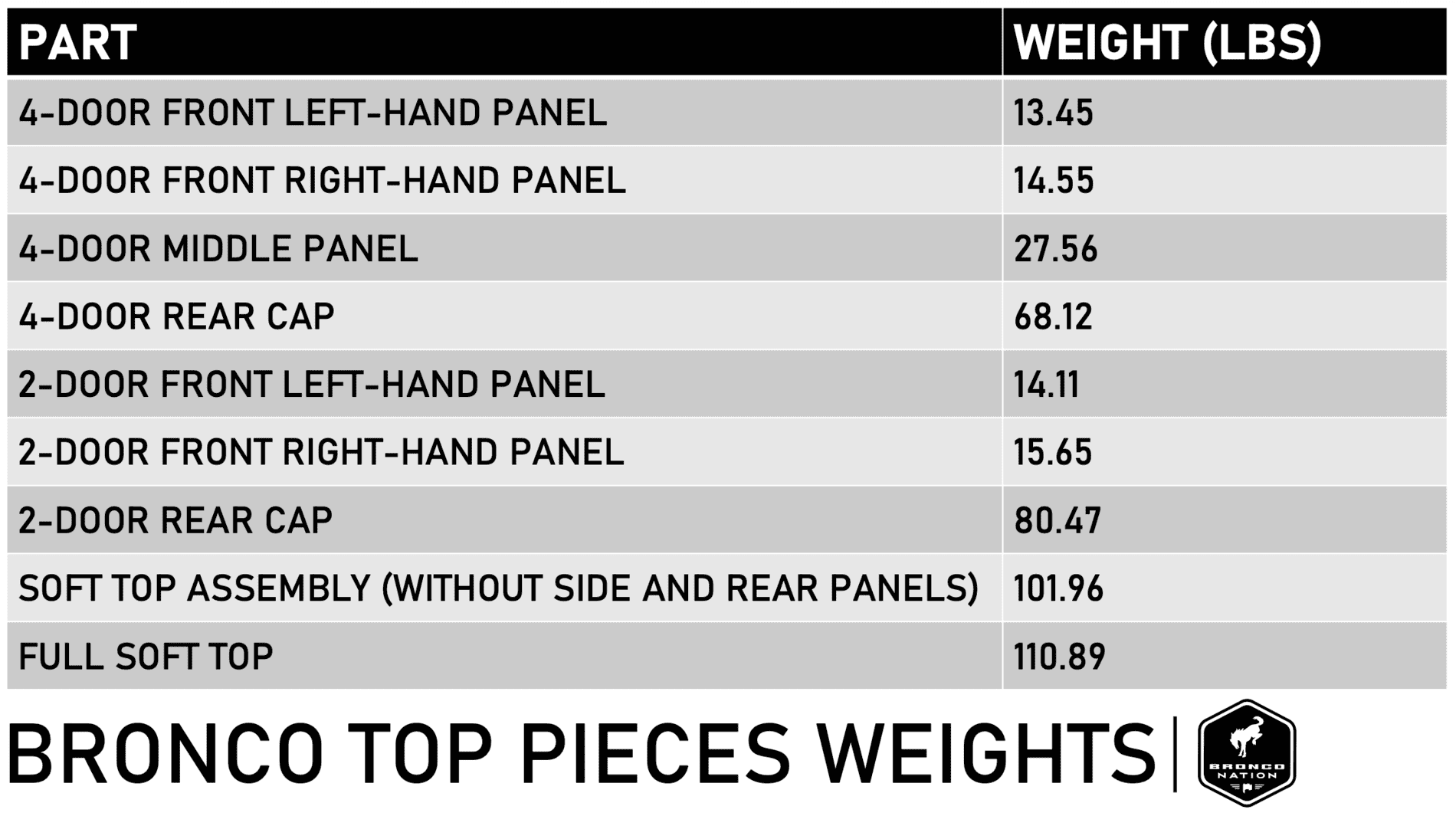

Courtesy of The Bronco Nation.

View attachment 108096

Interesting that the 2DR & 4DR front panels are different weights. I would have thought they were the same.



[ilbastarge]

Interesting that the 2DR & 4DR front panels are different weights. I would have thought they were the same.

Slightly bigger to make up for door length?



[ZackDanger]

Courtesy of The Bronco Nation.

View attachment 108096

Two things.

1. Different weights of front panels between 2 and 4 doors means they are likely not interchangeable. (Suspected this when there were two front row only soft tops listed in the accessory catalog)

2. I’m assuming this is the MIC top. No word on Mod top weight differences?



[Apples]

Hmm. But is that for mic or mod? Probably mic ....



[Toccoa]

Slightly bigger to make up for door length?

That, or slightly different padding or part for connecting to the rear sections.



[HotdogThud]

dayumn, that means that removing the entire roof and doors is worth a full human in weight. Time to fill the tires with helium and see how low I can get the curb weight.



[ZackDanger]

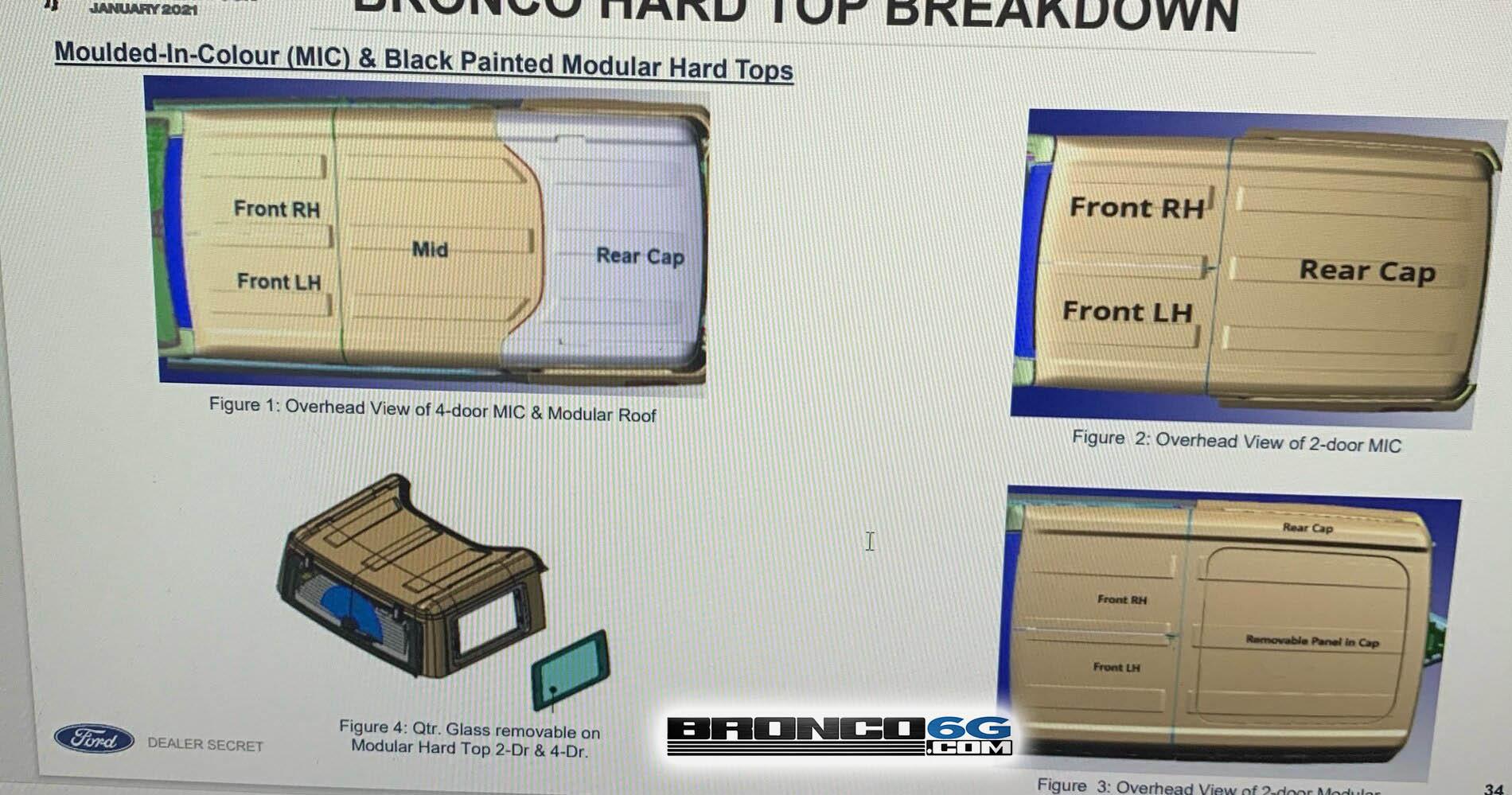

For visual reference:

(ignore the size of that gunners hatch, it’s inaccurate)



[mdonathan56]

Hmm. But is that for mic or mod? Probably mic ....

MY21, No MOD tops?



[Apples]

MY21, No MOD tops?

Correct.



[ZackDanger]

MY21, No MOD tops?

Yep. Also no mention of Gunner’s hatch or side windows.

I’m operating under the assumption this could only be MIC to.

Anyone going to find the equivalent specs for the wrangler?

::EDIT::

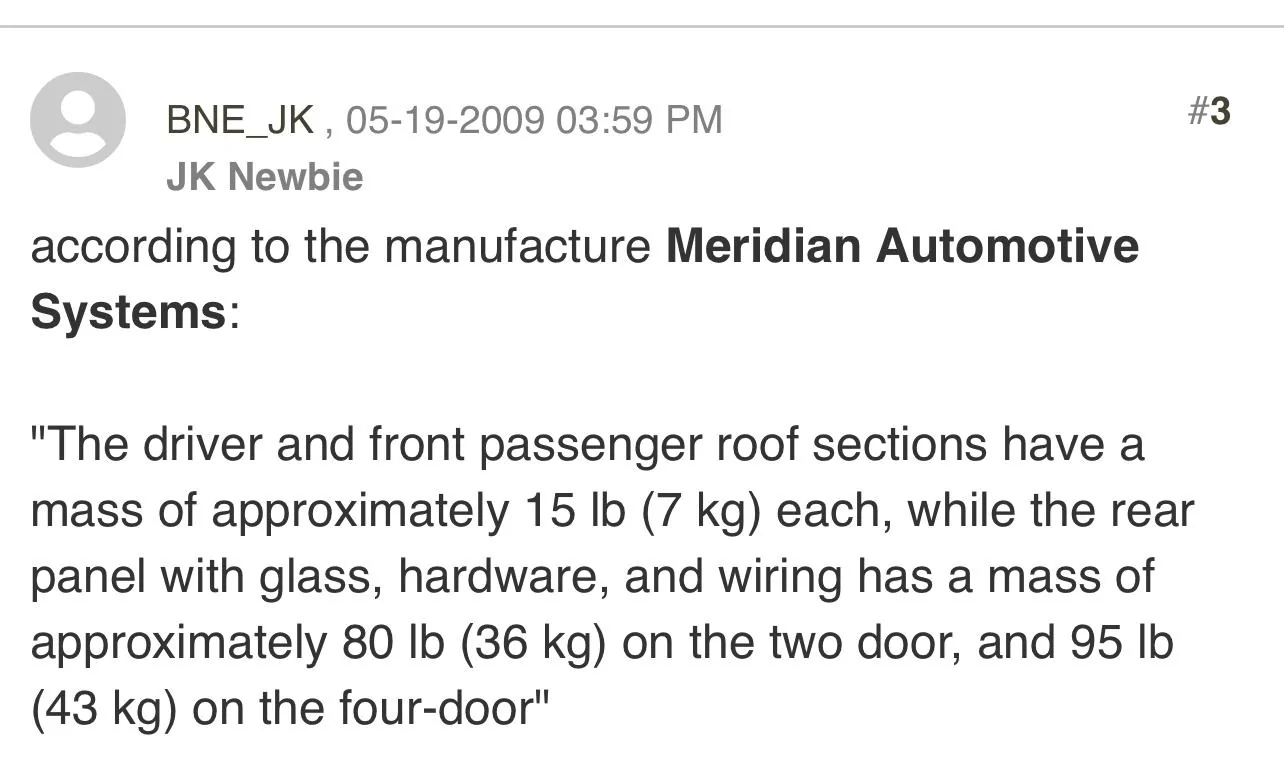

Quick search makes it sound comparable to JK tops:
