So for those smarter than I in this area (which is most) I have a question. I have a friend who bought a 2019 Raptor and within days jacked it up and put new wheels and 37” tires. Since then his stock wheels and 35” inch tires have been sitting in his garage. He told me if they will fit my bronco that I could have them for free.

anyone know if the bolt pattern is the same between the 2019 Raptor and the new bronco (mine is an outer banks if that changes anything)

I appreciate any info or feedback y’all may have!
Advertisement


OP
OP

Lawdawg55

Outer Banks
Active Member
Joined
Jul 30, 2020
Messages
39
Reaction score
55
Location
Mcdonough
Vehicle(s)
Hellcat Redeye
Bronco
Outer Banks
Ahhh I appreciate it. I figured it wouldn’t work. My luck isn’t that good to get new free wheels and tires! Haha


Cappy

Badlands
Well-Known Member
First Name
Cappy
Joined
Aug 26, 2020
Messages
767
Reaction score
2,478
Location
North Texas
Vehicle(s)
2021 Ford Ranger
Bronco
Badlands
Clubs

So for those smarter than I in this area (which is most) I have a question. I have a friend who bought a 2019 Raptor and within days jacked it up and put new wheels and 37” tires. Since then his stock wheels and 35” inch tires have been sitting in his garage. He told me if they will fit my bronco that I could have them for free.

anyone know if the bolt pattern is the same between the 2019 Raptor and the new bronco (mine is an outer banks if that changes anything)

I appreciate any info or feedback y’all may have!
From what I’ve seen the Bronco is going to be a 6x139.7 which is actually the Chevy/Toyota lug spacing and I believe the F150 runs a 6x135. Sorry.
Ahhh I appreciate it. I figured it wouldn’t work. My luck isn’t that good to get new free wheels and tires! Haha
You’ve got good friends though!
@Administrator Okay, lock this thread, we've met our "wholesome" quota for day! 🤣


mC.242

Big Bend
Well-Known Member
Joined
Jul 20, 2020
Messages
719
Reaction score
1,559
Location
San Diego
Vehicle(s)
2021 Bronco Big Bend, 2006 Pathfinder, 2015 Mazda6
Bronco
Big Bend
Clubs

OP
OP

Lawdawg55

Outer Banks
Active Member
Joined
Jul 30, 2020
Messages
39
Reaction score
55
Location
Mcdonough
Vehicle(s)
Hellcat Redeye
Bronco
Outer Banks
I also don't know much at all about wheels and tires... but could you use his tires with a set of aftermarket wheels with the correct bolt pattern?
I was thinking that too. Or wondering if just the stock Outer Banks wheels could work with the 35” tires.


ZackDanger

Badlands
Well-Known Member
First Name
Zack
Joined
Jul 8, 2020
Messages
6,288
Reaction score
27,945
Location
Massachusetts
Vehicle(s)
2014 Wrangler JKU
Bronco
Badlands
Clubs

I was thinking that too. Or wondering if just the stock Outer Banks wheels could work with the 35” tires.
Depends what you mean by “work.”

Stock Bronco wheels are +55mm offset. Sas wheels with the 35” tires, are 315s, and are +30 offset.

If you put 315s on the stock wheels, they’ll interfere with the upper control arms (if not other things as well).

So, either different offset wheels (+30mm or less) or spacers if you feel comfortable and they’re legal where you are.

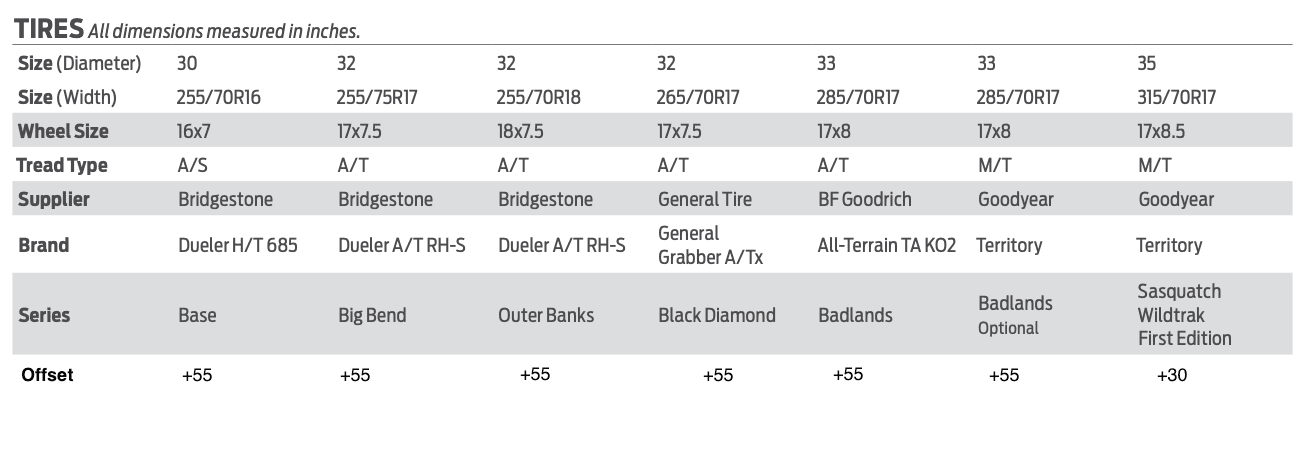

Here’s the tire / wheel specs:


And here’s the thread with all the geometry figured out:

https://www.bronco6g.com/detailed-calculations-show-aftermarket-tire-size-fitments-on-bronco-trims/

OP
OP

Lawdawg55

Outer Banks
Active Member
Joined
Jul 30, 2020
Messages
39
Reaction score
55
Location
Mcdonough
Vehicle(s)
Hellcat Redeye
Bronco
Outer Banks
Depends what you mean by “work.”

Stock Bronco wheels are +55mm offset. Sas wheels with the 35” tires, are 315s, and are +30 offset.

If you put 315s on the stock wheels, they’ll interfere with the upper control arms (if not other things as well).

So, either different offset wheels (+30mm or less) or spacers if you feel comfortable and they’re legal where you are.

Here’s the tire / wheel specs:


And here’s the thread with all the geometry figured out:

https://www.bronco6g.com/detailed-calculations-show-aftermarket-tire-size-fitments-on-bronco-trims/
Thanks for all the info! That was extremely helpful! I appreciate you taking the time to respond with all that!


Beachin 74

Outer Banks
Well-Known Member
Joined
Jun 22, 2020
Messages
601
Reaction score
1,568
Location
Delaware
Vehicle(s)
1974 Bronco, 2015 F-150, 2011 Explorer
Bronco
Outer Banks
Vehicle Showcase
1
I was thinking that too. Or wondering if just the stock Outer Banks wheels could work with the 35” tires.
No go. The Raptor tires are 17" diameter wheels and the Outer Banks are 18" wheels.


Diydner

Outer Banks
Well-Known Member
First Name
Ryan
Joined
Jul 21, 2020
Messages
372
Reaction score
905
Location
Winter Springs, FL
Vehicle(s)
Ram 1500
Bronco
Outer Banks
Clubs


ZackDanger

Badlands
Well-Known Member
First Name
Zack
Joined
Jul 8, 2020
Messages
6,288
Reaction score
27,945
Location
Massachusetts
Vehicle(s)
2014 Wrangler JKU
Bronco
Badlands
Clubs

I am going with an OuterBanks Bronco with the Sasquatch package but, I am not a fan of the wheels that come with it. i don’t want to have to buy new tires or anything else, just swap the wheels out. Will these fit? Will I have an issue with the offset?




SizeBP 1BP 2OffsetBoreLoadWeight
17x8.505x139.75x5.5-15110365045


https://www.visionwheel.com/wheel/7215/VisionOffRoad/398 Manx-Beadlock?finishID=1897
That offset is way out there. Might interfere while turning. Also, I can’t remember what the correct bore is (though spacers may be possible for that)

Seriously, everyone, we know +30mm are what Ford chose for 315 width tires. Stay close to that until we have real-world data.

If you just can’t help yourself, shop for current gen Ranger wheels with a 30mm (ish) offset. They’re the same.
