Got this email from Zone Offroad yesterday:
https://blog.zoneoffroad.com/3-4-lift-kits-for-2021-ford-bronco-npa-192/

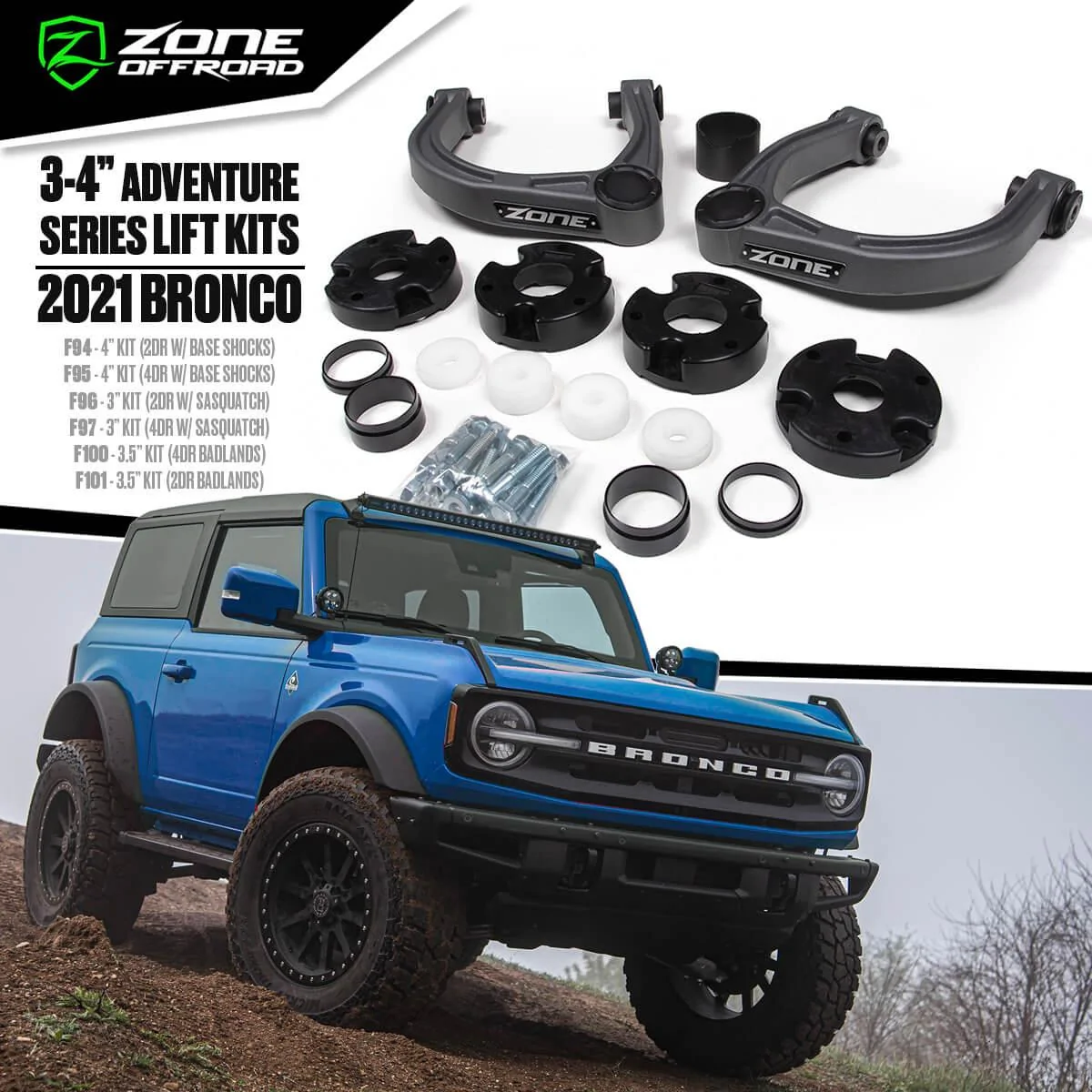

KIT INFO
F94
– 4” Adventure Series Lift Kit for Bronco 2Dr (w/ base shock only)
F95 – 4” Adventure Series Lift Kit for Bronco 4Dr (w/ base shock only)
F96 – 3” Adventure Series Lift Kit for Bronco 2Dr (w/ Sasquatch shock only)
F97 – 3” Adventure Series Lift Kit for Bronco 4Dr (w/ Sasquatch shock only)
F100 – 3.5” Adventure Series Lift Kit for Bronco 4Dr (Badlands trim only) - prelaunch (avail Dec '21)
F101 – 3.5” Adventure Series Lift Kit for Bronco 2Dr (Badlands trim only) - prelaunch (avail Dec '21)

FEATURES/BENEFITS
Maintains vehicle ride and handling performance while improving offroad capability.
2-piece strut spacer design maintains ride quality without overextending suspension during down travel
Adventure Pro Series upper control arms for improved strength, travel and maintenance-free operation.
Lifts and levels the stance with clearance for oversized wheels and tires.
Designed for easy installation with ball joint tool include.
Designed and manufactured in the USA.
Includes Factory Protection Plus warranty program.

TIRE/WHEEL RECOMMENDATIONS
37x12.50 Tires on 17x9 Wheels (5-5.5" BS)*
35x12.50 Tires on 17x9 Wheels (5-5.5" BS)
35x11.20 Tires on 17x9 Wheels (5-6" BS)
315/70r17 Tires on stock 17" Sasquatch Wheels
285/70r17 Tires on stock 17" Badlands Wheels
275/80r17 Tires on stock 17" Black Diamond Wheels
275/70r18 Tires on stock 17" Outer Banks Wheels


Coldwater, MI: Building on the current 1" and 2" kits available for the new 2021 Ford Bronco, Zone Offroad is excited announce the addition of 3”/3.5”/4" lift kits. With the main goal of build on the Bronco’s stout factory design with 4-corner coilovers, these systems not only allow clearance for 35-37” tires, but maintains ride quality, handling performance and offroad capability. Kits heights are based on net lift height gained over factory so on Broncos with base suspension kits net 4” of lift, on a Badlands edition Broncos net lift is 3.5” and Sasquatch package equipped Broncos will net 3” of lift over stock. At the heart of all these kits are a pair of Adventure Pro Series upper control arms. These high strength cast arms offer a great look under the Bronco and allow for additional suspension travel, camber correction. These utilize vulcanized rubber bushings that come pre-installed for smooth quiet operation. Due to the extreme angle achieved by the factory ball joints these systems are designed to reuse the ball joints in the new control arms. Zone Offroad provides a special tool to make removal and installation easy.

The additional ride height comes in the form of 2-piece strut spacers utilizing a top mounted strut spacer in combination with a spring perch spacer. The reason for this 2-piece design rather than a taller 1-piece top mount spacer found in other kits on the market is the 2-piece design provides the lift without adding too much length to the strut assembly at full extension to maintain operating angles for the CVs, steering tie rods, sway bars and lower control arms. Also supplied for the front are a pair of bump stop extensions designed to properly limit suspension compression and all the necessary hardware to complete the install. Out back depending on the configuration you’ll receive a top mounted strut spacer and possibly a spring perch spacer and bump stop extensions to lift and level out the stance. These kits are spec’d to allow clearance for 35-37” tires, however 37s will require modification to the factory intrusion beams (aka the crash bars). Get your Bronco lifted with Zone Offroad.
Advertisement



fschael

Base
Well-Known Member
First Name
Federico
Joined
Jan 10, 2021
Messages
612
Reaction score
1,064
Location
Houston, Tx
Vehicle(s)
2002 F-150 Supercrew FX4
Bronco
Base
I believe this is the same approach BDS did for their lift kit. @evilletruck has a cool video for that installation.

It's great that several companies are already launching their product! that way quality goes up and price go down.


privateer35

Badlands
Well-Known Member
Joined
Jul 21, 2020
Messages
517
Reaction score
723
Location
Seattle
Vehicle(s)
Ford Bronco 2021
Bronco
Badlands
Clubs

Would anyone roughly know how much it would cost in labor to install one of these lifts? Curious...


Bird Dog Overland

Badlands
Well-Known Member
First Name
Jody
Joined
Jul 20, 2021
Messages
462
Reaction score
921
Location
Chicago, IL
Website
www.youtube.com
Vehicle(s)
2018 Toyota 4Runner TRD Off Road
Bronco
Badlands
Clubs

Got this email from Zone Offroad yesterday:
https://blog.zoneoffroad.com/3-4-lift-kits-for-2021-ford-bronco-npa-192/




KIT INFO
F94
– 4” Adventure Series Lift Kit for Bronco 2Dr (w/ base shock only)
F95 – 4” Adventure Series Lift Kit for Bronco 4Dr (w/ base shock only)
F96 – 3” Adventure Series Lift Kit for Bronco 2Dr (w/ Sasquatch shock only)
F97 – 3” Adventure Series Lift Kit for Bronco 4Dr (w/ Sasquatch shock only)
F100 – 3.5” Adventure Series Lift Kit for Bronco 4Dr (Badlands trim only) - prelaunch (avail Dec '21)
F101 – 3.5” Adventure Series Lift Kit for Bronco 2Dr (Badlands trim only) - prelaunch (avail Dec '21)

FEATURES/BENEFITS
Maintains vehicle ride and handling performance while improving offroad capability.
2-piece strut spacer design maintains ride quality without overextending suspension during down travel
Adventure Pro Series upper control arms for improved strength, travel and maintenance-free operation.
Lifts and levels the stance with clearance for oversized wheels and tires.
Designed for easy installation with ball joint tool include.
Designed and manufactured in the USA.
Includes Factory Protection Plus warranty program.

TIRE/WHEEL RECOMMENDATIONS
37x12.50 Tires on 17x9 Wheels (5-5.5" BS)*
35x12.50 Tires on 17x9 Wheels (5-5.5" BS)
35x11.20 Tires on 17x9 Wheels (5-6" BS)
315/70r17 Tires on stock 17" Sasquatch Wheels
285/70r17 Tires on stock 17" Badlands Wheels
275/80r17 Tires on stock 17" Black Diamond Wheels
275/70r18 Tires on stock 17" Outer Banks Wheels


Coldwater, MI: Building on the current 1" and 2" kits available for the new 2021 Ford Bronco, Zone Offroad is excited announce the addition of 3”/3.5”/4" lift kits. With the main goal of build on the Bronco’s stout factory design with 4-corner coilovers, these systems not only allow clearance for 35-37” tires, but maintains ride quality, handling performance and offroad capability. Kits heights are based on net lift height gained over factory so on Broncos with base suspension kits net 4” of lift, on a Badlands edition Broncos net lift is 3.5” and Sasquatch package equipped Broncos will net 3” of lift over stock. At the heart of all these kits are a pair of Adventure Pro Series upper control arms. These high strength cast arms offer a great look under the Bronco and allow for additional suspension travel, camber correction. These utilize vulcanized rubber bushings that come pre-installed for smooth quiet operation. Due to the extreme angle achieved by the factory ball joints these systems are designed to reuse the ball joints in the new control arms. Zone Offroad provides a special tool to make removal and installation easy.

The additional ride height comes in the form of 2-piece strut spacers utilizing a top mounted strut spacer in combination with a spring perch spacer. The reason for this 2-piece design rather than a taller 1-piece top mount spacer found in other kits on the market is the 2-piece design provides the lift without adding too much length to the strut assembly at full extension to maintain operating angles for the CVs, steering tie rods, sway bars and lower control arms. Also supplied for the front are a pair of bump stop extensions designed to properly limit suspension compression and all the necessary hardware to complete the install. Out back depending on the configuration you’ll receive a top mounted strut spacer and possibly a spring perch spacer and bump stop extensions to lift and level out the stance. These kits are spec’d to allow clearance for 35-37” tires, however 37s will require modification to the factory intrusion beams (aka the crash bars). Get your Bronco lifted with Zone Offroad.
So if I have a 4dr Badlands w/sasquatch, would I need to get F97 or F100?


vrtical

Badlands
Well-Known Member
First Name
Doug
Joined
Jul 14, 2020
Messages
3,417
Reaction score
7,525
Location
TN
Vehicle(s)
Fords
Bronco
Badlands
Clubs

Awesome in for F100 when it comes out.


Bird Dog Overland

Badlands
Well-Known Member
First Name
Jody
Joined
Jul 20, 2021
Messages
462
Reaction score
921
Location
Chicago, IL
Website
www.youtube.com
Vehicle(s)
2018 Toyota 4Runner TRD Off Road
Bronco
Badlands
Clubs

If you have a Badlands with Sasquatch, you do not have a Badlands, you have a Sasquatch.
Is there not an issue with the HOSS suspension system with these lifts?


Ksjrb03

First Edition
Well-Known Member
Joined
Jul 15, 2020
Messages
2,119
Reaction score
6,131
Location
Tx
Vehicle(s)
F250
Bronco
First Edition
Is there not an issue with the HOSS suspension system with these lifts?
Sorry Im not a suspension expert. I can say I have no interest in these cheap spacer lifts. I will wait until a true lift kit is out that drops the diff and corrects all the CV geometry etc.


L8apex

Badlands
Well-Known Member
Joined
Jul 14, 2020
Messages
971
Reaction score
3,551
Location
NC
Website
www.instagram.com
Vehicle(s)
'14 Focus ST, '21 Badlands
Bronco
Badlands
Is there not an issue with the HOSS suspension system with these lifts?
All Broncos get HOSS suspension. Badlands and Squatch get similar but not identical Bilstein Shocks with position sensitive dampening.

That position sensitive MAY be an issue with these lifts, as you're effectively trading shock droop for height - so you're resting height will be in a different position than stock and MAY affect the position sensitive dampening.

To me these are largely cosmetic - Ford / Bilstein spent a lot of time developing and tuning this suspension set up, this largely undoes most of it.


JediMcMuffin

Badlands
Well-Known Member
First Name
Tommy
Joined
Jun 15, 2021
Messages
486
Reaction score
960
Location
San Diego
Vehicle(s)
2021 Bronco Badlands
Bronco
Badlands
Clubs

Sorry Im not a suspension expert. I can say I have no interest in these cheap spacer lifts. I will wait until a true lift kit is out that drops the diff and corrects all the CV geometry etc.
Ya to me it feels like a false sense of security in clearance that will end with two broken tie rods right? :D


Bird Dog Overland

Badlands
Well-Known Member
First Name
Jody
Joined
Jul 20, 2021
Messages
462
Reaction score
921
Location
Chicago, IL
Website
www.youtube.com
Vehicle(s)
2018 Toyota 4Runner TRD Off Road
Bronco
Badlands
Clubs

All Broncos get HOSS suspension. Badlands and Squatch get similar but not identical Bilstein Shocks with position sensitive dampening.

That position sensitive MAY be an issue with these lifts, as you're effectively trading shock droop for height - so you're resting height will be in a different position than stock and MAY affect the position sensitive dampening.

To me these are largely cosmetic - Ford / Bilstein spent a lot of time developing and tuning this suspension set up, this largely undoes most of it.
That's what I was thinking too, but wanted someone smarter than me to confirm it, LOL.


rtaylor

Badlands
Well-Known Member
First Name
R
Joined
Jul 13, 2020
Messages
826
Reaction score
1,942
Location
ID
Vehicle(s)
1977 CJ7, 2013 GT500, 2019 Raptor
Bronco
Badlands
Clubs

I believe this is the same approach BDS did for their lift kit.

It's great that several companies are already launching their product! that way quality goes up and price go down.
BDS and Zone are both part of Fox. The spacer kit parts are identical. The Maxlider BDS/Zone stage1 3"/4" kits pair the BDS UCA with the same Zone spacer kits.

Both the BDS UCA and low-cost Zone UCA are compatible with a Fox coilover upgrade (when available). The Zone UCA requires reuse of the factory ball joint.


Bird Dog Overland

Badlands
Well-Known Member
First Name
Jody
Joined
Jul 20, 2021
Messages
462
Reaction score
921
Location
Chicago, IL
Website
www.youtube.com
Vehicle(s)
2018 Toyota 4Runner TRD Off Road
Bronco
Badlands
Clubs

BDS and Zone are both part of Fox. The spacer kit parts are identical. The Maxlider BDS/Zone stage1 3"/4" kits pair the BDS UCA with the same Zone spacer kits.

Both the BDS UCA and low-cost Zone UCA are compatible with a Fox coilover upgrade (when available). The Zone UCA requires reuse of the factory ball joint.
The Maxlider is more than double the price. Is that due to the Ball Joint factor or just overall quality of the kit?


BadBoyBroncoBilly

Banned
Badlands
Banned
Banned
First Name
Bill
Joined
Aug 4, 2020
Messages
519
Reaction score
703
Location
Vegas Baby!
Vehicle(s)
E150 Adventure Van, Chevrolet Spark
Bronco
Badlands
Got this email from Zone Offroad yesterday:
https://blog.zoneoffroad.com/3-4-lift-kits-for-2021-ford-bronco-npa-192/




KIT INFO
F94
– 4” Adventure Series Lift Kit for Bronco 2Dr (w/ base shock only)
F95 – 4” Adventure Series Lift Kit for Bronco 4Dr (w/ base shock only)
F96 – 3” Adventure Series Lift Kit for Bronco 2Dr (w/ Sasquatch shock only)
F97 – 3” Adventure Series Lift Kit for Bronco 4Dr (w/ Sasquatch shock only)
F100 – 3.5” Adventure Series Lift Kit for Bronco 4Dr (Badlands trim only) - prelaunch (avail Dec '21)
F101 – 3.5” Adventure Series Lift Kit for Bronco 2Dr (Badlands trim only) - prelaunch (avail Dec '21)

FEATURES/BENEFITS
Maintains vehicle ride and handling performance while improving offroad capability.
2-piece strut spacer design maintains ride quality without overextending suspension during down travel
Adventure Pro Series upper control arms for improved strength, travel and maintenance-free operation.
Lifts and levels the stance with clearance for oversized wheels and tires.
Designed for easy installation with ball joint tool include.
Designed and manufactured in the USA.
Includes Factory Protection Plus warranty program.

TIRE/WHEEL RECOMMENDATIONS
37x12.50 Tires on 17x9 Wheels (5-5.5" BS)*
35x12.50 Tires on 17x9 Wheels (5-5.5" BS)
35x11.20 Tires on 17x9 Wheels (5-6" BS)
315/70r17 Tires on stock 17" Sasquatch Wheels
285/70r17 Tires on stock 17" Badlands Wheels
275/80r17 Tires on stock 17" Black Diamond Wheels
275/70r18 Tires on stock 17" Outer Banks Wheels


Coldwater, MI: Building on the current 1" and 2" kits available for the new 2021 Ford Bronco, Zone Offroad is excited announce the addition of 3”/3.5”/4" lift kits. With the main goal of build on the Bronco’s stout factory design with 4-corner coilovers, these systems not only allow clearance for 35-37” tires, but maintains ride quality, handling performance and offroad capability. Kits heights are based on net lift height gained over factory so on Broncos with base suspension kits net 4” of lift, on a Badlands edition Broncos net lift is 3.5” and Sasquatch package equipped Broncos will net 3” of lift over stock. At the heart of all these kits are a pair of Adventure Pro Series upper control arms. These high strength cast arms offer a great look under the Bronco and allow for additional suspension travel, camber correction. These utilize vulcanized rubber bushings that come pre-installed for smooth quiet operation. Due to the extreme angle achieved by the factory ball joints these systems are designed to reuse the ball joints in the new control arms. Zone Offroad provides a special tool to make removal and installation easy.

The additional ride height comes in the form of 2-piece strut spacers utilizing a top mounted strut spacer in combination with a spring perch spacer. The reason for this 2-piece design rather than a taller 1-piece top mount spacer found in other kits on the market is the 2-piece design provides the lift without adding too much length to the strut assembly at full extension to maintain operating angles for the CVs, steering tie rods, sway bars and lower control arms. Also supplied for the front are a pair of bump stop extensions designed to properly limit suspension compression and all the necessary hardware to complete the install. Out back depending on the configuration you’ll receive a top mounted strut spacer and possibly a spring perch spacer and bump stop extensions to lift and level out the stance. These kits are spec’d to allow clearance for 35-37” tires, however 37s will require modification to the factory intrusion beams (aka the crash bars). Get your Bronco lifted with Zone Offroad.
Post lift kit, get's this response. 🤣
