Bumper Removal Help (non modular)

[Hblhtx]

My bronco came with the factory bumper (not the heavy duty modular) and I am planning to replace it with a new DV8 bumper. It seems like the removal of the factory bumper may be a little trickier than the modular one. Any guides out there or help? Thanks in advance.

Sponsored



[Rednek]

Removal
NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist.
   Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

Vehicles With: Front Fog Lamps/Front Parking Aid

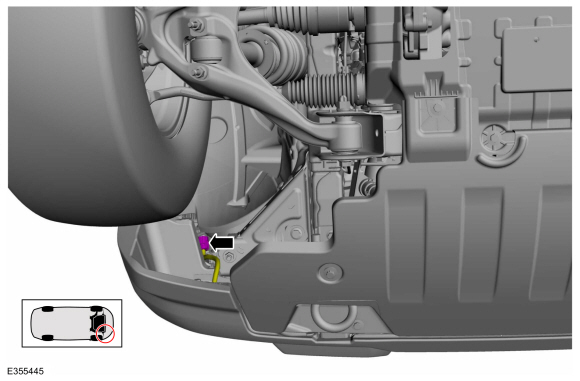

1. Disconnect the front bumper harness electrical connector.

All vehicles

1. If equipped.

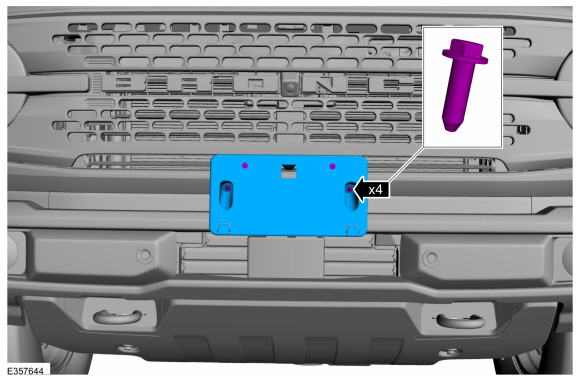

   Remove the screws and the front license plate bracket.

Vehicles With: Front Parking Aid

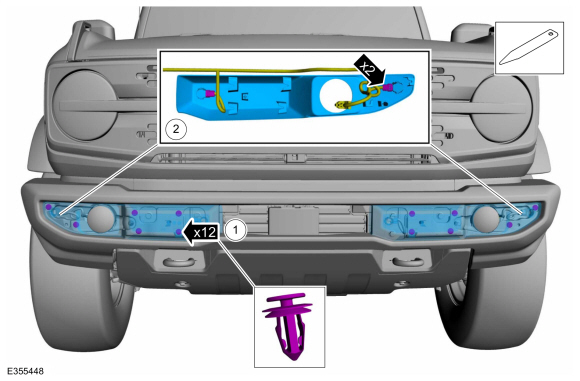

1. 1. Release the clips and remove the front bumper trim panel.
      Use the General Equipment: Interior Trim Remover
2. 1. Disconnect the front parking aid sensor electrical connectors.

All vehicles

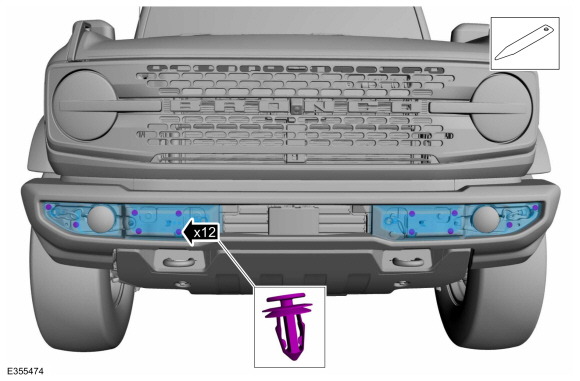

1. Release the clips and remove the front bumper trim panel.
   Use the General Equipment: Interior Trim Remover

1. NOTE: This step requires the aid of another technician.

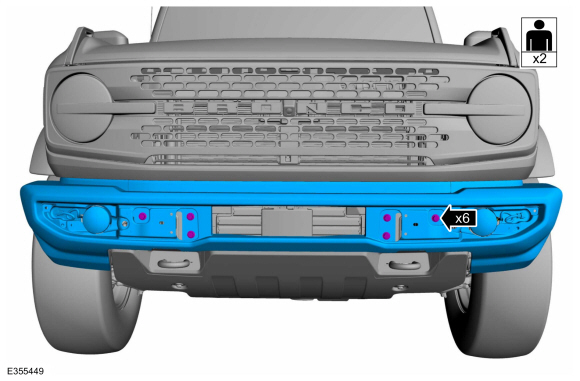

   Remove the bolts and the front bumper.
   Torque: 81 lb.ft (110 Nm)

Installation
All vehicles

1. To install, reverse the removal procedure.

Vehicles With: Front Parking Aid

1. Check the alignment of the front parking aid sensors.
   Refer to: Azimuth System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
   Refer to: Elevation System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).

1. If any sensor fails the check, diagnose the sensor fault.
   Refer to: Parking Aid (413-13A Parking Aid - Vehicles With: Rear Parking Aid, Diagnosis and Testing).

© Copyright 2022, Ford Motor Company.



[TBroncski]

Does the DV8 bumper work with the factory skid plate or no? Kinda been eyeing that route myself.



[evgenyvasenev]

Removal
NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist.
   Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

Vehicles With: Front Fog Lamps/Front Parking Aid

1. Disconnect the front bumper harness electrical connector.

All vehicles

1. If equipped.
   Remove the screws and the front license plate bracket.

Vehicles With: Front Parking Aid

1. 1. Release the clips and remove the front bumper trim panel.
      Use the General Equipment: Interior Trim Remover
2. 1. Disconnect the front parking aid sensor electrical connectors.

All vehicles

1. Release the clips and remove the front bumper trim panel.
   Use the General Equipment: Interior Trim Remover

1. NOTE: This step requires the aid of another technician.
   Remove the bolts and the front bumper.
   Torque: 81 lb.ft (110 Nm)

Installation
All vehicles

1. To install, reverse the removal procedure.

Vehicles With: Front Parking Aid

1. Check the alignment of the front parking aid sensors.
   Refer to: Azimuth System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
   Refer to: Elevation System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
2. If any sensor fails the check, diagnose the sensor fault.
   Refer to: Parking Aid (413-13A Parking Aid - Vehicles With: Rear Parking Aid, Diagnosis and Testing).

© Copyright 2022, Ford Motor Company.

Thanks. Is it the same for the steel one?



[Hblhtx]

Does the DV8 bumper work with the factory skid plate or no? Kinda been eyeing that route myself.

Not sure. Hoping it does and I don’t find out the hard way that it doesn’t.



[Headsong]

Uh, if it's the not so capable bumper, you pop the plastic plates, remove 6 bolts and unplug the fogs. Ez.
