Modular Bumper Bronco Bolt Accessory Mounting Locations

Raptor911

Raptor
Well-Known Member
First Name
Raptor911
Joined
Jun 17, 2020
Threads
161
Messages
5,347
Reaction score
11,808
Location
Broadlands, VA
Vehicle(s)
2021 F150 Raptor, 2022 Wildtrak
Your Bronco Model
Raptor

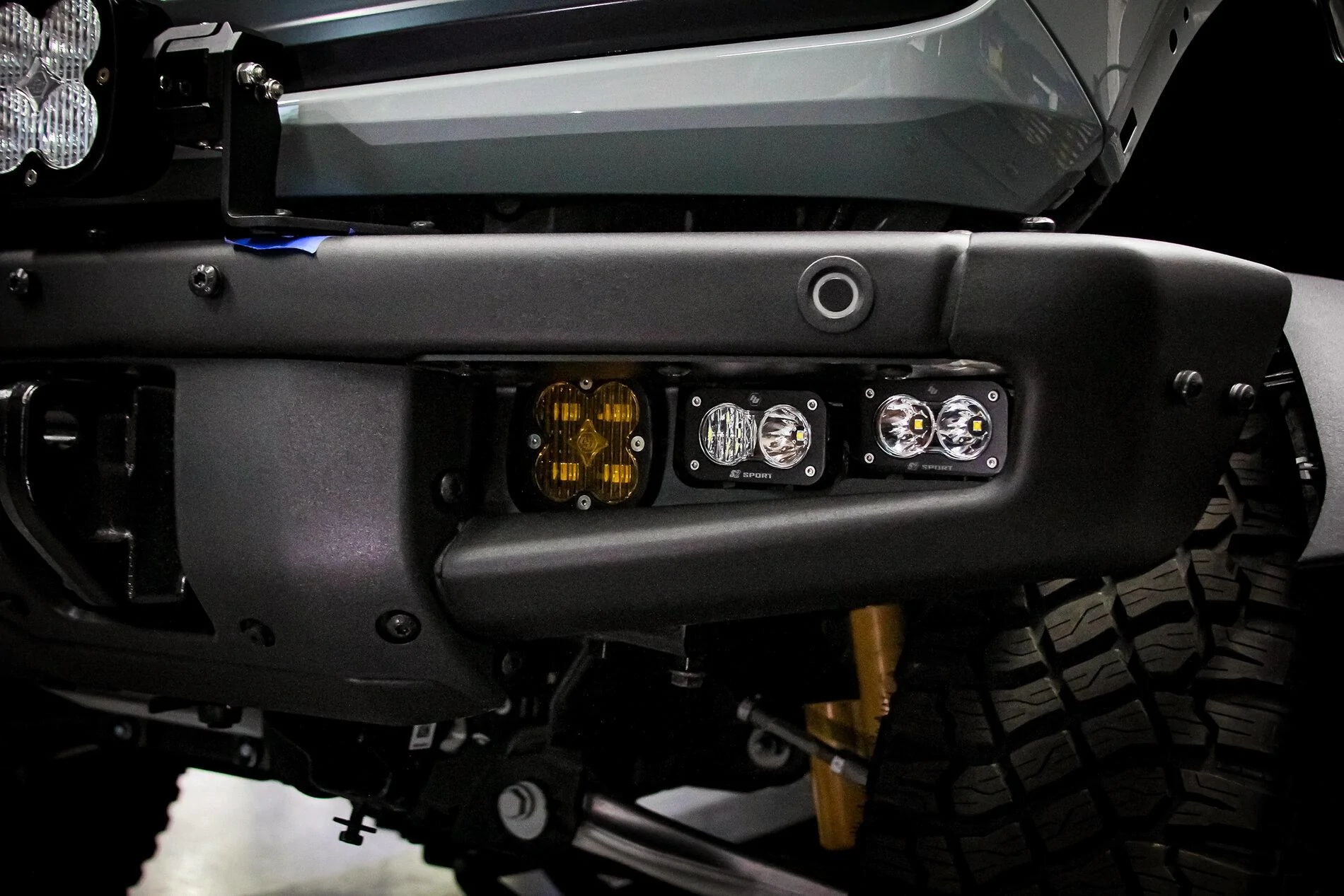

The mounting locations for the Bull Bar would be a great location for a light bar ... either all the way across (but may clock the camera) or individual pod light mounting locations on either side.
Sponsored



Erock

Badlands
Well-Known Member
First Name
Eric
Joined
Jan 30, 2021
Threads
1
Messages
2,171
Reaction score
5,104
Location
US
Vehicle(s)
2018 F150 Alpine edition
Your Bronco Model
Badlands
Clubs

I’m getting around 2.7 degrees for the bend in the area you’re calling the compound curve... does that sound right to you? Also, when I offset for the thickness of the bracket, should I go towards the bumper or away from it? In other words, is your 1 3/4” dimension from the face of the bracket or the face of the bumper?

OP
OP
North7

North7

Well-Known Member
Joined
Feb 21, 2020
Threads
111
Messages
7,271
Reaction score
25,484
Location
North Texas
Vehicle(s)
SUV
Your Bronco Model
Undecided
Clubs

I’m getting around 2.7 degrees for the bend in the area you’re calling the compound curve... does that sound right to you? Also, when I offset for the thickness of the bracket, should I go towards the bumper or away from it? In other words, is your 1 3/4” dimension from the face of the bracket or the face of the bumper?

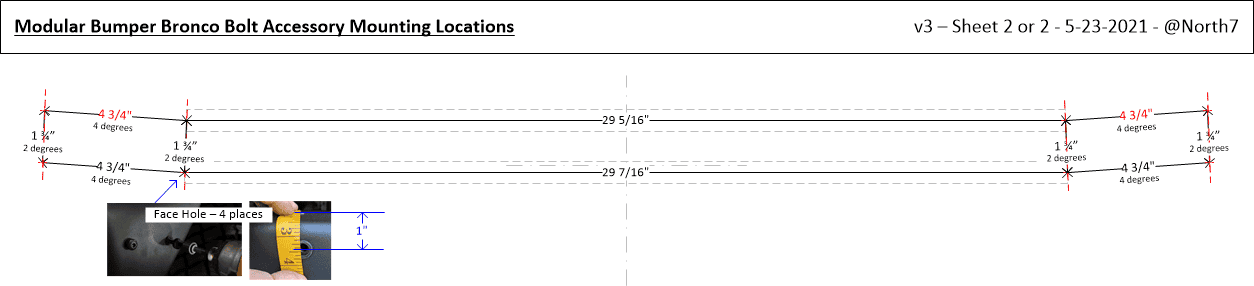

I went back and did a sheet 2 to let the dimensions dictate the angles and I think we are closer, here is what I found. I'm at 2 degrees on the 1 3/4" angles and 4 degrees on the 4 3/4" angles. You will note I changed the 4 13/16" upper dimensions to the same 4 3/4" dimension of the lower hole set, this is the only way I could get the box grid to match with symmetrical angles.

Thinking about it that would only make sense in that on a typical mounting base you try to keep the bolt hole pattern symmetrical. Since the two dimensions were only 1/16" apart in the original measurements it looks like it is simply a tolerance error in the measurements from the mark I eyeball.

Regarding the thickness of the bracket, you go away from the bumper as I did take my measurements to the face of the bumper. I've added some photos for clarity, including one from @BlueBronco as I did not have the offset to the face mounting Bronco bolt. Also, his photo may allow you to calculate the front edge radius.

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations Modular Bumper Bronco Bolt Accessory Mounting Locations v3 sheet 2 5-23-2021

OP
OP
North7

North7

Well-Known Member
Joined
Feb 21, 2020
Threads
111
Messages
7,271
Reaction score
25,484
Location
North Texas
Vehicle(s)
SUV
Your Bronco Model
Undecided
Clubs

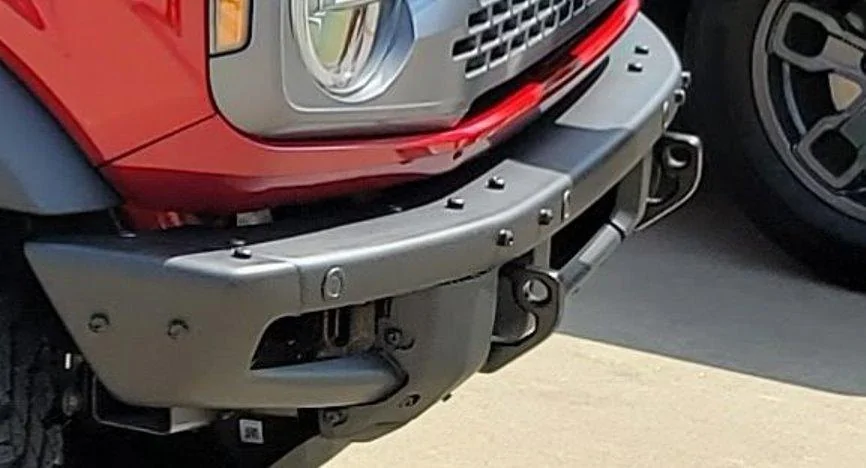

Here are some of the close-up photos I found helpful.

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations 20210515_105837 - Copy

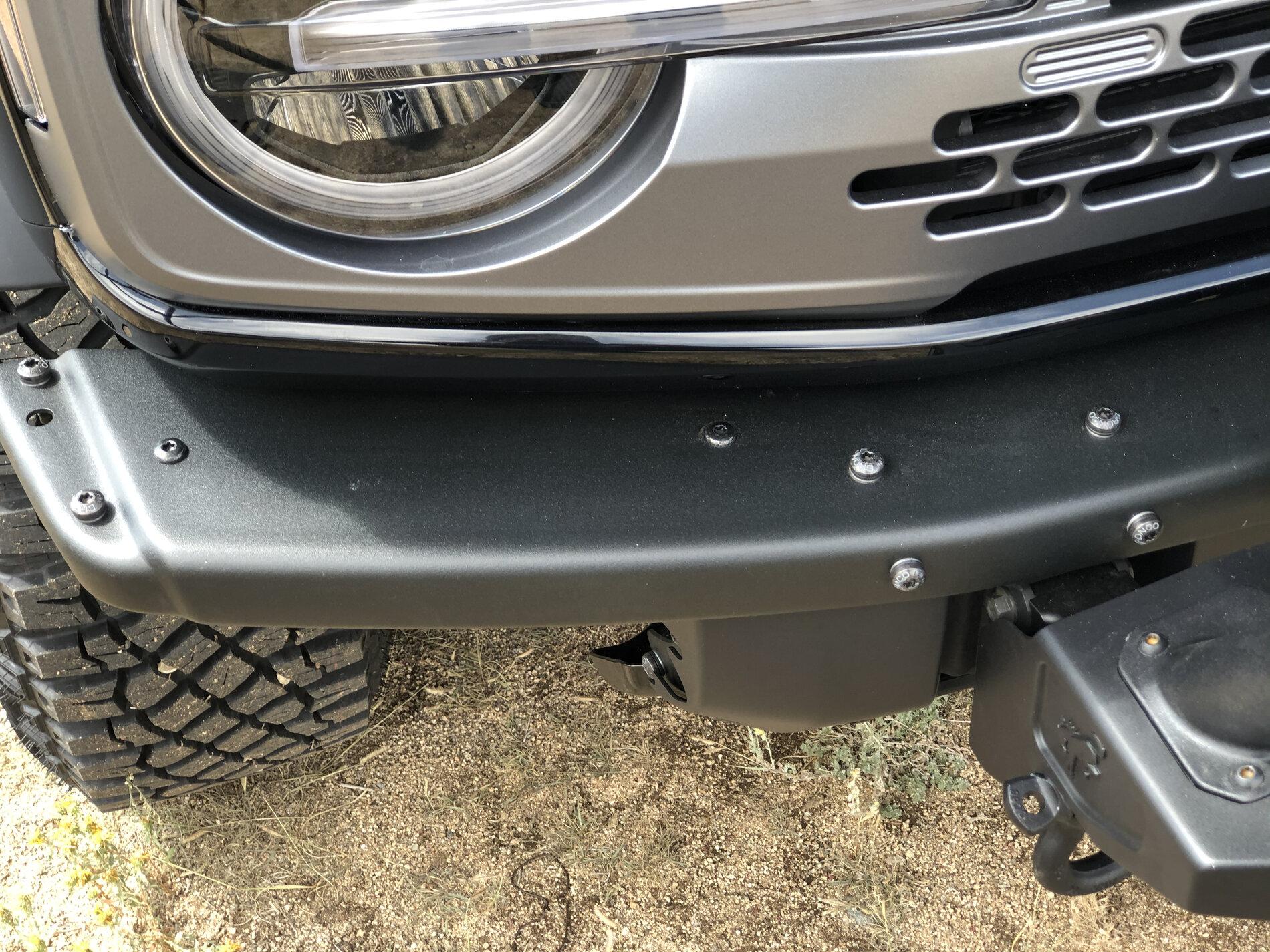

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations Mod Bumper left
Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations Mod bumper mounting bracket

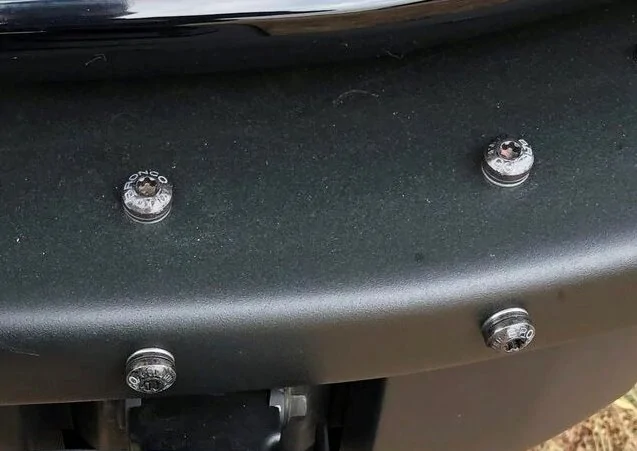

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations Mod Bumper right - Copy

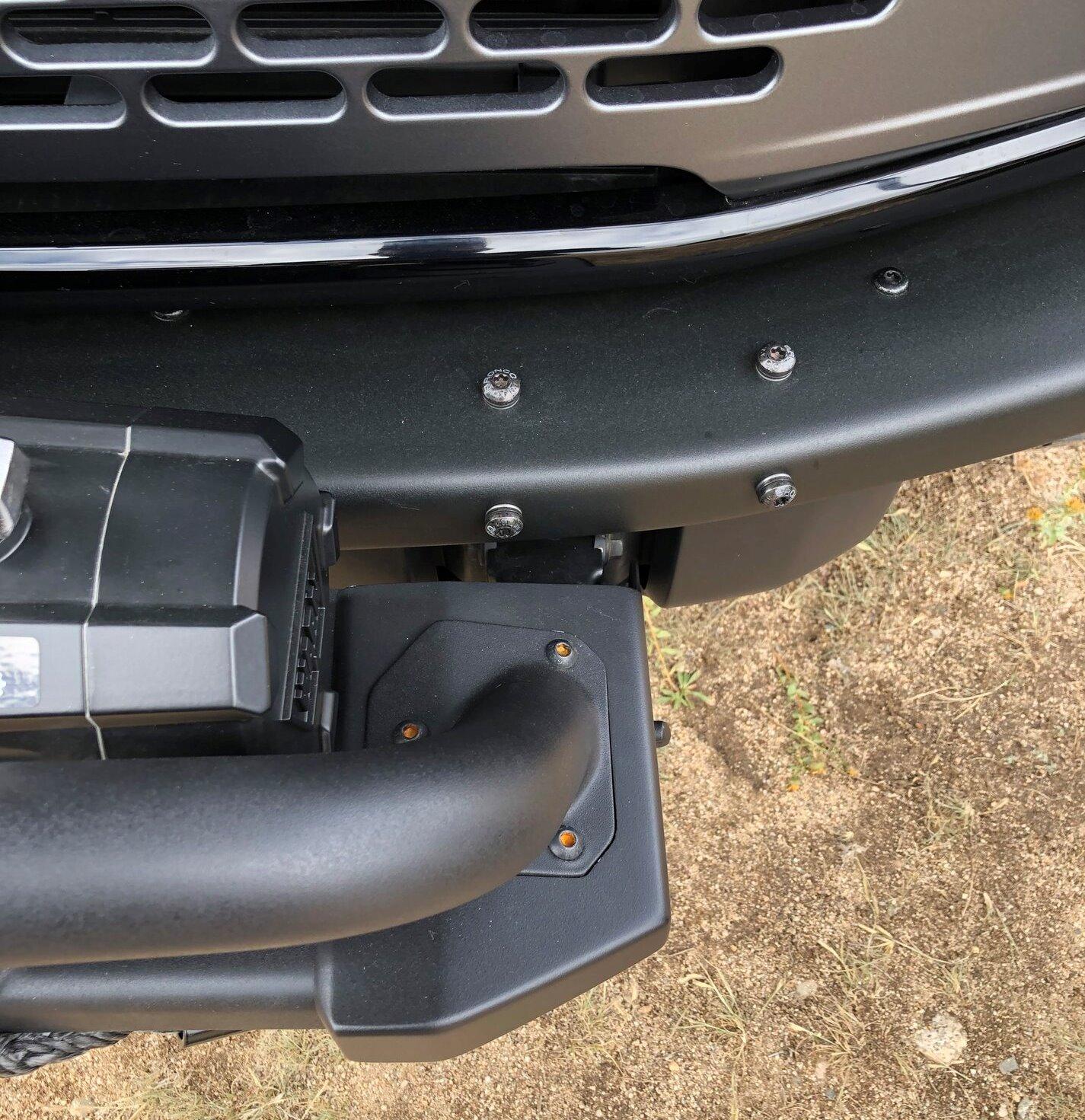

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations Mod Bumper right

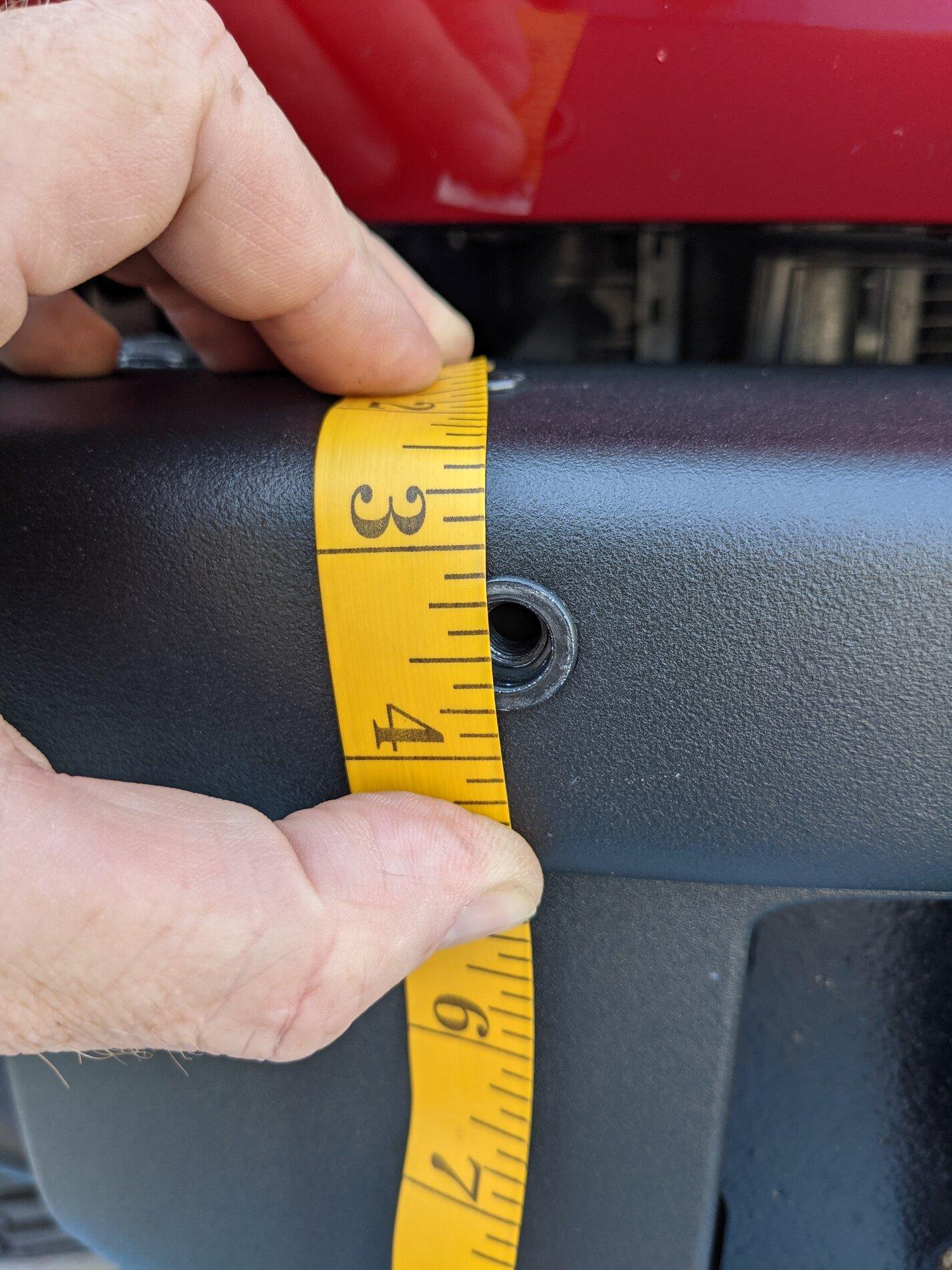

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_214906894


Erock

Badlands
Well-Known Member
First Name
Eric
Joined
Jan 30, 2021
Threads
1
Messages
2,171
Reaction score
5,104
Location
US
Vehicle(s)
2018 F150 Alpine edition
Your Bronco Model
Badlands
Clubs

Ok... I’ll start over. The even numbers will definitely make it easier. I had assumed you measured the brackets, so I went the wrong way... but bumper measurements make it easier as well.


Sponsored

Atomicdog

Base
Well-Known Member
First Name
Eddie
Joined
Oct 11, 2020
Threads
5
Messages
702
Reaction score
1,736
Location
Philadelphia
Vehicle(s)
.
Your Bronco Model
Base
Clubs

Distance along the curve. Unfortunately, didn't have the bolt hole as the focal point. This measurement is -1 inch.
Always burn an inch! đź‘Ť


swooshdave

Badlands
Well-Known Member
Joined
Dec 15, 2020
Threads
59
Messages
4,136
Reaction score
7,516
Location
Portland, Oregon
Vehicle(s)
Mustang
Your Bronco Model
Badlands
Clubs

You do know the Bronco was built using metric measurements? I bet you'll find the actual measurements when you translate your numbers.

OP
OP
North7

North7

Well-Known Member
Joined
Feb 21, 2020
Threads
111
Messages
7,271
Reaction score
25,484
Location
North Texas
Vehicle(s)
SUV
Your Bronco Model
Undecided
Clubs

You do know the Bronco was built using metric measurements? I bet you'll find the actual measurements when you translate your numbers.
Your correct, I did use the M6 size as my estimate for the Bronco Bolts. But as far as measurements I used an inch scale ruler so I stayed with that for the design. I did get the angles to align when I changed the top measurement to 4 3/4 as there appeared to be a tolerance error in the mark l eyeball.

I've designed a number of items in metric when needed but in this case I stayed with the same scale.

Metric tip of the day, here is a handy google tool I use for quick conversions.
https://www.google.com/search?q=1in...droid-verizon&sourceid=chrome-mobile&ie=UTF-8


Sponsored

BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Threads
19
Messages
5,743
Reaction score
20,374
Location
DFW
Vehicle(s)
'16 F150 KR - '21 BL - 23' OBX
Your Bronco Model
Badlands
Bumper end cap measurements. First pic is for reference. All measurements are -1 inch. And sorry about the focal points or lack there of.

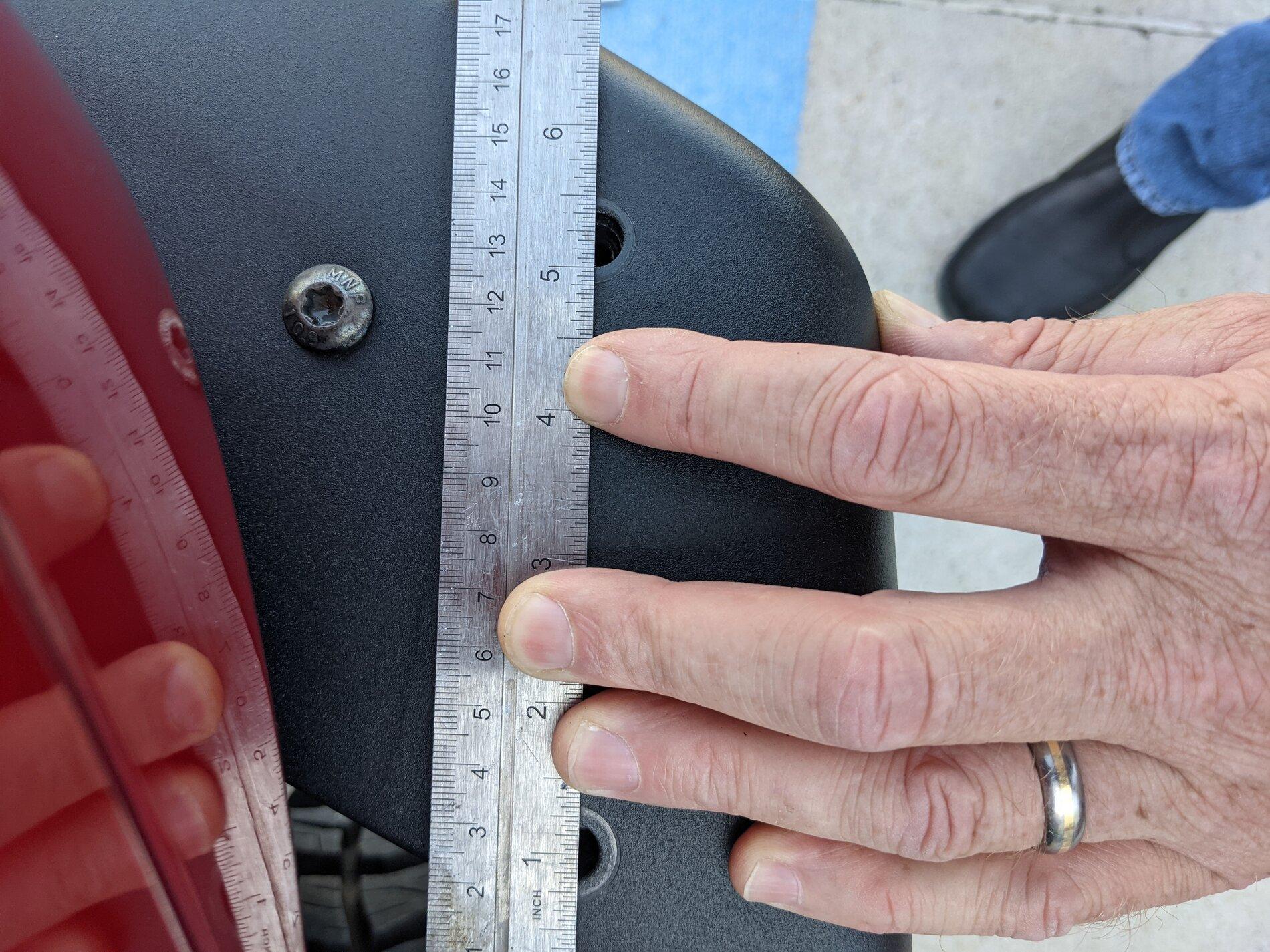

Top mounts
Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215834053

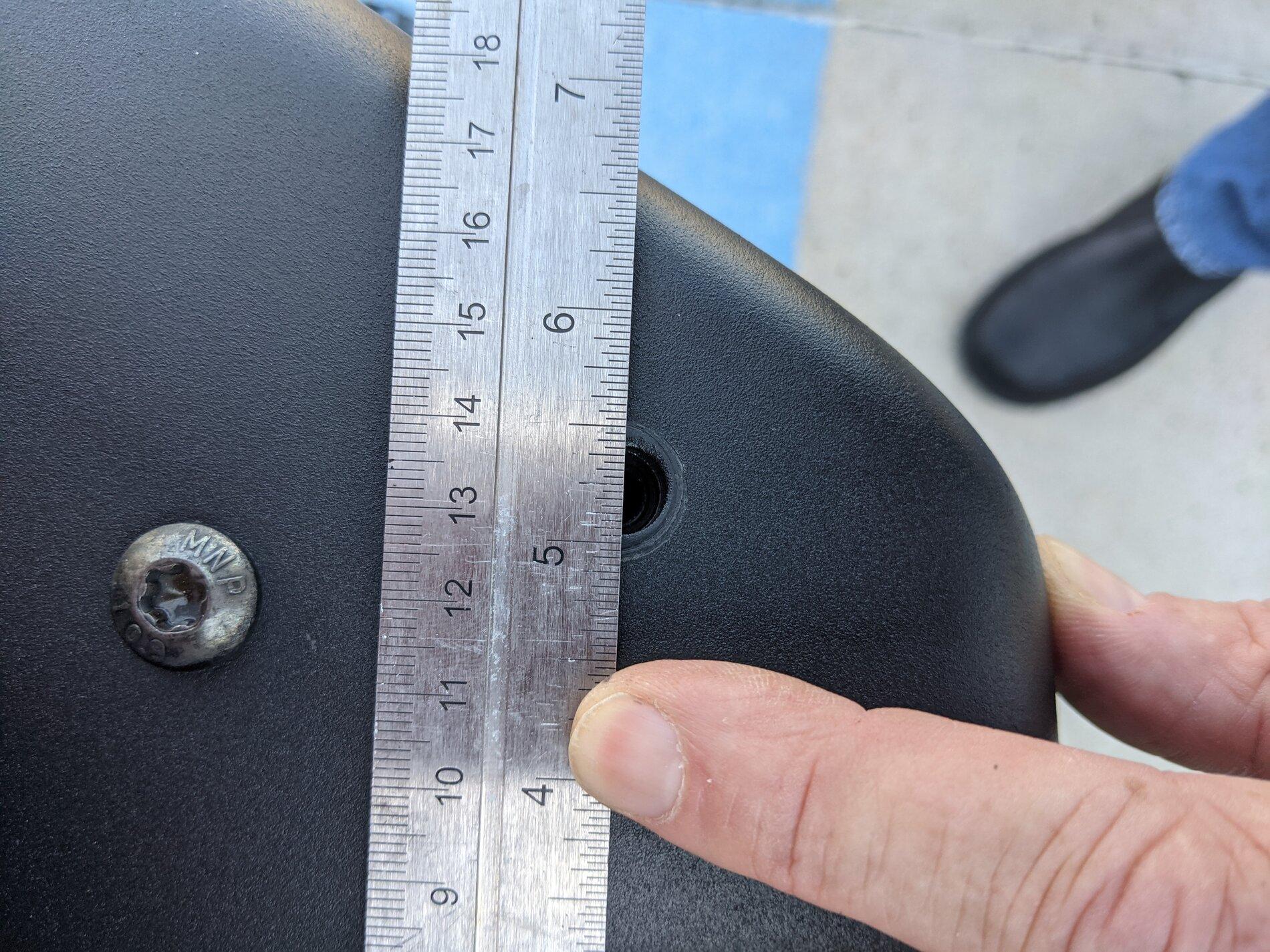

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215831694


Side mounts

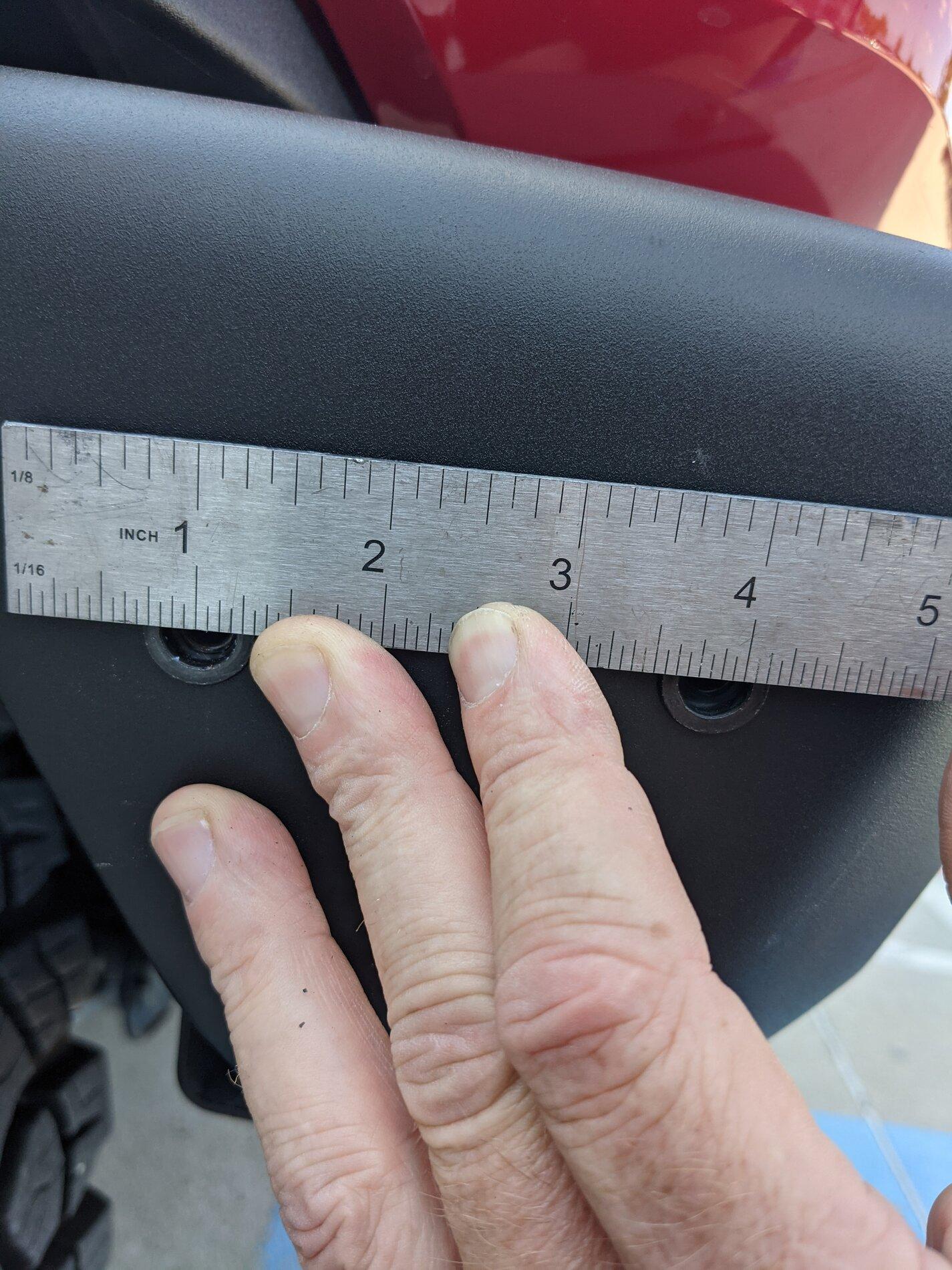

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215736776

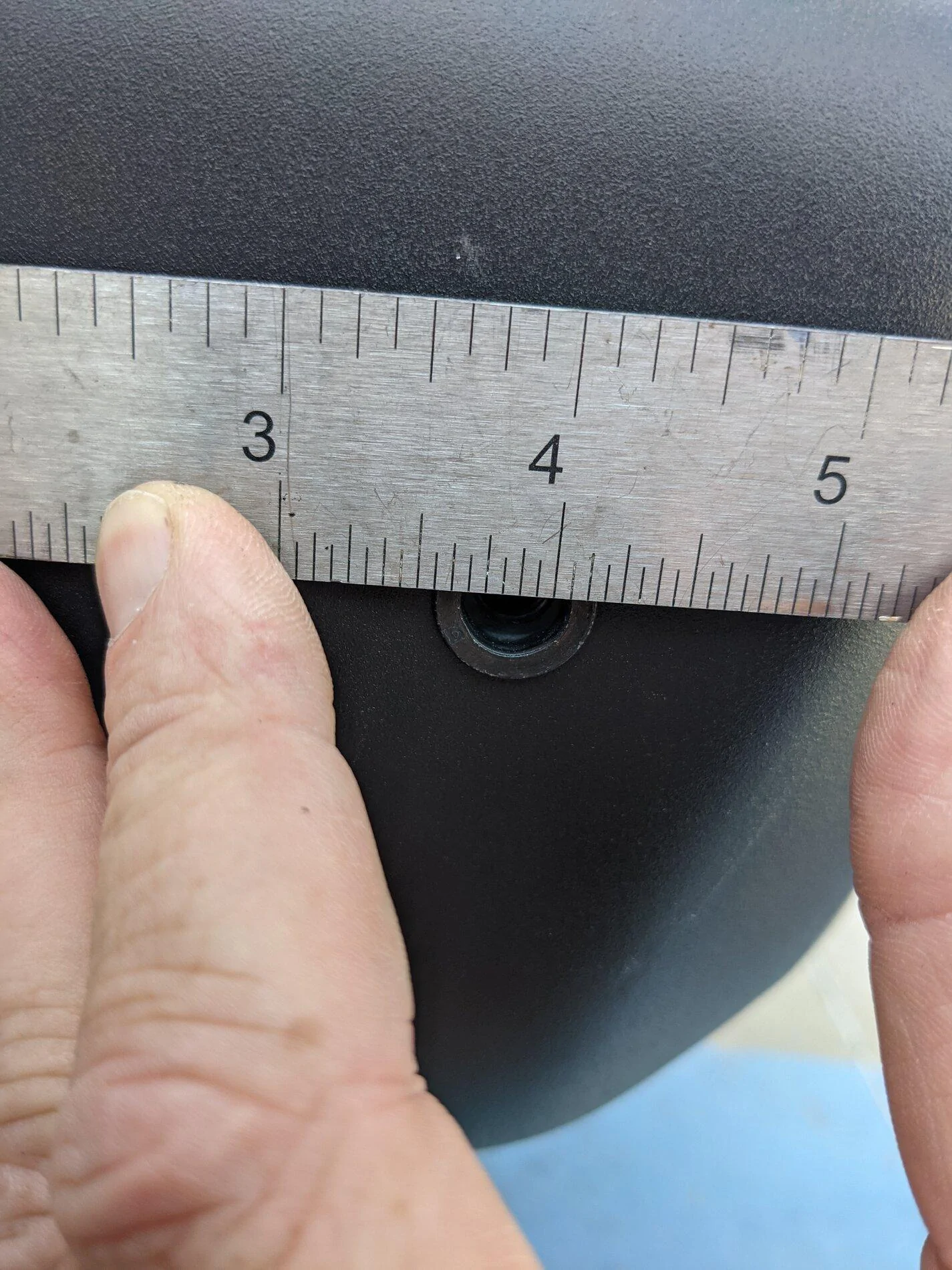

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215734335

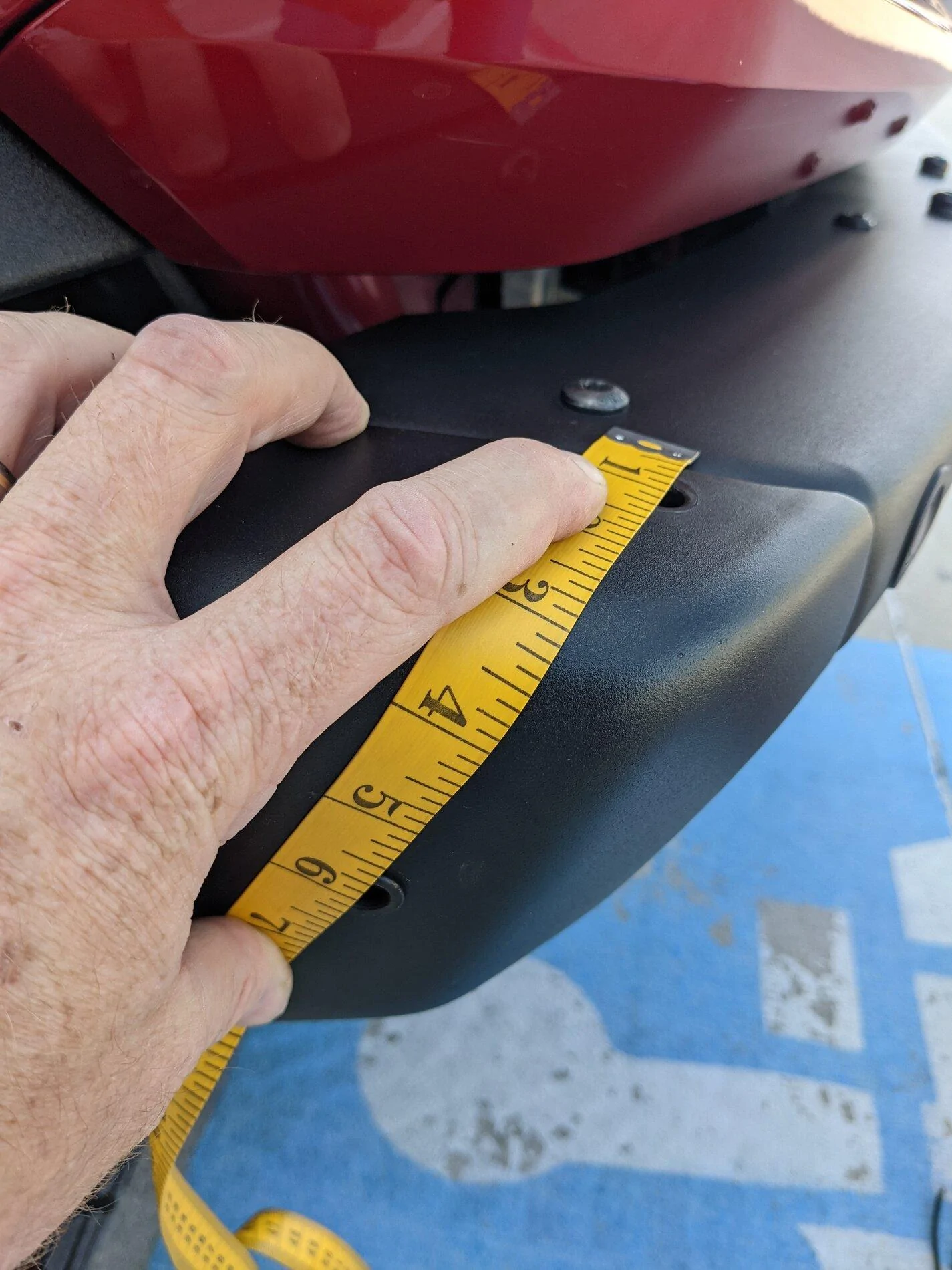

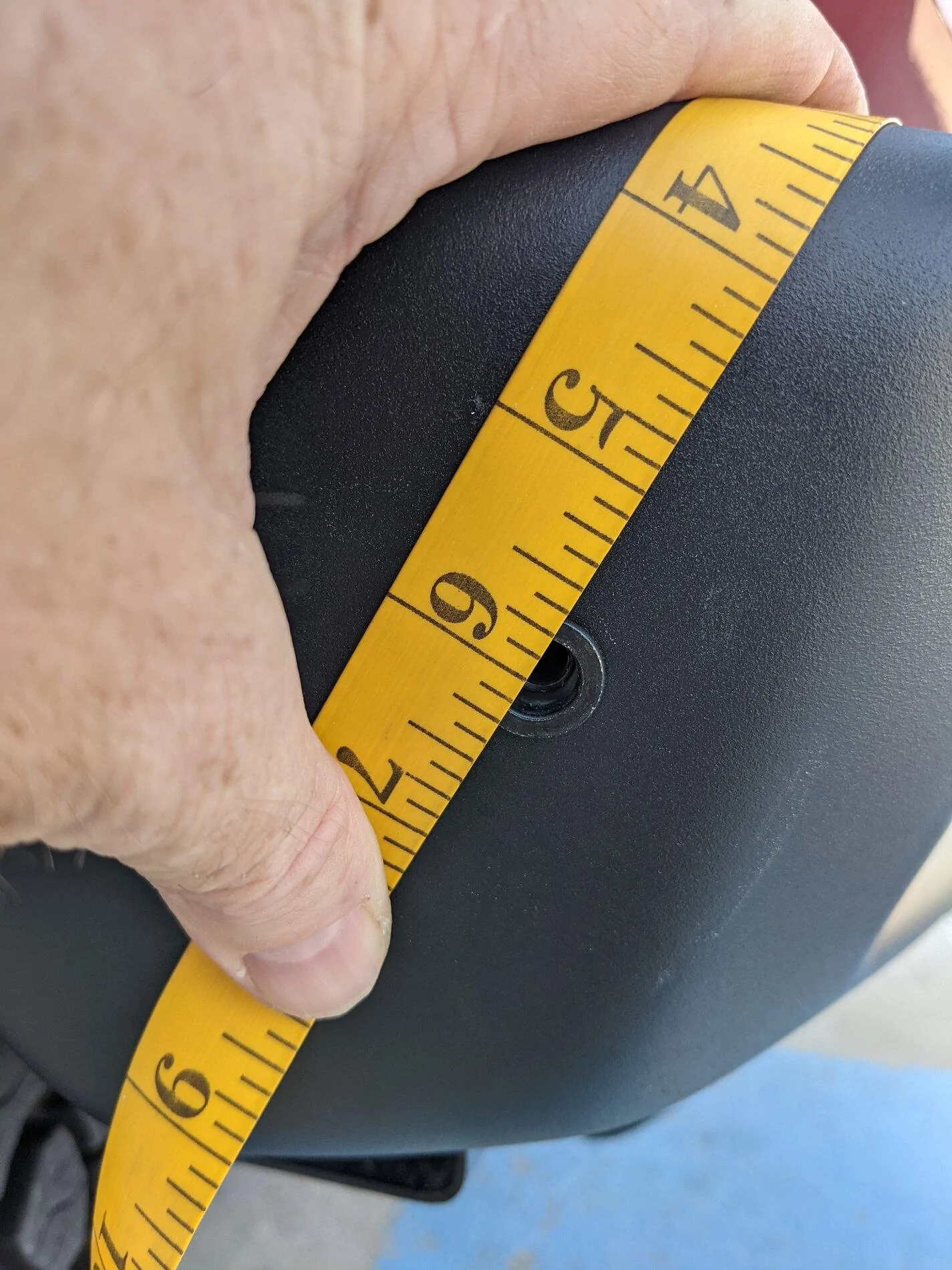

Curves
Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215928055

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215925875

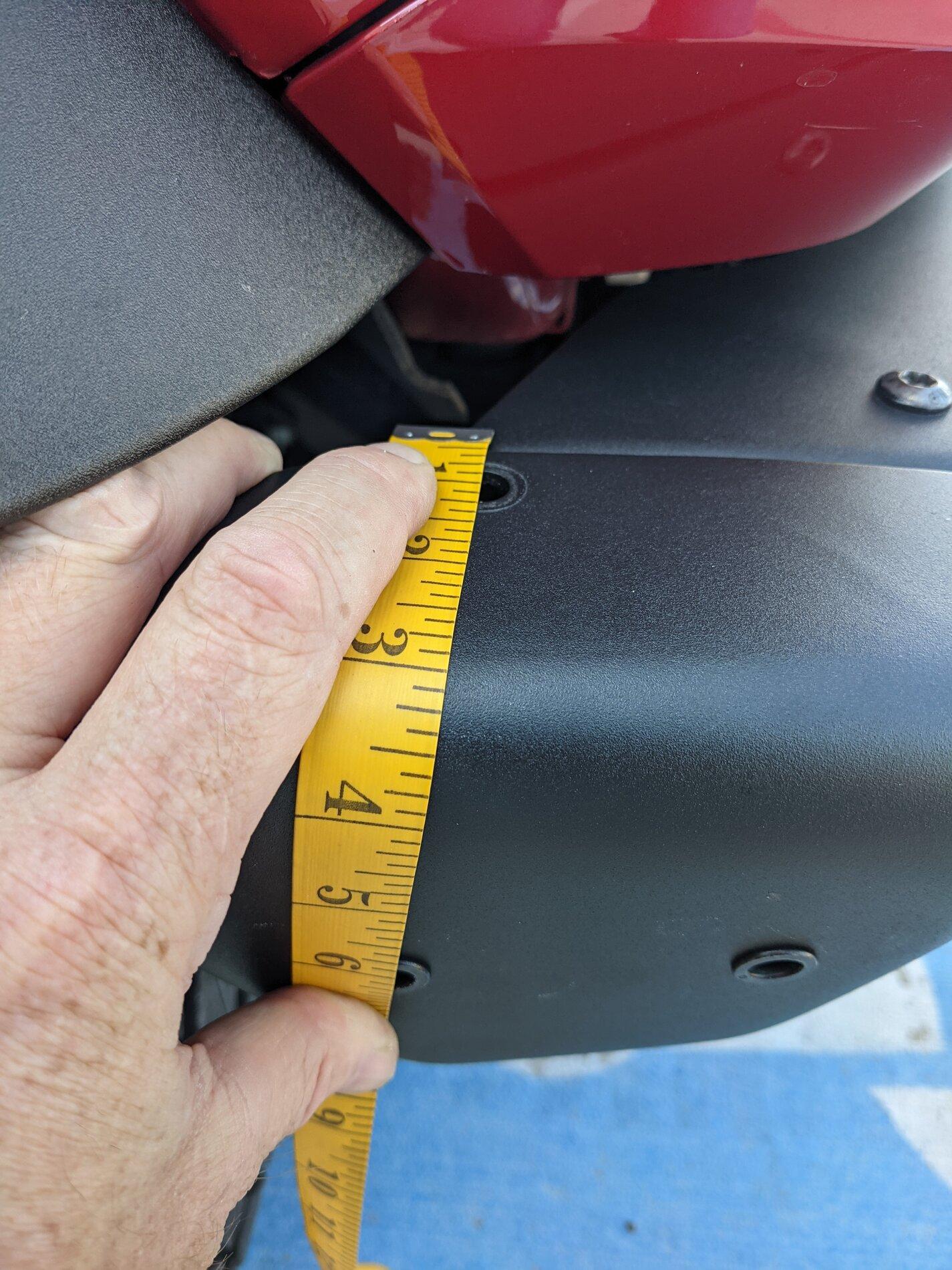

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215910580

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_215907703


BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Threads
19
Messages
5,743
Reaction score
20,374
Location
DFW
Vehicle(s)
'16 F150 KR - '21 BL - 23' OBX
Your Bronco Model
Badlands

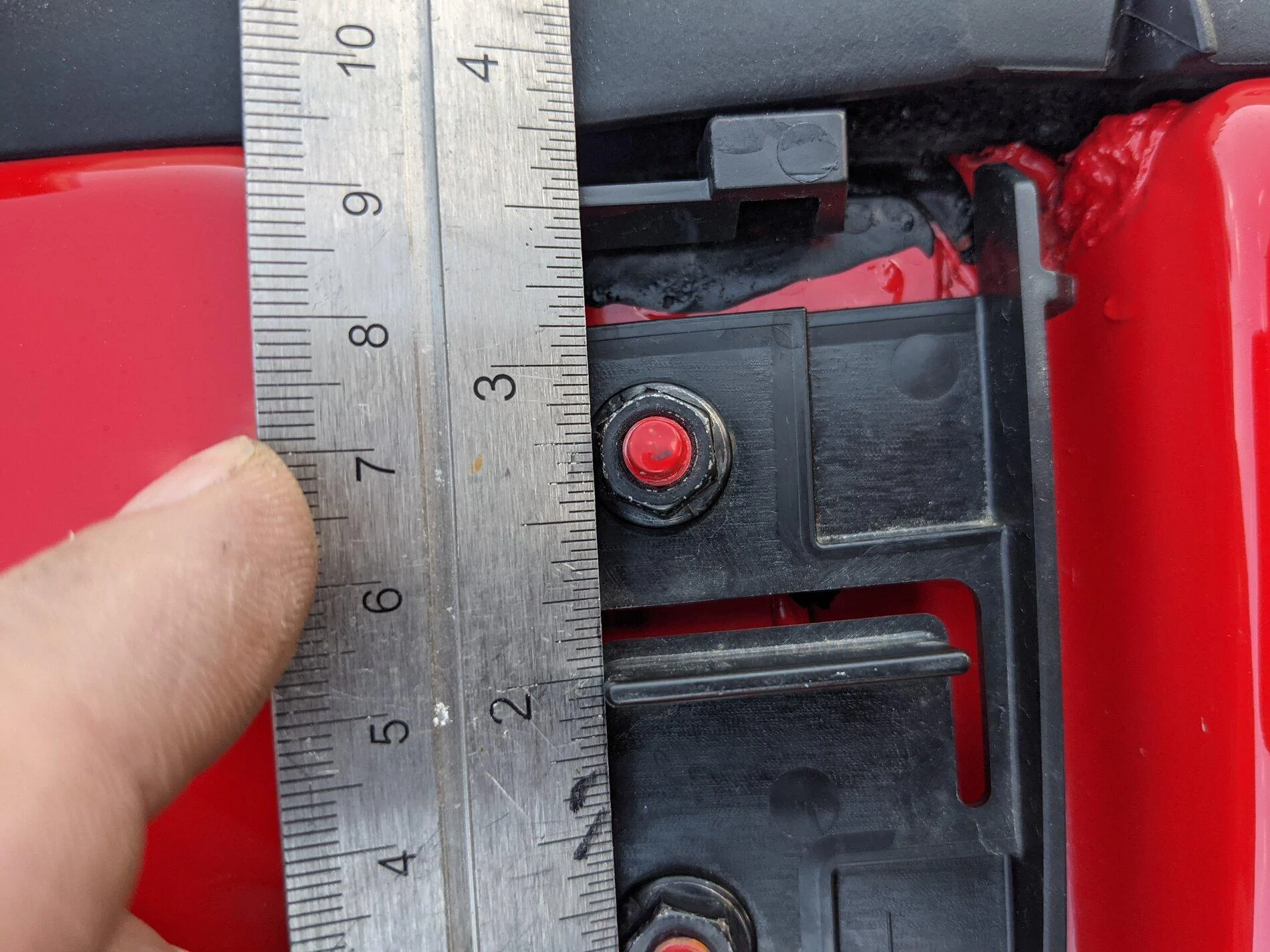

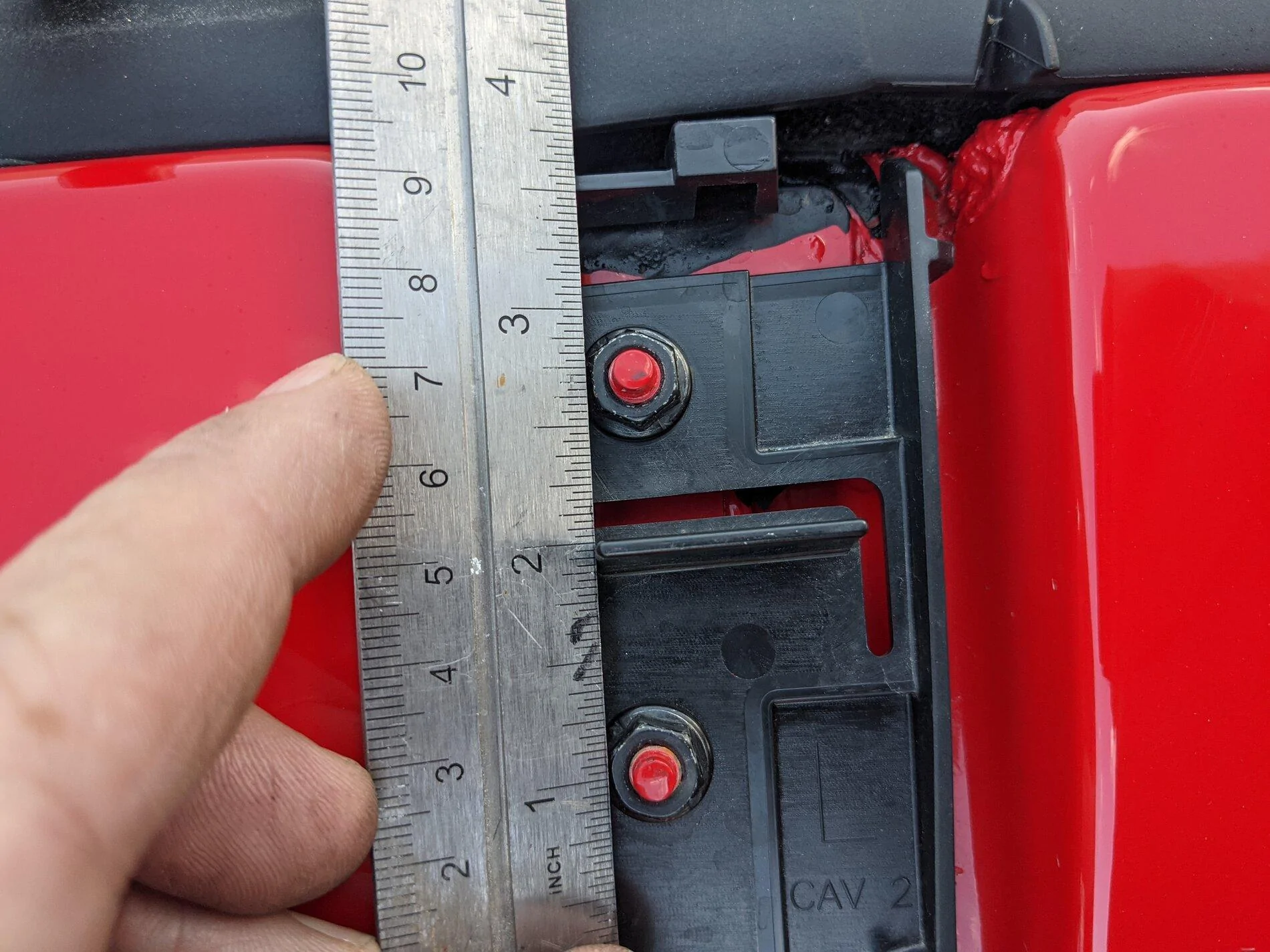

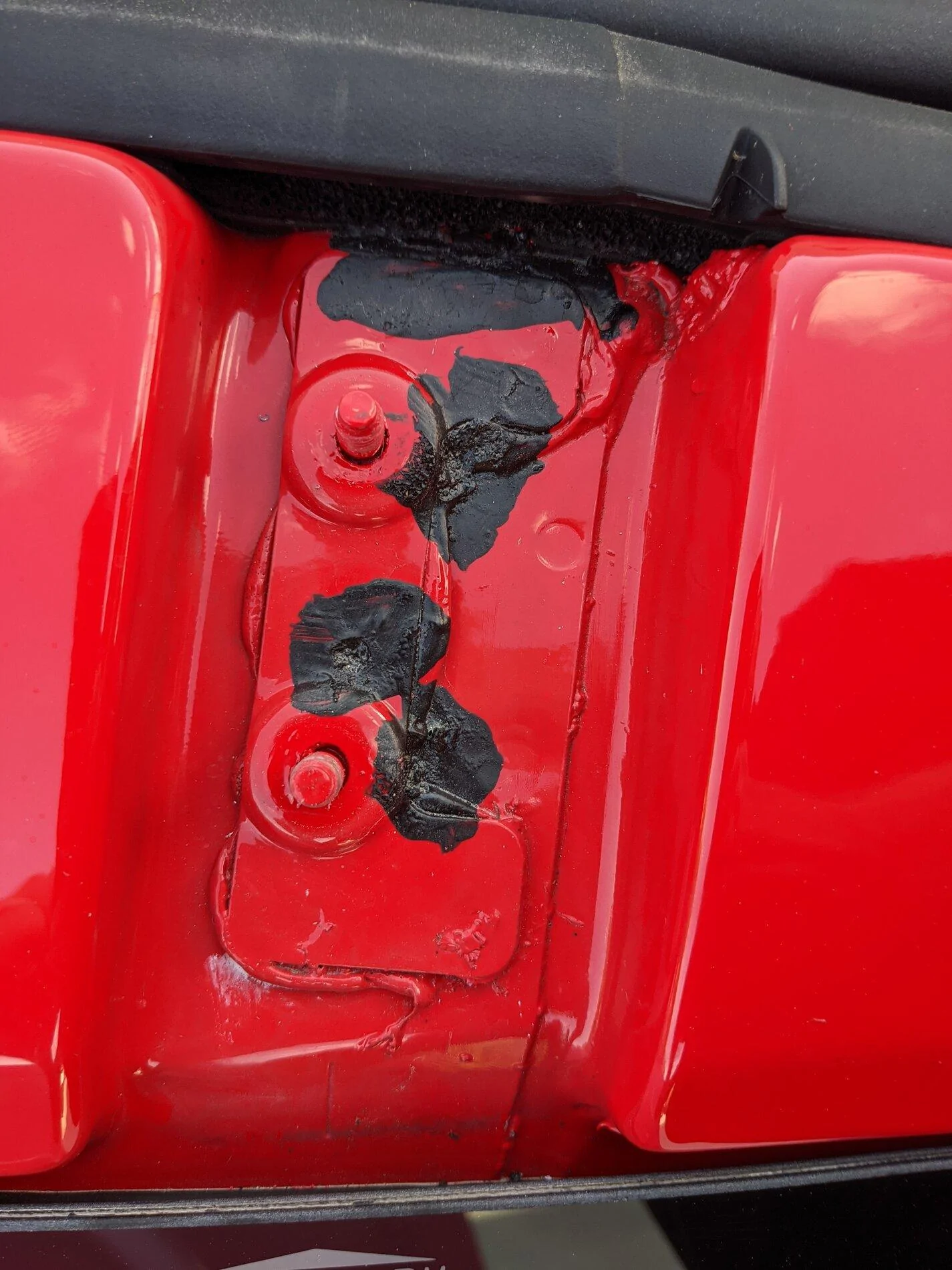

And a couple bonus measurements of the windshield frame accessory mounting points. All measurements are -1 inch.
Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_222947654

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_222945273

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_223013877

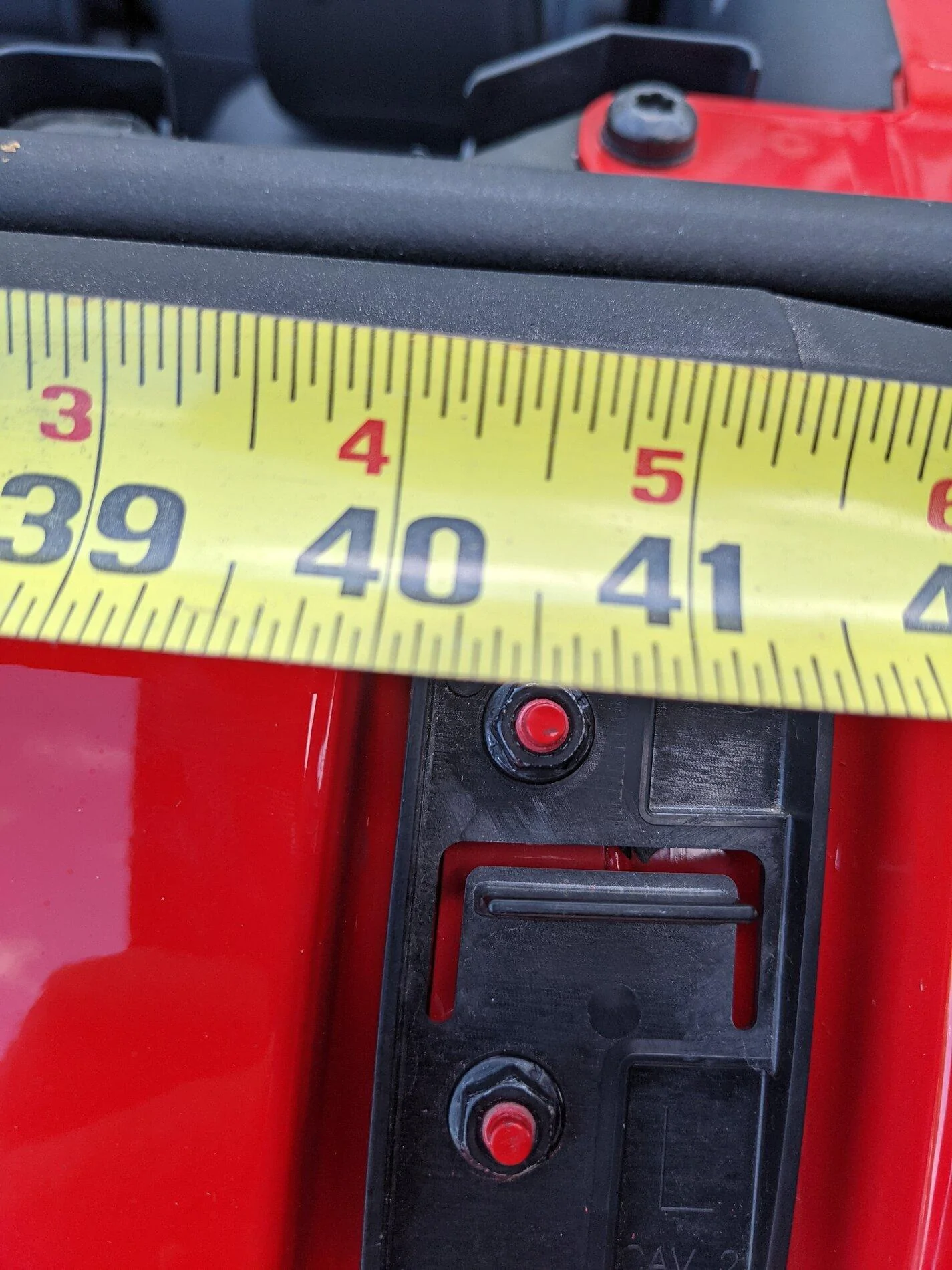

This measurement is bolt to bolt from the passenger mounting point to the driver mounting point. Do not subtract an inch. It is also a straight line and not along the upper curve of the windshield frame.
Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_223449081


BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Threads
19
Messages
5,743
Reaction score
20,374
Location
DFW
Vehicle(s)
'16 F150 KR - '21 BL - 23' OBX
Your Bronco Model
Badlands

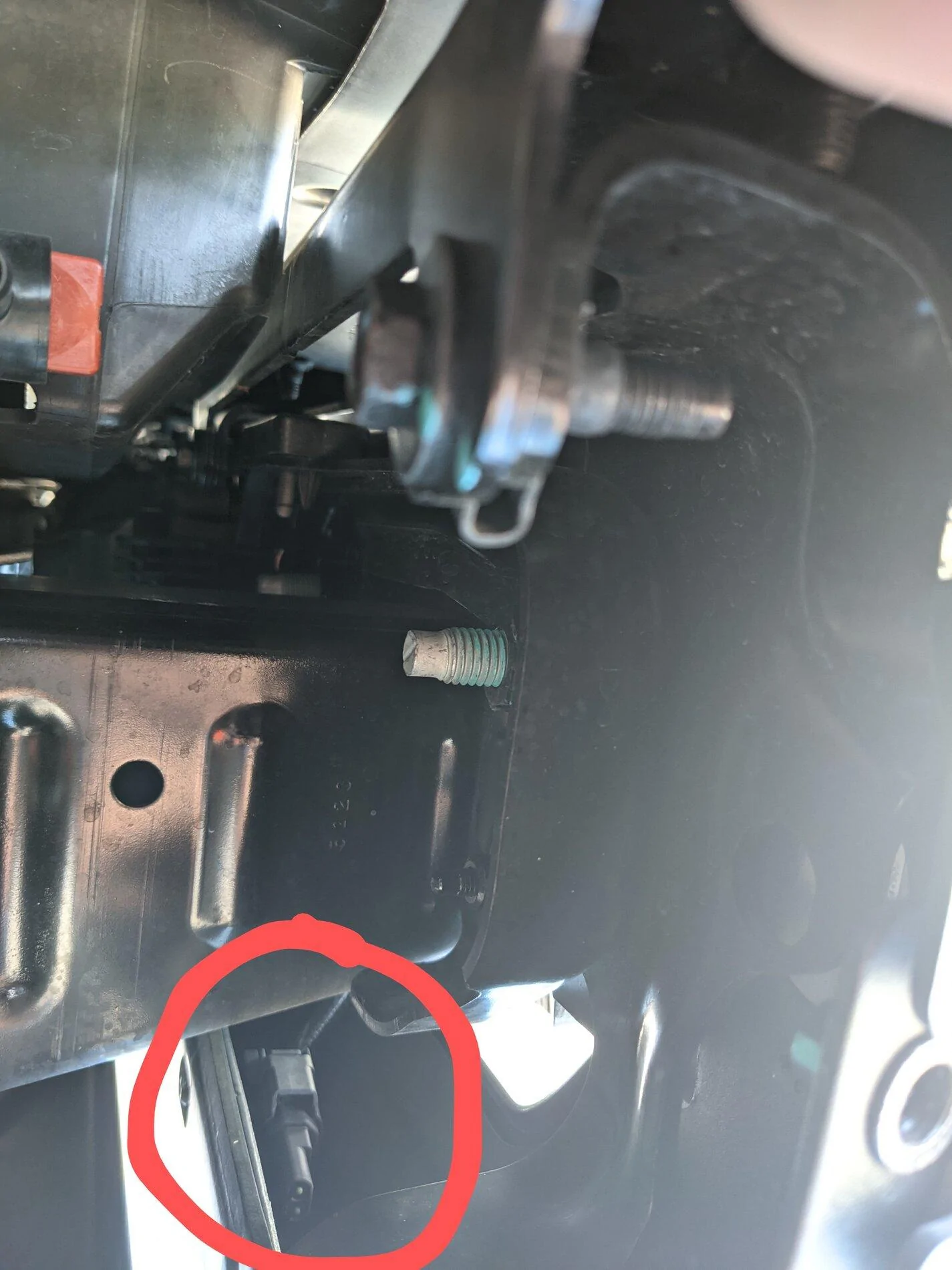

And one more super extra bonus. I spotted this little guy behind the bumper and directly below the tow hook - frame mount. This is on a BL. One would think it is a pigtail for the fog lights. It may be possible to switch out the BL light switch for one that contains the fog light switch instead of having to burn one of the overhead auxiliary switches to control fog lights.

Ford Bronco Modular Bumper Bronco Bolt Accessory Mounting Locations PXL_20210513_220459026.NIGHT~2
