ARB Brushless Air Compressors

[4x4TruckLEDs.com]

4/2/2025 Update: We've confirmed that the new Brushless Twin Air Compressor IS compatible with our existing KR Off-Road Mounting Brackets

The new ARB Brushless Air Compressors are now available for pre-order from us! Today was the "Embargo Date" so we can finally reveal some information about them.

To start with, the portable kits are not available yet. Information on those WILL be coming soon.
Second, we have an order in with ARB and as soon as our inventory lands we'll be verifying fitment with our engine mounted compressor brackets.

However if you'd like to pre-order your Brushless air compressor you can do so on our site

• Single Brushless: https://www.4x4truckleds.com/arb-br...h-performance-12-volt-air-compressor-ckbla12/
• Twin Brushless: https://www.4x4truckleds.com/arb-br...ormance-12-volt-twin-air-compressor-ckblta12/
• Bronco Specific Onboard Compressor KIT: https://www.4x4truckleds.com/kr-off-road-air-compressor-engine-bay-kit-for-2021-ford-bronco/

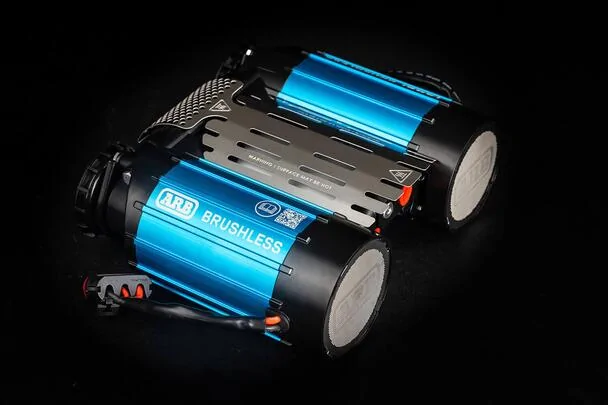

TWIN BRUSHLESS
https://www.4x4truckleds.com/arb-br...ormance-12-volt-twin-air-compressor-ckblta12/

ARB has expanded its line of premium air compressors with the new Brushless series. Long known as a leader in onboard and portable air compressors, the new ARB Brushless lineup offers the ultimate air compressors, featuring brushless electric motors, built in fans for active cooling, cutting-edge smart technology, and an impressive 50% increase in air output compared to ARB’s current market-leading compressors. ARB Brushless Air Compressors are compatible with ARB’s existing range of air accessories and hose kits, and ARB Air Lockers, making upgrading your current air system super easy! ARB Brushless Air Compressors allow you to spend less time inflating, and more time having fun: Quick Air, More Adventures.

FEATURES & BENEFITS

• 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring
• Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
• Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
• Status Reporting – Live diagnostics via audio and visual alerts
• Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
• Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
• Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
• Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time
• Smart Start - Staggered “Power-On” for twin variants to reduce the power spike at start up allowing brushless twins to start up on vehicles with smaller charging systems

SPECIFICATIONS

• Volts: 12V
• Width: 13.31 inch
• Height: 6.69 inch
• Length: 14.49 inch
• Weight: 15.8 lb
• Prop 65: No
• Max Amps: 90
• IP Rating: IP67 Water Resistant
• Duty Cycle: 100%
• Air Flow 0PSI: 9.18 CFM
• Air Flow 29PSI: 6.20 CFM
• Design: Brushless
• Warranty: 3 YR

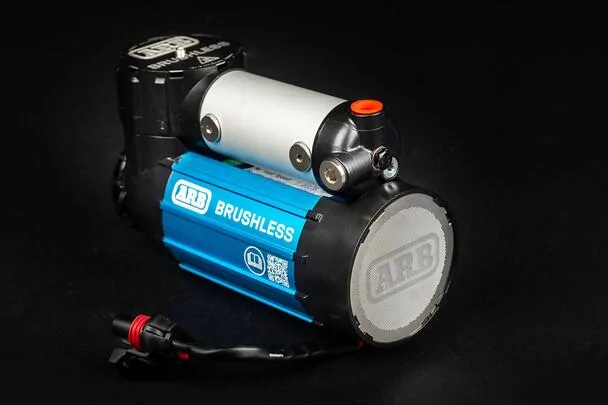

SINGLE BRUSHLESS
https://www.4x4truckleds.com/arb-br...rmance-12-volt-single-air-compressor-ckbla12/

ARB has expanded its line of premium air compressors with the new Brushless series. Long known as a leader in onboard and portable air compressors, the new ARB Brushless lineup offers the ultimate air compressors, featuring brushless electric motors, built in fans for active cooling, cutting-edge smart technology, and an impressive 50% increase in air output compared to ARB’s current market-leading compressors. ARB Brushless Air Compressors are compatible with ARB’s existing range of air accessories and hose kits, and ARB Air Lockers, making upgrading your current air system super easy! ARB Brushless Air Compressors allow you to spend less time inflating, and more time having fun: Quick Air, More Adventures.

FEATURES & BENEFITS

• 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring
• Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
• Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
• Status Reporting – Live diagnostics via audio and visual alerts
• Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
• Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
• Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
• Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time

SPECIFICATIONS

• Volts: 12V
• Width: 10.83 inch
• Height: 6.1 inch
• Length: 12.8 inch
• Weight: 9.5 lb
• Prop 65: No
• Max Amps: 45
• IP Rating: IP67 Water Resistant
• Duty Cycle: 100%
• Air Flow 0PSI: 4.59 CFM
• Air Flow 29PSI: 3.10 CFM
• Design: Brushless
• Warranty: 3 YR

Sponsored



[popo_patty]

Pretty cool albeit pricey. Maybe I’ll get one to test heat and times vs my old one.



[1979]

Is the mounting configuration the same as the other twin? I have your under-hood bracket. Could I reuse it for the brushless version if I upgrade?

What about wiring? Can I simply remove the old compressor and drop this one in place and use the same wiring?



[4x4TruckLEDs.com]

Is the mounting configuration the same as the other twin? I have your under-hood bracket. Could I reuse it for the brushless version if I upgrade?

What about wiring? Can I simply remove the old compressor and drop this one in place and use the same wiring?

We don't know 100% yet. We BELIEVE it should be, otherwise ARB can't use ANY of their existing mounting systems out there. We'll know once our compressors arrive to us.



[1979]

We don't know 100% yet. We BELIEVE it should be, otherwise ARB can't use ANY of their existing mounting systems out there. We'll know once our compressors arrive to us.

Appreciate the quick response. I reached out to ARB support for clarification. Not willing to drop $900 on a preorder if I have to get a new mounting solution as well.



[1979]

We don't know 100% yet. We BELIEVE it should be, otherwise ARB can't use ANY of their existing mounting systems out there. We'll know once our compressors arrive to us.

Here’s the response from ARB:

“Hello, you will need to rewire the brushless I am afraid. The connectors are a bit different, and the new compressor has some additional safety features built into it so there are some additional wires in the harness on the brushless vs the older brushed models. The mounting footprint is a bit different on the new ones as well, essentially you can absolutely use your existing bracket, but the feet on the new compressor are positioned a bit closer together as the compressor is a bit smaller than our old, so you would end up having to drill two new holes for one pair of the mounting feet, whether that be the front or rear pair of feet, but they will not quite line up to the existing holes in the bracket for the brushed models”



[4x4TruckLEDs.com]

Here’s the response from ARB:

“Hello, you will need to rewire the brushless I am afraid. The connectors are a bit different, and the new compressor has some additional safety features built into it so there are some additional wires in the harness on the brushless vs the older brushed models. The mounting footprint is a bit different on the new ones as well, essentially you can absolutely use your existing bracket, but the feet on the new compressor are positioned a bit closer together as the compressor is a bit smaller than our old, so you would end up having to drill two new holes for one pair of the mounting feet, whether that be the front or rear pair of feet, but they will not quite line up to the existing holes in the bracket for the brushed models”

They may or may not work with our brackets. We have additional holes on our brackets (depending on when you ordered it from us that is).

It does use a new harness but that harness comes with the brushless.

Don't put the cart before the horse. Let us get a compressor in and test fit it to determine if it will/will not fit. Even if it does not fit we'll have an adapter plate available to adapt the new compressor's mounts to our existing brackets.



[wigglysqiggly]

Will Wait on Testing Videos. Been wanting to get one but Price point vs Time. Can get one for $250 and be faster than this $900.



[popo_patty]

Will Wait on Testing Videos. Been wanting to get one but Price point vs Time. Can get one for $250 and be faster than this $900.

I’ll try to get one done if I can get my hands on one. I have the regular single compressor from them and have access to thermal imaging and have a good baseline from a bunch of previous testing I did.

But yea, if the regular one works fine what’s the point of brushless? It advertises better cooling but my engine mounted single has yet to overheat or cause issues after 3 years and over 500 uses.
I’m not convinced it’s a worthwhile purchase but I’m also interested in seeing for myself.



[4x4TruckLEDs.com]

Will Wait on Testing Videos. Been wanting to get one but Price point vs Time. Can get one for $250 and be faster than this $900.

Not quite. Also... the current ARB Twin Compressor is $640 and airs up a 35" tire from 15PSI to 35PSI in 60 seconds.



[4x4TruckLEDs.com]

I’ll try to get one done if I can get my hands on one. I have the regular single compressor from them and have access to thermal imaging and have a good baseline from a bunch of previous testing I did.

But yea, if the regular one works fine what’s the point of brushless? It advertises better cooling but my engine mounted single has yet to overheat or cause issues after 3 years and over 500 uses.
I’m not convinced it’s a worthwhile purchase but I’m also interested in seeing for myself.

These types of compressors are not even remotely the same as the ARB Onboard Air Compressors. Those are portable air compressors. This is an onboard air compressor. Different animal.

That's like comparing The engine on a Viper to the Engine in your F150. Both are engines right, but one is DIFFERENT then the other.



[popo_patty]

Will Wait on Testing Videos. Been wanting to get one but Price point vs Time. Can get one for $250 and be faster than this $900.

I’ll try to get one out if I can get my hands on one. I have the regular single compressor from them and have access to thermal imaging and have a good baseline from a bunch of previous testing I did.

These types of compressors are not even remotely the same as the ARB Onboard Air Compressors. Those are portable air compressors. This is an onboard air compressor. Different animal.

That's like comparing The engine on a Viper to the Engine in your F150. Both are engines right, but one is DIFFERENT then the other.

All are used to air up tires off-road and are considerations for someone looking to make a purchase. All have pros and cons. And the ARB single and dual are in this video. I’m a huge fan of ARB and run their single



[4x4TruckLEDs.com]

I’ll try to get one out if I can get my hands on one. I have the regular single compressor from them and have access to thermal imaging and have a good baseline from a bunch of previous testing I did.


All are used to air up tires off-road and are considerations for someone looking to make a purchase. All have pros and cons. And the ARB single and dual are in this video. I’m a huge fan of ARB and run their single

Again, completely different animals. Brushless is a different animal all together.



[HikeBikeFish]

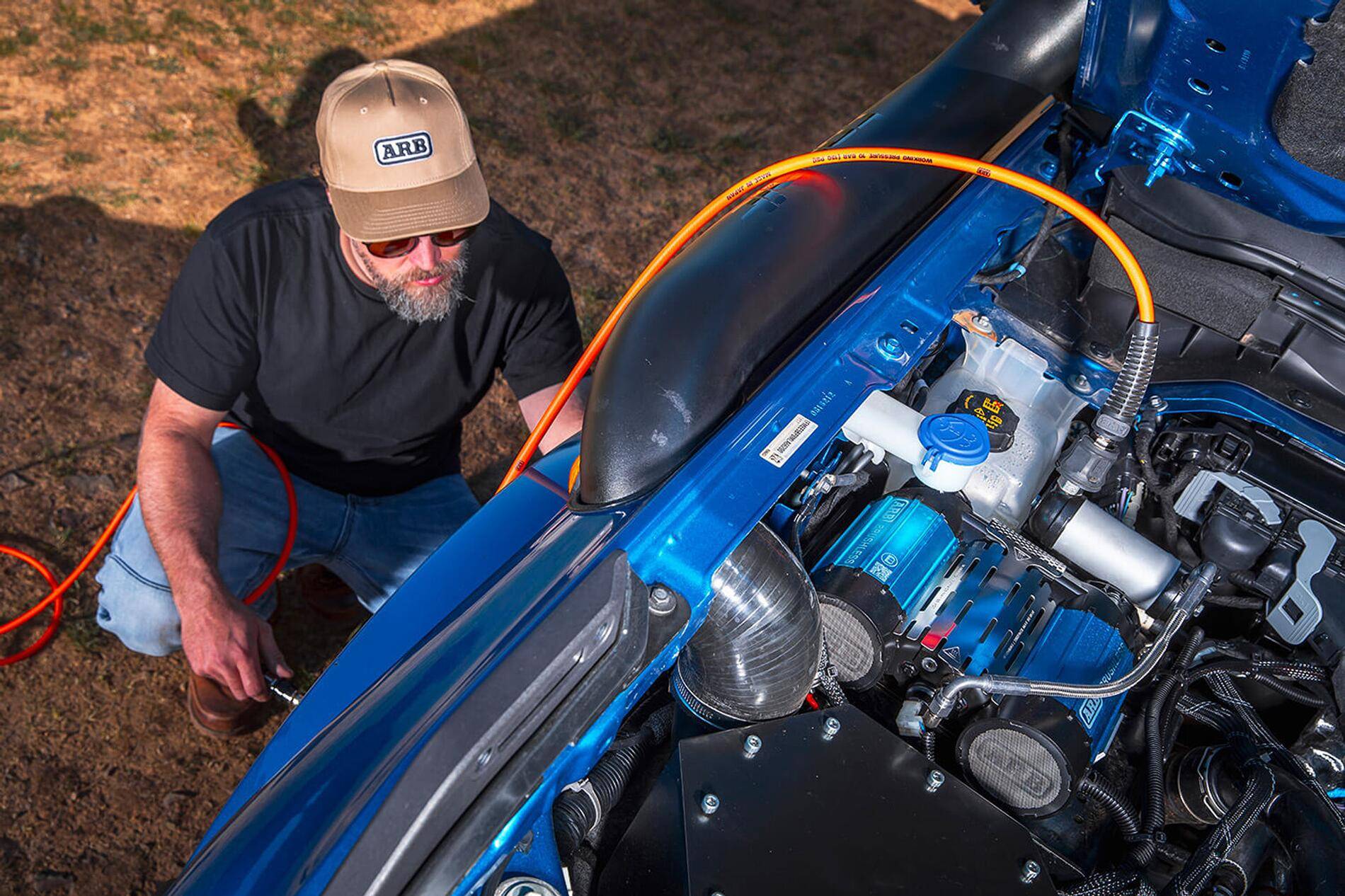

Anyone know what snorkel ARB is showing installed on the Bronco on the page for the brushless compressor? I haven't done a ton of research into this recently, but last I checked it wasn't possible (or at least it wasn't easily possible) to install a compressor and a snorkel.



[4x4TruckLEDs.com]

Anyone know what snorkel ARB is showing installed on the Bronco on the page for the brushless compressor? I haven't done a ton of research into this recently, but last I checked it wasn't possible (or at least it wasn't easily possible) to install a compressor and a snorkel.

Thats a completely custom build. They cut a hole in the side of the body
