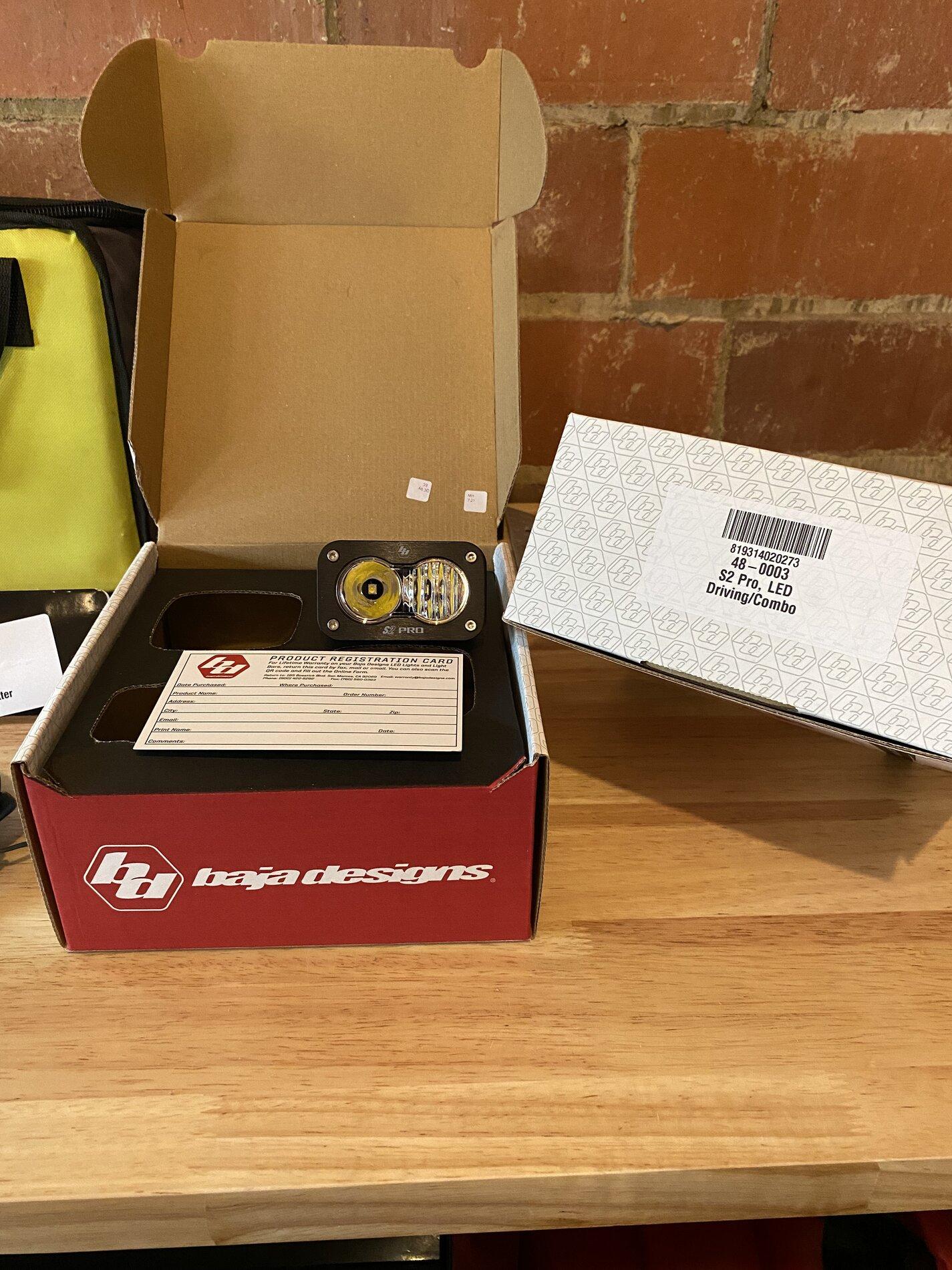

So I took delivery of a pair of S2 Pro lights today that I mounted in the pod position. I took care of the cowl mounting first to see what kind of space I was working with underneath and it looks managable.

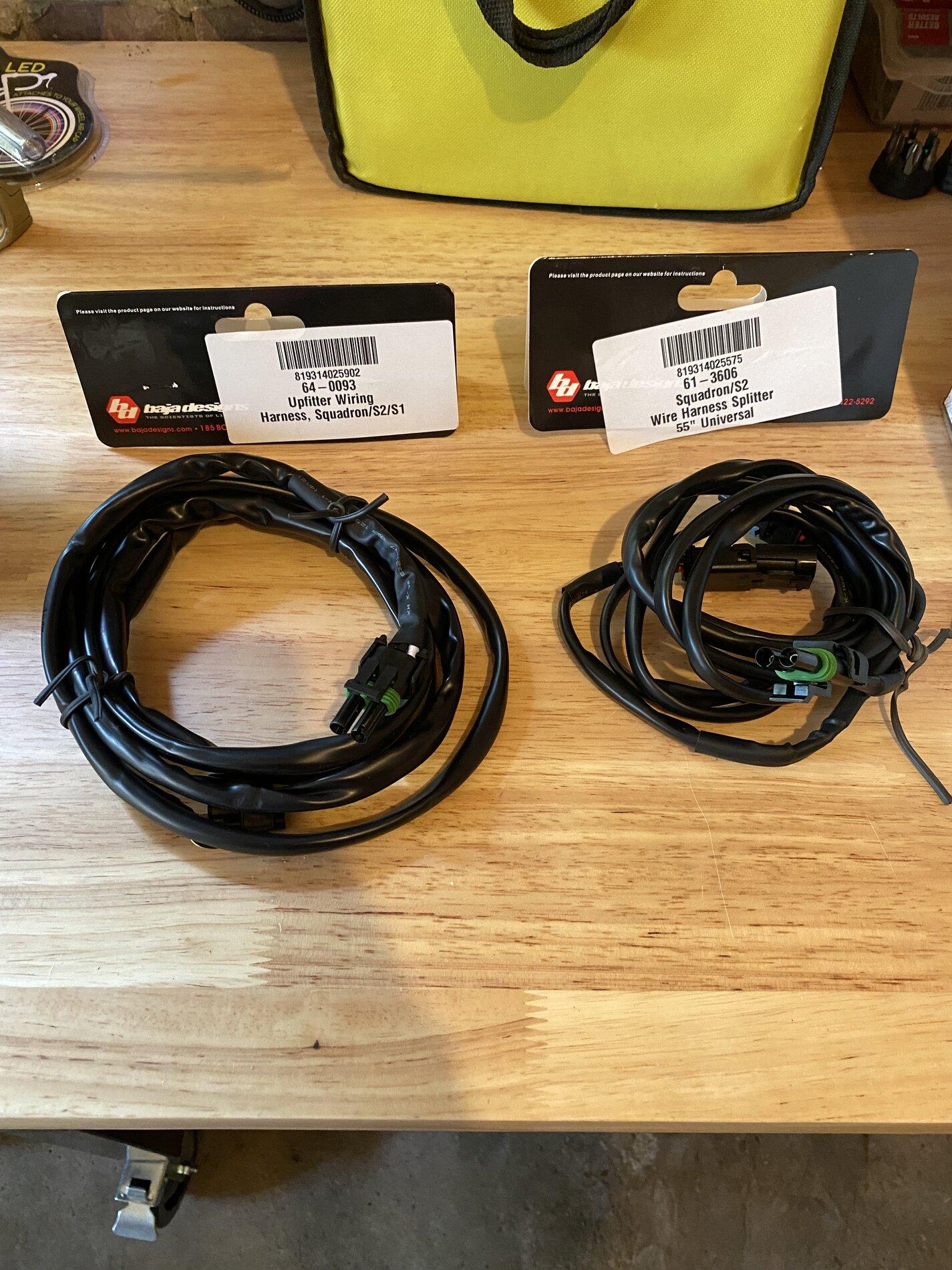

I also got the upfitter wiring harness and the 55" splitter to run both lights off a single switch.

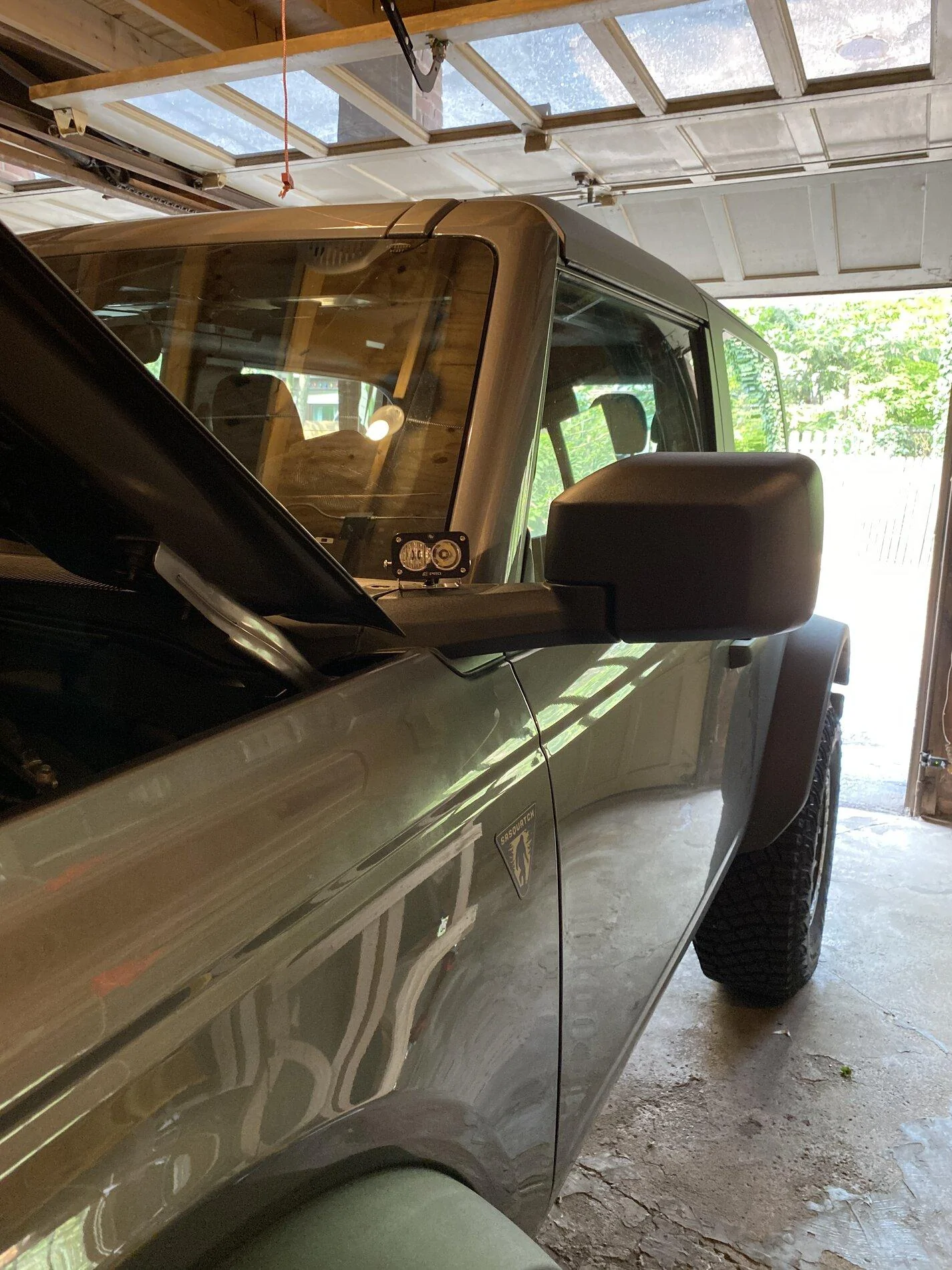

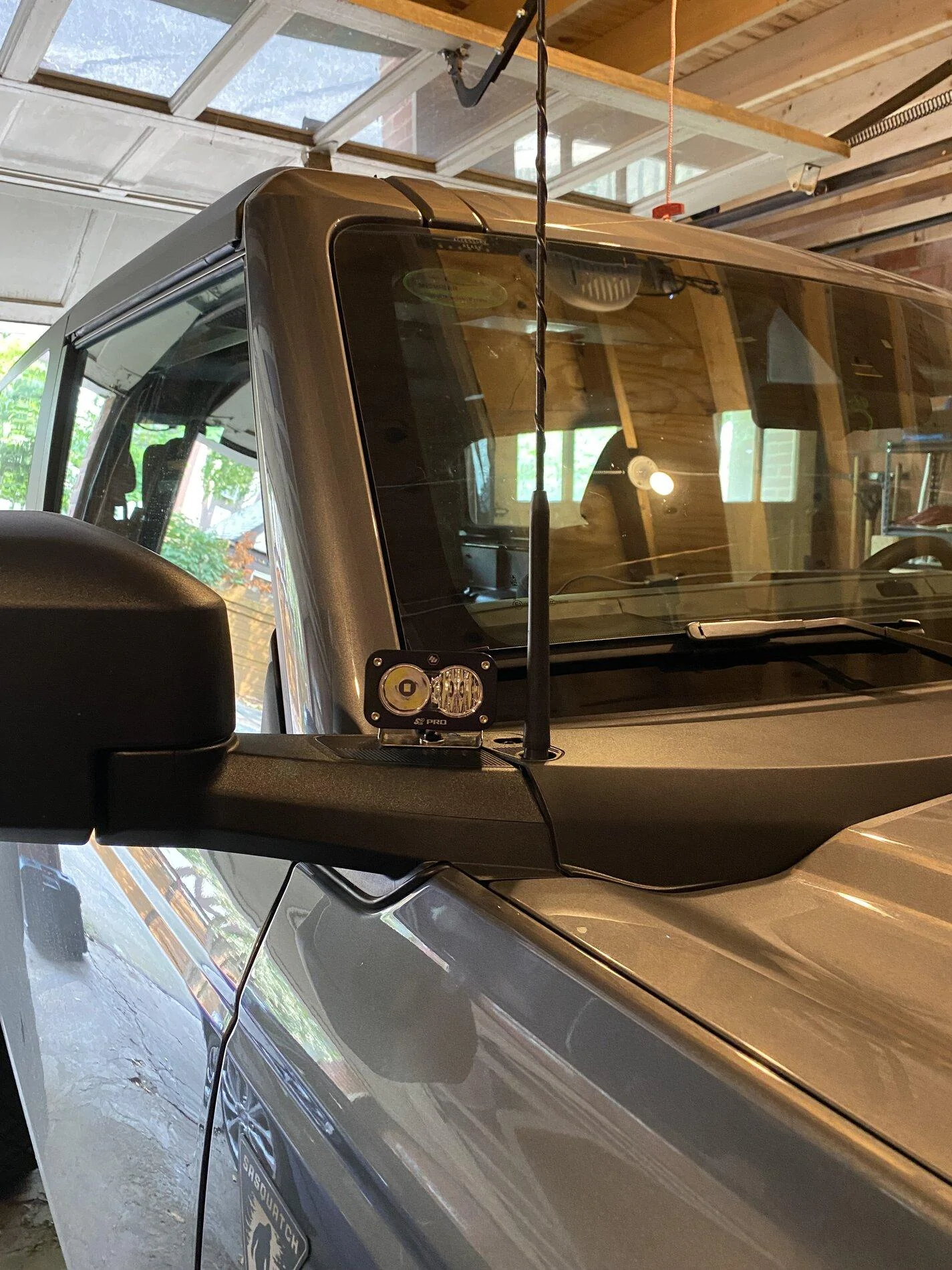

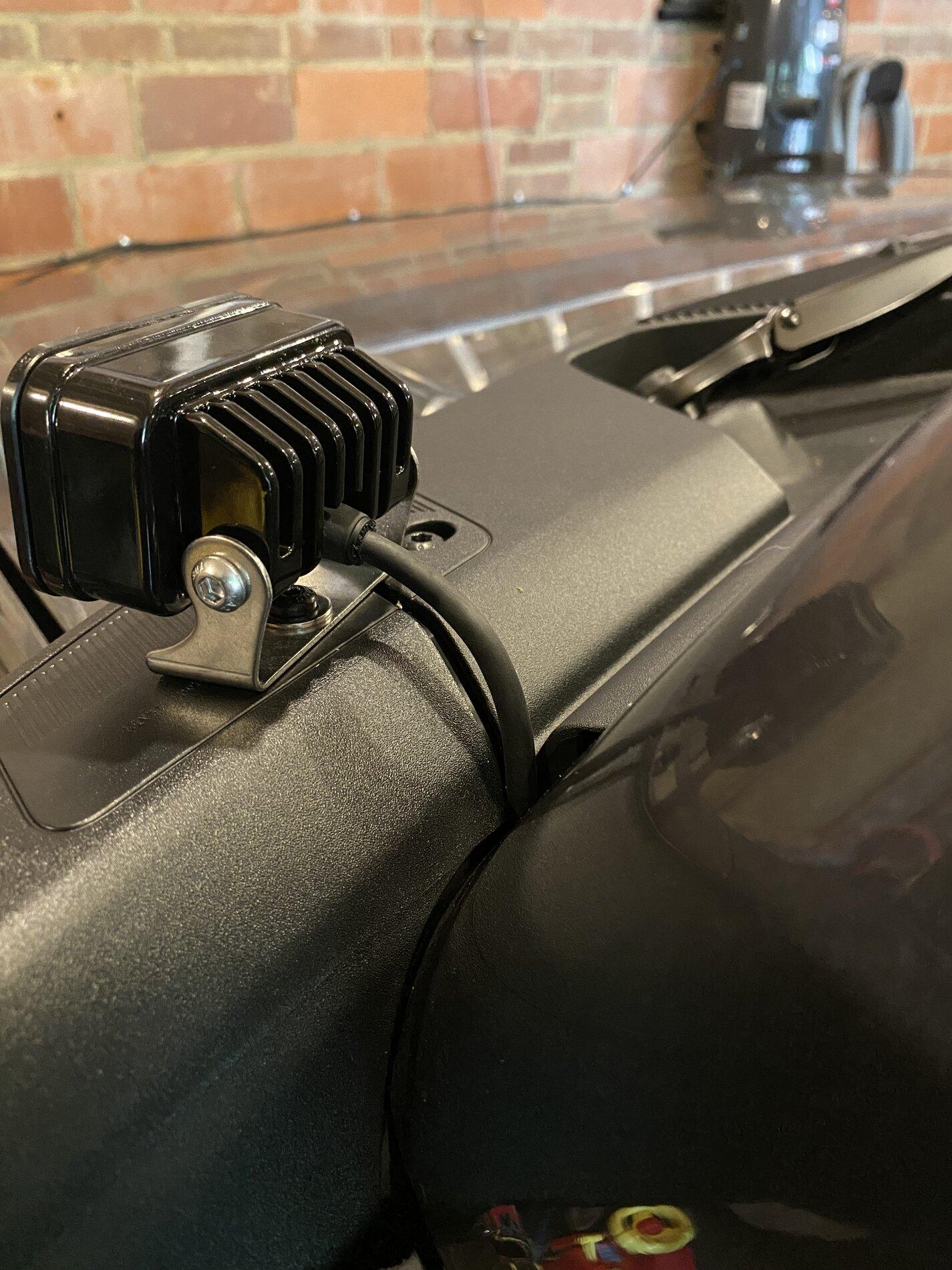

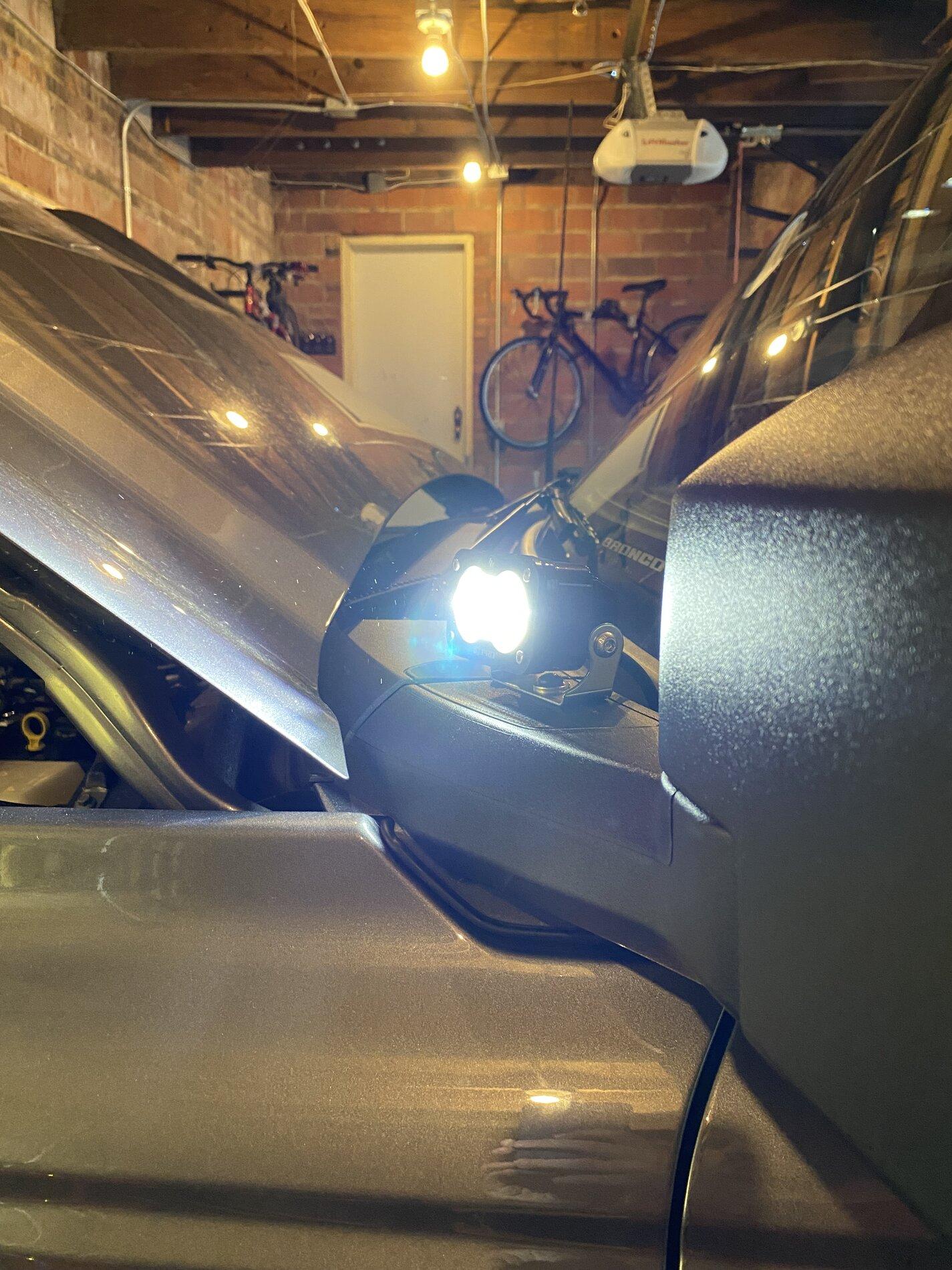

Here are a couple of photos of the lights mounted, I wanted to go low profile for the ditch lights mainly for aesthetics.







This last picture was just for fun. The wife and I took a ride to get some ice cream because it was a nice cool night.



So now I have to get the wiring completed. I am going to run the pod lights off switch 2 (saving switch 1 for fogs). Looking at the wiring diagram, I'm wondering if I'm able to simply use the connector on the upfitter harness and snap that onto the wire for switch 2. It's already powered so I'm assuming so. I watched the Bronco Nation video where they connected their rigid pod light. In that video, they connected one of the switches to one of the circuits that go behind the glove box and wired it up from there. The BD upfitter harness also has a connection for a ground which I have spotted a few areas where I can ensure it's secure.

Sorry for the dumb question but if anyone has wired up pod lights on their Bronco or has some insight, I would love to hear it. Otherwise, I'm going to do a little trial and error to see if I can finish this off on my own. Shout out to @Baja Designs for making some seriously high-quality lights!

UPDATE - We Have Power

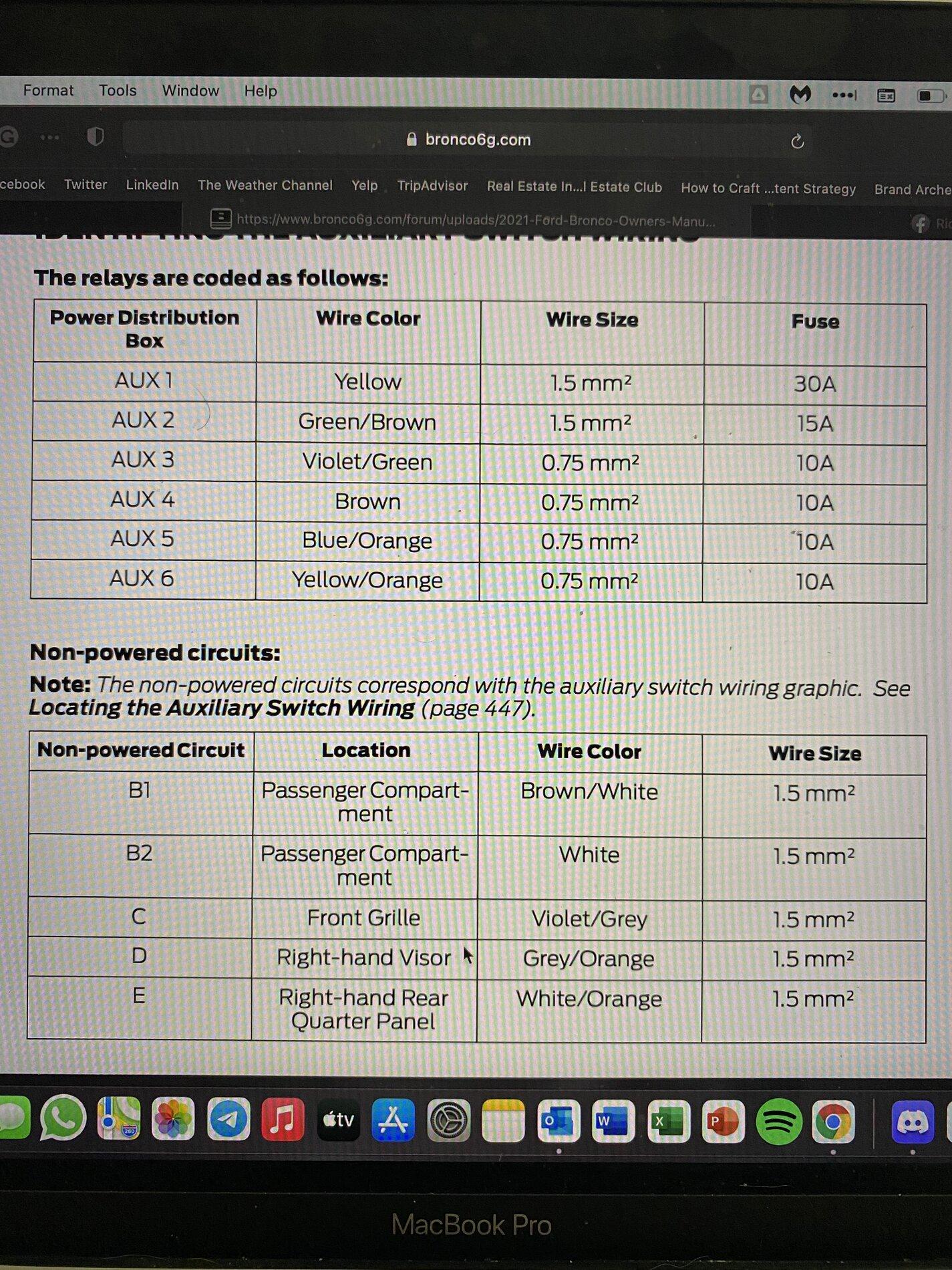

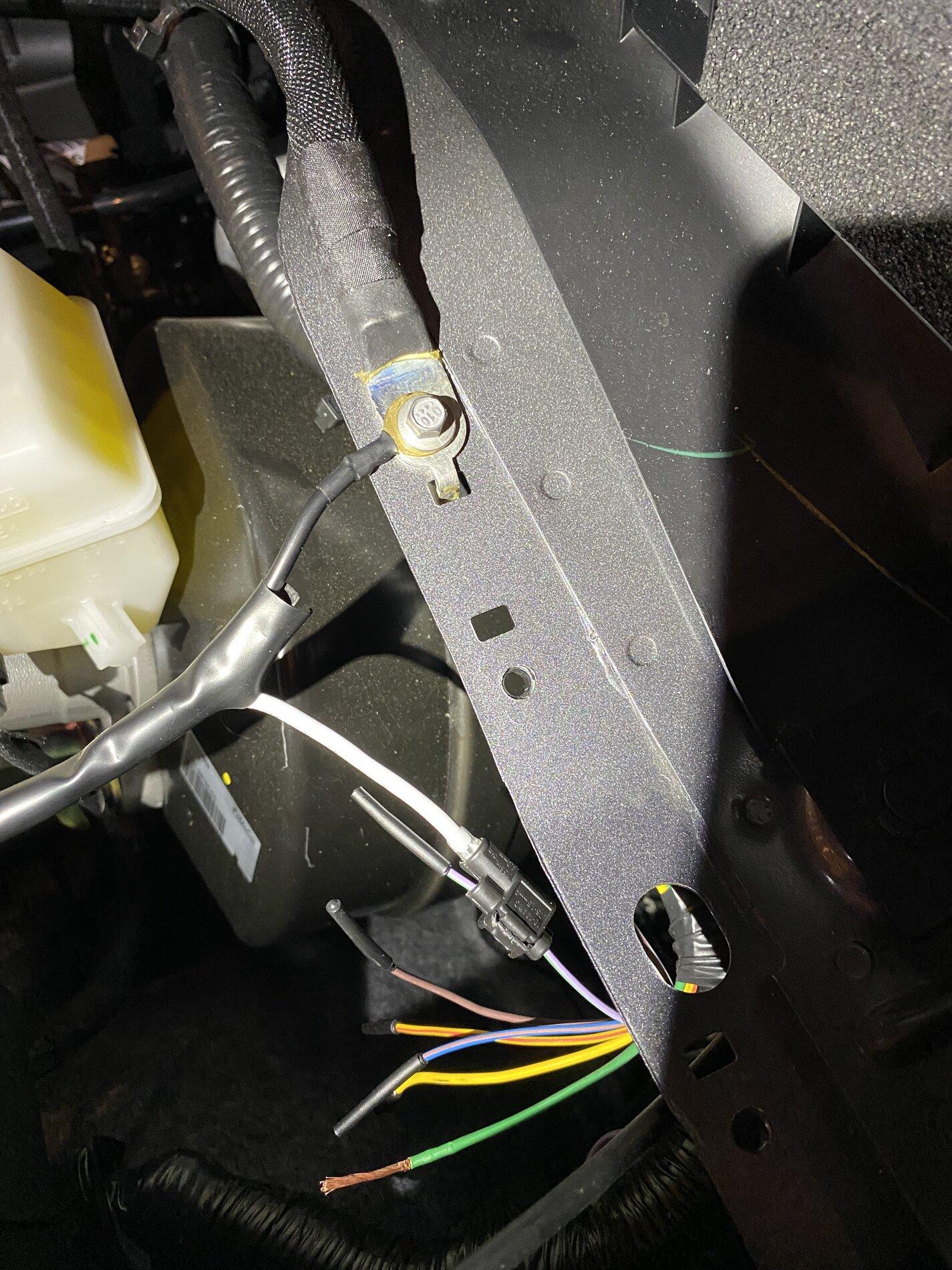

The scotch-connector-harness-do-hicky-thingy-ma-bobber actually works really well. I recommend leaving the heat shrink on the end and then taping when you've got it connected. Just to keep it as water-tight as possible. Oh yeah, you can use the BD upfitter wiring and connect it directly to the switch you want, no need to go into the glove box unless you want to. (see below image for color-coding of powered wires) as @ohvrider suggested, you'll want to keep lower-powered items on switches 3-6 based on the fuse size (also know the wire size listed). BE ADVISED - you must ground these in order to complete the circuit, there is a spot to ground right by where you will connect the upfitter wire harness.

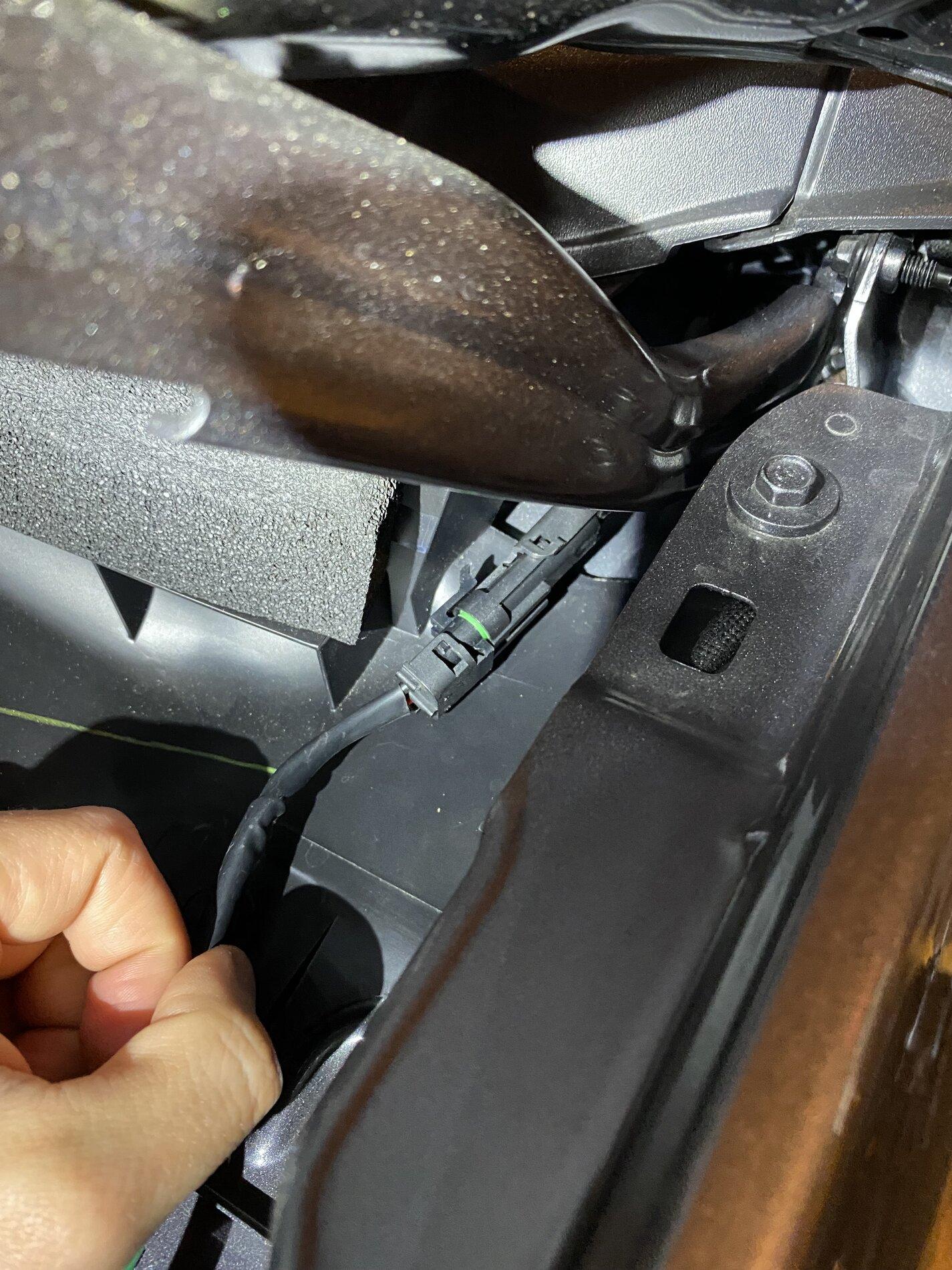

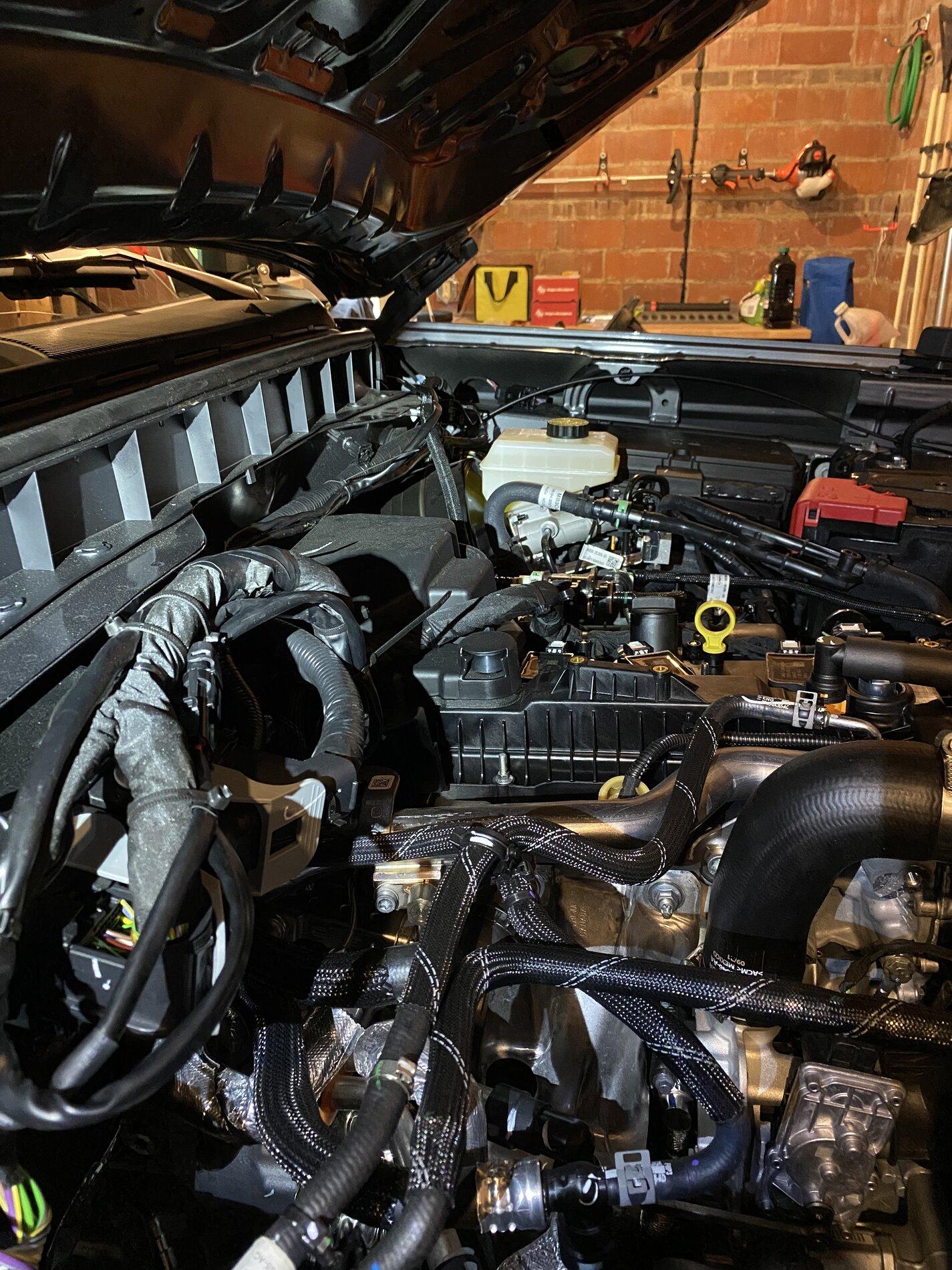

There is a lot of room under the cowl so you can clear the hinge of the hood even with some pretty big connectors. I ran the wiring into the engine compartment because there was a lot of room and it was pretty easy to zip it on to the existing wire looms in there without it getting too nasty lokking, well until I got to the passenger side haha!


I left the ends of my ties on so you guys can kind of see where I routed it. I have cut them since this picture because it was secure enough that I could close up the hood. If you have any questions please fire away.

NIGHT SHOTS

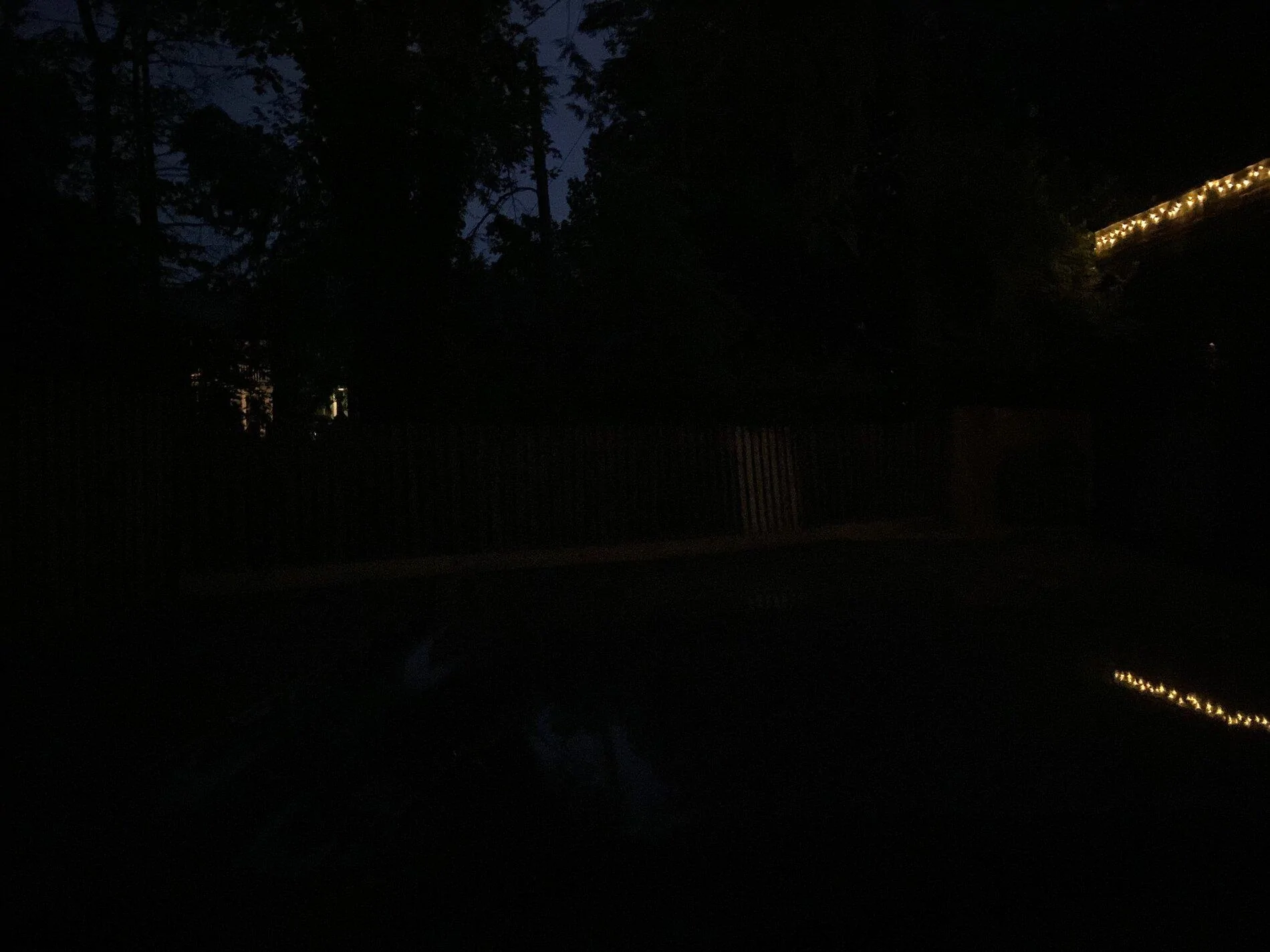

This is what it looks like pulling into my driveway without any lights on...except the Christmas lights we leave strung up around the garage all year.

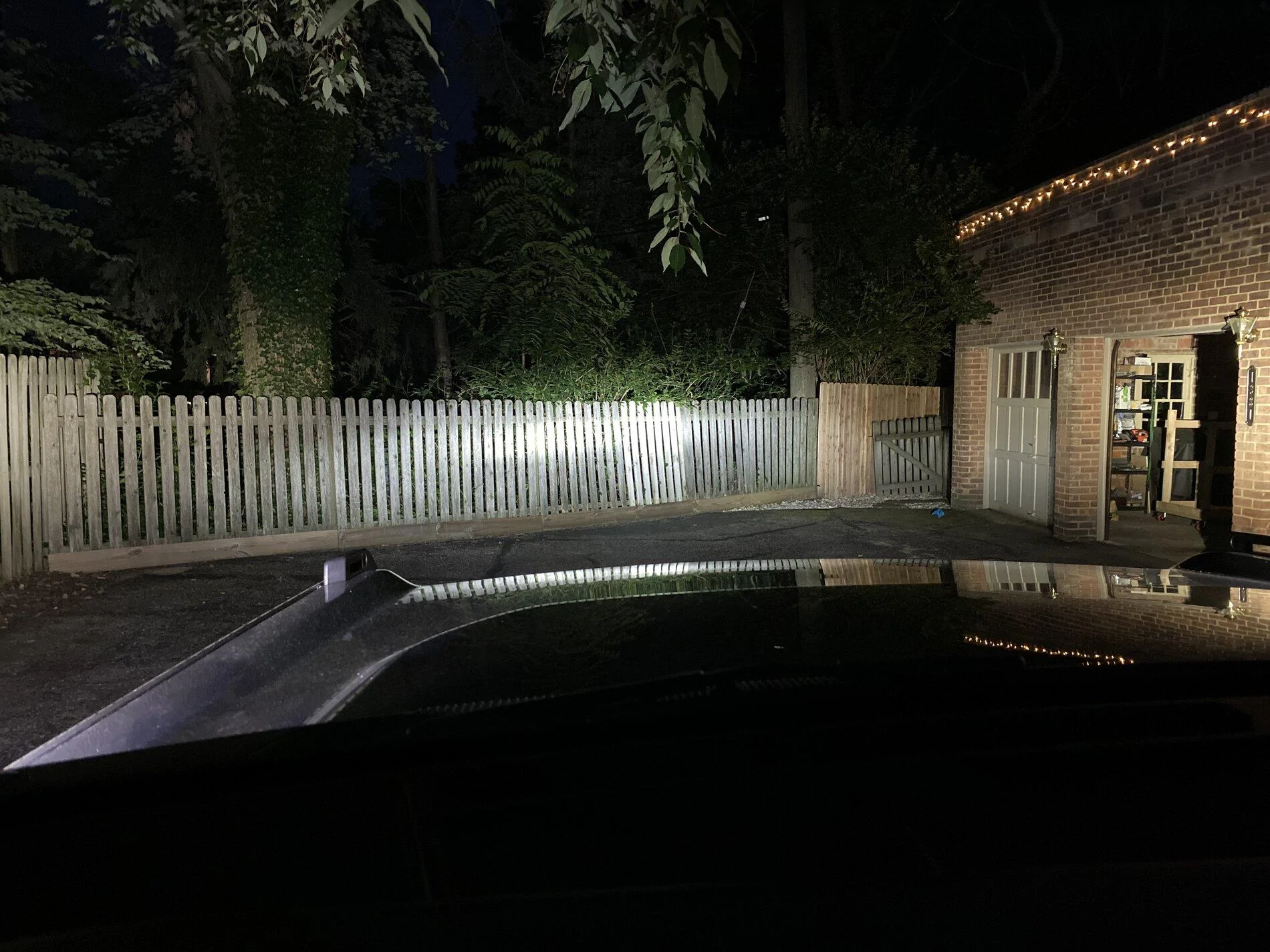

Just the headlights on. For feference, the fence light is about 60-65 feet from the bumper here.

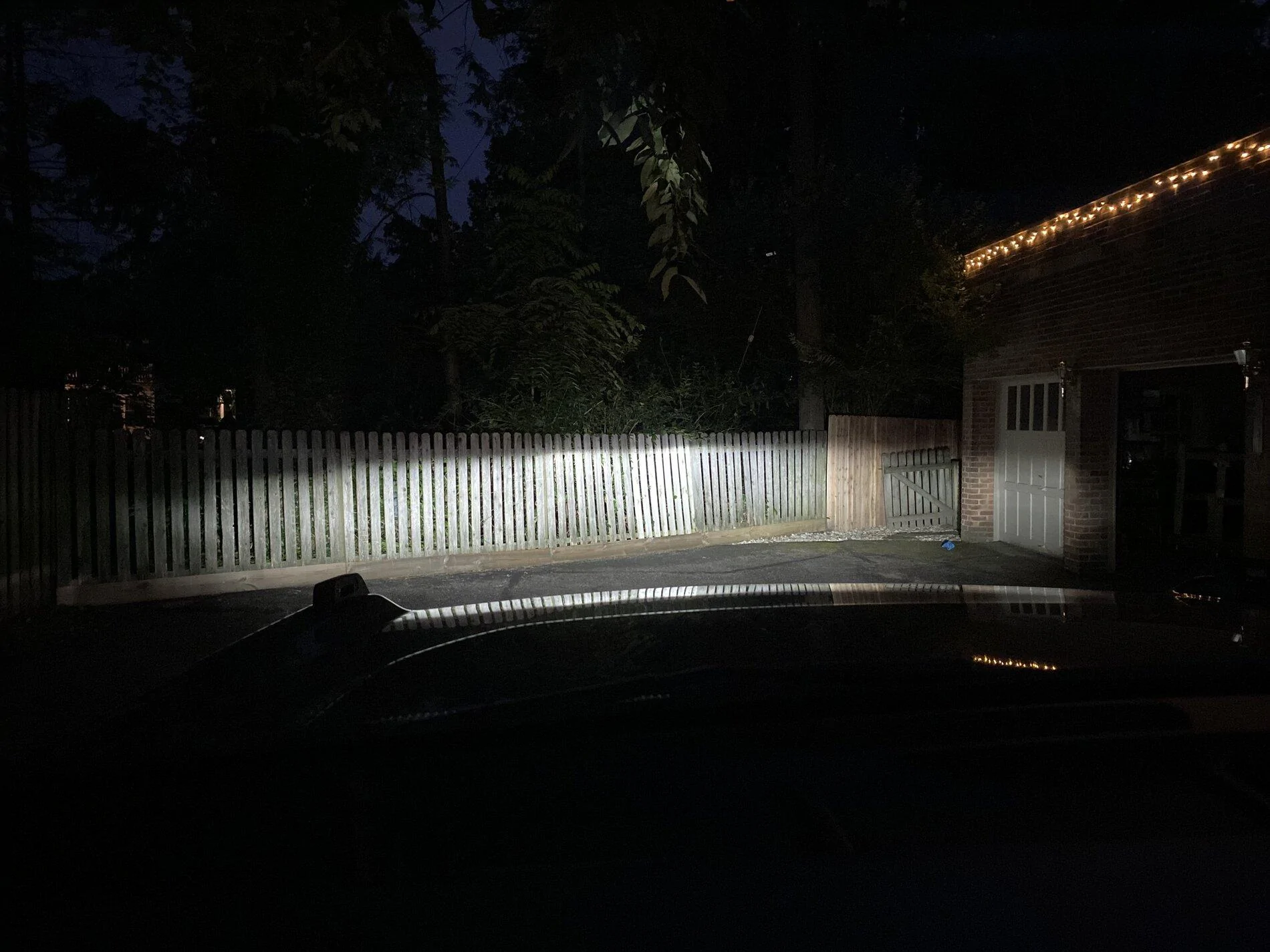

Headlights (low beam) and S2 Pros on, huge difference!

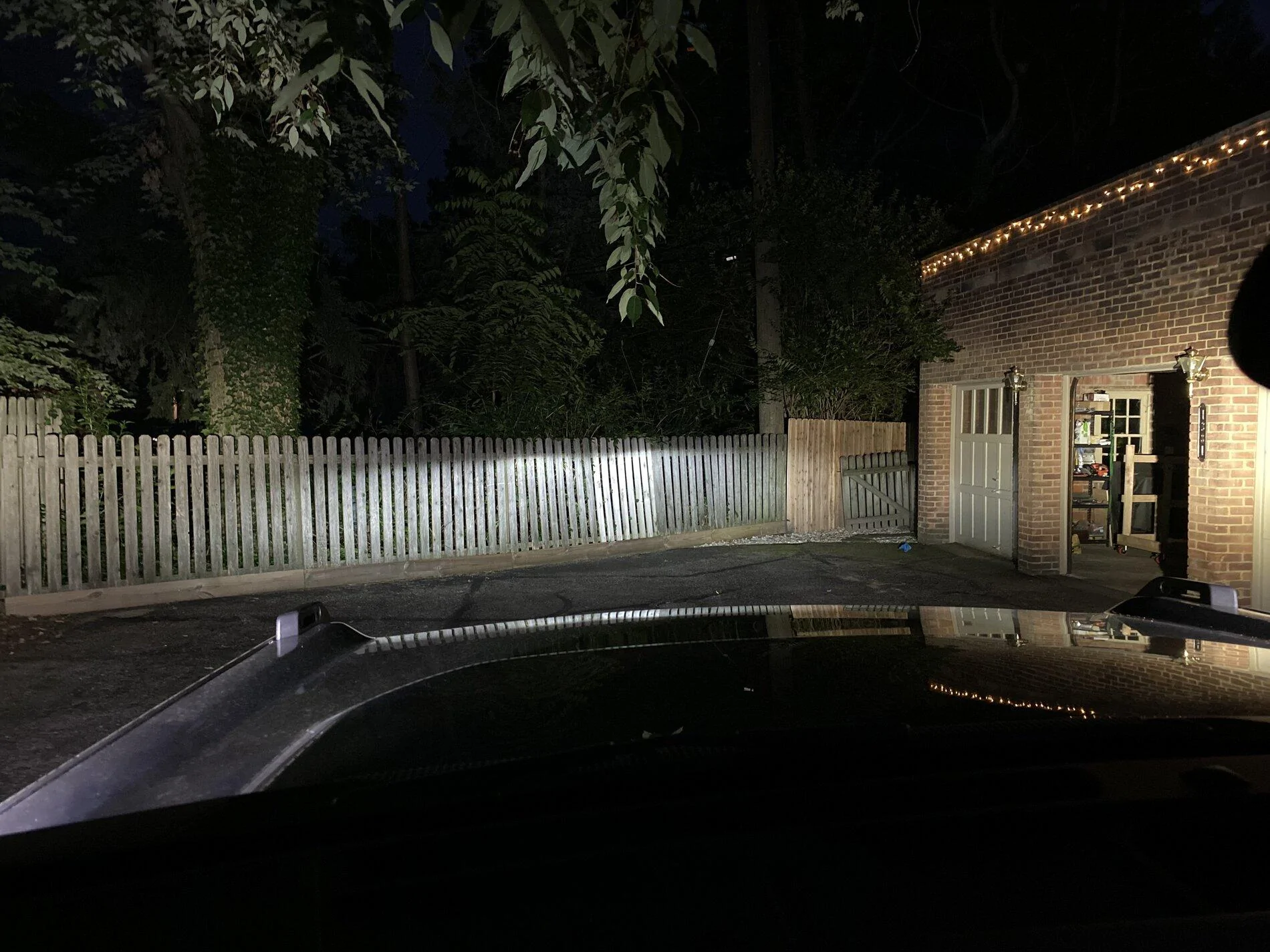

This was high beams on and S2s on, headlights seem to be concentrated a bit more on-center here.

I took some panoramic shots to show you guys how dramatic the changes are with visibility but the file was too large. Hopefully, most of you can extrapolate from the photos above but these lights (for their size) are powerful. Take a look at things like the tree branch overhead, the tree trunk covered in ivy just on the other side of the fence, how in both pictures you can see I didn't put the bag of dog poop in the big just through the gate (so lazy). Also, note the minimal glare on the hood, this is with the cornering lense on the inside so it's a 42 degree spread on the inside light and a 9 degree spread on the outside spot.

I'm very happy with these all around!





Advertisement


Last edited:

Garrett301

Outer Banks
Member
Joined
Apr 21, 2021
Messages
12
Reaction score
8
Location
Maryland
Vehicle(s)
2018 Expedition
Nice work! I'm glad to hear that the BD lights are high-quality! I ordered the SAE Amber fog kit for my FE. Did you order fogs from BD as well?

OP
BronchoPeat

BronchoPeat

Base
Well-Known Member
First Name
Pete
Joined
Jul 14, 2020
Messages
224
Reaction score
1,060
Location
Ohio
Website
www.evergreenclothier.com
Vehicle(s)
'18 Tiguan S w/4motion | '14 Fiesta SE Hatchback
Clubs

Looks great but I’m wondering if the size of the Bronco is just overwhelming for the pods; from the picture it seems like much larger pods would fit better.
Most definitely! I think for most, running Squadrons would also be acceptable. I don’t think the squadron is a very large bodied light. I was just wanting to be discreet.

BD actually has their a-pillar kit for the Bronco ready for pre-order I believe.

  • Like
Reactions: Dro

jrustyasl

Badlands
Well-Known Member
First Name
Jamie
Joined
Jul 9, 2020
Messages
93
Reaction score
560
Location
Lakeland, Fl
Vehicle(s)
Motorcycle: Honda VTX 1300
Clubs

Looks sweet! Congrats! Do you plan on doing a light bar? If so from where?

OP
BronchoPeat

BronchoPeat

Base
Well-Known Member
First Name
Pete
Joined
Jul 14, 2020
Messages
224
Reaction score
1,060
Location
Ohio
Website
www.evergreenclothier.com
Vehicle(s)
'18 Tiguan S w/4motion | '14 Fiesta SE Hatchback
Clubs

Nice work! I'm glad to hear that the BD lights are high-quality! I ordered the SAE Amber fog kit for my FE. Did you order fogs from BD as well?
I did not get their fog kit yet, I’m waiting to see if they offer something with a few less lights. But 100% want to get the SAE Amber Squadrons on there.

OP
BronchoPeat

BronchoPeat

Base
Well-Known Member
First Name
Pete
Joined
Jul 14, 2020
Messages
224
Reaction score
1,060
Location
Ohio
Website
www.evergreenclothier.com
Vehicle(s)
'18 Tiguan S w/4motion | '14 Fiesta SE Hatchback
Clubs

Looks sweet! Congrats! Do you plan on doing a light bar? If so from where?
I am considering a light bar but I’m waiting to see if 4WP will make their roof frame available for the 2 door, that will sort of dictate what I look at based on mounting options on that rack.


Dogstyle

Black Diamond
Member
First Name
Marc
Joined
Jan 31, 2021
Messages
22
Reaction score
15
Location
Ontario
Vehicle(s)
2016 F150 Sport 4x4
I did not get their fog kit yet, I’m waiting to see if they offer something with a few less lights. But 100% want to get the SAE Amber Squadrons on there.
I was eying up the 6" raptor fogs. I'm basically waiting if it is worth it.


De Brus

First Edition
Well-Known Member
First Name
Stacy
Joined
Jul 15, 2020
Messages
562
Reaction score
1,740
Location
Washington state
Vehicle(s)
'14 HD 1200, '66 IH, '62 VW
Clubs

I need some pods too, but these look smaller than I would like to install. The rigid lights that were shown in the Ford accessories catalog are what I really want but of course you can't buy them yet. The diode dynamics ones look sweet but are pretty damn pricey. Op, please post pics when you get these fired up! How much was the set with harness?

OP
BronchoPeat

BronchoPeat

Base
Well-Known Member
First Name
Pete
Joined
Jul 14, 2020
Messages
224
Reaction score
1,060
Location
Ohio
Website
www.evergreenclothier.com
Vehicle(s)
'18 Tiguan S w/4motion | '14 Fiesta SE Hatchback
Clubs

I need some pods too, but these look smaller than I would like to install. The rigid lights that were shown in the Ford accessories catalog are what I really want but of course you can't buy them yet. The diode dynamics ones look sweet but are pretty damn pricey. Op, please post pics when you get these fired up! How much was the set with harness?
The rigid pod lights are a nice size, I was liking those initially. The diode dynamic lights are great, I think they were a bit less than the BD (for what I was looking at). I’ll get pics on this post once I finish wiring them up. The total out the door cost for the Baja Designs set up was $362.
