Mod bumper light bracket from SendCutSend - Roadshock 4-LED

[natoe]

I was looking for modular bumper light brackets, but after finding mostly bad reviews for several different $150 versions I figured I'd just SendCutSend a couple and share with you all if it worked.

These are the lights I was gifted: https://www.harborfreight.com/4-led-off-road-spotflood-combo-light-59236.html

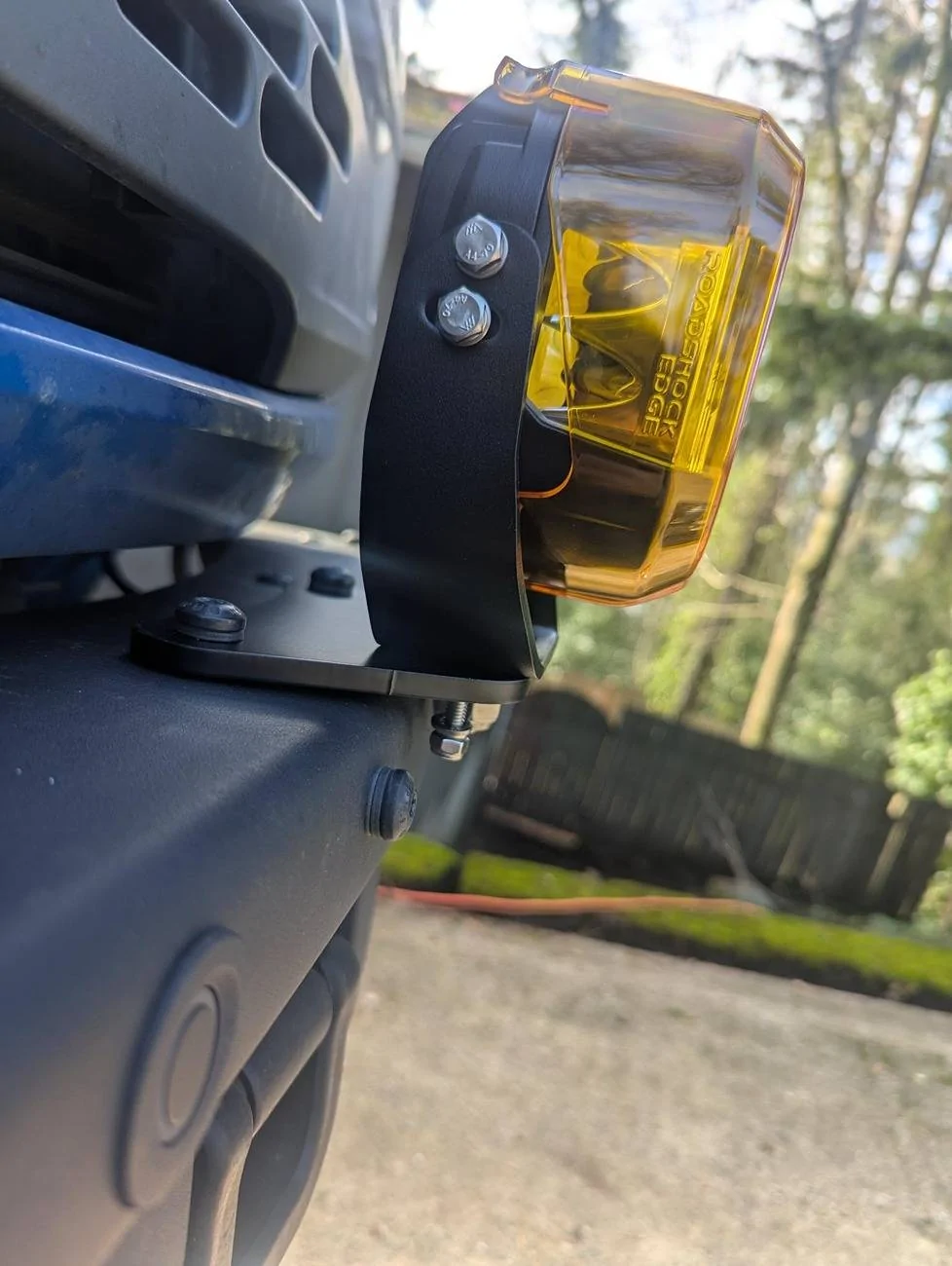

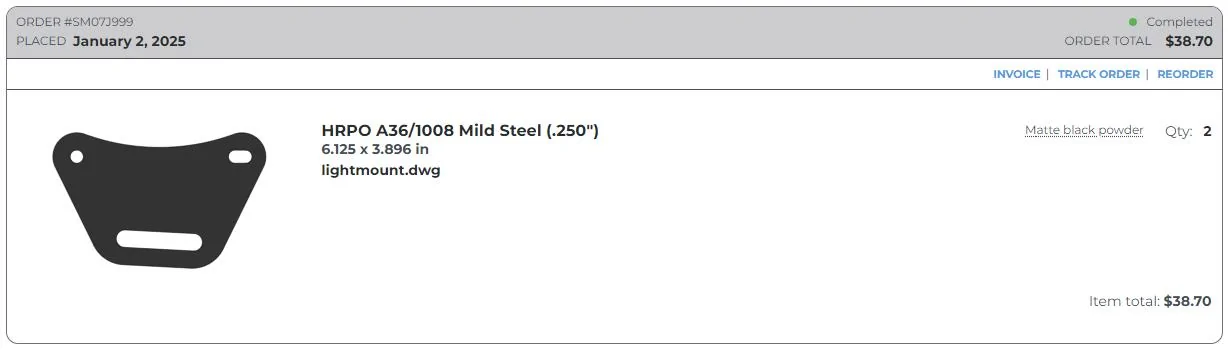

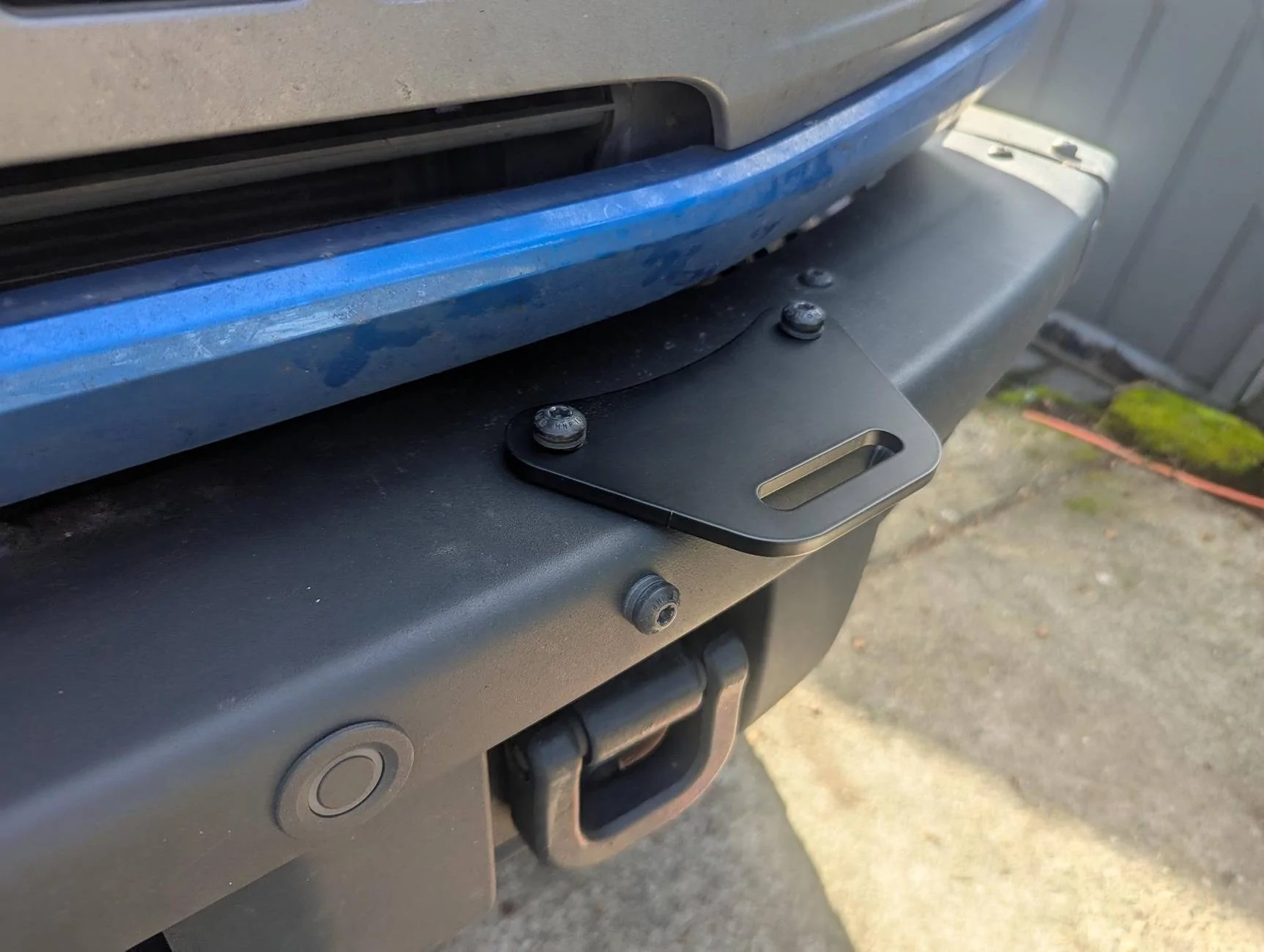

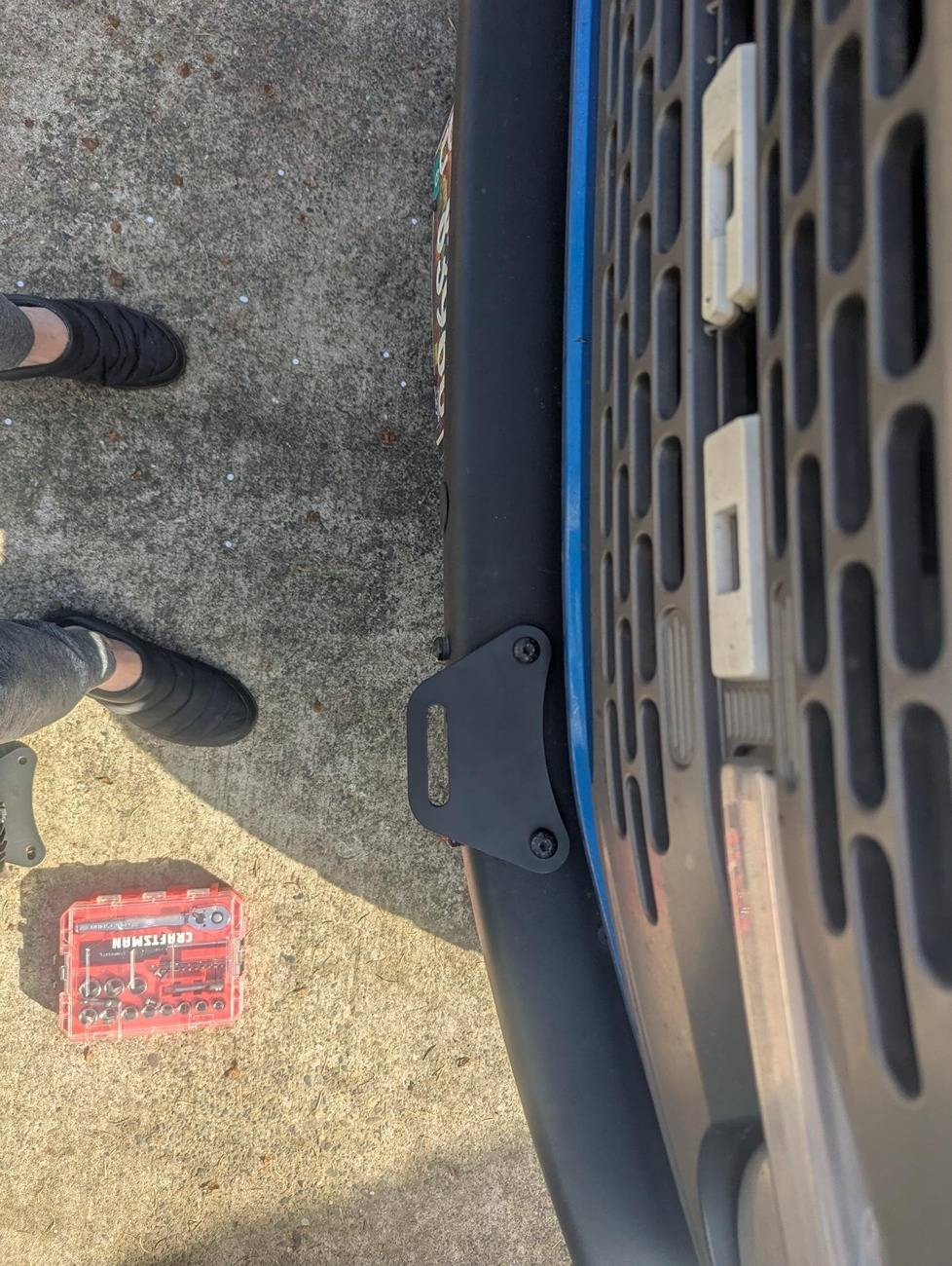

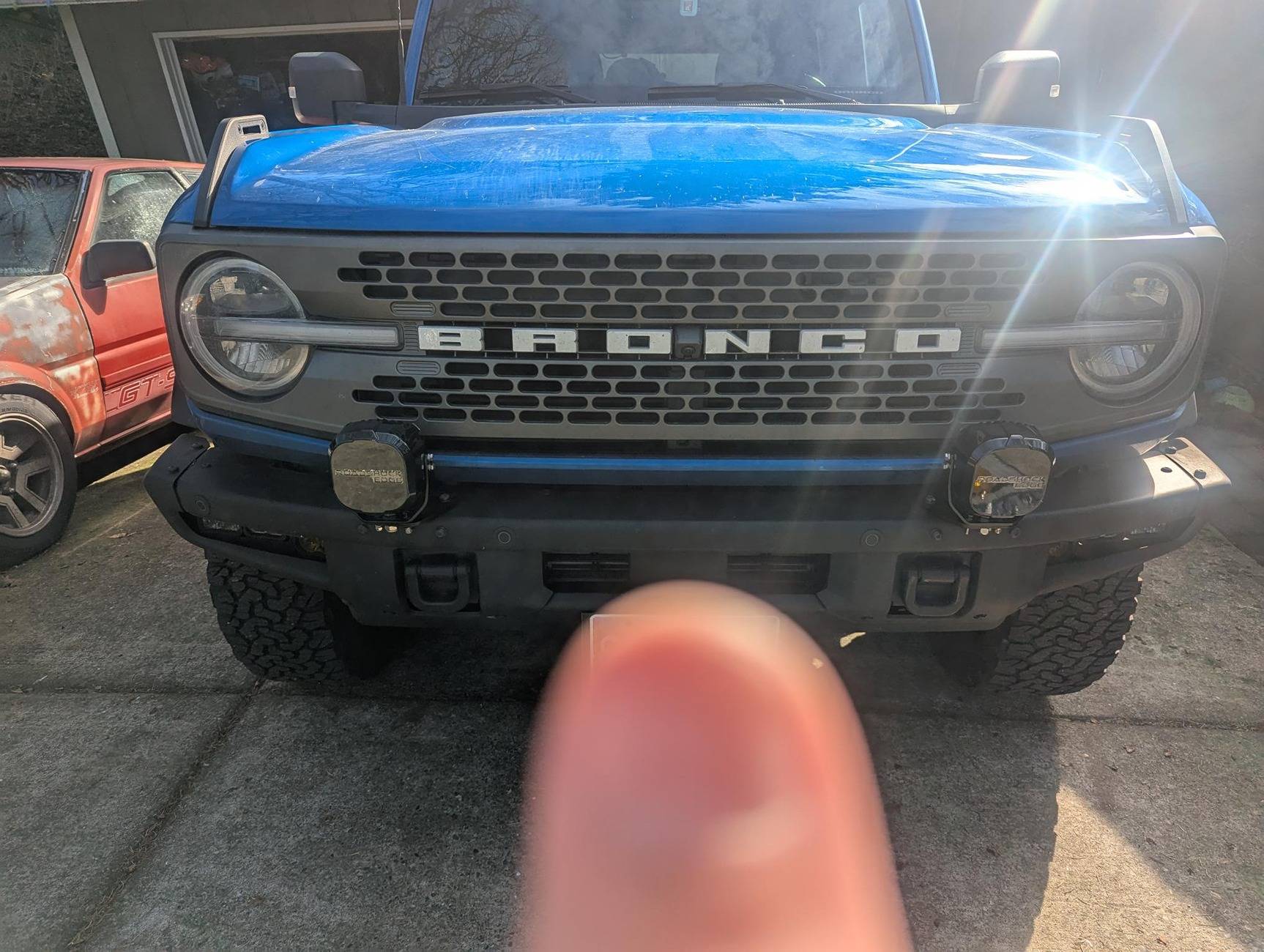

I took some measurements of the Bronco bolts and had them fab these up. There's a 3-degree skew so that the mounting line is perpendicular to the direction of travel. Since taking the photos I have wired them up and the plug is snug to the body-colored strip below the grill, but it all works. $38.70 shipped for (2) powder coated 0.250" mild steel.

Built my own wiring harness which was extremely easy to tuck behind the bumper and run up in the fender crevasse near the battery and connect to the Aux power source.

Good Luck.

[I am uploading the ACAD dwg file in a .zip, hopefully that works...otherwise message me and I can send the file]
