Which if these amp ratings is correct?

[Draughon]

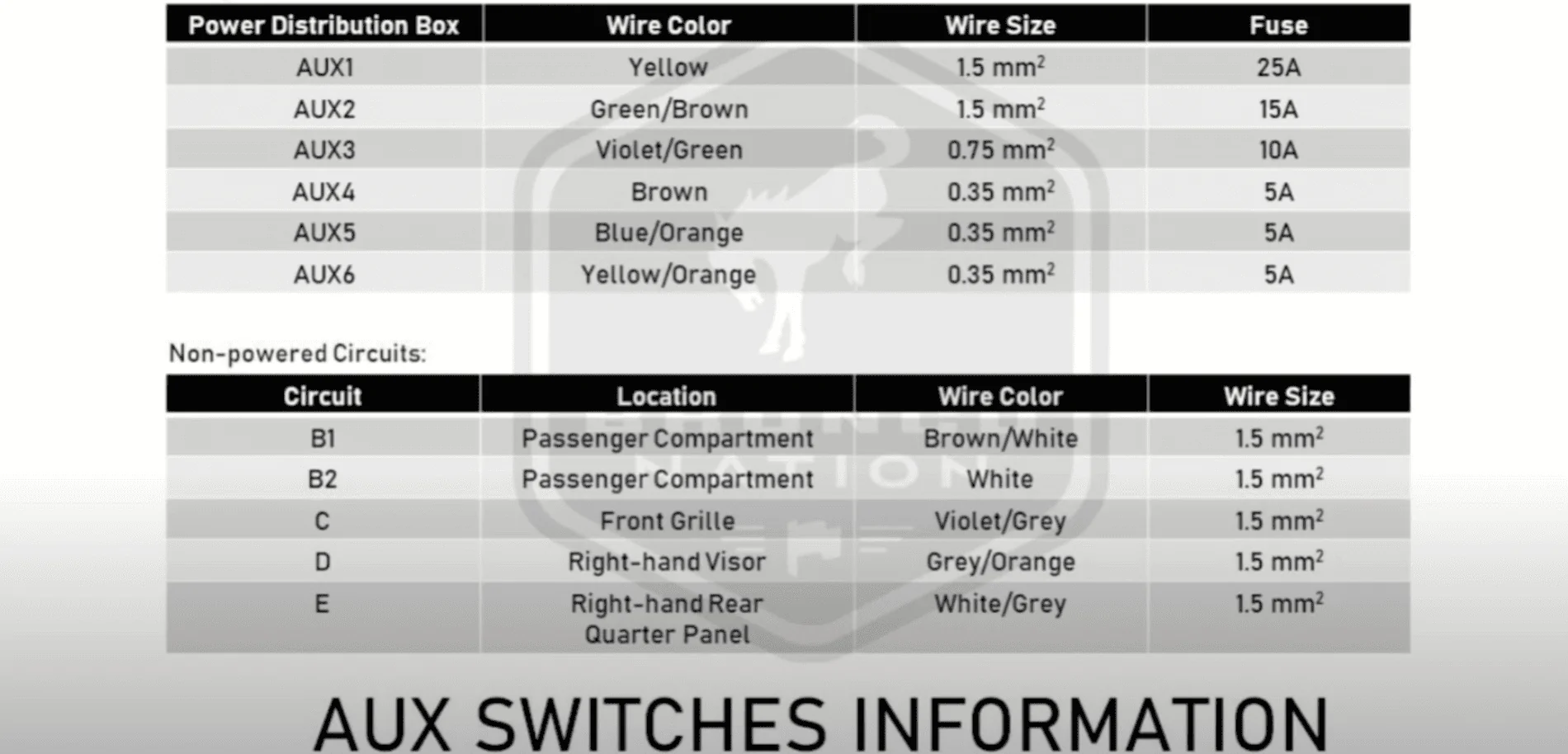

Trying my luck installing a pair of KC Pro6 A-pillar lights this morning and the plan was to wire them into the Aux 3, 10amp circuit... but this other chart shows that Aux 4-5-6 are all 5 amps, instead of 10?

If the bottom chart is correct, then I'm thinking I should put them on AUX4 since I only have one 30, 15, and 10amp circuit.

Help!

I have a '23 Badlands w/ SAS and the upfitter switches pre-installed.

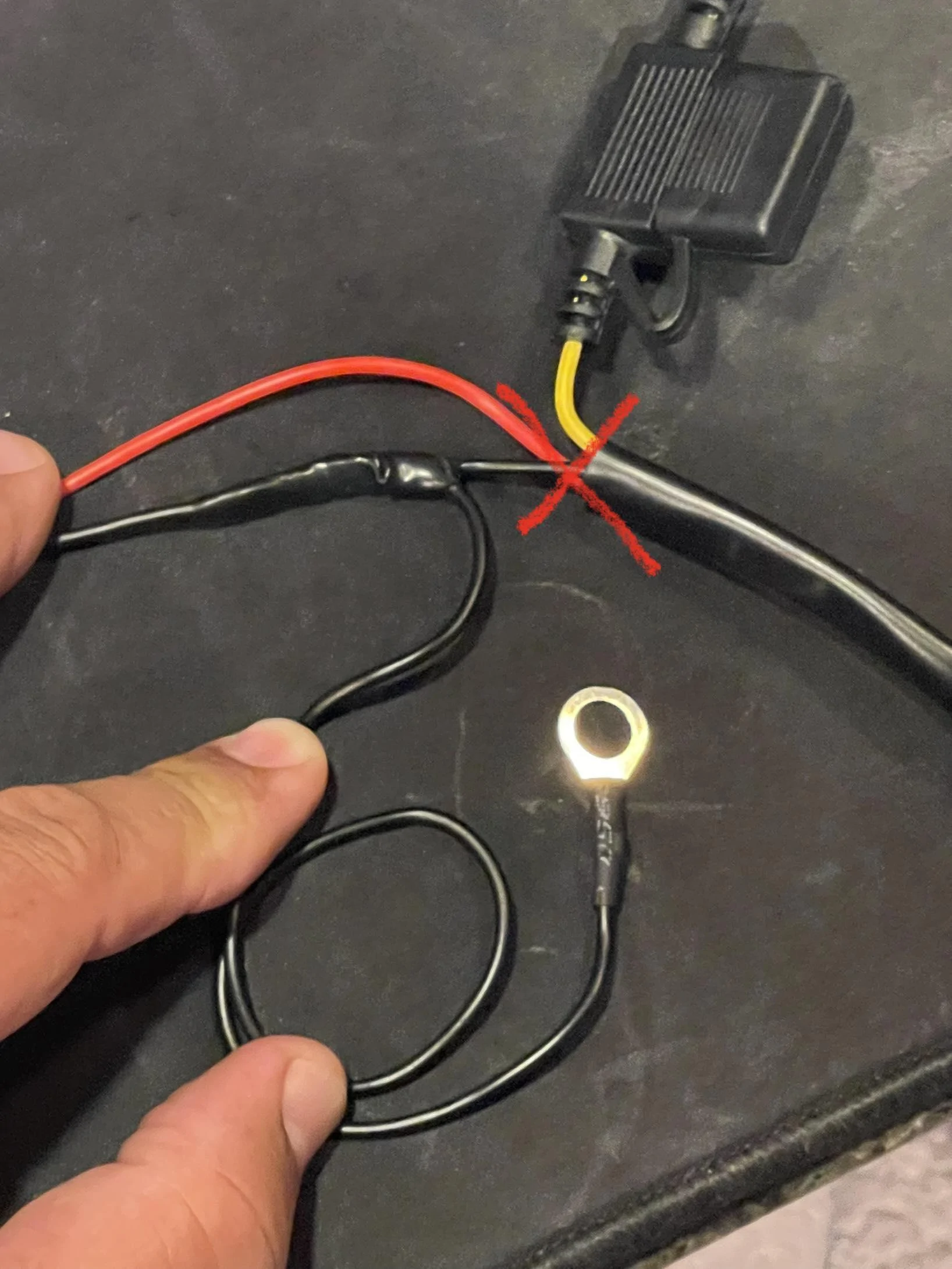

Also terrifying to me (I've never done electrical before) is that the KC youtube video non-chalantly says, "Oh, just cut off this half of the wiring harness and wire up the red wire and the ground and you're good to go...."

Pray that I don't hurt myself or my rig this morning!

Sponsored



[j_marinelli]

Top is correct



[userdude]

Where did you find the wiring information?



[Draughon]

Where did you find the wiring information?

Had it saved from various searches on Bronco6g... I just happened to notice they were different this morning so decided to ask the hivemind!



[Draughon]

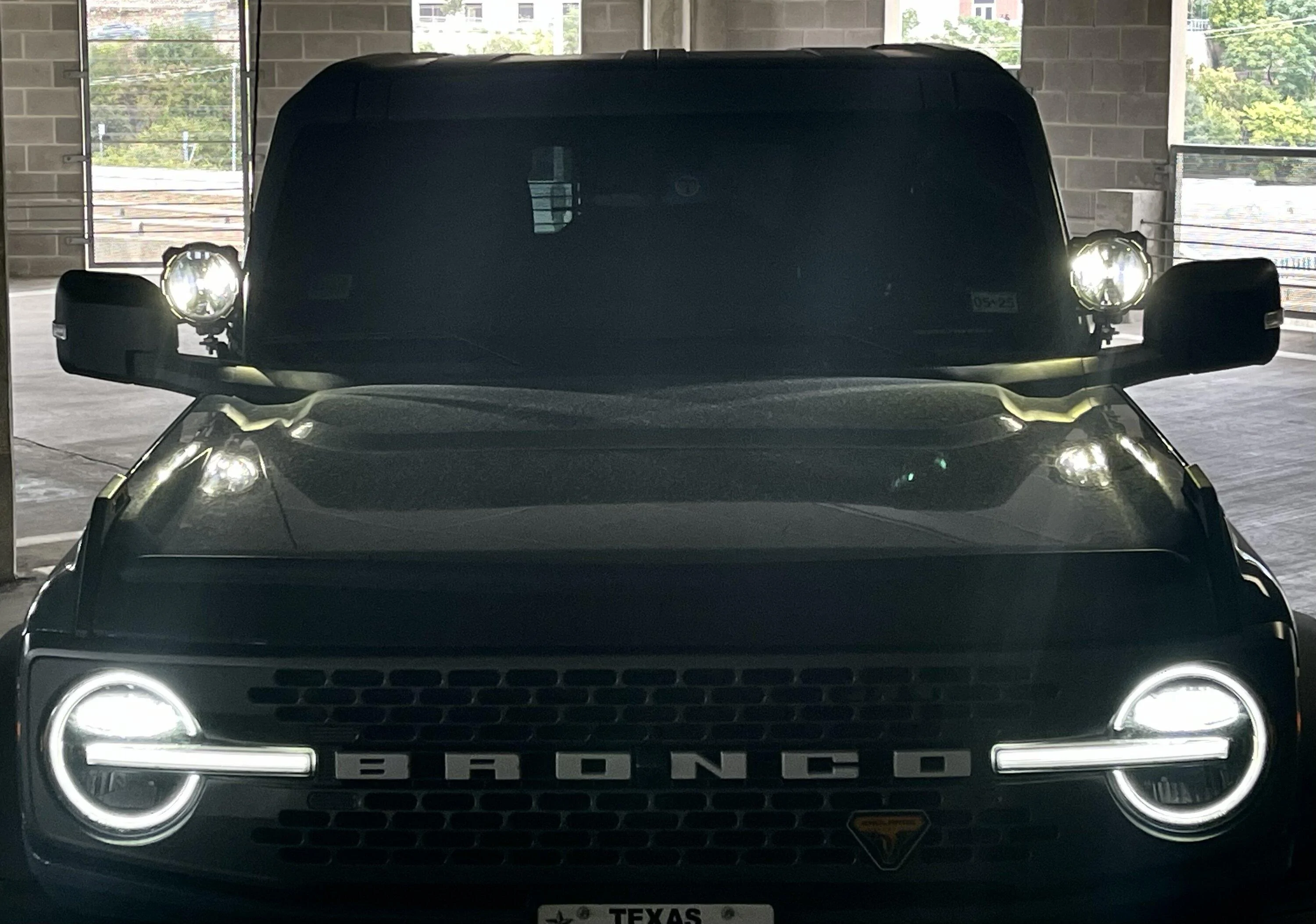

Hey! It worked!

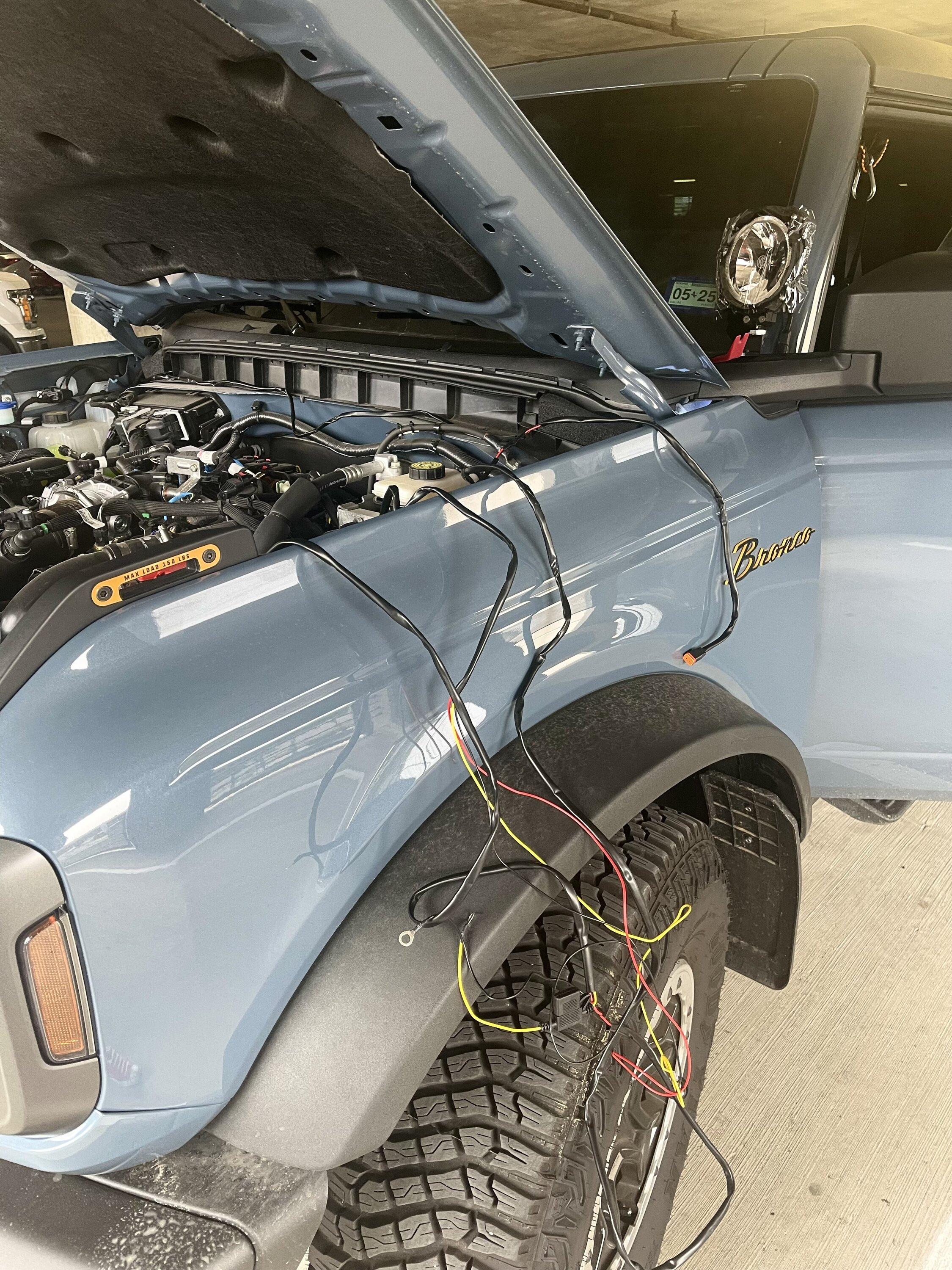

No cuts, and it lit up the first time!



[sportcoupe]

Where did you find the wiring information?

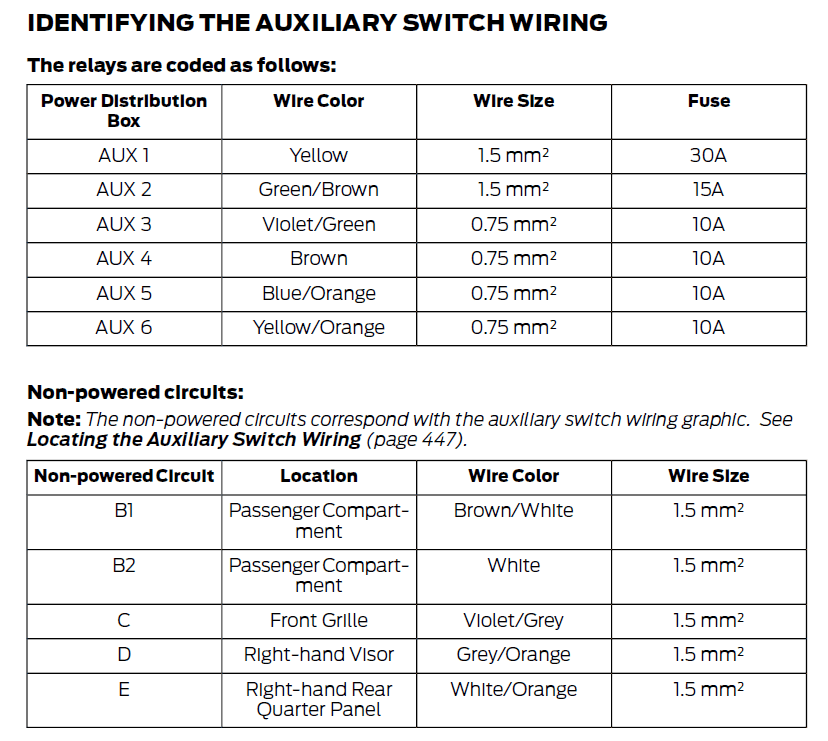

It's in the factory Owners Manual.

I prefer the PDF copy over the web based version.
https://www.fordservicecontent.com/...d_Bronco_Owners_Manual_version_1_om_EN-US.pdf
