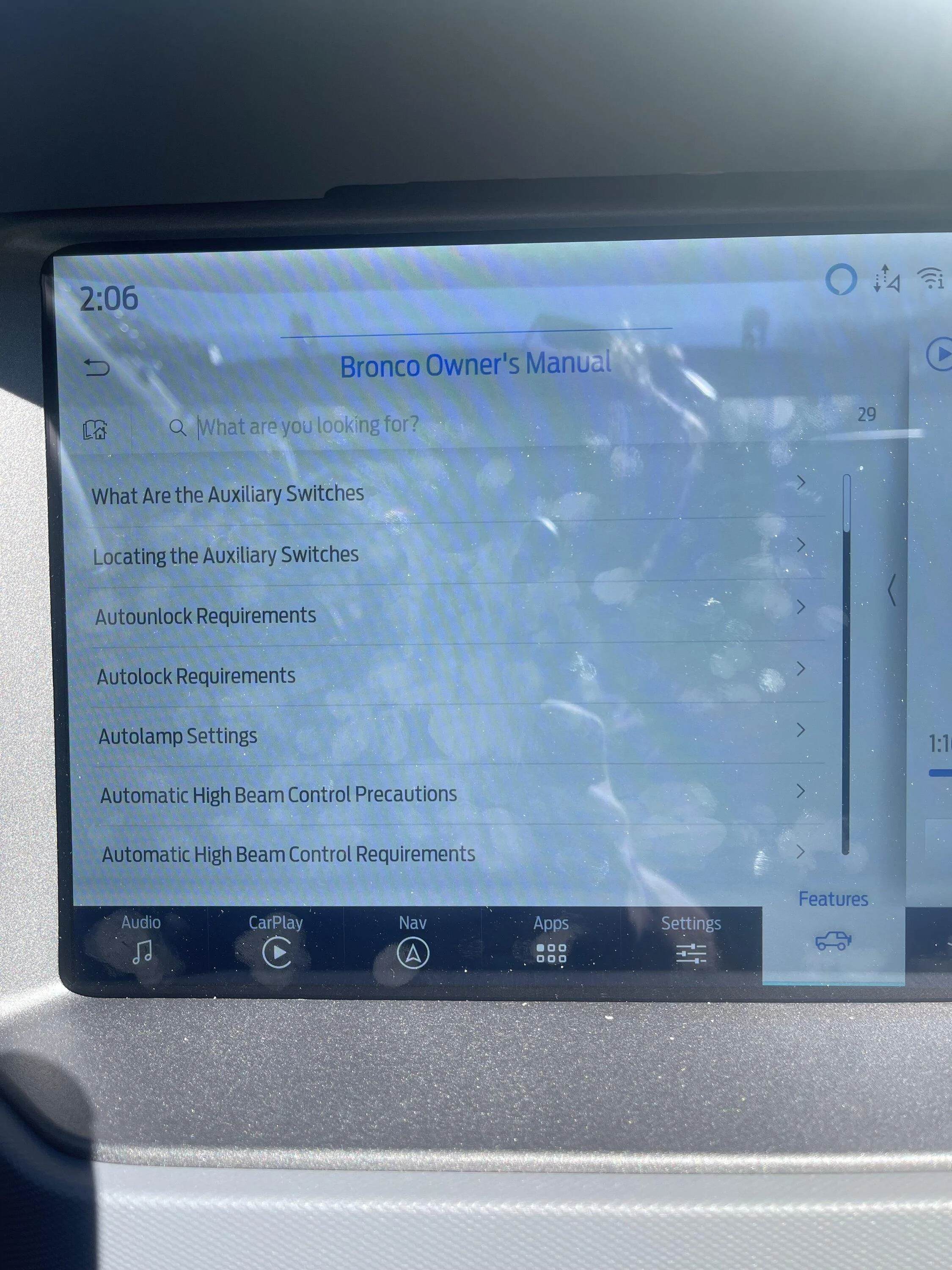

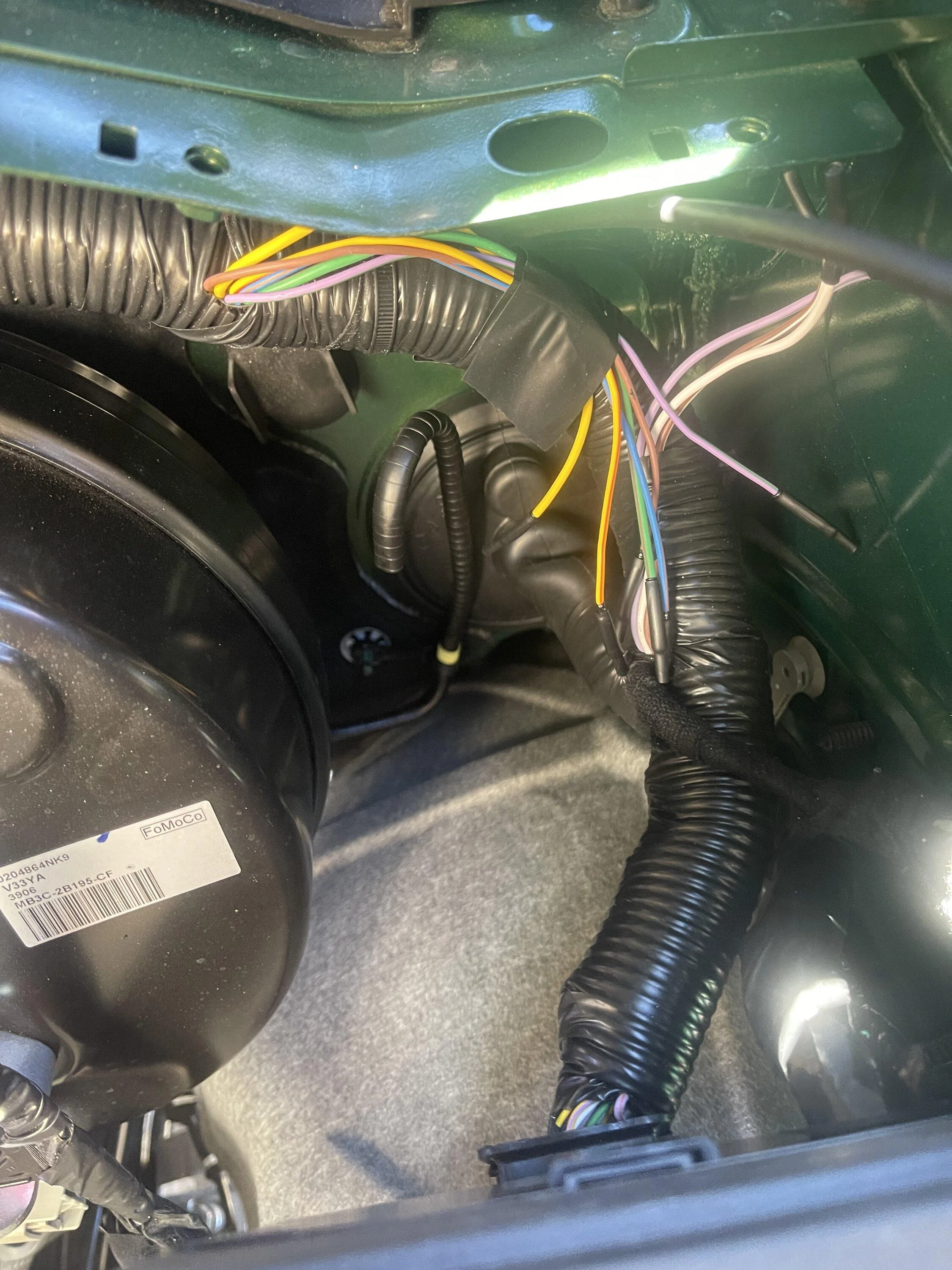

I was unable to find the AUX switches wiring like the other years in the owner manual. It does not have the diagram. Would it be the same as the other years.
Ford Bronco 2024 aux switch wiring IMG_8562
Ford Bronco 2024 aux switch wiring IMG_8563
Sponsored



Cux211

Well-Known Member
First Name
Steve
Joined
Apr 24, 2022
Threads
2
Messages
296
Reaction score
216
Location
NE PA
Vehicle(s)
19 ram 2500 Laramie blackout cummins
Your Bronco Model
Undecided

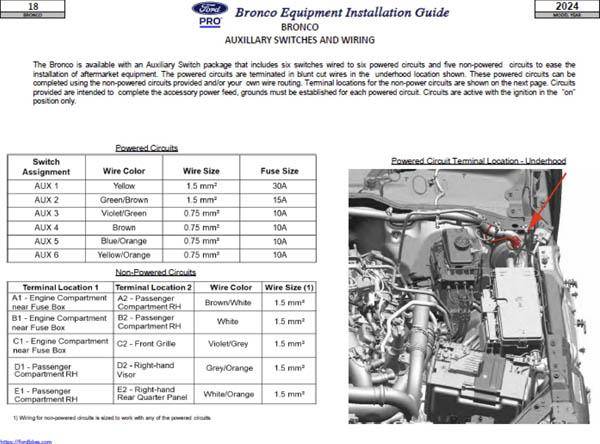

Does anybody have a link to the diagram I’m in the same boat my 24 has no references to it
