Forscan changes to activate 25+ trailer module?

[Pedey321]

Hello all and thanks for all of the valuable info / help being a new Bronco owner. I've installed the hitch / receiver (went with a Draw-Tite 76527 for added spare clearance) along with a 4/7 pin outlet to bumper. Lastly installed / connected the MY25 module (PN M2DZ-19H332-A).
Perhaps I'm not correctly using FORScan or need to flash the basic (As-Built) on to the TRM (Ford PN M2DZ-19H332-A).
Now I'm attempting FORScan programming tasks with RoverDude's above specifics. Problem is I don't seem to have the base TRM lines shown above to modify
(only have what is shown below).

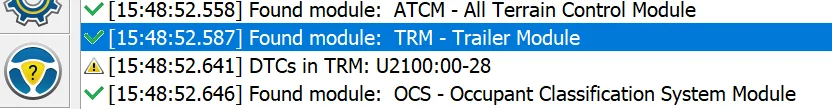

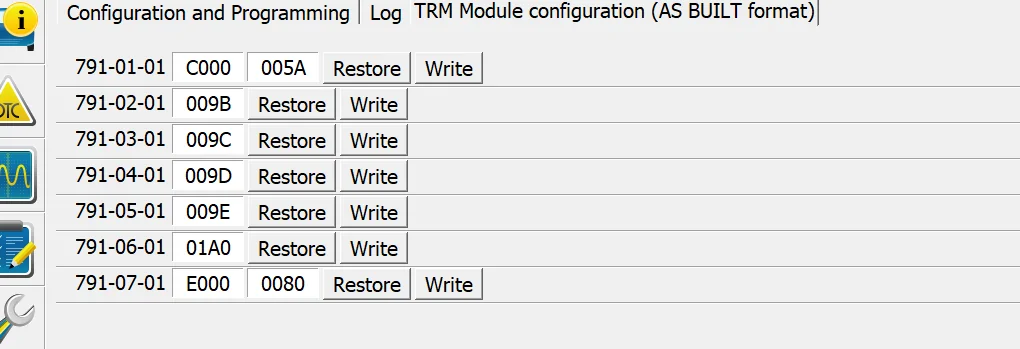

Screen shots below.
Any ideas / suggestions - thanks in advance...

Sponsored



[donalddon]

Hello all and thanks for all of the valuable info / help being a new Bronco owner. I've installed the hitch / receiver (went with a Draw-Tite 76527 for added spare clearance) along with a 4/7 pin outlet to bumper. Lastly installed / connected the MY25 module (PN M2DZ-19H332-A).
Perhaps I'm not correctly using FORScan or need to flash the basic (As-Built) on to the TRM (Ford PN M2DZ-19H332-A).
Now I'm attempting FORScan programming tasks with RoverDude's above specifics. Problem is I don't seem to have the base TRM lines shown above to modify
(only have what is shown below).

Screen shots below.
Any ideas / suggestions - thanks in advance...

i'm stuck here now. i can't figure how to get the rest to show. i was happy to see the trm show but it is only a little of it.
how did you get the rest?



[RoverDude]

i'm stuck here now. i can't figure how to get the rest to show. i was happy to see the trm show but it is only a little of it.
how did you get the rest?

You need the correct module. MY 2025+ is a different module.



[donalddon]

You need the correct module. MY 2025+ is a different module.

i had installed all of the towing and hitch stuff a year or so ago, ford kindly made it all work for free! that service manager is no longer there- i wonder why...
all worked perfect and then i replaced the instrument cluster with a 2025- very pleased with that. i stood back and admired.
every thing is happy with itself except for a trailer brake modular fault.

i used an 'as built' vin which came with a factory tow package. i had to delete all profiles in forscan to get the new cluster to have everything i needed except trailer brake fault module.
i am at a loss



[RoverDude]

Okay now I'm lost. What year of a vehicle do you have? Do you have a 2025 vehicle?



[donalddon]

Okay now I'm lost. What year of a vehicle do you have? Do you have a 2025 vehicle?

Okay now I'm lost. What year of a vehicle do you have? Do you have a 2025 vehicle?

no
it's a 23 wildtrak with a newly installed '25 instrument cluster
a few road blocks as i'm new to forscan and have been using macs for the last 25+ years. i'm still struggling with windows



[RoverDude]

i added a tow package-i did the physical install and ford programmed it for me

What is the fault, what module is it associated with?
Was it the fault there after they programmed it I.e the dealership?
Did the fault occur when you replaced the instrument panel?
If so, did you make the associated changes in the IPC for the replaced screen/dash?



[donalddon]

What is the fault, what module is it associated with?
Was it the fault there after they programmed it I.e the dealership?
Did the fault occur when you replaced the instrument panel?
If so, did you make the associated changes in the IPC for the replaced screen/dash?

no fault until i changed the cluster. the only icp change so far is i updated the miles.
the fault is: trailer brake modular fault



[Pedey321]

I have a 2025 big bend with black diamond package, 4 cylinders, 10 spd auto, 221A optioned, and current module (ordered PN: M2DZ-19H332-A, aka engineering PN M2DT-19H378-AB (as displayed on physical part) and not having more than basic 7 (791-0#-01) available.
This looks like a hardware and software (firmware) issue. Having worked in IT related industry, what is Ford's approved platforms and configurations (hw & sw)?
Perhaps this is just a firmware issue? What order pns and physical pns are compatible with what MYs and Vehicle configurations including PCMs?



[Pedey321]

J7st ordered a new / replacement module, for MY25 TM specifically (ordered pn M2DZ-19H332-A) and will try FORScan again.
Note: M2DZ-19H332-A (what I'd ordered) and M2DT-19H378-AB (marking on previous attempted to use part) are the same part supposedly even though the 30 or so lines are available vs. 7).
These are basically PLCs which perform specific functions (given hardware & software versions) and are supposedly managed (tested, validated for integrated revision / version acceptable performance) by the manufacturer.
Will update after attempting to install and configure replacement module.



[kcmusa]

J7st ordered a new / replacement module, for MY25 TM specifically (ordered pn M2DZ-19H332-A) and will try FORScan again.
Note: M2DZ-19H332-A (what I'd ordered) and M2DT-19H378-AB (marking on previous attempted to use part) are the same part supposedly even though the 30 or so lines are available vs. 7).
These are basically PLCs which perform specific functions (given hardware & software versions) and are supposedly managed (tested, validated for integrated revision / version acceptable performance) by the manufacturer.
Will update after attempting to install and configure replacement module.

i ordered M2DZ-19-H332-A in box was M2D2-19H378-AB. Did not work as tryed to program. So took it to dealer, they said I really need S2DT-19H378-BA. As they could not program it. Waiting for that part to try.



[kcmusa]

One question on the 25 for scan changes.
the TRM, do we make sure they match what’s here? As the config does not show , change x to something.?



[RoverDude]

One question on the 25 for scan changes.
the TRM, do we make sure they match what’s here? As the config does not show , change x to something.?

can you be more specific or a screen shot of what you're talking about



[kcmusa]

everything in TRM, do I match that? Or is that what I should see when I program the other stuff with the xx4x. X—-
only ask because I am used to seeing it as Change this to this.

Instrument Panel Control Module	720-03-02	xx4x	xx--		Trailer Sway	0=Disabled	4=Enabled
Instrument Panel Control Module	720-03-02	xxxx	x1--		additional value for (1) is part of 2025 version for trailer Lighting
Instrument Panel Control Module	720-07-01	xxxx	xCxx	xx--	Trailer Brake Controller	4=TBC Disabled	C=TBC Enabled
Body Control Module	726-01-02	xxx1	xxxx	xx--	Trailer Connect Config	0=Disabled	1=Enabled
Body Control Module	726-40-01	xxxx	x1xx	xx--	Trailer Outage Config	0=Disabled	1=Enabled
Body Control Module	726-69-02	xxxx	xxxx	x1--	TRM Installed / Config	0=Disabled	1=Enabled
Parking Aid Module	736-01-01	xx8x	xxxx	xx--	Pam Config	0=No Trailer Module	8=Trailer Module
TRM Trailer Module (TRM)	791-01-01	9000	0000	91BB
TRM Trailer Module (TRM)	791-01-02	070A	0000	00AC
TRM Trailer Module (TRM)	791-01-03	0000	06A2
TRM Trailer Module (TRM)	791-02-01	A301	004B	4BD5
TRM Trailer Module (TRM)	791-02-02	4B4B	4B00	007D
TRM Trailer Module (TRM)	791-02-03	00FA	0019	00B0
TRM Trailer Module (TRM)	791-02-04	0500	3200	05DA
TRM Trailer Module (TRM)	791-02-05	0000	0A00	03AC
TRM Trailer Module (TRM)	791-02-06	001E	000E	07D3
TRM Trailer Module (TRM)	791-02-07	D000	0000	0071
TRM Trailer Module (TRM)	791-02-08	0000	0000	00A2
TRM Trailer Module (TRM)	791-02-09	0000	00A3
TRM Trailer Module (TRM)	791-03-01	D000	6464	0034
TRM Trailer Module (TRM)	791-03-02	0000	9D
TRM Trailer Module (TRM)	791-04-01	0000	00FA	0097
TRM Trailer Module (TRM)	791-04-02	FA00	FA00	FA8C
TRM Trailer Module (TRM)	791-04-03	0000	0000	009F
TRM Trailer Module (TRM)	791-04-04	0000	00A0
TRM Trailer Module (TRM)	791-05-01	0000	0000	009E
TRM Trailer Module (TRM)	791-06-01	FFFC	FFFC	FF94
TRM Trailer Module (TRM)	791-06-02	F33F	FCFF	FFCC
TRM Trailer Module (TRM)	791-06-03	FF00	7BFF	3C56
TRM Trailer Module (TRM)	791-06-04	8022
TRM Trailer Module (TRM)	791-07-01	03EA	0514	04AA
TRM Trailer Module (TRM)	791-07-02	4B05	6501	0057
TRM Trailer Module (TRM)	791-07-03	0100	0100	01A5
TRM Trailer Module (TRM)	791-07-04	0001	0000	04A8
TRM Trailer Module (TRM)	791-07-05	0005	0004	00AD
TRM Trailer Module (TRM)	791-07-06	5C00	7500	5CD2
TRM Trailer Module (TRM)	791-07-07	05DC	04C3	0654
TRM Trailer Module (TRM)	791-07-08	8A00	0000	0031
TRM Trailer Module (TRM)	791-07-09	0000	A8
Side Object Detection Left	7C4-01-01	Bxxx	--		Left BLIS	3=Auto / No Trailer B = Auto /Trailer	7=Manual / No Trailer F=Manual / Trailer
Side Object Detection Right	7C6-01-01	Bxxx	--		Right BLIS	3=Auto / No Trailer B = Auto /Trailer	7=Manual / No Trailer F=Manual / Trailer
Accessory Protocol Interface Module	7D0-01-03	xxxx	xxx4	xx--	Trailer Setup Configuration	0=Disabled	4=Enabled
Accessory Protocol Interface Module	7D0-01-04	xxx6	xxxx	xx--	4 Pin/7 Pin Connector	2=No Connector	6=Connector
Accessory Protocol Interface Module	7D0-09-02	Cxxx	xxxx	xx--	Trailer Sway	4 =Disabled	C=Enabled



[RoverDude]

everything in TRM, do I match that? Or is that what I should see when I program the other stuff with the xx4x. X—-
only ask because I am used to seeing it as Change this to this.

Instrument Panel Control Module	720-03-02	xx4x	xx--		Trailer Sway	0=Disabled	4=Enabled
Instrument Panel Control Module	720-03-02	xxxx	x1--		additional value for (1) is part of 2025 version for trailer Lighting
Instrument Panel Control Module	720-07-01	xxxx	xCxx	xx--	Trailer Brake Controller	4=TBC Disabled	C=TBC Enabled
Body Control Module	726-01-02	xxx1	xxxx	xx--	Trailer Connect Config	0=Disabled	1=Enabled
Body Control Module	726-40-01	xxxx	x1xx	xx--	Trailer Outage Config	0=Disabled	1=Enabled
Body Control Module	726-69-02	xxxx	xxxx	x1--	TRM Installed / Config	0=Disabled	1=Enabled
Parking Aid Module	736-01-01	xx8x	xxxx	xx--	Pam Config	0=No Trailer Module	8=Trailer Module
TRM Trailer Module (TRM)	791-01-01	9000	0000	91BB
TRM Trailer Module (TRM)	791-01-02	070A	0000	00AC
TRM Trailer Module (TRM)	791-01-03	0000	06A2
TRM Trailer Module (TRM)	791-02-01	A301	004B	4BD5
TRM Trailer Module (TRM)	791-02-02	4B4B	4B00	007D
TRM Trailer Module (TRM)	791-02-03	00FA	0019	00B0
TRM Trailer Module (TRM)	791-02-04	0500	3200	05DA
TRM Trailer Module (TRM)	791-02-05	0000	0A00	03AC
TRM Trailer Module (TRM)	791-02-06	001E	000E	07D3
TRM Trailer Module (TRM)	791-02-07	D000	0000	0071
TRM Trailer Module (TRM)	791-02-08	0000	0000	00A2
TRM Trailer Module (TRM)	791-02-09	0000	00A3
TRM Trailer Module (TRM)	791-03-01	D000	6464	0034
TRM Trailer Module (TRM)	791-03-02	0000	9D
TRM Trailer Module (TRM)	791-04-01	0000	00FA	0097
TRM Trailer Module (TRM)	791-04-02	FA00	FA00	FA8C
TRM Trailer Module (TRM)	791-04-03	0000	0000	009F
TRM Trailer Module (TRM)	791-04-04	0000	00A0
TRM Trailer Module (TRM)	791-05-01	0000	0000	009E
TRM Trailer Module (TRM)	791-06-01	FFFC	FFFC	FF94
TRM Trailer Module (TRM)	791-06-02	F33F	FCFF	FFCC
TRM Trailer Module (TRM)	791-06-03	FF00	7BFF	3C56
TRM Trailer Module (TRM)	791-06-04	8022
TRM Trailer Module (TRM)	791-07-01	03EA	0514	04AA
TRM Trailer Module (TRM)	791-07-02	4B05	6501	0057
TRM Trailer Module (TRM)	791-07-03	0100	0100	01A5
TRM Trailer Module (TRM)	791-07-04	0001	0000	04A8
TRM Trailer Module (TRM)	791-07-05	0005	0004	00AD
TRM Trailer Module (TRM)	791-07-06	5C00	7500	5CD2
TRM Trailer Module (TRM)	791-07-07	05DC	04C3	0654
TRM Trailer Module (TRM)	791-07-08	8A00	0000	0031
TRM Trailer Module (TRM)	791-07-09	0000	A8
Side Object Detection Left	7C4-01-01	Bxxx	--		Left BLIS	3=Auto / No Trailer B = Auto /Trailer	7=Manual / No Trailer F=Manual / Trailer
Side Object Detection Right	7C6-01-01	Bxxx	--		Right BLIS	3=Auto / No Trailer B = Auto /Trailer	7=Manual / No Trailer F=Manual / Trailer
Accessory Protocol Interface Module	7D0-01-03	xxxx	xxx4	xx--	Trailer Setup Configuration	0=Disabled	4=Enabled
Accessory Protocol Interface Module	7D0-01-04	xxx6	xxxx	xx--	4 Pin/7 Pin Connector	2=No Connector	6=Connector
Accessory Protocol Interface Module	7D0-09-02	Cxxx	xxxx	xx--	Trailer Sway	4 =Disabled	C=Enabled

The TRM are listed because those should be the exact same for everyone's vehicle (2025+ has different settings , but still the same across the 2025+ vehicles)

I listed all the values because they're only related to the TRM module.

The ones that have x's. Those are across different modules.
Instrument control panel , blind spot monitoring, the sync screen.
People can have different values based on configure etc.
Those X's can be different between everyone's vehicles and have nothing to do with the tow module.
I hope that makes sense.
Just send me a PM if there's something specific or I can help more.
