Heritage Edition Wheels Weight (lbs) and Specs (offset, width, bolt / lug pattern / hub bore)

[rcl4668]

I ordered a set of Heritage Edition Limited rims for my Heritage Edition to use as a set of spare rims for winter tires next season. I recall that someone on the forums was compiling a list of dimensions and specs for the various Bronco wheels so here goes:

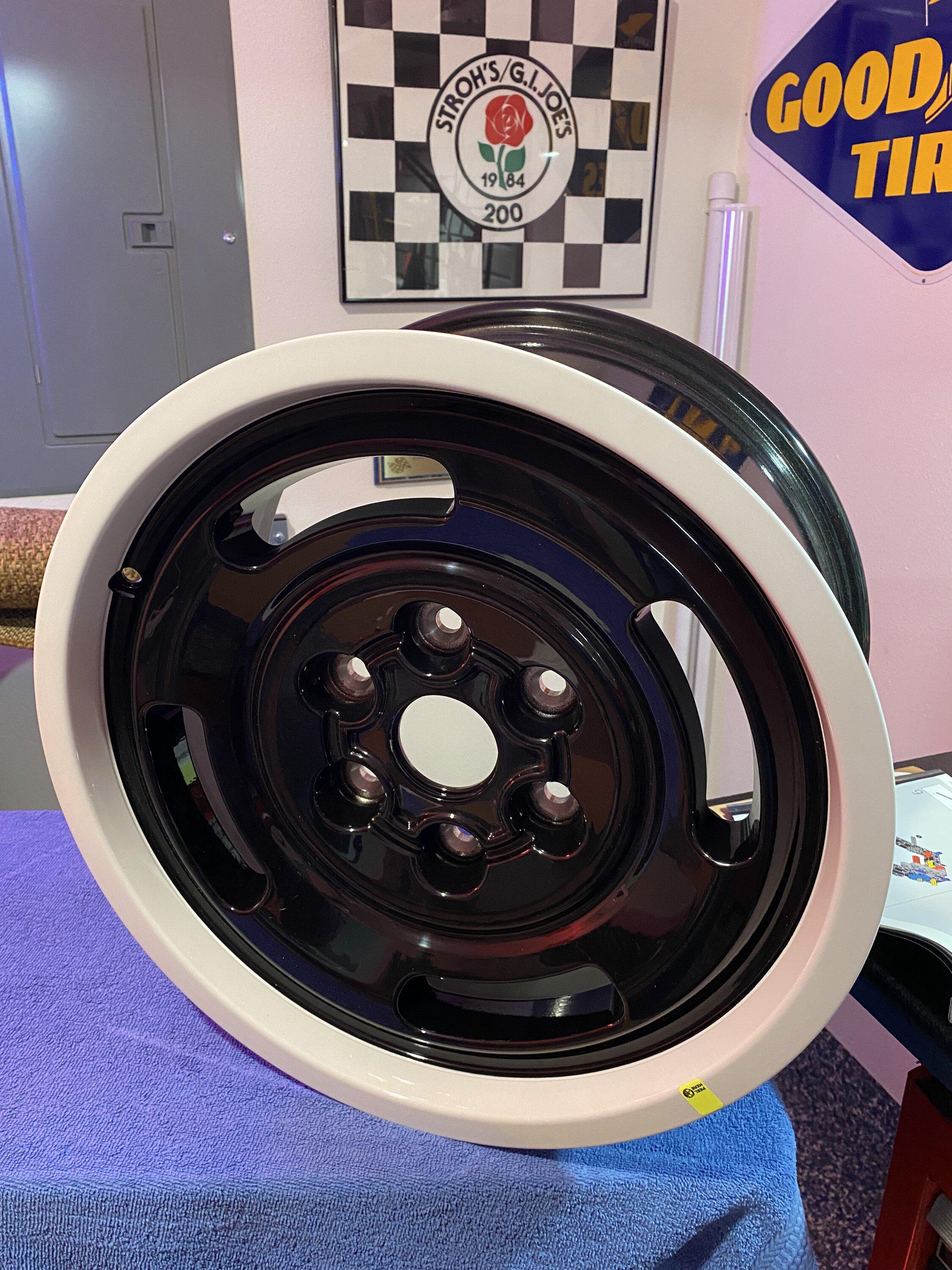

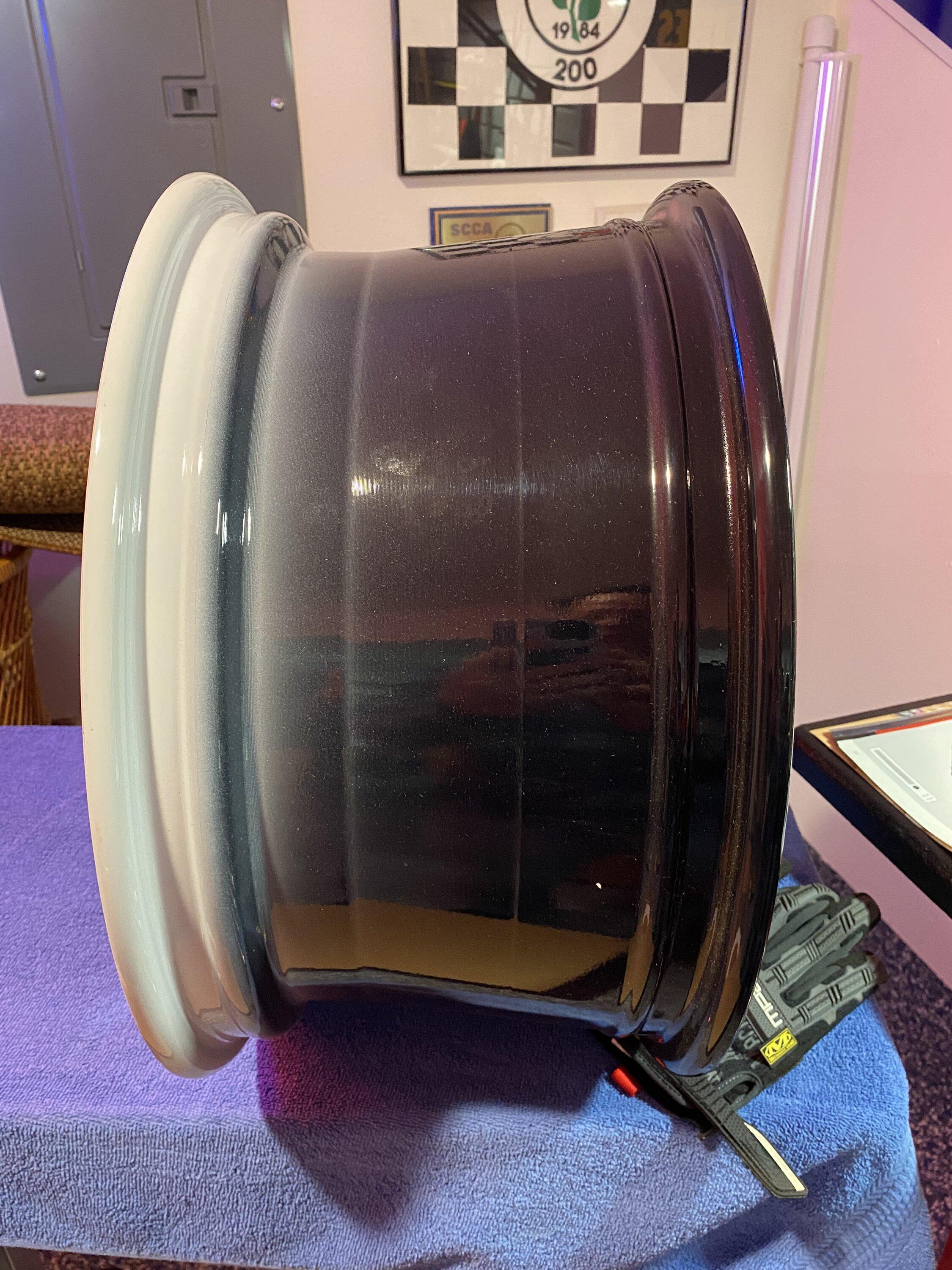

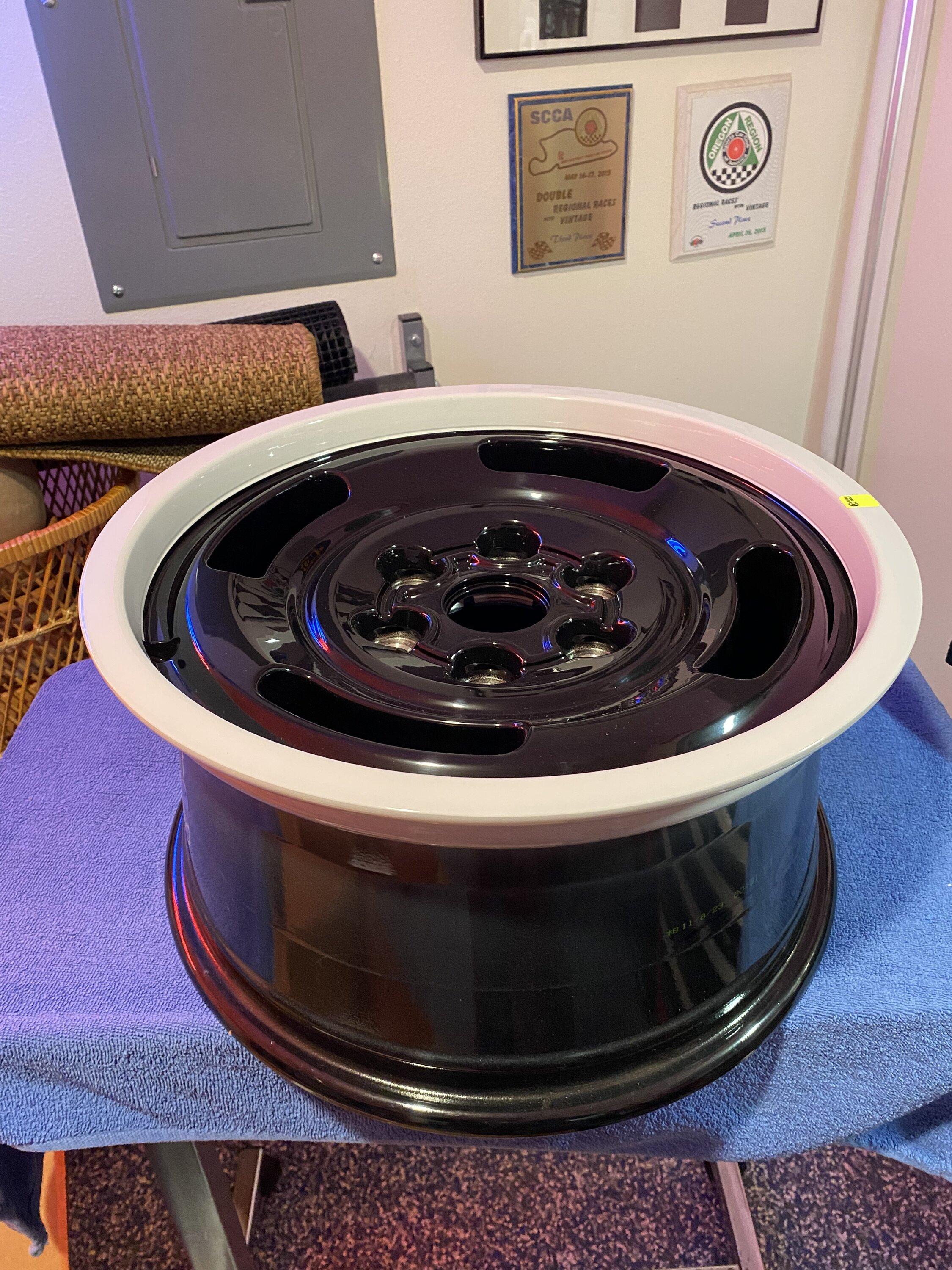

OEM Heritage Edition Limited rims, black centered with white lip

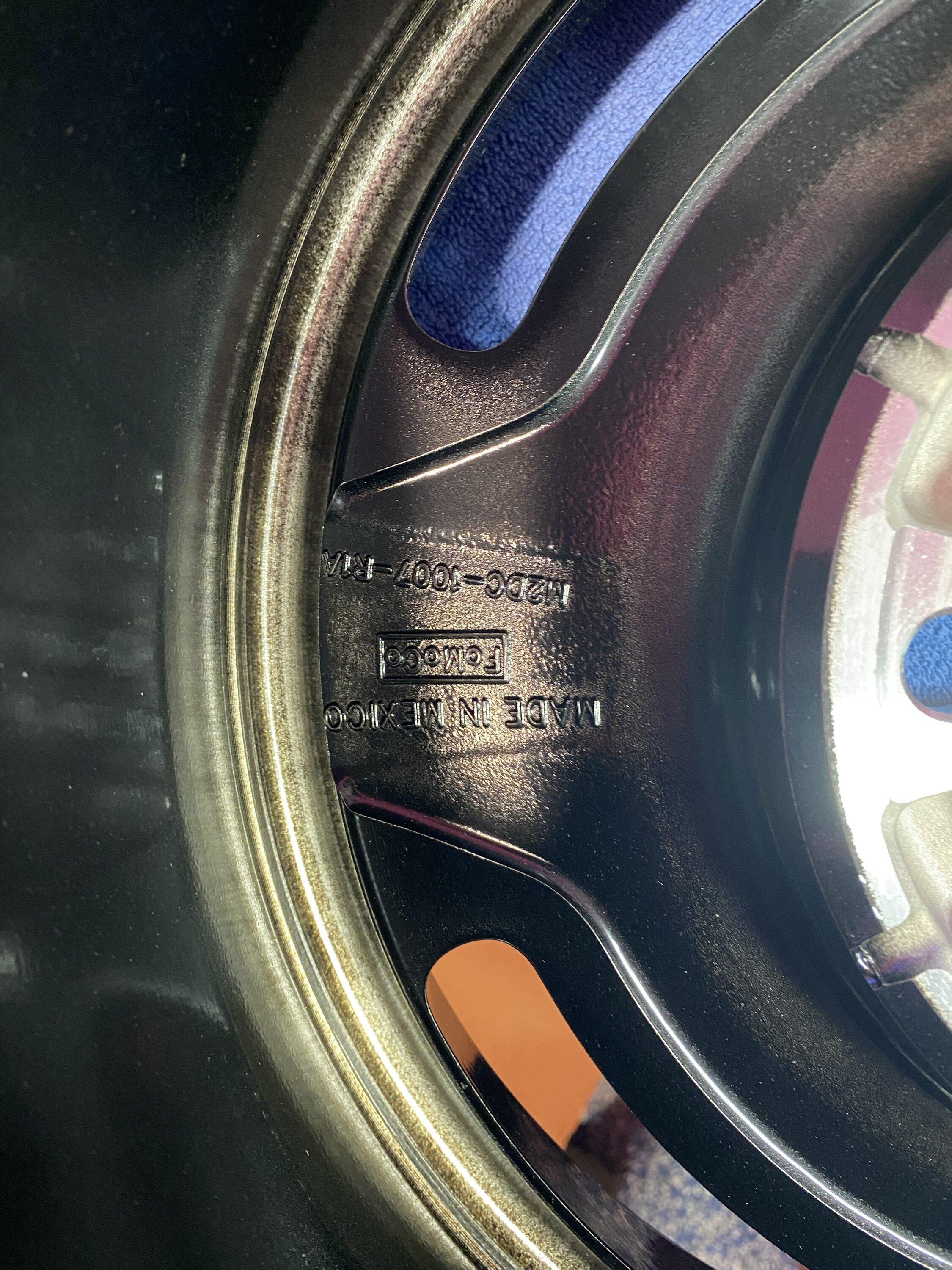

Ford Part No. M2DZ-1007-V

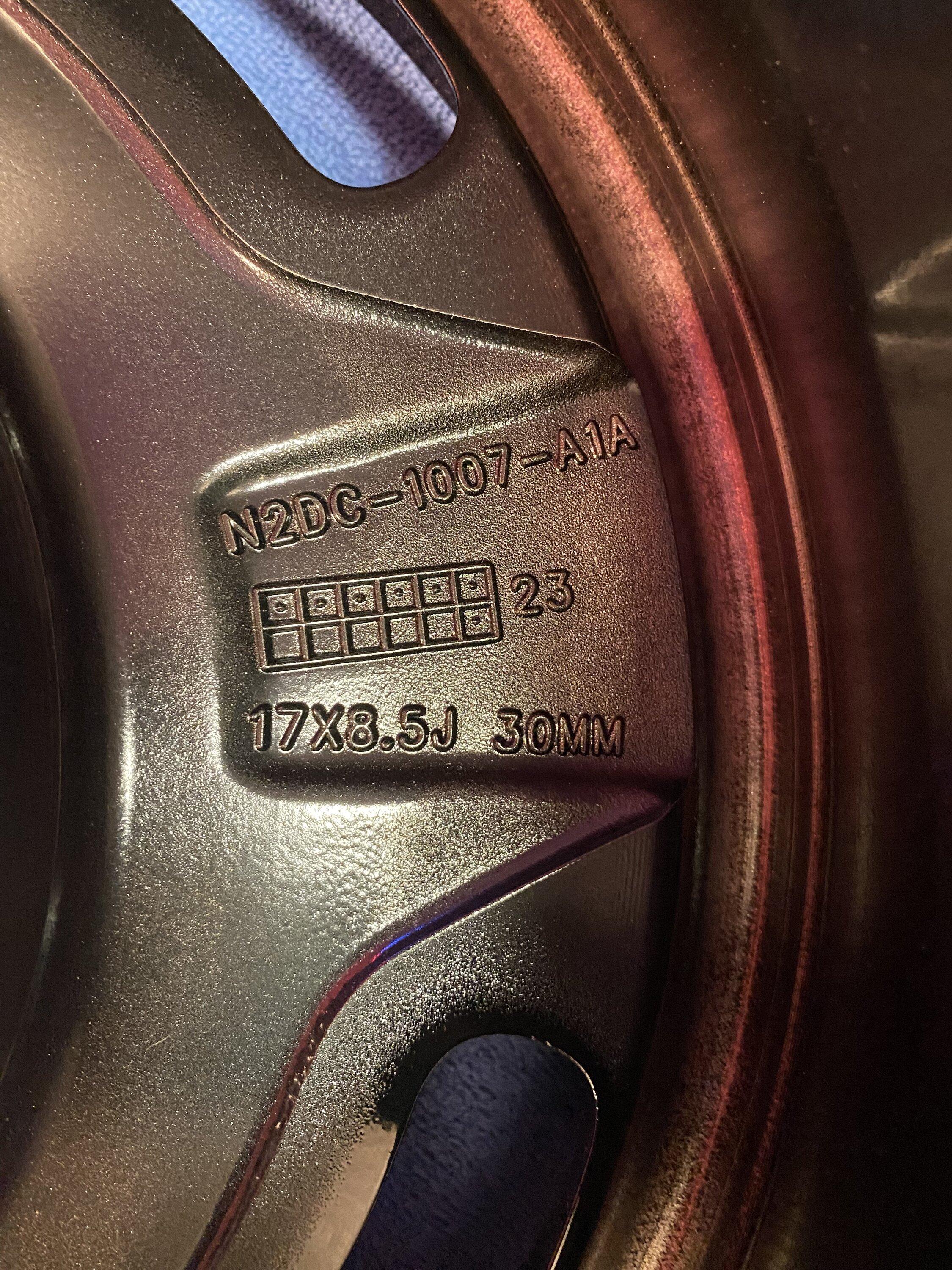

17x8.5
Weight 27 lbs
ET30 mm offset
6 x 139.7 (6x5.5) bolt/lug pattern
93.1 hub bore

The weight was measured on my bathroom scale a few times and came out consistently at 27 lbs. I assume these specs are the same for the standard Heritage Edition white rims as the only difference appears to be the paint job between the two.

Sponsored



[Bschurr]

@RagnarKon
For your list of wheel details…



[RagnarKon]

I did not know the hub bore dimensions for the wheel. Is that something that is listed in one of the pics below or does anyone know what the hub bore is for these rims? Thanks!

93.1

And thanks for the tag @Bschurr ... updating the list.



[rcl4668]

93.1

And thanks for the tag @Bschurr ... updating the list.

93.1 is the hub bore? Thank you so much!



[Cardboardbronco]

Where did you order them from?



[604Bronco]

93.1 is the hub bore? Thank you so much!

Might want to update/edit your original post with that - Lots of people won't read further than the first post



[DarkHelmet]

Where did you order these? And how much did they run you?



[tock13]

x2 on the above post. I would love to get a set, powder coat them gray to replace my SAS wheels with.



[rcl4668]

Where did you order them from?

My Ford dealer where I purchased my HE. The wheels came in fairly quickly, about two weeks turnaround. Much pricier than aftermarket options like the Fifteen52 Analog HD wheel.



[rcl4668]

Where did you order these? And how much did they run you?

$633.44 per rim. Again, pricier than most aftermarket options but I liked the OEM look and the 30mm offset compared with the 0mm offset of the Analog HDs (which is also a great looking rim).



[rcl4668]

Might want to update/edit your original post with that - Lots of people won't read further than the first post

It looks like the magical internet fairies already edited my post for me!



[HotdogThud]

Man, Stig has a much better camera now.



[peterh]

I really wish an aftermarket company would do a wheel like this in polished aluminum and high offset - there is a gap in the market for that retro mag wheel in polished and at minimum poke offset. Lots of old school broncos don't poke!



[rcl4668]

I really wish an aftermarket company would do a wheel like this in polished aluminum and high offset - there is a gap in the market for that retro mag wheel in polished and at minimum poke offset. Lots of old school broncos don't poke!

Agreed. I was ready to pull the trigger on the Fifteen52 Analog HD in white (beautiful wheel!) but that zero offset made them stick out just a bit too much for me.



[Rumbloki]

93.1

And thanks for the tag @Bschurr ... updating the list.

Do you have a link?
I don't know why this thread is a sticky and your list doesn't seem to be. Maybe I overlooked it?
