Positive Negitive speaker help

[broncocoy]

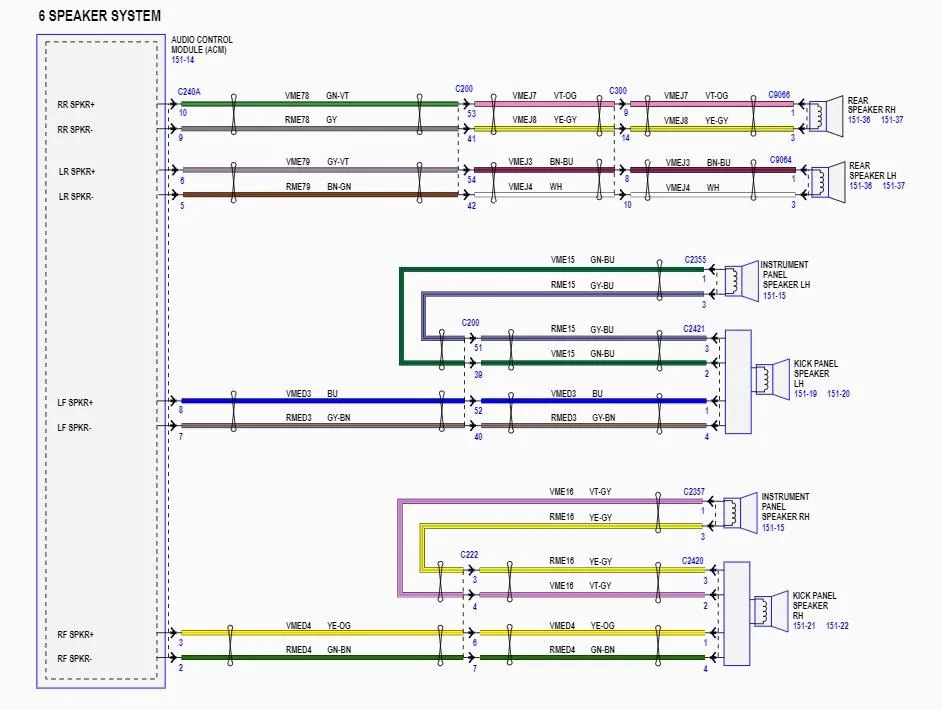

Based on this image can anyone tell me which is positive and which is Negitive? I am not sure if it matters when I am hooking up my new speakers….

Sponsored



[Havoc1]



[broncocoy]



[Havoc1]

Refer to my previous post



[broncocoy]

Still a tiny

Refer to my previous post

Sorry I am a bit confused based on that drawing in your post is the green positive?



[zombie]

It definitely matters (unless you somehow manage to hookup both ends backwards lol)

https://www.techguys.ca/howto/speaker.html



[flip]



[Havoc1]

Still a tiny

Sorry I am a bit confused based on that drawing in your post is the green positive?

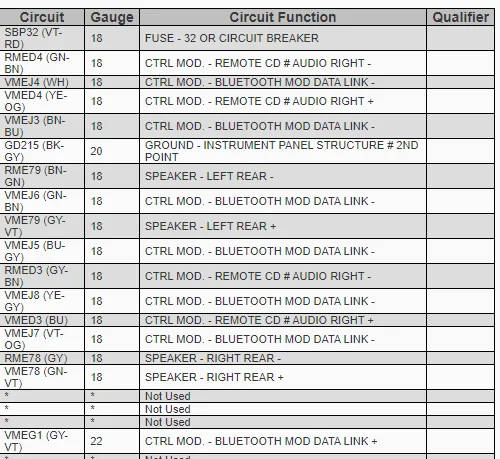

Click on it, and in the gray box it'll tell you what is what based off of what speaker you're working on.

But to answer your question, yes green with the blue tracer is positive



[Havoc1]

Looks like he's dealing with the instrument panel speaker so that image doesn't appear to have the wiring for them.



[broncocoy]

Lookin to try to figure out if the Green line is Postive or negitive.



[flip]



[Havoc1]

Lookin to try to figure out if the Green line is Postive or negitive.

Yes green is positive

Please don't take this the wrong way-
Schematic reading 101:

• You read left to right like a book so you see where everything starts.
• So in the one I posted you would see the +/- next to the appropriate speaker wire.
• Granted the speakers in the dash don't start there and they split off from the kick panels, so you look to see what wire is most similar to the other +/- (whichever you're looking for) in relation to position, symbols (in this case the vme and rme on the +/- wires).



[Ig_bronco]

Yes green is positive

Please don't take this the wrong way-
Schematic reading 101:

• You read left to right like a book so you see where everything starts.
• So in the one I posted you would see the +/- next to the appropriate speaker wire.
• Granted the speakers in the dash don't start there and they split off from the kick panels, so you look to see what wire is most similar to the other +/- (whichever you're looking for) in relation to position, symbols (in this case the vme and rme on the +/- wires).

Ehh, even with that through lesson It still isnt making sense to me. I wired mine a long time ago, showed my certified industrial electrician and he was stumped. Reading left to right I do see:
LF+ --> blue wire (kick panel)
LF- --> Gray-Brown.
These are on the same channel (similar to JKU)THEN two outcomes which isnt clear to me.
Blue turns into gray-blue or green blue? conversely
Gray brown turns into gray blue or green blue.

I see there are numbers 3,2,1,4 and the dash has 1,3... so seeing how the kick panel has a 1 and thus the dash has a 1, safe to assume the 1 would be your positive?

After a headache i just called crutchfield and had them help me



[broncocoy]



[broncocoy]

We are in business! Thanks all!!
